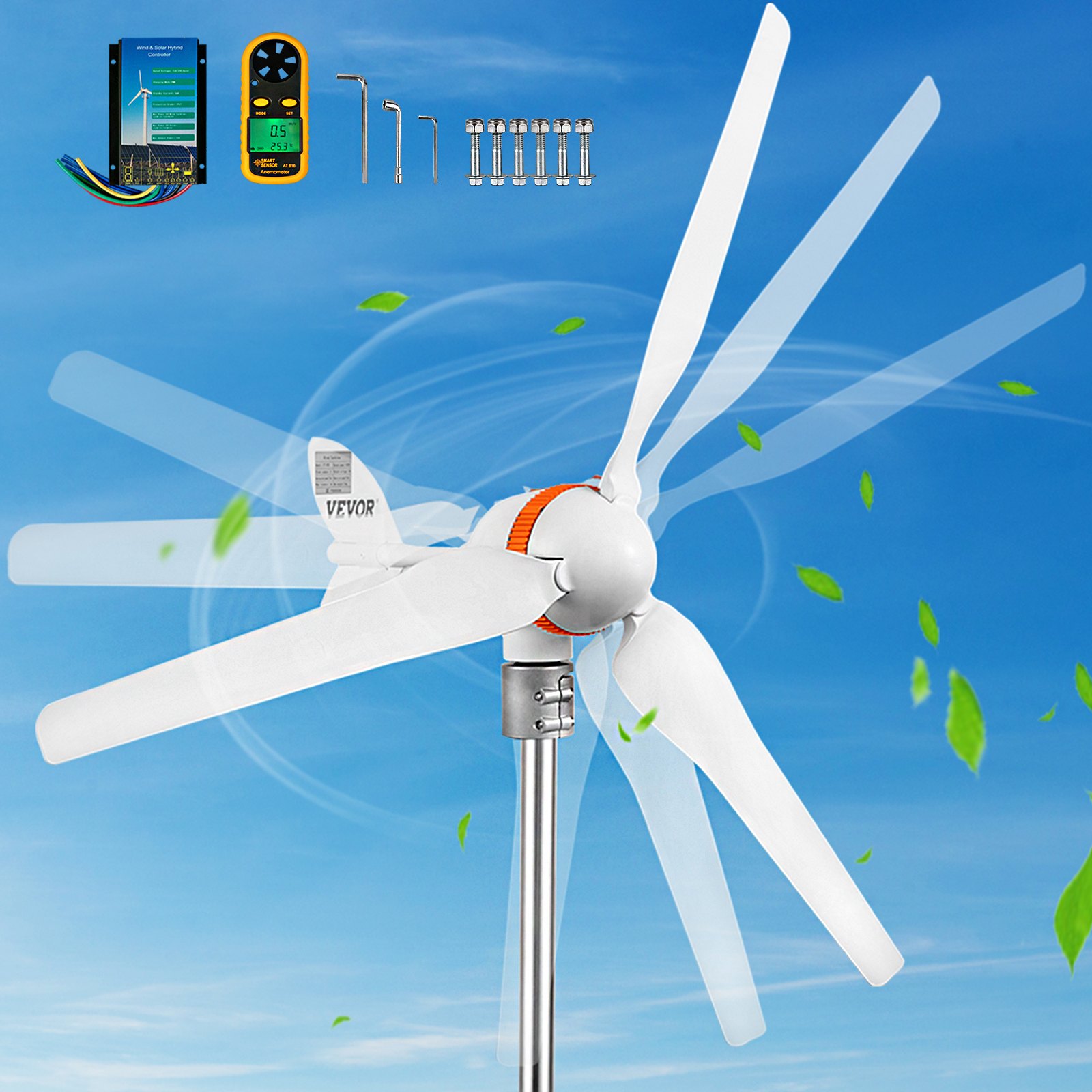

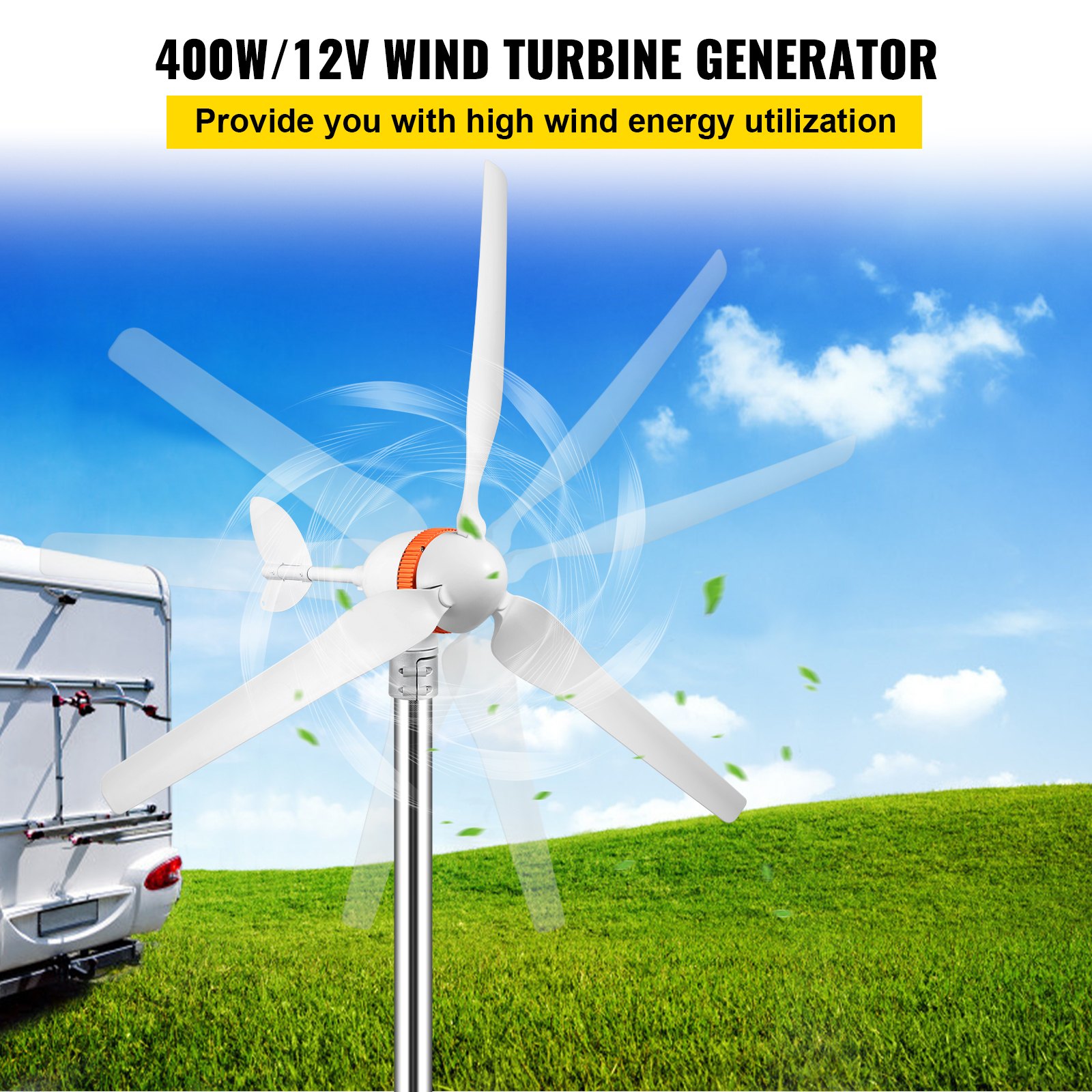

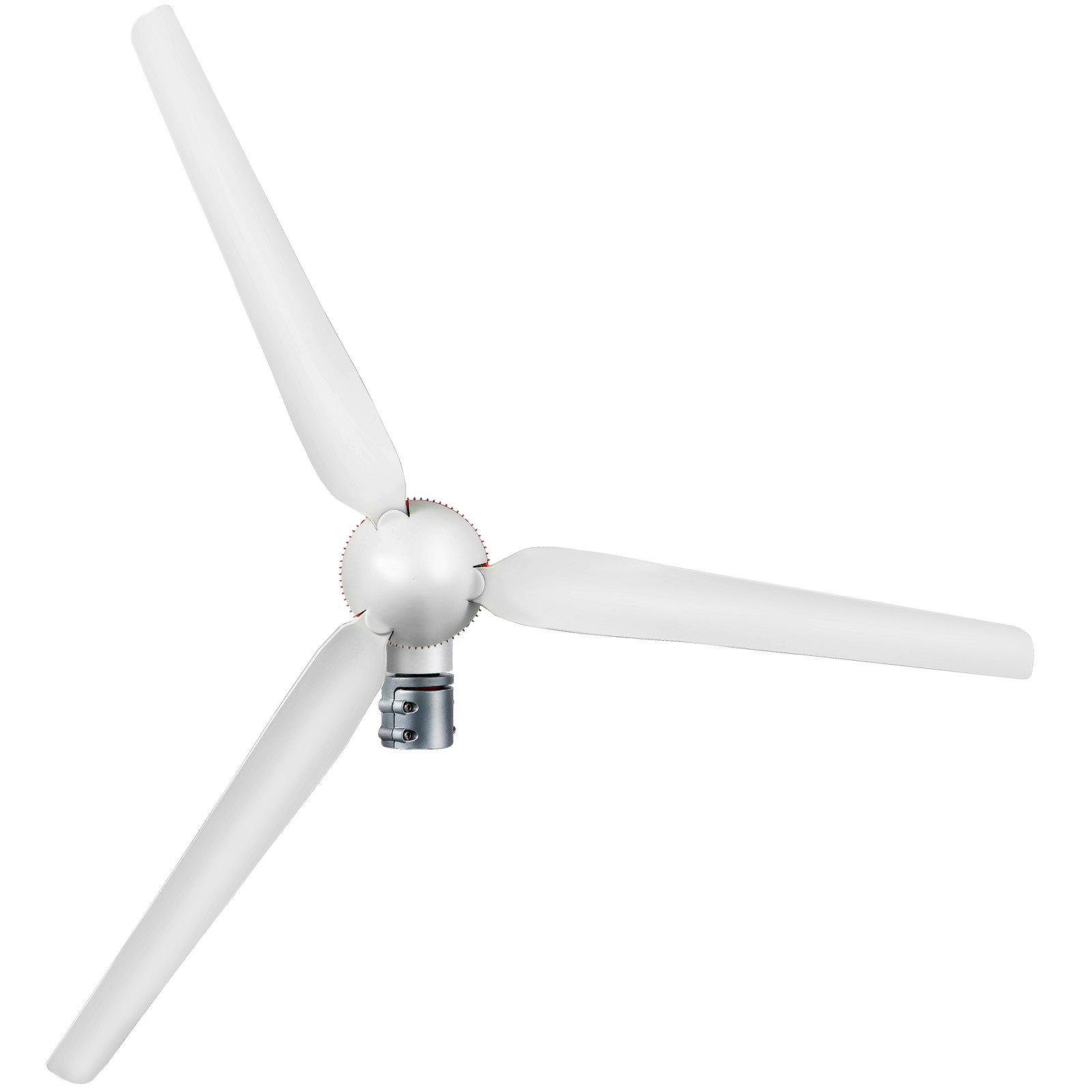

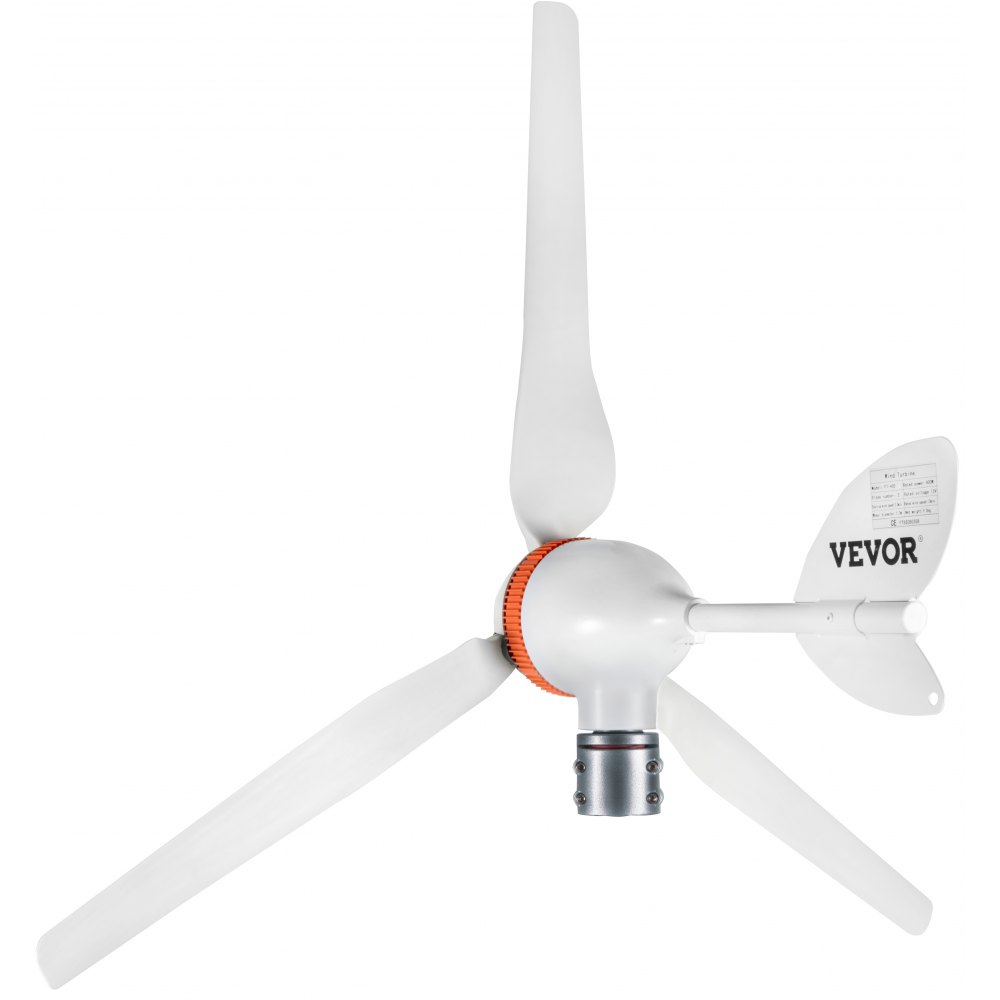

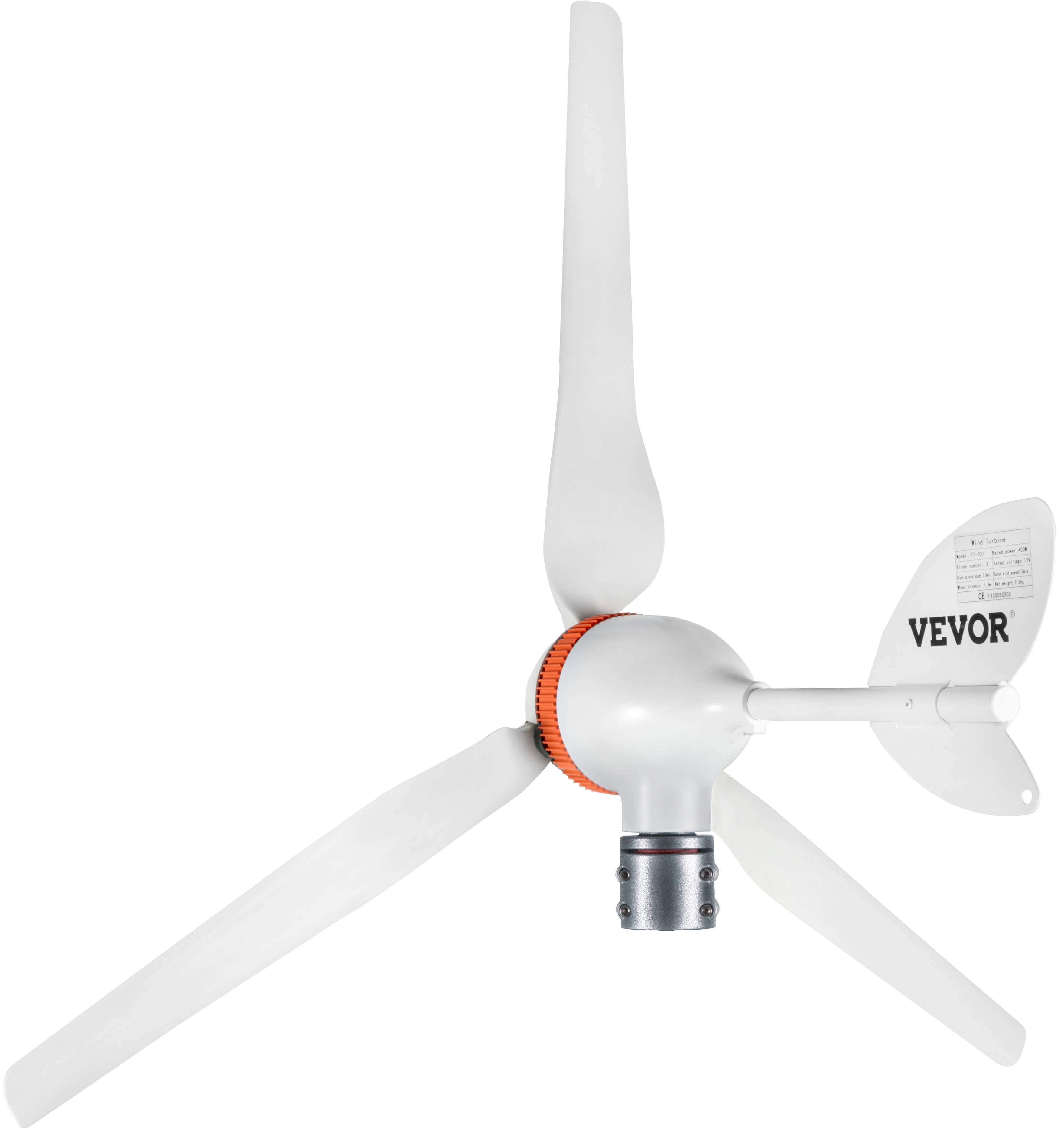

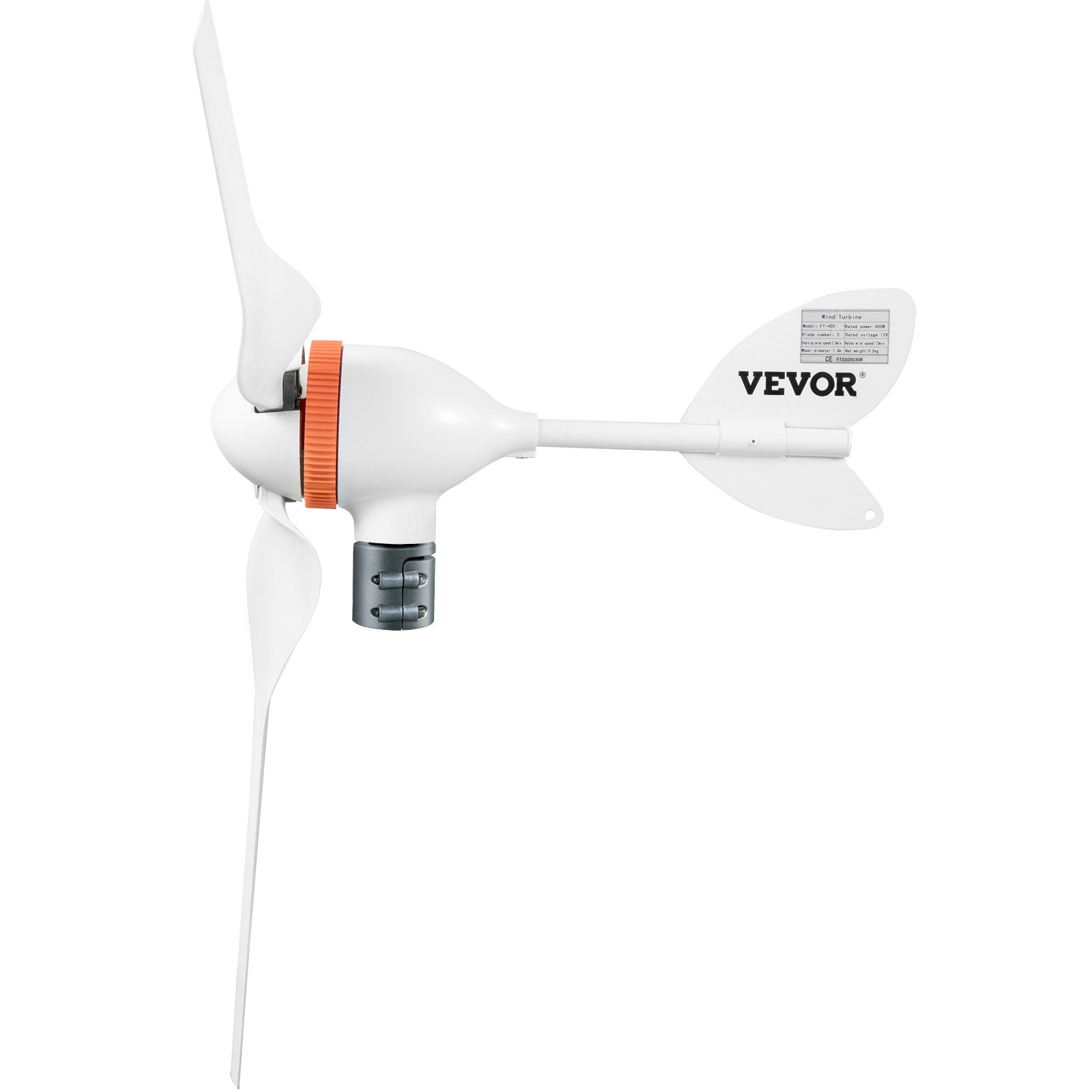

400W/12V Wind Turbine Generator 3 Blades
This wind generator comprises a high-quality aluminum body, a stainless steel tail, and a nylon carbon fiber blade. The turbine adopts a three-phase magnet motor, external wind & solar hybrid controller, and installed hoop to provide you with high power efficiency and effortless installation. In addition, the turbine features low start-up speed, high wind energy utilization, low vibration, and a beautiful appearance, suitable for marine, boat, backyard, and other home charging usage.
- Wind & Solar Controller
- Low Start-up Speed
- Easy Assembly
- High-quality Material

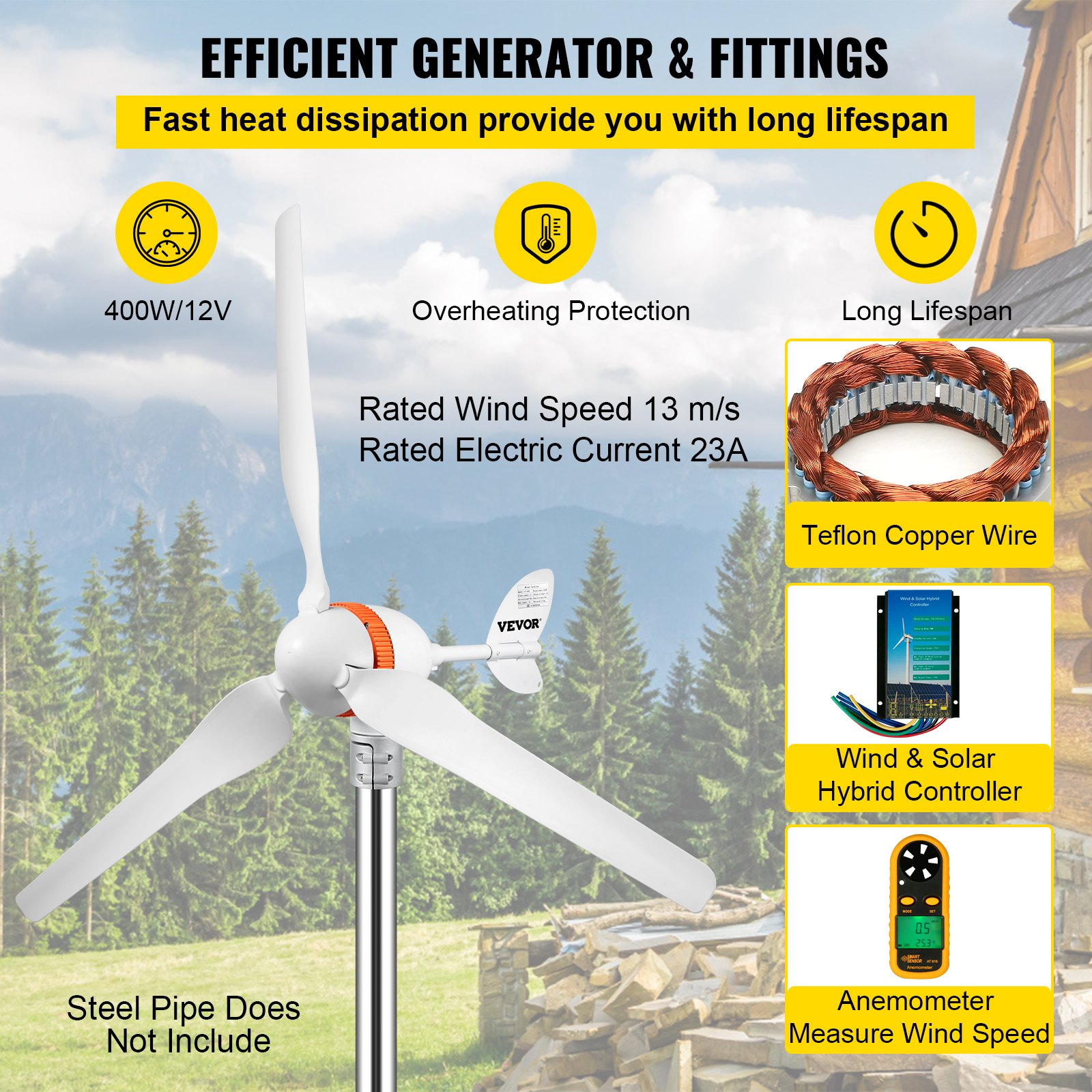

Efficient Generator
Our windmill turbine adopts a 400W/12V three-phase synchronous motor with a high-performance NdFeB permanent magnet. The external wind & solar hybrid controller and Teflon copper wire feature overheating protection. The outer shell is designed for fast heat dissipation, provides you with long-term use. In addition, you can use an anemometer to measure wind speed.

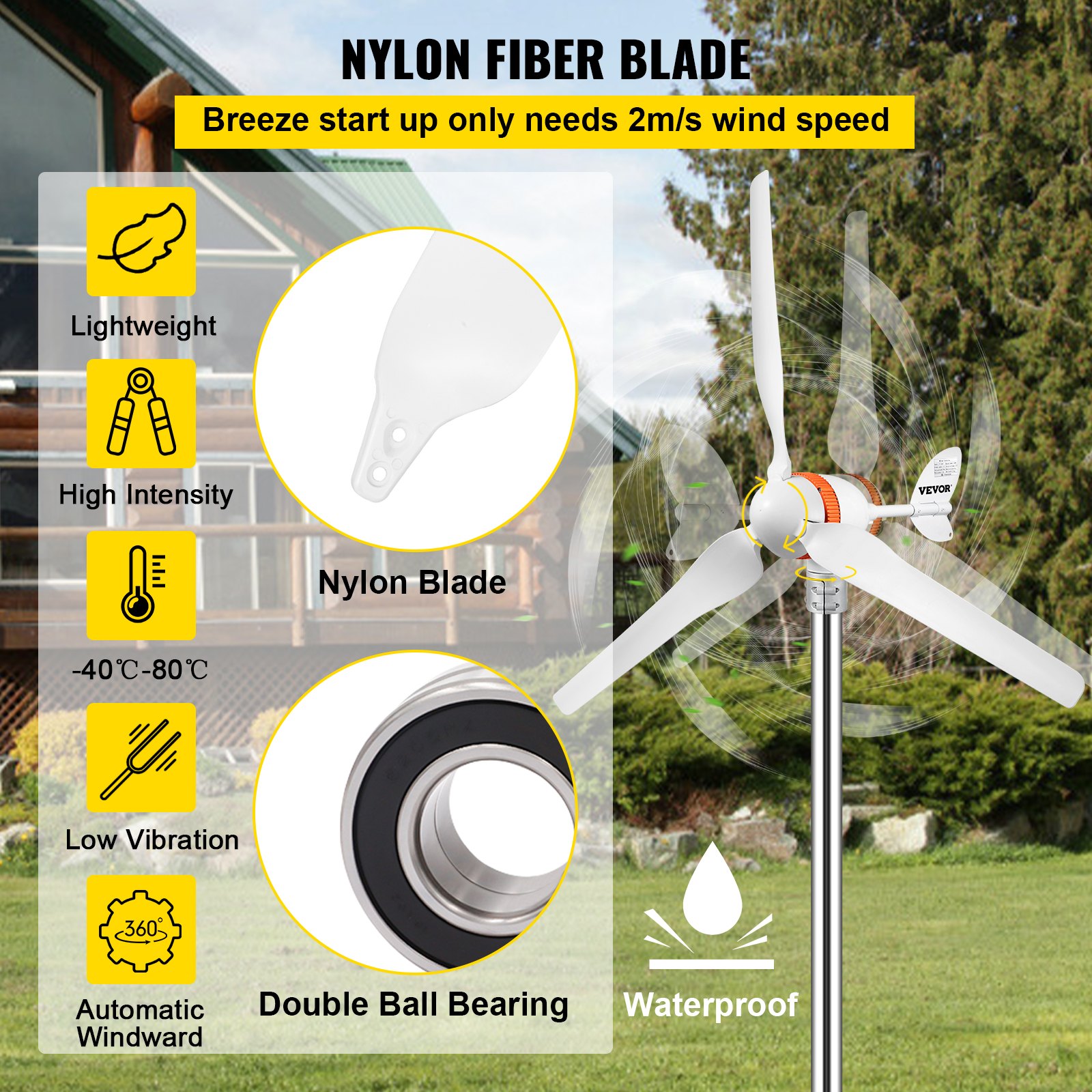

High-Quality Blade
The longer the turbine blade is, the more power it produces. The blade is made of nylon carbon fiber, 47in/120 cm in rotor diameter. Nylon material features waterproof, corrosion-proof, and lightweight. In addition, the working temperature is -40℃~80℃, so you do not need to worry about using it under bad weather.

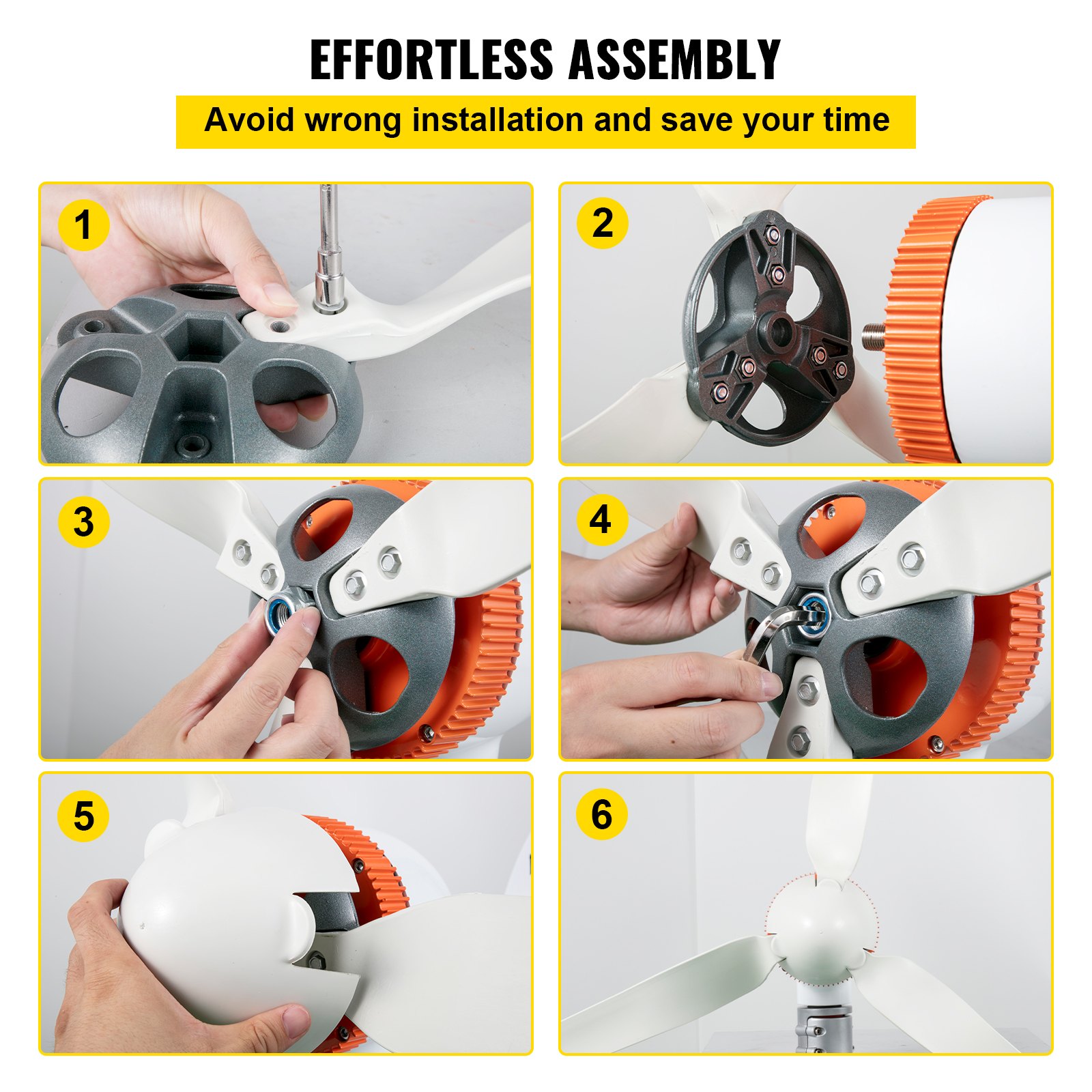

Effortless Installation
Our wind power generator features hoop installation, double side blade design, and accurate hub & blade groove. This upgraded wind turbine provides you convenient and fast assembly, avoiding the wrong installation of flange type, saving more effort and time for you.
Low Wind Speed Start
The windmill generator can start at a wind speed of 2m/s, survive at 40m/s. The blade features a yaw adjustment system. It can automatically adjust direction to capture the maximum wind energy. Also, with a double ball bearing design, the turbine will have low vibration when the blade is rotating.

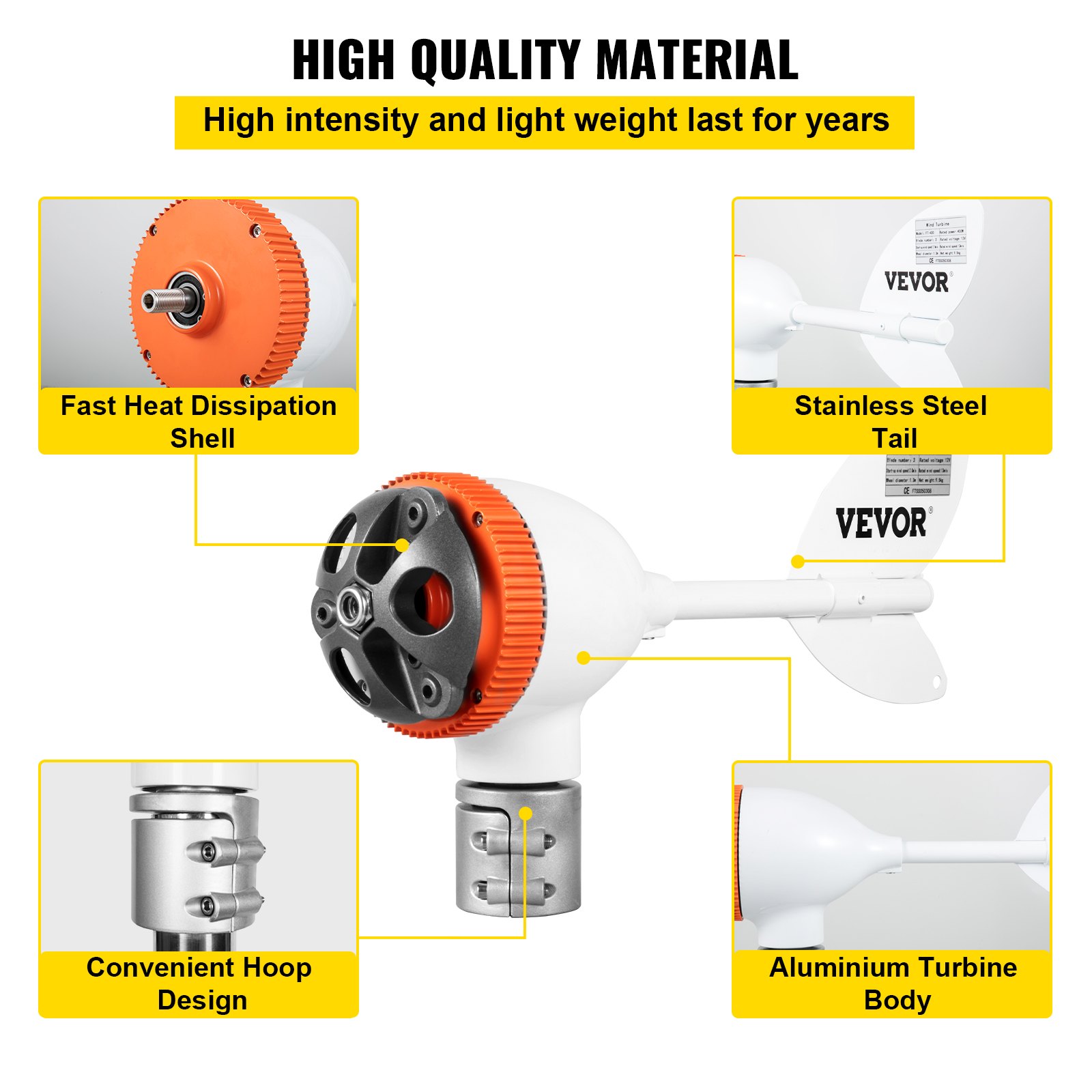

Premium Material
This home wind turbine is combined with a die-casting aluminum body and a stainless steel tail. The features are casting shape in one, high intensity. In addition, the surface of the turbine is finished with baking varnish, which features corrosion-proof, waterproof, and durable for a long lifespan.
Wide Application
The small wind turbine generator kit can produce energy to meet your various charging requirements. Meanwhile, it is convenient to install and maintain, perfectly suitable for charging needs of home monitoring, motorhome, boats, gazebos, chalets, marine, etc.

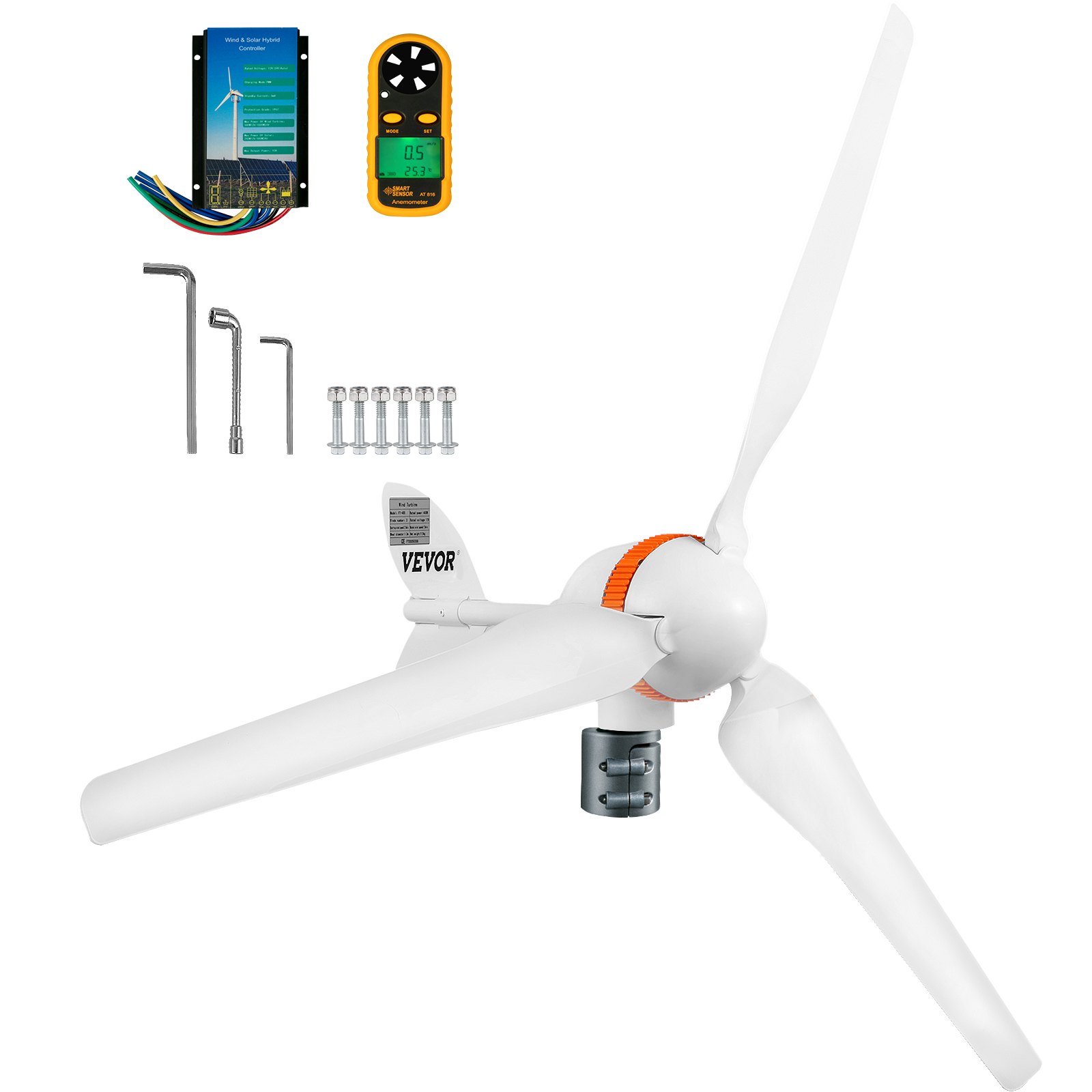

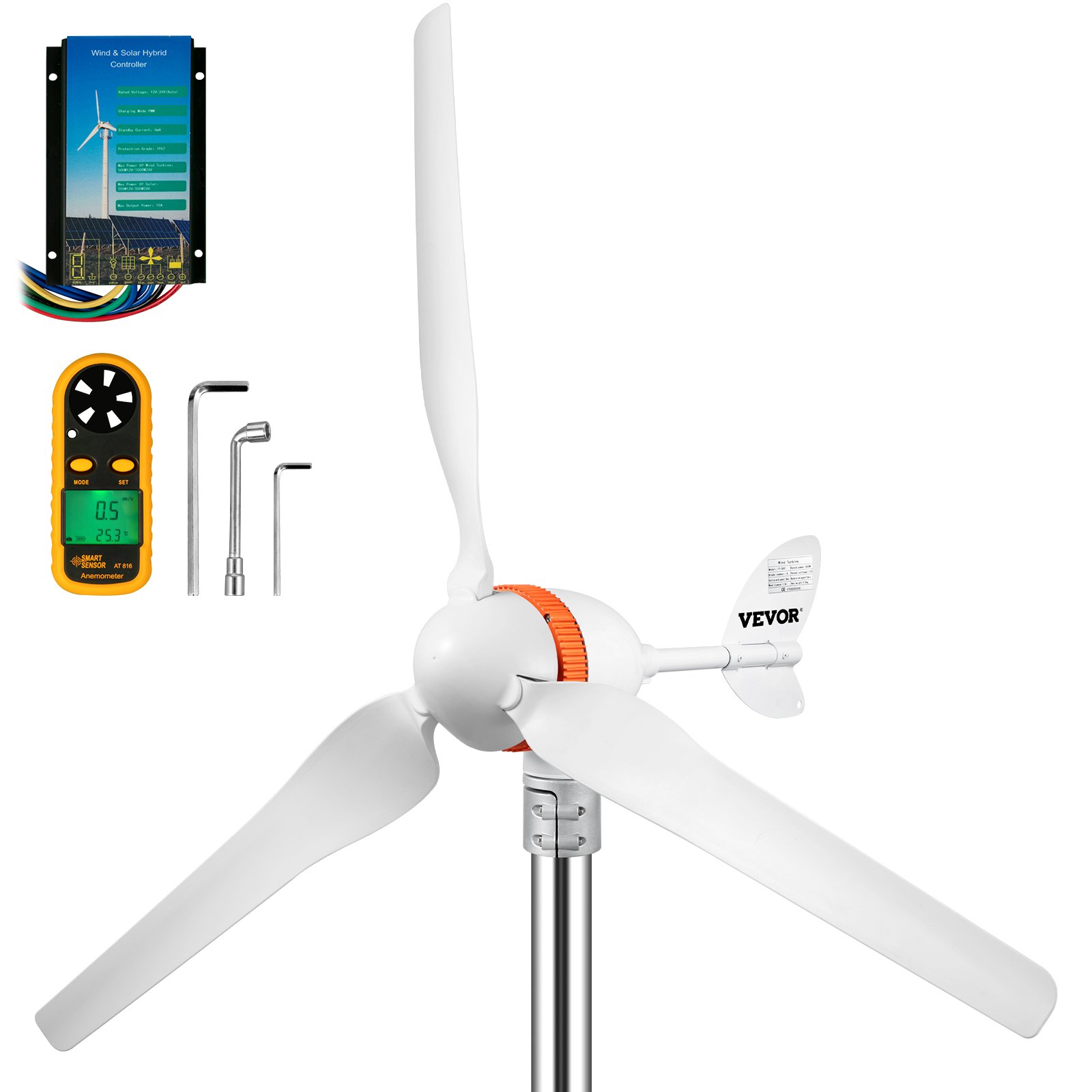

- 1 x Wind Turbine Generator
- 1 x Wind & Solar Hybrid Controller
- 1 x Set Screws and Nuts
- 1 x Instruction Manual
- 1 x Anemometer
- 3 x Nylon Blades
- Steel Pipe Does Not Include
- Model: VV-FLFDJ-S7-3Y400W12VFHKZQFSY
- Rated Power: 400W
- Rated Voltage: 12V/AC
- Rated Current: 23A

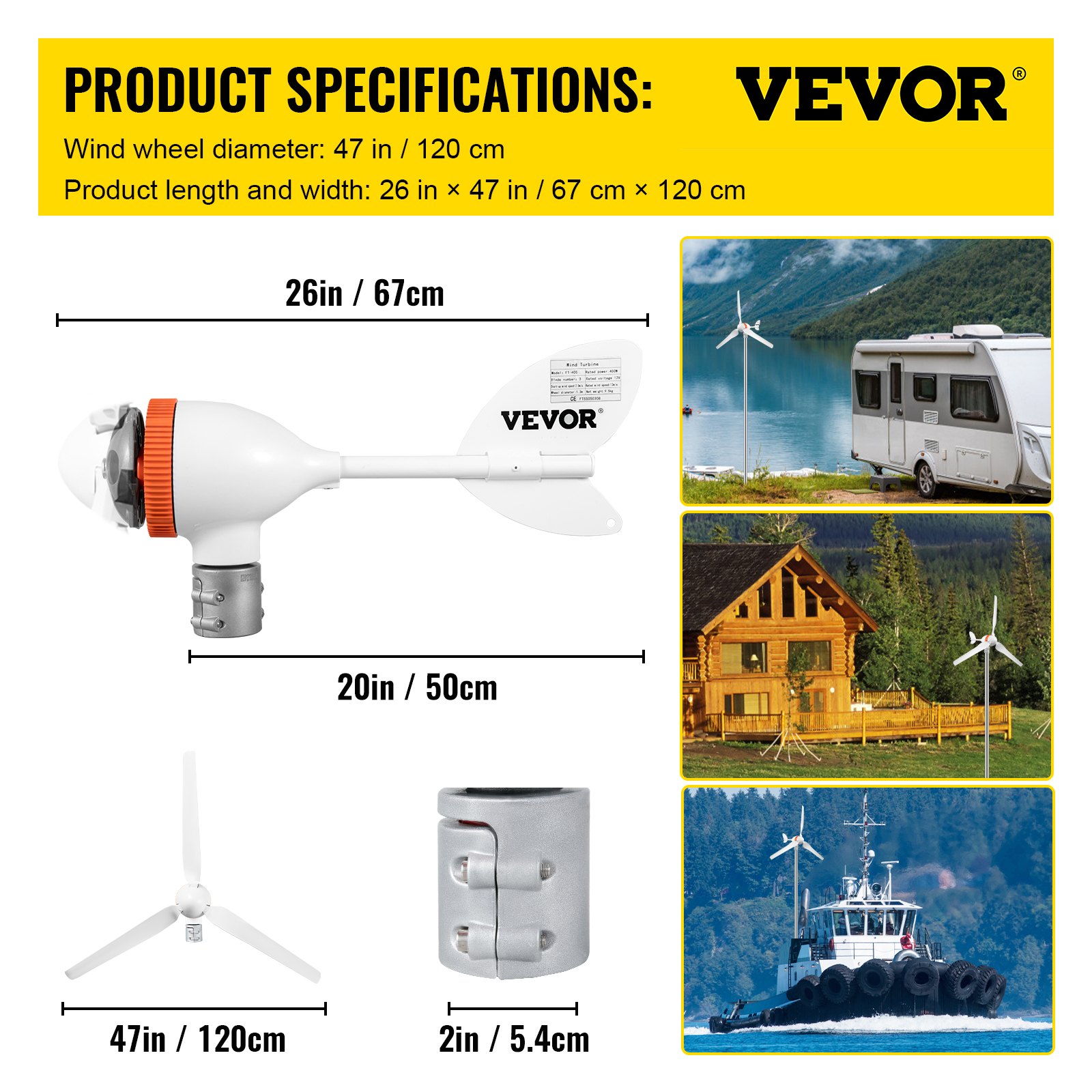

- Hoop Diameter: 2 in/54 mm
- Rotor Diameter: 47 in/1.2 m
- Net Weight: 18.5 lb/8.5 kg
- Blade Numbers: 3
- Blade Material: Nylon Carbon Fiber
- Start-up Wind Speed: 6.56 ft/s(2 m/s)
- Rated Wind Speed: 42.65 ft/s(13 m/s)
- Survival Wind Speed: 131 ft/s(40 m/s)
- Rated Speed: 900r/min
- Working Temperature: -104℉~176℉/-40℃~80℃
- Package Dimension: 27x11.5x7.5 in/69x29.5x19.5 cm
- Generator: 3-Phase AC Permanent Magnet
- Magnetic Material: Neodymium Iron Boron
- Controller System: Electromagnetic/Yaw
- Regulating Way: Automatic Adjustment
- Cabin Material: Die Casting Aluminum with Paint Coated Finish
- Tail Material: Stainless Steel with Paint Coated Finish
- Max. Discharging Current: 30A
- Solar Panel Power: 500W/12V
- Generator Braking Voltage: 14.5V
- Generator Recover Voltage: 13.2V
