VEVOR Industrial Water Chiller, CW-5202, Water Chiller Cooling System with Built-in Compressor, 7L Water Tank Capacity, 18L/min Max. Flow Rate, for CO2 Laser Engraving Machine Cooling Machine VEVOR Industrial Water Chiller, CW-5202, Water Chiller Cooling System with Built-in Compressor, 7L Water Tank Capacity, 18L/min Max. Flow Rate, for CO2 Laser Engraving Machine Cooling Machine VEVOR Industrial Water Chiller, CW-5202, Water Chiller Cooling System with Built-in Compressor, 7L Water Tank Capacity, 18L/min Max. Flow Rate, for CO2 Laser Engraving Machine Cooling Machine VEVOR Industrial Water Chiller, CW-5202, Water Chiller Cooling System with Built-in Compressor, 7L Water Tank Capacity, 18L/min Max. Flow Rate, for CO2 Laser Engraving Machine Cooling Machine VEVOR Industrial Water Chiller, CW-5202, Water Chiller Cooling System with Built-in Compressor, 7L Water Tank Capacity, 18L/min Max. Flow Rate, for CO2 Laser Engraving Machine Cooling Machine VEVOR Industrial Water Chiller, CW-5202, Water Chiller Cooling System with Built-in Compressor, 7L Water Tank Capacity, 18L/min Max. Flow Rate, for CO2 Laser Engraving Machine Cooling Machine VEVOR Industrial Water Chiller, CW-5202, Water Chiller Cooling System with Built-in Compressor, 7L Water Tank Capacity, 18L/min Max. Flow Rate, for CO2 Laser Engraving Machine Cooling Machine
GYLSJYSJS7L18IJHWV2

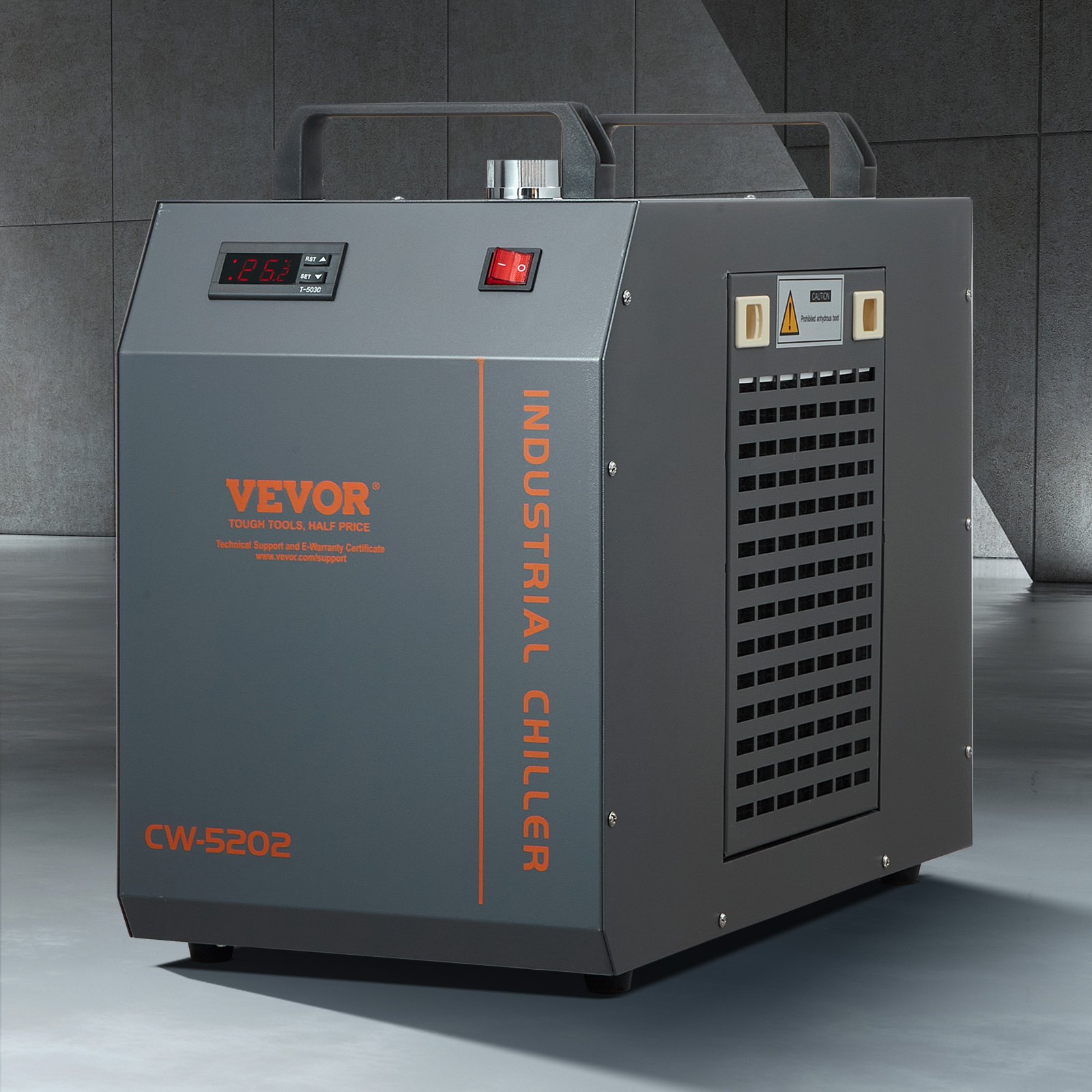

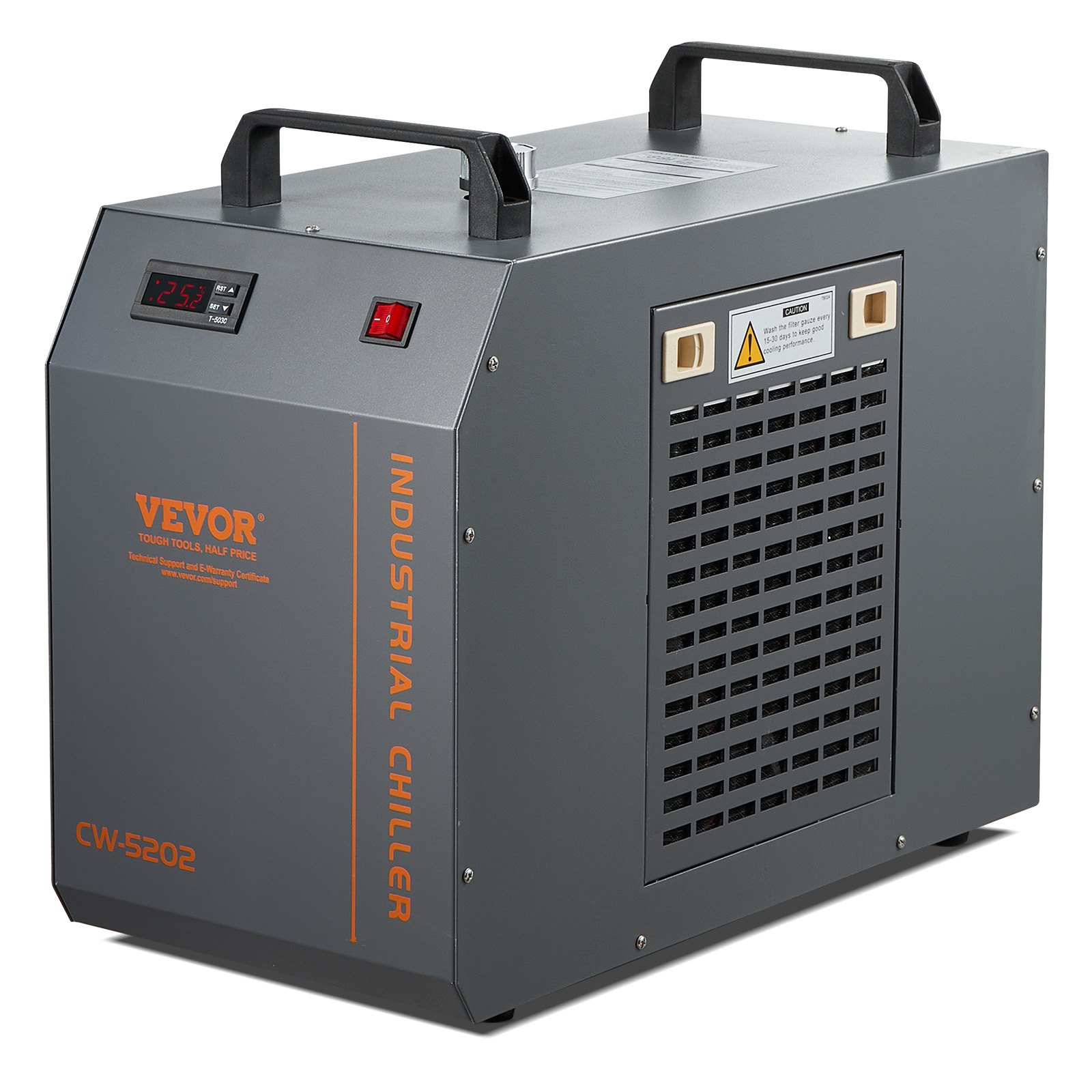

VEVOR Industrial Water Chiller, CW-5202, Water Chiller Cooling System with Built-in Compressor, 7L Water Tank Capacity, 18L/min Max. Flow Rate, for CO2 Laser Engraving Machine Cooling Machine

Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive 5,00€ off on your first three app orders. Only App.
Download Now
Exclusive 5,00€ off on your first three app orders. Only App.
Scan the QR code to download

Compressor Type

  • Air-Cooled
  • Compressor Type

7 L

  • 12 L
  • 15 L
  • 7 L
  • 9 L
  • 6 L

18 L/min

  • 18 L/min
  • 65 L/min
  • 7.2L/min
  • 10 L/min
  • 13 L/min
  • 12 L/min

About this item

  • CW-5202 Industrial Chiller: Our industrial chiller is equipped with a 48W high-power water pump, achieving a maximum flow rate of 18L/min, designed to cool CO₂ laser tubes during operation efficiently. It ensures optimal performance of the laser system and extends the life of the laser tubes, cooling two sets of laser tubes up to 180W each

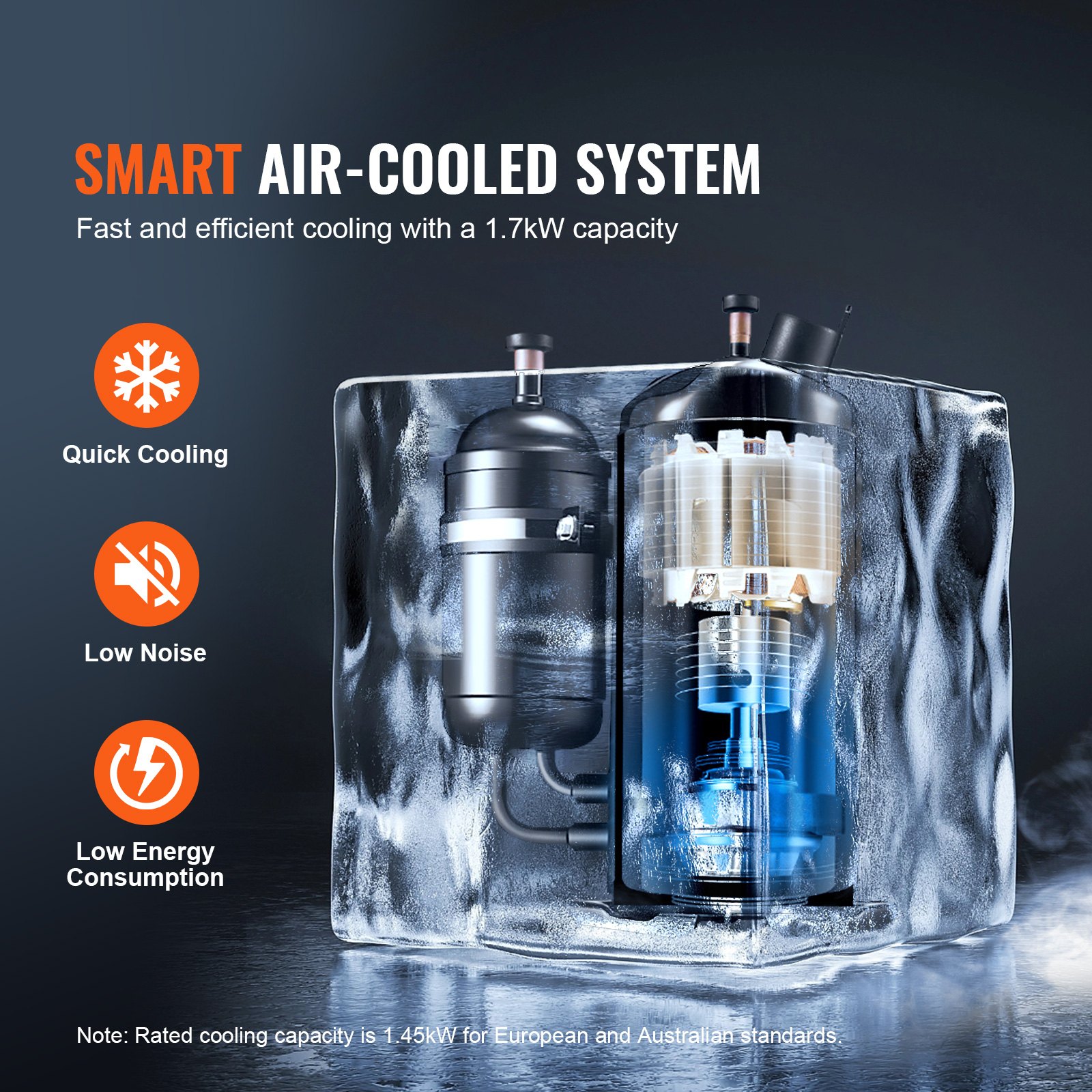

  • 1.45kW Cooling Capacity: Our industrial water chiller is equipped with a compressor that uses the standard R134a refrigerant, quickly reducing temperatures to your preset levels. It delivers a fast and effective cooling solution, ensuring that your laser cutting and engraving machines stay cool throughout their operation. Keep your equipment at the perfect temperature for optimal functionality.

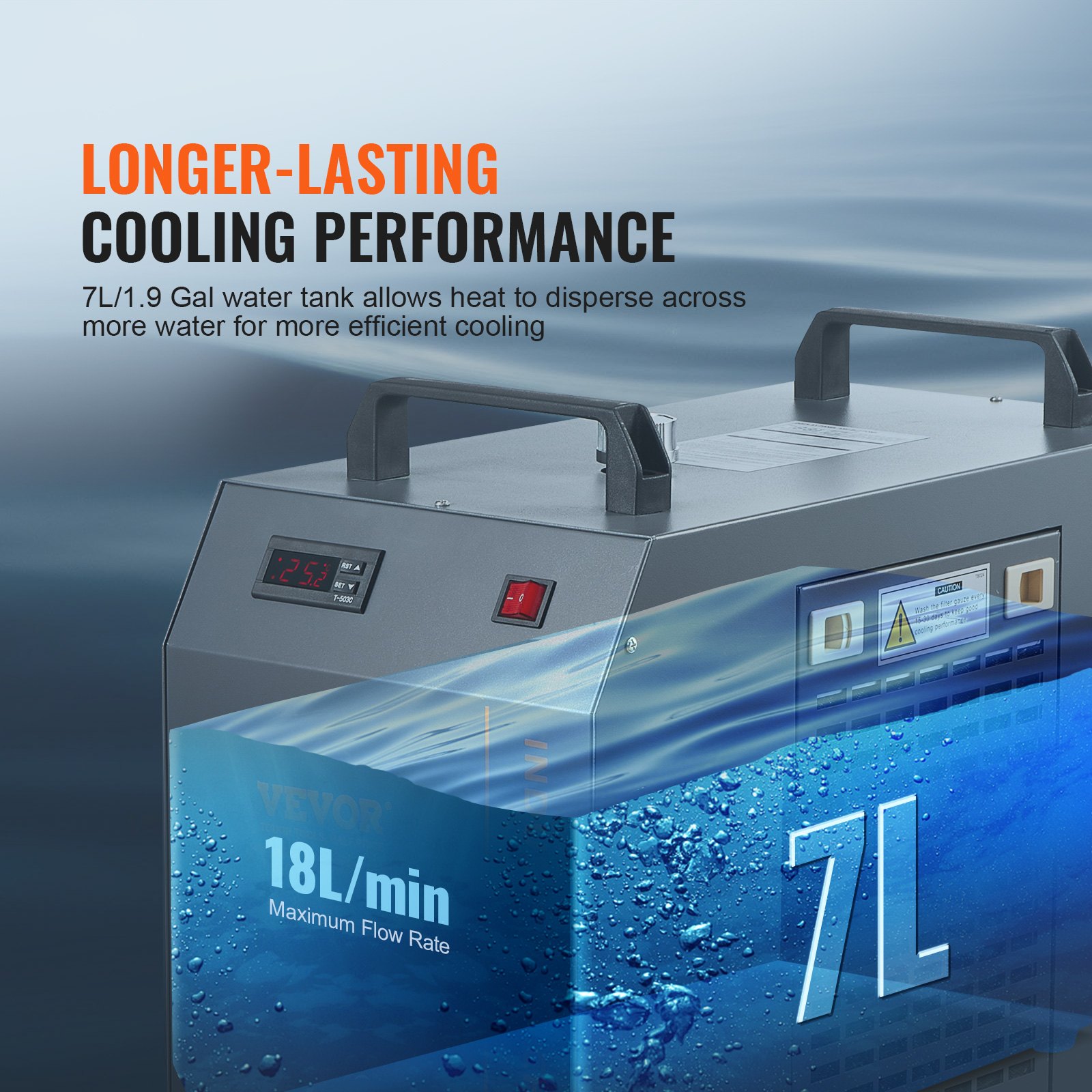

  • Longer-Lasting Cooling Effect: Featuring a large 7L water tank, our industrial water chiller allows heat to dissipate across a greater volume of water, offering a more sustained cooling effect. The clear observation window keeps you informed about when it's time to refill water. Say goodbye to constant check-ups and hello to continuous, seamless cooling.

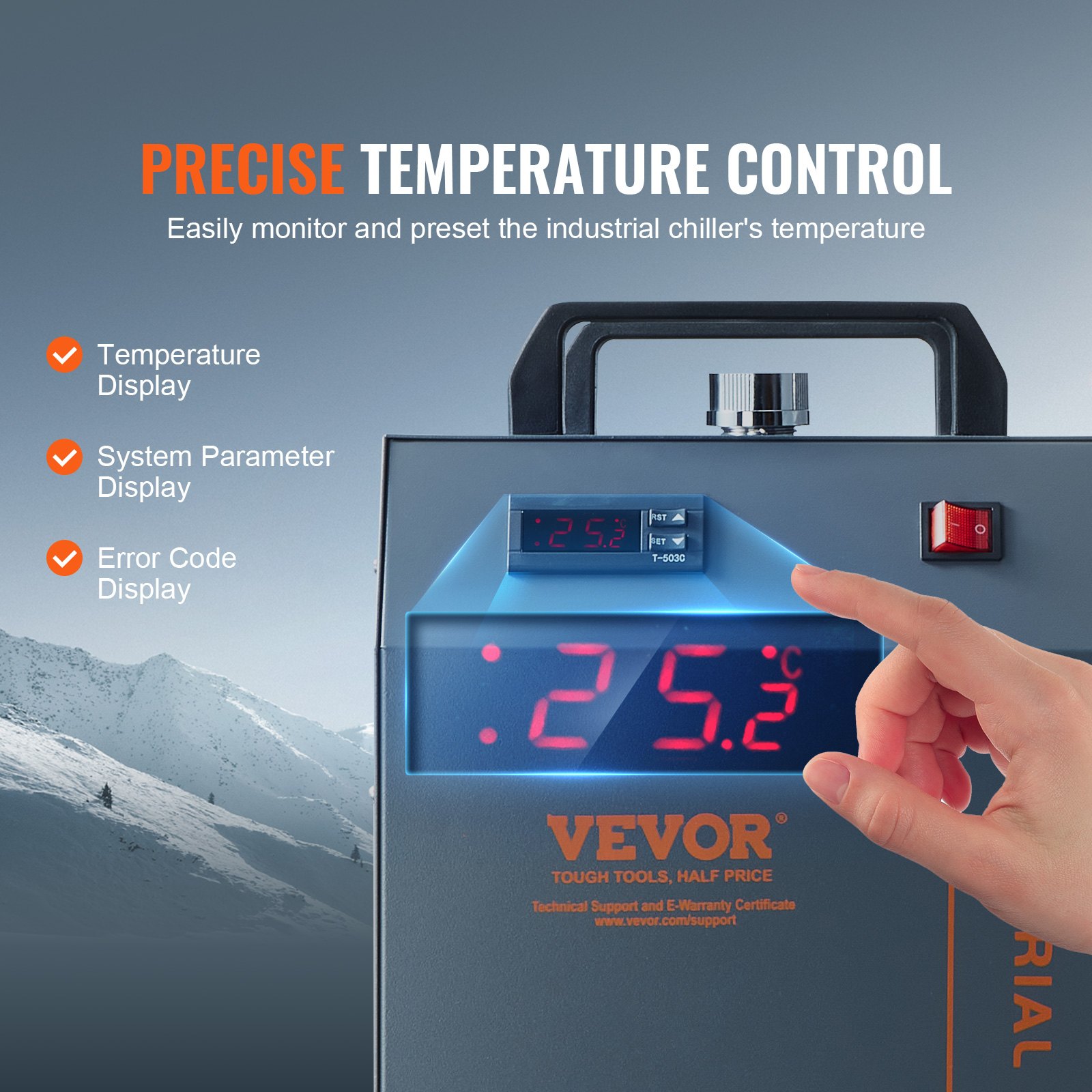

  • Instant Water Temperature Display: Experience real-time precision with our industrial chiller, equipped with an accurate temperature monitor that displays current water temperatures directly on the screen. Enhanced with 2 status indicator lights, ensuring you can precisely monitor the operational status of your industrial chiller. Stay informed and in control with real-time updates for peak performance!
  • Multiple Alarm Functions: Our professional laser chiller enables continuous monitoring with internal sensors, indicator lights, and built-in alarms. It is equipped with multiple alarm functions, including flow alarm, over temperature alarm, and water pump failure alarm, allowing you to focus on your work with peace of mind, knowing that your cooling system is fully safeguarded against potential issues.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Industrial Water Chiller, CW-5202, Water Chiller Cooling System with Built-in Compressor, 7L Water Tank Capacity, 18L/min Max. Flow Rate, for CO2 Laser Engraving Machine Cooling Machine
Compressor Type 7 L 18 L/min

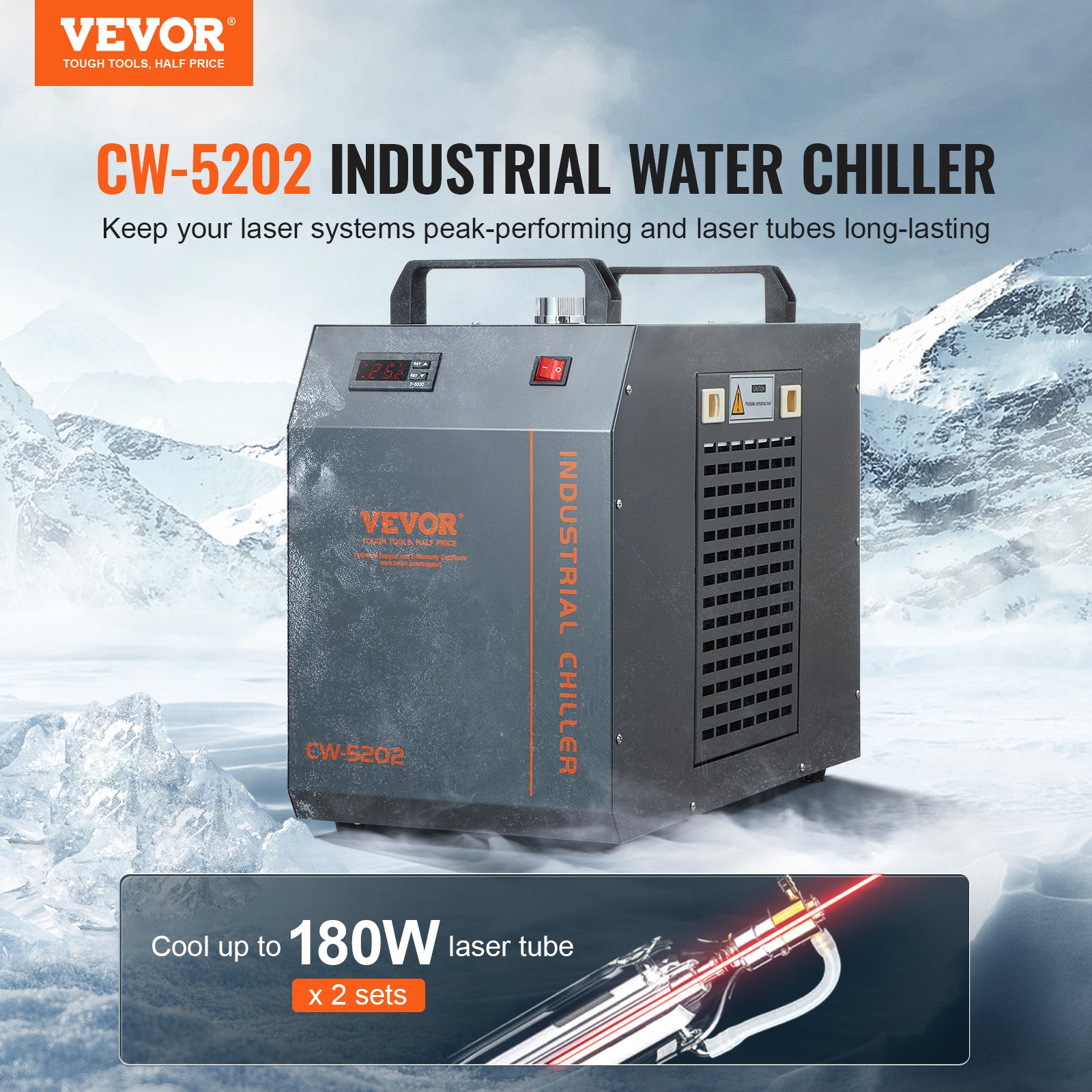

CW-5202 Industrial Water Chiller
VEVOR industrial water chiller for co2 engraving machines, 600w power, 7l tank capacity, 18l/min flow.
VEVOR industrial water chiller for co2 engraving machines, 600w power, 7l tank capacity, 18l/min flow.
Our CW-5202 industrial chiller features a built-in compressor for machinery requiring compact water cooling solutions. With a 7L water tank and built-in cooling fan for superior ventilation, it is ideal for 2 sets of CO₂ laser engraving machines with laser tubes rated up to 180W.
VEVOR industrial water chiller with 48w pump power for stable and continuous water flow.
VEVOR industrial water chiller with 48w pump power for stable and continuous water flow.
Equipped with a powerful water pump, our industrial chiller guarantees that water flows at the perfect speed to swiftly dissipate heat from your laser tubes, resulting in highly efficient cooling performance.

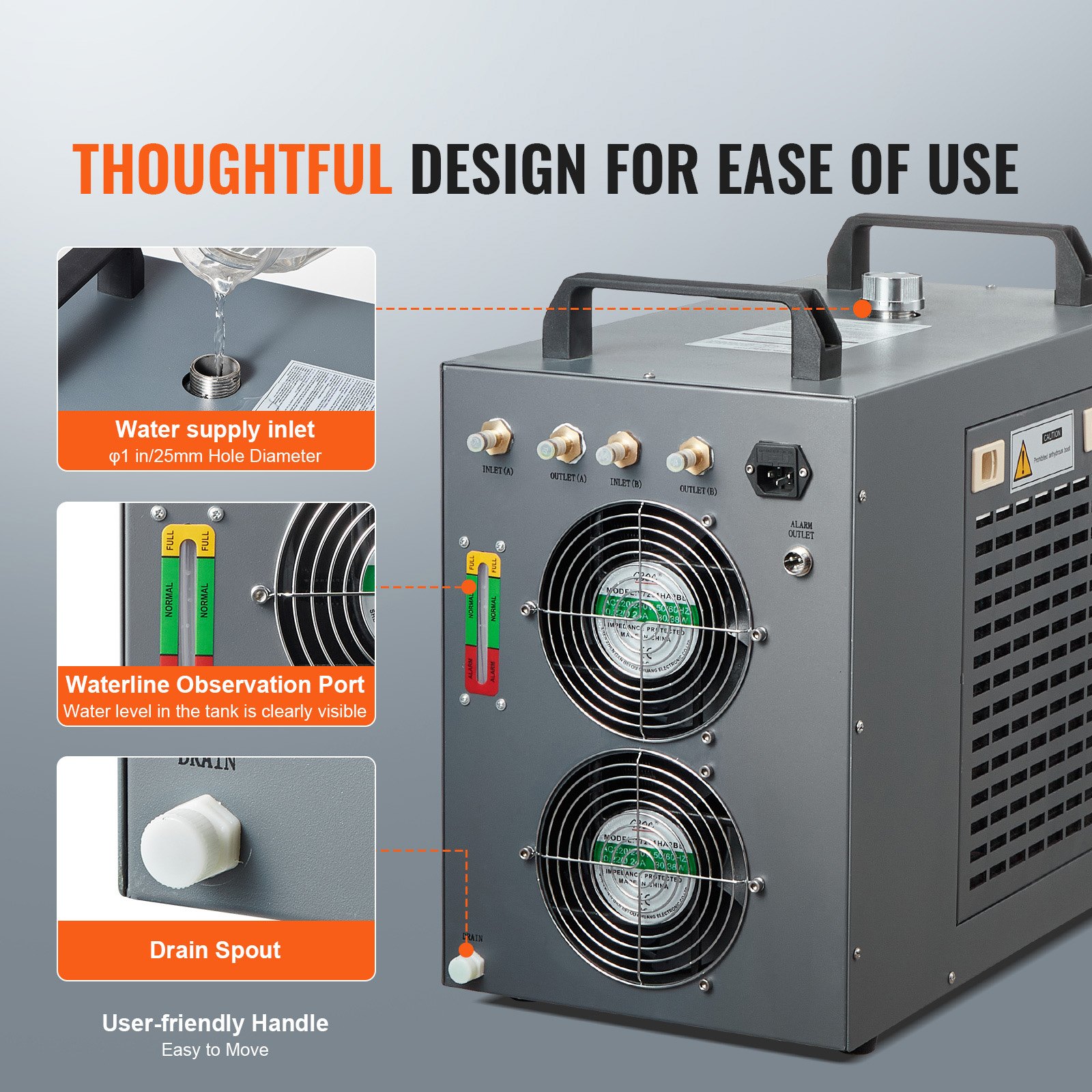

visible water level design of VEVOR industrial water chiller, hand pouring water into the tank.
visible water level design of VEVOR industrial water chiller, hand pouring water into the tank.
Our industrial water chiller is equipped with visual water level, allowing you to directly monitor the water level in the tank, making it effortless to determine when a water refill is needed. It maintains optimal cooling efficiency and avoiding any heat dissipation issues caused by low water levels.
VEVOR industrial water chiller with triple security protection: overcurrent protection, flow alarm, overtemperature alarm.
VEVOR industrial water chiller with triple security protection: overcurrent protection, flow alarm, overtemperature alarm.
The overcurrent protection automatically cuts off the power if the current exceeds secure thresholds. The flow alarm actively monitors the water flow to remain within the preset normal range. The overtemperature alarm continuously tracks the temperature, avoiding potential damage from overheating.

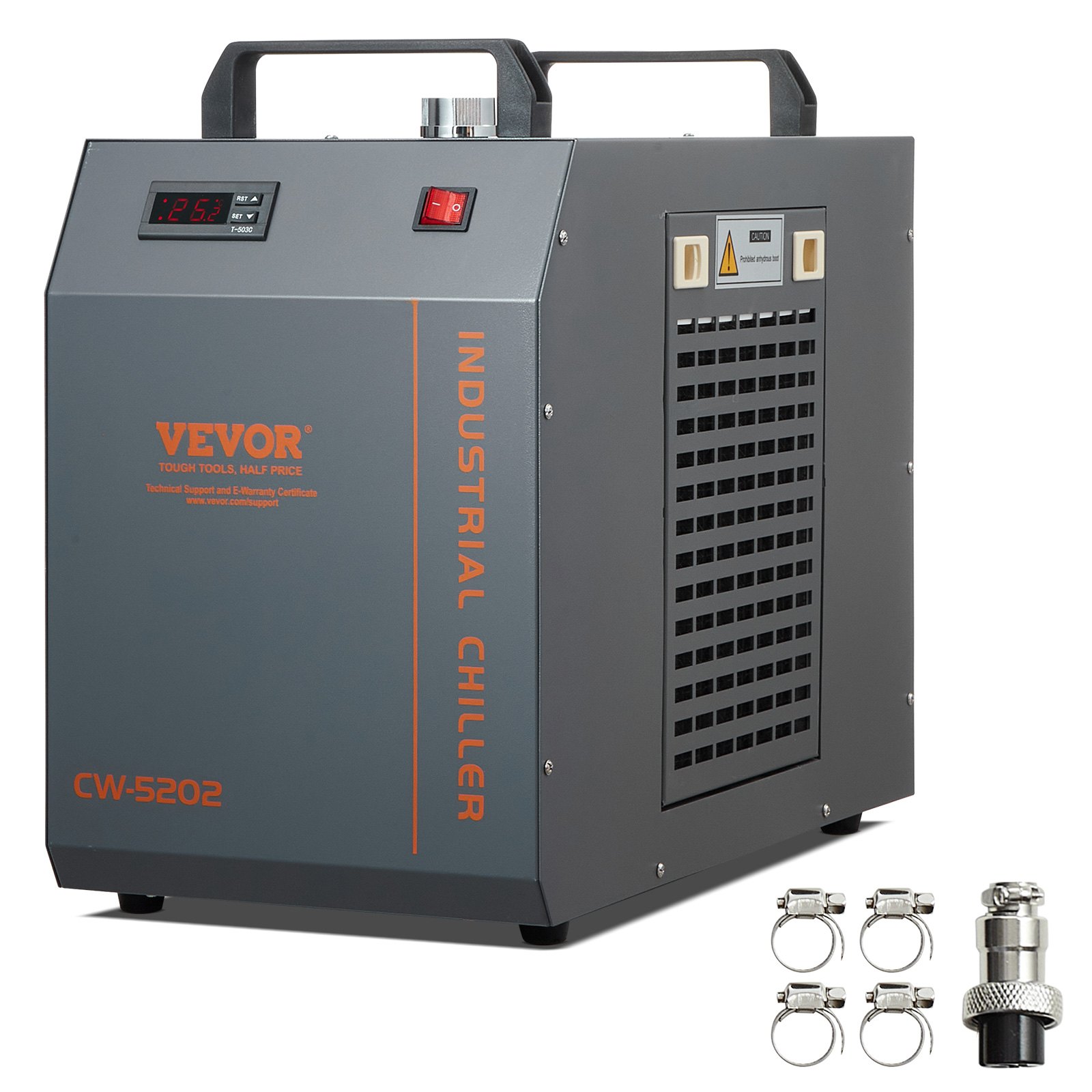

VEVOR industrial water chiller with hose clamps and teflon tape for secure water pipe connections.
VEVOR industrial water chiller with hose clamps and teflon tape for secure water pipe connections.
Our water chiller comes with 4 sealing hoops and a Teflon tape, designed to reinforce the seals at connection points, ensuring stability and give you an extra layer of security, keeping your setup leak-free and functioning flawlessly.

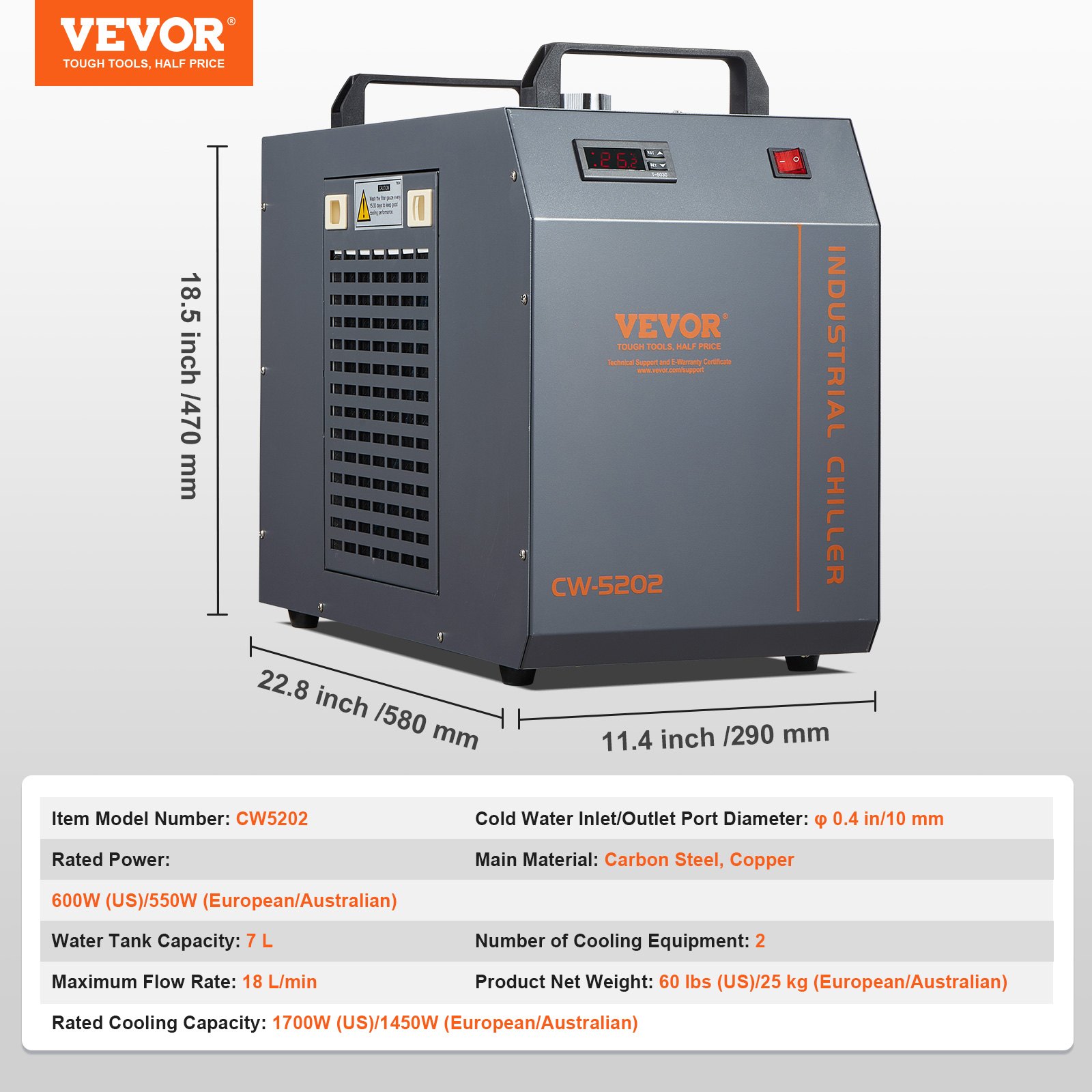

VEVOR industrial water chiller cw5202 specification chart with dimensions and features.
VEVOR industrial water chiller cw5202 specification chart with dimensions and features.

Specification

Item Model Number
CW5202
Rated Power
550W
Water Tank Capacity
7 L
Maximum Flow Rate
18 L/min
Rated Cooling Capacity
1450W
Cold Water Inlet/Outlet Port Diameter
φ 0.4 in/10 mm
Main Material
Carbon Steel, Copper
Refrigerant
R134a
Number of Cooling Equipment
2
Product Net Weight
25 kg
Questions and Answers
1 Questions
Hello. I purchased this product for a mini cnc. It seems that the water flow on the 10mm hose is too high to enter the cooling cavity of the spindle (about 6mm inn), and the E6 error appears (I assume it's a traffic error). What can I do to use it? Can the flow pressure switch be adjusted? Thank you in advance. Florin.
It is recommended to check whether there are any bends or blockages in the cooling water path of the equipment, which may cause water to not flow and the water cooler to alarm. The flow rate cannot be adjusted.
By vevor
