VEVOR heat exchanger with copper pipes and a finned aluminum radiator in a sturdy metal frame. high-quality materials of VEVOR heat exchanger, featuring widened inlet and outlet and seamless copper tubes. VEVOR heat exchanger features epoxy coated aluminum fins, 12 pcs/inch, and an operating temp range of -40 to 356°f. VEVOR heat exchanger with seamless copper tubes, 160k btu heat capacity, high thermal conductivity VEVOR heat exchanger with 20"x20" large area plates for higher heat efficiency and durability. VEVOR heat exchanger with high-pressure vacuum brazing technology ensures zero leakage. VEVOR heat exchanger with 160k btu capacity, 1" port, 3/8" copper tubes, and 20x20" fin area dimensions.
CPGSHRQ202001R9UUV0

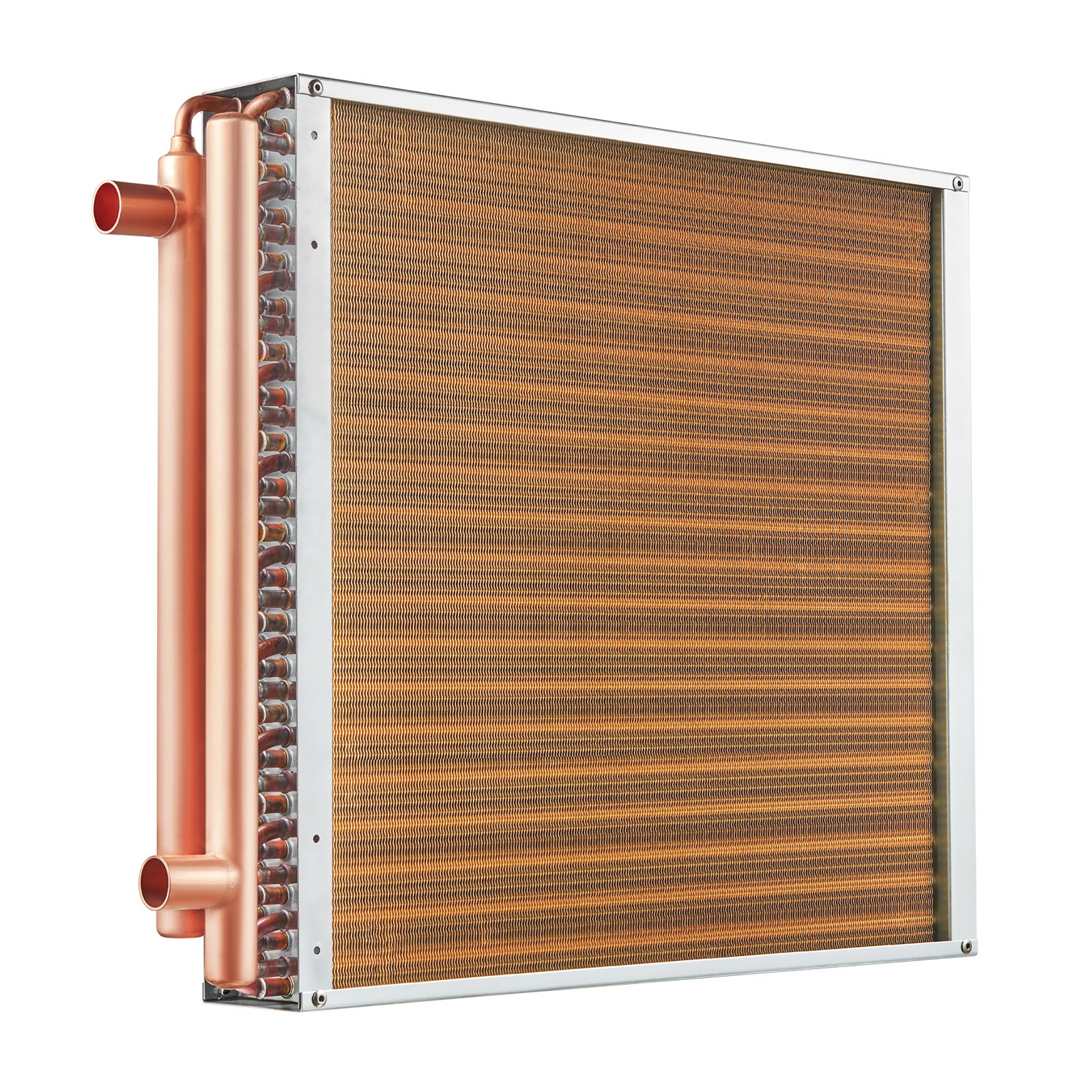

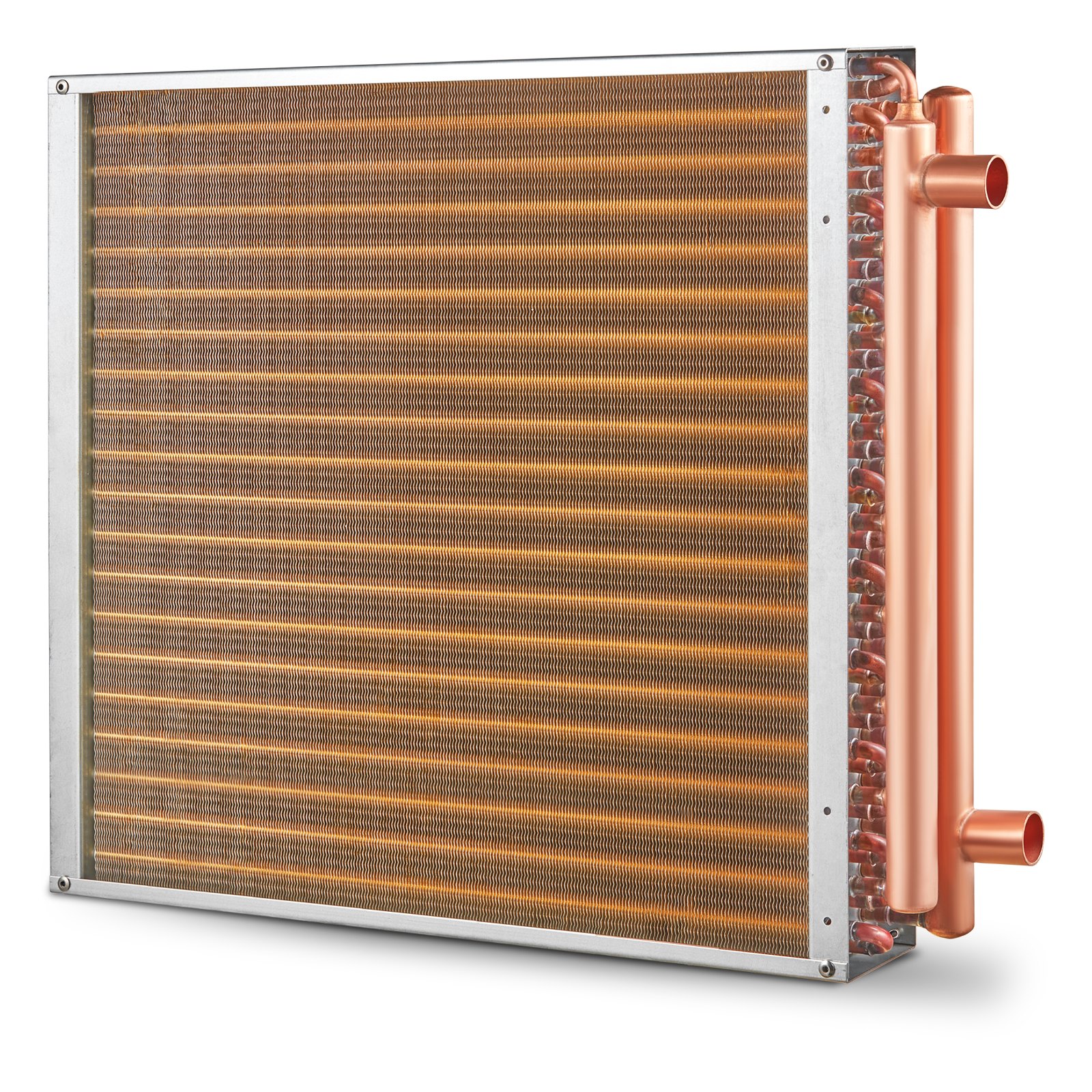

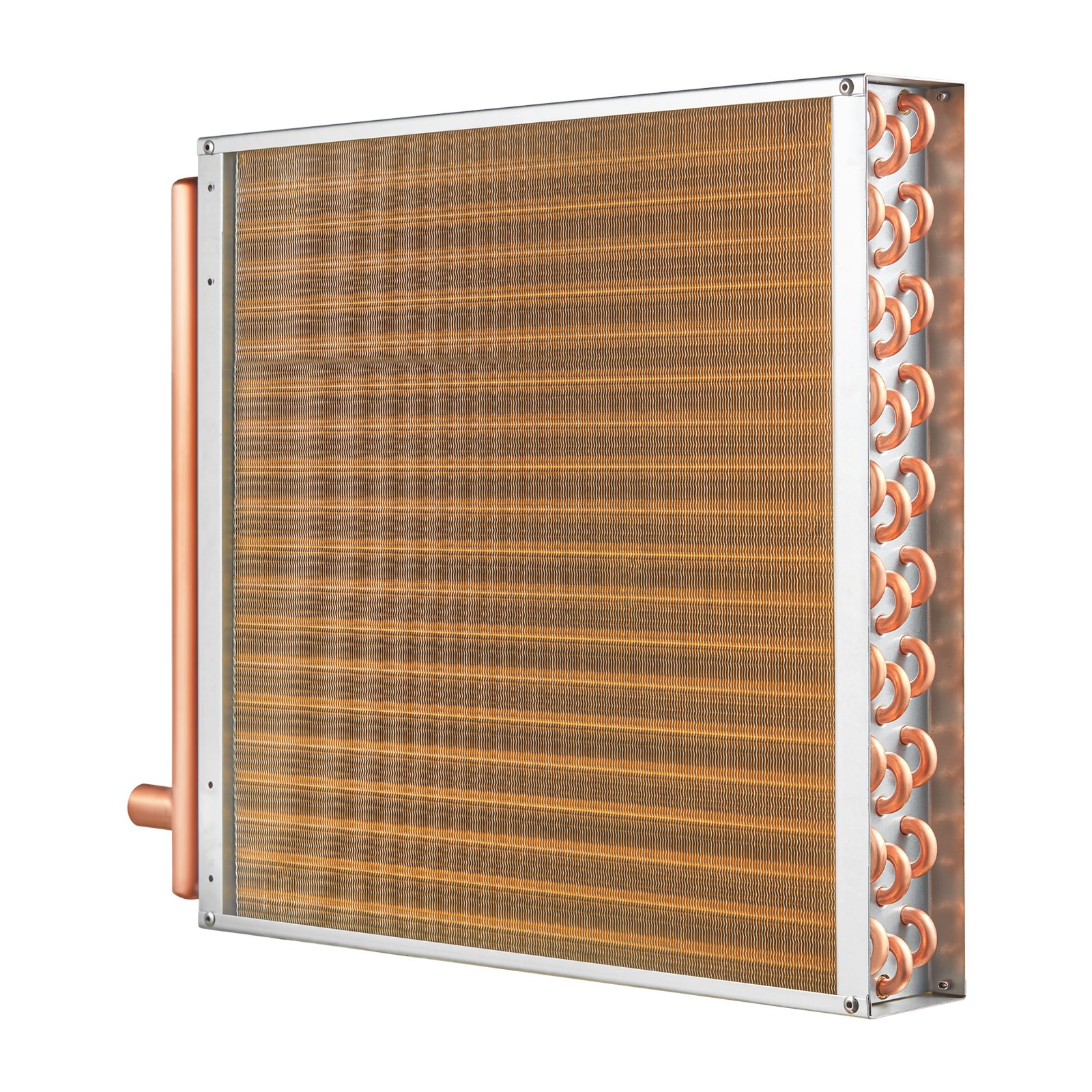

VEVOR 20"x 20" Heat Exchanger Water to Air 3-Row 3/8" Copper Ports 242 Fins

Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive 5,00€ off on your first three app orders. Only App.
Download Now
Exclusive 5,00€ off on your first three app orders. Only App.
Scan the QR code to download

20" x 20"

  • 16" x 16"
  • 20" x 20"
  • 18" x 20"

About this item

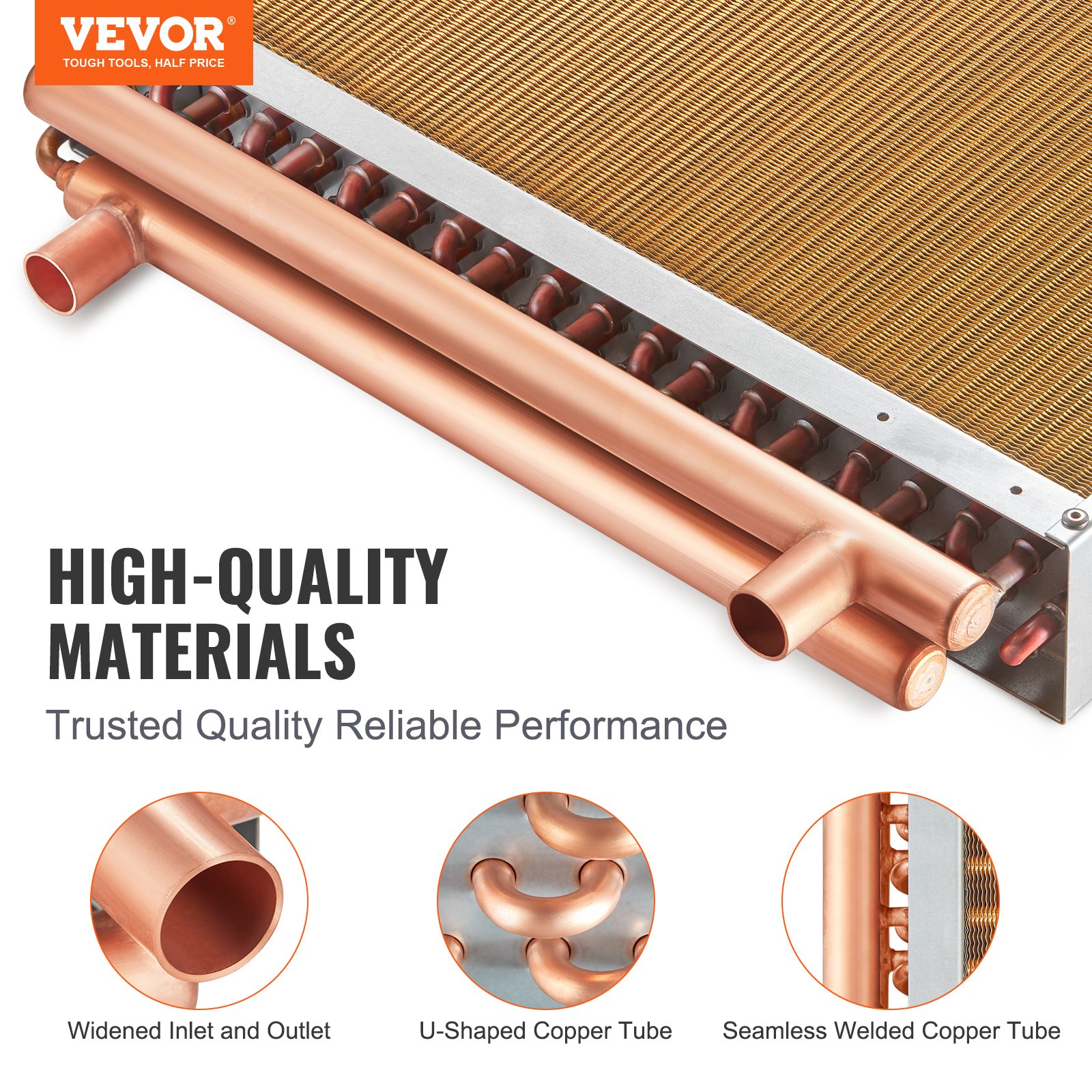

  • High-Quality Materials: The entire unit is copper brazed at edges and contact points, forming a durable and leak-resistant piece that withstands high pressure and temperature. UL and CE certified for reliable quality.

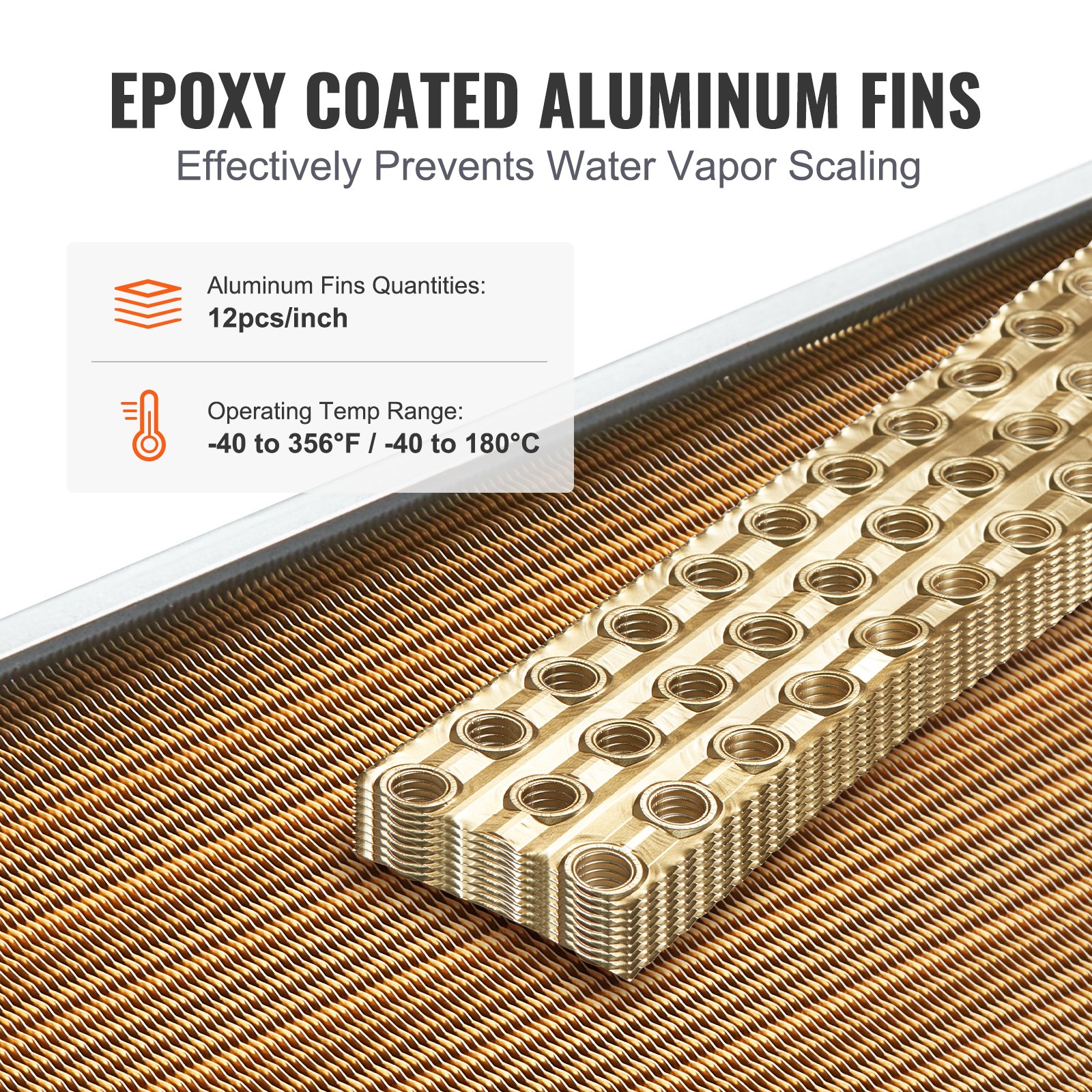

  • Durable and Corrosion-Resistant: Features epoxy-coated fins, providing high hardness, wear resistance, and corrosion protection. This reduces internal water vapor scaling, promoting maximum heat exchange between air and fins. Suitable for operating temperatures of -40-356℉ / -40-180°C.

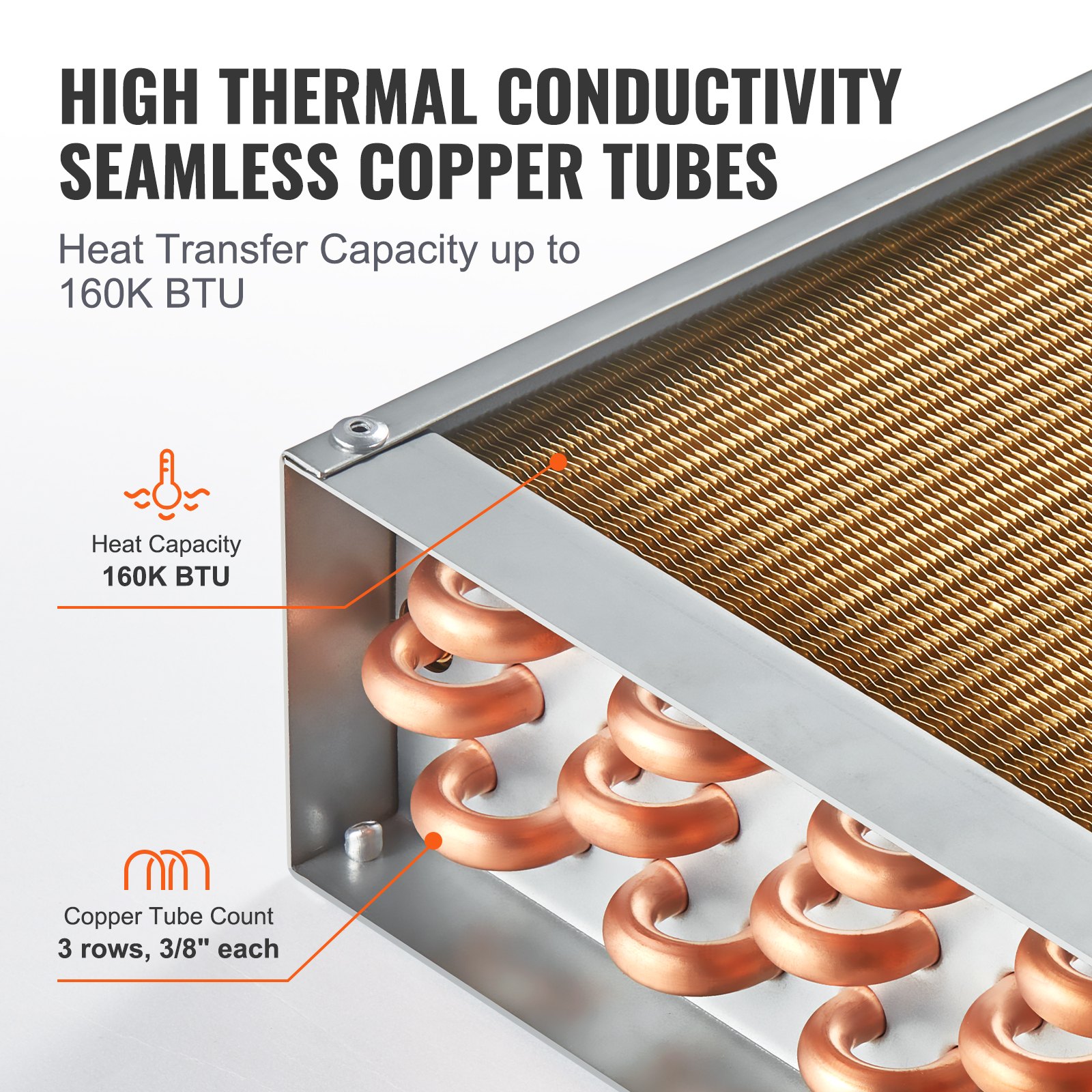

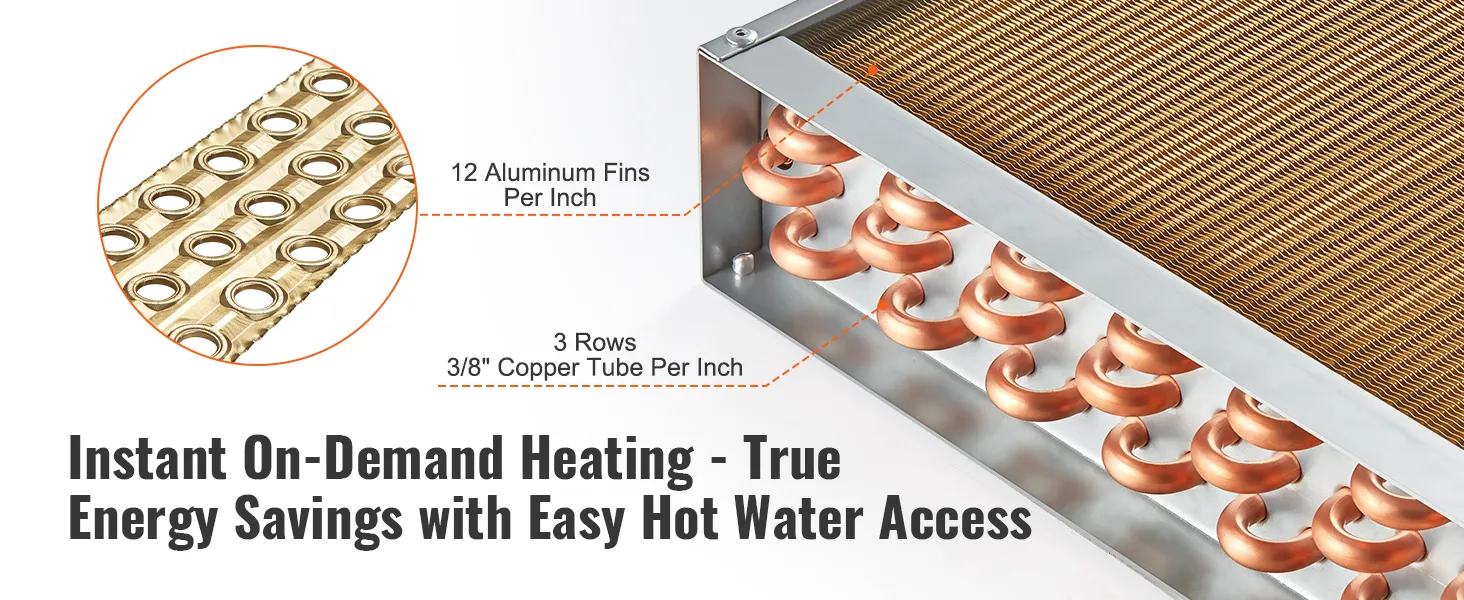

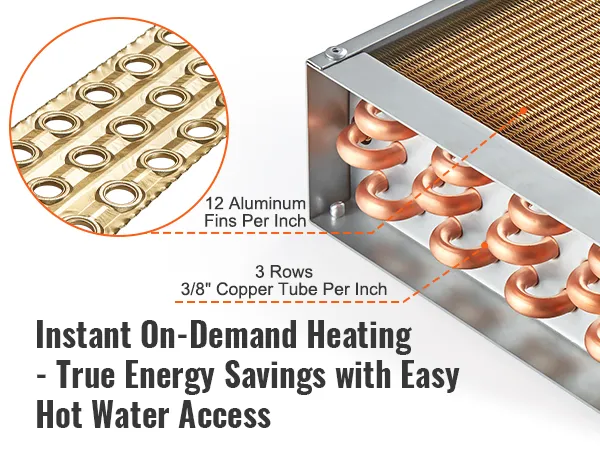

  • Efficient Heat Transfer: The heat exchanger generates up to 160kBtu per hour, with 12 aluminum fins per inch and 3 rows of 3/8" seamless copper tubes. The threaded copper tubes increase the contact area and capacity of the fluid medium, significantly enhancing the heat exchanger's performance.

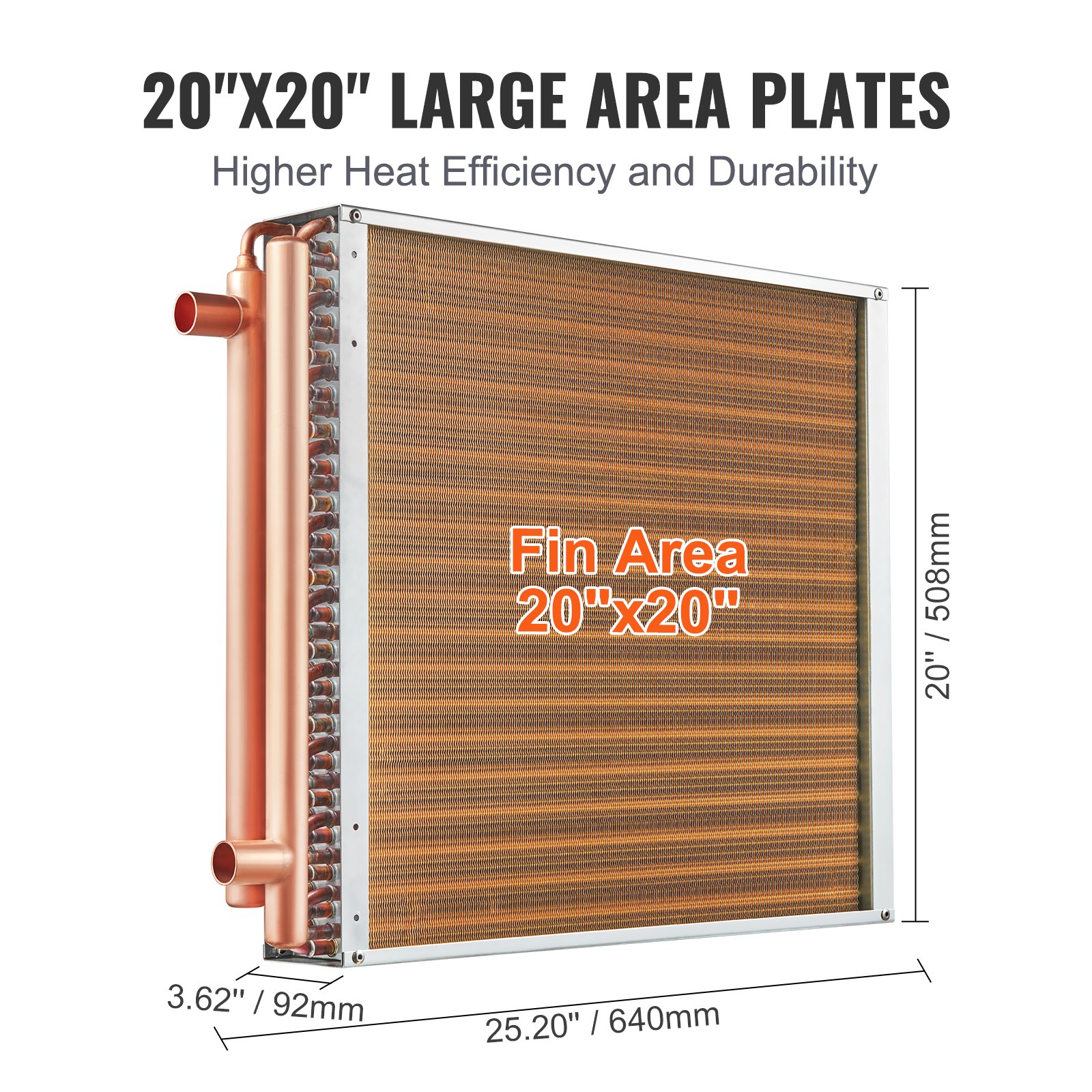

  • Large Heat Exchange Area: With an effective heat exchange area of 20”x20” and 242 fins, this heat exchanger provides excellent heat transfer performance to meet various needs.

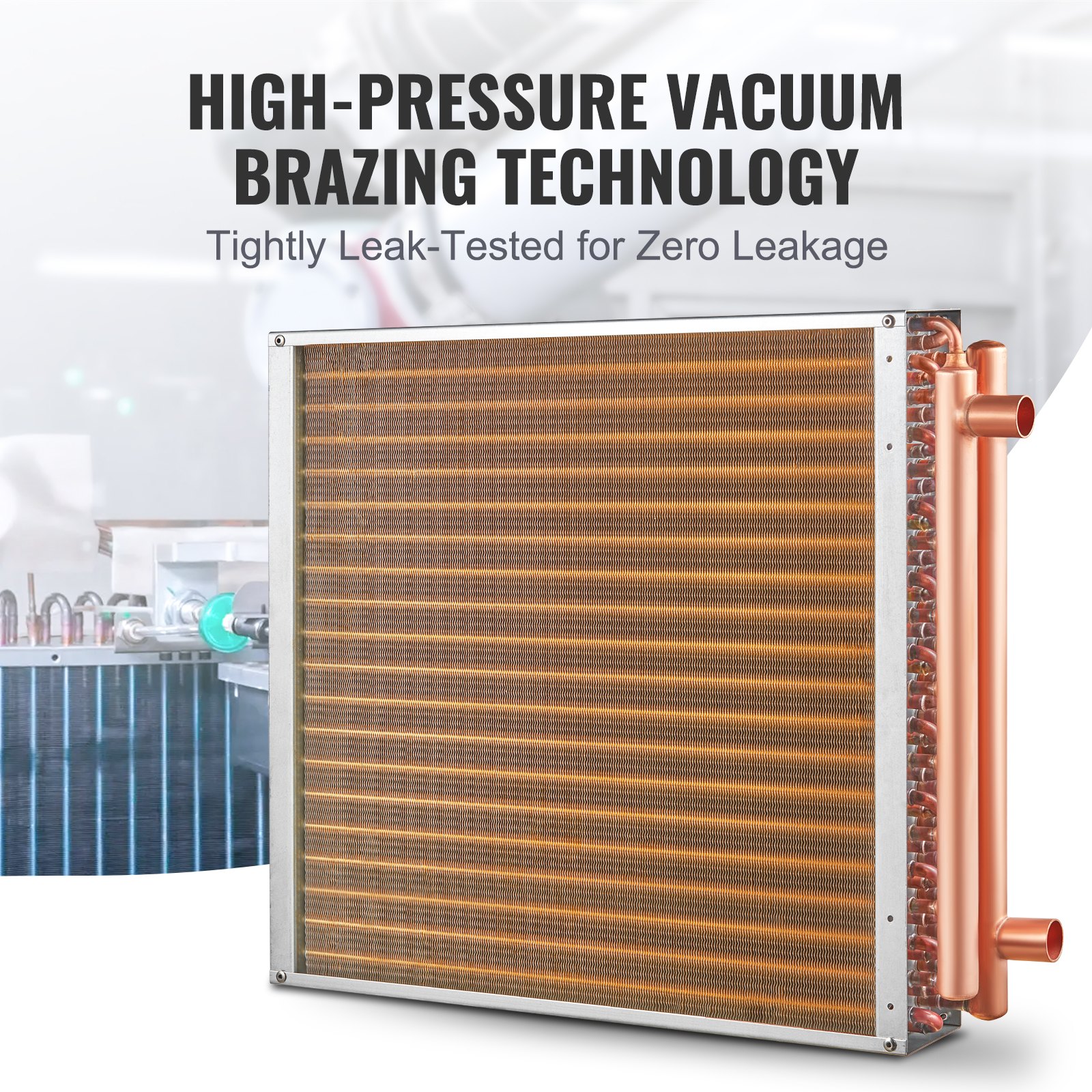

  • Tight and Leak-Proof: To eliminate the possibility of micro-leaks, the heat exchanger uses high-pressure vacuum brazing and undergoes rigorous leak testing, ensuring long life and high reliability.
See More See Less

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR 20"x 20" Heat Exchanger Water to Air 3-Row 3/8" Copper Ports 242 Fins
20" x 20"
Description Specification Questions and Answers
Unleashing Ultimate Heat Efficiency
Our heat exchanger is compact and lightweight, offering excellent thermal performance. Made with 316L stainless steel and 99% copper brazing for durability, it is perfect for solar heating, oil heat recovery, engine cooling, and condensation.

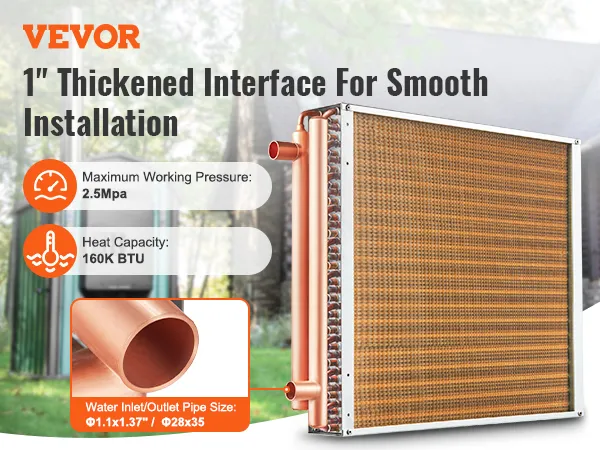

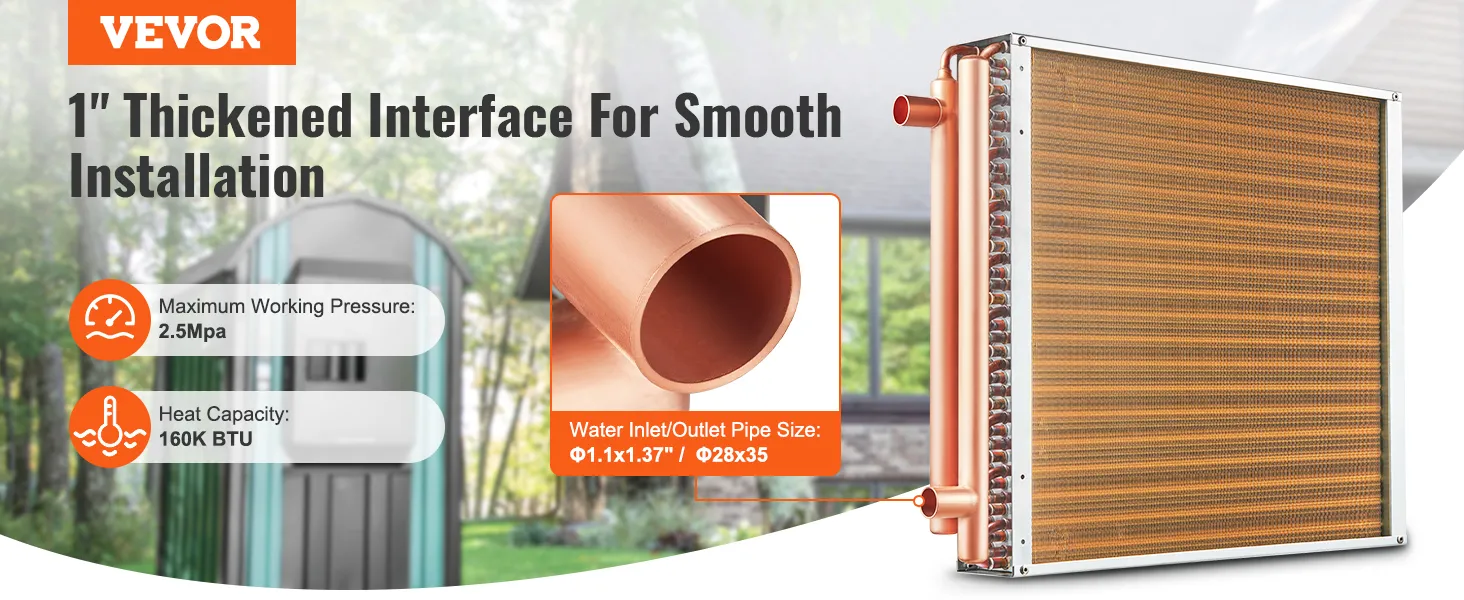

Our heat exchanger features a thickened interface with smooth threads for easy and convenient connection.
This heat exchanger heats liquids with irregular plates, requiring no electricity or wood burning, providing hot water at low cost, making it cost-effective and practical.
The heat exchanger has 2 interfaces, suitable for operating temperatures of -40-356℉/-40-180°C, with the outlet positioned above the inlet.

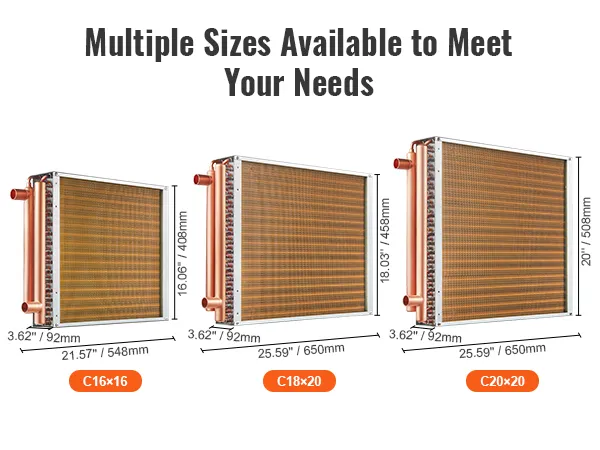

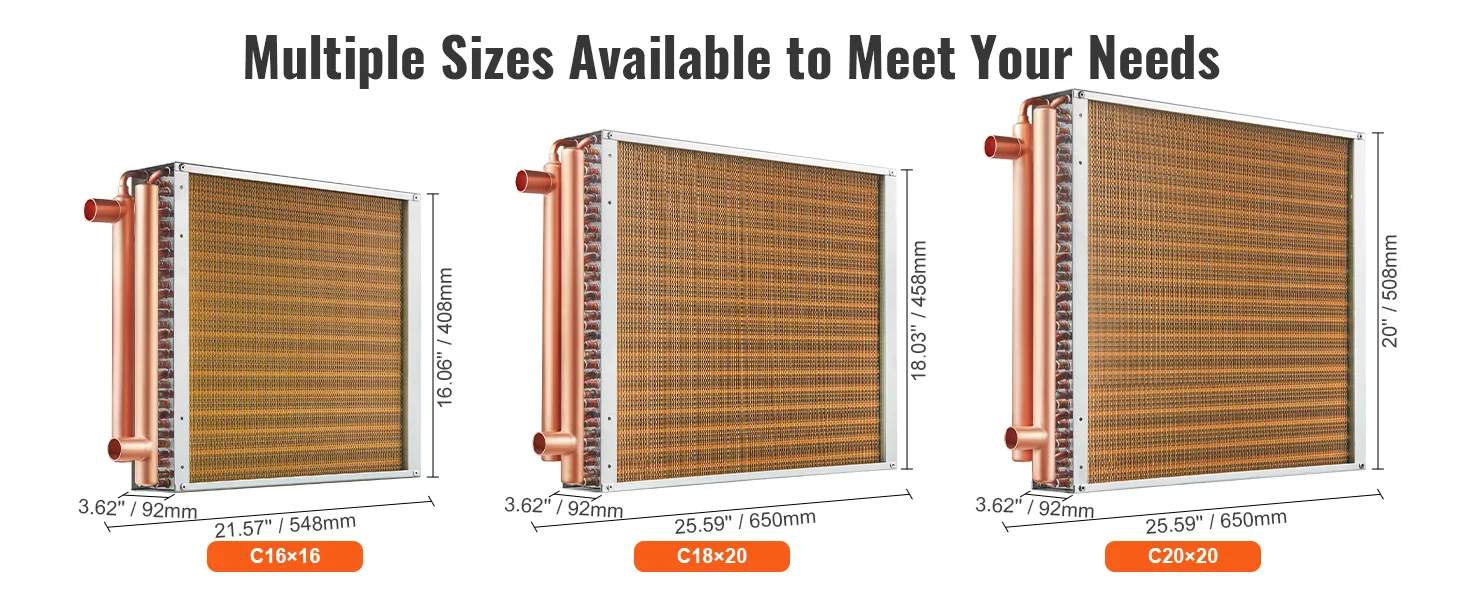

Our heat exchanger comes in 3 different sizes to meet your needs.

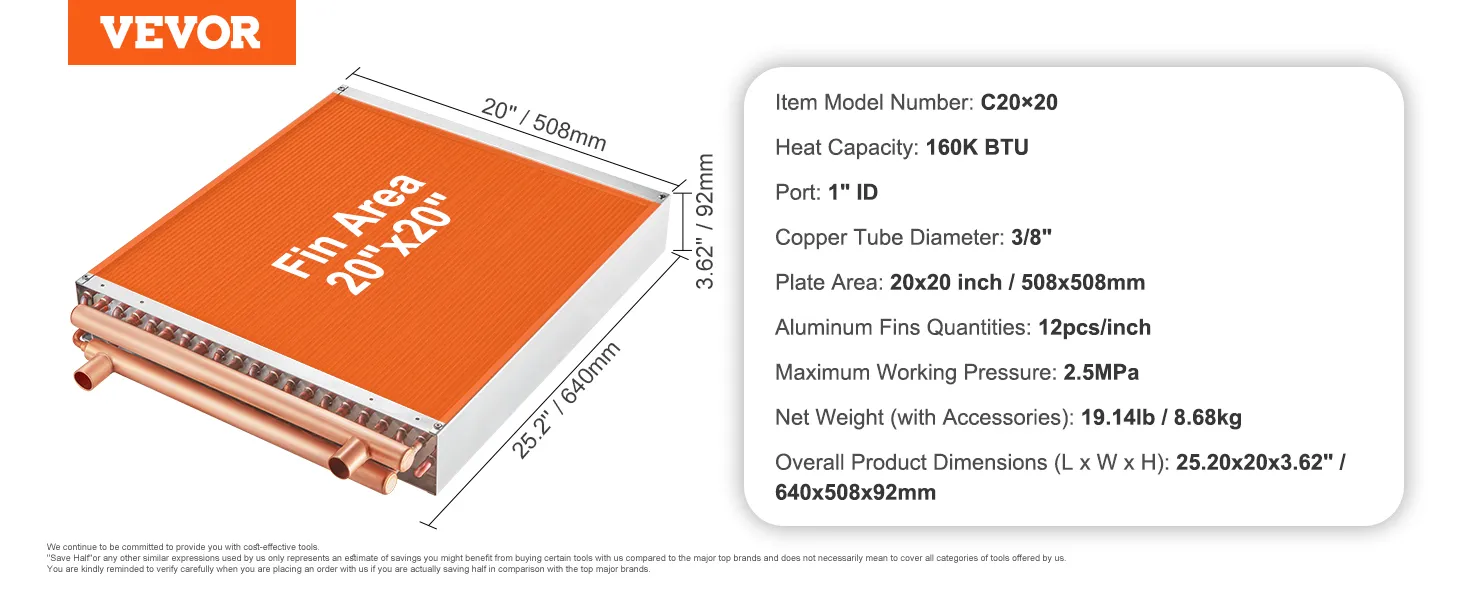

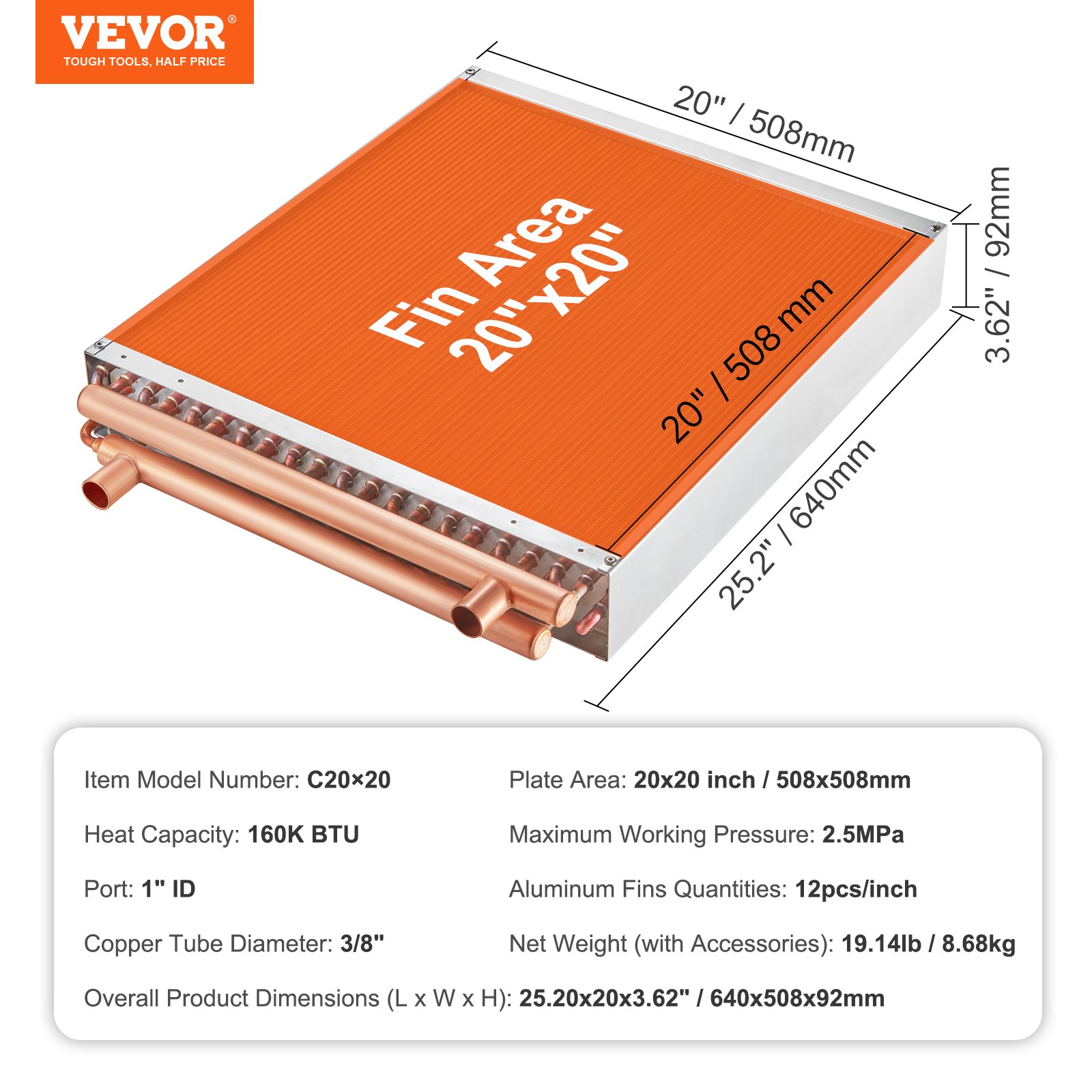

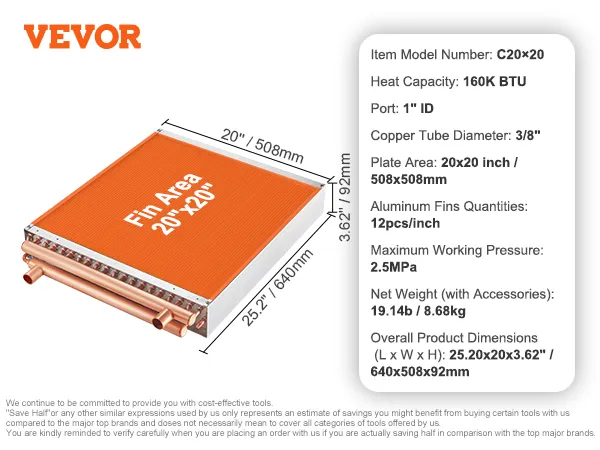

Specification

Model
C20×20
Heat Capacity
160 K BTU
Plate Area
20 x 20 in / 50.8 x 50.8 cm
Number of Copper Tubes
3-Row 3/8"
Number of Aluminum Fins
242 Pcs
Maximum Working Pressure
2.5MPa
Operating Temperature
-40°C-180°C / -40°F -356°F
Color
Gold
Main Materials
Copper
Net Weight (with Accessories)
19.14lb / 8.68kg
Product Dimensions (L x W x H)
25.20x20x3.62" / 640x508x92 mm
