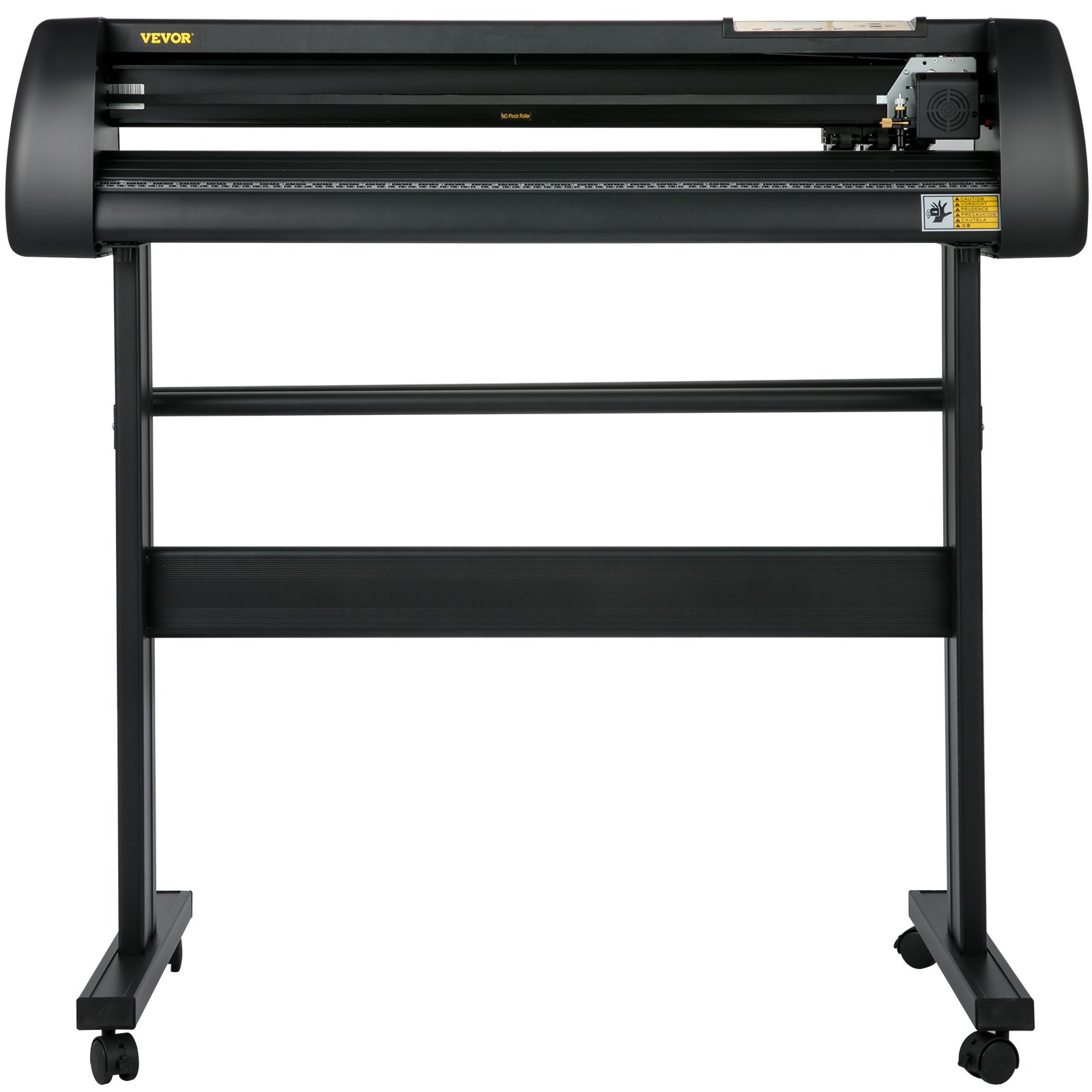

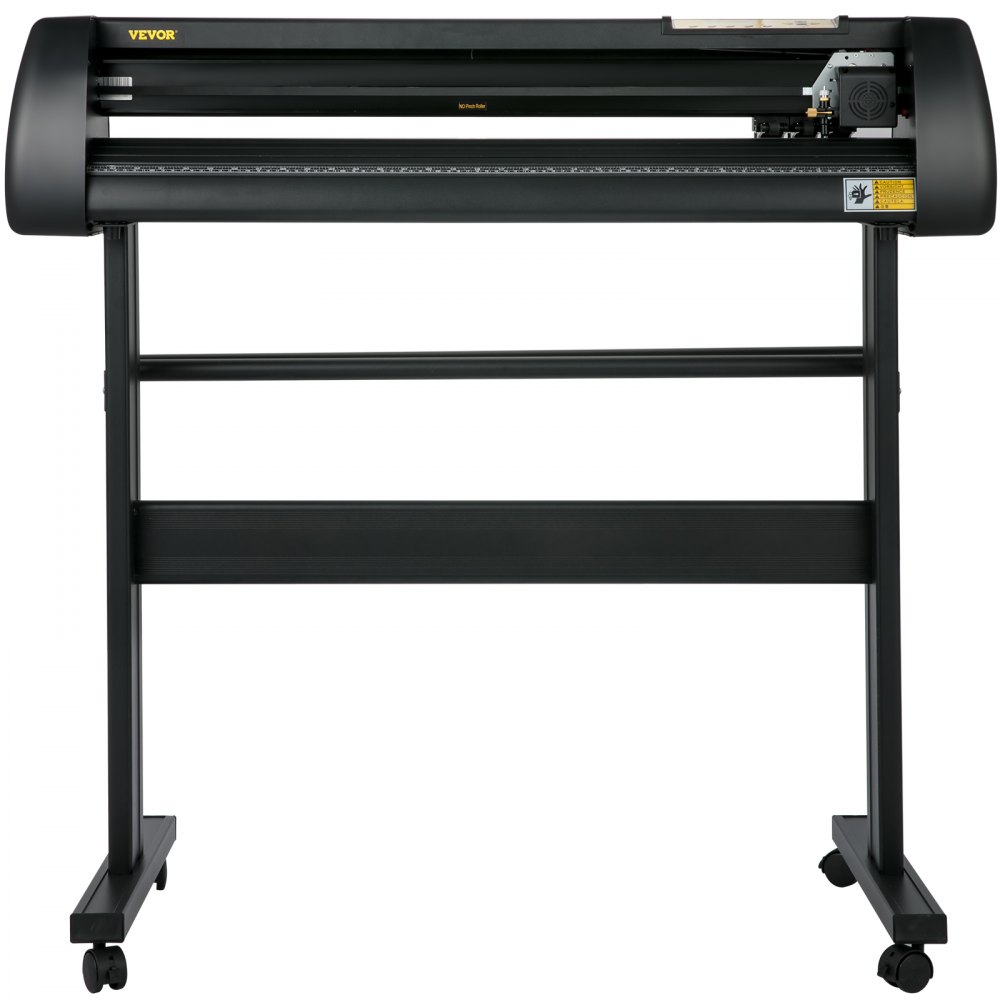

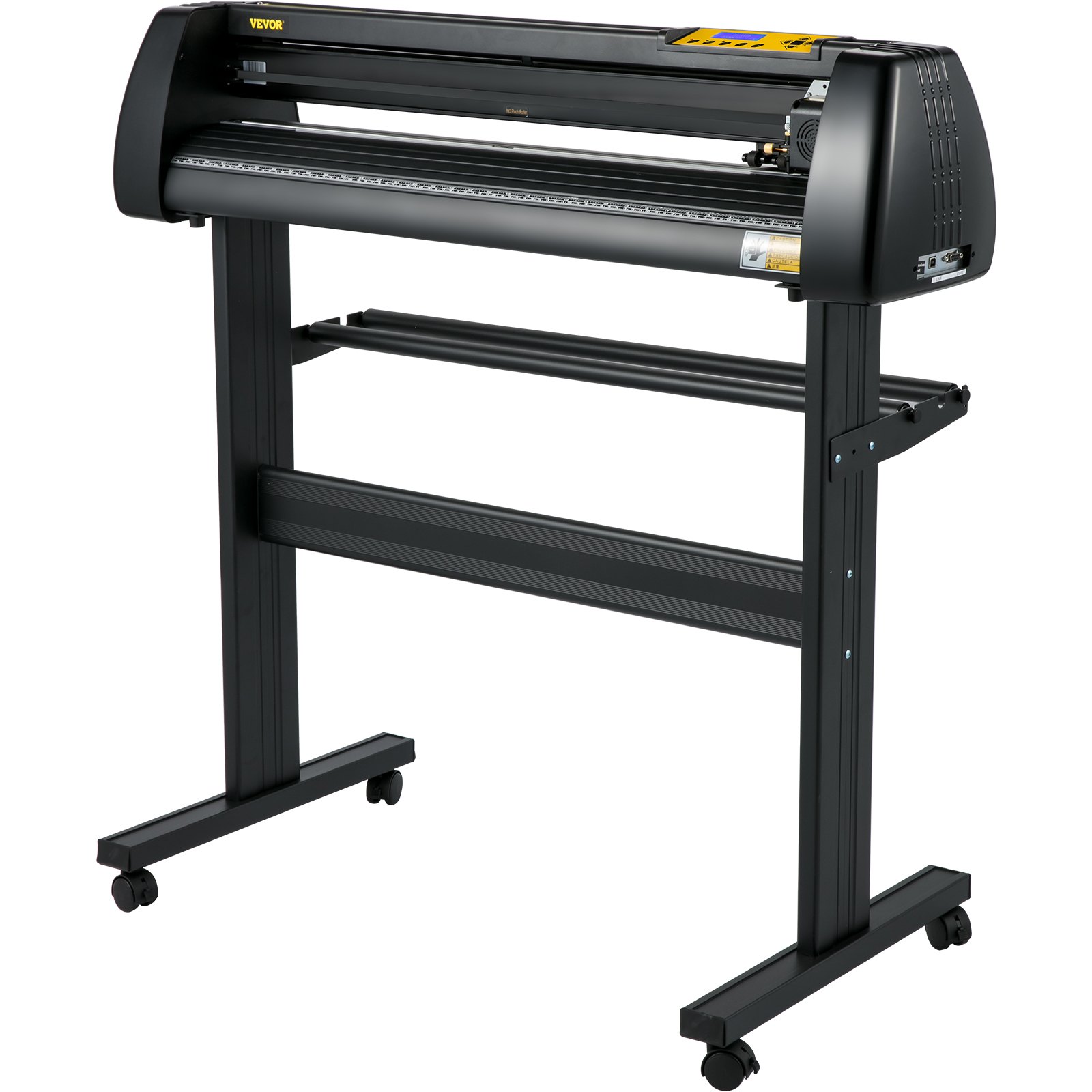

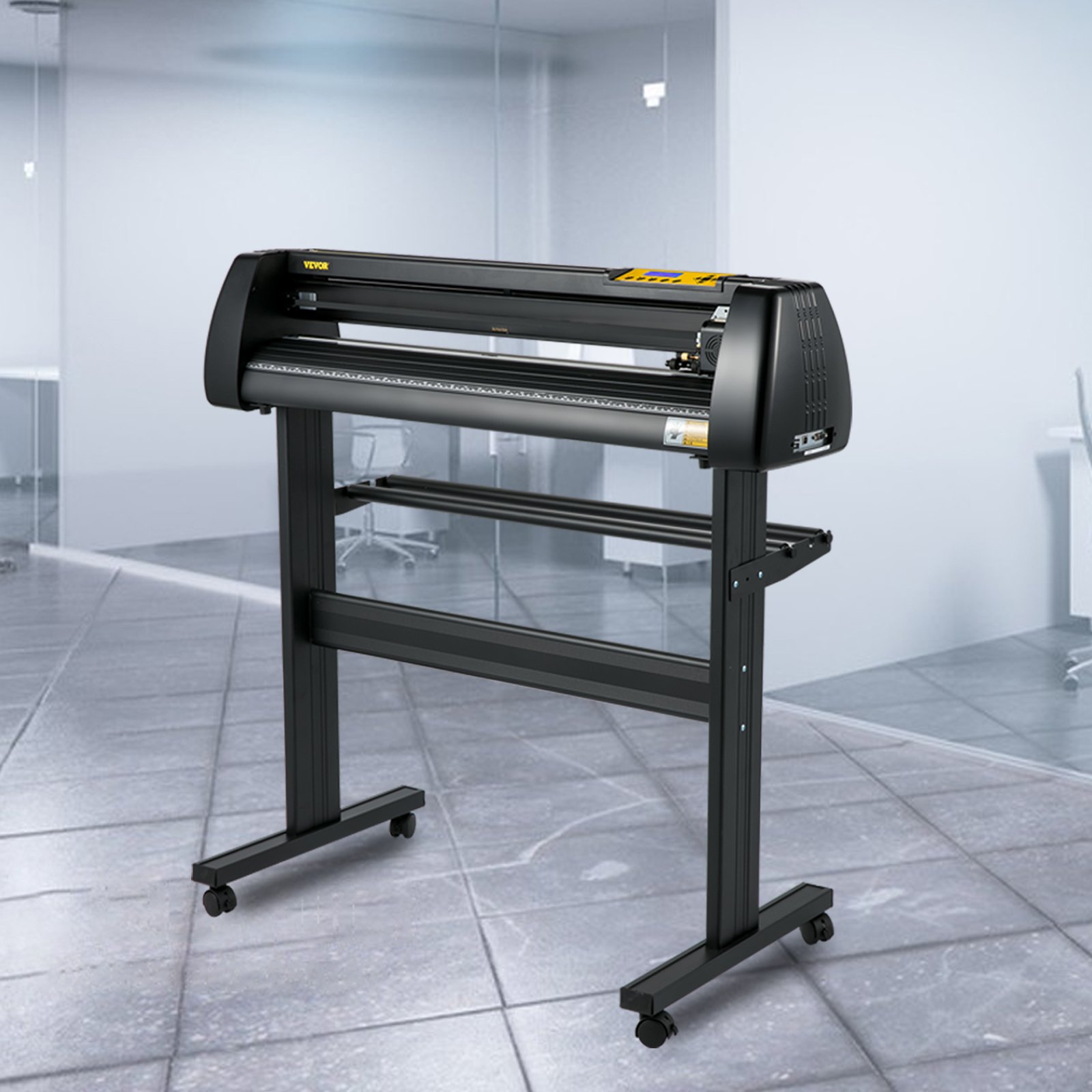

28-Inch Vinyl Cutter Plotter
Large Cutting Width & Excellent Performance & Flexible Interface

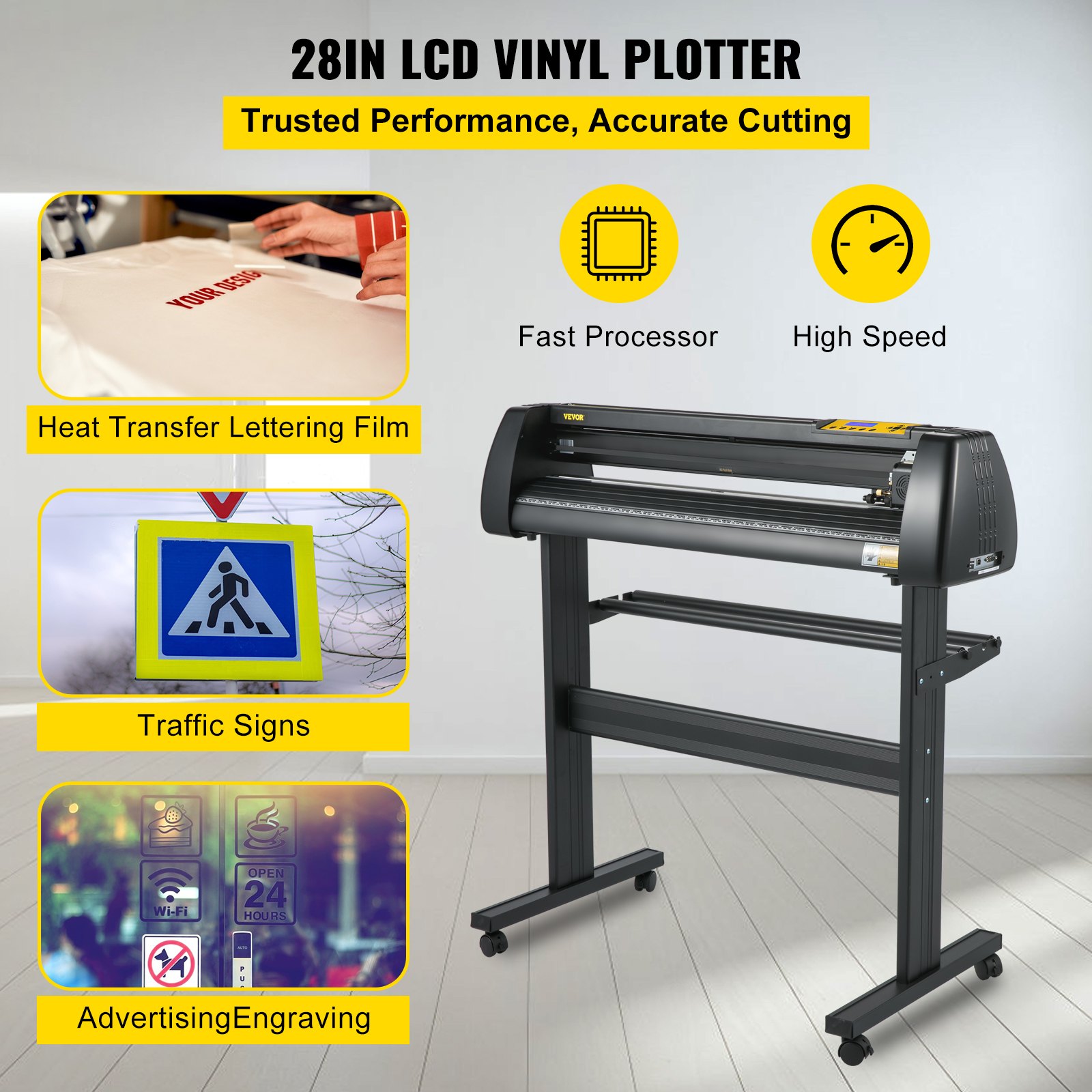

This 28" Professional Vinyl Cutting Plotter comes with an easy-to-use and flexible design, which allows you to cut customized labels and signs. Adjustable speed and force is available by the touch of a button. Suitable for advertisement field, various signs, drawing for building structure or line drawing, automotive decoration, glass field, handicraft, supplementary for heat transfer, indoor decoration, label making, car beauty industry, fashion design, etc.
- Cutting Capacity
- Strong Stability
- Digital Control
- High Compatibility
- Widely Used
High Efficiency
With large paper feed and cutting width, this machine possesses a high cutting precision and paper feed ability. D-typed motherboard and stepper motors are also equipped for better performance.

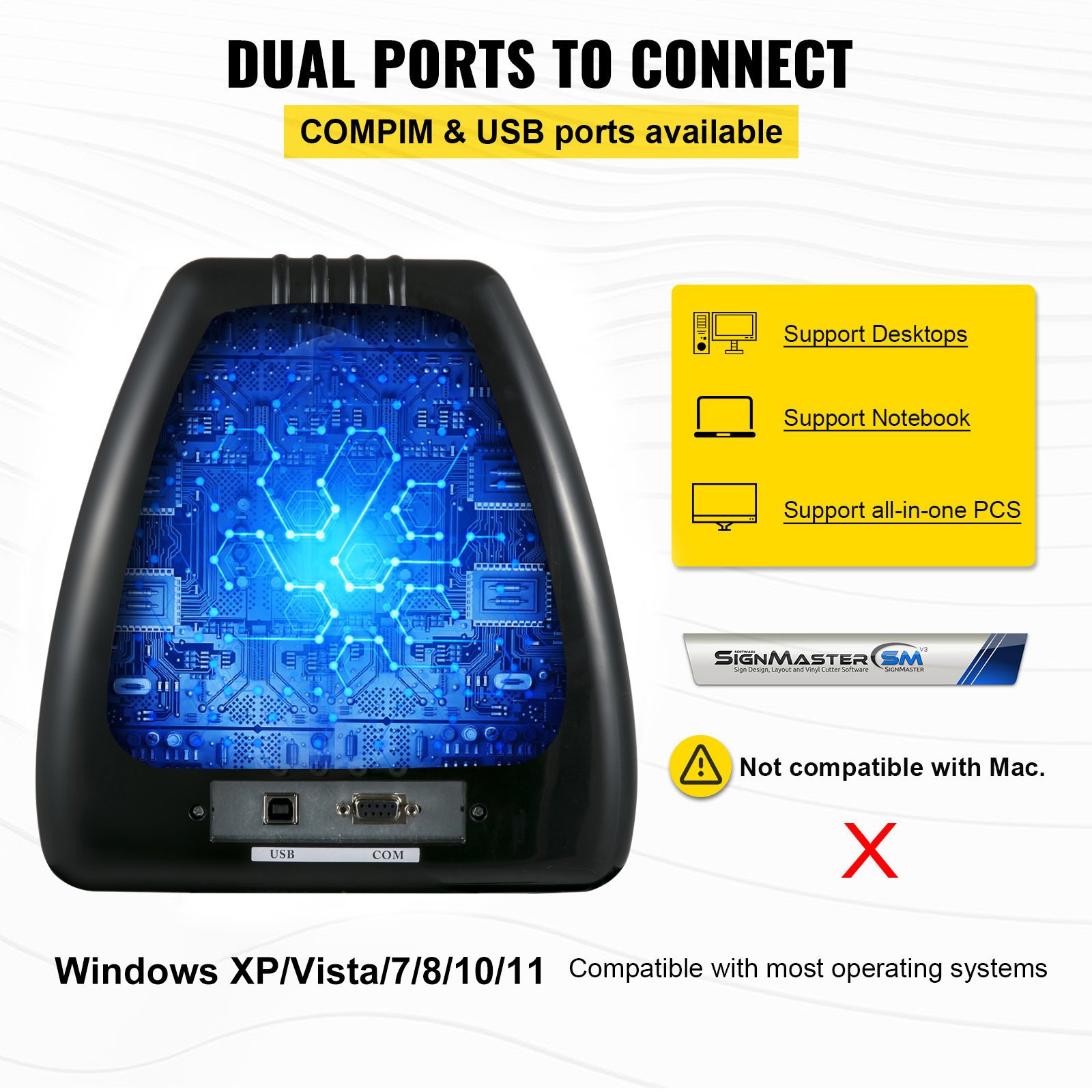

USB & Serial Ports
COMPIM and Standard USB 2.0 interface are available for you to use. Flexible switch between USB and virtual serial ports.

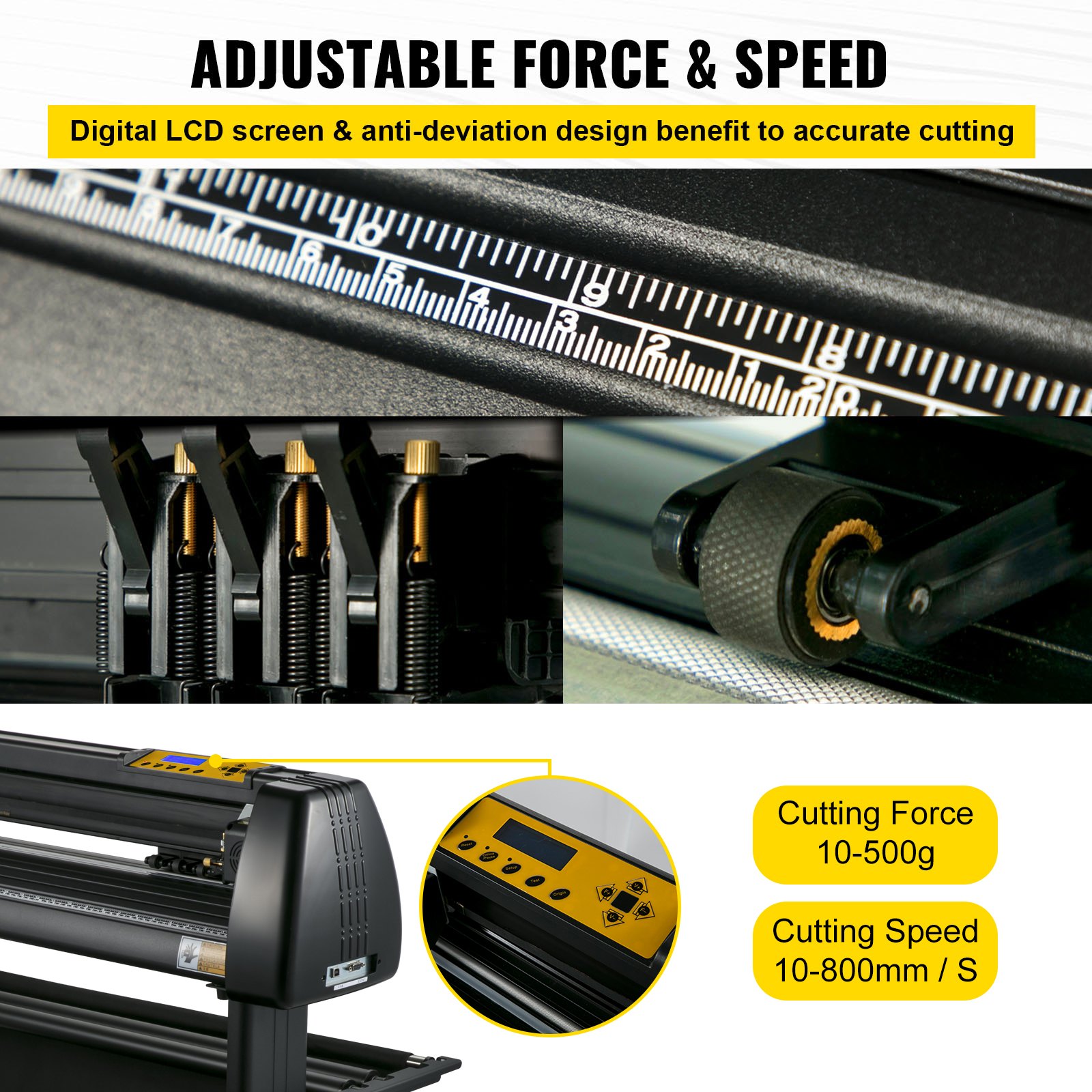

Adjustable Force & Speed

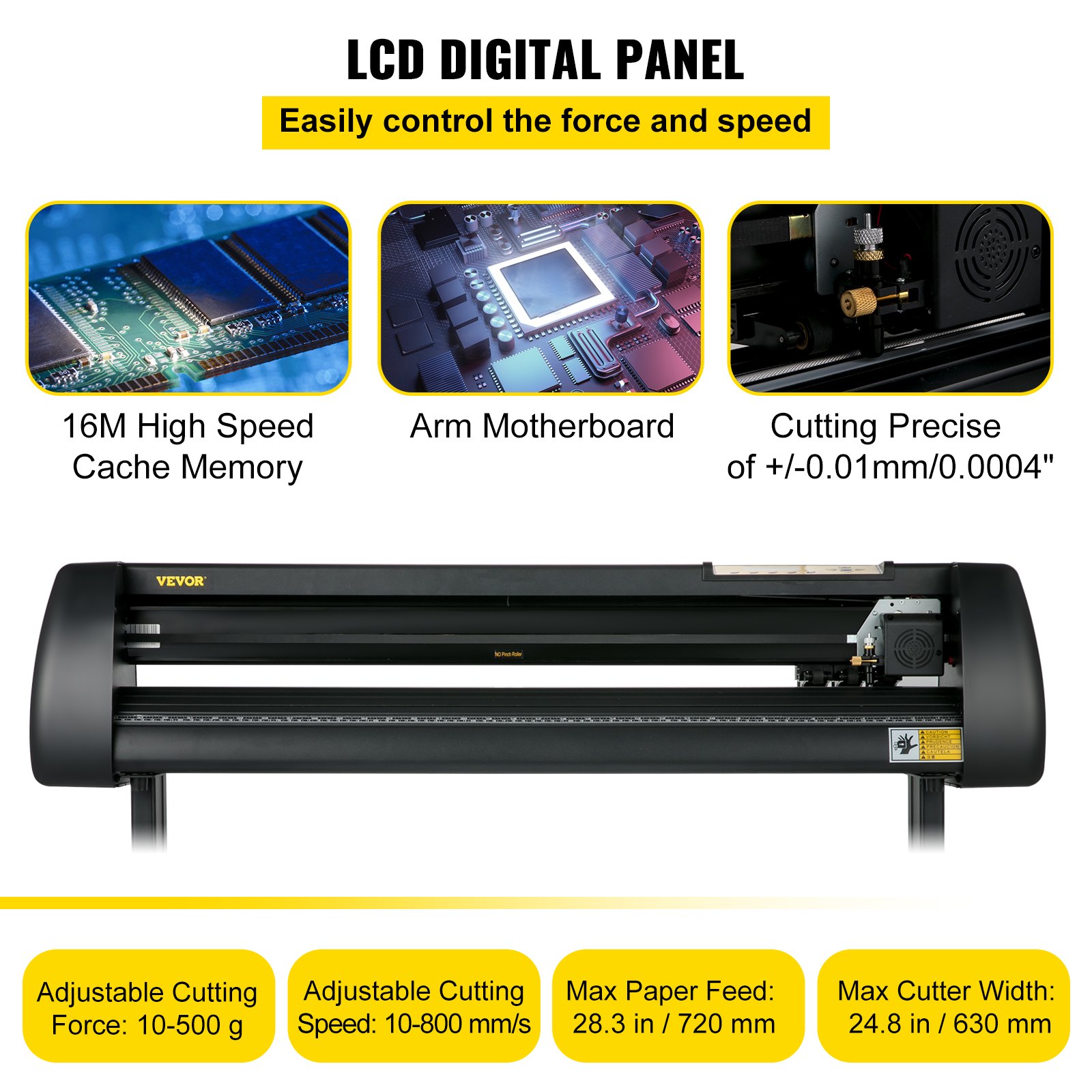

Digital control panel allows the adjustment of cutting force and speed, delivering a more precise and controllable process.

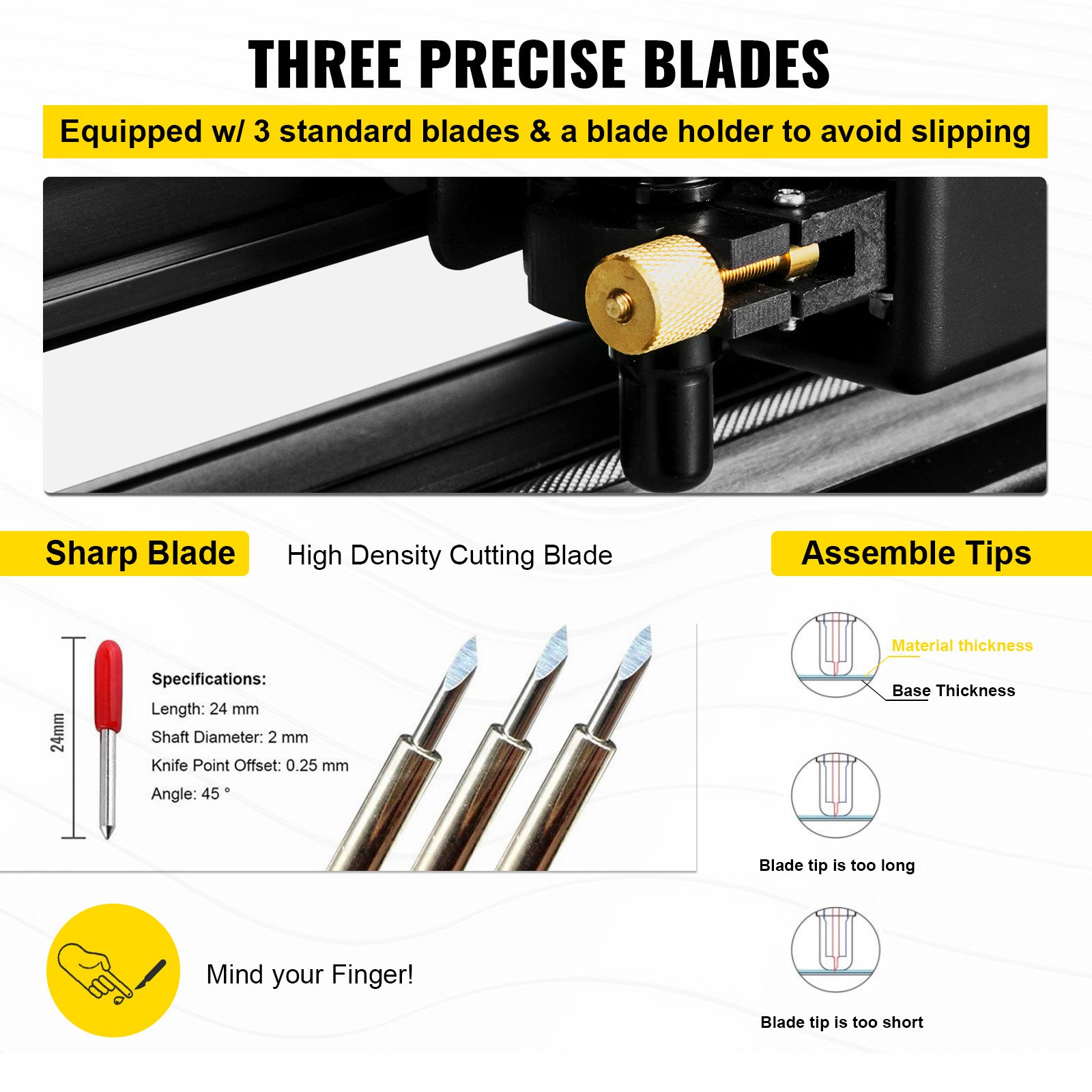

Precise Blade
Our vinyl plotter is equipped with three standard blades with a diameter of 2 mm and a blade holder. This holder also fits for Roland blades. Not easy to slip.
Not Deviate by Long Distance
Two adjustable double-spring pinch rollers, aluminum knurling stick, high precision pressing wheels and a scale line ensure the machine won't deviate by a long distance.

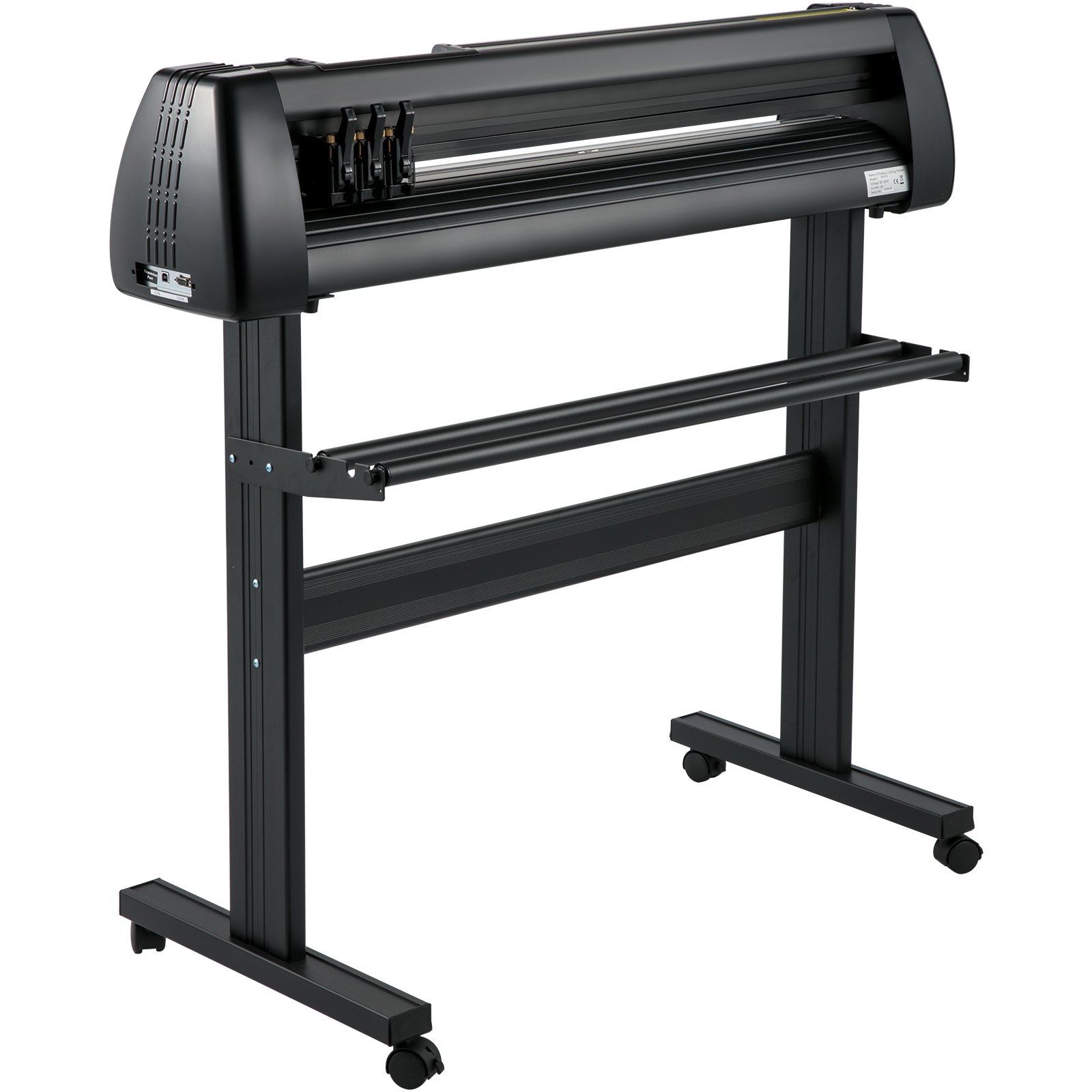

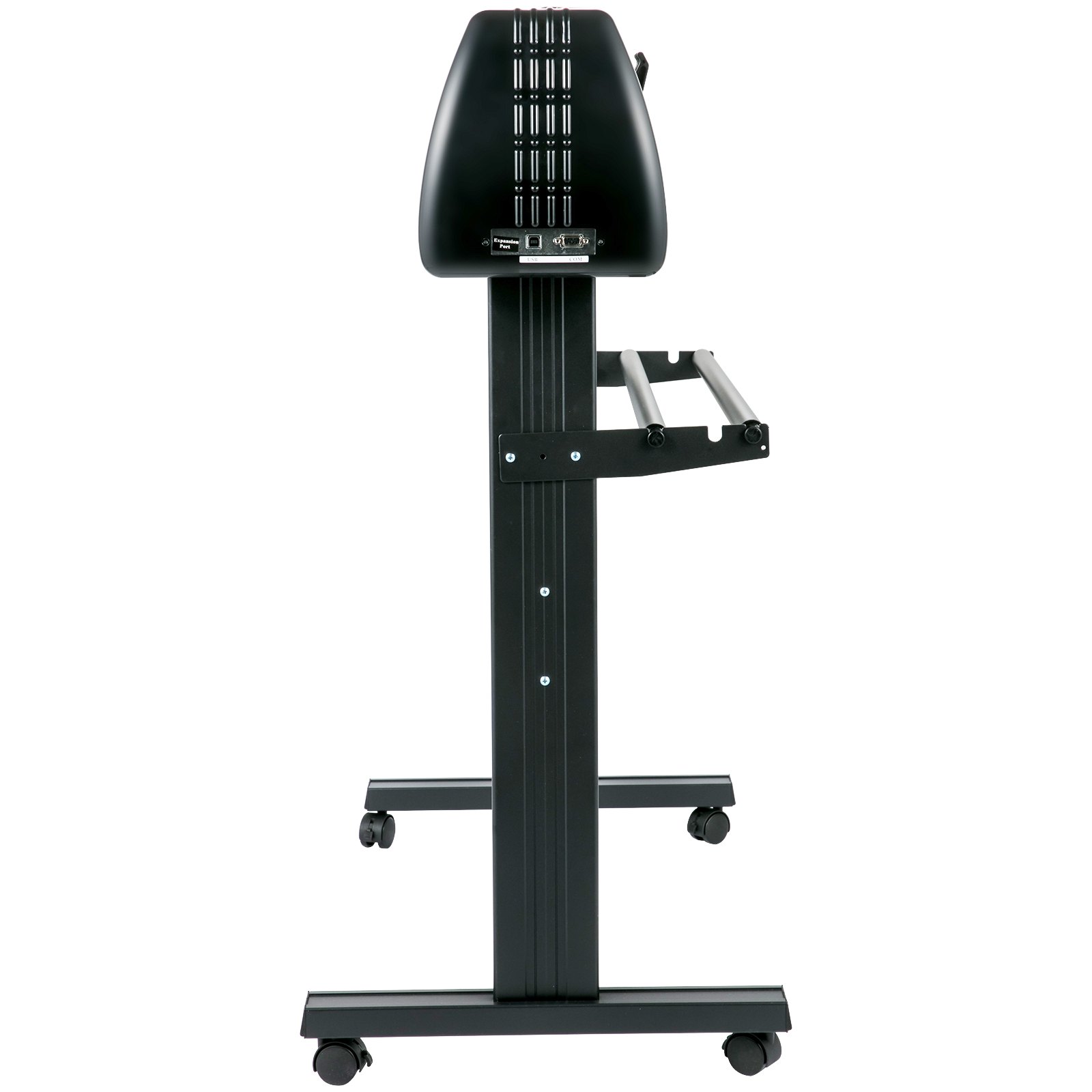

Sturdy Floor Stand
Structured with a refined metal floor stand and four caster wheels, this lightweight cutter plotter could achieve a flexible and convenient movement.

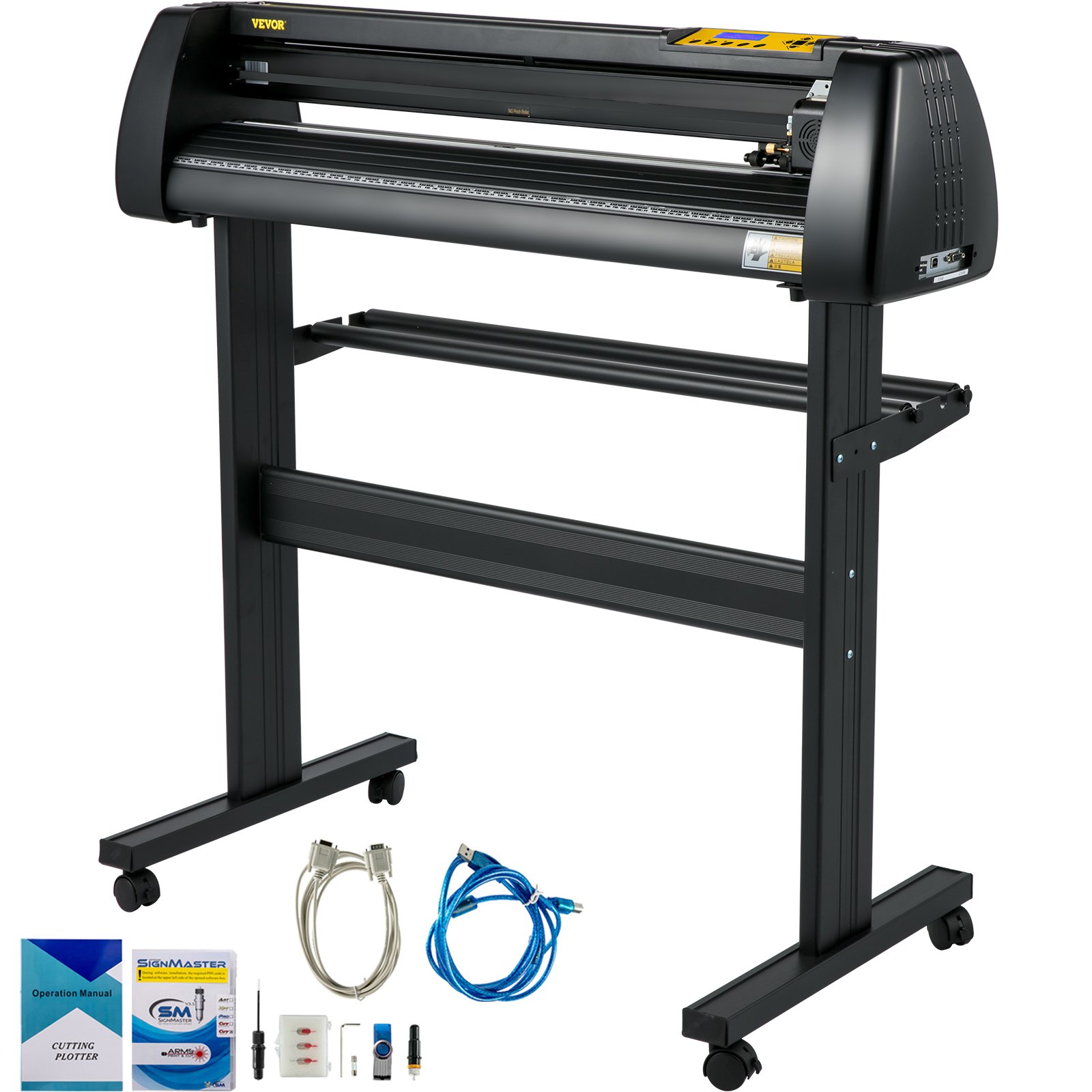

- 1 x 28 Inch Vinyl Cutter Plotter Machine
- 1 x SignMaster Software
- 1 x Blades Holder
- 3 x Blades
- 1 x Pen Holder
- 1 x USB Cable
- 1 x Serial Cable
- 1 x Power Cord
- 1 x USB Flash Disk
- 1 x Floor Stand
- Max Paper Feed: 28.3" / 720 mm
- Max Cutter Width: 24.8" / 630 mm
- Cutter Pressure: 10 - 500 g
- Cutting Speed: 10 - 800 mm / s
- Memory: 2 MB
- Repetition Accuracy: +/- 0.0004" / 0.01 mm

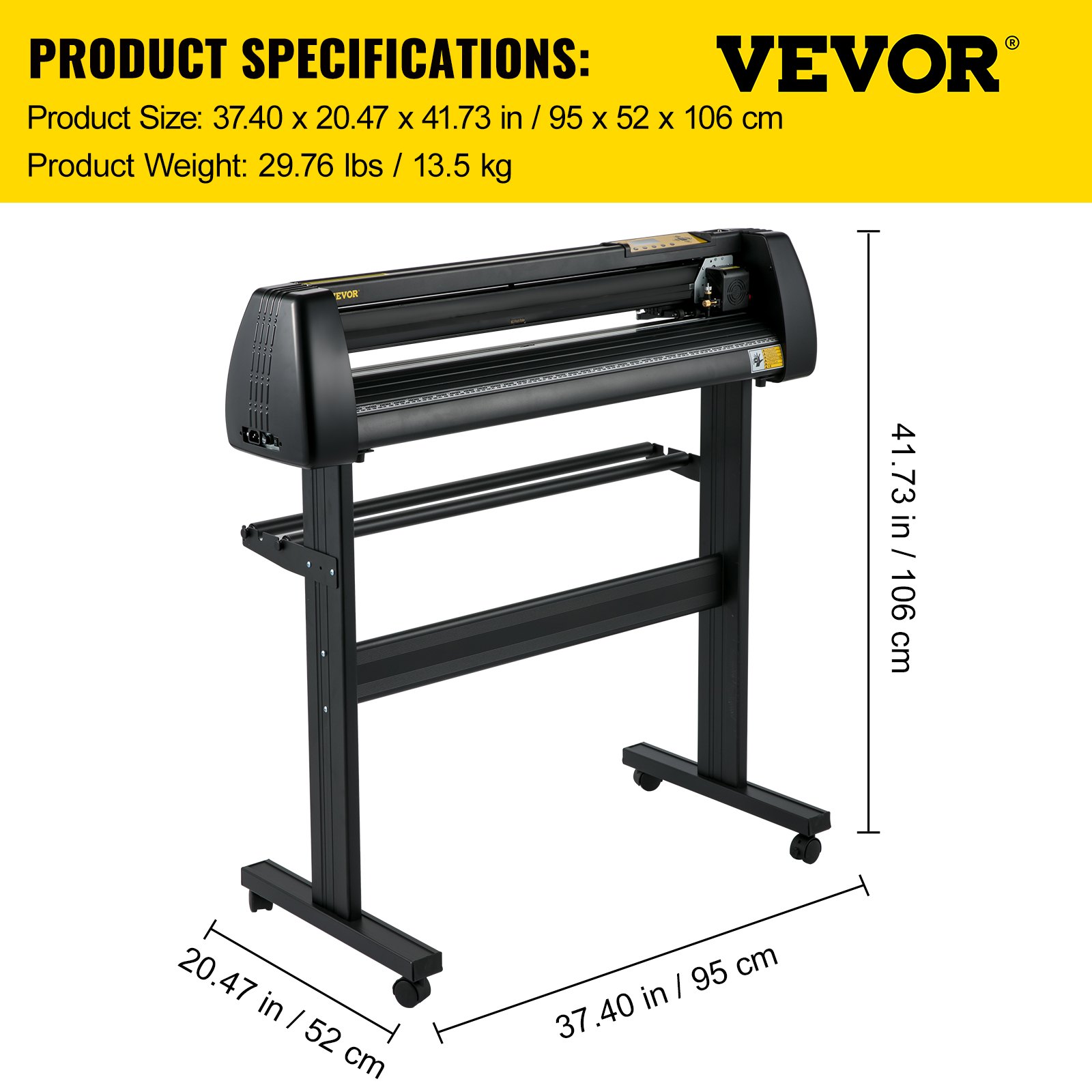

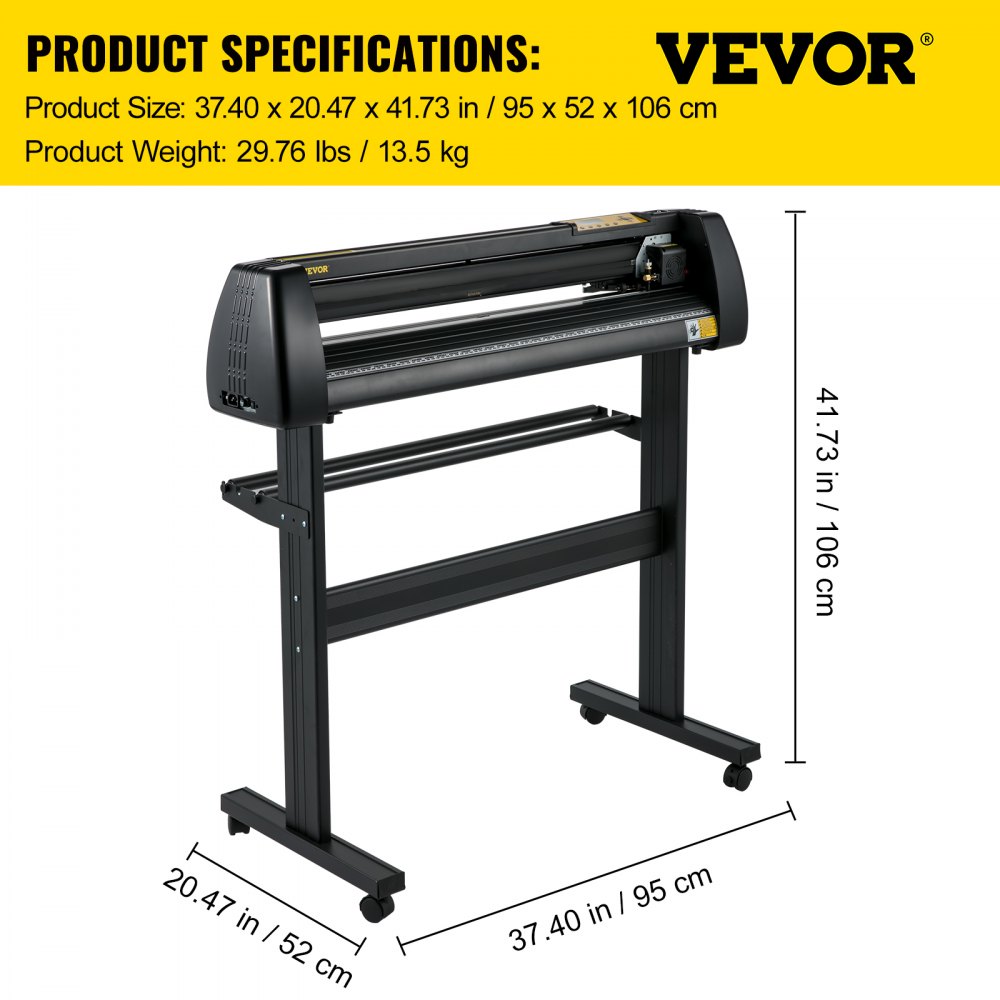

- Product Size: 37.40 x 20.47 x 41.73 in / 95 x 52 x 106 cm
- Product Weight: 29.76 lbs / 13.5 kg
- Package Size: 40.94 x 12.99 x 14.17 in / 104 x 33 x 36 cm
- Package Weight: 37.48 lbs / 17 kg
