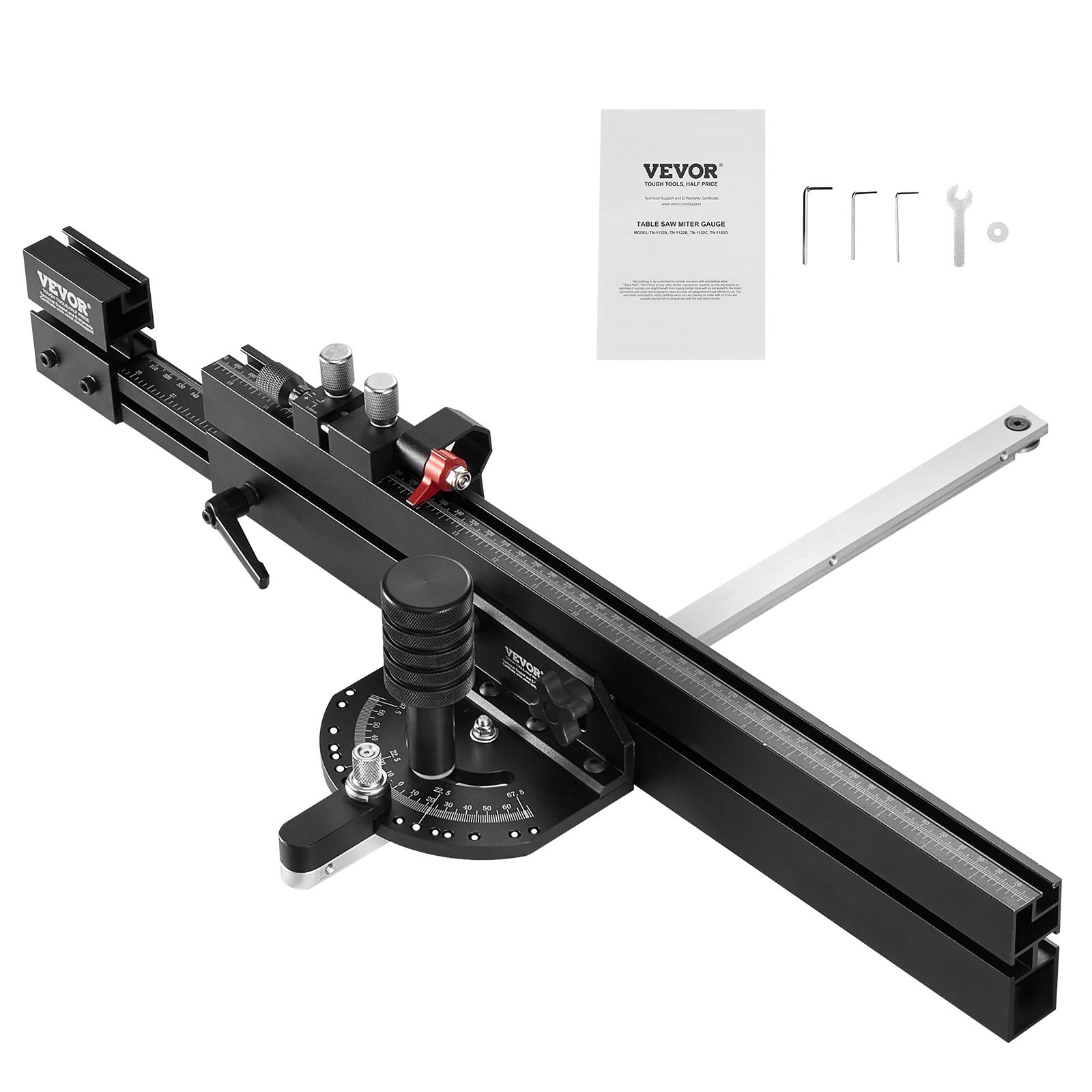

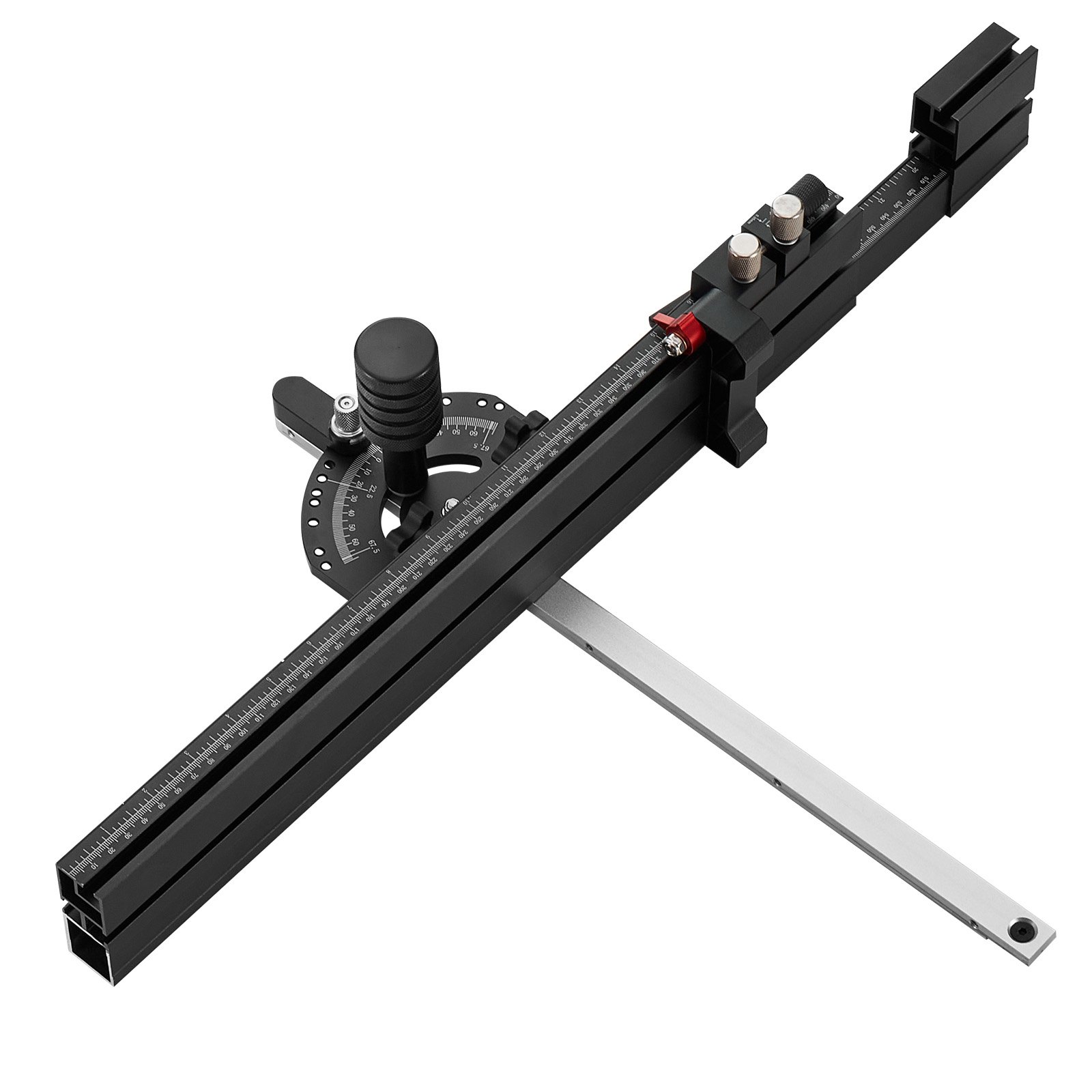

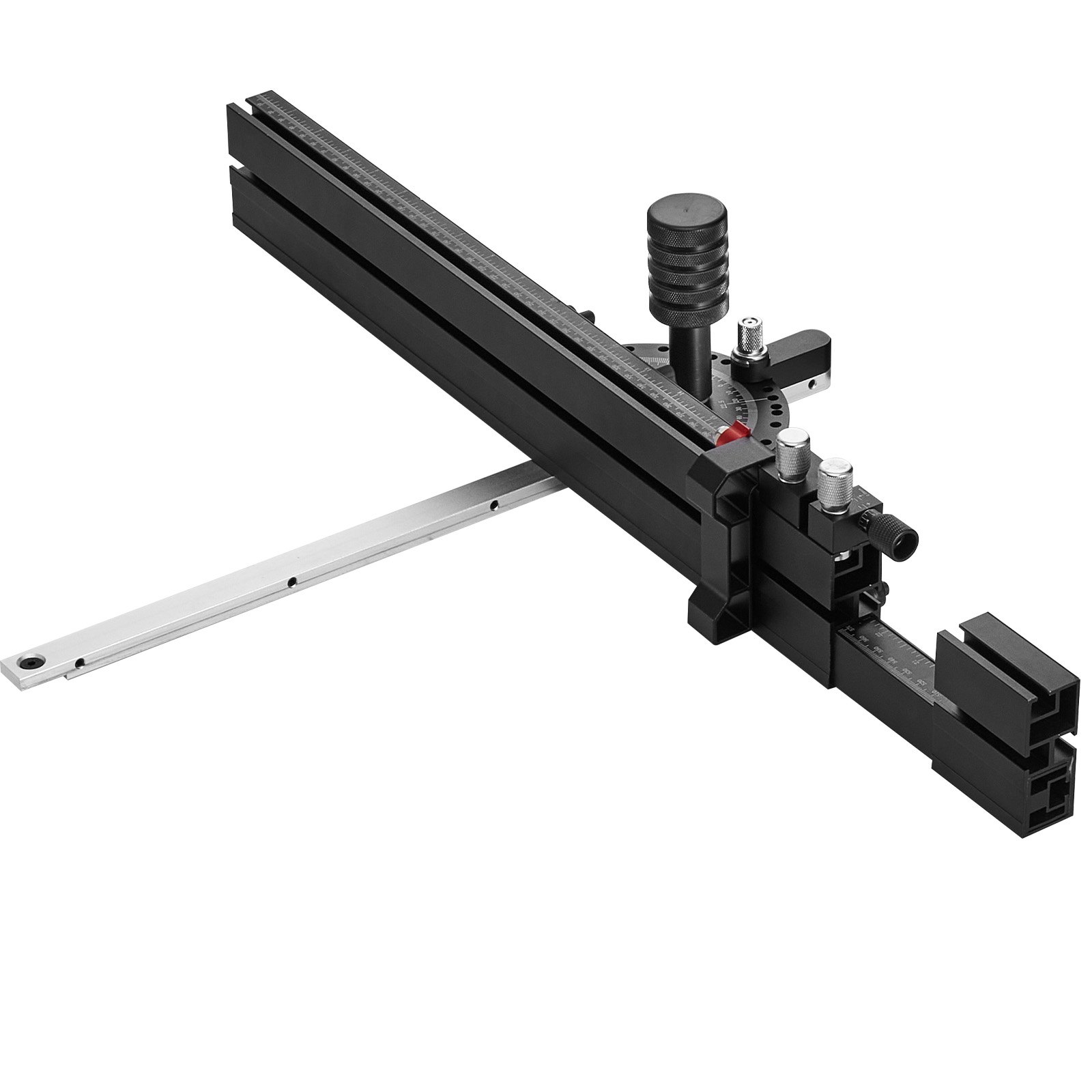

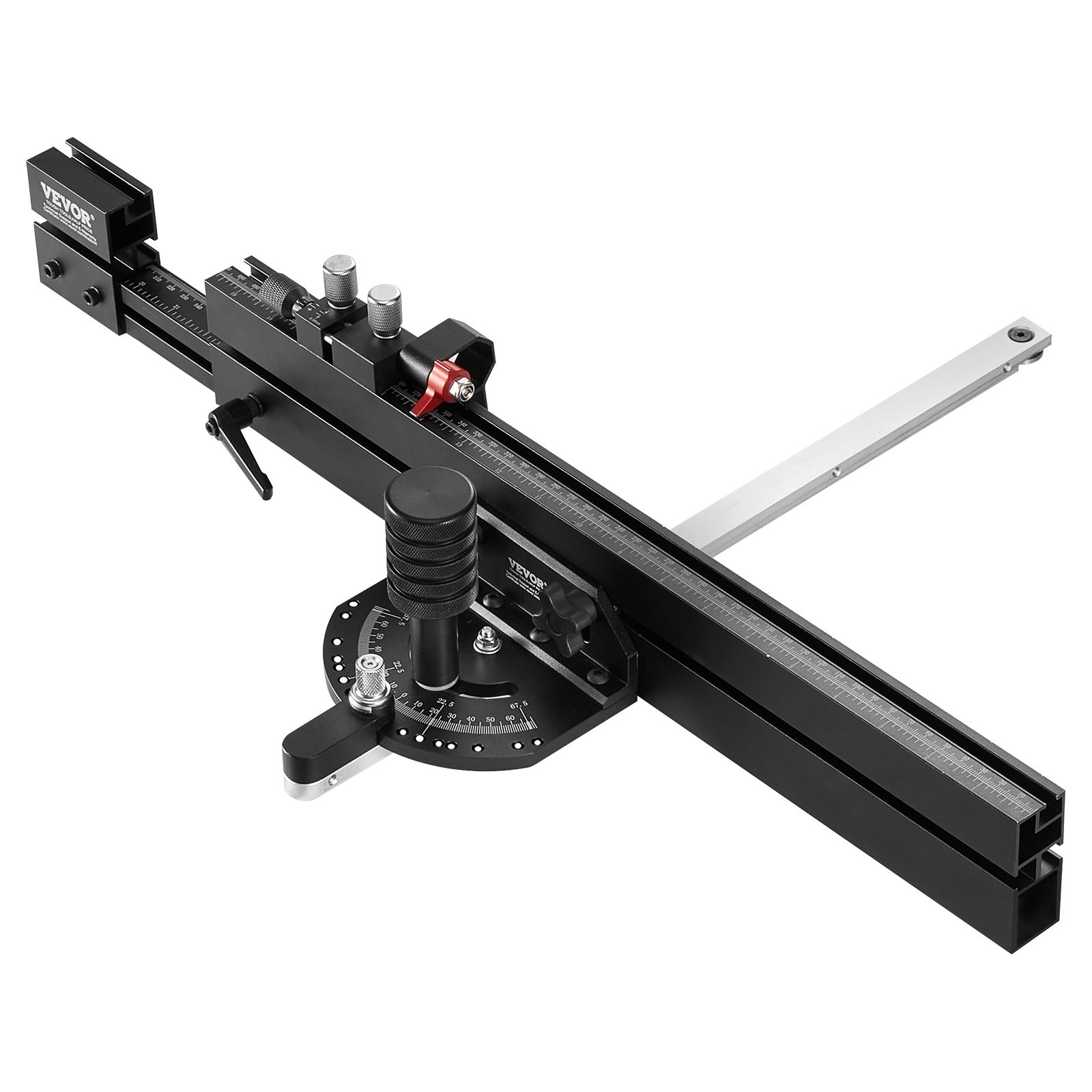

VEVOR miter gauge with ruler, adjustment knobs, and included hex wrenches, manual, and accessories. VEVOR miter gauge fits 3/4" x 3/8" table saw slots, compatible with most table saws, steel miter bar. VEVOR miter gauge with 15 positive stops for precision woodworking angle adjustments. VEVOR miter gauge semi-assembled packaging with parts in foam insert to simplify assembly. VEVOR miter gauge with retractable grating, aluminum alloy material, and non-slip handle. widely applicable for wood connection, woodworking diy, garden maintenance, and mechanical assembly. VEVOR miter gauge tn-1122d, aluminum alloy, 15-angle adjustment, with accessories and measurements.
TJXQGDKS6060EZ0GRV0

VEVOR Precision Miter Gauge, Standard Slot 3/4'' x 3/8'', Aluminum Alloy Table Saw Miter Gauge with 19-35 in Grating 15 Angle Stops Adjustable Spring Loaded Plunger and Removable Disc, for Woodworking

See All Customer Reviews
4 Reviews
Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive 5,00€ off on your first three app orders. Only App.
Download Now
Exclusive 5,00€ off on your first three app orders. Only App.
Scan the QR code to download

With Grating

  • Without Grating
  • With Grating

18-35 in

  • No
  • 18-35 in

About this item

  • Fit for Most Table Saws: Our miter gauge is expertly designed to fit the majority of standard table saw slots measuring 3/4 x 3/8 in ( 19 x 9.5 mm). To ensure a perfect match, please measure the slots on your table saw before purchase. Featuring a detachable disc, our miter gauge is compatible with both 3/4" x 3/8" T-shaped and U-shaped slots. Ideal for most table saw brands, and is upgrade for precision woodworking.
  • Precision Angle Cutting: Experience cutting precision with our adjustable solid aluminum head, engineered with 15 positive stop holes for ultimate accuracy. One stop hole is set at 90 degrees, with seven additional holes on each side at 15°, 22.5°, 30°, 35°, 45°, 60°, and 67.5° to cover most woodworking angles. For more intricate angle cuts, the gauge adjusts proportionally, allowing you to achieve precise angles efficiently and effortlessly.
  • Partially Assembled Components: This miter gauge for table saw is shipped partially assembled to streamline your setup process. When it arrives, you won't need to fuss with numerous small parts. Just attach a few core components, and you're ready to go. It maintains the accuracy of your measurements without the typical assembly hassle.
  • Easy Operation, Simple Adjustment: Our table saw miter gauge features a steel miter bar equipped with an adjustable bead spring plunger on the side. When placing the miter gauge in the table saw slot, if you notice any gaps, simply use the included hex wrench to adjust the plunger. This adjustment ensures an ideal fit within the slot, improving wear resistance and simplifying your operations.
  • Refined Durability in Every Detail: This precision miter gauge is constructed from aluminum alloy, ensuring durability and resistance to deformation. The 19-35 in retractable grating accommodates more sizes of table saws. The angle plate scale is meticulously etched using laser engraving technology, and the textured metal handle provides a secure grip that avoids slipping.
See More See Less

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Precision Miter Gauge, Standard Slot 3/4'' x 3/8'', Aluminum Alloy Table Saw Miter Gauge with 19-35 in Grating 15 Angle Stops Adjustable Spring Loaded Plunger and Removable Disc, for Woodworking
With Grating 18-35 in
Description Specification Questions and Answers Reviews
Woodworking Table Saw Miter Gauge with 19-35 in Grating

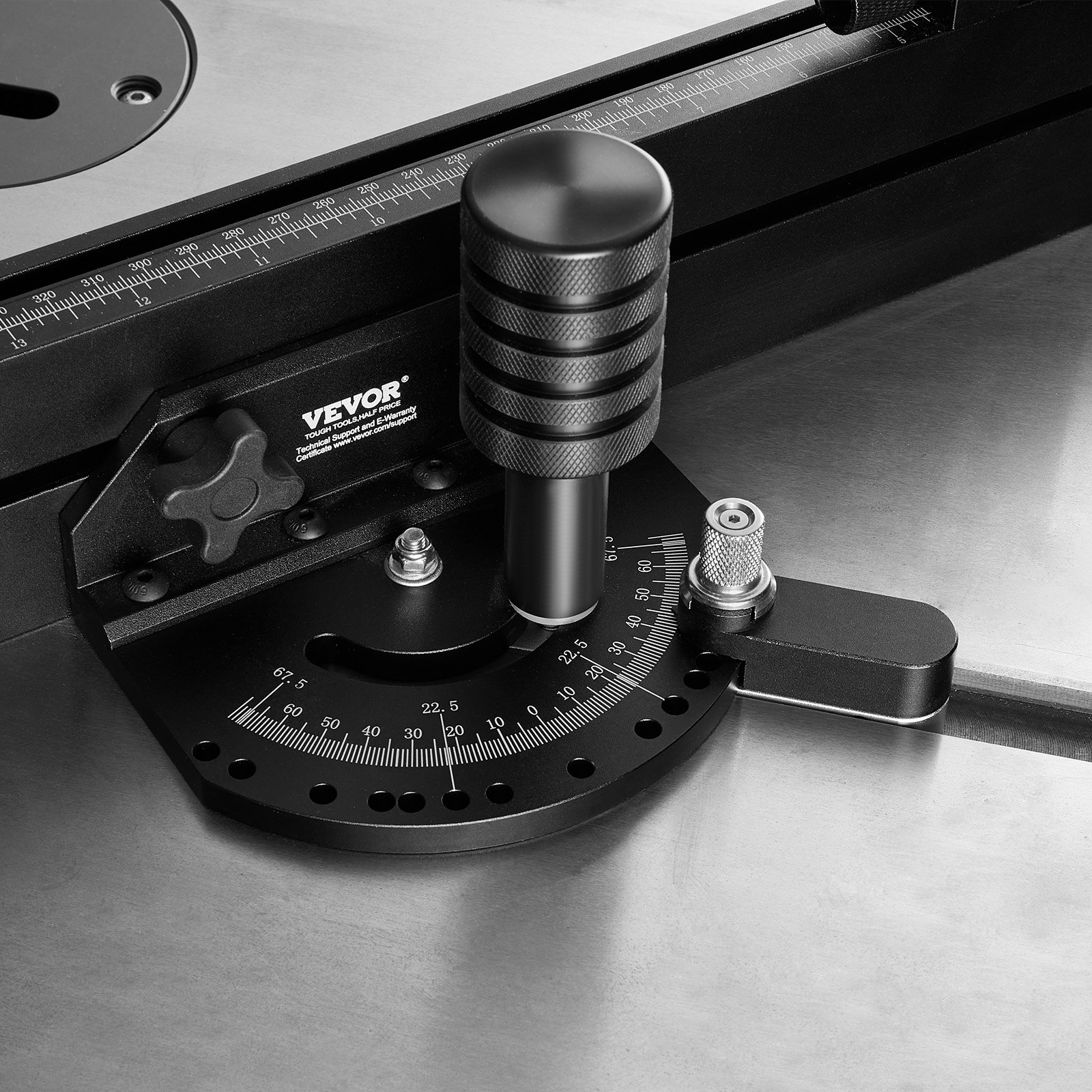

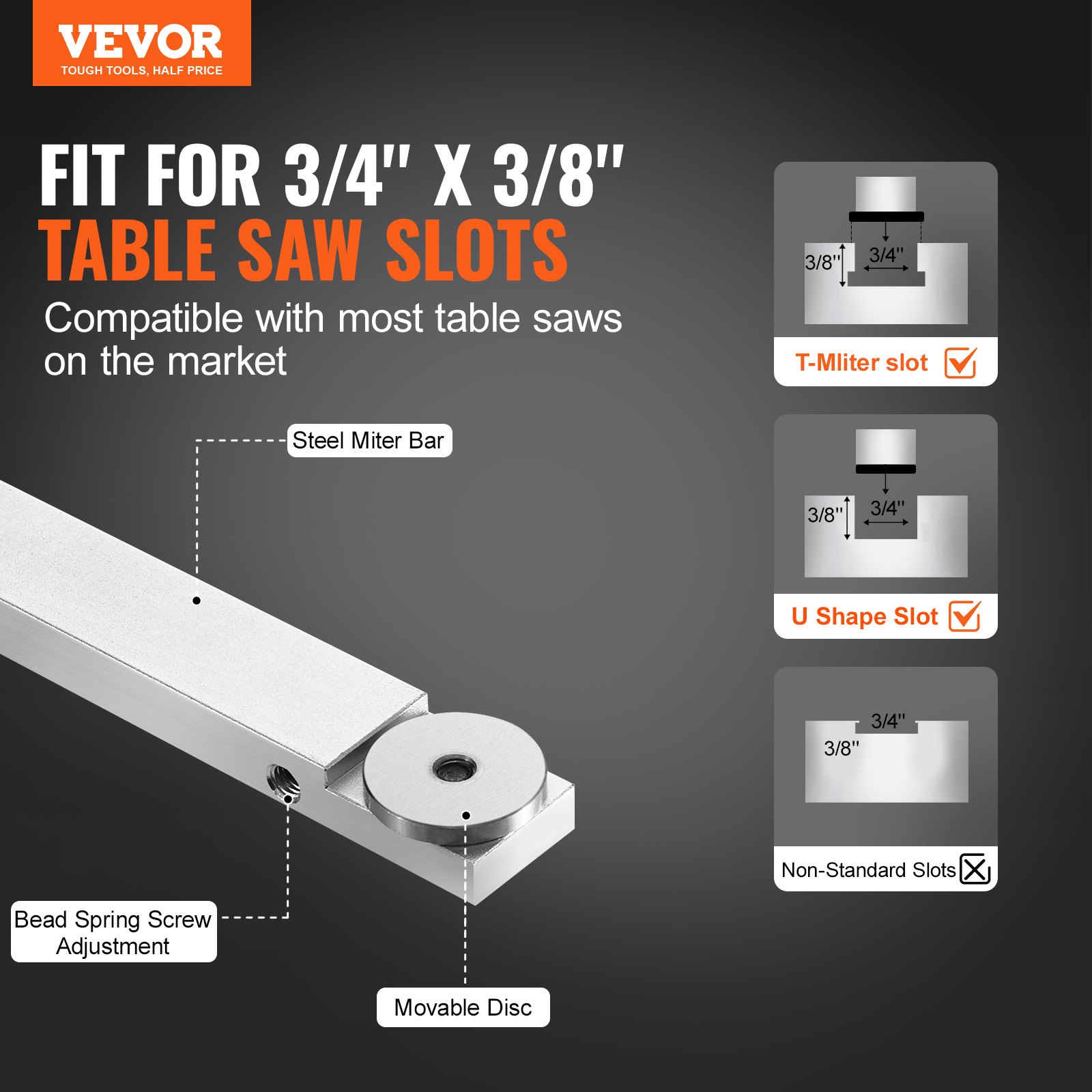

VEVOR miter gauge in use on a woodworking table, fitting 3/4" x 3/8" table saw slots.
VEVOR miter gauge in use on a woodworking table, fitting 3/4" x 3/8" table saw slots.
Our miter gauge fits most standard table saw slots measuring 3/4 x 3/8 in ( 19 x 9.5 mm). Featuring a detachable disc, it is compatible with both 3/4'' x 3/8'' T-shaped and U-shaped slots. Engineered with 15 positive stop holes, it's the ideal upgrade for precision woodworking.

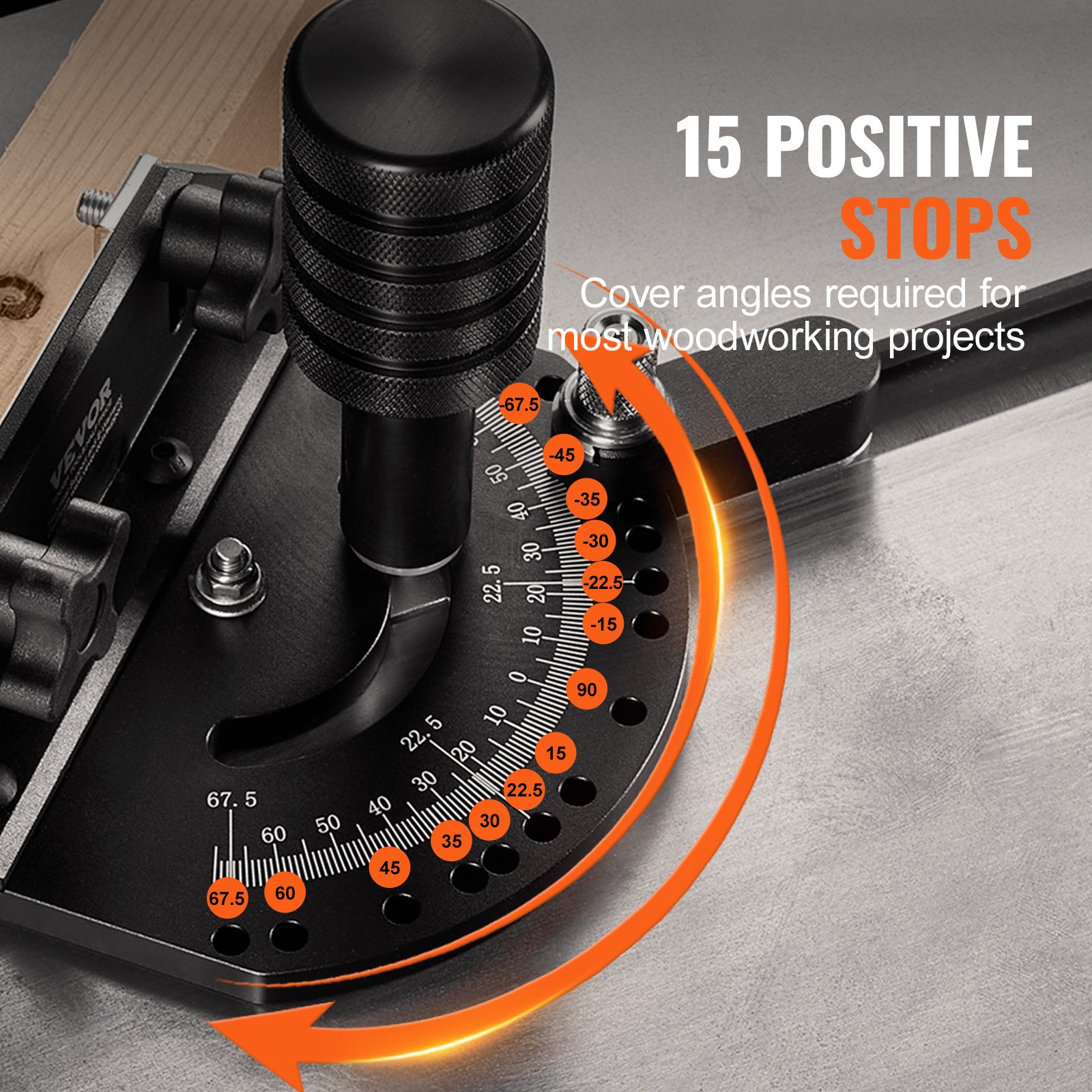

VEVOR miter gauge with 15 positive stops for quicker and more accurate angle adjustments.
VEVOR miter gauge with 15 positive stops for quicker and more accurate angle adjustments.
Experience cutting precision with our adjustable solid aluminum head, engineered with 15 positive stop holes for ultimate accuracy. One stop hole is set at 90 degrees, with seven additional holes on each side at 15°, 22.5°, 30°, 35°, 45°, 60°, and 67.5° to cover most woodworking angles.

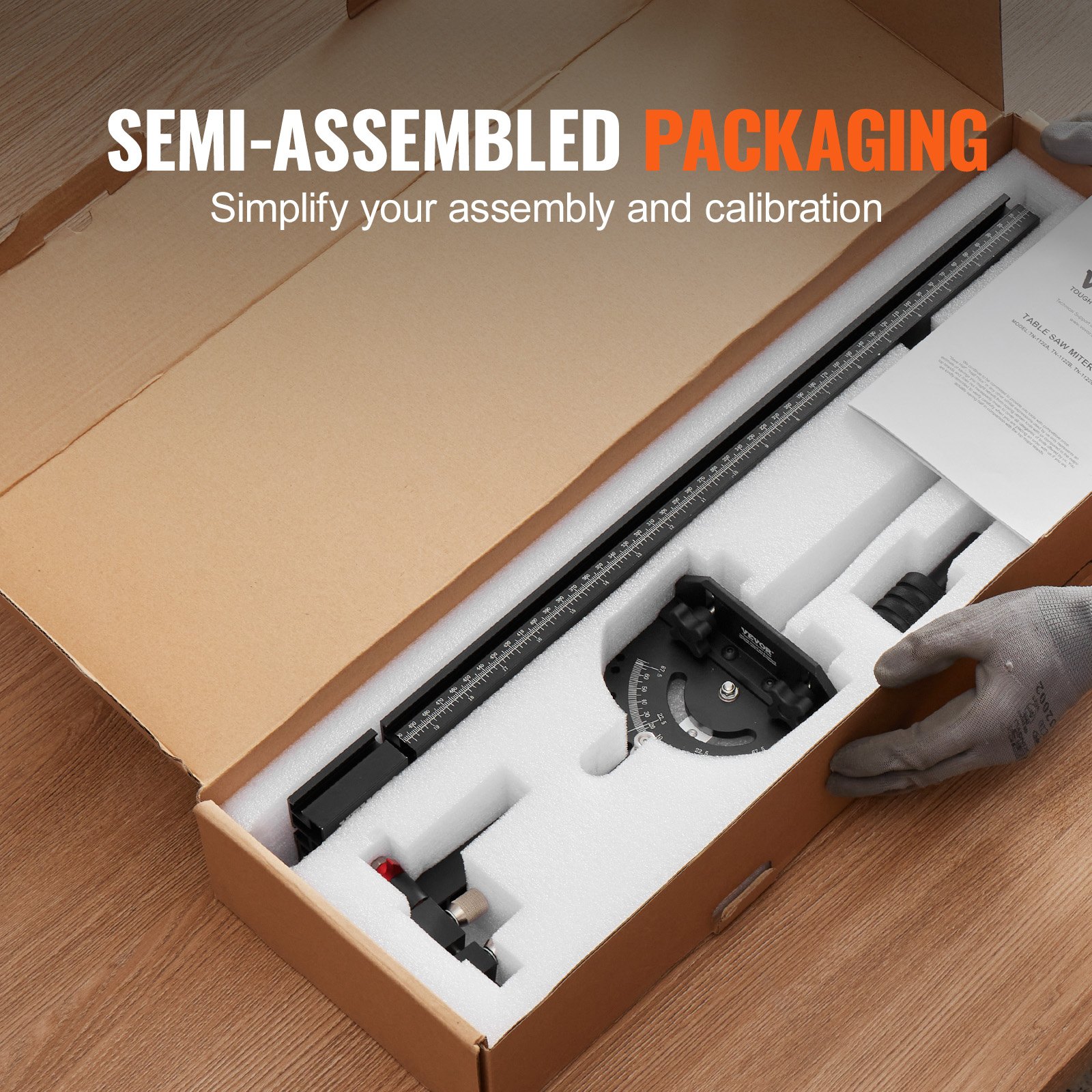

VEVOR miter gauge in box with foam insert and assembly instructions, easy to set up and calibrate.
VEVOR miter gauge in box with foam insert and assembly instructions, easy to set up and calibrate.
This miter gauge for table saw is partially assembled to streamline your setup process. When it arrives, you won't need to fuss with numerous small parts. Just attach a few core components, and you're ready to go.
simpler and secure operation with VEVOR miter gauge for precise 45° woodcut, featuring three steps.
simpler and secure operation with VEVOR miter gauge for precise 45° woodcut, featuring three steps.
Our table saw miter gauge features a steel miter bar equipped with an adjustable bead spring plunger on the side. When placing the miter gauge in the table saw slot, if you notice any gaps, simply use the included hex wrench to adjust the plunger.

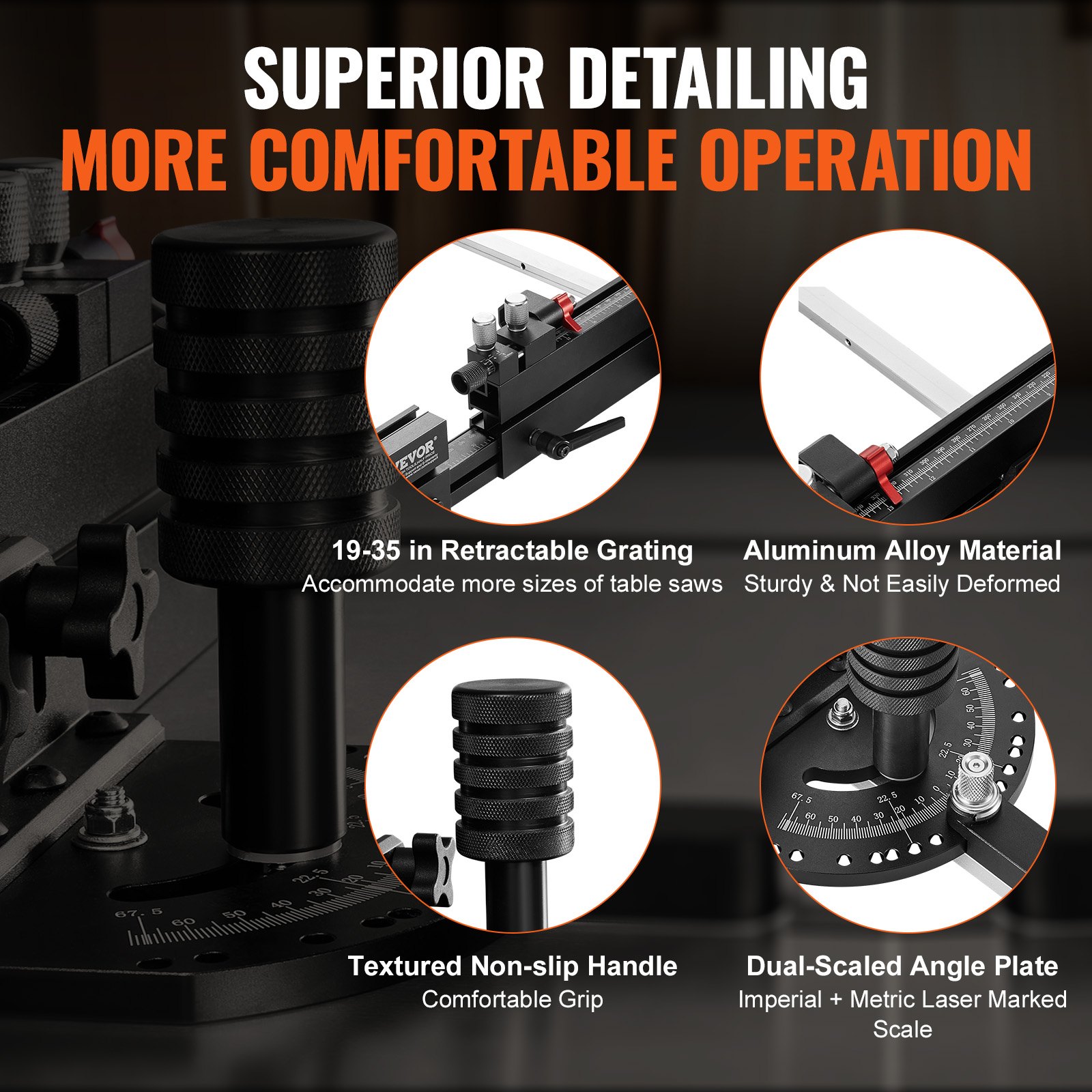

VEVOR miter gauge with textured handle, dual-scaled angle plate, and retractable grating for precise cuts.
VEVOR miter gauge with textured handle, dual-scaled angle plate, and retractable grating for precise cuts.
This precision miter gauge is made of aluminum alloy, ensuring durability and resistance to deformation. The 19-35 in retractable grating accommodates more sizes of table saws. The angle plate scale is laser-engraved, and the textured metal handle enhances precision and comfort.

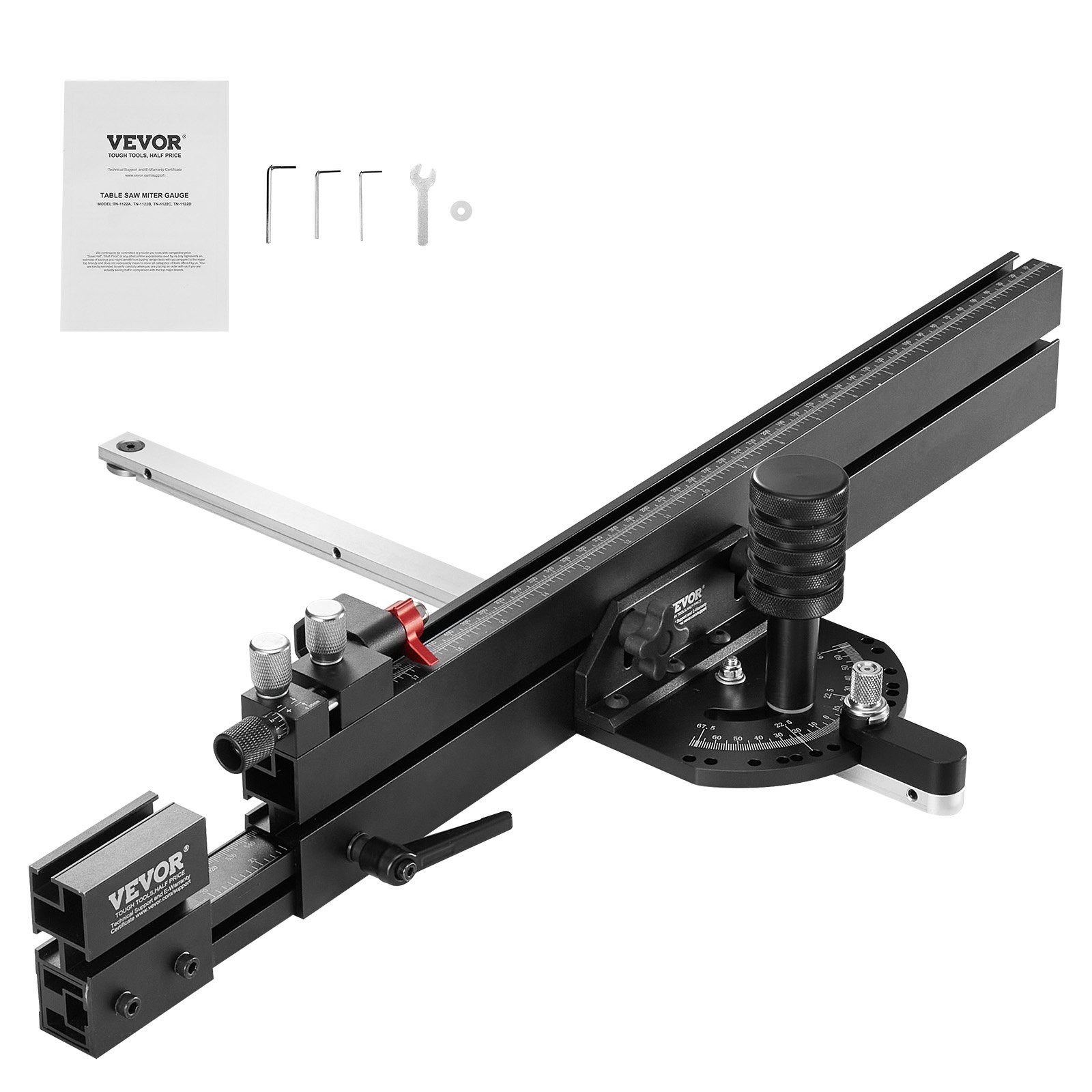

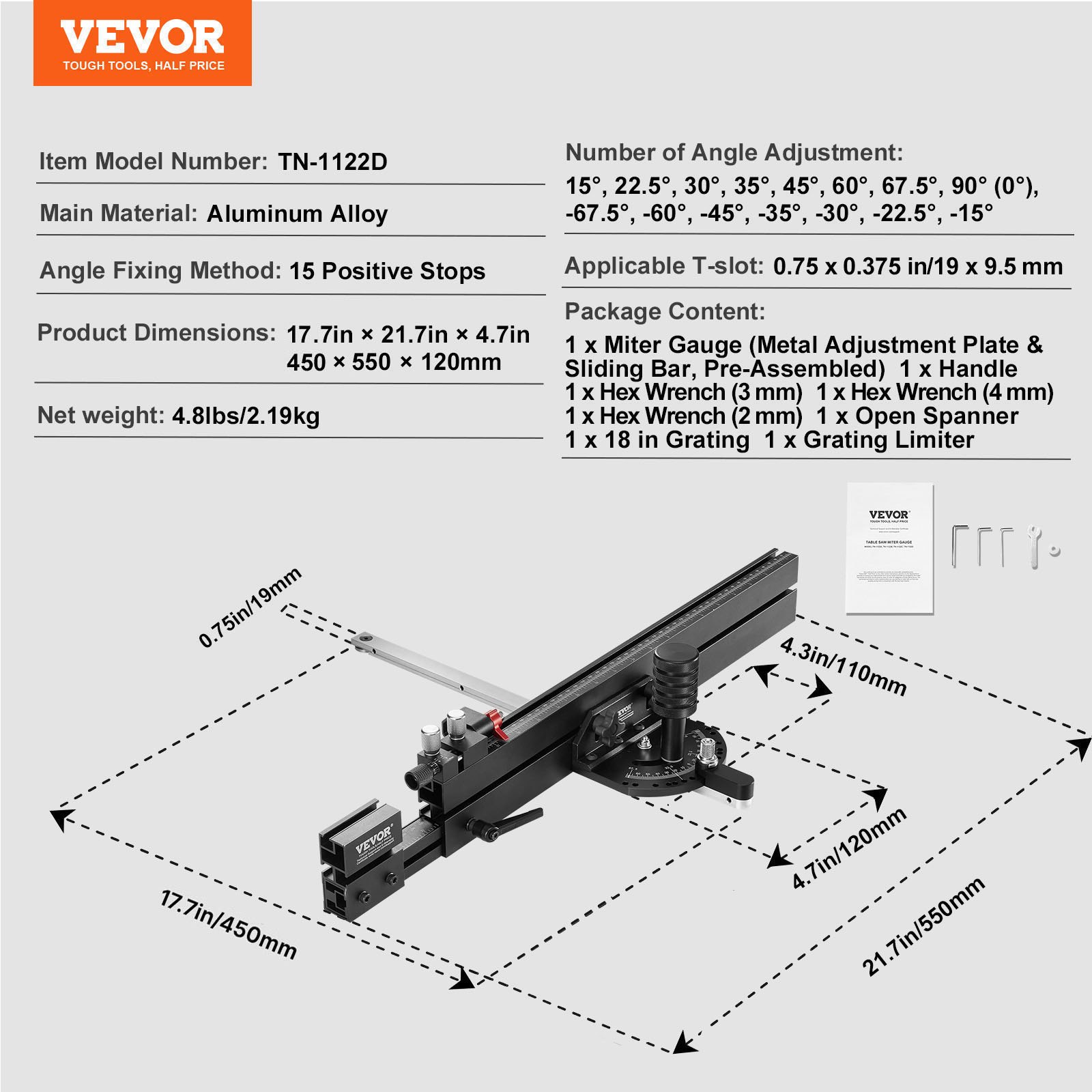

VEVOR miter gauge tn-1122d with aluminum alloy, 15 positive stops, 520x550x120mm dimensions, and tools.
VEVOR miter gauge tn-1122d with aluminum alloy, 15 positive stops, 520x550x120mm dimensions, and tools.

Specification

Item Model Number
TN-1122D
Main Material
Aluminum Alloy
Adjustment Angle Range
±70°
Angle Precision
±0.5°
Angle Fixing Method
15 Positive Stops
Number of Angle Adjustment
15°, 22.5°, 30°, 35°, 45°, 60°, 67.5°, 90°, -67.5°, -60°, -45°, -35°, -30°, -22.5°, -15°
Scale
Laser Marked, Metric and Imperial
Applicable T-slot
0.75 x 0.375 in/19 x 10 mm
Product Dimensions
20.5 x 21.7 x 4.7 in/520 x 550 x 120 mm
Net Weight
4.8 lbs/2.19 kg
Questions and Answers
Typical questions asked about products: Is the product durable? ...
Ask the First Question

Customer Reviews

4.8 Out of 5
Based on 4 reviews

Ratings by Features

  • 4.7
  • 4.5
  • 4.6
  • 4.5
  • See More See Less
4 Review(s)
Clear filters
Carn Jackson Carn Jackson
Works with Evolution Table Saw
Not used it yet, but seems perfect for my table saw.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
MMBF MMBF
Incredible item and service from Vevor.
This item is very accurate and robust out of the box. It comes with many features that are normally only provided in set ups which are three times the price of this. We use this in our working workshop and already been impressed with the accuracy and resilience of this fence and mitre. I have had to adapt this fit our Evolution Rage 5s, but this only due to the silly non standard track on this table saw. As time and money allows, I will be replacing all my machine mitre gauges with this one. We had one missing minor item from the package, but my email was answered readily by Saad who rapidly arranged delivery of a replacement and kept me informed all the way. Cannot fault the customer service.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Deanne Santini Deanne Santini
Good quality piece of equipment
Lovely piece of equipment, but not suitable for my Evolution Rage 5 Table saw. Sad.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
VEVOR Customer VEVOR Customer
Great value mitre gauge
Sitting on my saw table ready to use. Like the look and feel combined and with the auto angle stops should make the unit very practical. The actual aluminium section is slightly out of alignment but hopefully will not be an issue.
