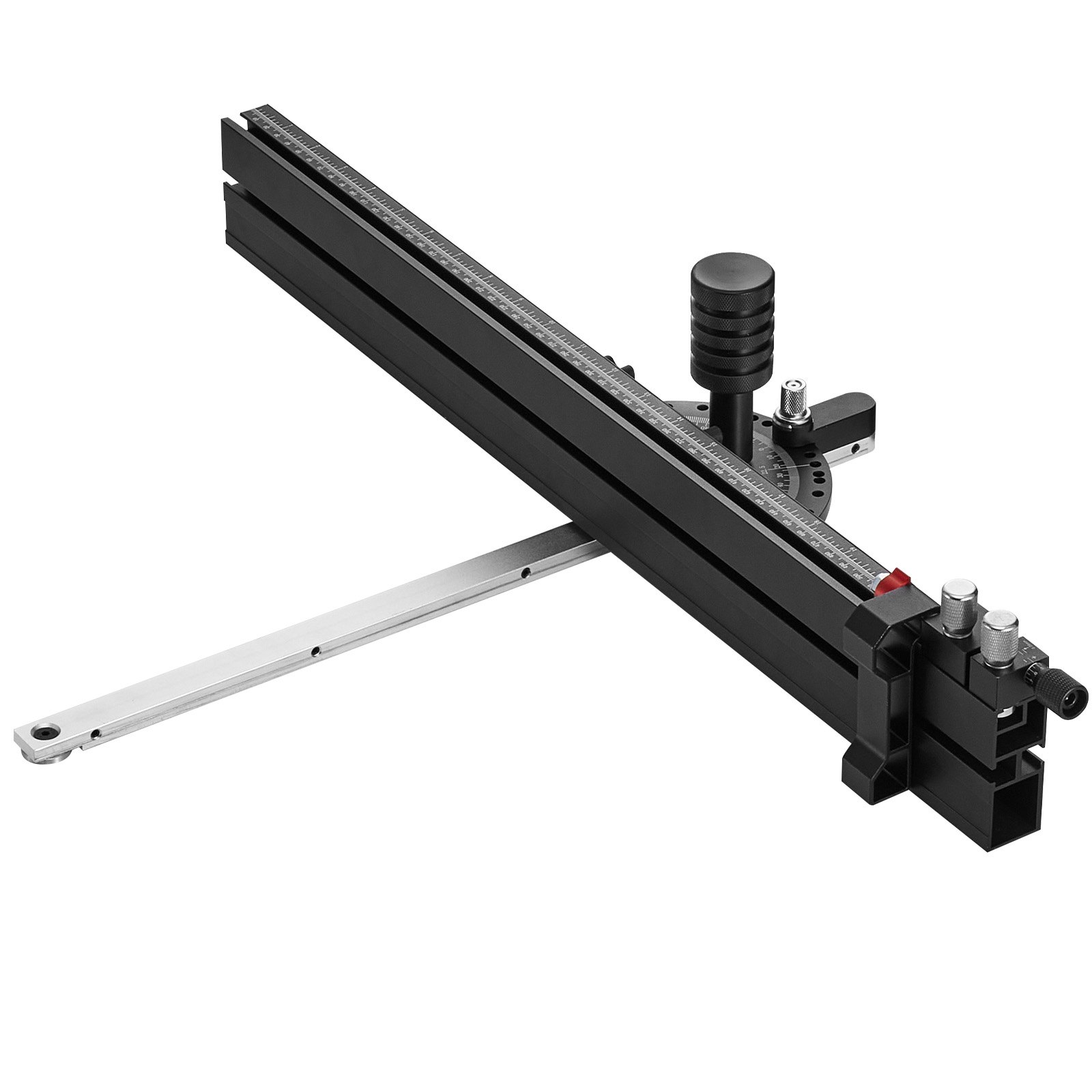

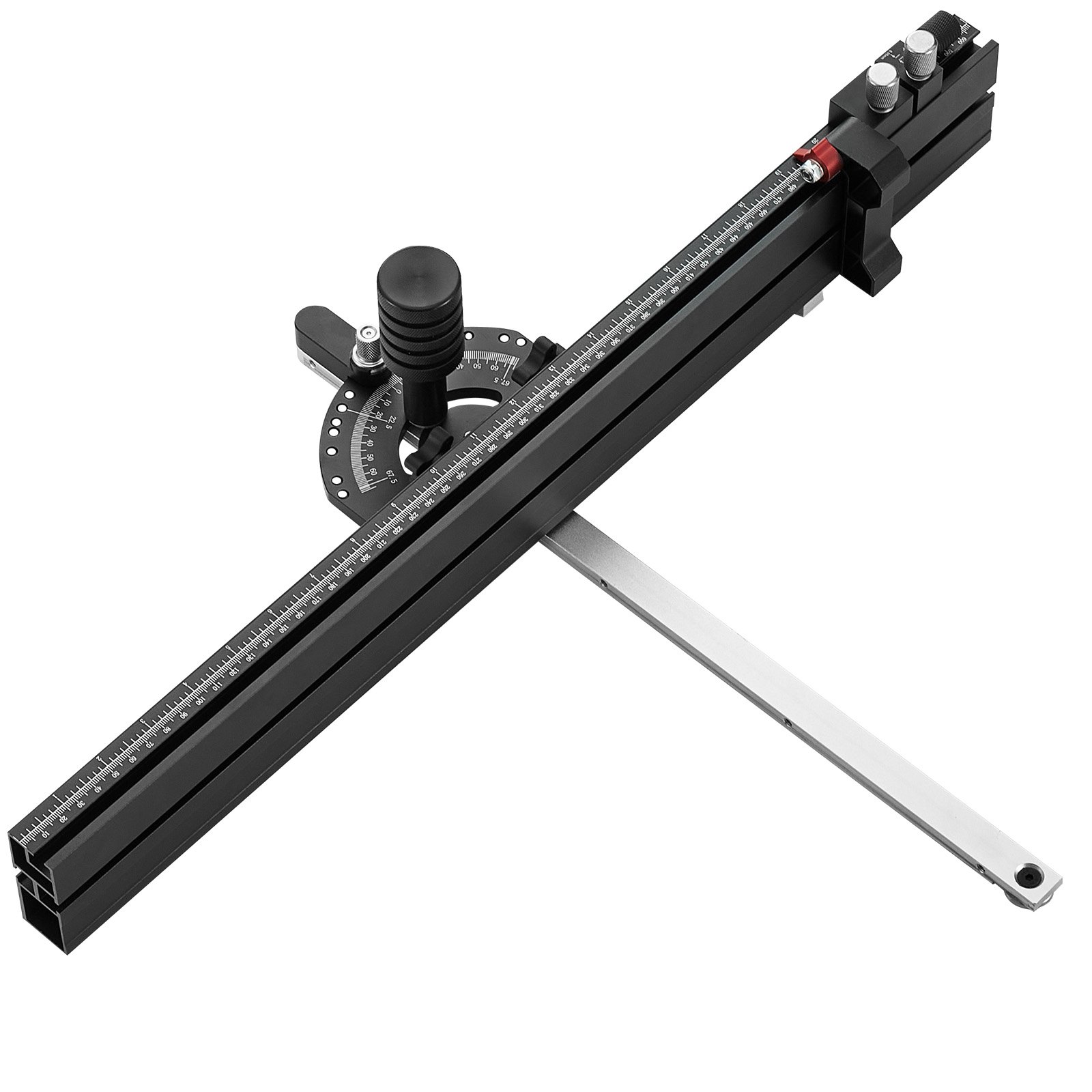

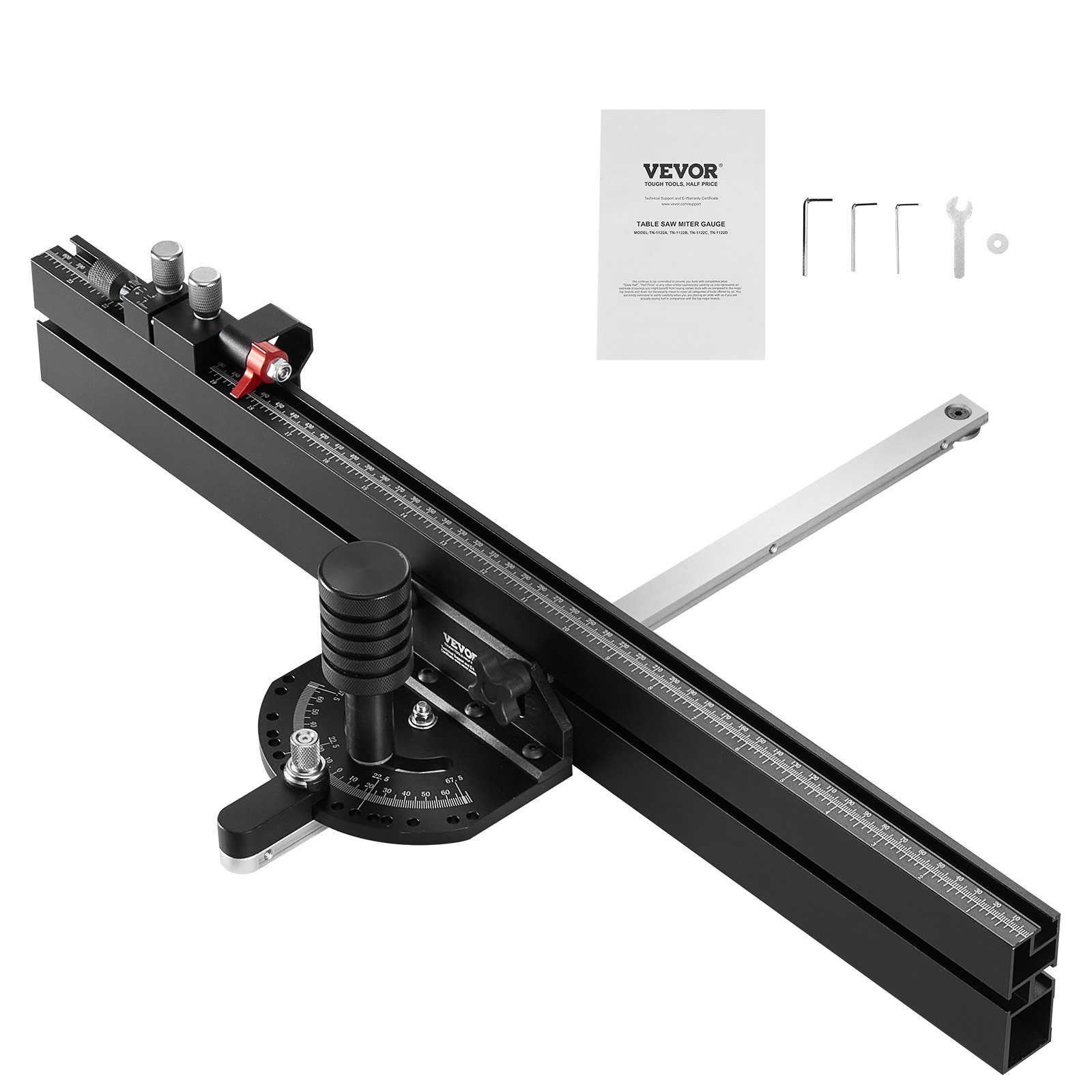

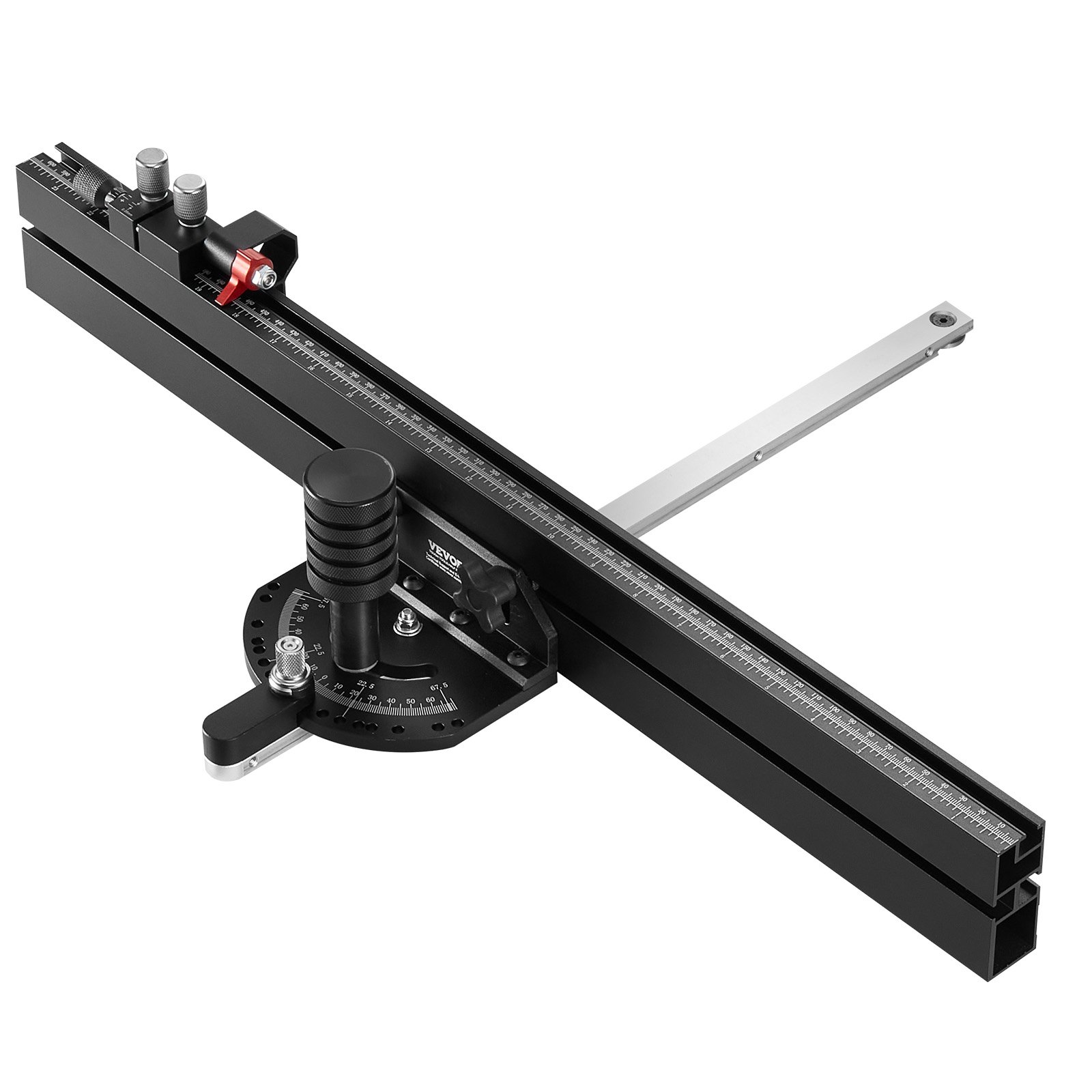

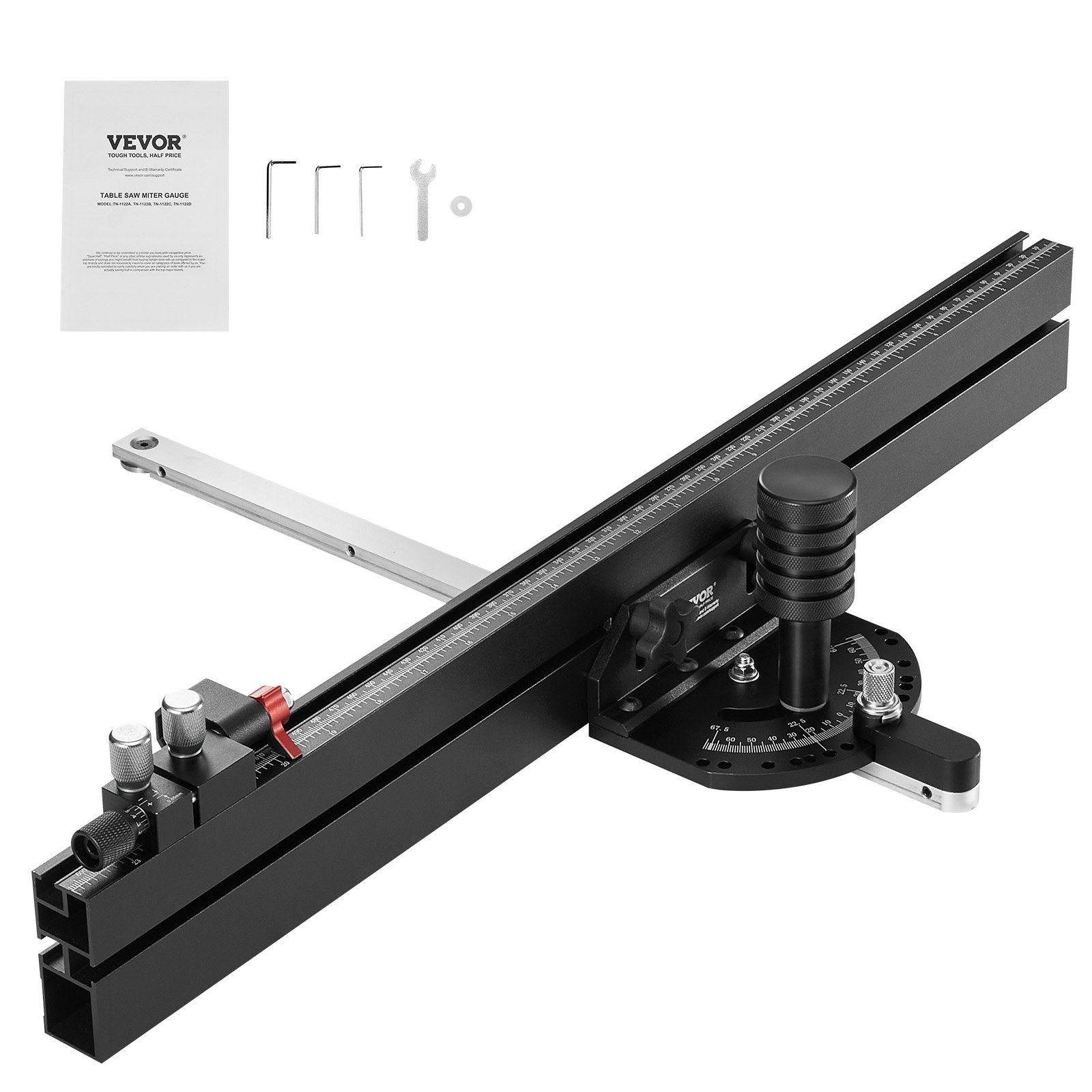

VEVOR table saw miter gauge with ruler, black knobs, and adjustment tools set against white background. VEVOR table saw miter gauge with steel miter bar, fits 3/4" x 3/8" t-miter and u shape slots. compatible. VEVOR table saw miter gauge with 15 positive stops, showing angle measurements for woodworking projects. VEVOR table saw miter gauge in semi-assembled packaging with manual on wooden surface. superior detailing of VEVOR table saw miter gauge with aluminum alloy, non-slip handle, and dual scale. widely applicable uses of VEVOR table saw miter gauge: wood connection, woodworking diy, garden maintenance, and mechanical assembly. VEVOR table saw miter gauge, aluminum alloy, 15 positive stops, adjustable angles, includes accessories.
TJXQGDKS6060DGXZUV0

VEVOR Precision Miter Gauge, Standard Slot 3/4'' x 3/8'', Aluminum Alloy Table Saw Miter Gauge with 24 in Grating 15 Angle Stops Adjustable Spring Loaded Plunger and Removable Disc, for Woodworking

See All Customer Reviews
9 Reviews
Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive 5,00€ off for your first three orders on the App.
Download Now
Exclusive 5,00€ off for your first three orders on the App.
Scan the QR code to download

About this item

  • Fit for Most Table Saws: Our miter gauge is expertly designed to fit the majority of standard table saw slots measuring 3/4 x 3/8 in ( 19 x 9.5 mm). To ensure a perfect match, please measure the slots on your table saw before purchase. Featuring a detachable disc, our miter gauge is compatible with both 3/4" x 3/8" T-shaped and U-shaped slots. Ideal for most table saw brands, and is upgrade for precision woodworking.
  • Precision Angle Cutting: Experience cutting precision with our adjustable solid aluminum head, engineered with 15 positive stop holes for ultimate accuracy. One stop hole is set at 90 degrees, with seven additional holes on each side at 15°, 22.5°, 30°, 35°, 45°, 60°, and 67.5° to cover most woodworking angles. For more intricate angle cuts, the gauge adjusts proportionally, allowing you to achieve precise angles efficiently and effortlessly.
  • Partially Assembled Components: This miter gauge for table saw is shipped partially assembled to streamline your setup process. When it arrives, you won't need to fuss with numerous small parts. Just attach a few core components, and you're ready to go. It maintains the accuracy of your measurements without the typical assembly hassle.
  • Easy Operation, Simple Adjustment: Our table saw miter gauge features a steel miter bar equipped with an adjustable bead spring plunger on the side. When placing the miter gauge in the table saw slot, if you notice any gaps, simply use the included hex wrench to adjust the plunger. This adjustment ensures an ideal fit within the slot, improving wear resistance and simplifying your operations.
  • Refined Durability in Every Detail: This precision miter gauge is constructed from aluminum alloy, ensuring durability and resistance to deformation. Featuring a convex-concave grating with fine-tuning screws, it allows for manual micro-adjustments to enhance precision. The angle plate scale is meticulously etched using laser engraving technology, and the textured metal handle provides a secure grip that avoids slipping.
See More See Less

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Precision Miter Gauge, Standard Slot 3/4'' x 3/8'', Aluminum Alloy Table Saw Miter Gauge with 24 in Grating 15 Angle Stops Adjustable Spring Loaded Plunger and Removable Disc, for Woodworking
Description Specification Questions and Answers Reviews
Woodworking Table Saw Miter Gauge with 24 in Grating

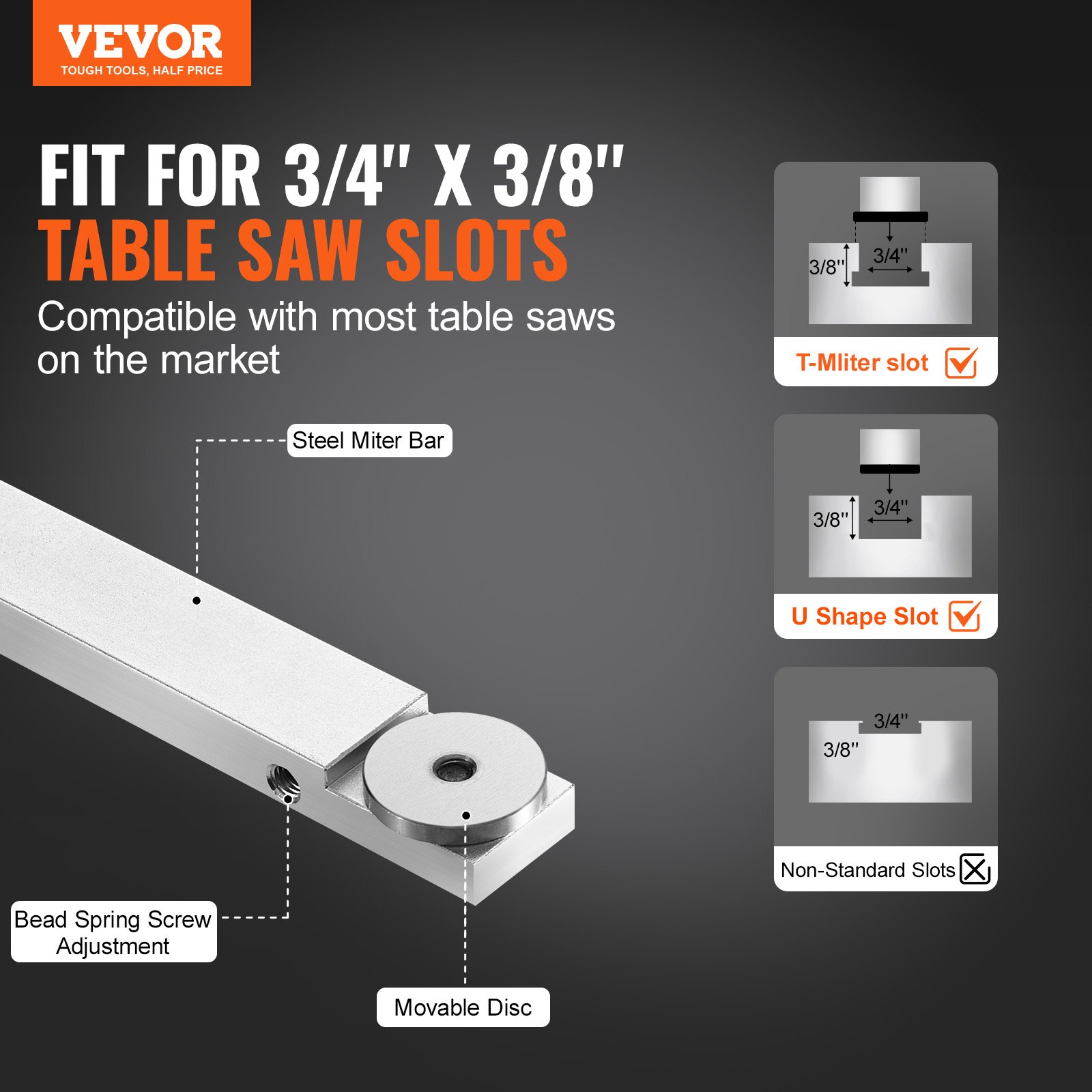

VEVOR table saw miter gauge on a woodworking table with u and t-shaped slot compatibility diagrams.
VEVOR table saw miter gauge on a woodworking table with u and t-shaped slot compatibility diagrams.
Our miter gauge fits most standard table saw slots measuring 3/4 x 3/8 in ( 19 x 9.5 mm). Featuring a detachable disc, it is compatible with both 3/4'' x 3/8'' T-shaped and U-shaped slots. Engineered with 15 positive stop holes, it's the ideal upgrade for precision woodworking.

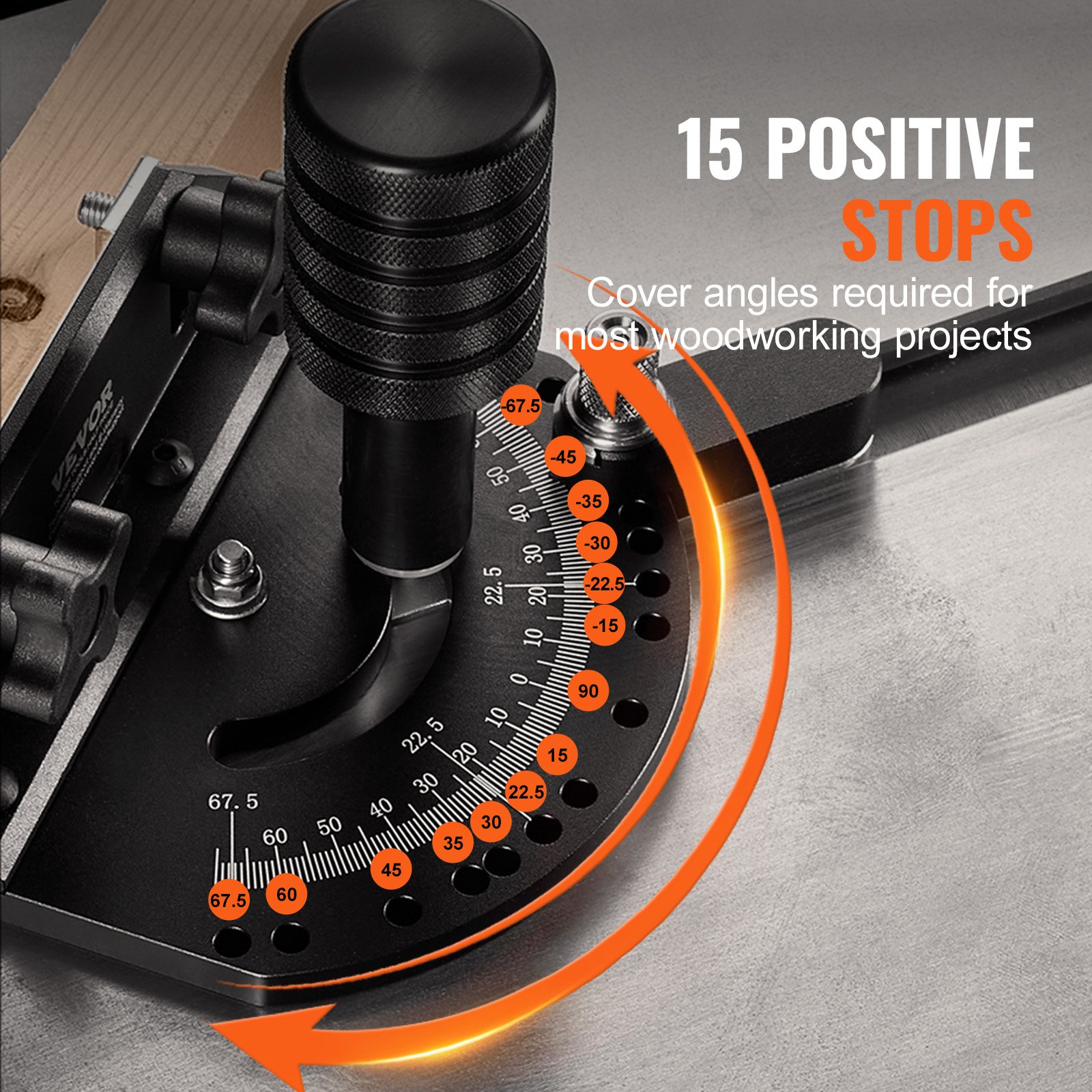

VEVOR table saw miter gauge with 15 positive stops for precise angle adjustments.
VEVOR table saw miter gauge with 15 positive stops for precise angle adjustments.
Experience cutting precision with our adjustable solid aluminum head, engineered with 15 positive stop holes for ultimate accuracy. One stop hole is set at 90 degrees, with seven additional holes on each side at 15°, 22.5°, 30°, 35°, 45°, 60°, and 67.5° to cover most woodworking angles.

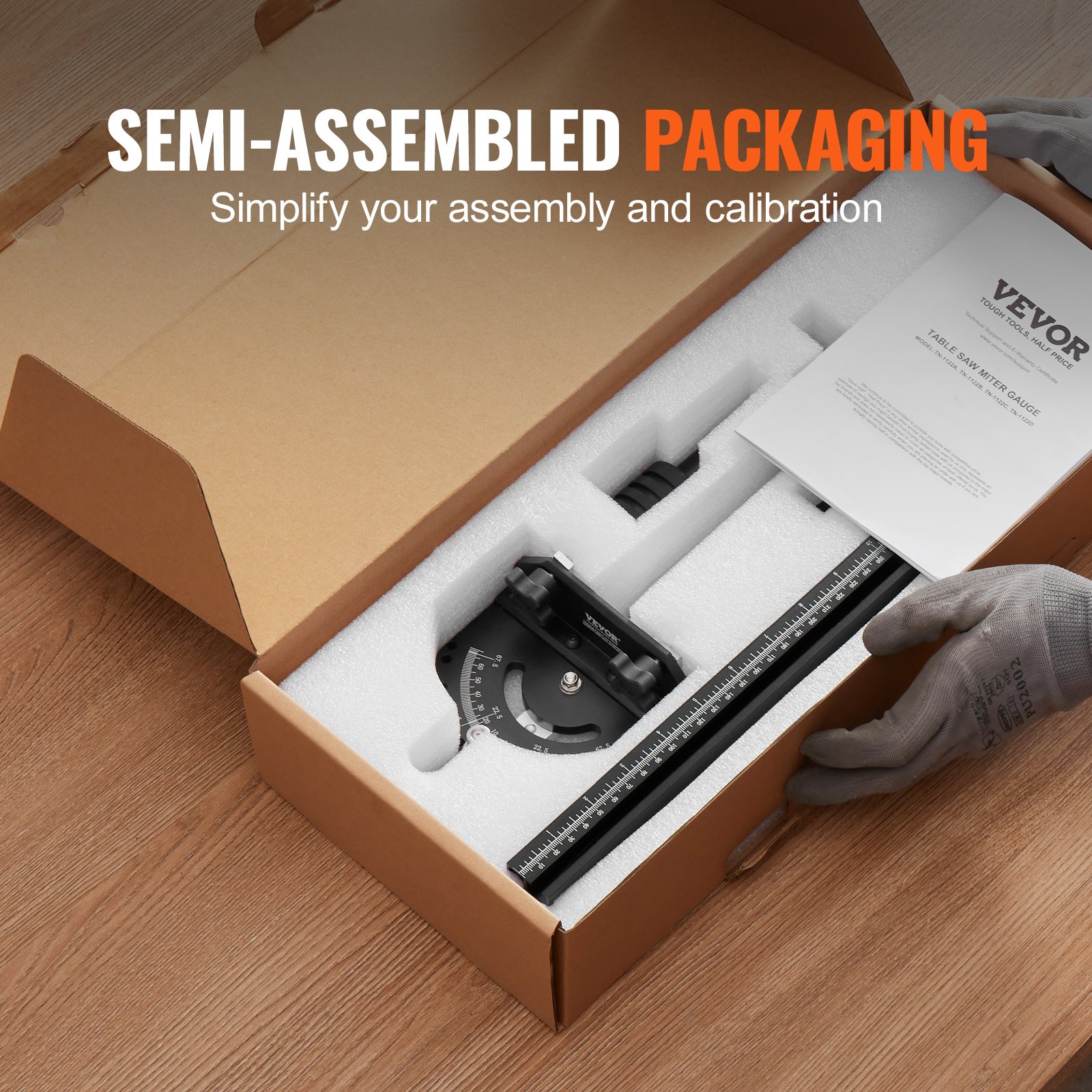

VEVOR table saw miter gauge in packaging, easy to assemble and calibrate, shipped semi-assembled.
VEVOR table saw miter gauge in packaging, easy to assemble and calibrate, shipped semi-assembled.
This miter gauge for table saw is partially assembled to streamline your setup process. When it arrives, you won't need to fuss with numerous small parts. Just attach a few core components, and you're ready to go.
simpler operation with VEVOR table saw miter gauge; steps 1-3 to cut 45-degree wood pieces effortlessly.
simpler operation with VEVOR table saw miter gauge; steps 1-3 to cut 45-degree wood pieces effortlessly.

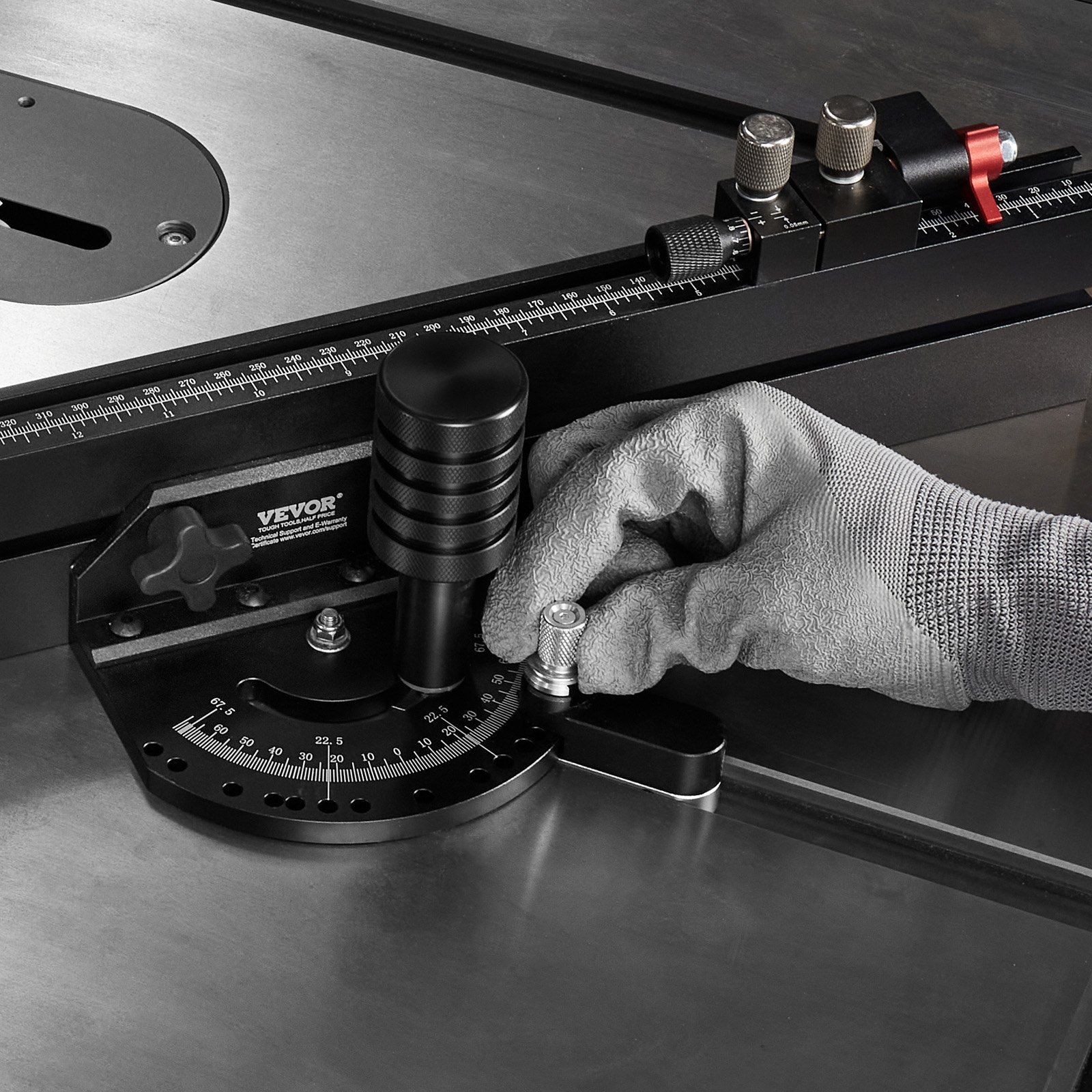

Our table saw miter gauge features a steel miter bar equipped with an adjustable bead spring plunger on the side. When placing the miter gauge in the table saw slot, if you notice any gaps, simply use the included hex wrench to adjust the plunger.

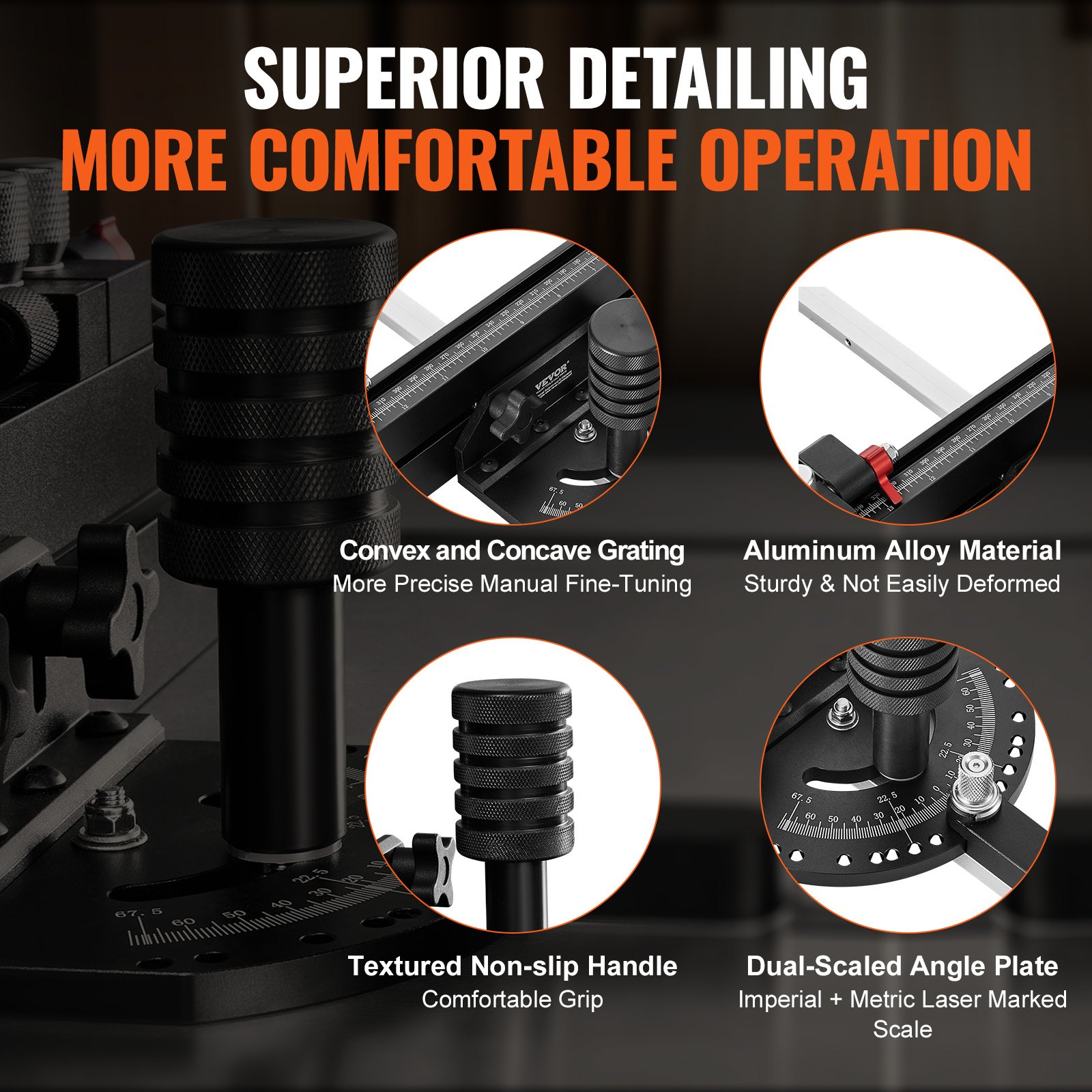

superior detailing VEVOR table saw miter gauge with convex grating, aluminum alloy, and textured handle.
superior detailing VEVOR table saw miter gauge with convex grating, aluminum alloy, and textured handle.
This precision miter gauge is made of aluminum alloy, ensuring durability and resistance to deformation. The convex-concave grating with fine-tuning screws for manual micro-adjustments, the angle plate scale is laser-engraved, and the textured metal handle enhances precision and comfort.
VEVOR table saw miter gauge with 15 positive stops, aluminum alloy, dimensions 650x550x120 mm.
VEVOR table saw miter gauge with 15 positive stops, aluminum alloy, dimensions 650x550x120 mm.

Specification

Item Model Number
TN-1122C
Main Material
Aluminum Alloy
Adjustment Angle Range
±70°
Angle Precision
±0.5°
Angle Fixing Method
15 Positive Stops
Number of Angle Adjustment
15°, 22.5°, 30°, 35°, 45°, 60°, 67.5°, 90°, -67.5°, -60°, -45°, -35°, -30°, -22.5°, -15°
Scale
Laser Marked, Metric and Imperial
Applicable T-slot
0.75 x 0.375 in/19 x 10 mm
Product Dimensions
25.6 x 21.7 x 4.7 in/650 x 550 x 120 mm
Net weight
4.1 lbs/1.85 kg
Questions and Answers
Typical questions asked about products: Is the product durable? ...
Ask the First Question

Customer Reviews

4.7 Out of 5
Based on 9 reviews

Ratings by Features

  • 4.7
  • 4.5
  • 4.6
  • 4.5
  • See More See Less
9 Review(s)
Clear filters
Marco Marco
Prijs kwaliteit zeer tevreden
Heb er wat lang op moeten wachten maar was de moeite waard. Ben zeer tevreden over de prijs kwaliteit verhouding. Verstekzaaggeleider voldoet perfect voor mijn hobby.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Dave Dave
Mr
Amazing value for the money, comes very well packed. Using this on an Evolution Power Tools R255TBLX and fits perfectly and easy adjusted in the slide. Worth every penny for sure.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 1 people found this helpful
Michael Michael
Mr
I bought the vevor mitre gauge based on reviews I saw on utube. The price was good and it looked perfect as an upgrade for me. I break stick down on my table saw and all the reviews showed the mitre gauge with an extendable base. You can guess my dissaponting when it arrived with no extendable base. The illustrations of the gauge all show the flip stop obscuring the end of the gauge so covering up the view of any extension I wonder if this is deliberate. The fence as delivered dies the jib but nothing more.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Steve Steve
Goede kwaliteit voor een prima prijs
Had eerder goede reviews gelezen over deze verstekaanslag en op basis daarvan gekocht. Product is degelijk, stabiel en al vanaf fabriek haaks. De maatgevend is in mm en inches en start aan de juiste zijde. De stop heeft ook een microafstelling waarmee je op 0,05mm precies de maatvoering kunt afstellen. Maar voor houtbewerking is op 1mm nauwkeurig voor mij al voldoende. De geleiderail voor in de sleuf van de zaagtafel (bij mij is die 19mm breed) is heel goed afstelbaar. Ik heb bewust voor deze maat gekozen omdat die voor mijn zaagtafel groot genoeg is en daarmee ook handzaam blijft. Heb het al gebruikt voor haakse zaagsnede en ook schuine. Spot on! Ik zou het gelijk weer kopen en kan het product aanbevelen.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Zbig Zbig
VEVOR Precision Miter Gauge
did not expect such quality! ready to use strait from the box. just adjusting slot and ready to use . angles precisely made.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 1 people found this helpful
Carn Jackson Carn Jackson
Works with Evolution Table Saw
Not used it yet, but seems perfect for my table saw.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
MMBF MMBF
Incredible item and service from Vevor.
This item is very accurate and robust out of the box. It comes with many features that are normally only provided in set ups which are three times the price of this. We use this in our working workshop and already been impressed with the accuracy and resilience of this fence and mitre. I have had to adapt this fit our Evolution Rage 5s, but this only due to the silly non standard track on this table saw. As time and money allows, I will be replacing all my machine mitre gauges with this one. We had one missing minor item from the package, but my email was answered readily by Saad who rapidly arranged delivery of a replacement and kept me informed all the way. Cannot fault the customer service.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 2 people found this helpful
Deanne Santini Deanne Santini
Good quality piece of equipment
Lovely piece of equipment, but not suitable for my Evolution Rage 5 Table saw. Sad.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
VEVOR Customer VEVOR Customer
Great value mitre gauge
Sitting on my saw table ready to use. Like the look and feel combined and with the auto angle stops should make the unit very practical. The actual aluminium section is slightly out of alignment but hopefully will not be an issue.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 2 people found this helpful
