VEVOR heat exchanger with dual mount brackets and quality certification document. VEVOR heat exchanger featuring four ports and excellent thermal performance. VEVOR heat exchanger with eco-friendly leaves and low energy consumption text. VEVOR heat exchanger with 316l stainless steel, showing copper plates and water splash. VEVOR heat exchanger with dedicated mnpt ports and close-up view. VEVOR heat exchanger with mounting brackets, featuring a compact and flexible design. VEVOR heat exchanger used in kitchen, bathroom, industrial, and marine applications.
BSHRQ1230MN34G601V0

Husuper Heat Exchanger 3/4” MNPT Ports Brazed Plate Heat Exchanger 30 Plate heat exchanger plate exchanger Stainless Steel 316L Flat Plate Heat Exchanger Plate Chiller Wort for Hydronic Heating

See All Customer Reviews
22 Reviews 1 answered questions
Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive 5,00€ off for your first three orders on the App.
Download Now
Exclusive 5,00€ off for your first three orders on the App.
Scan the QR code to download

3/4 inch MNPT

  • 1/2 inch BSP FPT
  • 3/4 inch MNPT

30 pcs

  • 60 pcs
  • 30 pcs
  • 40 pcs

About this item

  • 【HIGH THERMAL EFFICIENCY】- Turbulent-flow design moves the two media in opposite directions and creates strong turbulences for superior heat transfer rates and efficiency. Our heat exchanger series have been certificated by CE. Dimension: 7.8" x 3" x 3.7" / 20 cm x 7.8 cm x 9.5 cm.
  • 【ENERGY OPTIMIZED】 - This heat exchanger stainless can heat water to the preset temperature, which is super energy-saving with no electricity consumption and no oxygen consumption.

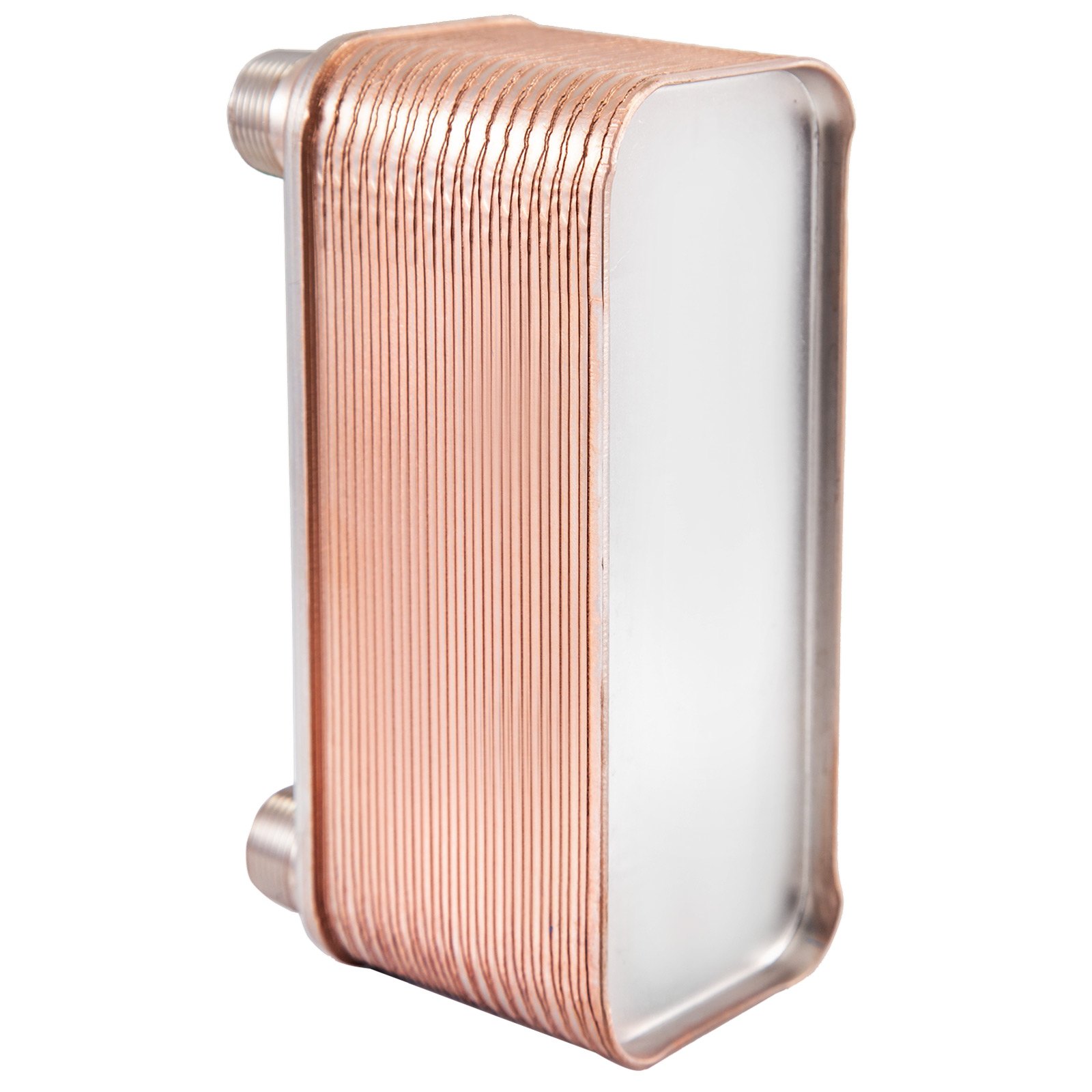

  • 【ROBUST CONSTRUCTION】- This 30 plate heat exchanger features 316L stainless steel sheets, which are brazed together at the edges and the matrix of contact points for a reliable and rugged part to form a durable, integral piece that can withstand high pressure and temperature. Four thickened MNPT ports for your easier installation.
  • 【COMPACT DESIGN】- Corrugated plate design of this plate chiller wort allows for substantially smaller build and footprint at an equivalent or better performance compared to other heat transfer devices – resulting in significant space savings.
  • 【HIGHLY VERSATILE】-This heat exchanger beer offers the highest level of thermal efficiency and durability in a compact & lightweight unit, ideal for industrial oil cooling, refrigerant evaporators, and condensers, residential and light commercial HVAC hydronic systems.
See More See Less

Frequently Bought Together

People Who Bought This Item Also Bought

Husuper Heat Exchanger 3/4” MNPT Ports Brazed Plate Heat Exchanger 30 Plate heat exchanger plate exchanger Stainless Steel 316L Flat Plate Heat Exchanger Plate Chiller Wort for Hydronic Heating
3/4 inch MNPT 30 pcs
Description Specification Questions and Answers Reviews
VEVOR heat exchanger next to bathtub highlighting thermal efficiency and compact design.

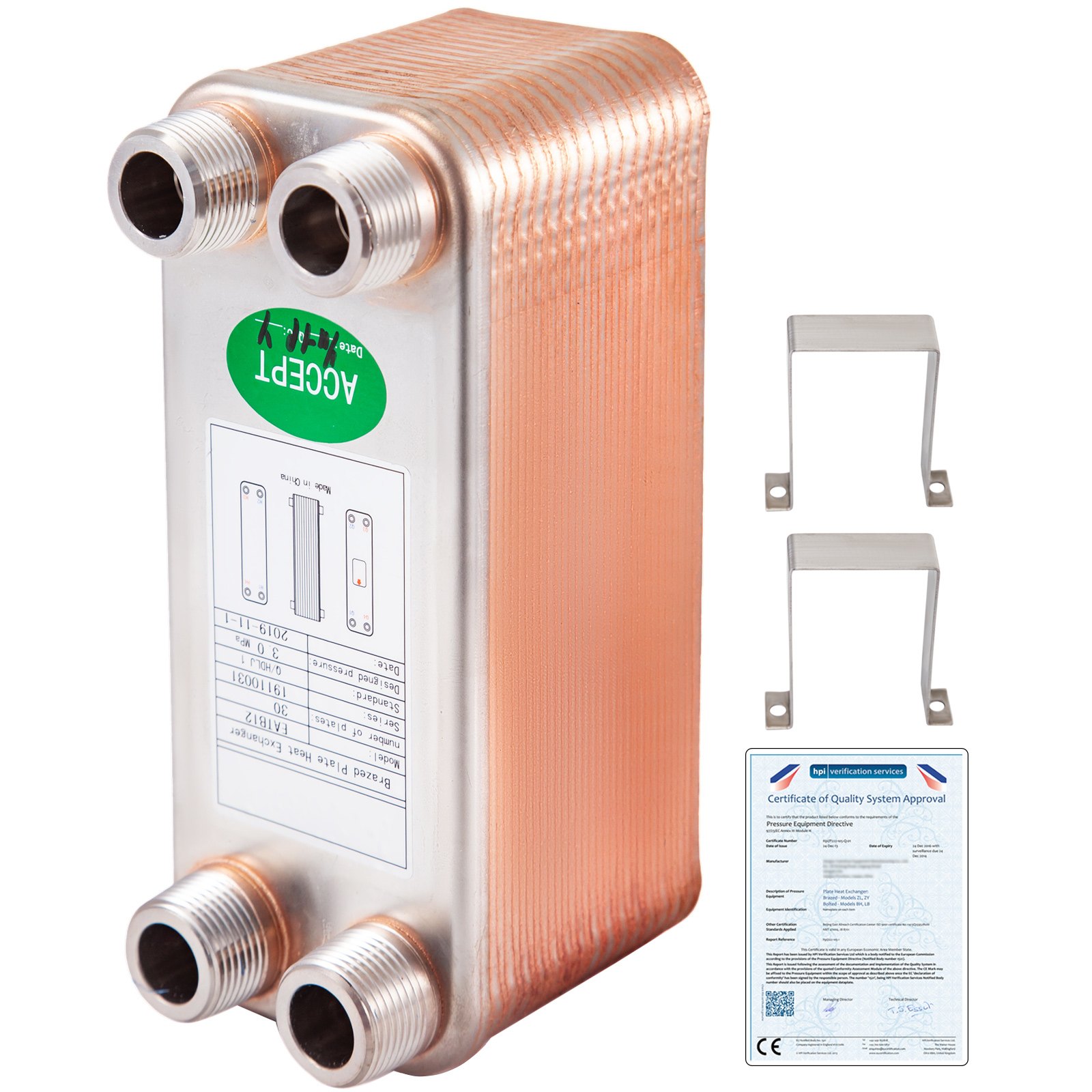

VEVOR heat exchanger with mounting brackets and certification.

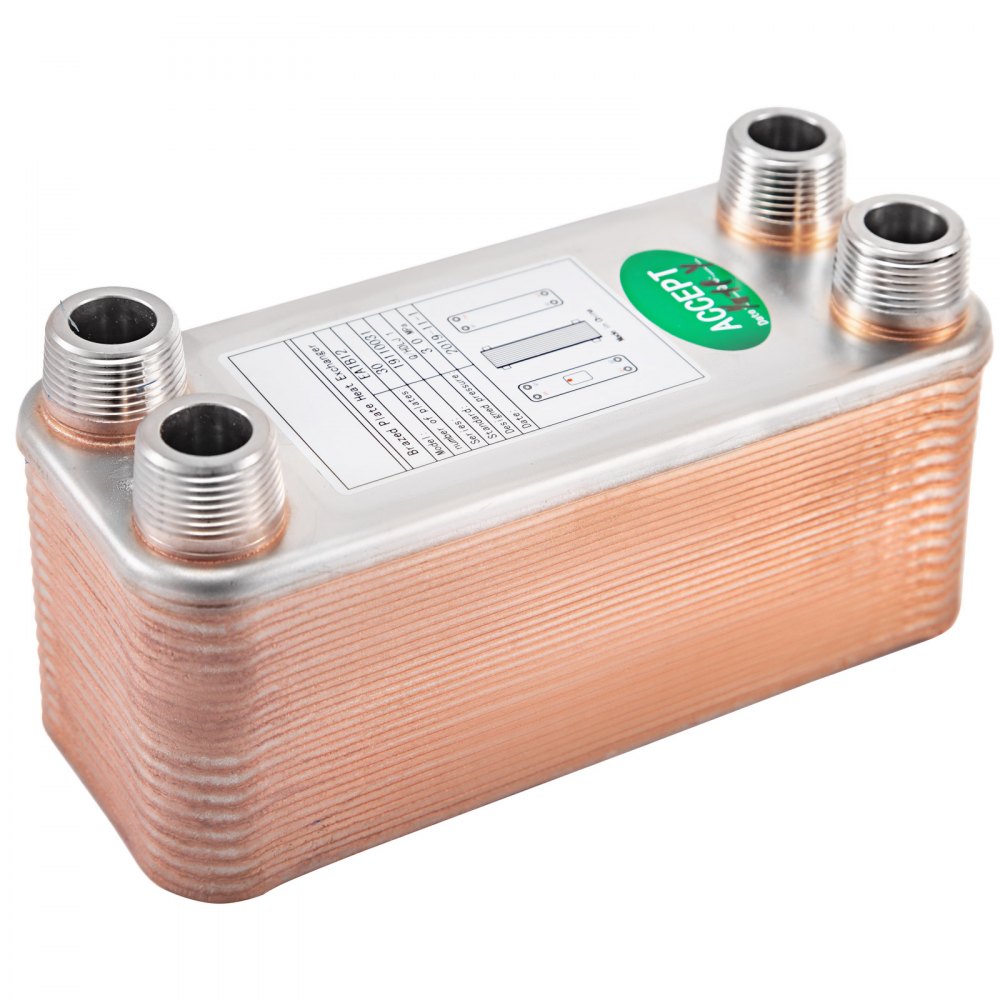

Brazed Plate Heat Exchanger 30 Plate Heat Exchanger
Our brand new heat exchanger features a compact & lightweight body, offering excellent thermal performance, and 316L stainless steel material can ensure its long life, so it is perfect for Solar heating, Oil unit heat recovery Engine cooling, evaporation and condensing, etc.
  • High Thermal Efficiency
  • Energy Optimized
  • Robust Construction
  • Compact Design

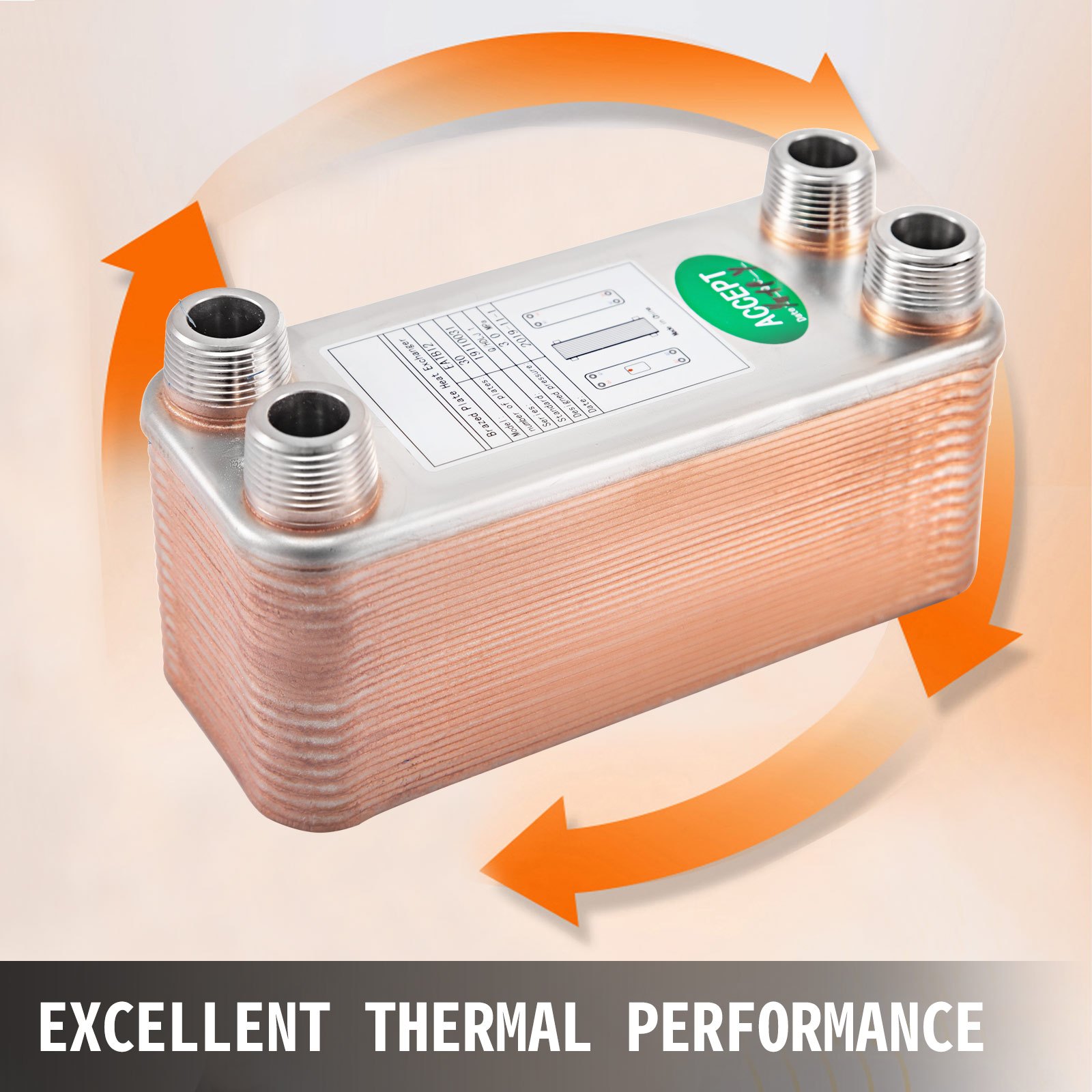

VEVOR heat exchanger offering excellent thermal performance with orange arrows.
Excellent Thermal Performance
Extremely efficient herringbone construction for maximum heat transfer.

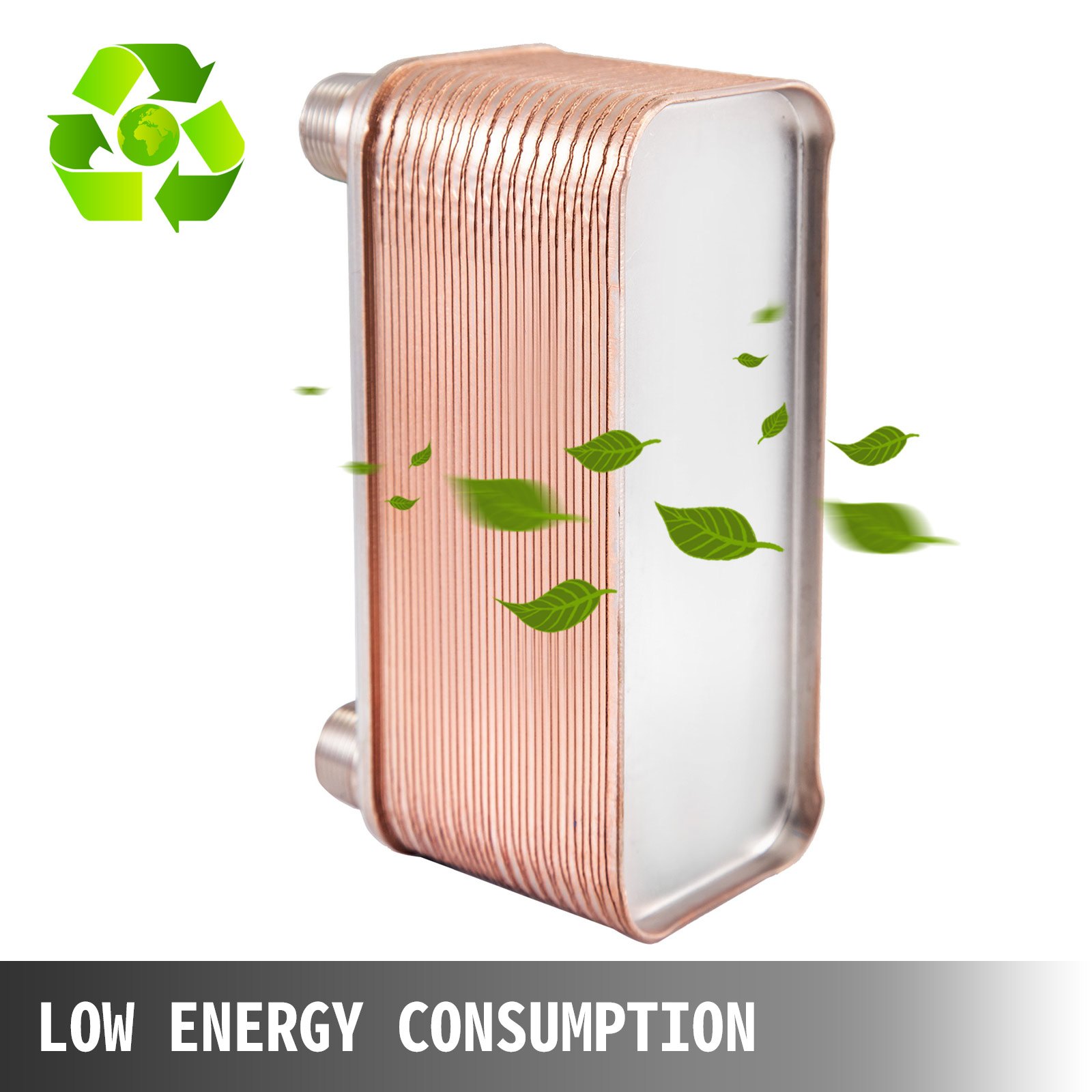

VEVOR heat exchanger with eco-friendly leaves and low energy consumption badge.
Low Energy Consumption
Low energy consumption due to the very low-pressure drop over the heat exchanger.

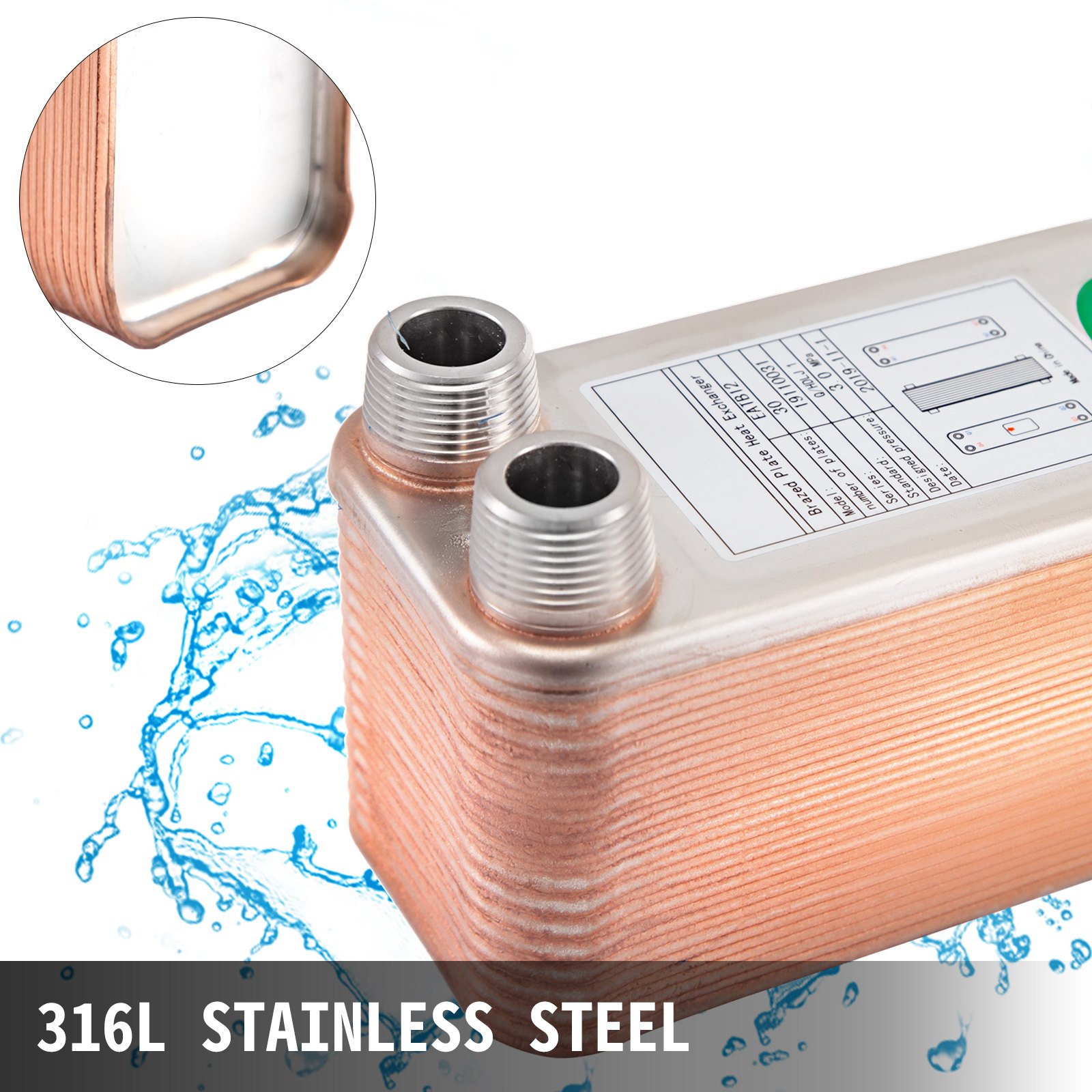

VEVOR heat exchanger, 316l stainless steel with dual pipe inlets and water splashes.
316L Stainless Steel
The heat exchanger comprises 316 stainless steel with high toughness to resist pressure, corrosion, and rust.

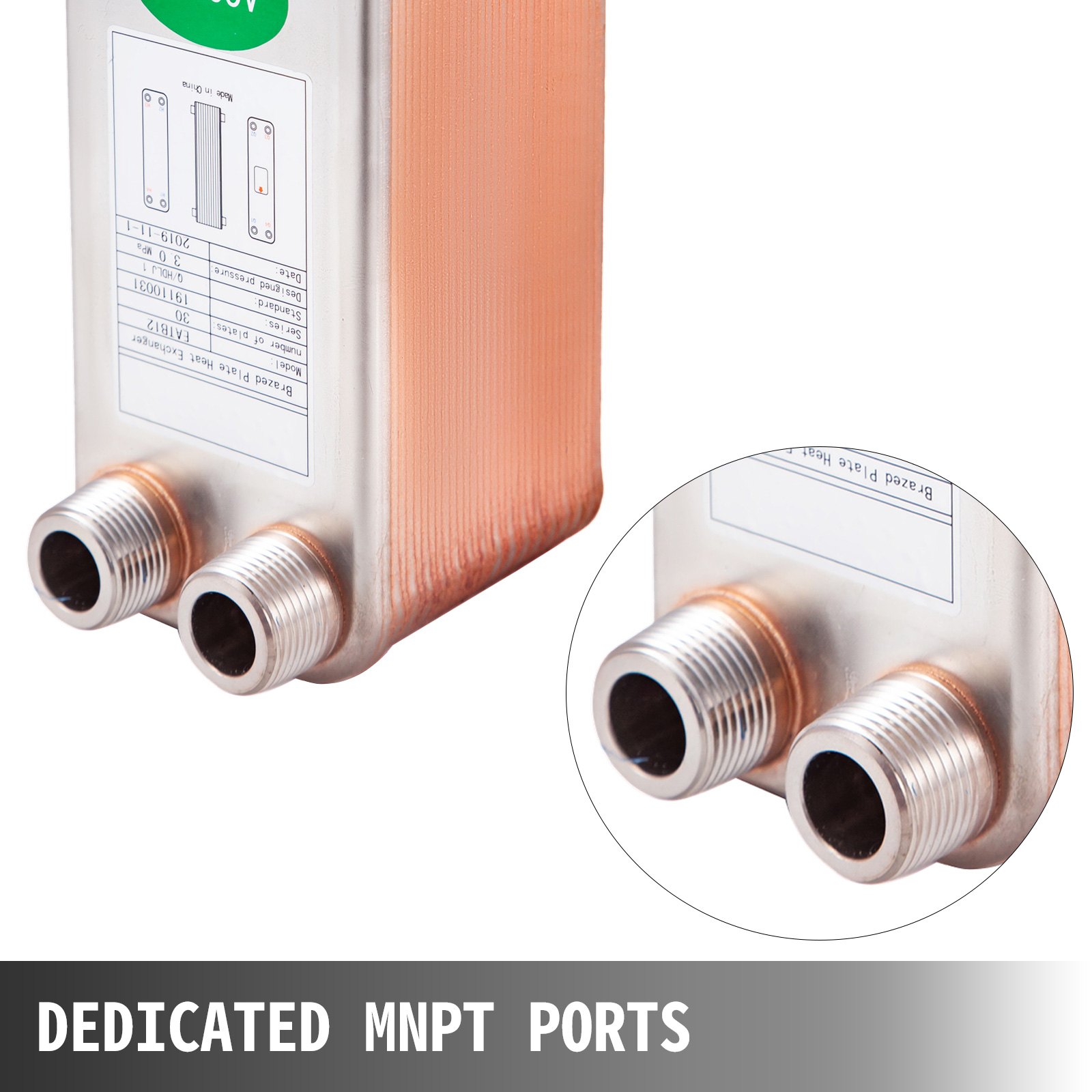

VEVOR heat exchanger with dedicated mnpt ports in close-up view.
Dedicated MNPT Ports
Four Thickened 3/4" MNPT ports for your easier installation.

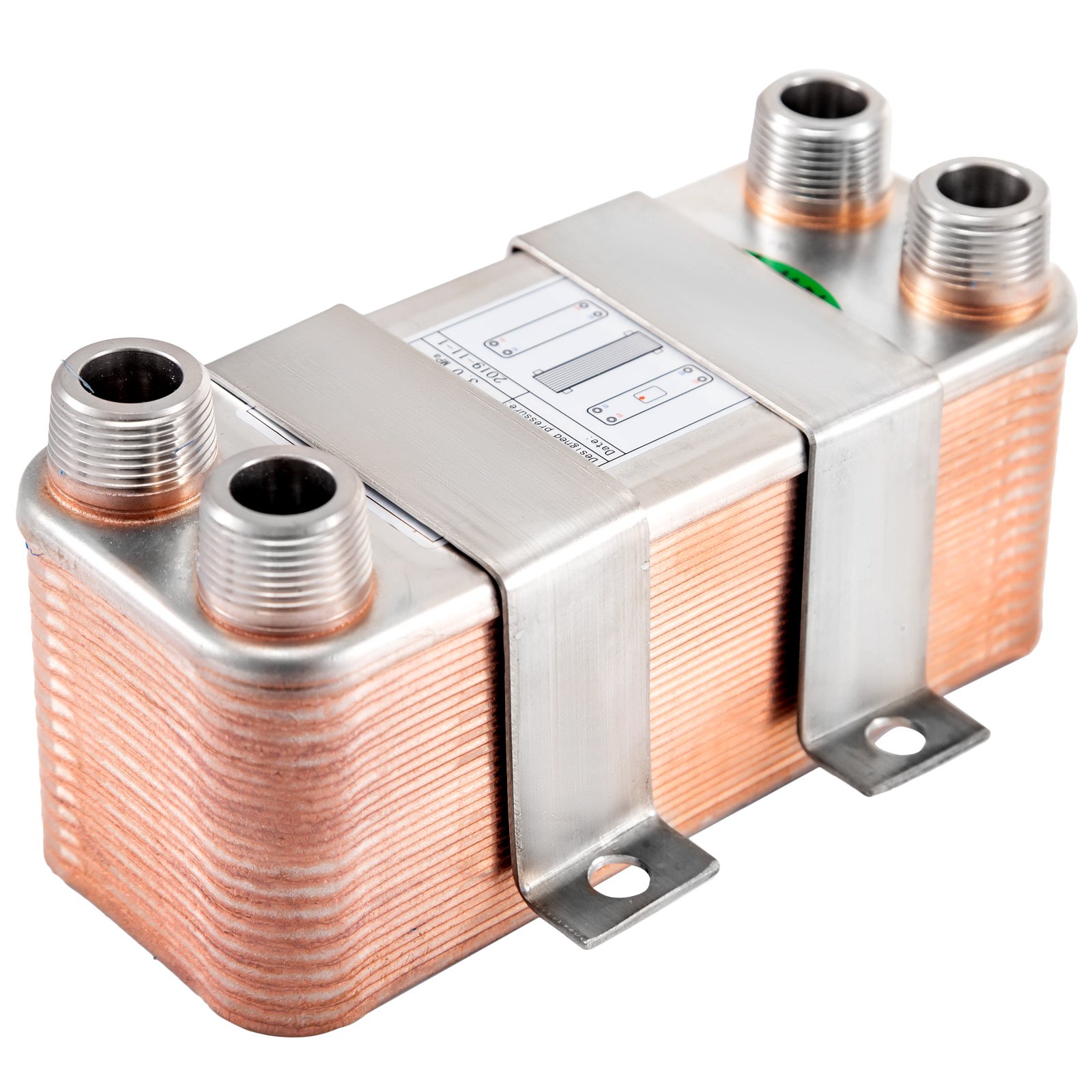

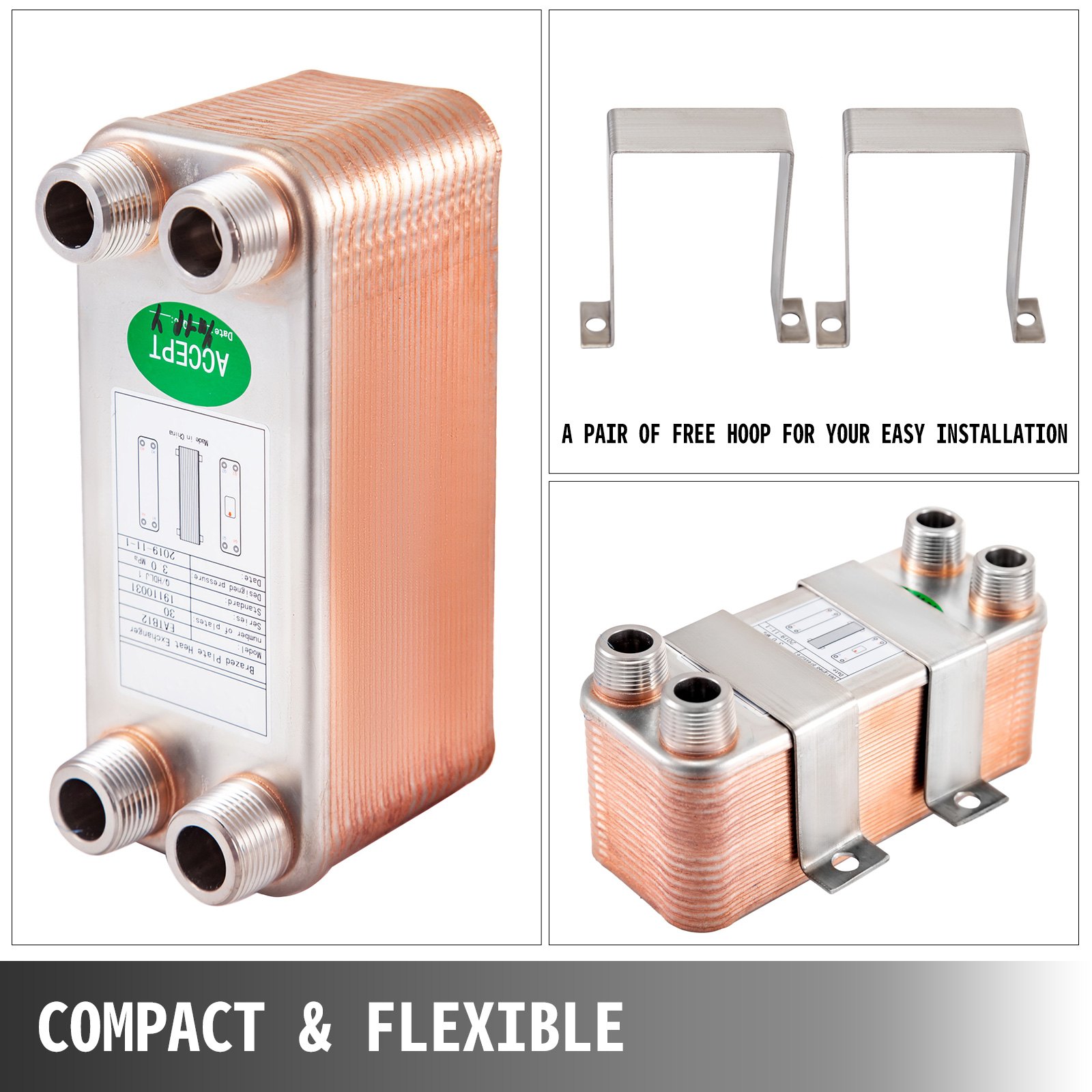

VEVOR heat exchanger with mounting hoops, compact and flexible design
Compact & Flexible
The footprint can be as little as one-tenth that of a shell & tube heat exchanger, and its compact size means it also offers greater system design freedom.
VEVOR heat exchanger with wide applications in kitchens, bathrooms, and industrial use.
Wide Application
Suitable for the HVAC industry, dairy/food/beverage industry, refrigeration industry, etc.

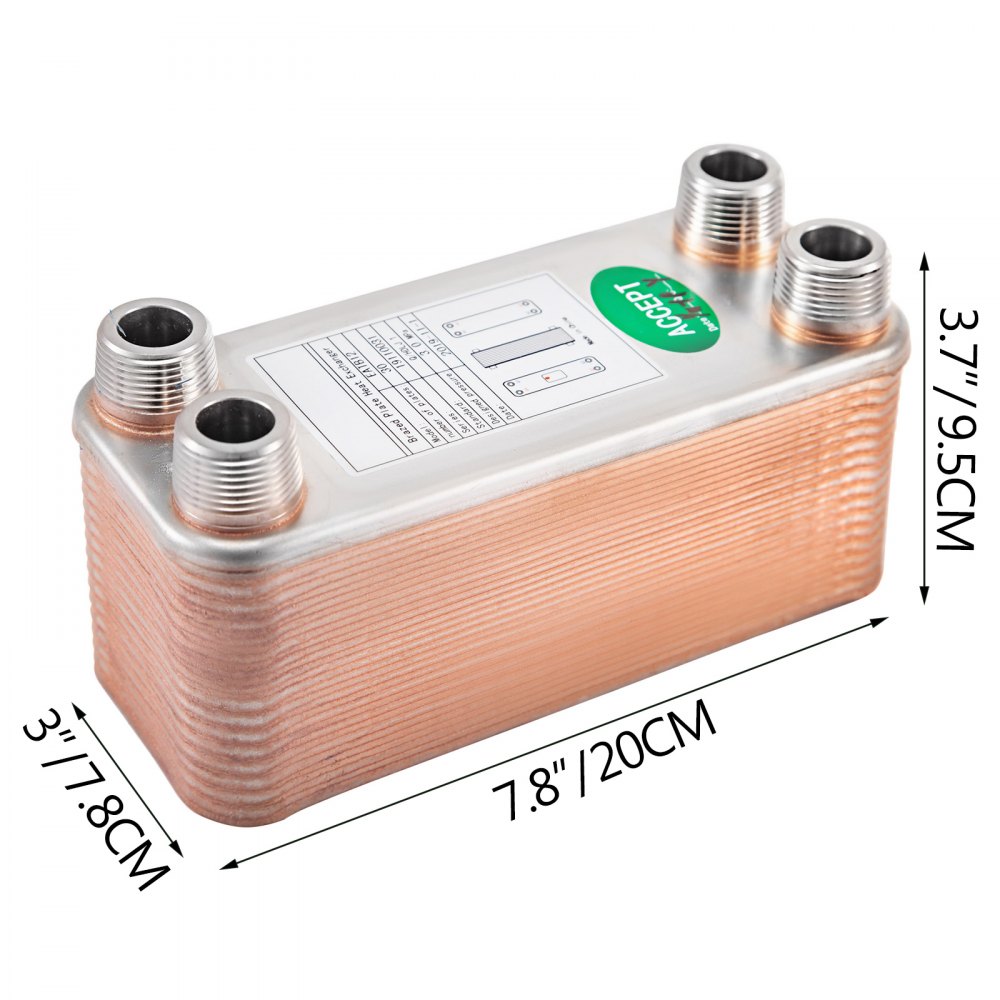

copper VEVOR heat exchanger, 20cm x 9.5cm x 7.8cm, with multiple connection ports.
  • Model: EATB12
  • Material: 316L +Copper
  • Ports: 3/4" MNPT
  • Plate Quantity: 30
  • Design Pressure(Max):3.0 Mpa
  • Test Pressure:(Min):4.5 Mpa
  • Design Temp.(℃): Max +225
  • Design Temp.(℃): Min -196
  • Dimension: 7.8" x 3" x 3.7" / 20 cm x 7.8 cm x 9.5 cm
VEVOR heat exchanger with four connectors and two mounting brackets.
  • 1 x 30 Plate Heat Exchanger
  • 1 x A Pair of Hoops
VEVOR heat exchanger next to bathtub highlighting thermal efficiency and compact design.
VEVOR heat exchanger with mounting brackets and certification.
Brazed Plate Heat Exchanger 30 Plate Heat Exchanger
Our brand new heat exchanger features a compact & lightweight body, offering excellent thermal performance, and 316L stainless steel material can ensure its long life, so it is perfect for Solar heating, Oil unit heat recovery Engine cooling, evaporation and condensing, etc.
  • High Thermal Efficiency
  • Energy Optimized
  • Robust Construction
  • Compact Design
VEVOR heat exchanger offering excellent thermal performance with orange arrows.
Excellent Thermal Performance
Extremely efficient herringbone construction for maximum heat transfer.
VEVOR heat exchanger with eco-friendly leaves and low energy consumption badge.
Low Energy Consumption
Low energy consumption due to the very low-pressure drop over the heat exchanger.
VEVOR heat exchanger, 316l stainless steel with dual pipe inlets and water splashes.
316L Stainless Steel
The heat exchanger comprises 316 stainless steel with high toughness to resist pressure, corrosion, and rust.
VEVOR heat exchanger with dedicated mnpt ports in close-up view.
Dedicated MNPT Ports
Four Thickened 3/4" MNPT ports for your easier installation.
VEVOR heat exchanger with mounting hoops, compact and flexible design
Compact & Flexible
The footprint can be as little as one-tenth that of a shell & tube heat exchanger, and its compact size means it also offers greater system design freedom.
VEVOR heat exchanger with wide applications in kitchens, bathrooms, and industrial use.
Wide Application
Suitable for the HVAC industry, dairy/food/beverage industry, refrigeration industry, etc.
VEVOR heat exchanger with four connectors and two mounting brackets.
  • 1 x 30 Plate Heat Exchanger
  • 1 x A Pair of Hoops
copper VEVOR heat exchanger, 20cm x 9.5cm x 7.8cm, with multiple connection ports.
  • Model: EATB12
  • Material: 316L +Copper
  • Ports: 3/4" MNPT
  • Plate Quantity: 30
  • Design Pressure(Max):3.0 Mpa
  • Test Pressure:(Min):4.5 Mpa
  • Design Temp.(℃): Max +225
  • Design Temp.(℃): Min -196
  • Dimension: 7.8" x 3" x 3.7" / 20 cm x 7.8 cm x 9.5 cm

Specification

Model
EATB12
Material
316L +Copper
Ports
3/4" MNPT
Plate Quantity
30
Design Pressure(Max)
3.0 Mpa
Test Pressure
(Min)
Design Temp.(℃)
Max +225
Design Temp.(℃)
Min -196
Dimension
7.8" x 3" x 3.7" / 20 cm x 7.8 cm x 9.5 cm
Questions and Answers
1 Questions
or Ask a Question
What is the maximum flow rate? How is connecteion and separation arranged between the ports?
Answer This Question
Hello, the maximum flow rate of this product is 8m³/h.
By vevor
Helpful ( 6 )

Customer Reviews

4.8 Out of 5
Based on 22 reviews

Ratings by Features

  • 4.7
  • 4.5
  • 4.6
  • 4.5
  • See More See Less
22 Review(s)
Clear filters
Ciesel Ciesel
MR
Degelijke warmtewisselaar met goede aansluitingen. Heeft een zeer goede warmte)overdracht coëficient.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Henk Henk
2 verwarmingsketels koppelen
Genoeg vermogen voor overbrengen van 10 KW op lage temperatuur van ene ketelcircuit naar het 2e circuit
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
DaddyNev DaddyNev
Mr
I purchased this heat exchanger direct from Vevor, as it was cheaper than on eBay and Amazon, and I specifically wanted the 30 plate exchanger, which made choices quite difficult. When it arrived, and it did arrive fairly quickly, it was well packed, and also included two fitting brackets that I didn't use. Quality is excellent!, I'm using this as a heat exchanger for my spa. I use a custom heater configuration with Webasto Thermo Top Z directly pumped to this heat exchanger via fully insulated, copper plumbing and push fit connectors. The set up is only designed to heat the heat exchange of water to 52°C. Chilled water from the spa circuit is pumped direct from the spa through the second circuit of the heat exchanger. I use a basic antifreeze solution based on copper and aluminium for the primary circuit. This set up with this heat exchanger works faultlessly. I am very impressed.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 4 people found this helpful
C.E. C.E.
Kieftenburg
Goed verpakt ontvangen. ga deze week deze warmtewisselaar ertussen plaatsen. Dus nog geen oordeel over de kwaliteit.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
de Groot de Groot
Hr
Mooie wisselaar, netjes afgewerkt, snel geleverd, jammer dat nergens vermeld staat hoeveel kw vermogen hij heeft,
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Herwien Herwien
mr
wat moeten wachten op levering door de straatwerken, courier kon het huismoeilijk berijken. Eindelijk na drie dagen pakje geleverd in goede staat. Prima materiaal en de nodige accessoires werden bijgeleverd zodat een onmiddelijke montage mogelijk werd. De prijs is zeer interresant, veel duurder zelfs in de plaatselijke groothandel als in andere webshops. al terug een bestelling gedaan om een groot project verder te kunnen afwerken. Hou deze webshop verder in het oog en wacht op speciale aanbiedingen en/of Promoties. ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
wig wig
Hot Stuff
first class service, verry hot price , fast delivery. 0000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000
See More See Less
Helpful Sending feedback... Thank you for your feedback. 1 people found this helpful
John bowen John bowen
Mr
This exchanger has saved us a fortune in electricity, before we purchased it , it was taking 3 or 4 days to get our outdoor pool up to temperature. After fitting this bit of kit in a solar black box , we got the temperature in one day , well done Vevor .
See More See Less
Helpful Sending feedback... Thank you for your feedback. 2 people found this helpful
HARTY EIRE 1 HARTY EIRE 1
Heat exchanger is perfect!
Heat exchanger is perfect but the insulation surround never came which is a pity. I have made a home made version that does the job but the right cover would have being nice to have.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 1 people found this helpful
andrew p. andrew p.
It's ok.
I am using this for connecting my unvented system to a solid fuel vented system. It is replacing a 20 plate unit of the same size, that struggled to deliver 10kW without raising the return temperature. I anticipate that this will deliver the performance required. It does not come with an insulation shell. On complaint to the supplier, they offered a discount, so I am happy enough.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
