Features & Details

PLEASE NOTE: The pipes cannot be bent to 90° all at once, and need to be bent to 90° gradually in sections.
Specifications: Dead Load -12 Ton, Stroke: 9.6-inch (243mm), Adjustable Height: 13.5-23 inch, Bending Range: 1/2"-2" (13-51 mm), Oil Capacity: 1.0 lbs (450g).
High-Quality Dies & 90°-180° Bending: VEVOR 12-ton hydraulic pipe bender comes with 6 precision casting dies (1/2", 3/4", 1", 1-1/4", 1-1/2", 2") to accommodate various pipe sizes. With 6 slots on both sides, the rollers feature 6 adjustable positions to meet 90°-180° different bending angles.
Durable and Sturdy: This exhaust pipe bender is made from high-quality steel with solid structure and excellent wear resistance. Equipped with a hydraulic and return spring system, this tube bending tool helps you efficiently complete pipe bending tasks.
Easy to Use: Select and install the appropriate die, place the pipe on the die, and adjust the rollers to the desired position. Use the lever on the pipe bender to easily achieve the targeted bending with minimal effort.

About this item

Product specification

Item Model Number

MR8080

Dead Load

12 Ton

Stroke

9.6 in / 243 mm

Adjustable Height

13.5 - 23 in / 342 - 585 mm

Bending Range

1/2 - 2 in / 13 - 51 mm

Oil Capacity

1.0 lbs / 450 g

Qty. of Dies

6 pcs

Net Weight

69.1 lbs / 31.3 kg

Product Dimensions

24.0 x 6.3 x 21.6 in / 610 x 160 x 550 mm

Description

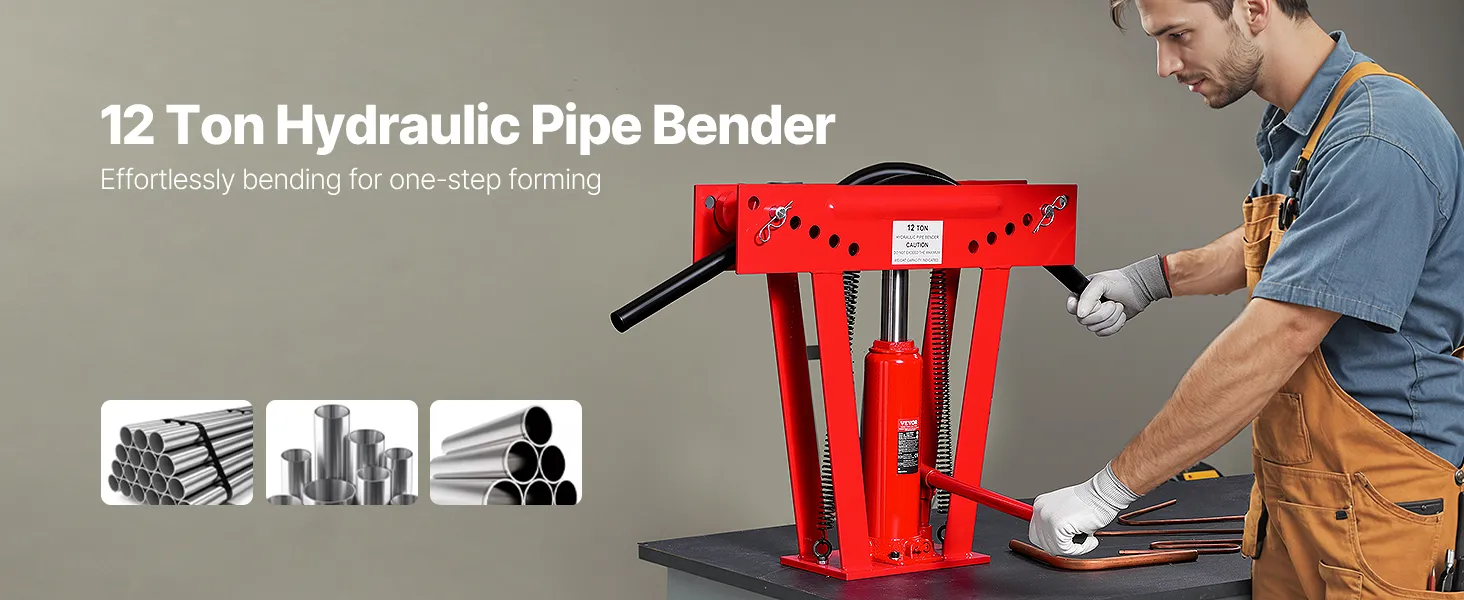

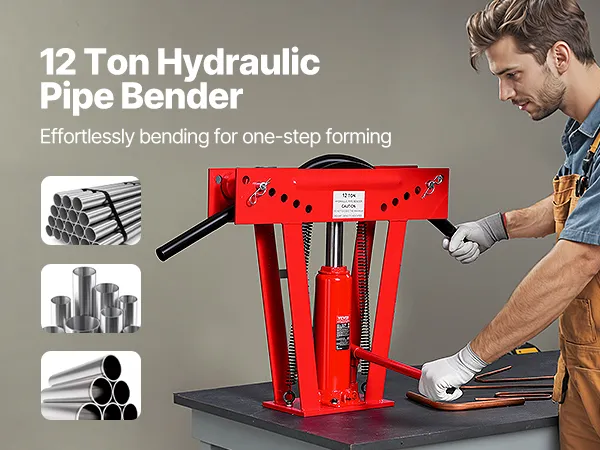

VEVOR Hydraulic Pipe Bender, 12 Ton

Elevate your bending tasks with our 12-ton hydraulic pipe bender. It comes with 90°-180° bending range, 6 precision dies, adjustable roller levels, and 4-leg stable support (PLEASE NOTE: The pipes cannot be bent to 90° all at once, and need to be bent to 90° gradually in sections.)

This heavy-duty pipe bending tool comes with 6 precision-cast dies in sizes of 1/2", 3/4", 1", 1-1/4", 1-1/2", and 2". Additionally, the rollers are adjustable in 6 levels to accommodate different pipe bending angles.

This 12-ton hydraulic conduit bender can be bent in the range of 90-180 degrees of pipe. The pipe bender is suitable for most types of metal pipe and can be used in pipeline construction, construction, pipeline, oil, mining, shipbuilding and other industries.

This 12-ton hydraulic tubing bender is designed to work in any environment. Its compact design, smooth surface, and wear resistance feature save bending time and labor. In addition, the stable four-leg design improves the working time and quality of continuous pipe bending.

This manual pipe bender machine is widely used for pipe laying and repairing in electric power construction, highway and railroad construction, boiler, bridge, ship, furniture, decoration and other fields, and is known for its comprehensive functions, rational structure, and easy operation.
