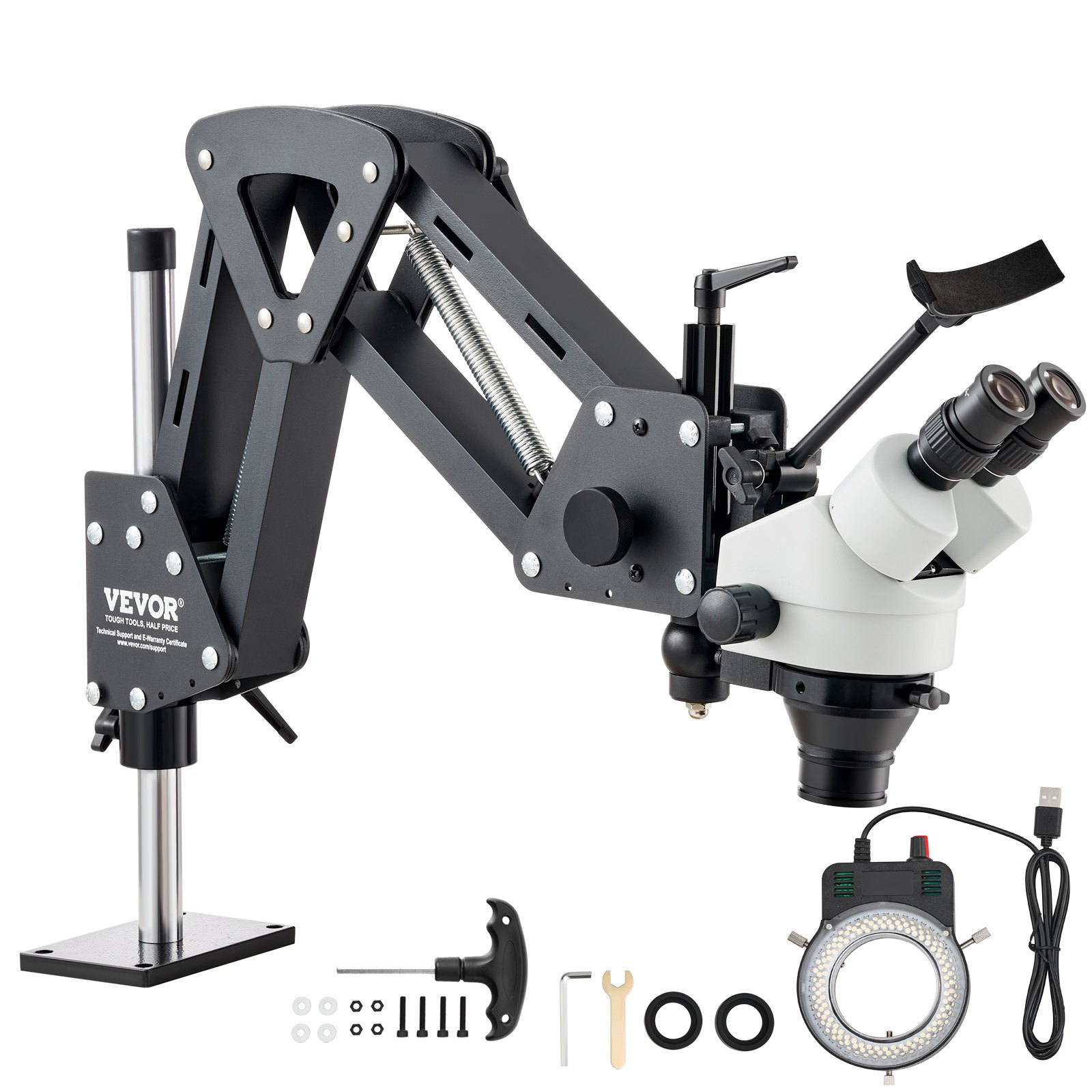

VEVOR microscope 7x-45x on an adjustable arm stand with accessories including screws, washers, and tools. VEVOR microscope 7x-45x on a desk, continuous zoom, inspecting jewelry with high definition and wide view. spring design for easy adjustment on VEVOR microscope 7x-45x, showing multiple angle movement options. quick release and easy operation steps explained for VEVOR microscope 7x-45x with detailed instructions. VEVOR microscope 7x-45x with 144 led lights provides uniform illumination for detailed work efficiency. VEVOR microscope 7x-45x with simple adjustment method and clear instructions for diopter and magnification. VEVOR microscope 7x-45x, adjustable stand, dual eyepieces, measurements, and specifications detailed.
WXQJTZHXD000Y8NAOV9

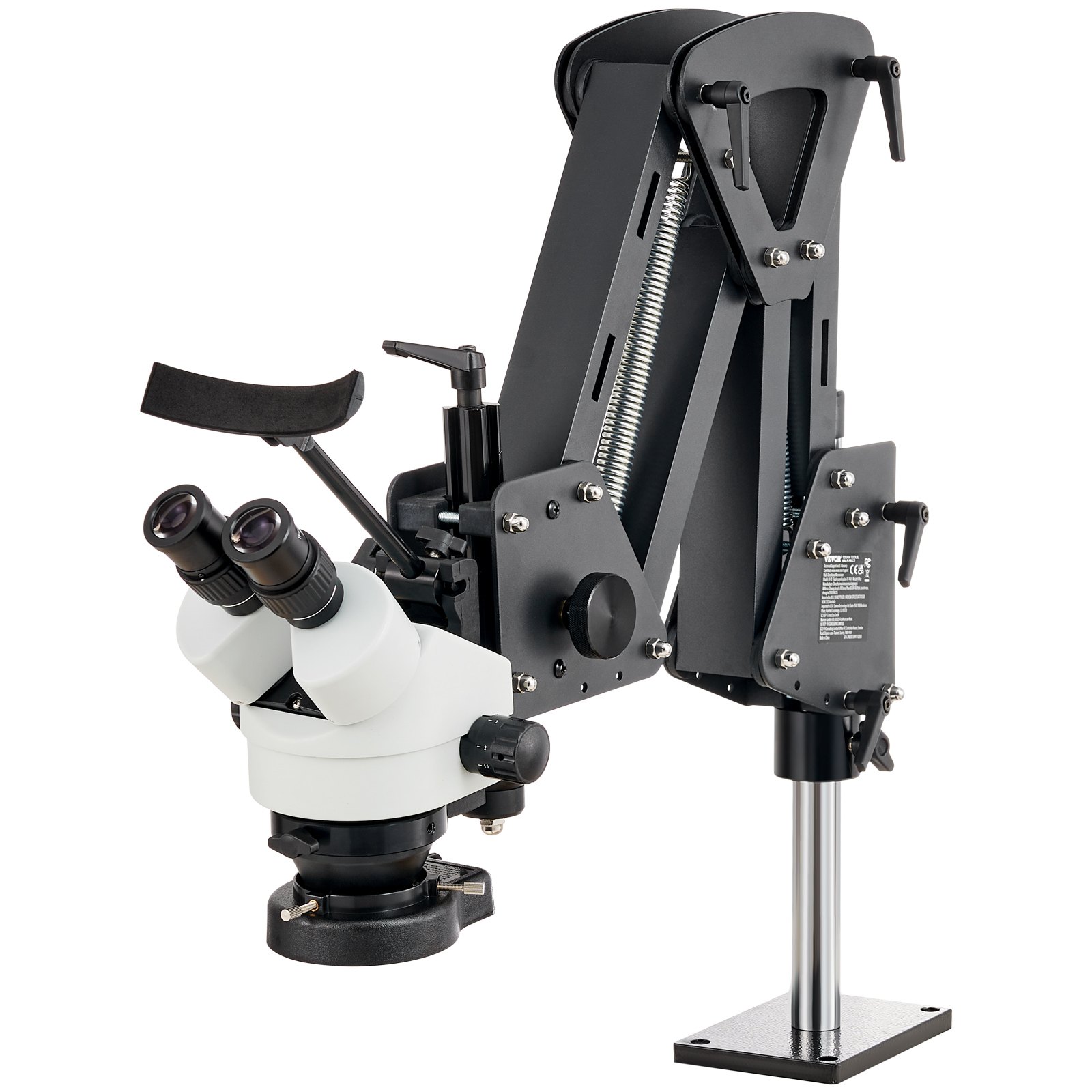

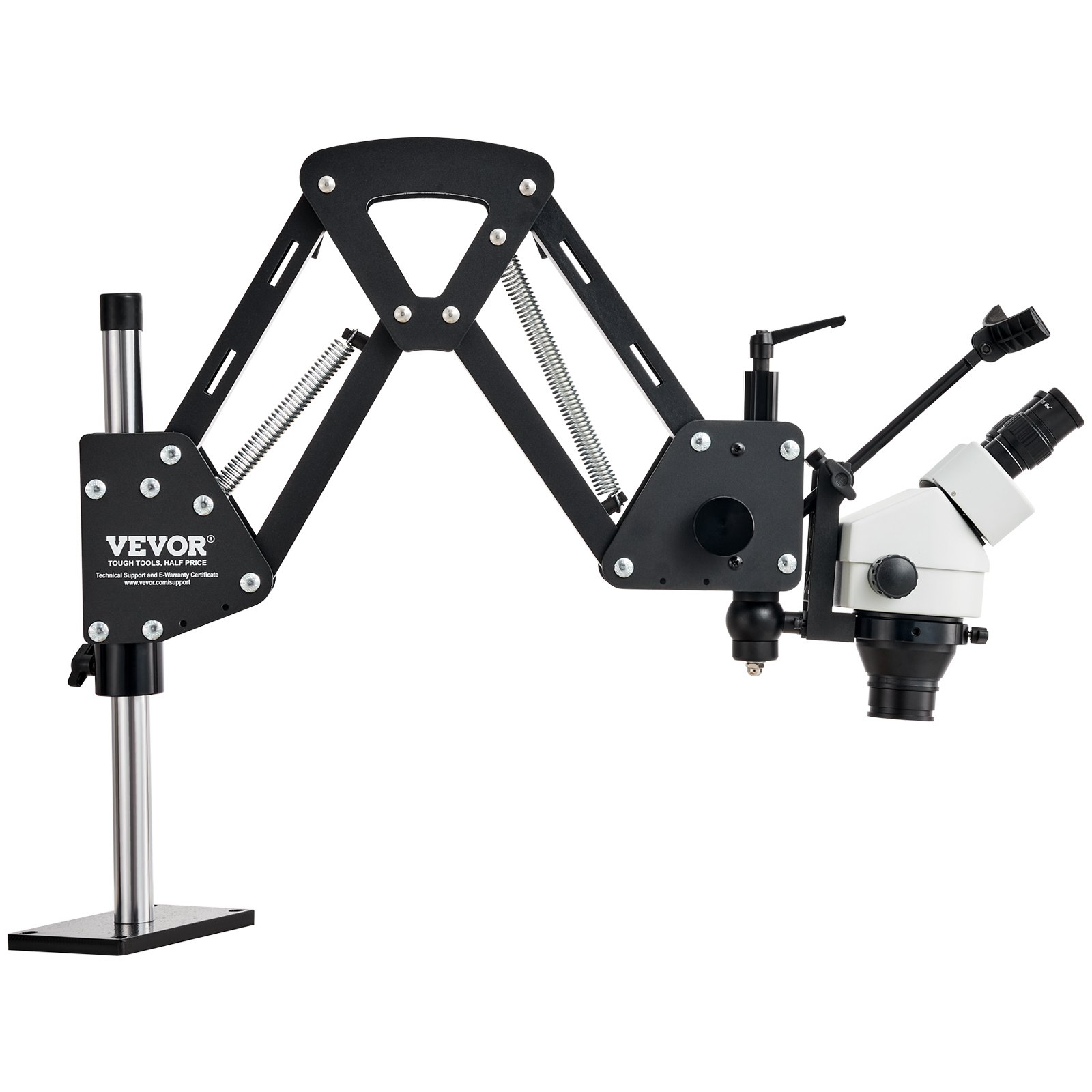

VEVOR Multi-Directional Microscope with Spring Bracket Ring Light 7X-45X Jewelry

Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive 5,00€ off on your first three app orders. Only App.
Download Now
Exclusive 5,00€ off on your first three app orders. Only App.
Scan the QR code to download

About this item

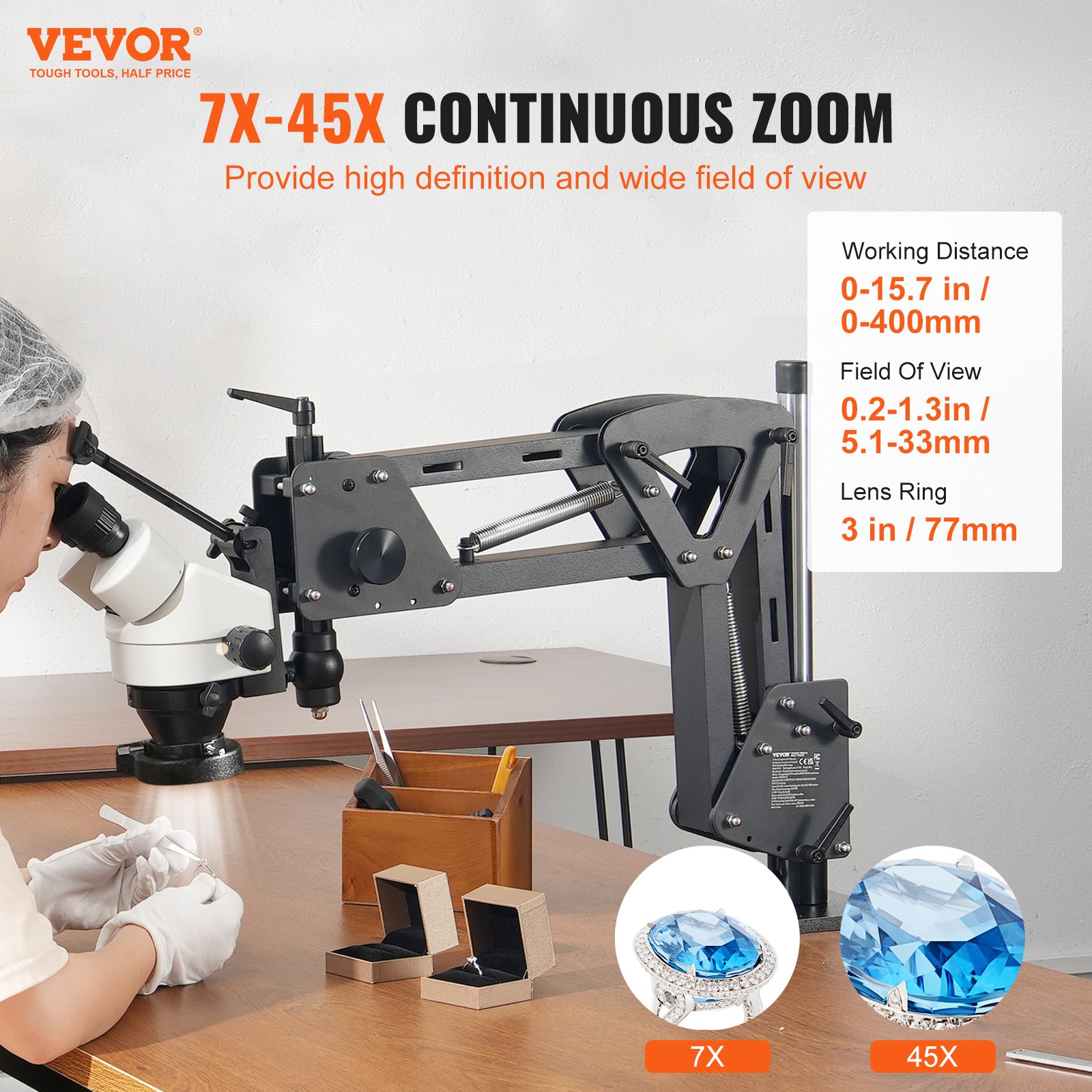

  • 7X-45X Continuous Zoom: This jewelry microscope with spring bracket provides high-definition clarity and a wide field of view for your work. With a working height of 0-15.7 inches / 0-400mm, a field of view range of 0.2-1.3 inches / 5.1-33mm, and a lens ring of 3 inches / 77mm, it provides high clarity and strong stereoscopic effect.

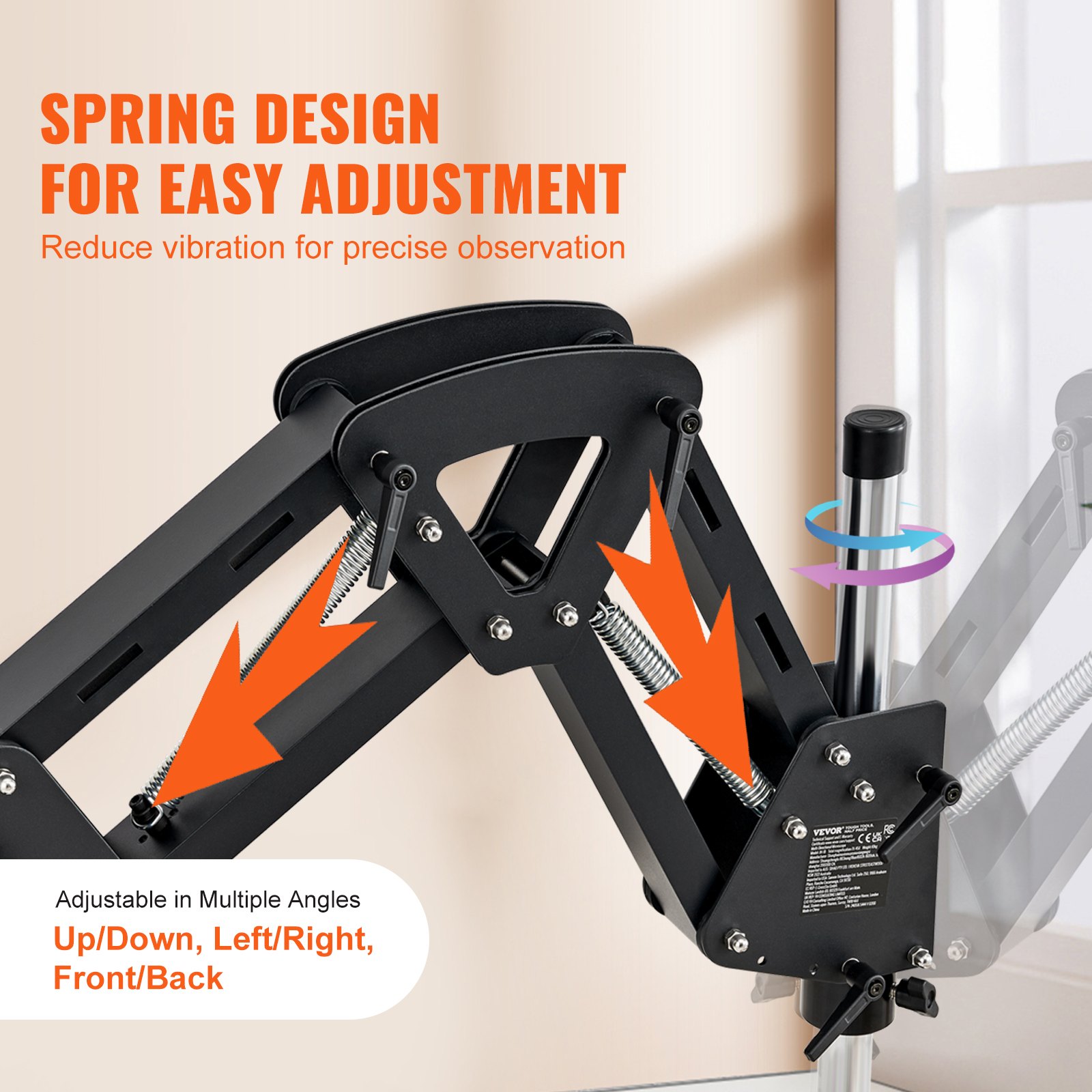

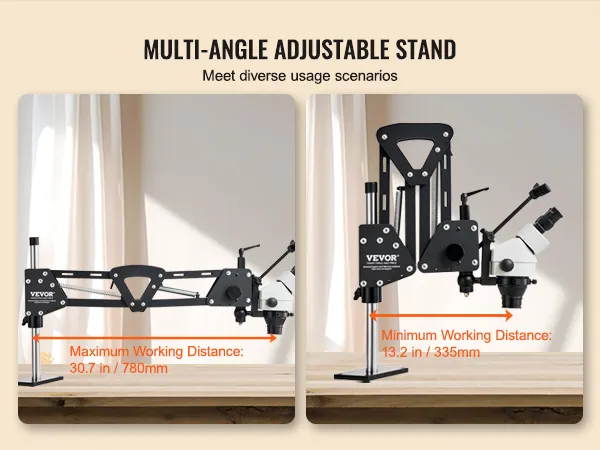

  • Reinforced Multi-Angle Adjustable Stand: The reinforced stand of the jewelers microscope can be adjusted up, down, left, right, forward, and backward. The stable structure helps reduce vibrations for precise observations. The maximum working distance is 30.7 inches / 780mm, and the minimum working distance is 13.2 inches / 335mm.

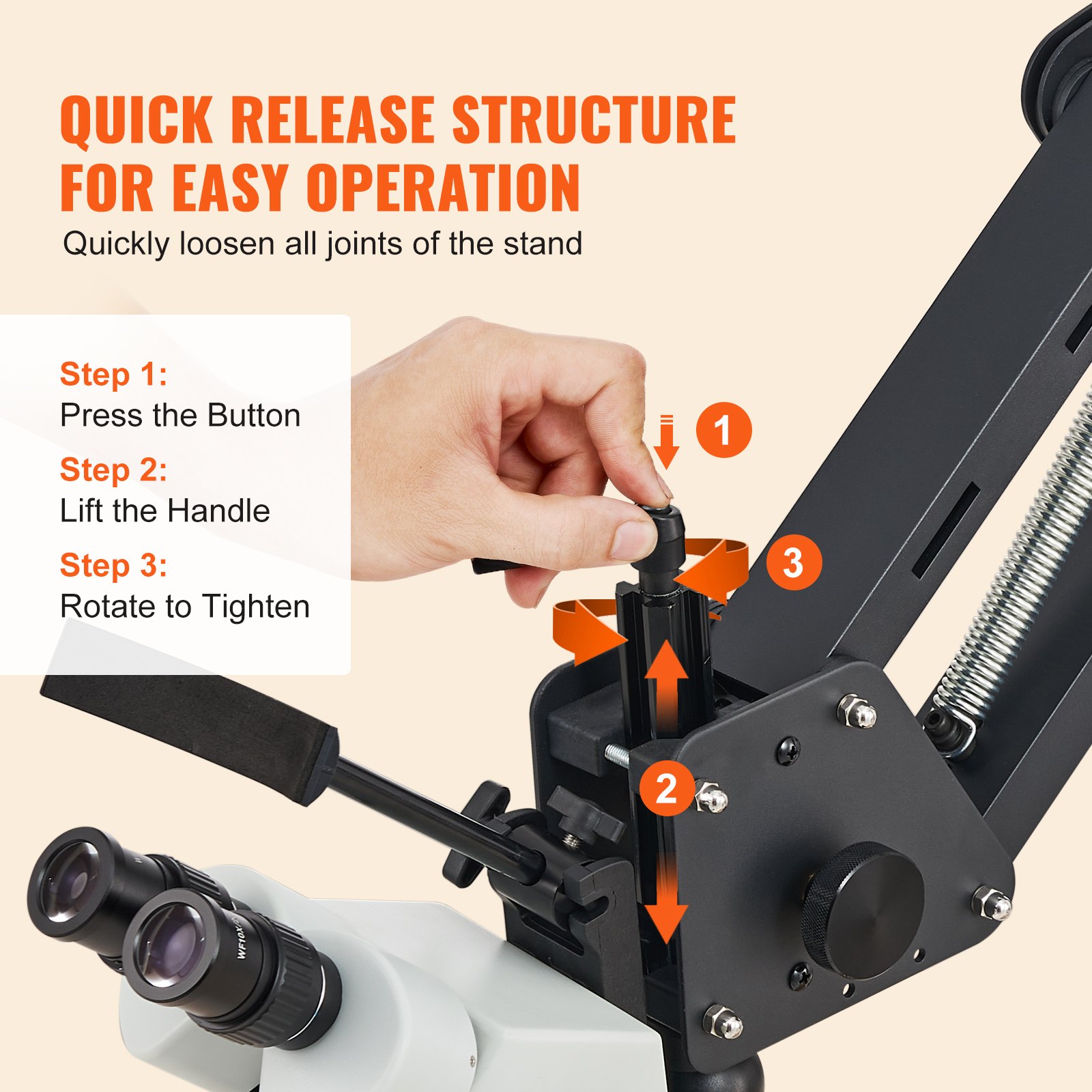

  • Quick Release Stand Structure: The multi-directional microscope is designed with a quick release stand structure, allowing for quick loosening of the stand joints. Simply follow 3 steps—press the button, lift the handle, and twist to tighten, making observation work simpler.

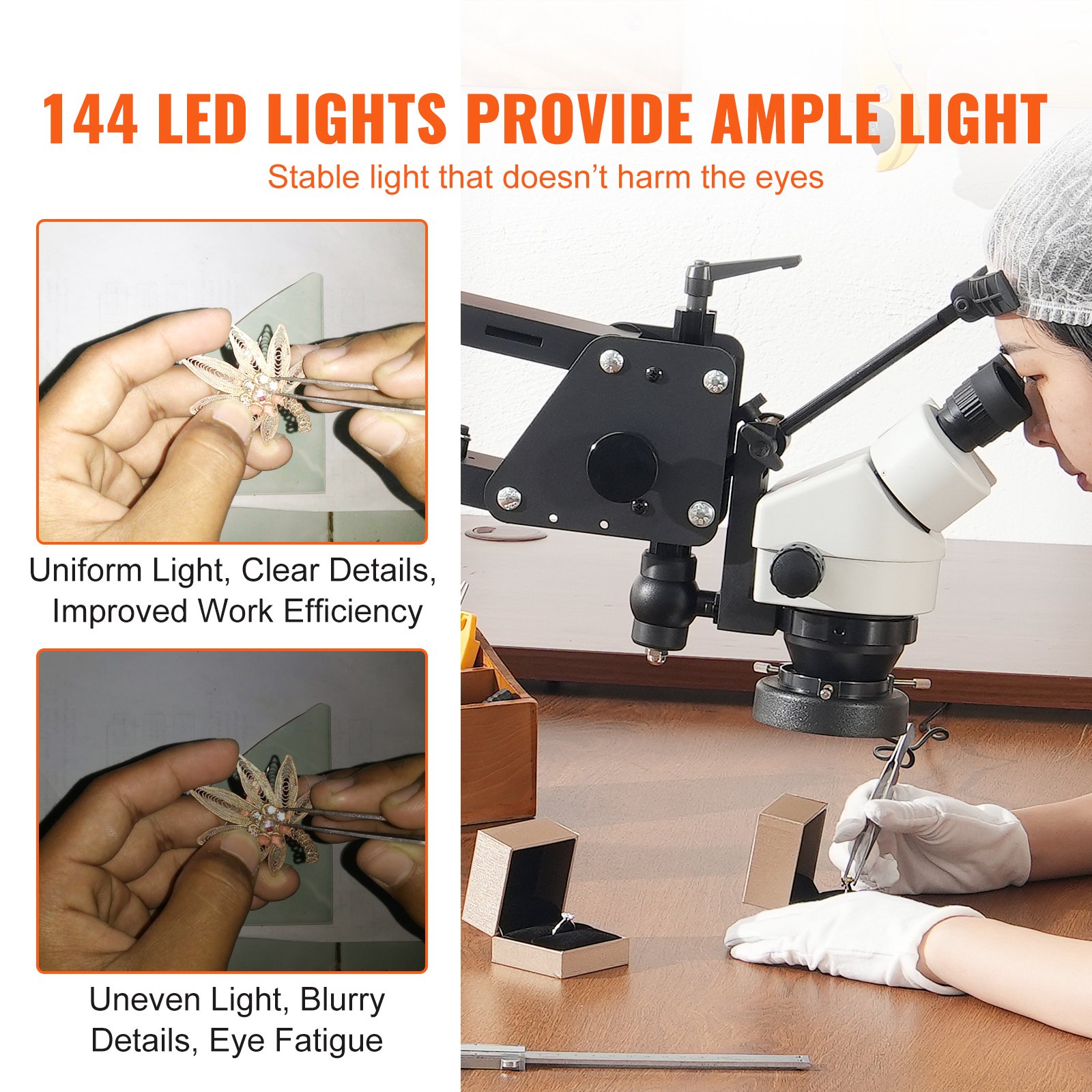

  • Integrated Ring LED Light: The integrated design ensures more even lighting and easier installation. With 144 LED lights providing ample illumination at 18000-35000 lumens, it clearly presents the details of the jewelry. The microscope jewelry inlaid stand uses a USB interface for more convenient installation.

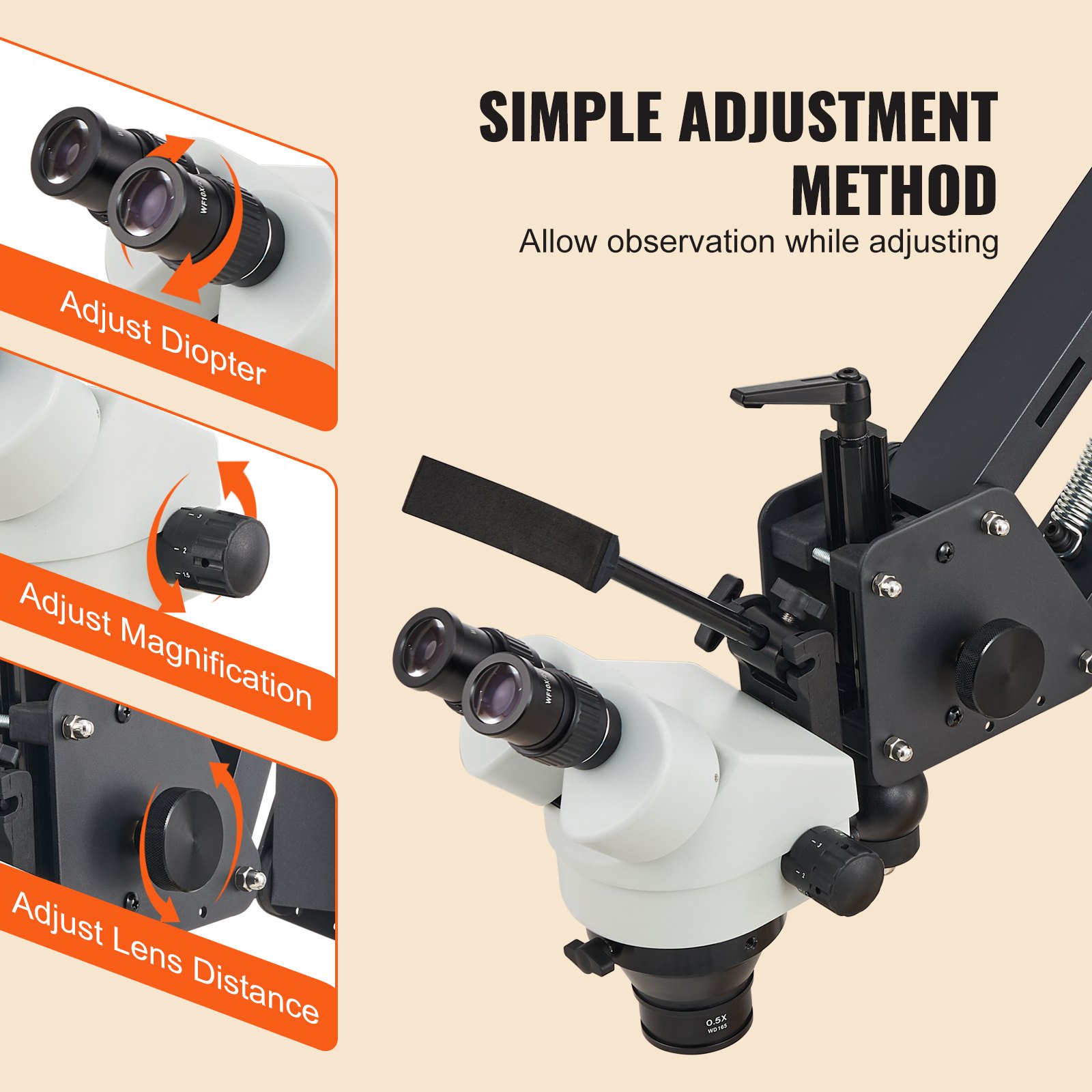

  • Support for Simultaneous Observation and Adjustment: The simple adjustment mechanism of the stereo microscope allows for quick and precise adjustments of diopter, magnification, and lens distance, making your work more efficient.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Multi-Directional Microscope with Spring Bracket Ring Light 7X-45X Jewelry
VEVOR Multi-Directional Microscope Set

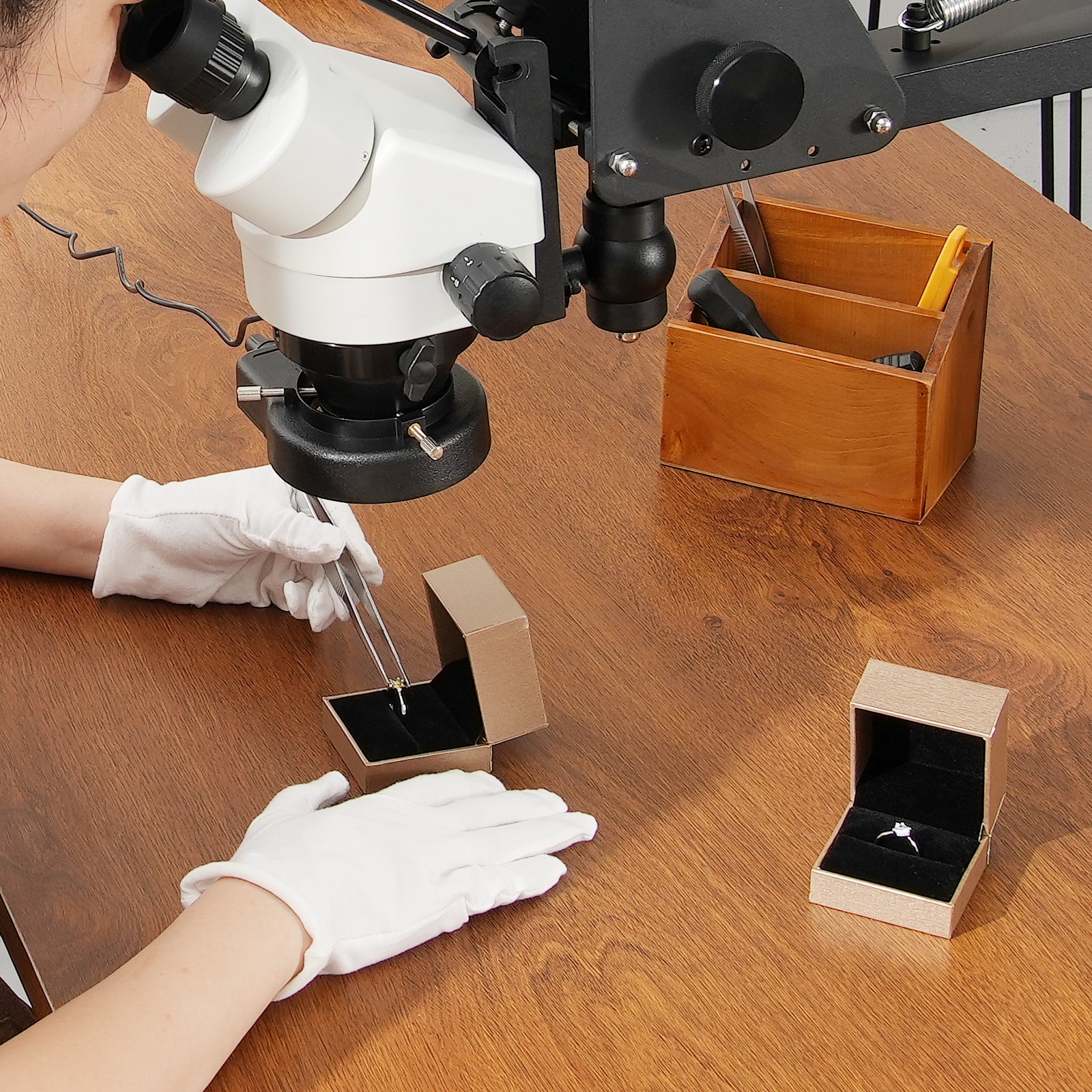

With 7X-45X continuous zoom, our jewelry microscope with spring bracket provides clear and stereoscopic microscopic effects. This micro inlaid mirror is widely used in jewelry inlay, engraving crafts, PCB repair, factory inspection, jewelry appraisal, watch repair, and more.

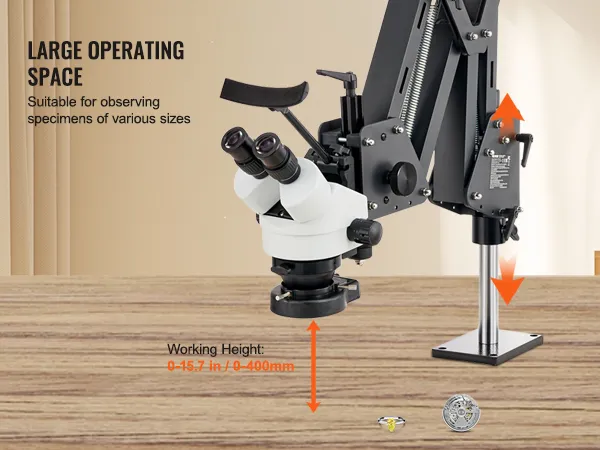

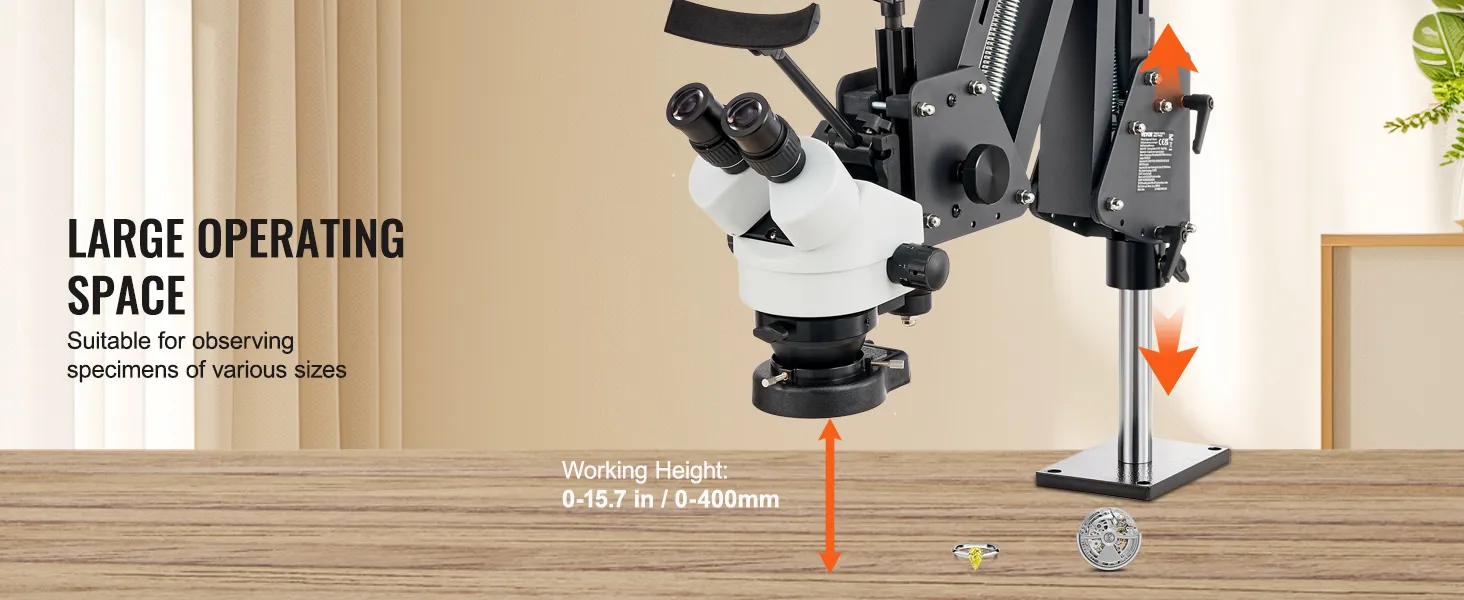

The 0-15.7 in / 0-400mm working height allows for observation of various sizes of specimens. You can flexibly apply this jewelers microscope to different workbenches, stands, or other installation positions without the need to adjust the height of the workbench.

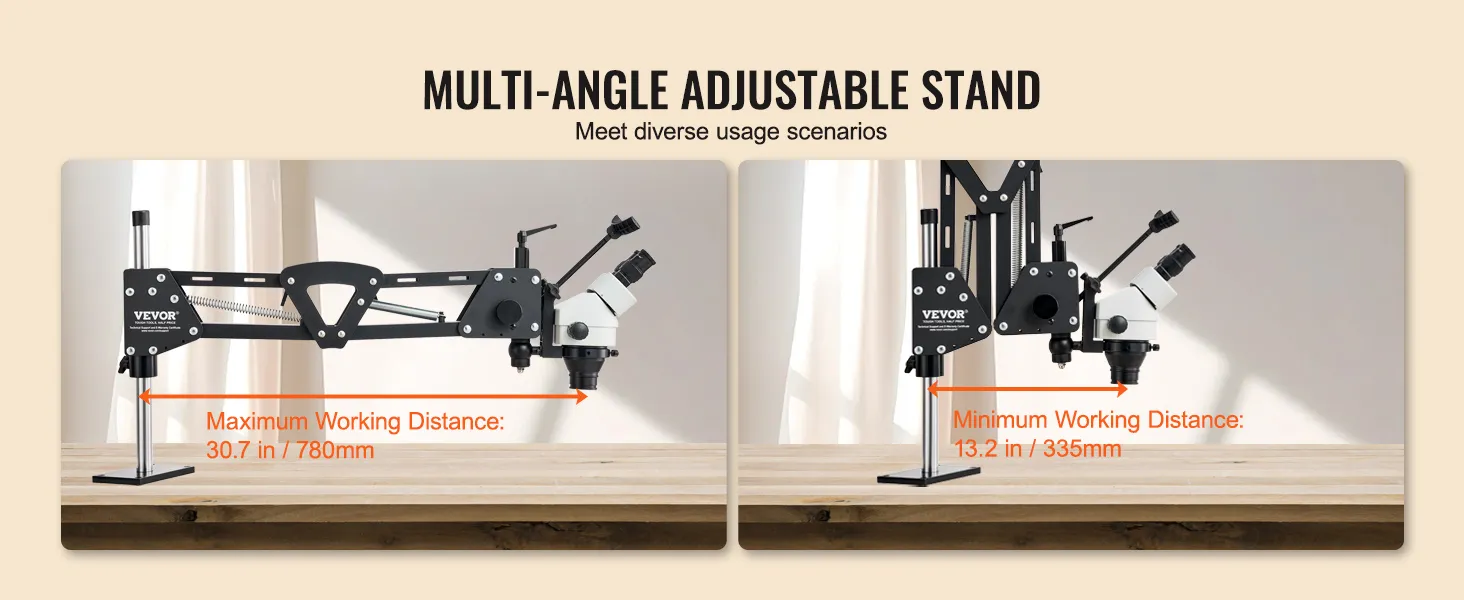

The multi-directional microscope has a maximum working distance of 30.7 inches / 780mm, allowing for the observation of larger and taller objects such as large PCBs, mechanical parts, or performing fine surface operations.

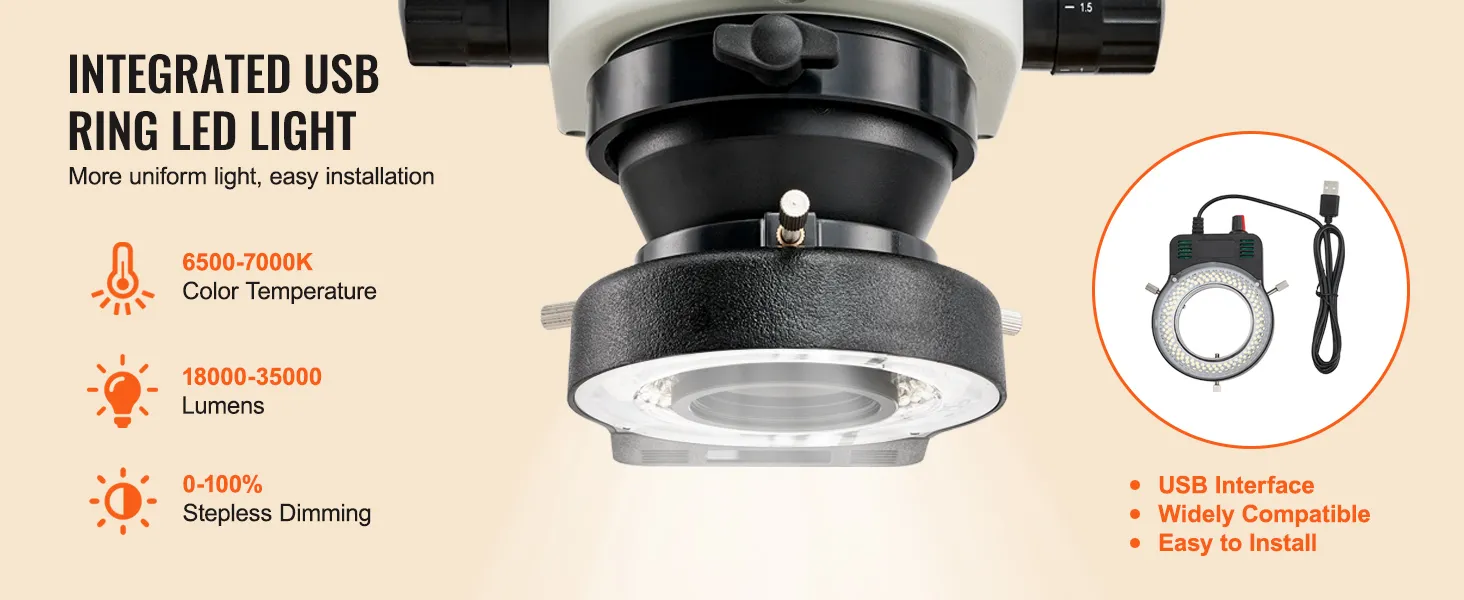

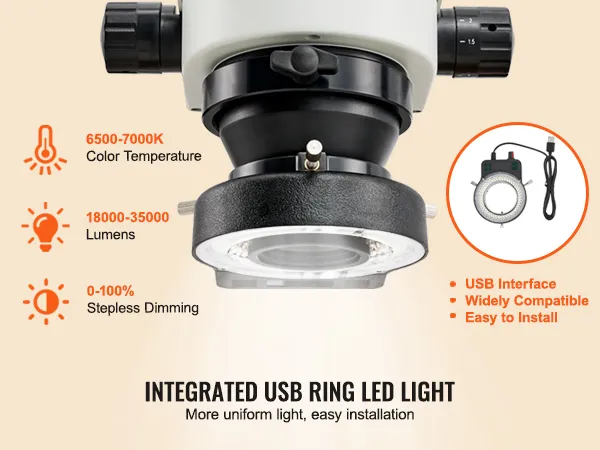

With 144 LED lights providing ample lighting, a color temperature of 6500-7000K, and 18000-35000 lumens, the microscope jewelry inlaid stand supports 0-100% stepless dimming. The integrated LED ring light with a USB interface is widely applicable and easy to install.

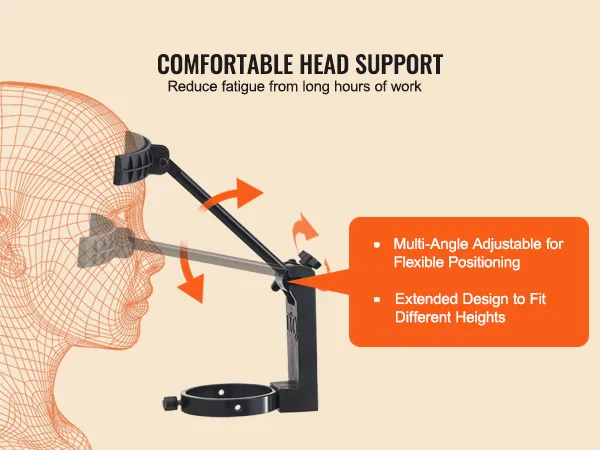

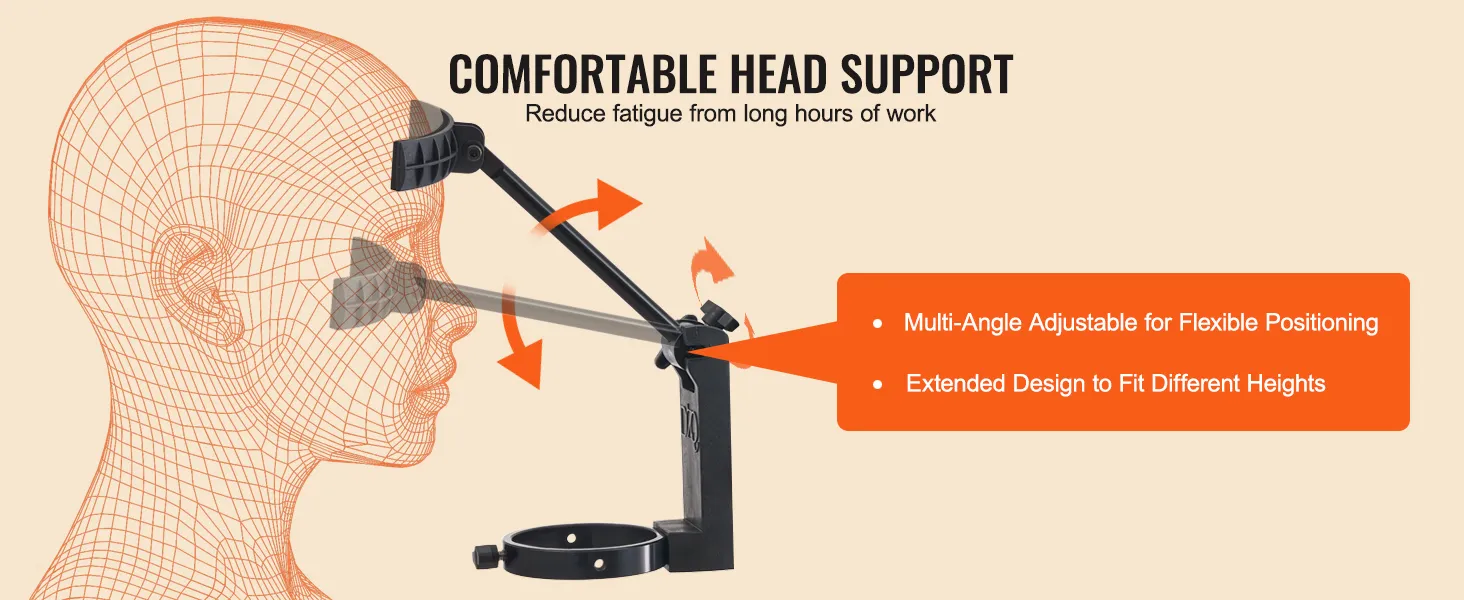

The extended design of the stereo microscope adapts to different heights. It is adjustable at multiple angles, flexibly adjustable, and reduces neck and lumbar fatigue from prolonged work.

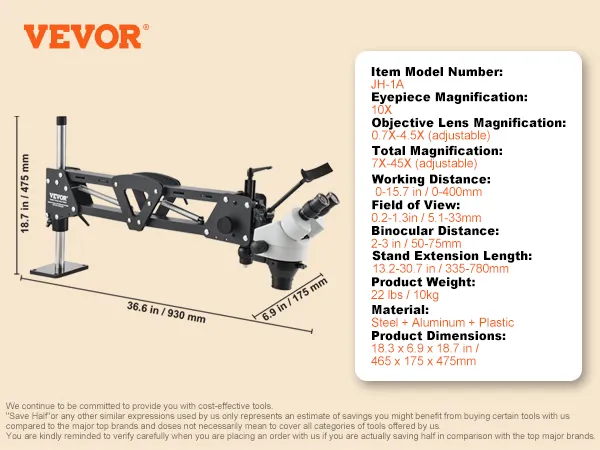

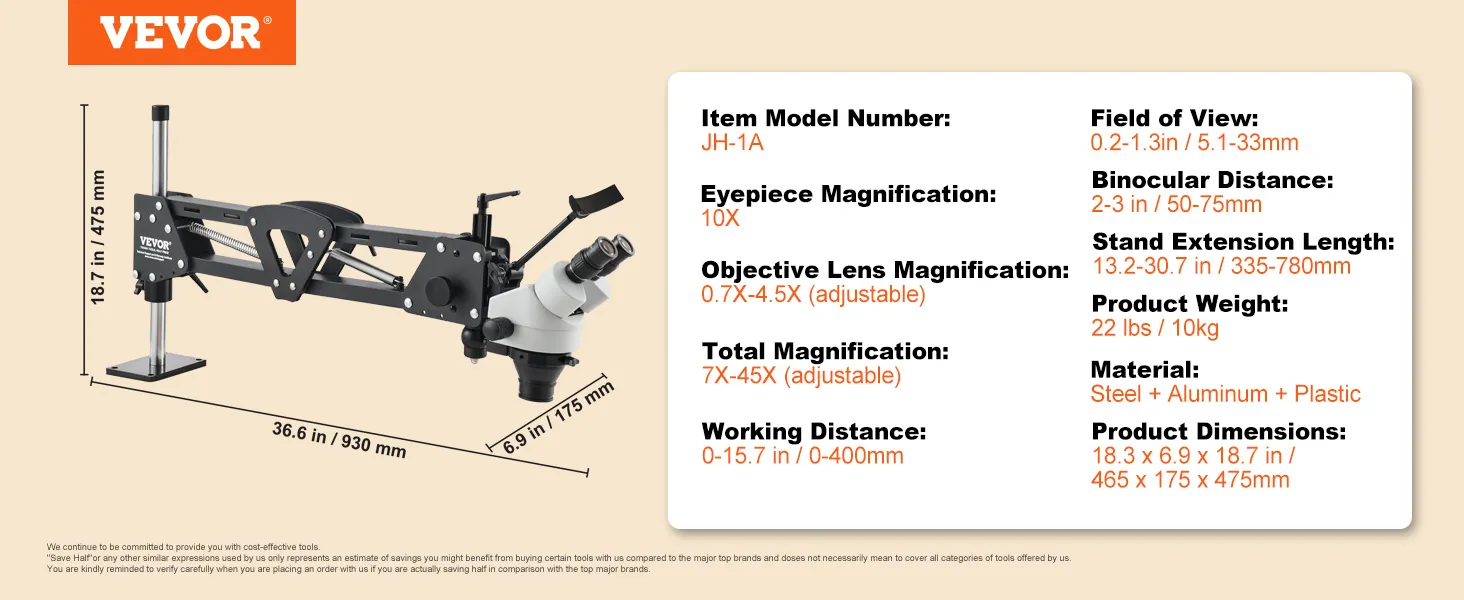

Specification

Item Model Number
JH-1A
Eyepiece Magnification
10X
Objective Lens Magnification
0.7X-4.5X (adjustable)
Total Magnification
7X-45X (adjustable)
Working Distance
0-15.7 in / 0-400mm
Field of View
0.2-1.3in / 5.1-33mm
Binocular Distance
2-3 in / 50-75mm
Stand Extension Length
13.2-30.7 in / 335-780mm
Product Weight
22 lbs / 10kg
Material
Steel + Aluminum + Plastic
Product Dimensions
18.3 x 6.9 x 18.7 in / 465 x 175 x 475mm
