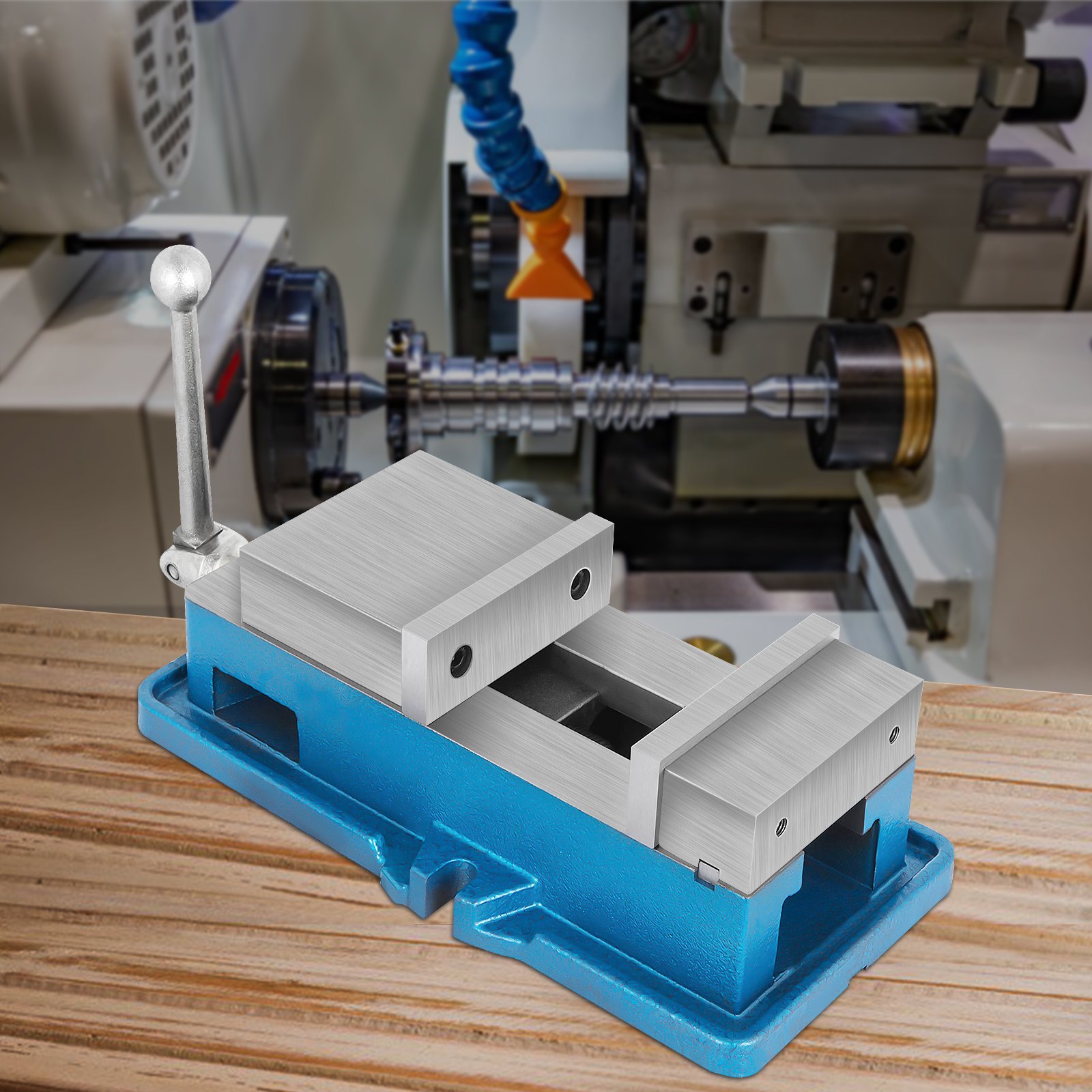

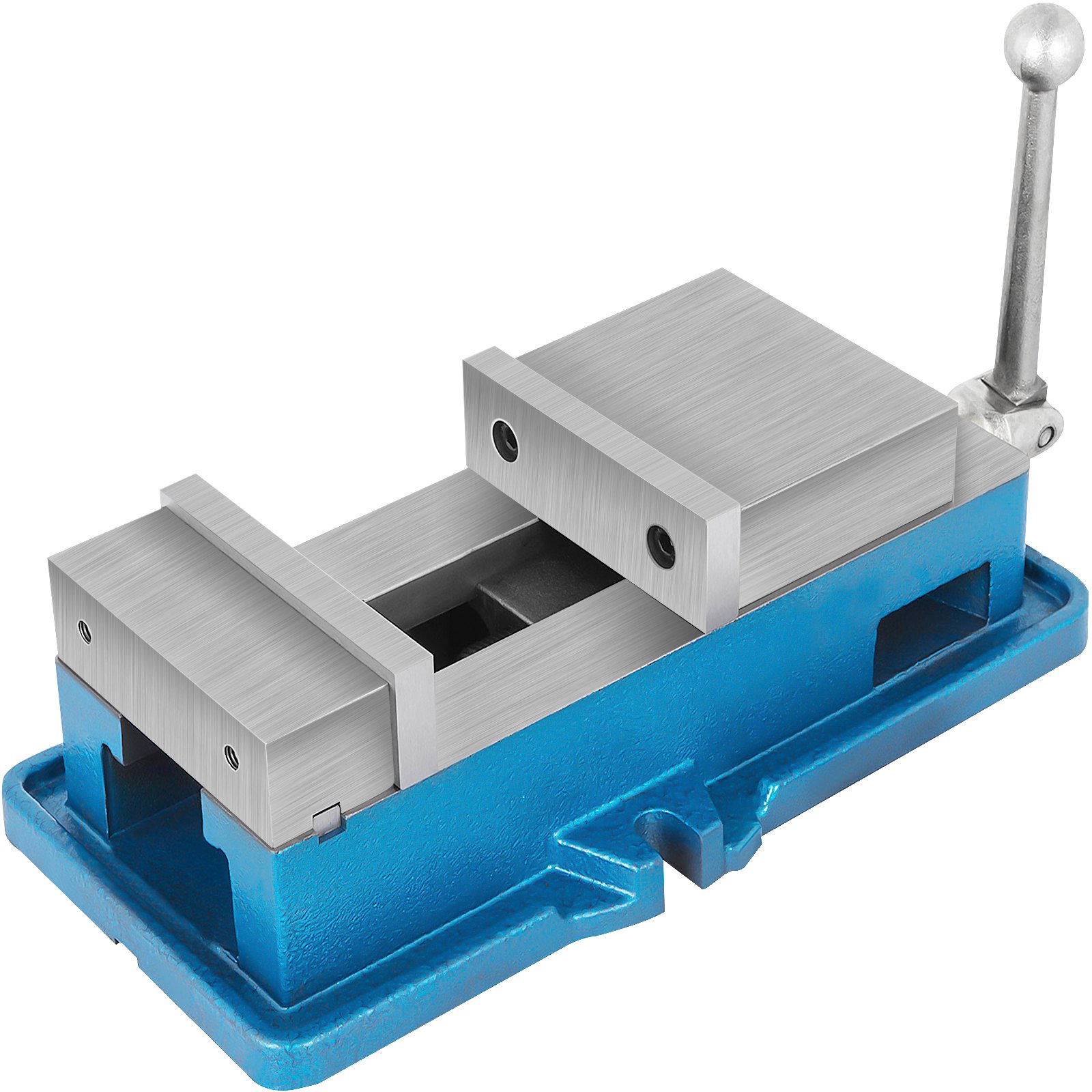

VEVOR cnc vise with blue base and handle, bolts and nuts included. VEVOR cnc vise for wood, pvc pipe, metal, and reinforcement in a milling machine setup. VEVOR cnc vise: solid, wear-resistant, long life; steel and cast iron construction. VEVOR cnc vise with 24 kn max clamping force, stable and high clamping capabilities. VEVOR cnc vise with smooth clamp body track, grinding guide rail, and precise clamping. VEVOR cnc vise with built-in grooved jaws, cast steel handle, and detachable jaw design. VEVOR cnc vise with product specifications and dimensions displayed.
TQ5CJMPKQ00000001V0

VEVOR 5" Super-Lock Vise For NC/CNC Machines Bench Clamp Vise High Precision, Vise Clamp Vice CNC Vise Lockdown Vise Drilling 125mm Width CNC 24KN

See All Customer Reviews
61 Reviews
Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive 5,00€ off for your first three orders on the App.
Download Now
Exclusive 5,00€ off for your first three orders on the App.
Scan the QR code to download

125 mm

  • 80 mm
  • 5"
  • 125 mm
  • 100 mm
  • 160 mm
  • 120 mm

Nodular Cast Iron

  • Alloy Steel
  • Nodular Cast Iron
  • Gray Cast Iron

About this item

  • Premium Quality Structure: The jaw of the bench vise is made of 45# steel. After high-frequency quenching, the wear resistance of the jaw is improved and the service life is prolonged. The vise body is HT250 high-quality cast iron forging with good toughness, high strength, and durability.
  • Powerful Clamping Force: Vise guide surfaces are finely polished and smooth. When clamping the workpiece, the movement is stable, the positioning is accurate. Jaw Width: 5" / 12.5 cm, Jaw Opening: 5" / 12.5 cm. The clamping force can reach up to 24 kN, which is suitable for different sizes of goods.
  • High Accuracy Screw: The closed design protects the screw rod and prevents the entry of iron pins and other debris, convenient for maintenance and cleaning. Our screw is of high quality and is not easily damaged. The parallelism and perpendicularity are accurate to 0.002".
  • Humanized Design: Our vises are detachable and can be replaced quickly. The unique downward pressure design protects the workpiece from escaping float when clamped. The hardened swivel handle is a universal joint structure, easy operation, flexible, and convenient to use.
  • Multifunctional Tool: A milling vise is an essential tool for fitters. Most of the fitters' work is running by using the clamping vise such as sawing, filing, chiseling, and some assembly and removal jobs.
See More See Less

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR 5" Super-Lock Vise For NC/CNC Machines Bench Clamp Vise High Precision, Vise Clamp Vice CNC Vise Lockdown Vise Drilling 125mm Width CNC 24KN
125 mm Nodular Cast Iron
Description Specification Questions and Answers Reviews
VEVOR cnc vise: 5" milling lockdown vise, solid casting, high precision.
VEVOR cnc vise with blue base and silver jaws, including bolts and washers.
5-inch Lock Down Vise
High Precision & Simple Operation & Heavy Duty
During workshop operation, many workpieces were minor damaged due to their excessive force. Therefore, we recommend that you use the vise to clamp. Our vise has to roughen screw rod, solid casting, and strong clamping force. It can ensure the stability of clamping multiple workpieces
  • Premium Quality Structure
  • Powerful Clamping Force
  • High Accuracy Screw
  • Humanized Design

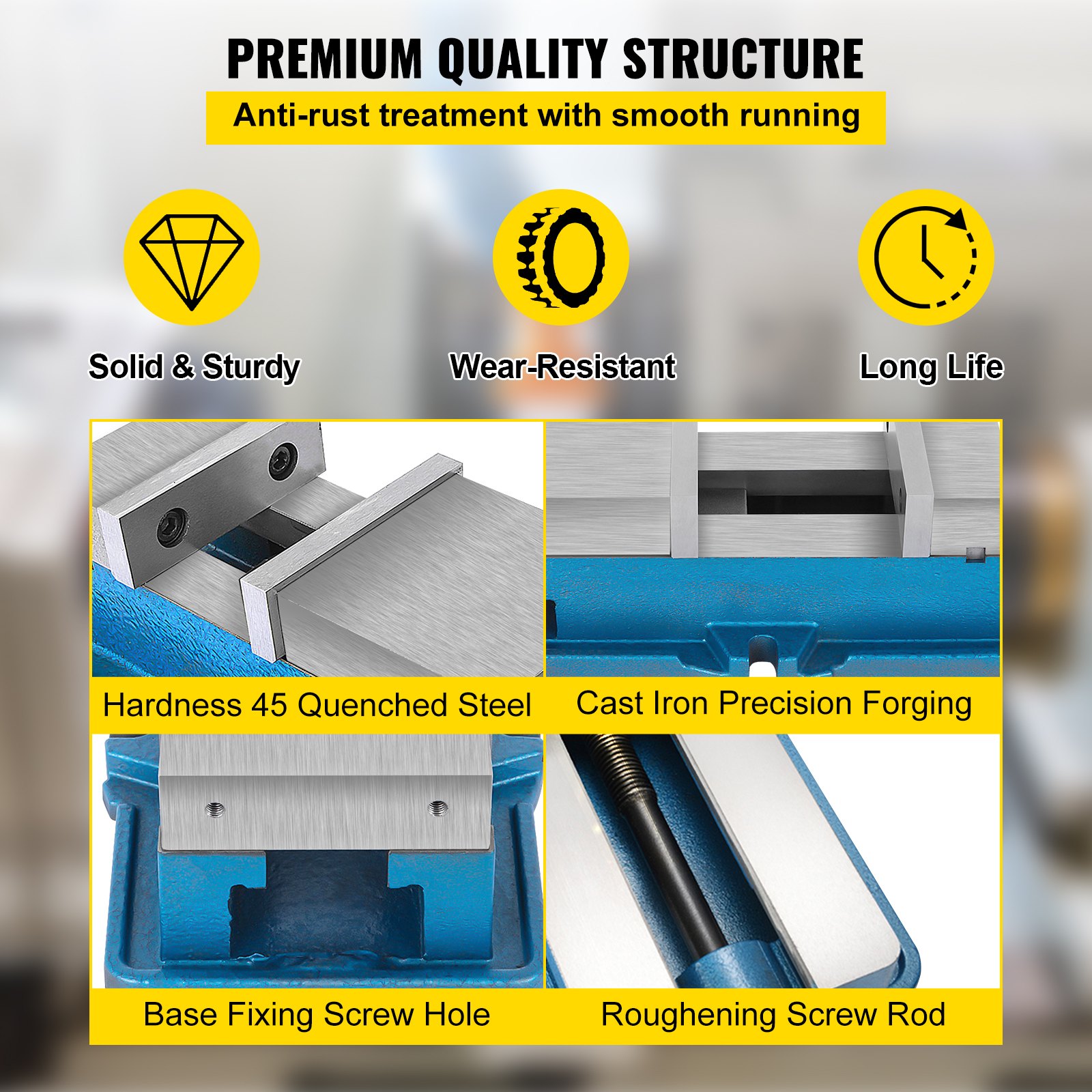

VEVOR cnc vise with hardness 45 quenched steel and premium material label.
Heavy-Duty Material
The vise is made of HT250 cast iron with strong toughness and high tensile strength. Internal refine grinding treatment, smooth and steady, no jamming.

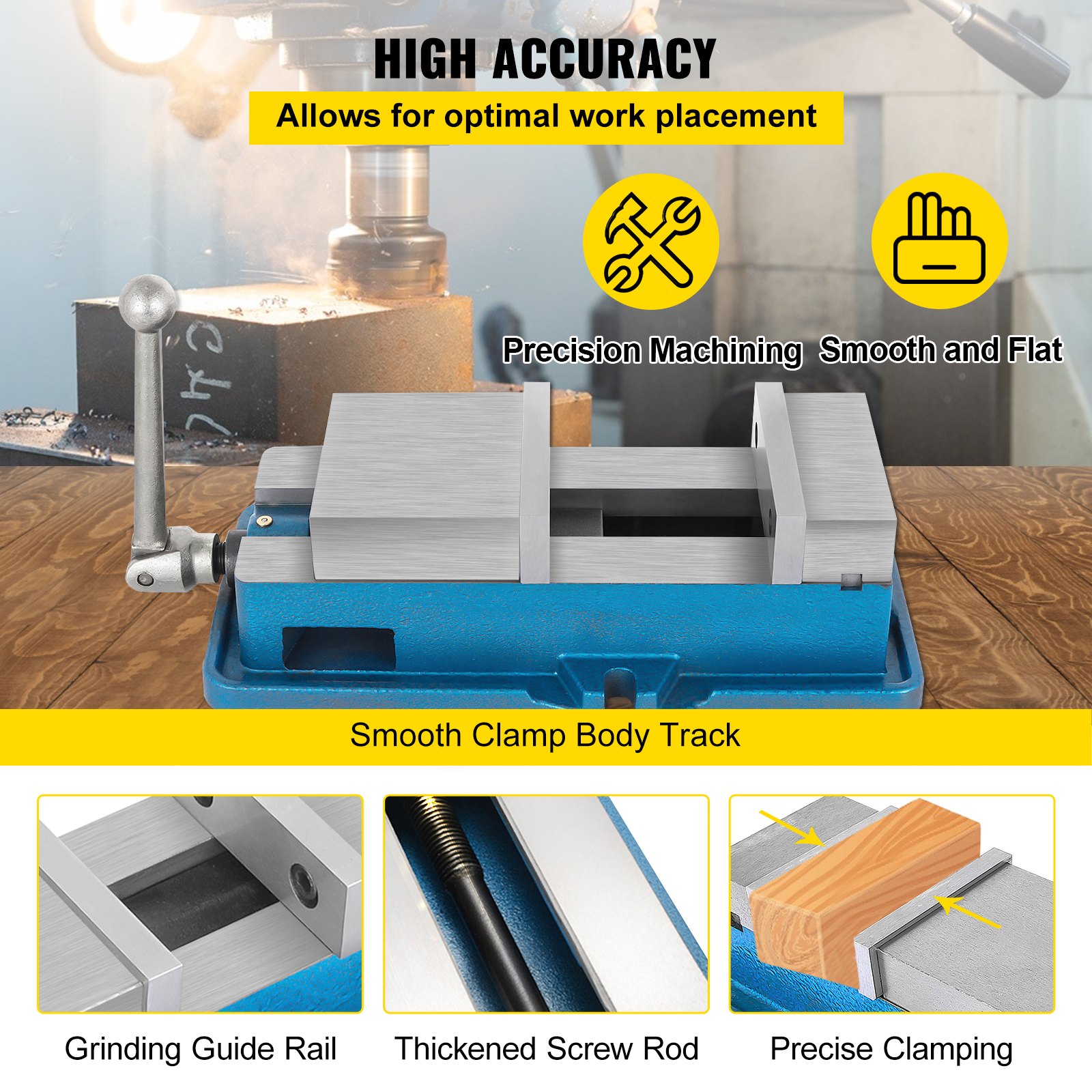

VEVOR cnc vise with hardened clamping jaws and grinding guide rail.
Hardened Clamping Jaw
The jaws are thickened and finely ground. The lockdown vise machine adopts a fully enclosed design, and iron filings are not easy to enter, which improves the service life.
quality lead screw comparison of VEVOR cnc vise and others showing superior threading.
Quality Lead Screw
Our thread pitch of the ladder screw is larger than the standard screw. The surface is quenched and turned, more wear-resistant, and has higher accuracy than the ordinary screw.
VEVOR cnc vise with adjustable handle for smooth operation.
Adjustable Handle
The universal joint handle is composed of ductile iron, strong and flexible. You can adjust the gripping force through the handle and complete the clamping work excellently.

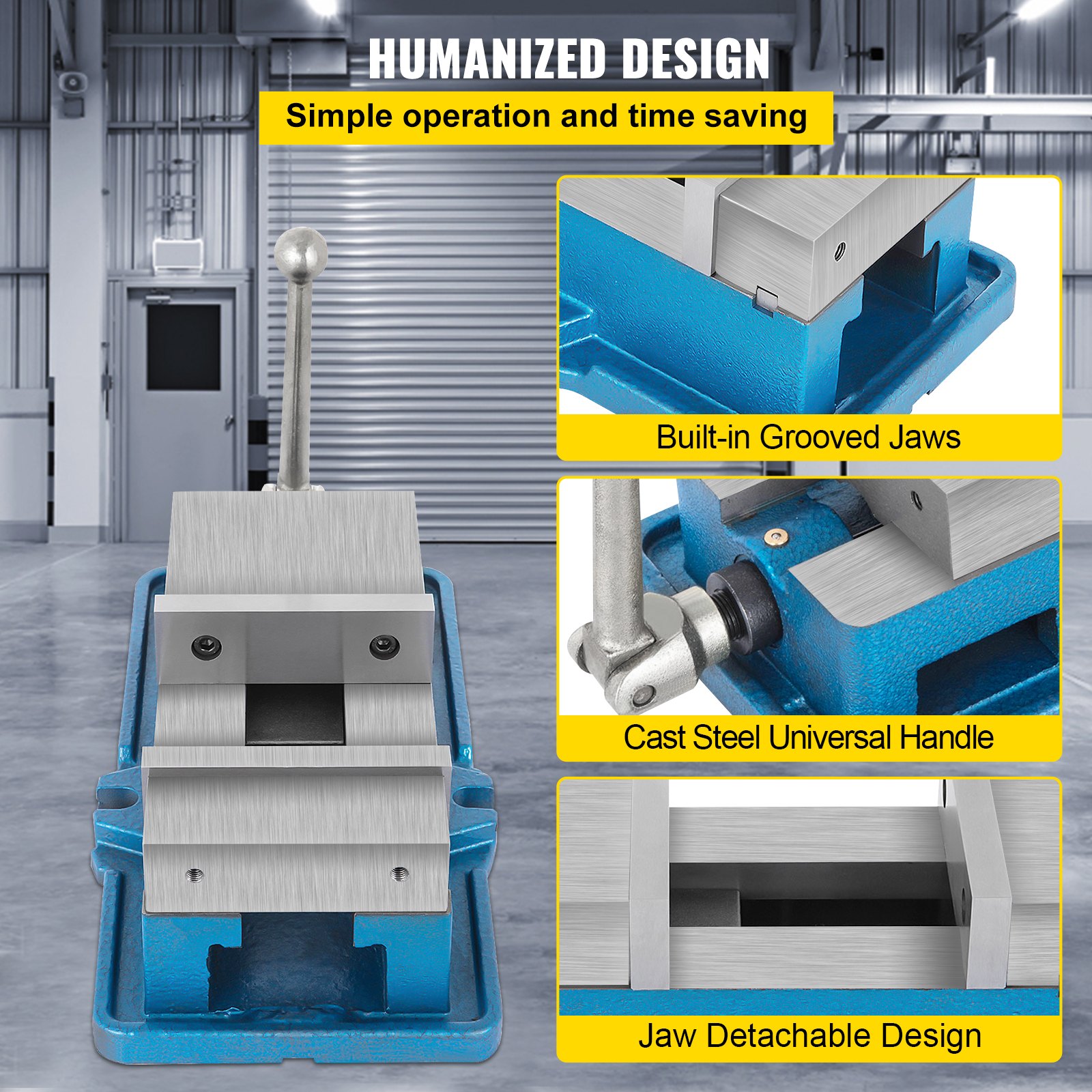

VEVOR cnc vise with precision guide rail and detachable jaw design.
Precision Design
The guide rail surface is seamless, making the positioning more accurate. The semi-circular ball has a vertical downward pressure to keep the workpiece stable and guard it against floating.

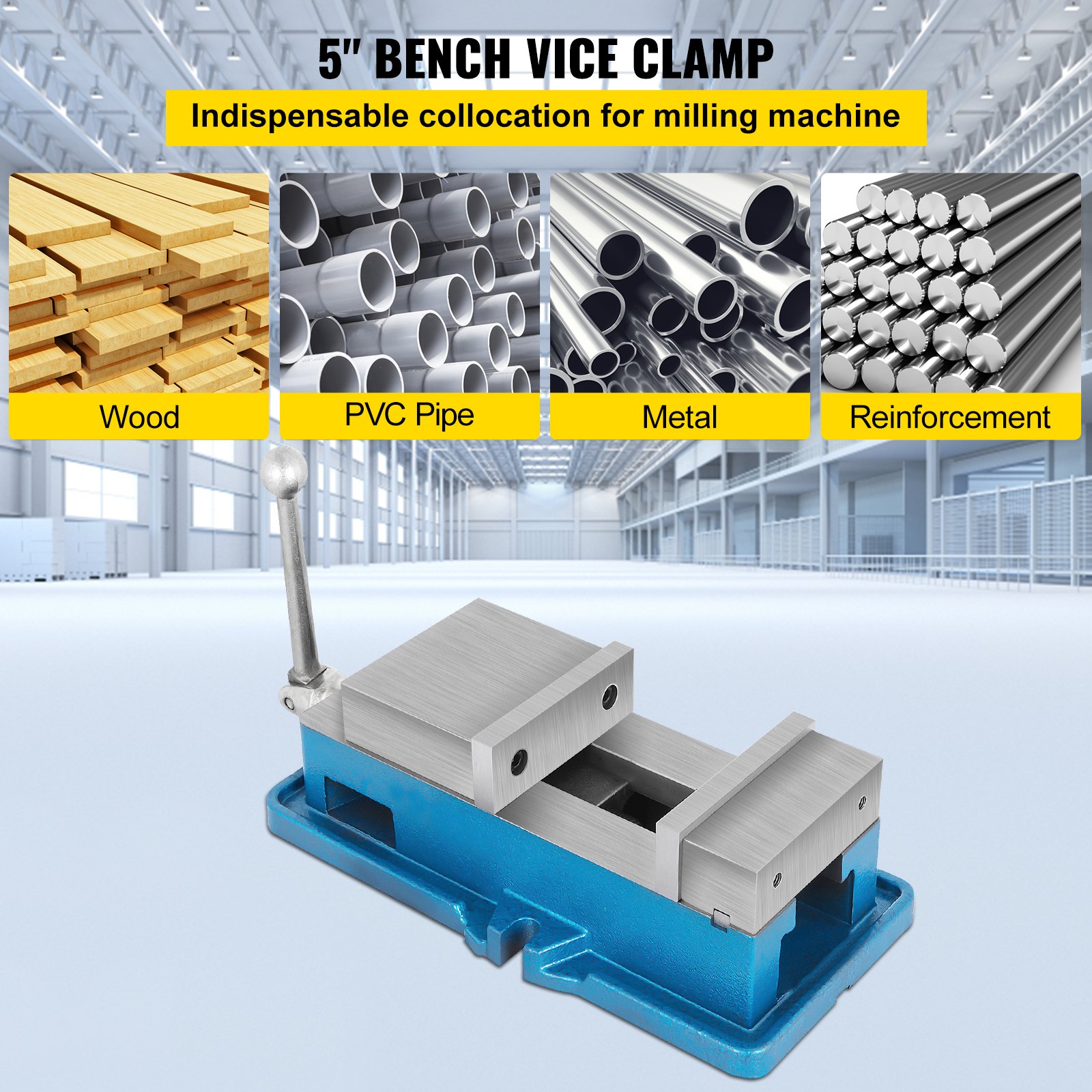

VEVOR cnc vise uses: milling machine, drilling machine, household drill, industrial drill.
Wide Application
Precision milling vise is the main accessory of precision milling machine and NC/CNC machine tool. Suitable for finishing milling machines, drilling machines, and precision parts.

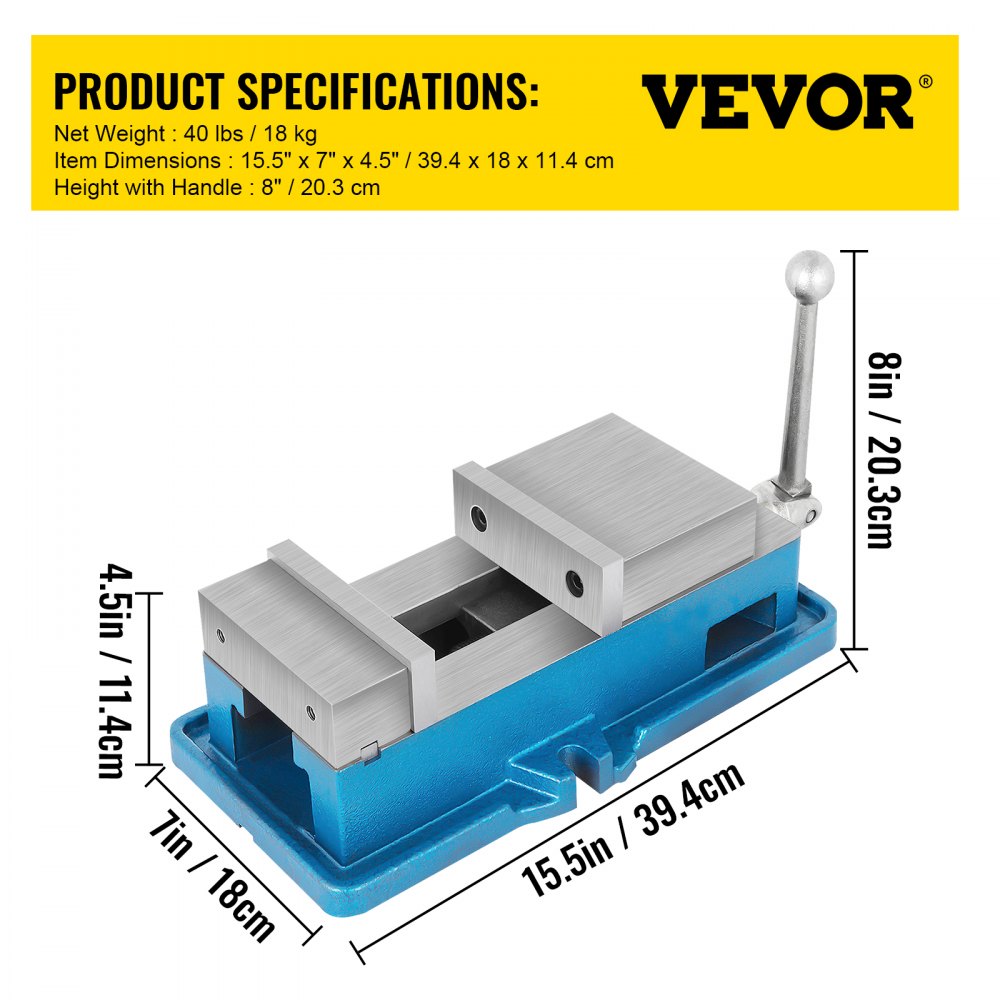

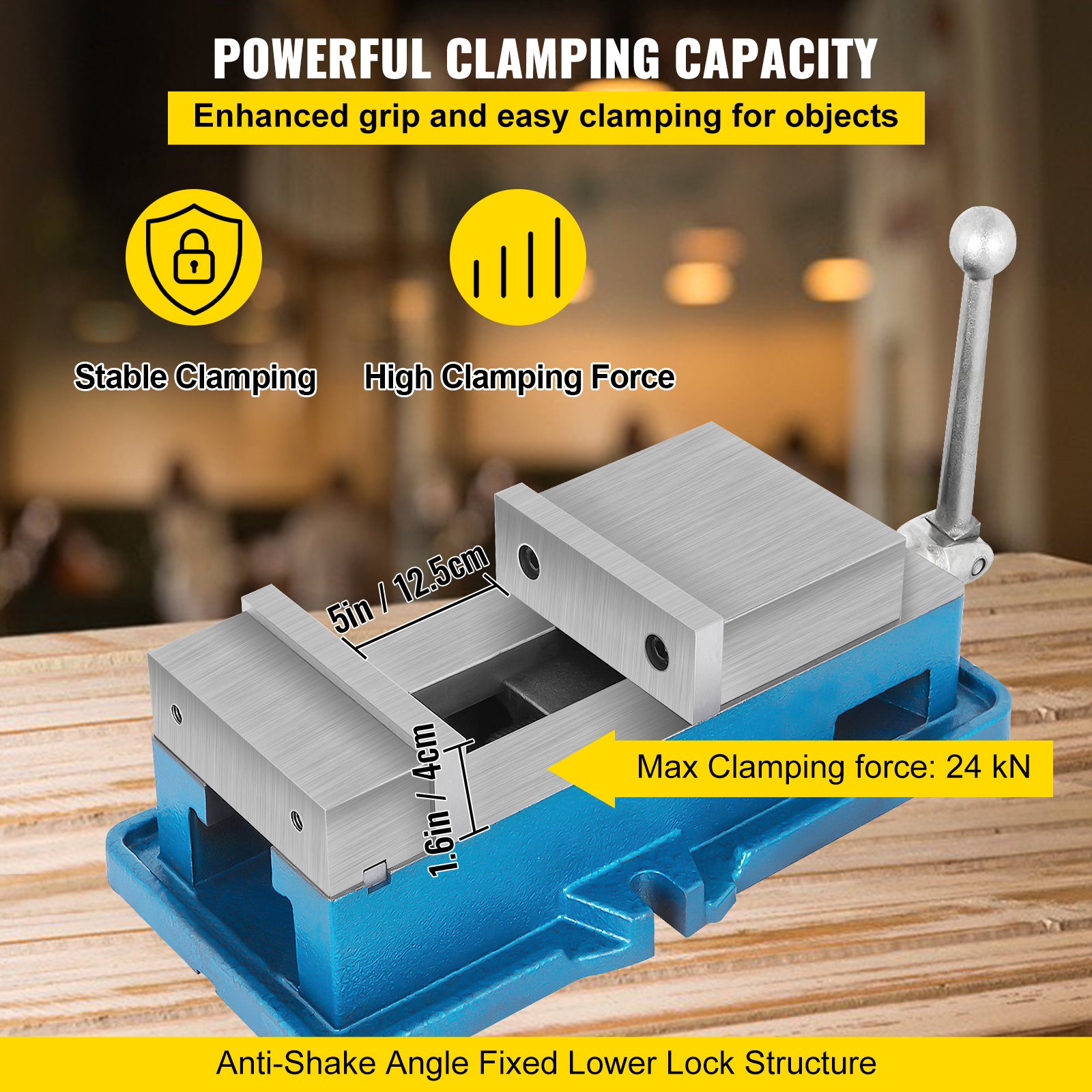

VEVOR cnc vise with dimensions: 15.5in x 7in x 4.5in, 8in handle in blue.
  • Type: Bench Vise
  • Jaw Height: 1.6" / 4 cm
  • Jaw Width: 5" / 12.5 cm
  • Jaw Opening: 5" / 12.5 cm
  • Jaw Material: 45# Steel
  • Body Material: HT250 Gray Cast Iron
  • Wrench Material: QT500 Ductile Iron
  • Vise Height: 4.3" / 11 cm
  • Max Clamping Force: 24 KN
  • Net Weight: 40 lbs / 18 kg
  • Item Dimensions(L x W x H) : 15.5" x 7" x 4.5" / 39.4 x 18 x 11.4 cm
  • Height with Handle: 8" / 20.3 cm
  • Package Dimensions (L x W x H): 16" x 11" x 6" / 41 x 27 x 15 cm

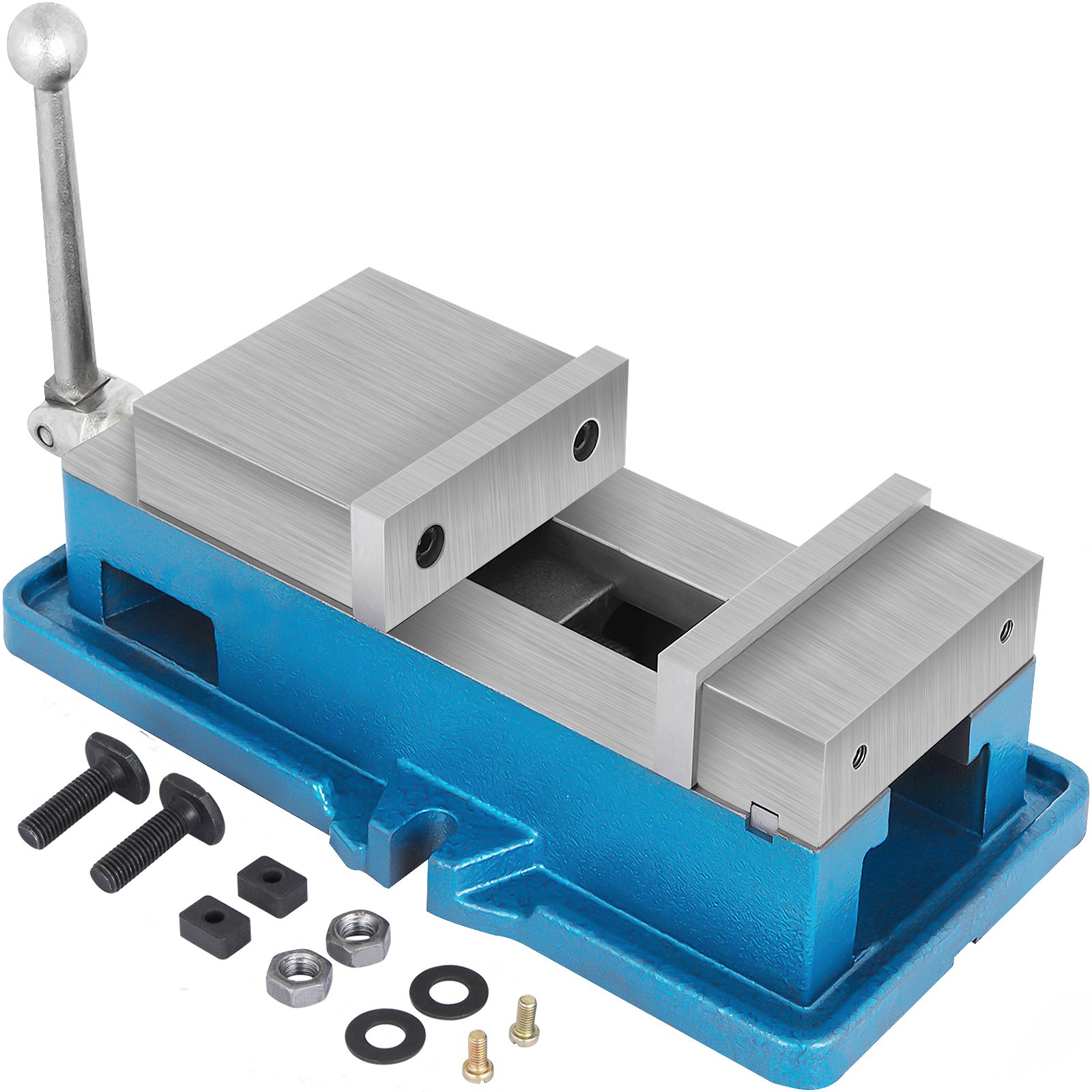

VEVOR cnc vise with accessories: bolts, washers, and nuts on a white background.
  • 1 x 5" Bench Clamp Vise
  • 1 x Set of Screws
  • 1 x Set of Nuts
  • 2 x Pads
  • 1 x Manual
VEVOR cnc vise: 5" milling lockdown vise, solid casting, high precision.
VEVOR cnc vise with blue base and silver jaws, including bolts and washers.
5-inch Lock Down Vise
High Precision & Simple Operation & Heavy Duty
During workshop operation, many workpieces were minor damaged due to their excessive force. Therefore, we recommend that you use the vise to clamp. Our vise has to roughen screw rod, solid casting, and strong clamping force. It can ensure the stability of clamping multiple workpieces
  • Premium Quality Structure
  • Powerful Clamping Force
  • High Accuracy Screw
  • Humanized Design
VEVOR cnc vise with hardness 45 quenched steel and premium material label.
Heavy-Duty Material
The vise is made of HT250 cast iron with strong toughness and high tensile strength. Internal refine grinding treatment, smooth and steady, no jamming.
VEVOR cnc vise with hardened clamping jaws and grinding guide rail.
Hardened Clamping Jaw
The jaws are thickened and finely ground. The lockdown vise machine adopts a fully enclosed design, and iron filings are not easy to enter, which improves the service life.
quality lead screw comparison of VEVOR cnc vise and others showing superior threading.
Quality Lead Screw
Our thread pitch of the ladder screw is larger than the standard screw. The surface is quenched and turned, more wear-resistant, and has higher accuracy than the ordinary screw.
VEVOR cnc vise with adjustable handle for smooth operation.
Adjustable Handle
The universal joint handle is composed of ductile iron, strong and flexible. You can adjust the gripping force through the handle and complete the clamping work excellently.
VEVOR cnc vise with precision guide rail and detachable jaw design.
Precision Design
The guide rail surface is seamless, making the positioning more accurate. The semi-circular ball has a vertical downward pressure to keep the workpiece stable and guard it against floating.
VEVOR cnc vise uses: milling machine, drilling machine, household drill, industrial drill.
Wide Application
Precision milling vise is the main accessory of precision milling machine and NC/CNC machine tool. Suitable for finishing milling machines, drilling machines, and precision parts.
VEVOR cnc vise with accessories: bolts, washers, and nuts on a white background.
  • 1 x 5" Bench Clamp Vise
  • 1 x Set of Screws
  • 1 x Set of Nuts
  • 2 x Pads
  • 1 x Manual
VEVOR cnc vise with dimensions: 15.5in x 7in x 4.5in, 8in handle in blue.
  • Type: Bench Vise
  • Jaw Height: 1.6" / 4 cm
  • Jaw Width: 5" / 12.5 cm
  • Jaw Opening: 5" / 12.5 cm
  • Jaw Material: 45# Steel
  • Body Material: HT250 Gray Cast Iron
  • Wrench Material: QT500 Ductile Iron
  • Vise Height: 4.3" / 11 cm
  • Max Clamping Force: 24 KN
  • Net Weight: 40 lbs / 18 kg
  • Item Dimensions(L x W x H) : 15.5" x 7" x 4.5" / 39.4 x 18 x 11.4 cm
  • Height with Handle: 8" / 20.3 cm
  • Package Dimensions (L x W x H): 16" x 11" x 6" / 41 x 27 x 15 cm

Specification

Type
Bench Vise
Jaw Height
1.6" / 4 cm
Jaw Width
5" / 12.5 cm
Jaw Opening
5" / 12.5 cm
Jaw Material
45# Steel
Body Material
HT250 Gray Cast Iron
Wrench Material
QT500 Ductile Iron
Vise Height
4.3" / 11 cm
Max Clamping Force
24 KN
Net Weight
40 lbs / 18 kg
Item Dimensions(L x W x H)
15.5" x 7" x 4.5" / 39.4 x 18 x 11.4 cm
Height with Handle
8" / 20.3 cm
Package Dimensions (L x W x H)
16" x 11" x 6" / 41 x 27 x 15 cm
Manual
Download Link
Questions and Answers
Typical questions asked about products: Is the product durable? ...
Ask the First Question

Customer Reviews

4.9 Out of 5
Based on 61 reviews

Ratings by Features

  • 4.7
  • 4.5
  • 4.6
  • 4.5
  • See More See Less
61 Review(s)
Clear filters
Dirk Dirk
Dhr
Precies zoals beschreven, zeer goede kwaliteit en afwerking. Spijtig geen tracking maar snel aangekomen. Aanrader!
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Ben Ben
Engineer
Very good quality, very good price. Very satisfactory purchase. I have made several Vevor purchases and they are all goor value and high performance !
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
bod bod
mr
excellent tool.thank-you.***************************************************************************************************
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Eus Eus
Draaibank
Gebruik vaak met Freesbank, kleine afwerking tijdens aandraaien. 0,5mm zeide draaispindel dat omhoogkomt. Maar is op te lossen door de stelschroef iets vaster te zetten tijden het vastzetten
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Jop Jop
Goede klem
Heb een model 3 frees klem ontvangen zeer precies nauwkeurig kwalitijd werkt prima past goed op de t slots met bijgeleverde t moeren ben er erg blij mee
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Egon Egon
robuuste machine klem
Zeer robuuste machineklem van hoge kwaliteit Mooie zware uitvoering met preciesie geslepen bekken snelle verzending Ben zeer tevreden over het produkt en natuurlijk ook over Vevor
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
De Flyingdutchman De Flyingdutchman
Mr
Zeer solide en goede machine klem voor een heel schappelijke prijs, en snelle levering. Voldoet voor de volle 100% aan de gestelde verwachtingen.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Nic Nic
Mr
Solid piece of kit. I am using it for clock mending, with some jaw protectors. Its weight means I can use it mounted on a piece of wood placed when needed on the bench.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Tecni10 Tecni10
Mr.
The vice arrived well packaged and throughly oiled. Overall I am now very happy with the quality of construction. Initially I was unable to mill to a true square and after using a Dial indicator, I found that the fixed jaw was not completely square to the vice bed. I removed this fixed jaw, cleaned off the surplus oil and made sure the mating surfaces were completely smooth. After reassembly the fixed jaw was measuring correctly. The vice is very easy to tighten but I find the supplied jointed lever quite awkward to use. I remedied this by making a small handle so now I can open and close the vice very quickly, only using the supplied lever to achieve maximum tightness. I expect to get many years of use from this vice and would not hesitate to recommend this vice to other engineers.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Xonig Xonig
Snr
Excellent for the price. I would not pay more for this vice, as it has some (very minor) rough edges. However, I would purchase another, should I need one (smaller or larger version, for example). So far I have been very impressed with Vevor products and service. No complaints from me.
