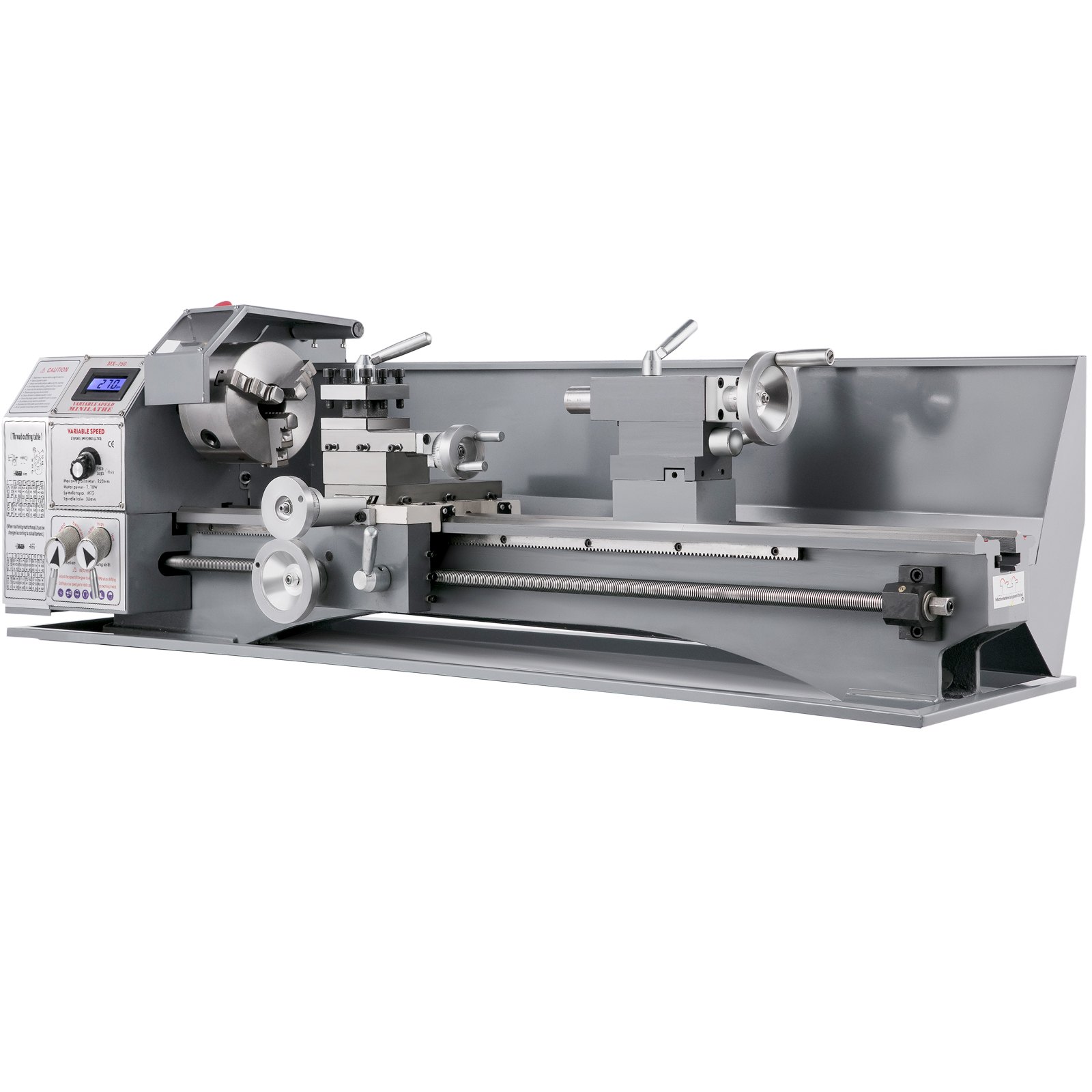

VEVOR Mini Metal Lathe 750W Variable Speed Metal Lathe 50 to 3000Rpm Milling Precision Lathe 220 x 600mm for Metal Metal Lathe for Counter Face Turning Driling VEVOR Mini Metal Lathe 750W Variable Speed Metal Lathe 50 to 3000Rpm Milling Precision Lathe 220 x 600mm for Metal Metal Lathe for Counter Face Turning Driling VEVOR Mini Metal Lathe 750W Variable Speed Metal Lathe 50 to 3000Rpm Milling Precision Lathe 220 x 600mm for Metal Metal Lathe for Counter Face Turning Driling VEVOR Mini Metal Lathe 750W Variable Speed Metal Lathe 50 to 3000Rpm Milling Precision Lathe 220 x 600mm for Metal Metal Lathe for Counter Face Turning Driling VEVOR Mini Metal Lathe 750W Variable Speed Metal Lathe 50 to 3000Rpm Milling Precision Lathe 220 x 600mm for Metal Metal Lathe for Counter Face Turning Driling VEVOR Mini Metal Lathe 750W Variable Speed Metal Lathe 50 to 3000Rpm Milling Precision Lathe 220 x 600mm for Metal Metal Lathe for Counter Face Turning Driling VEVOR Mini Metal Lathe 750W Variable Speed Metal Lathe 50 to 3000Rpm Milling Precision Lathe 220 x 600mm for Metal Metal Lathe for Counter Face Turning Driling
JSMNCC220X600-001V2

VEVOR Mini Metal Lathe 750W Variable Speed Metal Lathe 50 to 3000Rpm Milling Precision Lathe 220 x 600mm for Metal Metal Lathe for Counter Face Turning Driling

Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive 5,00€ off for your first three orders on the App.
Download Now
Exclusive 5,00€ off for your first three orders on the App.
Scan the QR code to download

750 W

  • 750 W
  • 1100 W

About this item

  • Infinitely Variable Speed: The mini metal lathe is driven by brushless motor with Power: 750W. Variable Speed(Rpm): 50-3000±10%. Taper in Spindle Nose: MT5. LED screen shows you the clear and accurate speed for accurate working. Soft start, change-over switch for clockwise or counter-clockwise spindle rotation. Operate either manually or with the adjustable auto feed rate.
  • 600 mm Large Swing Range: The bench top lathe brings a 3-jaw Chuck with Diameter: 4.9"/125 mm. Swing Over Bed: 8.7"/220 mm and Swing Over Cross Slide: 23.6"/600 mm offers more possibilities for large size or/and heavy workpieces. Taper in Spindle Nose: MT5. Range of Imperial Threads: 8-44 T.P.I.

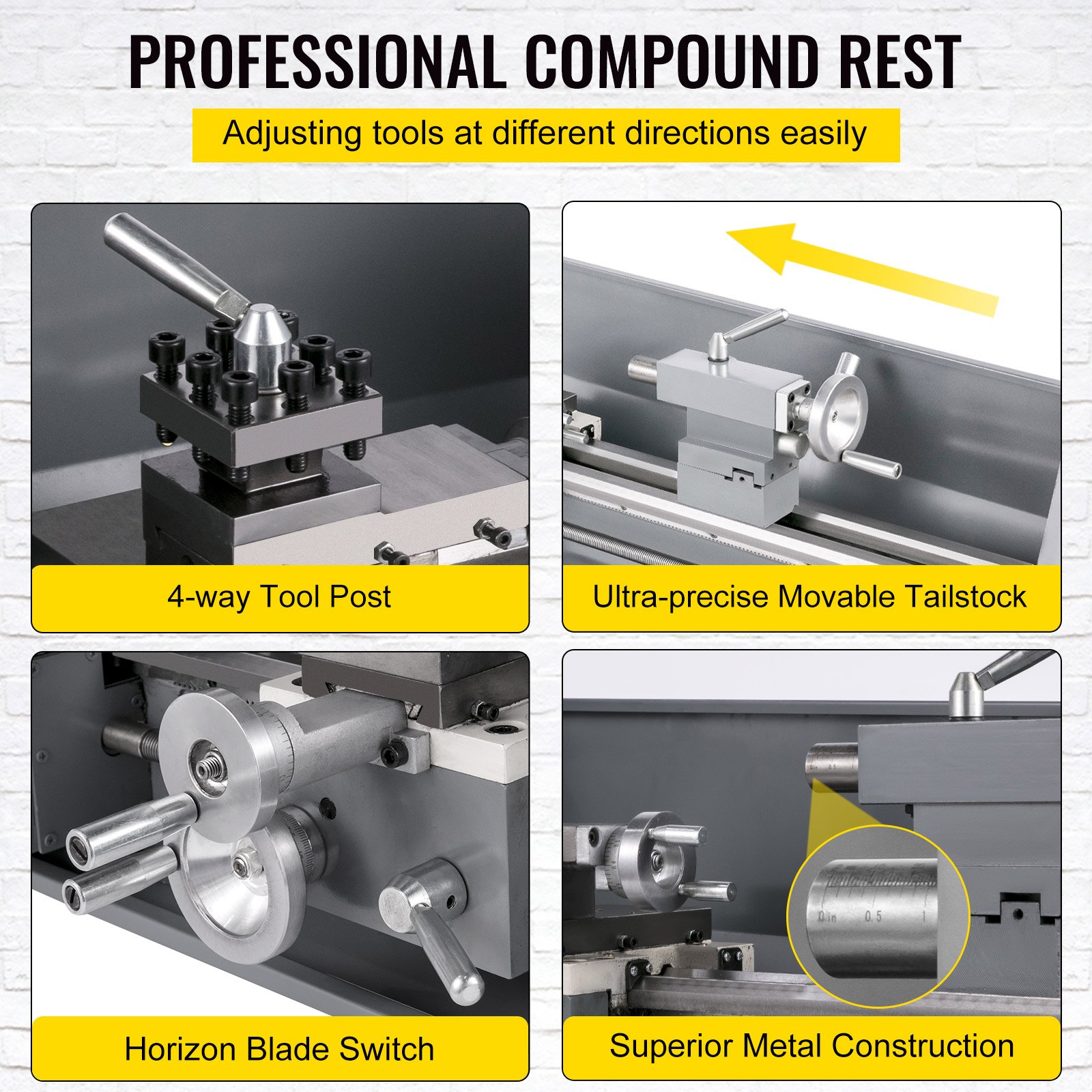

  • Professional Compound Rest: The mini lathe machine quick change tool post can achieve positions of internal cutting, face cutting and bevel cutting by changing the tool post angle and adjusting the compound rest, moving blades freely with feed rod. Heat hardening lead screw can be reversed in three speeds by turning the two handles under the variable speed rotary button.
  • Supportive & Protective: Steady rest works as an end support, ensuring chatter-free operation. Follow rest is used for turning operations on long, slender workpices. Backsplash guard included. It features a digital screen clearly showing the rotational speed, ensuring precise and smooth operation.
  • Adjustable Tailstock: Taper in Tailstock Spindle: MT2. Rotate the lever clockwise to lock the spindle, and rotate clockwise to advance the handwheel. To off-set the tailstock for cutting tapers by adjusting the four set screws located on the tailstock base.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Mini Metal Lathe 750W Variable Speed Metal Lathe 50 to 3000Rpm Milling Precision Lathe 220 x 600mm for Metal Metal Lathe for Counter Face Turning Driling
750 W
8.7" x 23.6" Metal Lathe Mini Lathe
High Precision & High Flexible & Easy Operation
The 220 x 600 mm precision metal mini lathe features 750W motor, a 3-jaw chuck, a MT5 spindle taper, a MT2 tailstock taper, designed to perform various types of metal turning, simple to operate. Through high-frequency quenching process and precision grinding of high-quality cast iron bed. 500-3000±10% Rpm spindle speed is continuously adjustable. Steady rest and follow rest for large size or/and heavy workpieces.
  • Variable Speed Design
  • 600 mm Large Swing Range
  • Professional Compound Rest
  • Supportive & Protective
  • Accurate Tailstock
Durable Metal Lathe
The milling machine is made of rugged and wear-resistant cast iron, a tough material that features a long service life.
variable Speeds

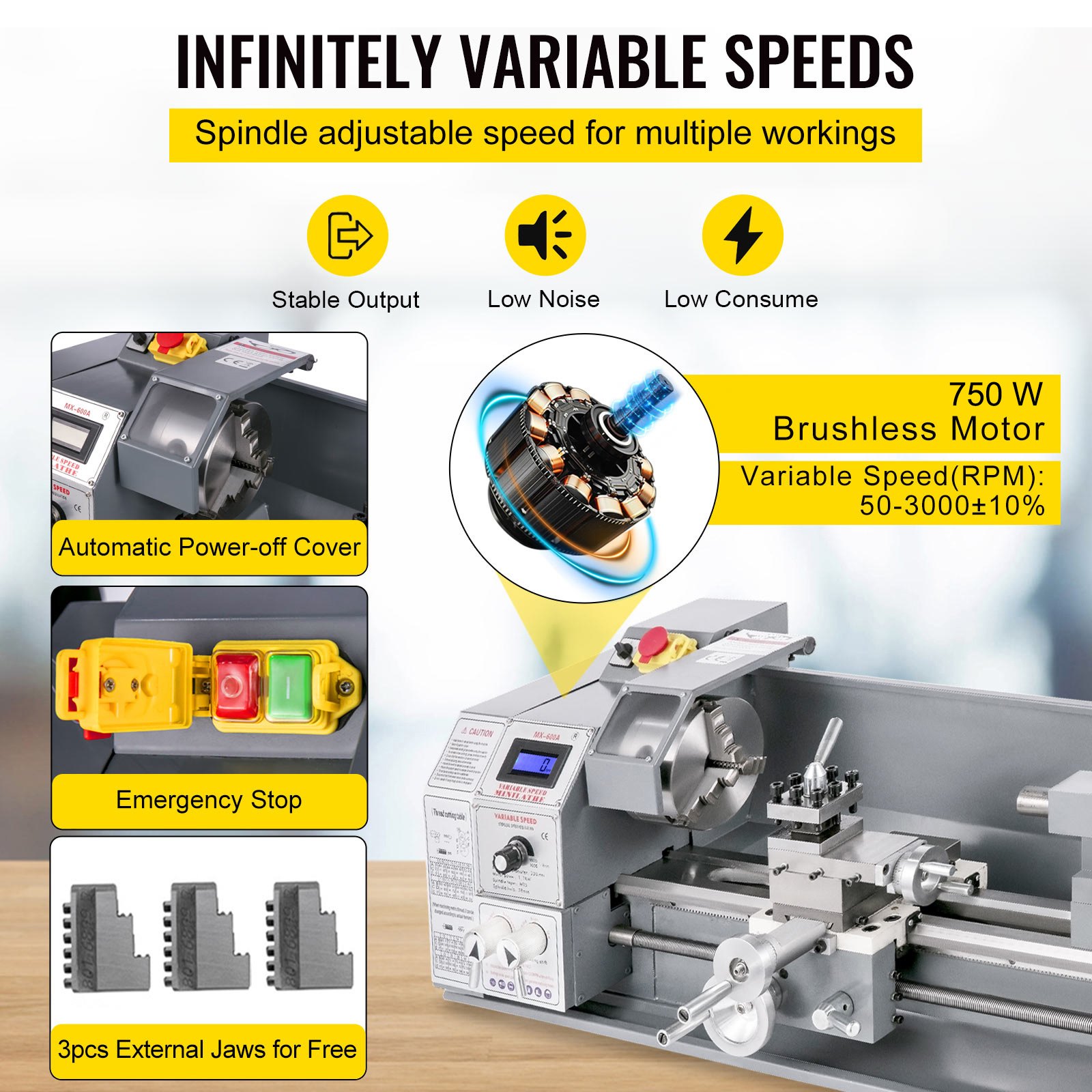

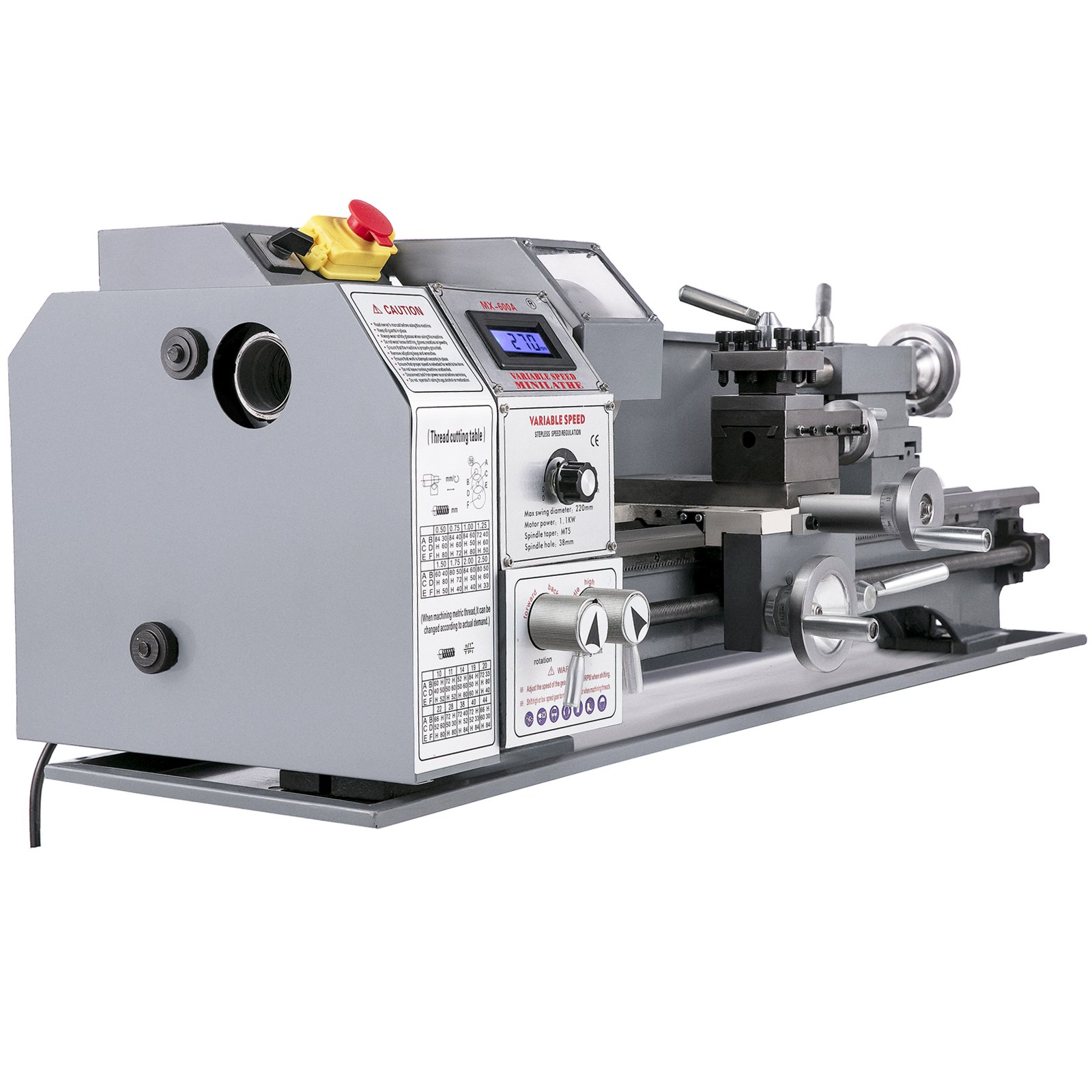

Brushless Motor Power: 750W, Variable Speed(Rpm): 50-3000±10%. Taper in Spindle Nose: MT5. Easily change the speed by turning the switch. Meanwhile, the indicator beyond notifies you of the ongoing operations.
Effortless to Use
The mini lathe bears a 3-jaw chuck and a 1.5" / 38 mm spindle bore. It is widely used where precise machining is required. The 4-way turret post on the lathe is easy to adjust. And it is convenient to change the cutting tools.

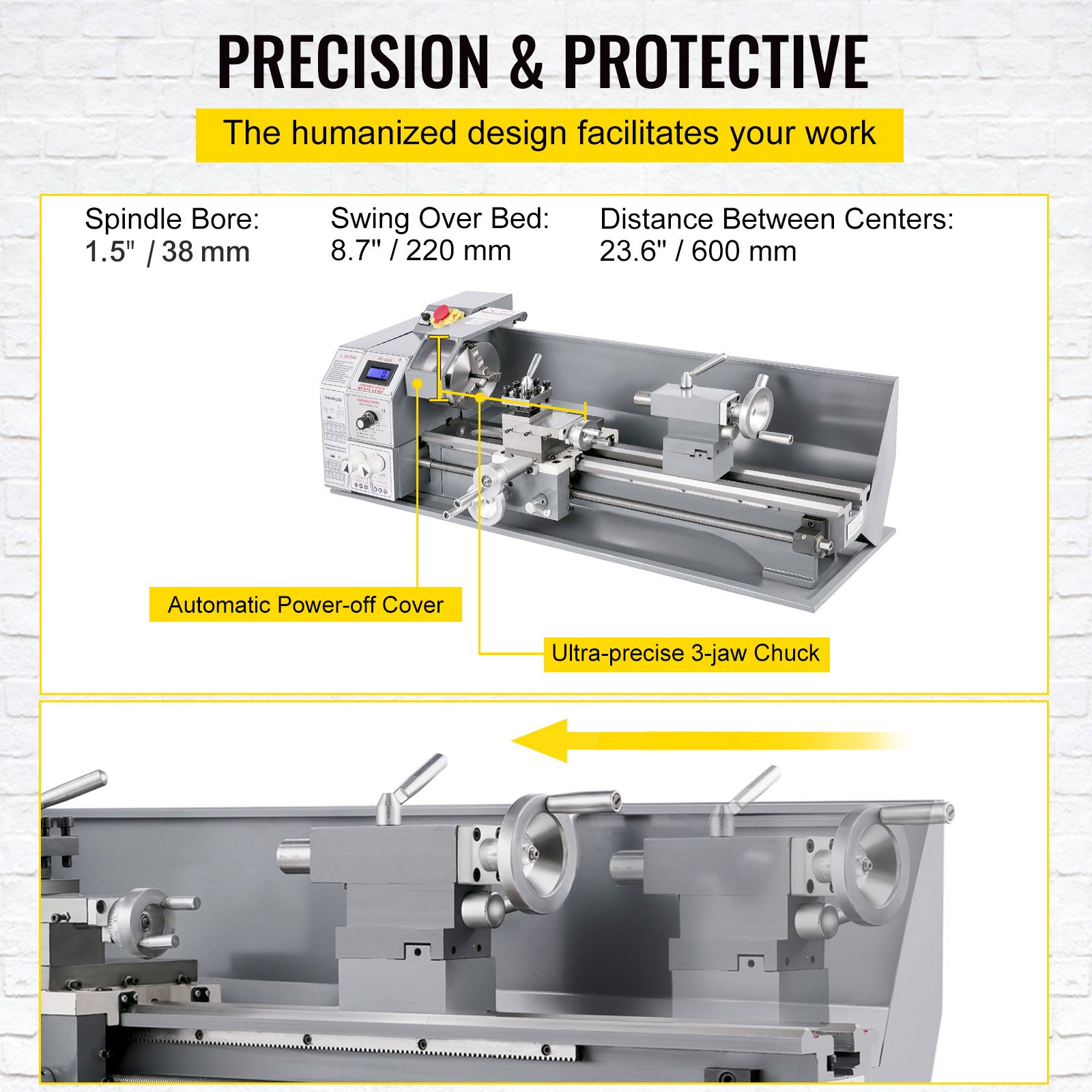

Precision & Protective
The lathe machine is equipped with a foot stock which gives support to the longitudinal rotary axis of a workpiece that you are going to process. Make your work safer and more stable.
Professional Cross Slide
Designed with abrasive resistance, moving blades freely with feed rod. 8-44 T.P.I reversible lead screw. The v-slideways with distance between center: 23.6" / 600 mm. A lamp is for accurate operation in a dark environment.
Wide Application

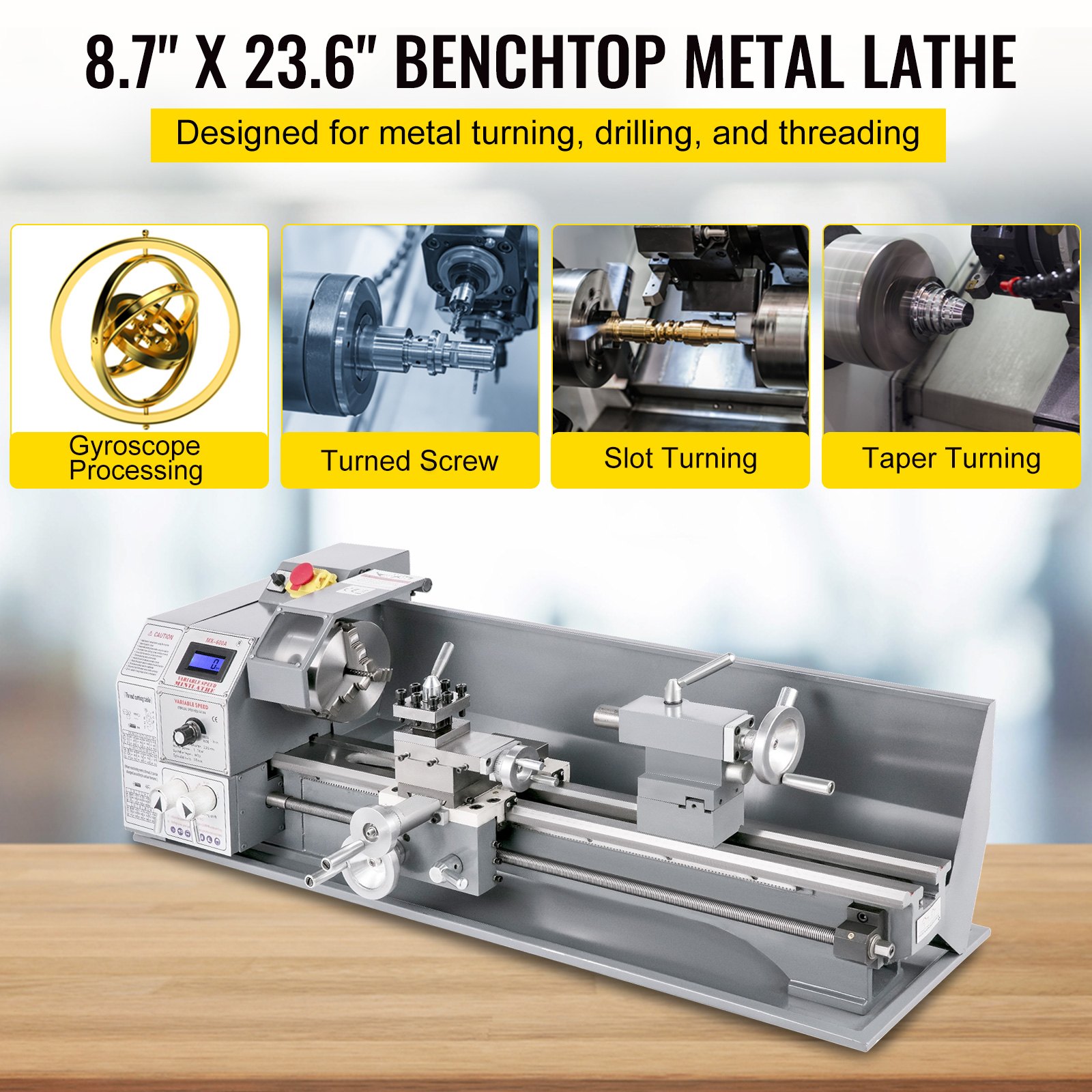

Suitable for processing jobs, like counter face turning, drilling, threading and cutting jobs on materials made up of round bar. All accessories are well-packed.
  • Power: 750W
  • Motor Type: Brushless
  • Volt: 220V 50Hz
  • Phase: Single Phase
  • Swing Over Bed: 8.7" / 220 mm
  • Distance Between Centers: 23.6" / 600 mm
  • 3-Jaw Chuck Diameter: 4.9" / 125 mm
  • Hole Through Spindle: 1.5" / 38 mm
  • Variable Speed(Rpm): 50-3000±10%
  • Taper of Spindle: MT#5
  • Taper of Tailstock: MT#2
  • Spindle Accuracy: 0.01 mm
  • Range of Imperial Threads: 8-44 T.P.I
  • Range of Longitudinal Feed: 0.02" - 0.1" / 0.5 - 3 mm
  • Gear Material: Metal
  • Item Weight: 183 lbs / 83 kg

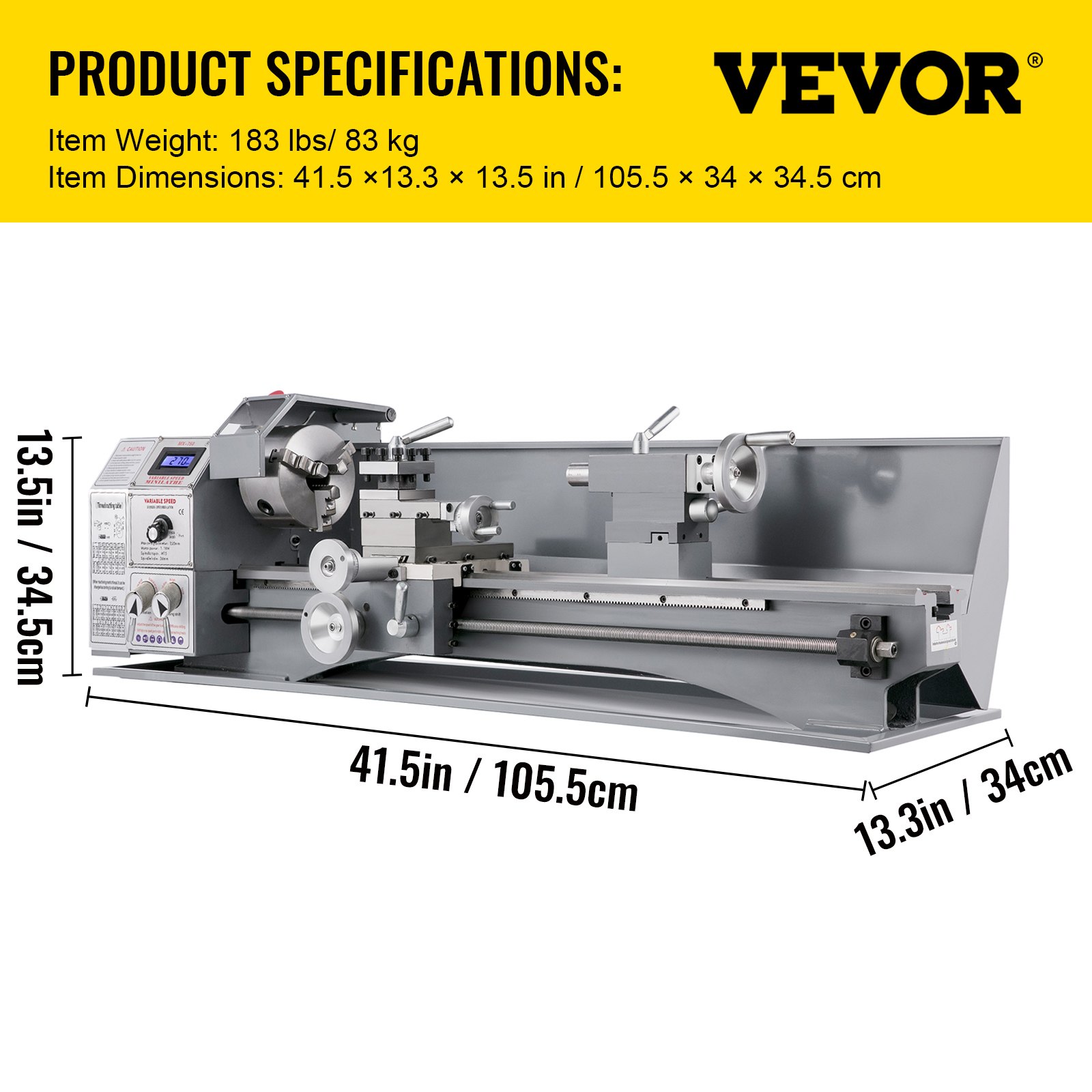

  • Item Dimension: 41.5 × 13.3 × 13.5 in / 105.5 × 34 × 34.5 cm

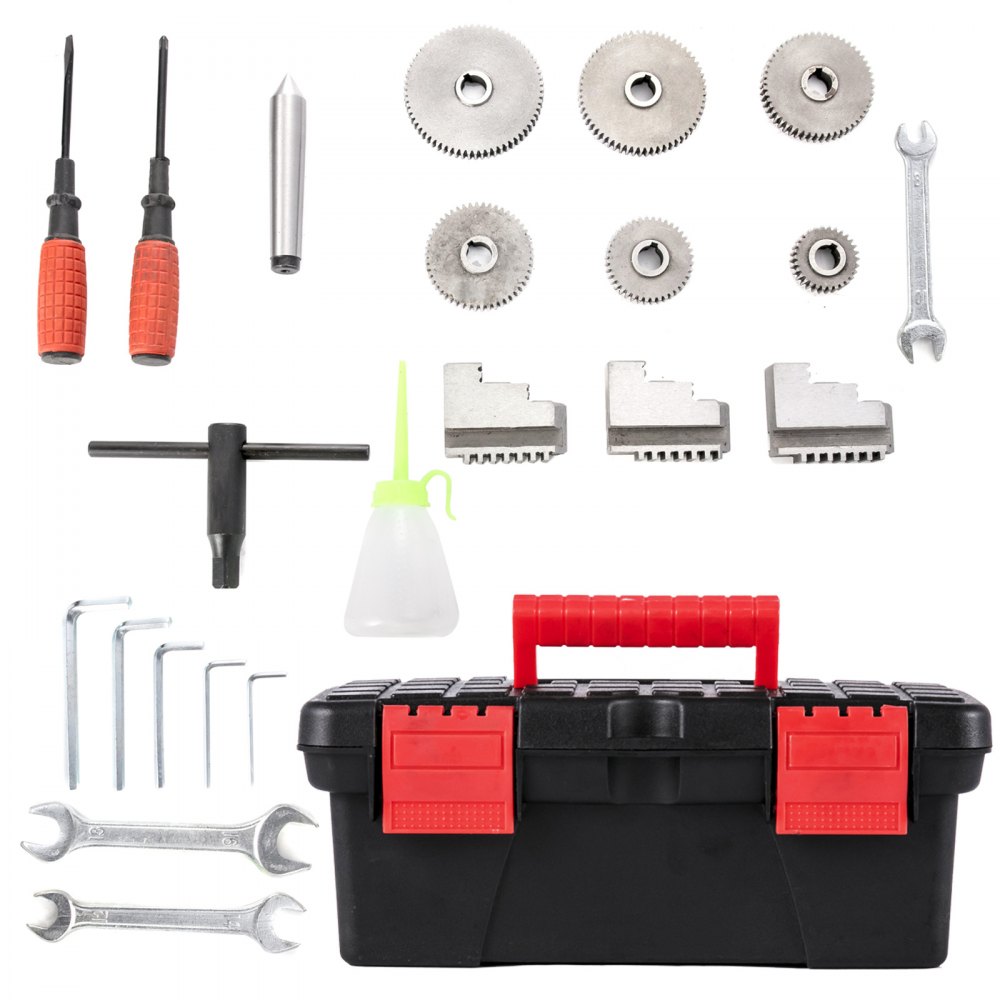

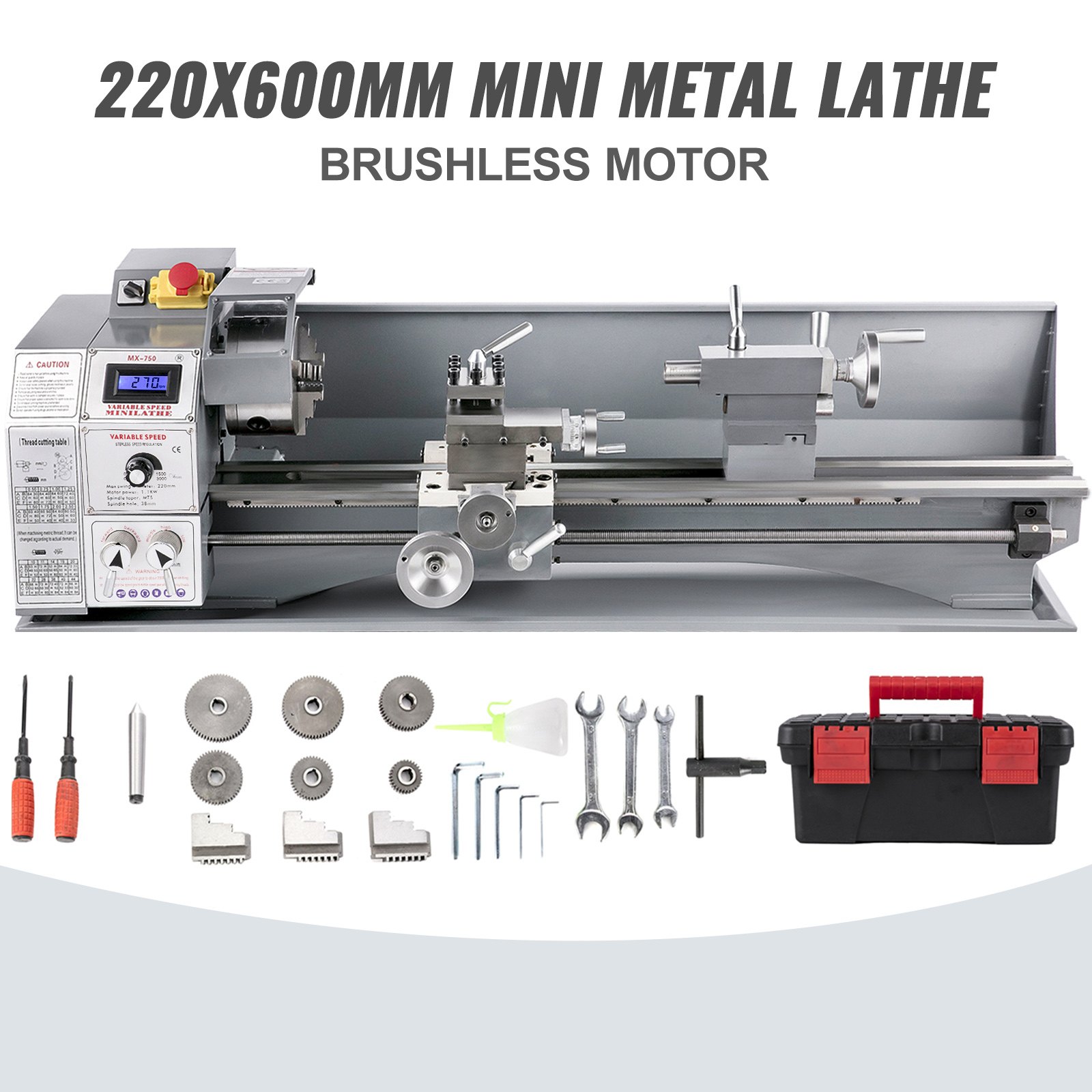

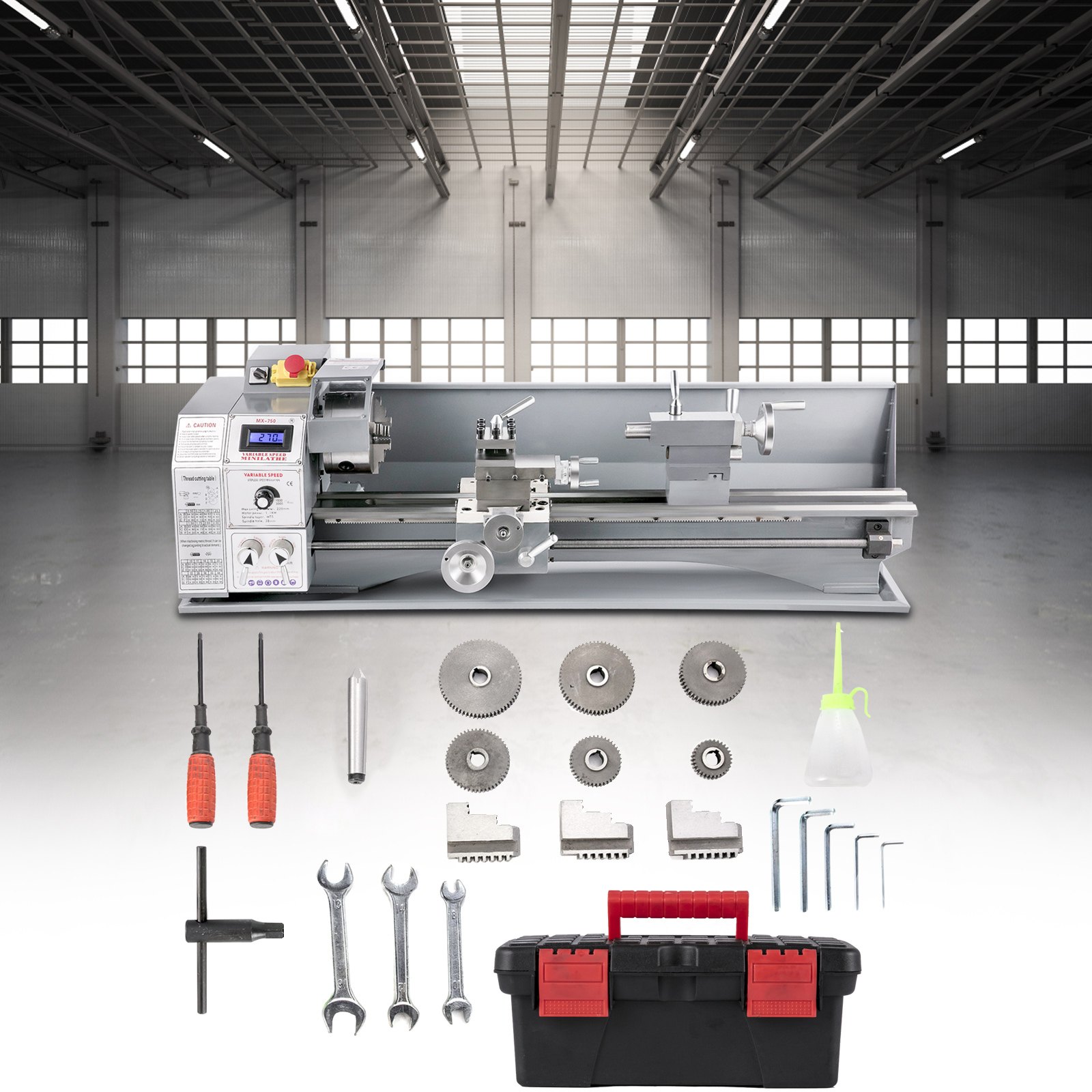

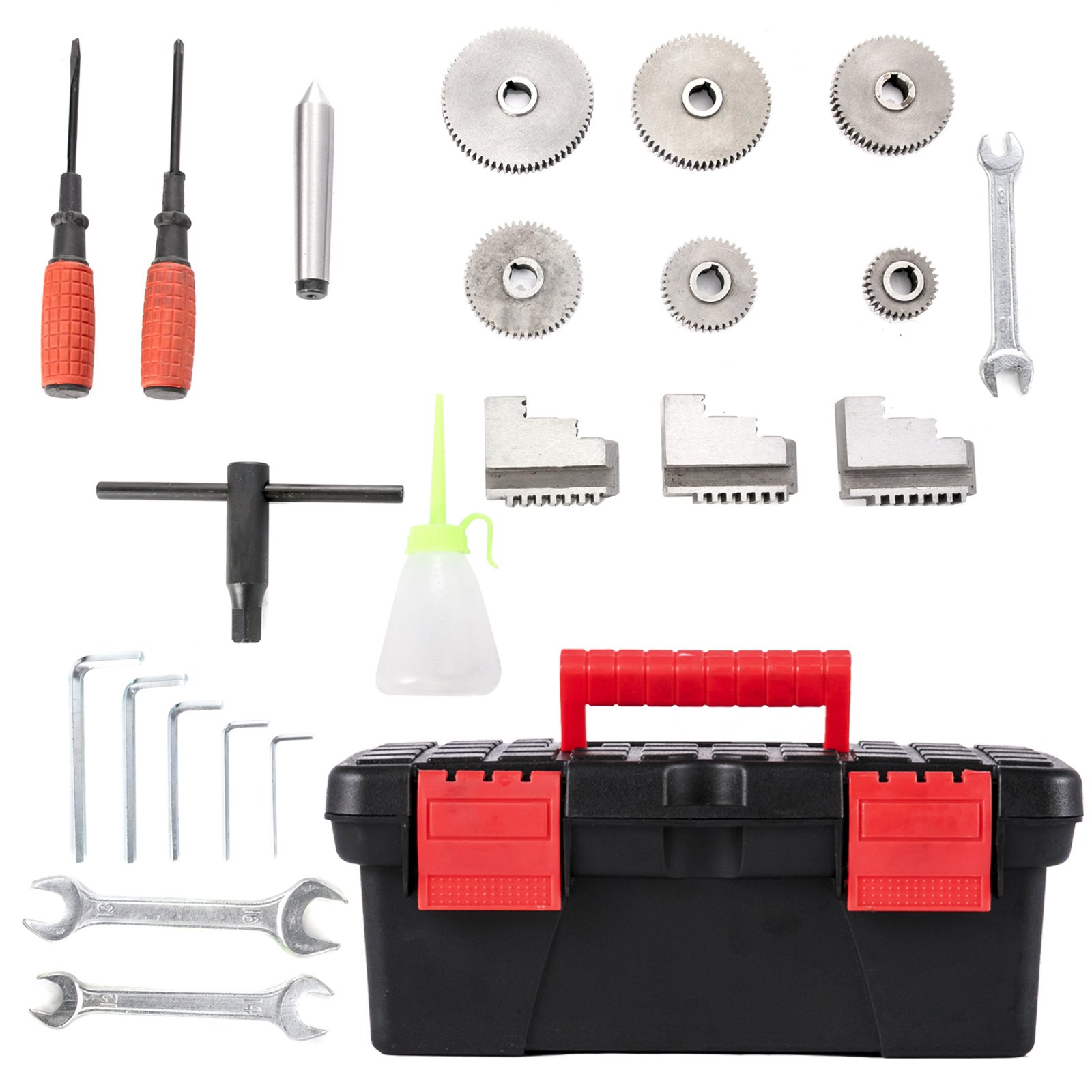

  • 1 x Metal Lathe
  • 1 x Tool Rest
  • 5 x Hex Wrench
  • 1 x Dead Center MT2
  • 1 x Oil Gun
  • 3 x Jaw
  • 5 x Gear
  • 1 x Instruction Manual
  • 2 x Screwdriver
  • 1 x Accessory Kit
  • 1 x Chuck Wrench
  • 3 x Wrench
  • 3 x Chuck Jaw
8.7" x 23.6" Metal Lathe Mini Lathe
High Precision & High Flexible & Easy Operation
The 220 x 600 mm precision metal mini lathe features 750W motor, a 3-jaw chuck, a MT5 spindle taper, a MT2 tailstock taper, designed to perform various types of metal turning, simple to operate. Through high-frequency quenching process and precision grinding of high-quality cast iron bed. 500-3000±10% Rpm spindle speed is continuously adjustable. Steady rest and follow rest for large size or/and heavy workpieces.
  • Variable Speed Design
  • 600 mm Large Swing Range
  • Professional Compound Rest
  • Supportive & Protective
  • Accurate Tailstock
Durable Metal Lathe
The milling machine is made of rugged and wear-resistant cast iron, a tough material that features a long service life.
variable Speeds
Brushless Motor Power: 750W, Variable Speed(Rpm): 50-3000±10%. Taper in Spindle Nose: MT5. Easily change the speed by turning the switch. Meanwhile, the indicator beyond notifies you of the ongoing operations.
Effortless to Use
The mini lathe bears a 3-jaw chuck and a 1.5" / 38 mm spindle bore. It is widely used where precise machining is required. The 4-way turret post on the lathe is easy to adjust. And it is convenient to change the cutting tools.
Precision & Protective
The lathe machine is equipped with a foot stock which gives support to the longitudinal rotary axis of a workpiece that you are going to process. Make your work safer and more stable.
Professional Cross Slide
Designed with abrasive resistance, moving blades freely with feed rod. 8-44 T.P.I reversible lead screw. The v-slideways with distance between center: 23.6" / 600 mm. A lamp is for accurate operation in a dark environment.
Wide Application
Suitable for processing jobs, like counter face turning, drilling, threading and cutting jobs on materials made up of round bar. All accessories are well-packed.
  • 1 x Metal Lathe
  • 1 x Tool Rest
  • 5 x Hex Wrench
  • 1 x Dead Center MT2
  • 1 x Oil Gun
  • 3 x Jaw
  • 5 x Gear
  • 1 x Instruction Manual
  • 2 x Screwdriver
  • 1 x Accessory Kit
  • 1 x Chuck Wrench
  • 3 x Wrench
  • 3 x Chuck Jaw
  • Power: 750W
  • Motor Type: Brushless
  • Volt: 220V 50Hz
  • Phase: Single Phase
  • Swing Over Bed: 8.7" / 220 mm
  • Distance Between Centers: 23.6" / 600 mm
  • 3-Jaw Chuck Diameter: 4.9" / 125 mm
  • Hole Through Spindle: 1.5" / 38 mm
  • Variable Speed(Rpm): 50-3000±10%
  • Taper of Spindle: MT#5
  • Taper of Tailstock: MT#2
  • Spindle Accuracy: 0.01 mm
  • Range of Imperial Threads: 8-44 T.P.I
  • Range of Longitudinal Feed: 0.02" - 0.1" / 0.5 - 3 mm
  • Gear Material: Metal
  • Item Weight: 183 lbs / 83 kg
  • Item Dimension: 41.5 × 13.3 × 13.5 in / 105.5 × 34 × 34.5 cm

Specification

Power
750W
Motor Type
Brushless
Volt
220V 50Hz
Phase
Single Phase
Swing Over Bed
8.7" / 220 mm
Distance Between Centers
23.6" / 600 mm
3-Jaw Chuck Diameter
4.9" / 125 mm
Hole Through Spindle
1.5" / 38 mm
Variable Speed(Rpm)
50-3000±10%
Taper of Spindle
MT#5
Taper of Tailstock
MT#2
Spindle Accuracy
0.01 mm
Range of Imperial Threads
8-44 T.P.I
Range of Longitudinal Feed
0.02" - 0.1" / 0.5 - 3 mm
Gear Material
Metal
Item Weight
183 lbs / 83 kg
Item Dimension
41.5 × 13.3 × 13.5 in / 105.5 × 34 × 34.5 cm
Manual
Download Link
Questions and Answers
6 Questions
wat is het verschil ( begrijp de afstanden zijn verschillend) tussen de mx210 en de 220/600 draaibank
In het machinemodel betekent 220 dat de rotatiediameter van het bed 220 mm is, en 600 betekent dat de afstand tussen de twee middelpunten 600 mm is. Dus 210 mm en 220 mm betekenen dat de rotatiediameter van het bed 10 mm verschilt.
By vevor
What is the lead screw thread pitch?
It is 1.5mm.
By vevor
zi ter een digtale uitlezing op
Het heeft een toerenteller.
By vevor
Kan deze geleverd worden in houthalen Belgie
Het product kan geleverd worden in België.
By vevor
Is deze nog op voorraad
Het product is op voorraad en u kunt het direct kopen.
By vevor

Customer Reviews

Ratings by Features

  • 4.7
  • 4.5
  • 4.6
  • 4.5
  • See More See Less
3 Review(s)
Clear filters
René Simmerman René Simmerman
Jipijajeeee Vervor.
Prima Draaibank. Nette prijs.( met dank aan de belastingdienst,ivm teveel betaalde belasting. Goed verpakt. Snel geleverd. Nette bezorging,mocht de pompwagen gebruiken voor transport. tot op heden nog geen defecte onderdelen kunnen ondekken,word vervolgt. Met vriendelijke groet,René Simmerman.
Bipp Weiler Bipp Weiler
Out of other mini lathes, this one has solid quality.
I got this and have been cleaning the grease off. For one that really helps you learn your machine.Things I have noticed on this mini lathe versus others on the market and their common issues:1) Spindle bearings are decent from the factory. I hear they die quickly, so I'll have to report back in a few months of use to see how they are. However, the chuck and spindle itself have a runout of +/- 0.0005". That's pretty good all things considered!2) Shipping for this specific product was great! It was bolted down to 2 blocks and had a box built around it with foam padding on either end, wrapped in a bag. Plenty of grease which may leave your ways stained a bit, but its only aesthetic and not dimensional.3) The ways are great! I've only gotten readings of <= +/- 0.0005" maximum at any point using a dial test indicator off the carriage.4) Simple construction. It is easy to disassemble and clean. The back gears and inside the electrical housing area is not covered with grease which saves cleaning in a tight space. All of the components past the headstock are greased/waxed pretty heavily, though.5) Lead screw is firmly mounted and the apron has an adjustable gib strip to move the half nut up and down if you need to modify it. This is great because it will save you from modding the apron or shimming it to avoid lead screw flex. Mine has no flex when engaging properly.6) Tailstock lock has a lever and is very easy to use. Adjustable pre-load for how sensitive you want the lock lever travel to be.7) Graduation dials can be set like a normal lathe.8) Higher RPM than other mini lathes9) All metal change gears, although there are fewer of them. There is a set for $100 more here on Amazon as well for more sizes of gears that I will probably be buying.10) Can run without the gear cover! This is great if you have any modifications that disallow it closing. I plan on eventually 3D printing a gearbox to test with this lathe and eventually machining one from metal on the lathe itsel
Jon C. Jon C.
Fair starter lathe for the price. After a lot of work you will have a $2,500 lathe.
First, the tool holder base came in pink. Why would you paint this pink I_ going to feature this lathe in online videos so I now need to strip off and repaint this damn pink paint. It_ a good starter lathe as long as you know you will have to spend a lot of time tinkering with it to get it running. A lot of time needs to be spent deburing the metal parts and getting the metal shavings and grinding grit out of it. I needed to air hammer out a casting defect to properly tighten a mounting bolt.
