VEVOR Metal Lathe Machine, 7'' x 13.78'', Precision Benchtop Power Metal Lathe, 0-2200 RPM Continuously Variable Speed, 500W Brush Motor Metal Gears, with Tool Box for Processing Precision Parts VEVOR Metal Lathe Machine, 7'' x 13.78'', Precision Benchtop Power Metal Lathe, 0-2200 RPM Continuously Variable Speed, 500W Brush Motor Metal Gears, with Tool Box for Processing Precision Parts VEVOR Metal Lathe Machine, 7'' x 13.78'', Precision Benchtop Power Metal Lathe, 0-2200 RPM Continuously Variable Speed, 500W Brush Motor Metal Gears, with Tool Box for Processing Precision Parts VEVOR Metal Lathe Machine, 7'' x 13.78'', Precision Benchtop Power Metal Lathe, 0-2200 RPM Continuously Variable Speed, 500W Brush Motor Metal Gears, with Tool Box for Processing Precision Parts VEVOR Metal Lathe Machine, 7'' x 13.78'', Precision Benchtop Power Metal Lathe, 0-2200 RPM Continuously Variable Speed, 500W Brush Motor Metal Gears, with Tool Box for Processing Precision Parts VEVOR Metal Lathe Machine, 7'' x 13.78'', Precision Benchtop Power Metal Lathe, 0-2200 RPM Continuously Variable Speed, 500W Brush Motor Metal Gears, with Tool Box for Processing Precision Parts VEVOR Metal Lathe Machine, 7'' x 13.78'', Precision Benchtop Power Metal Lathe, 0-2200 RPM Continuously Variable Speed, 500W Brush Motor Metal Gears, with Tool Box for Processing Precision Parts
TSJSCCYSDJ1806AD7V2

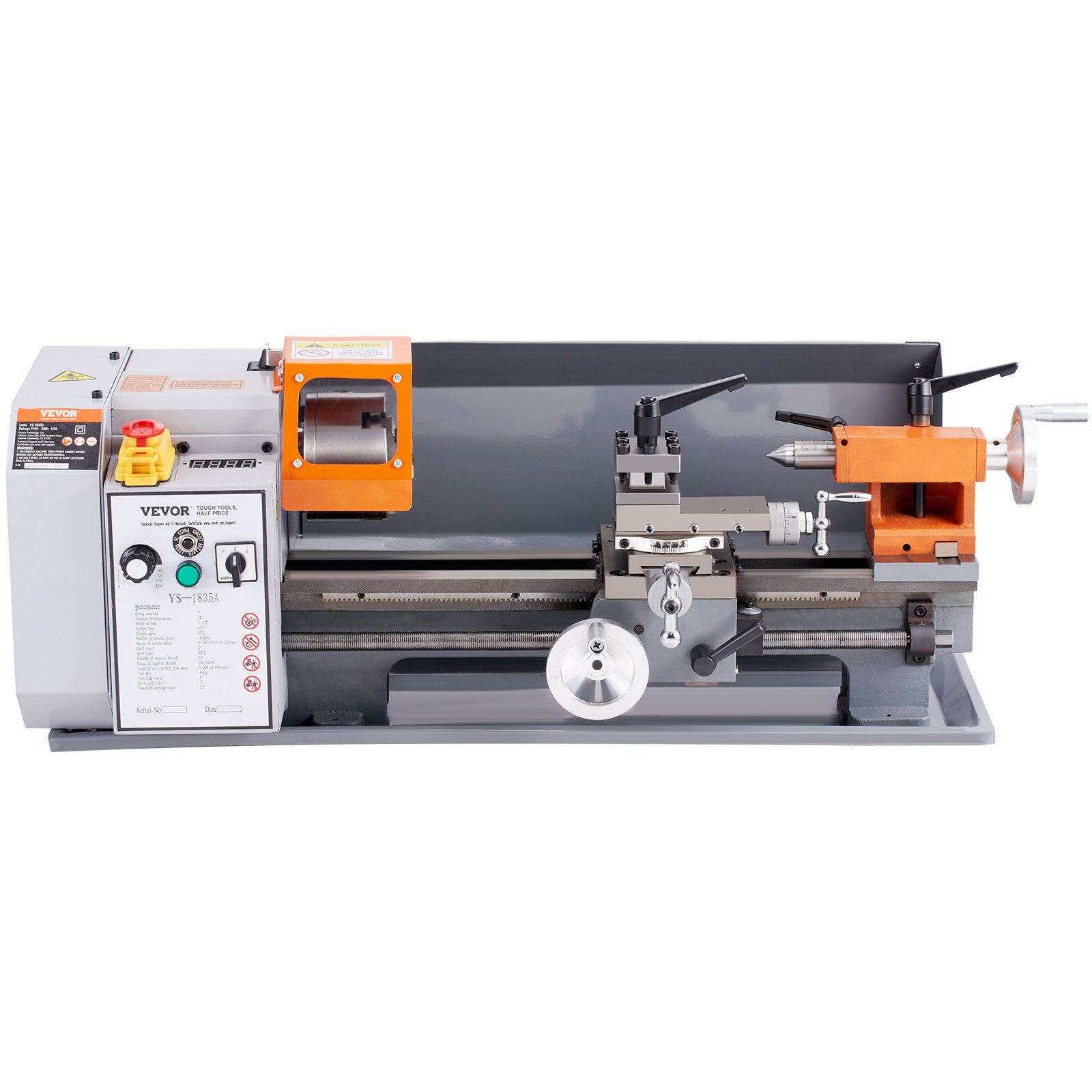

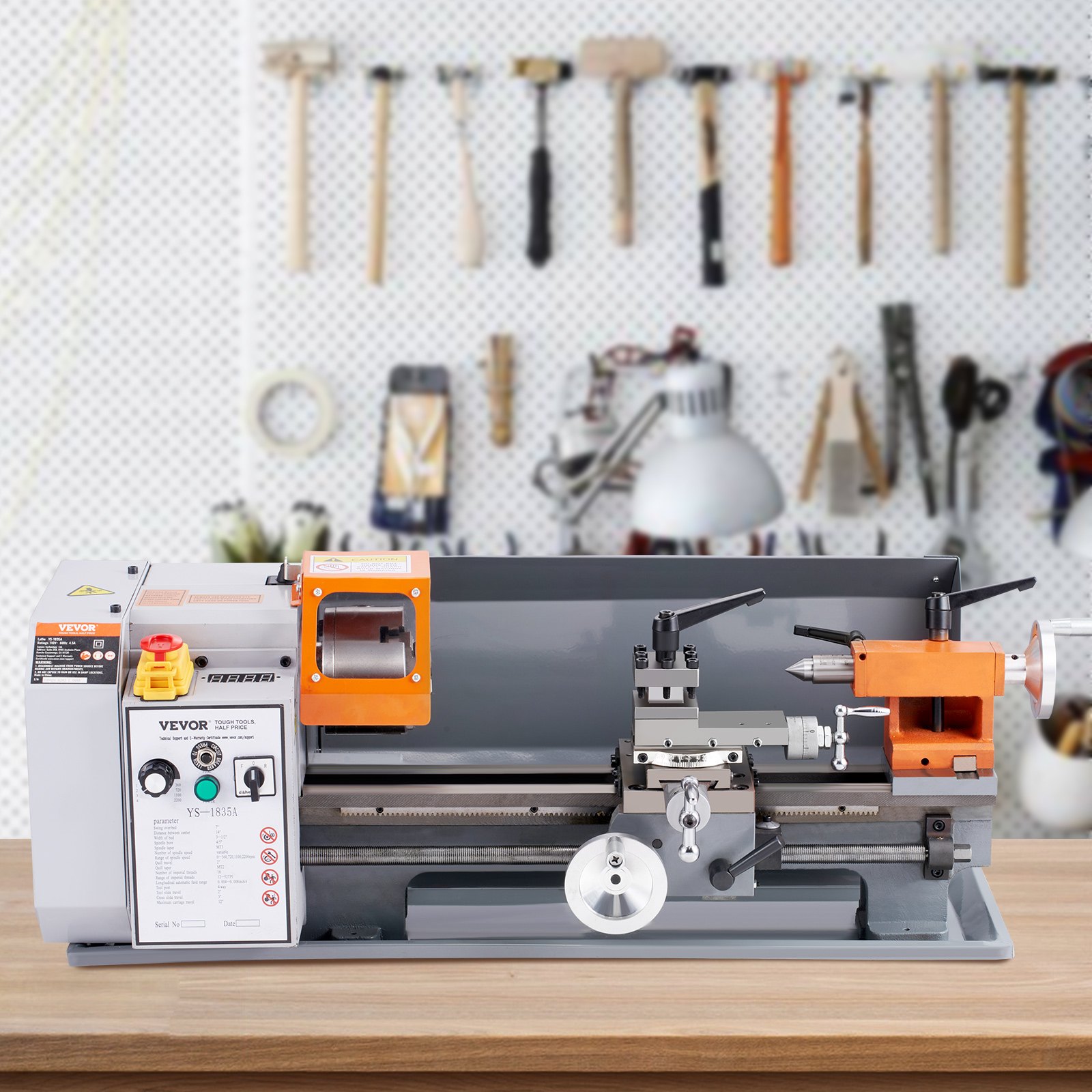

VEVOR Metal Lathe Machine, 7'' x 13.78'', Precision Benchtop Power Metal Lathe, 0-2200 RPM Continuously Variable Speed, 500W Brush Motor Metal Gears, with Tool Box for Processing Precision Parts

Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive 5,00€ off on your first three app orders. Only App.
Download Now
Exclusive 5,00€ off on your first three app orders. Only App.
Scan the QR code to download

356 mm

  • 406 mm
  • 356 mm
  • 750 mm

About this item

  • 7" x 14" Metal Lathe: Our metal lathe machine adopts external poly-V-belt drive technology. The output torque is increased by 3 times, up to 1:9, so you can turn 45# steel bar easily. With 20 mm / 0.79 in hole through spindle diameter, you can process all kinds of rotating surfaces and end faces of rotating bodies.
  • 4-Speed Adjustment: The benchtop metal lathe adopts a 4-speed continuously variable function so that you can adjust spindle speed flexibly from 0 to 2200 rpm according to your demand. Intelligent electric control speed regulation and digital display equipment are more convenient for you to adjust and operate accurately.
  • High Accuracy & Professionalism: The tailstock spindle features an MT2 taper with top-press thread quick-lock technology for user-friendly use without effort. The precision dial is provided in the tailstock handle so that you can work more accurately and professionally.

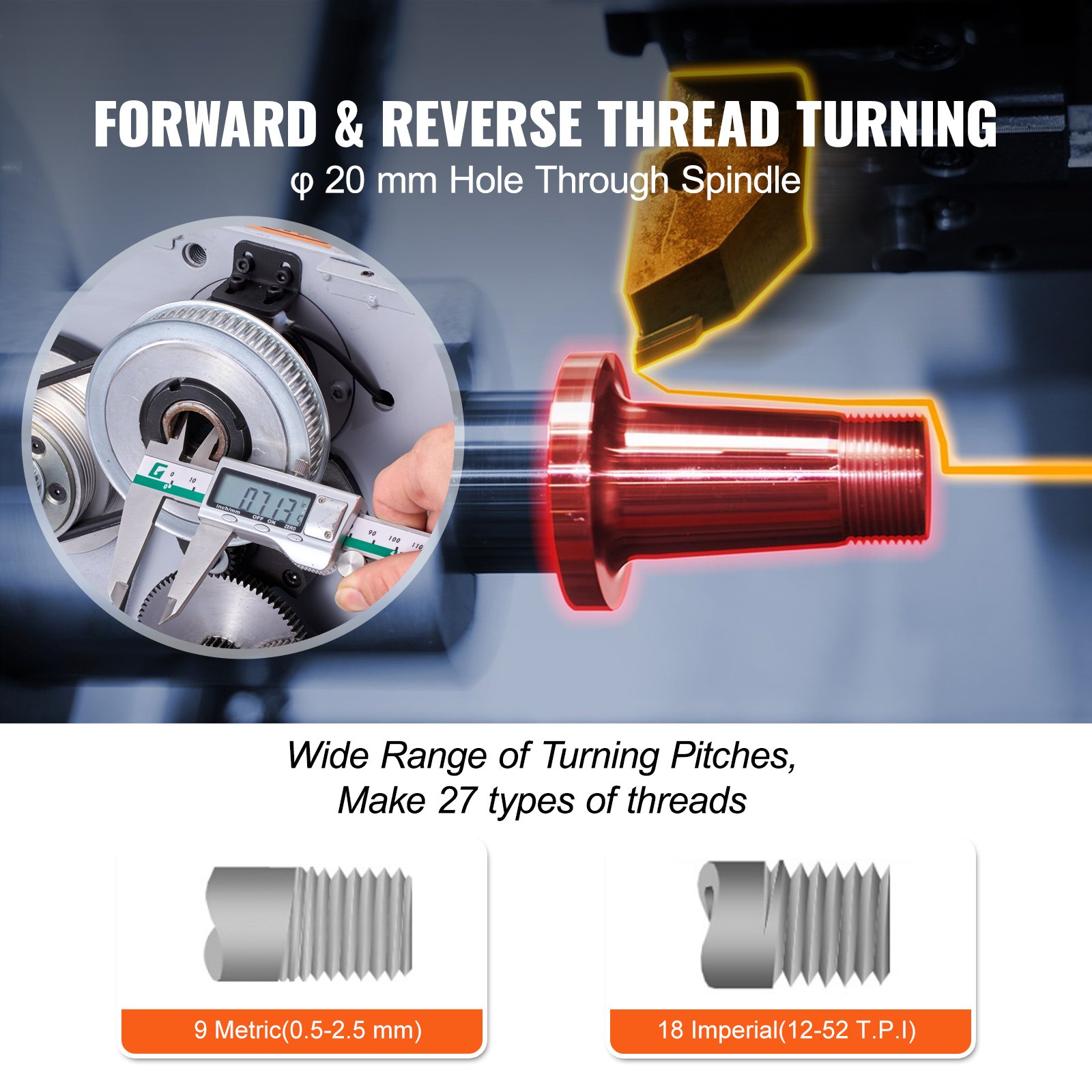

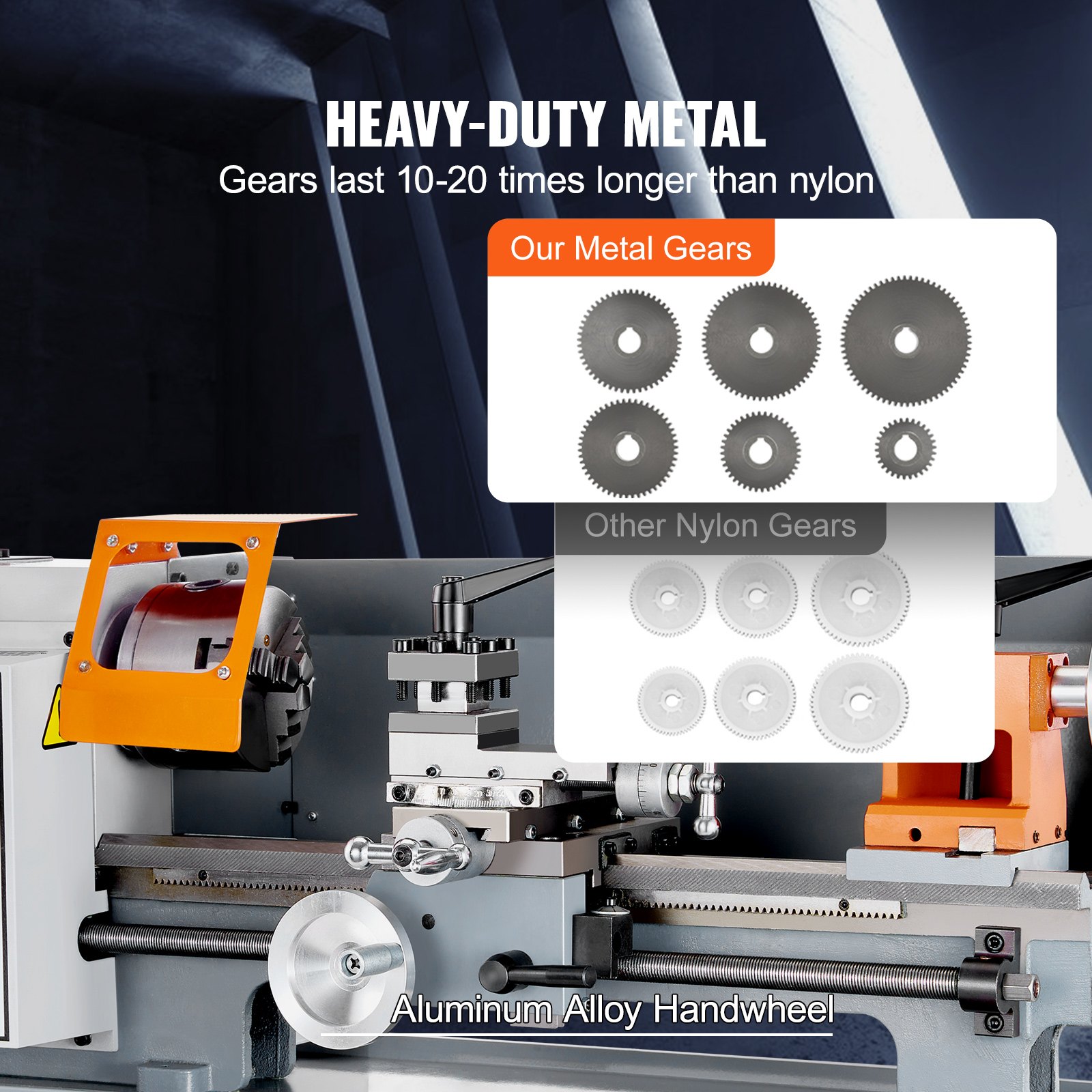

  • Forward & Reverse Thread Turning: All gears of the power metal lathe are made of high-quality metal material, ensuring a longer service life. It can turn 9 types of metric threads (0.5-2.5 mm) in both forward and reverse.
  • Security Comes First: The benchtop metal lathe has chuck cover disconnection protection, automatic overload protection, and an added circuit board protector to avoid high-speed reverse short circuits, which protects the security of the operator and the machine motor.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Metal Lathe Machine, 7'' x 13.78'', Precision Benchtop Power Metal Lathe, 0-2200 RPM Continuously Variable Speed, 500W Brush Motor Metal Gears, with Tool Box for Processing Precision Parts
356 mm
vevorA+Template

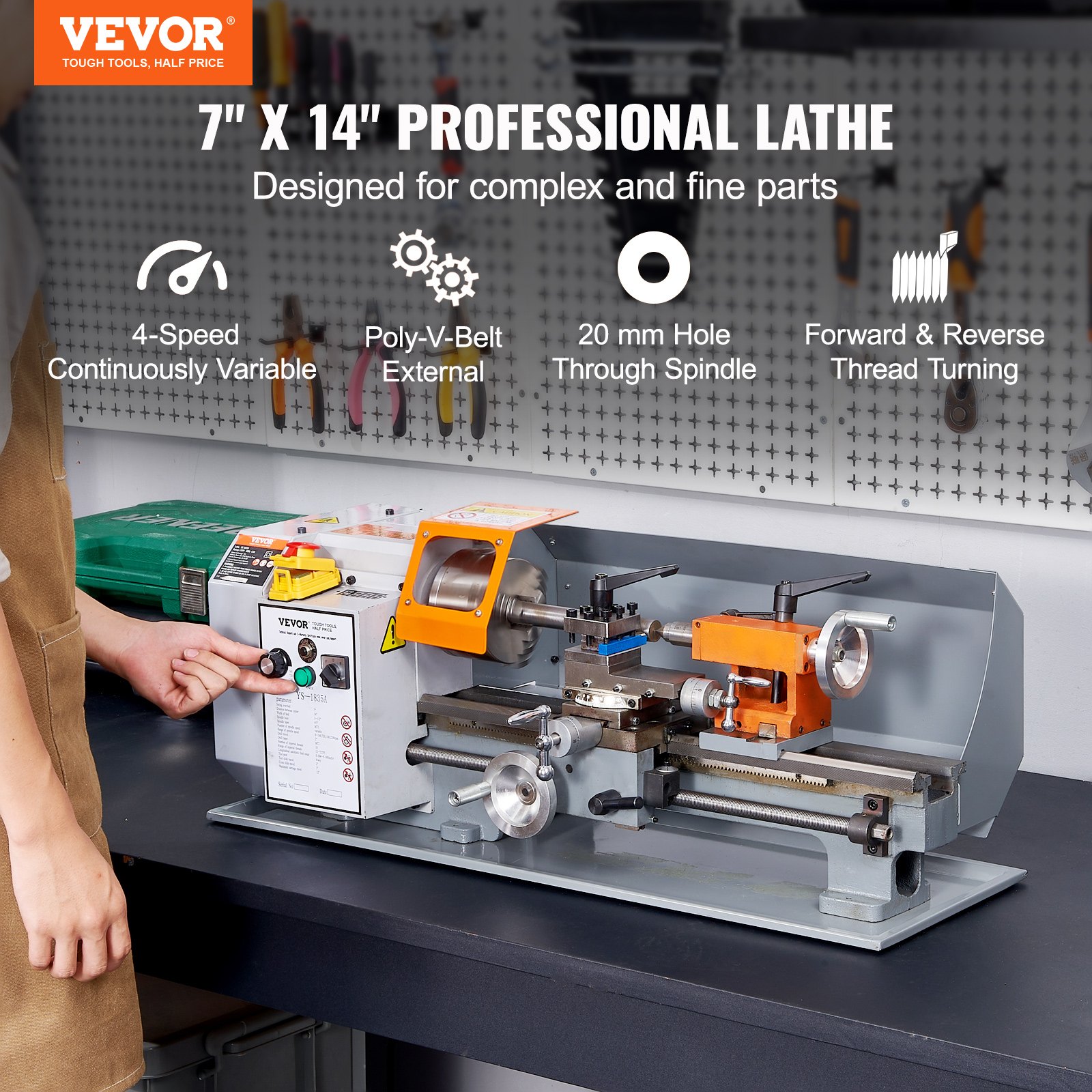

Heavy-Duty Metal Lathe
VEVOR metal lathe machine for precise parts, ht200 material, 500w motor, 4-speed, poly-v-belt drive.
VEVOR metal lathe machine for precise parts, ht200 material, 500w motor, 4-speed, poly-v-belt drive.
7'' x 14'' benchtop metal lathe features a powerful 500W motor and a robust HT200 cast iron body, ensuring durability and sturdiness. With a 20 mm / 0.79" hole through spindle, it accommodates various parts and threading tasks, allowing the processing of stainless steel, iron, wood, etc.

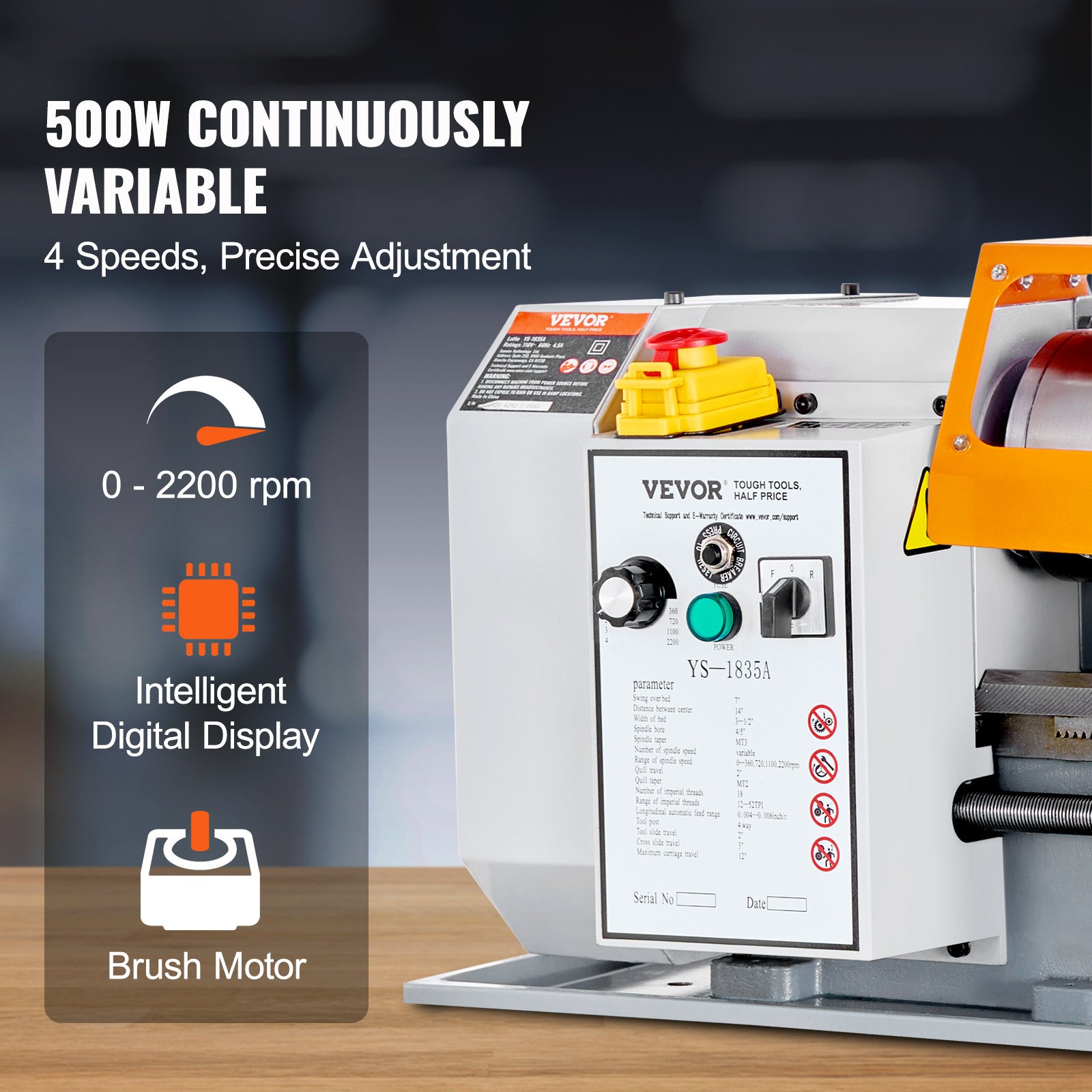

VEVOR metal lathe machine with 4-speed digital control, 0-2190 rpm, user adjusting settings.
VEVOR metal lathe machine with 4-speed digital control, 0-2190 rpm, user adjusting settings.
The metal lathe machine has a 4-speed continuously variable function, and you can flexibly adjust the speed within the range of 0 - 2200 rpm. Intelligent electric control and digital display make it more convenient for precise adjustment and operation.
VEVOR metal lathe machine security upgrade with chuck cover, overload protection, and high-speed reverse.
VEVOR metal lathe machine security upgrade with chuck cover, overload protection, and high-speed reverse.
Our power metal lathe features multiple protections that make processing more secure, including overload protection, high-speed reverse fool-proofing, and chuck cover disconnection protection.

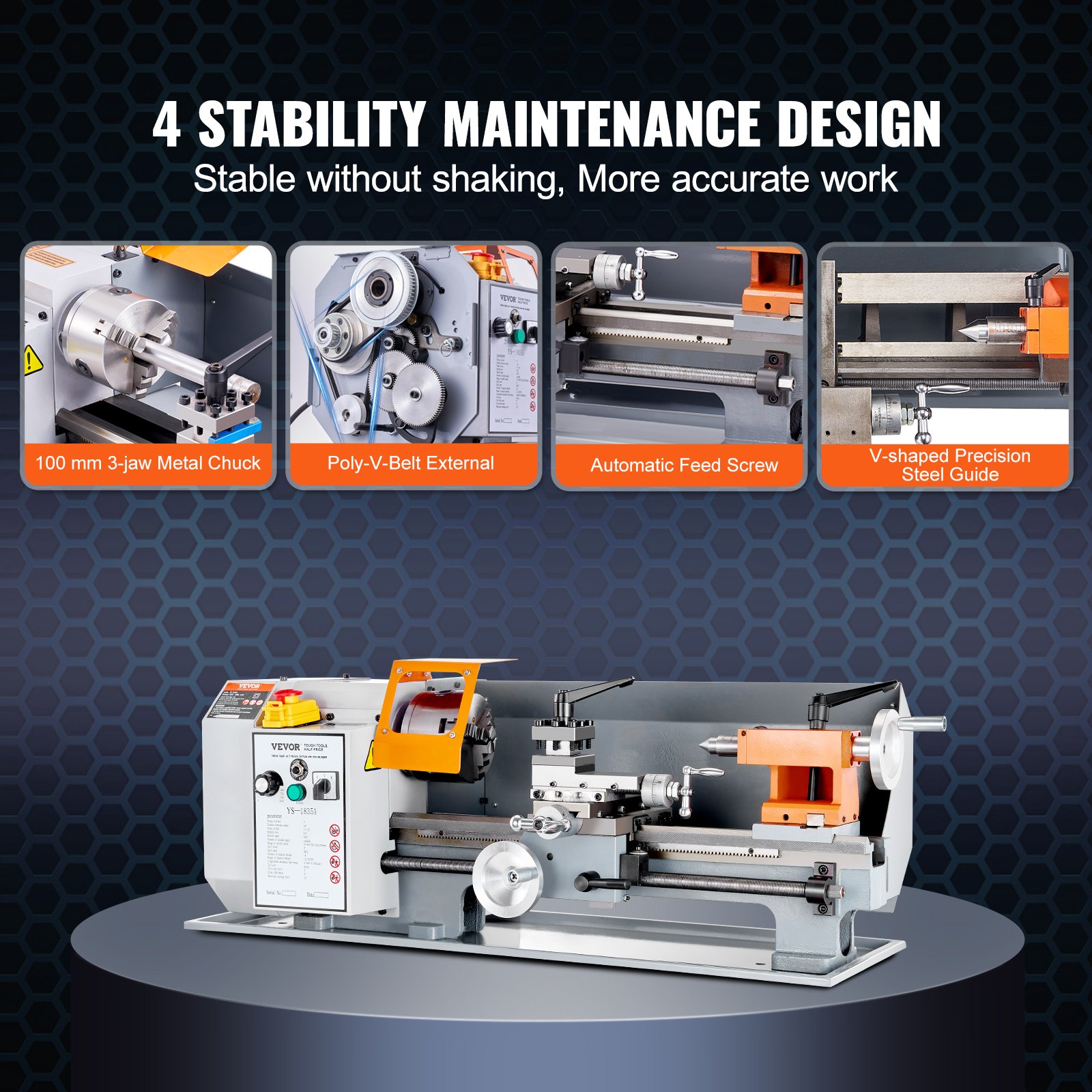

VEVOR metal lathe machine with external poly-v-belt, easy turning of 45# steel bars, digital display
VEVOR metal lathe machine with external poly-v-belt, easy turning of 45# steel bars, digital display
The metal lathe utilizes external poly-V-belt transmission technology, and the output torque is increased by 3 times, reaching up to 1:9, effortlessly enabling the turning of 45# steel bars for smoother transmission and easy replacement.
VEVOR metal lathe machine performing turning, drilling, thread turning, and knurling tasks.
VEVOR metal lathe machine performing turning, drilling, thread turning, and knurling tasks.
The tail stock spindle adopts an MT2 taper featuring the top-pressing thread quick-lock technology for ease of use. The precision dial is provided on the tailstock handle, allowing you to work more accurately and professionally.

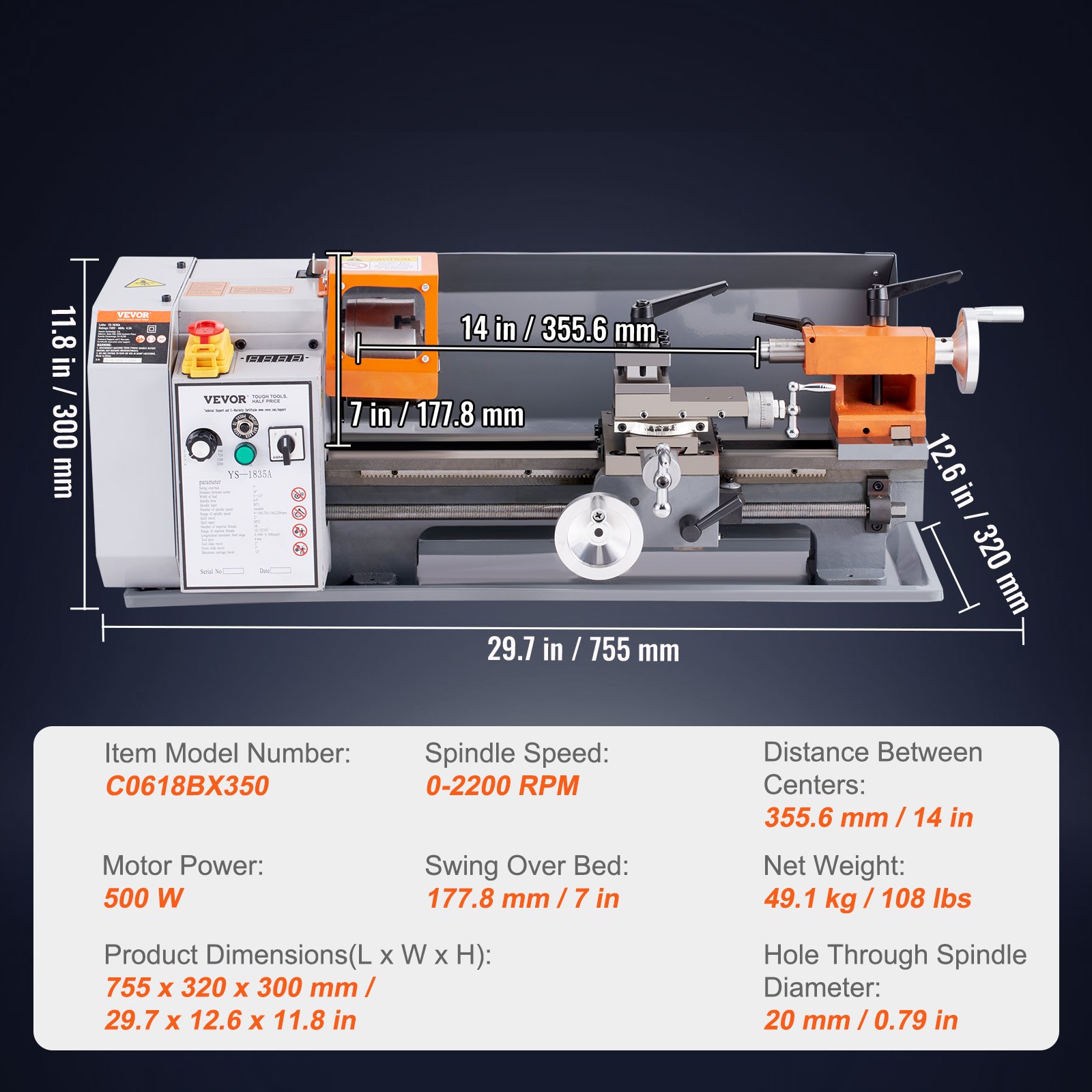

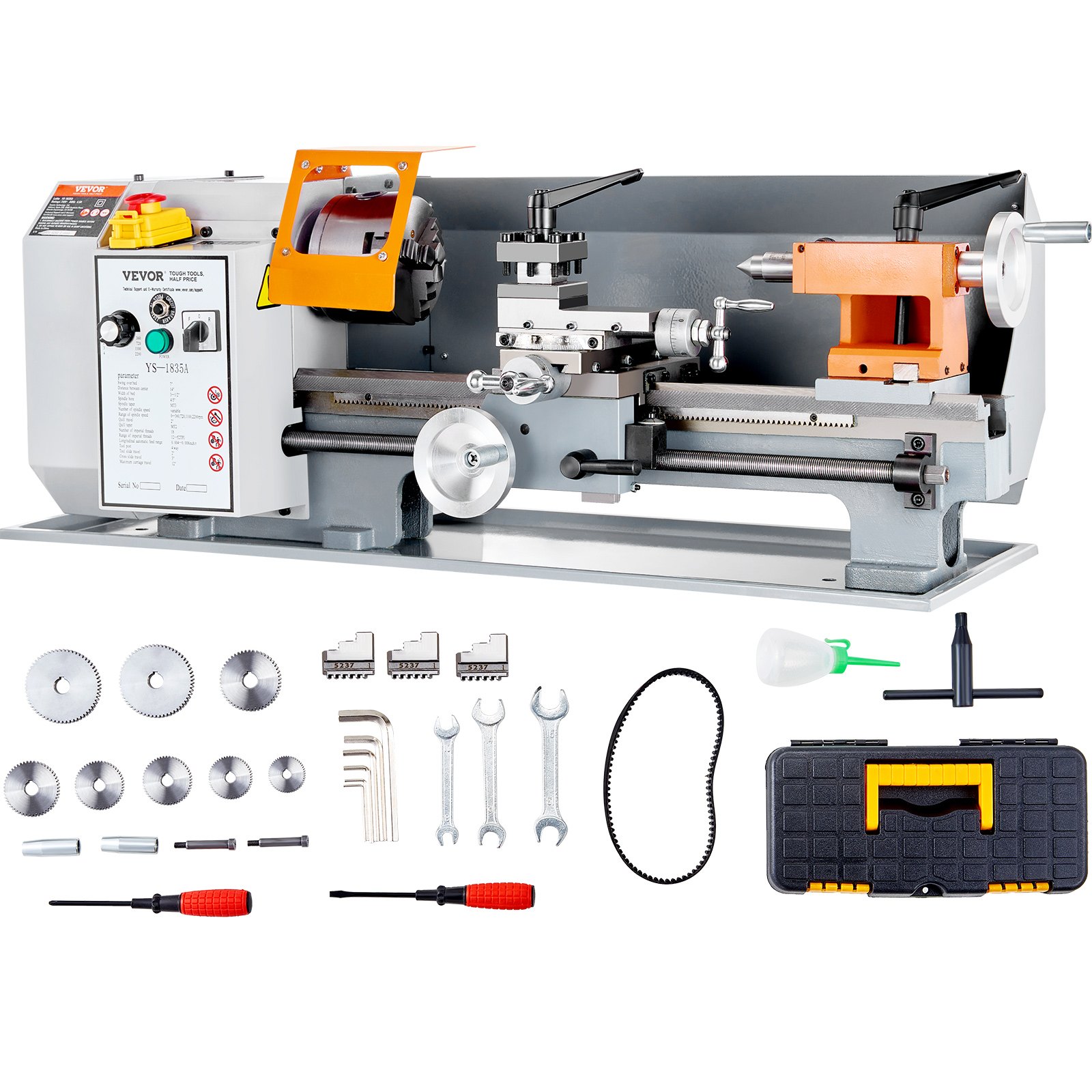

VEVOR metal lathe machine specifications and dimensions displayed with package content list.
VEVOR metal lathe machine specifications and dimensions displayed with package content list.

Specification

Item Model Number
C0618BX350
Main Material
HT200 Cast Iron
Spindle Speed
0-2200 RPM
Hole Through Spindle Diameter
20 mm / 0.79 in
Spindle Taper
MT3
Tail Stock Taper
MT2
Motor Power
500W
Chuck Diameter
φ100 mm / 3.9 in
Net Weight
49.1 kg / 108 lbs
Product Dimensions(L x W x H)
755 x 320 x 300 mm / 29.7 x 12.6 x 11.8 in
Manual
Download Link
