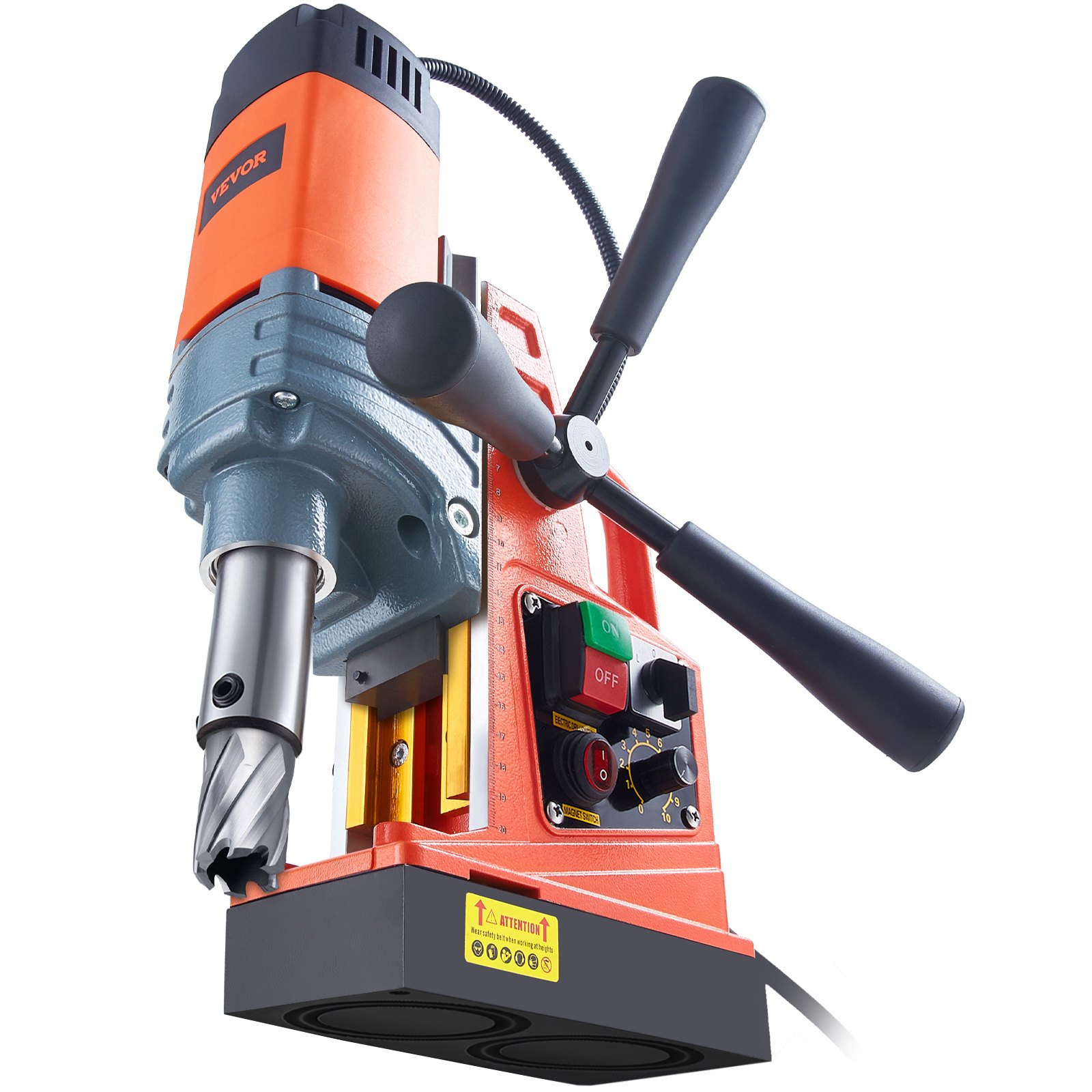

VEVOR Magnetic Drill, 1300W 1.57" Boring Diameter, 2922lbf/13000N Portable Electric Mag Drill Press with Variable Speed, 700 RPM Drilling Machine for any Surface Home Improvement Industry Railway
CLZTJJTM240MM6LU6V2

VEVOR Magnetic Drill, 1300W 1.57" Boring Diameter, 2922lbf/13000N Portable Electric Mag Drill Press with Variable Speed, 700 RPM Drilling Machine for any Surface Home Improvement Industry Railway

28799
Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive 5,00  off for your first three orders on the App.
Download Now
Exclusive 5,00  off for your first three orders on the App.
Scan the QR code to download

2 Pcs

  • 1 Piece
  • 2 Pcs
  • Single Item
  • 11-Piece Set
  • 6-Piece Set

40 mm

  • 40 mm
  • 50 mm

Twist drill and hollow drill can be tapped

  • Core Drill
  • Twist drill and hollow drill can be tapped
  • Twist Drill and Core Drill
  • Twist drill and hollow drill can be tapped and quickly disassembled
Discontinue

About this item

  • Top-level Magnet: Get ready for unstoppable power! Our electric magnetic drill generates exceptionally powerful driving force with its 1300W copper motor. It is capable of drilling into the toughest material at 700 RPM. Max. Boring Diameter (Coring Drill): 40mm; Max. Coring Depth: 50mm.

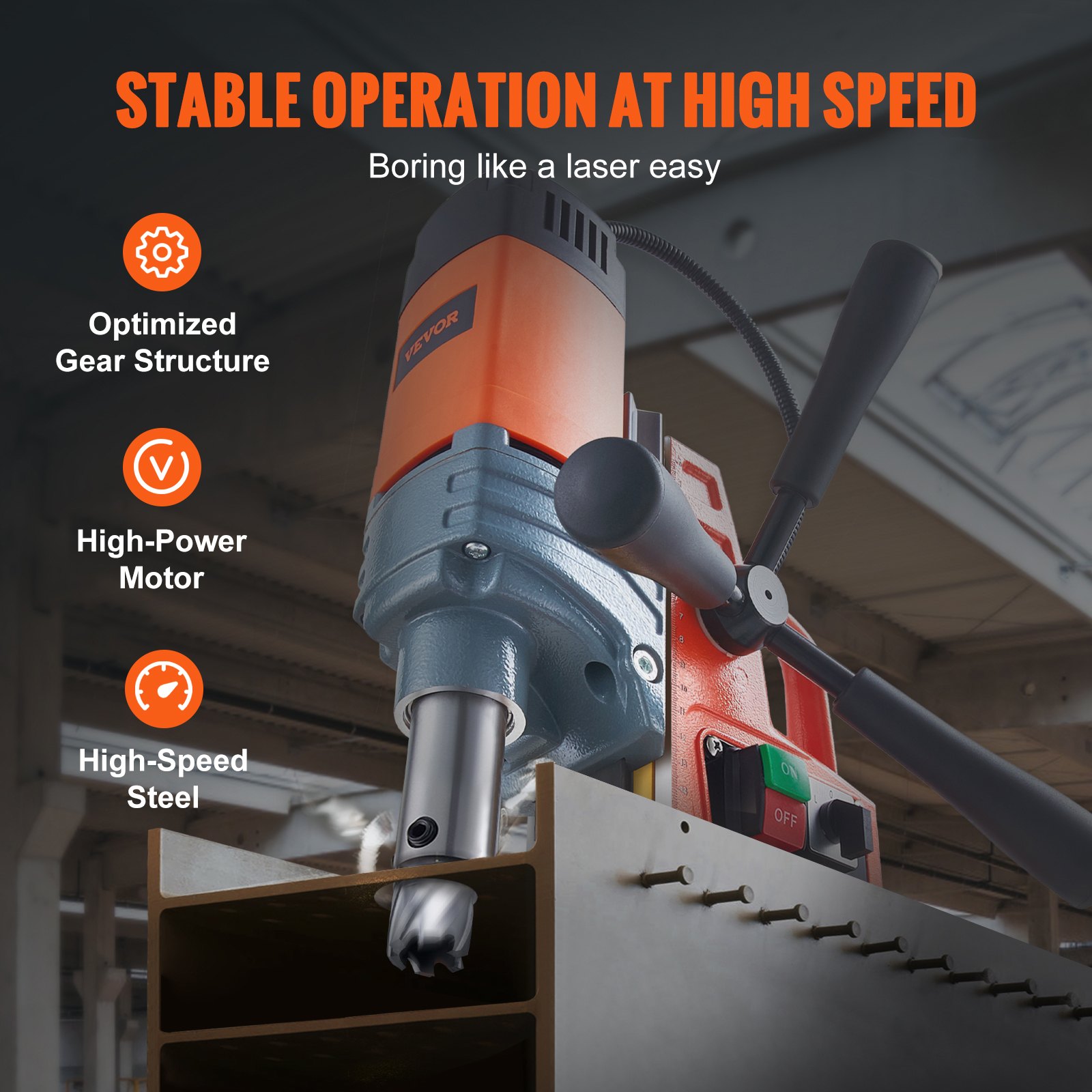

  • Fast Boring: The optimized internal structure enables faster drilling. 2922lbf / 13000N of robust force is created by the electromagnetic base on the two anchoring ends. The mag drill press is solidly locked in place to prevent movement during the drilling process. Adjustable 10-speed gears ensure an accurate and efficient operation. Equipped two drill bits can meet your various boring needs for a wide range of hole diameters.

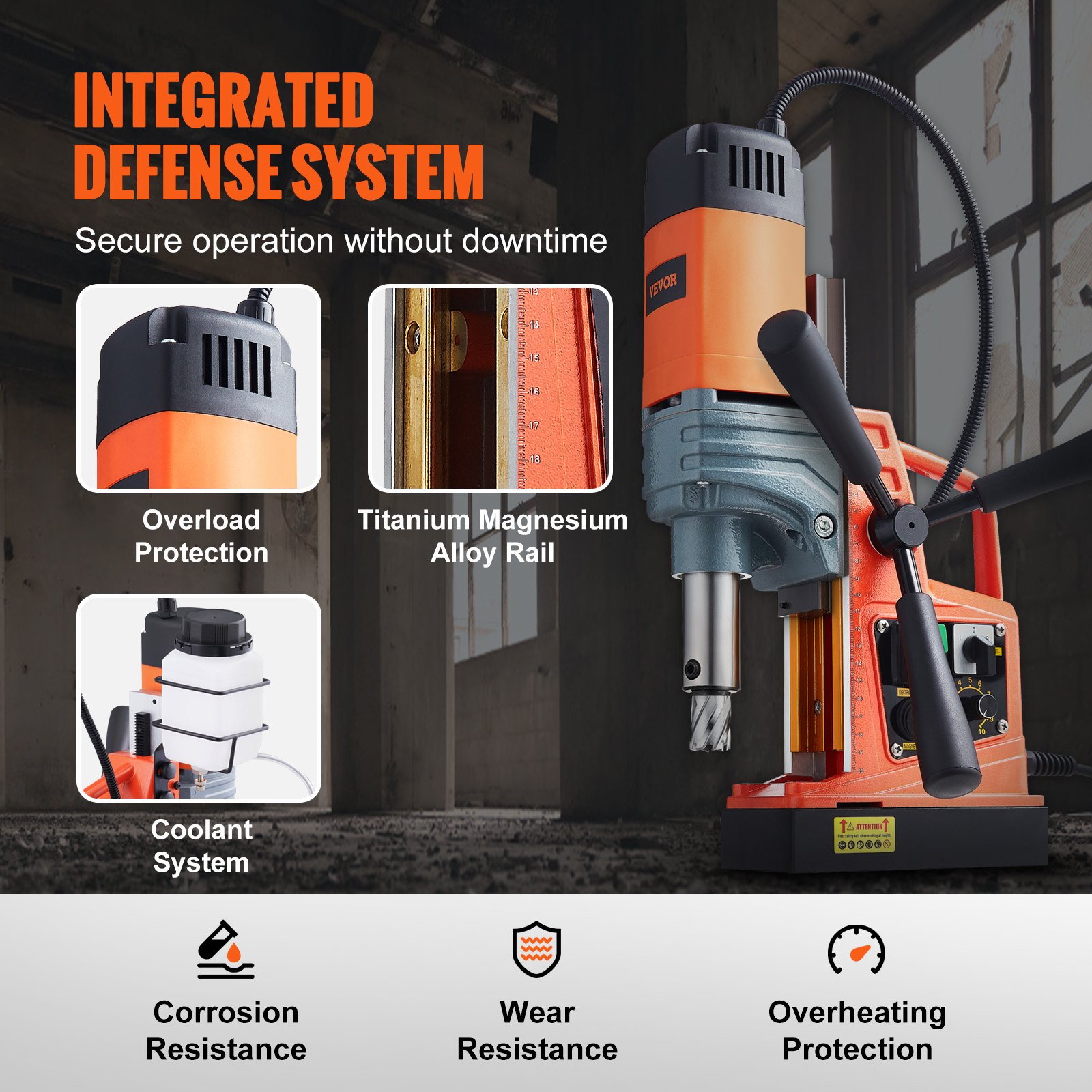

  • Security and Durability: Your security comes first! That is why the combined overload protection features are in place. The cooling system features fast heat dissipation to protect operators from being hurt by instantaneous overpowering and high temperatures during drilling. Besides, the titanium magnesium alloy guide rail has anti-corrosion and wear resistance characteristics, significantly improving the device's service life.

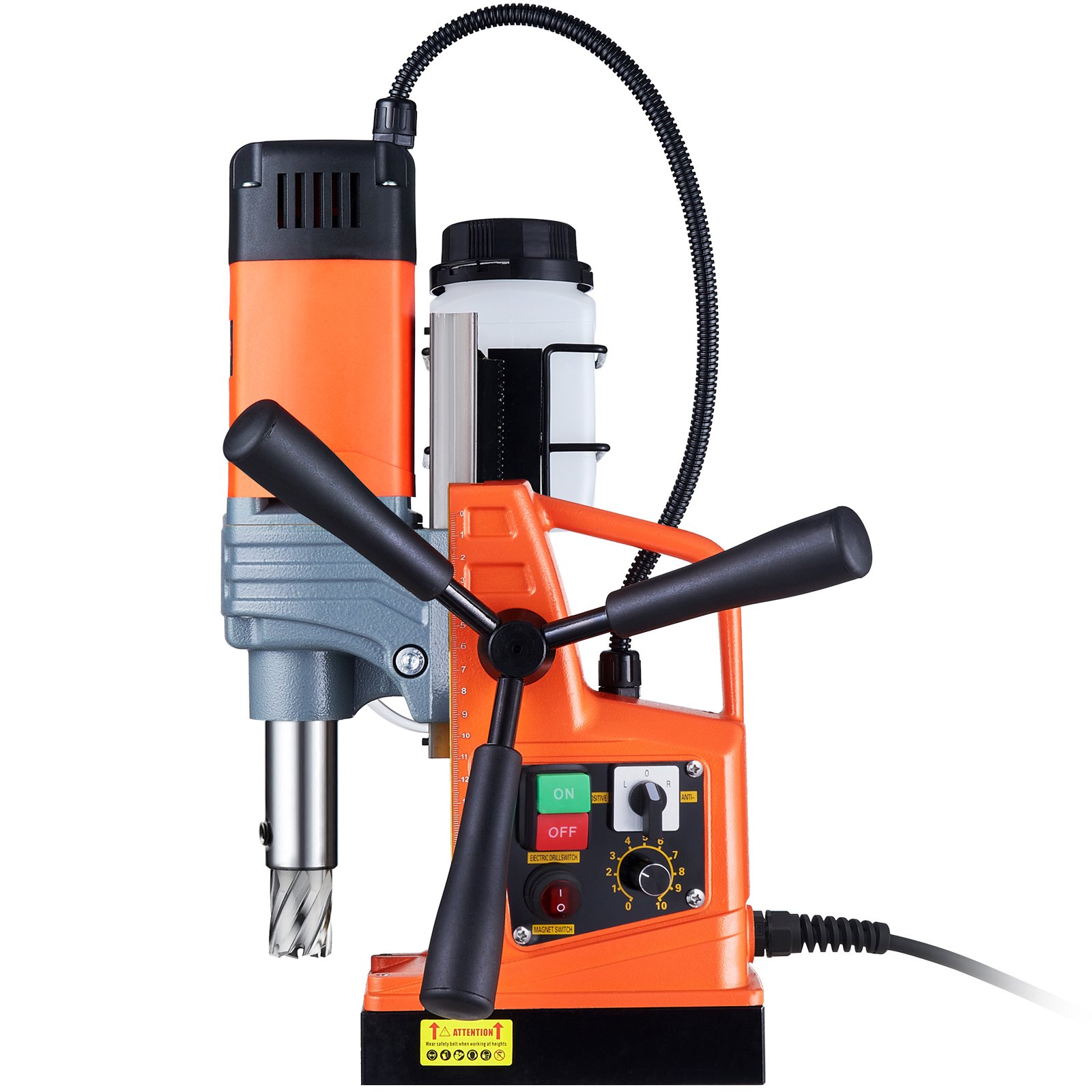

  • User-friendly design: A scale has been added to the machine's frame to help users pinpoint the distance between the drill bit and the drilled material in millimeters. Even a novice can bore accurate and neat holes. In addition, the ergonomically designed handle and 3 extended cranks provide a comfortable grip during handling and moving, saving great effort.
  • Wide Applications: This versatile magnetic drill plays a vitally important role in home improvement, equipment installation, industrial and steel fabrication, ship and bridge building, railway manufacture, windmill & power-plant construction, and many other fields.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Magnetic Drill, 1300W 1.57" Boring Diameter, 2922lbf/13000N Portable Electric Mag Drill Press with Variable Speed, 700 RPM Drilling Machine for any Surface Home Improvement Industry Railway
2 Pcs 40 mm Twist drill and hollow drill can be tapped
28799  Only 1 Left, order soon
Discontinue
vevorA+Template【最新】
Bores With Unstoppable Power
Our electric drill press can generate a power force and perform more efficiently thanks to its powerful motor. With a 13000N holding force, our mag drill can anchor itself on any steel and iron surface tightly to accurately position and drill holes without burr.

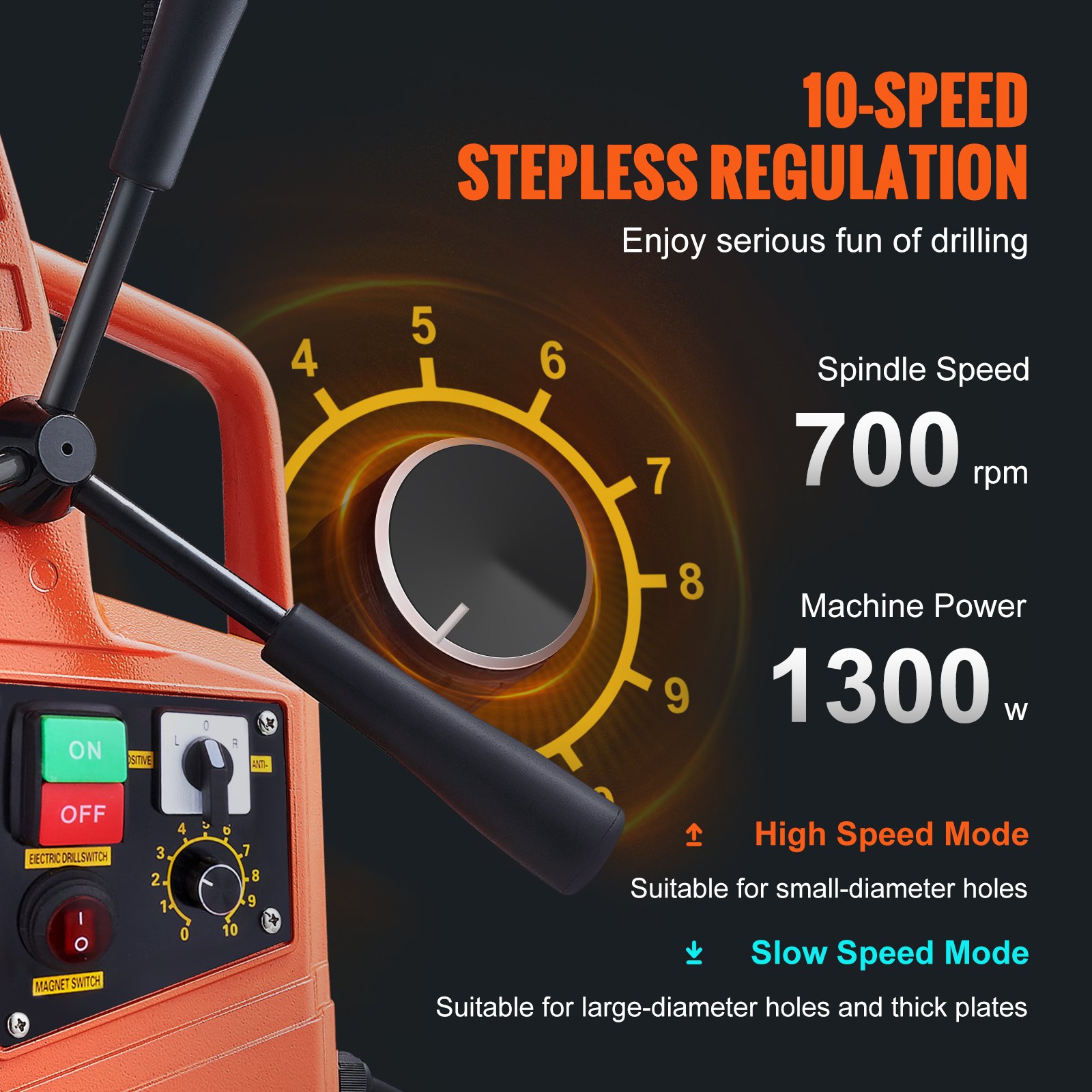

  • VEVOR magnetic drill with 700 rpm spindle speed and 1300w power, featuring 10-speed gearbox.
  • durable VEVOR magnetic drill with titanium magnesium alloy for higher drilling accuracy.
  • VEVOR magnetic drill with 700 rpm spindle speed and 1300w power, featuring 10-speed gearbox.
  • durable VEVOR magnetic drill with titanium magnesium alloy for higher drilling accuracy.
  • VEVOR magnetic drill with thickened honeycomb packaging in front of shipping containers.
  • VEVOR magnetic drill with extension handle, non-slip rubber, and shock absorption, adjustable by 210 mm.
  • VEVOR magnetic drill with thickened honeycomb packaging in front of shipping containers.
  • VEVOR magnetic drill with extension handle, non-slip rubber, and shock absorption, adjustable by 210 mm.
  • VEVOR magnetic drill in use for equipment installation; new brick wall construction for home improvement.
  • industrial & steel fabrication and railway construction projects. VEVOR magnetic drill positioned.
  • VEVOR magnetic drill in use for equipment installation; new brick wall construction for home improvement.
  • industrial & steel fabrication and railway construction projects. VEVOR magnetic drill positioned.
Q: What is the applied voltage and size of the product?
A: The product size is 10.6x4.7x14.2in/270x120x360mm, applicable voltage/frequency is 220-240V 50/60Hz for EUR/AUS or 120V 60Hz for US.
Q: What kind of materials does the mag press work on? What kind of drill bits are they compatible with?

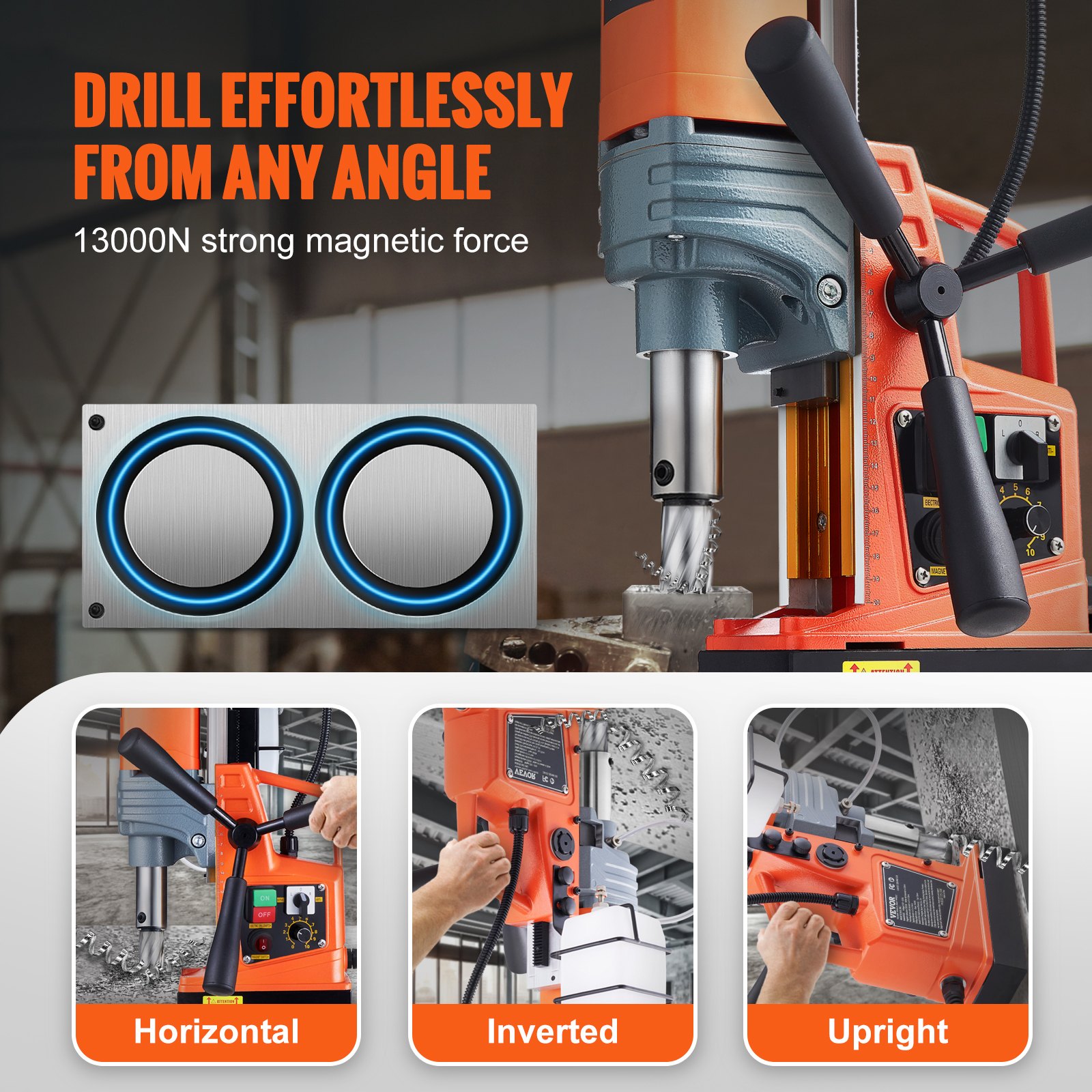

A: The magnetic drill can bore on steel and iron structures above a 10mm thickness by upright, inverted, and horizontal adsorption. Drilling bits with a diameter of less than 50mm are applied.
Q: Does the package come with a drill chuck?
A: Yes, the product has a twist drill chuck with a 100mm boring depth.
Q: Can this product run in reverse?

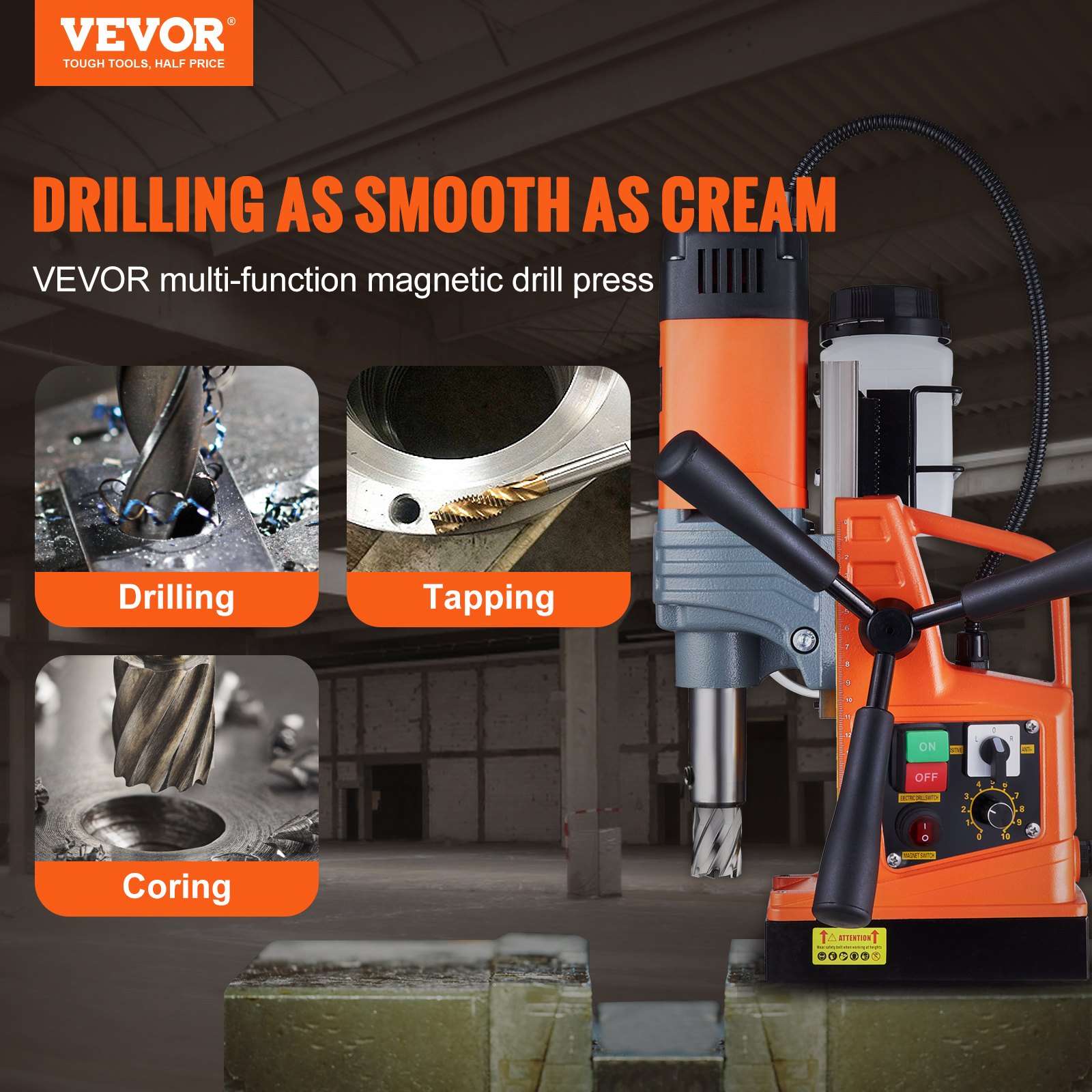

A: Our products can perform positive and negative tapping to meet your diversified drilling needs.

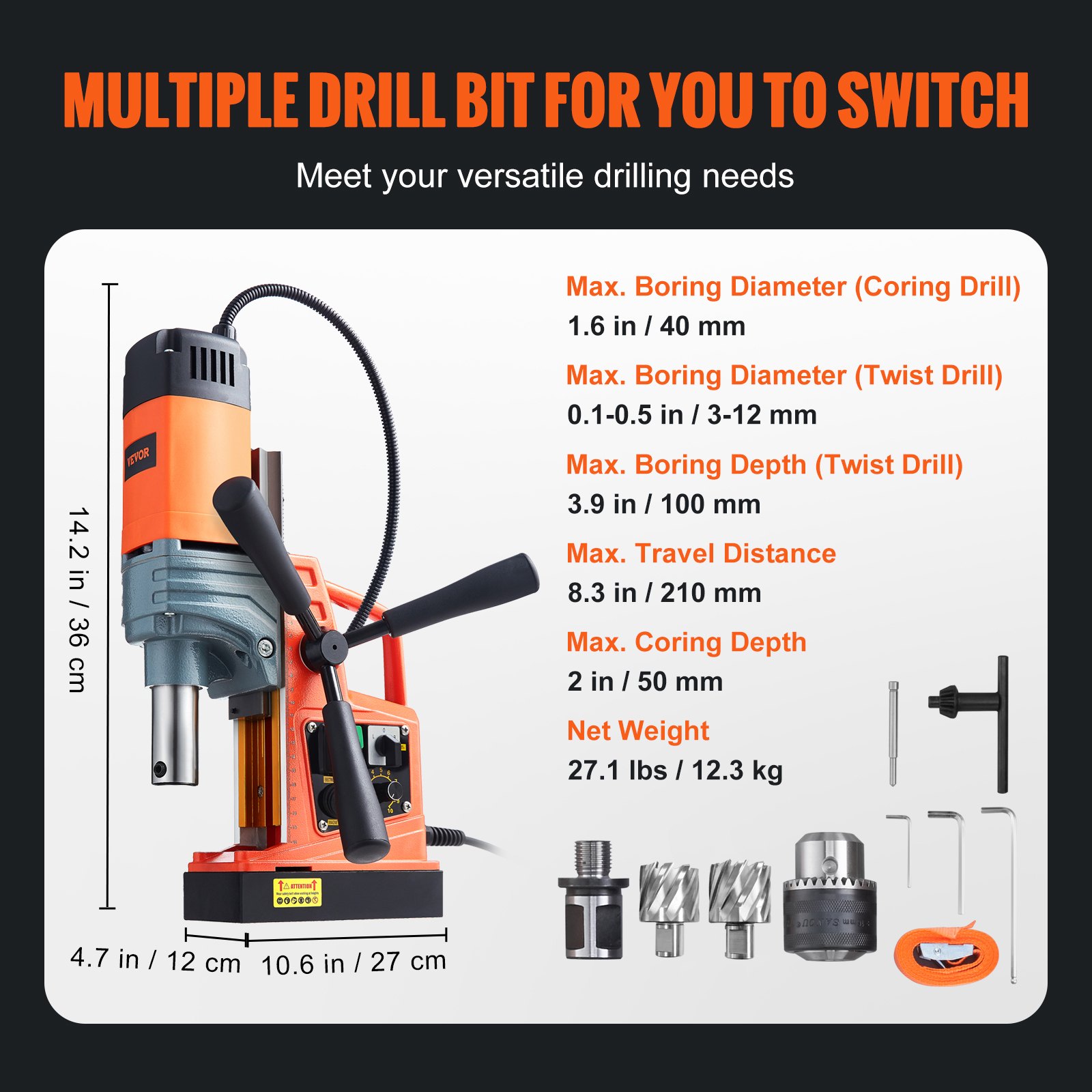

VEVOR magnetic drill dimensions and key specs with included accessories and weights.VEVOR magnetic drill dimensions and key specs with included accessories and weights.

Specification

Power
1300W 220-240V 50/60Hz
Tap Size
M3-M12
Max. Boring Diameter(Coring Drill)
1.57 in / 40 mm
Max. Boring Depth
2 in / 50 mm
Max. Boring Diameter(Twist Drill)
0.1-0.5 in / 3-12 mm
Max. Boring Depth (Twist Drill)
3.9 in / 100 mm
Max. Travel Distance
8.3 in / 210 mm
Magnetic Force
2922 lbf / 13000 N
Stepless Speed
0 - 700 rpm
Product Size
10.6 × 4.7 × 14.2 in / 270 × 120 × 360 mm
Product Weight
27.1 lbs / 12.3 kg
Manual
Download Link
Questions and Answers
1 Questions
Wat is het totaal gewicht in kg en ons van deze machine.
Het gewicht van het product bedraagt ​​13,35 kg.
By vevor on Apr 16, 2024

Customer Reviews

Ratings by Features

  • 4.7
  • 4.5
  • 4.6
  • 4.5
  • See More See Less
11 Review(s)
Clear filters
HCO HCO
Mijnheer
Met deze machine heb ik honderde gate van 16 mm geboord om een lastafel te bouwen en honderden euro's uitgespaard.
piet piet
actuur
graag factuur .....................................................................................................................
Marc Marc
Belgium
There were some issues with the start-up of the machine, due to a fault electrical connection. There was a straight reaction of the supplier. The problem was solved soon and the magnetical drilling machine is working fine now. Very good price! Good service!
Rudi Rudi
dhr
Beste, Vandaag is het toestel aangekomen, echter de doos was een beetje kapot waardoor het toestel ook een beetje stuk was. Zie foto's in bijlage.
John P. John P.
Hollycow
What an incredible drill for the price. Well made ,easy operation, you will be happy with the results.
Javid Javid
Works on 1/2"" steel plate
This is a good cheap magdrill good for general purpose not for fine detail drilling its has some slack as it goes down can be fixed. Use it let cool down then use again other wise might burn out. Hasent happened yet but use thus way as a percaution
Tim Bird Tim Bird
Worth the money!!!
This mag drill is everything you need to have to punch holes through metal!!! The weight is perfect for mobility. I will buy another when I need it!!!
Derrick Rogers Derrick Rogers
when you are working on a slope, it's good to know that the magnet works
I would prefer a "twist" chuck to hold the broach's not grub screws.How ever the machine is good value
Alex S Alex S
La veracidad del producto
Megusto por que es muy practico y eficiente y llego mucho antes de timpo
Brent Osborn Brent Osborn
Great Value For The Money
Shipped promptly, and very well packaged (5/8 thick cardboard). In fact, I decided to use the shipping box to store the drill in. After drilling a 5/8 test hole through some 3/8 steel plate, I have ordered as many Annular Cutter bits as I can currently afford, for this drill.
