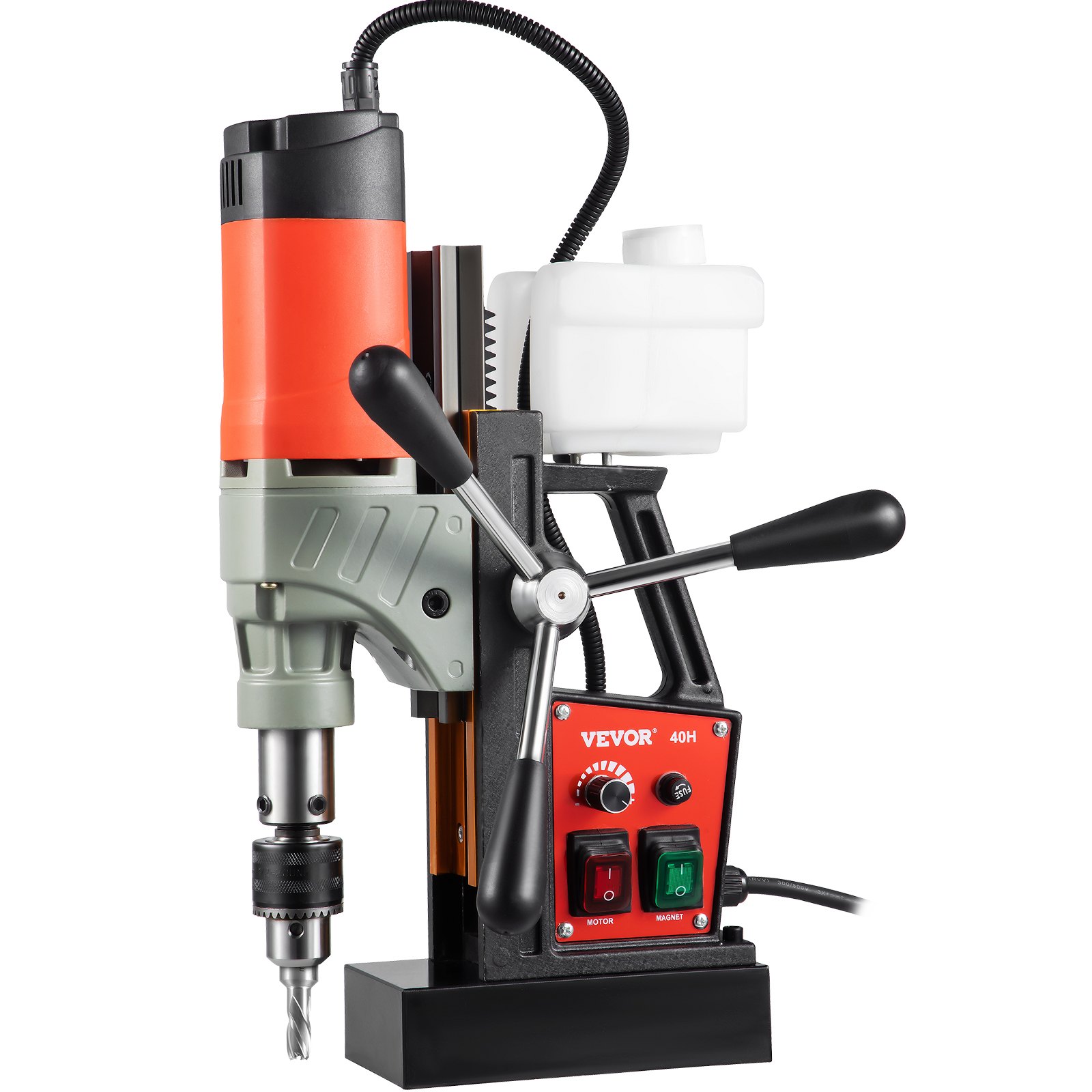

Electric Magnetic Drill Press
0-580RPM & 1200W & 6.30" Travel Distance
Our portable drill press is best used with the included precision drill bits. It is capable of drilling into your toughest materials, producing a 1.57" diameter bore up to 2.17" deep. Thanks to its 1200W copper motor, this line boring machine generates enormous power without sacrificing long-lasting stable performance. The spacious coolant tank protects your drill press lift from overheating and further extends its service life. Its solid magnetic adhesion is 13000 N, which provides it with the necessary capabilities to perform multidirectional operations. Take power into your own hands, and use our drill to break through any material. Accuracy and precision can all be yours.
- Superior Performance
- Premium Coring & Twist Bits
- 13,000 N Magnetic Force
- Double Dovetail Guide Rail

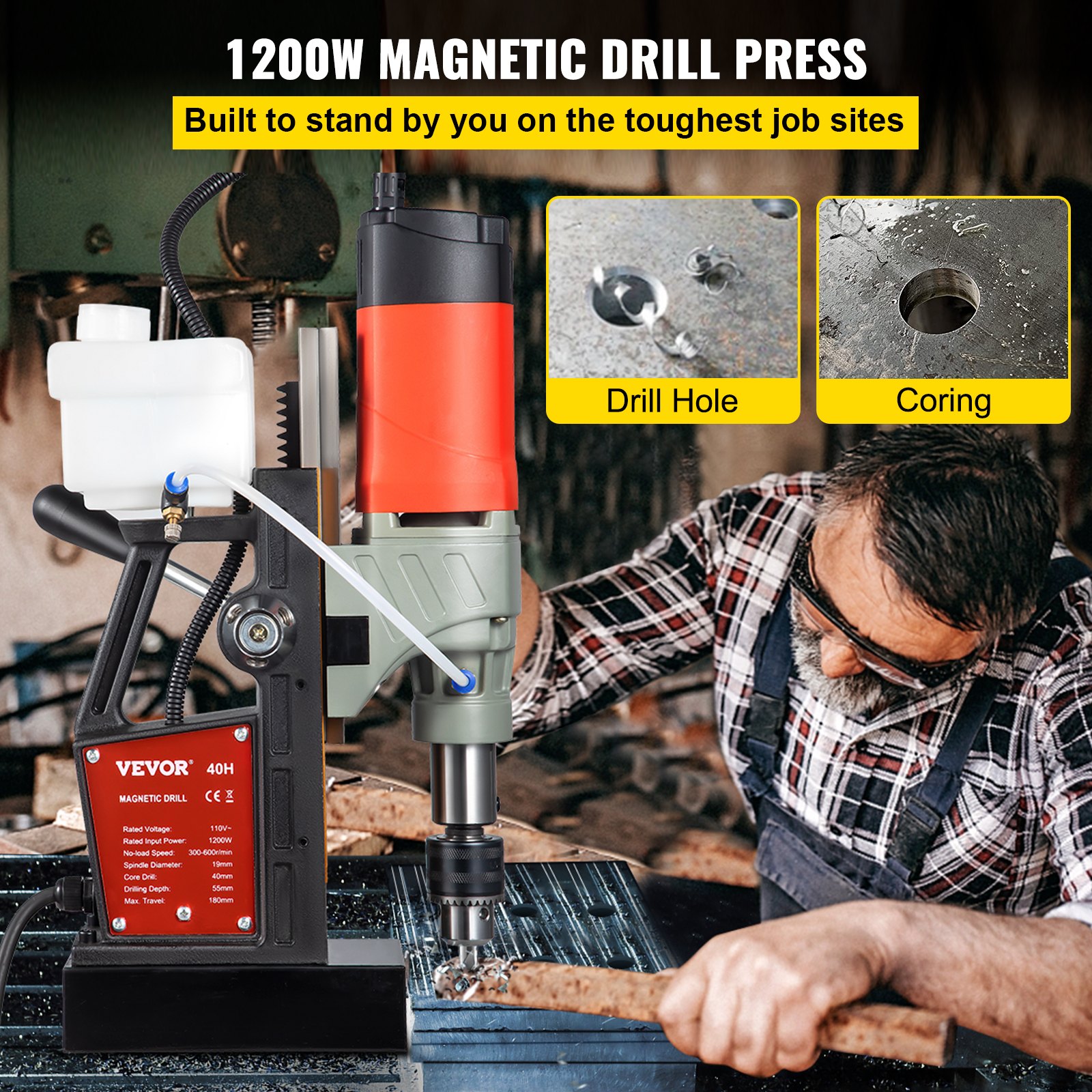

Excellent Performance
Designed for precise and demanding coring, this mag base drill features 1200 watts of motor power. Max. Coring Diameter: 1.57"/40 mm; Max. Travel Distance: 6.30"/160 mm.

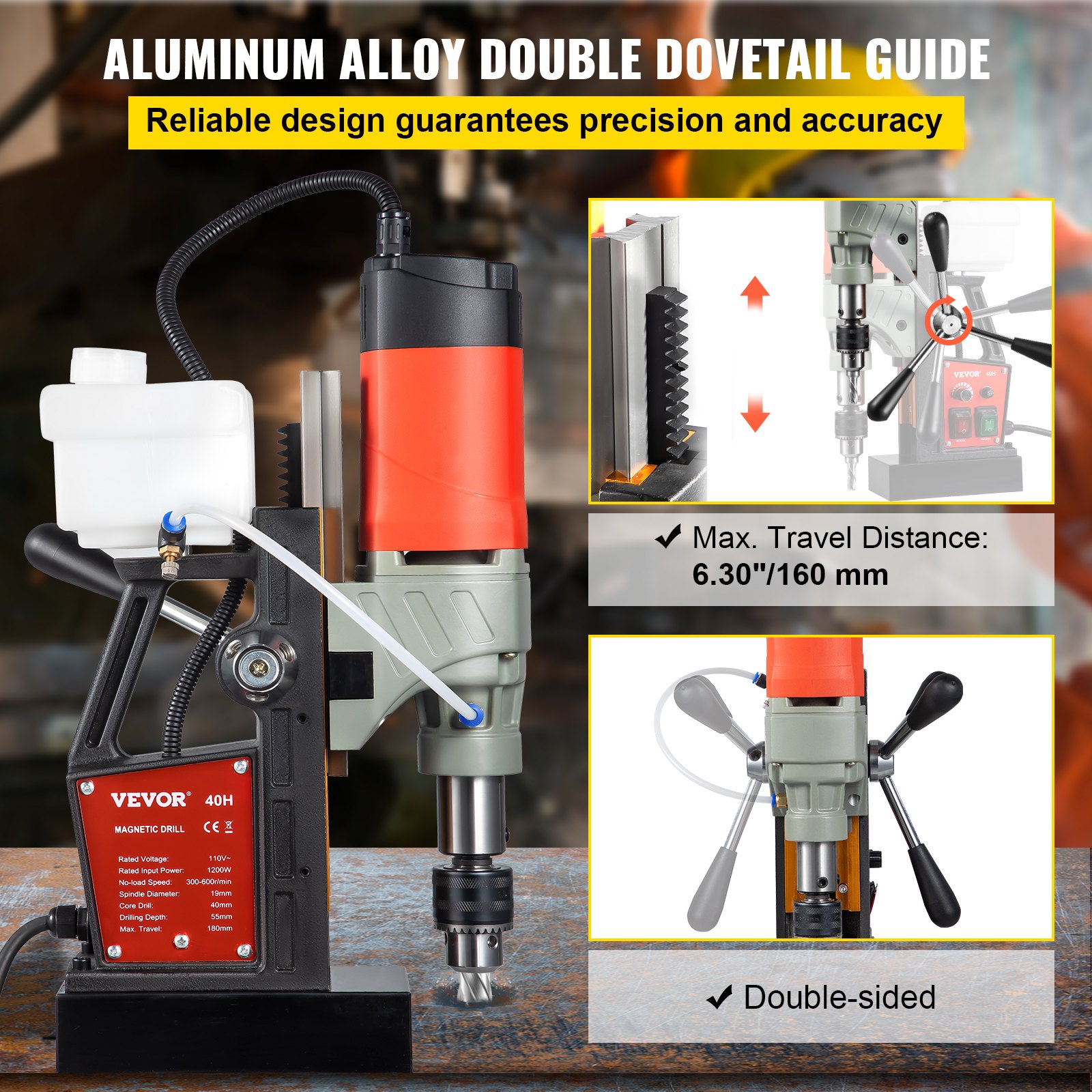

Aluminum Alloy Guide Rail
This aluminum alloy made double dovetail rail adds rigidity and improves the wear resistance of your portable drill press. Its maximum travel distance is 6.30"/160 mm and you can handle the rocking bar at both sides of the machine.

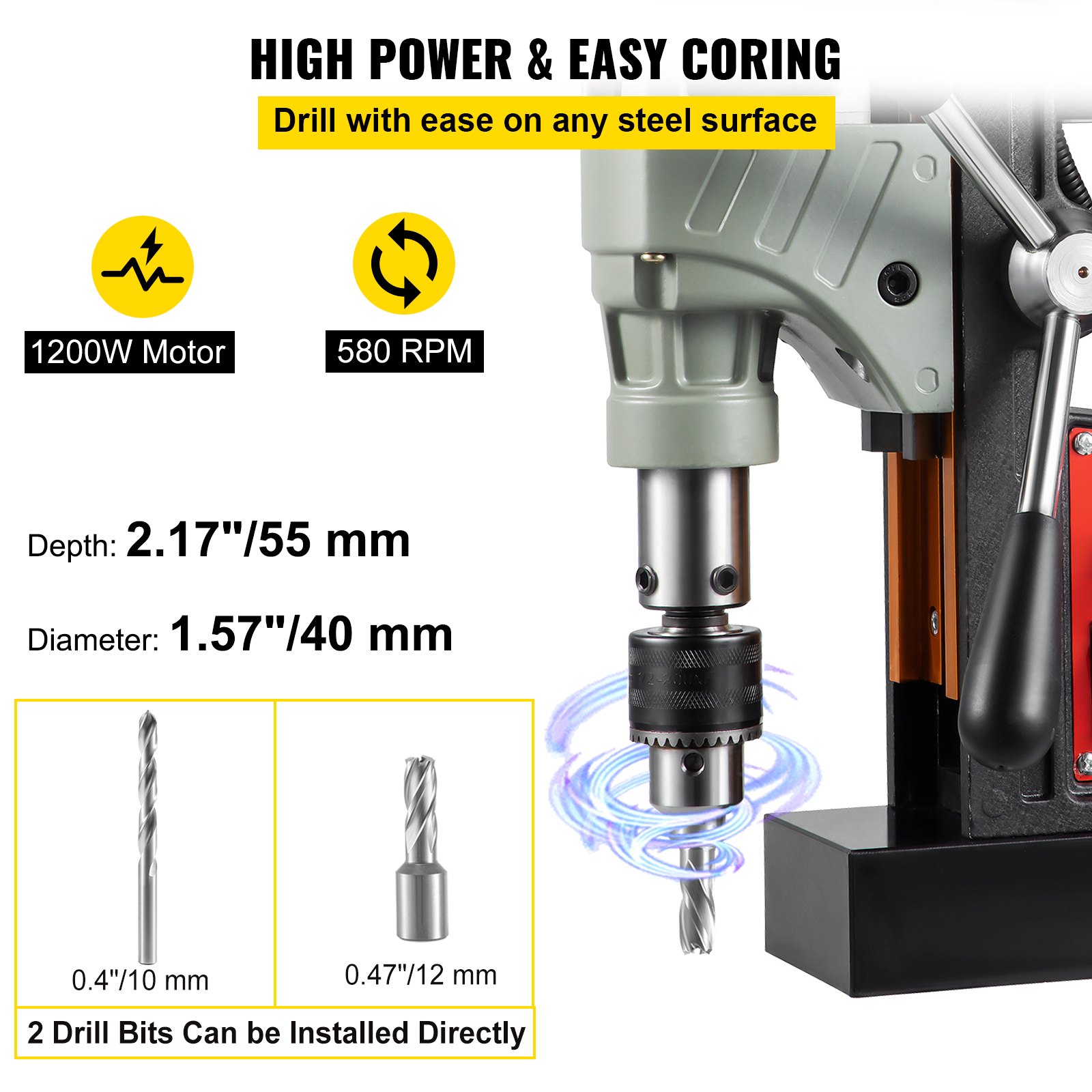

Two Practical Bits
Ideal for you to handle work-pieces of any size, ensuring your magnetic power drill drills faster with the included core drill bits than with the regular bits.

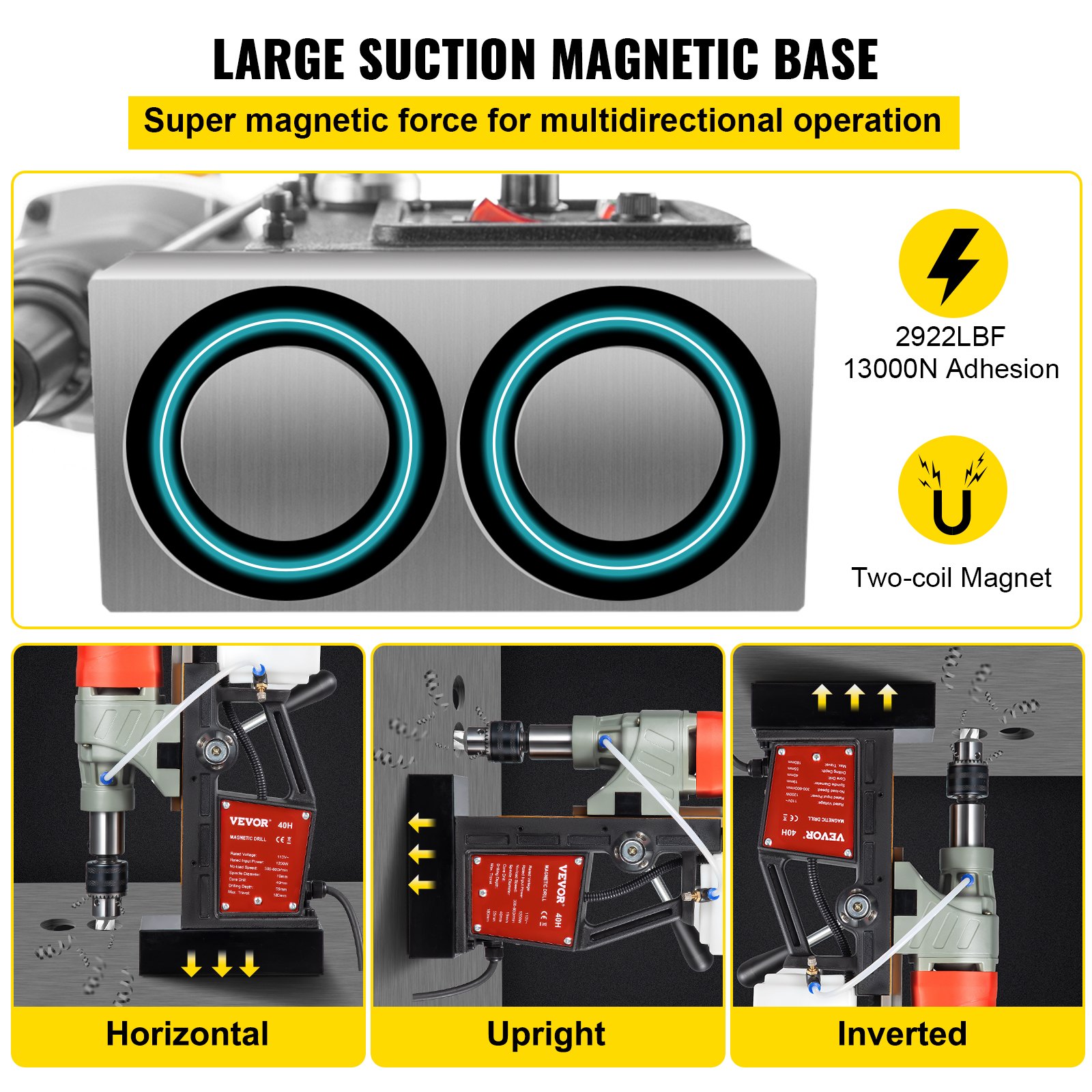

2922lbf/13000N Suction Power
The nearly pure iron base anchors the mag drill press solidly during work as a powerful electromagnet with a 2922 pounds' force (13,000 N), preventing movement during the drilling process.

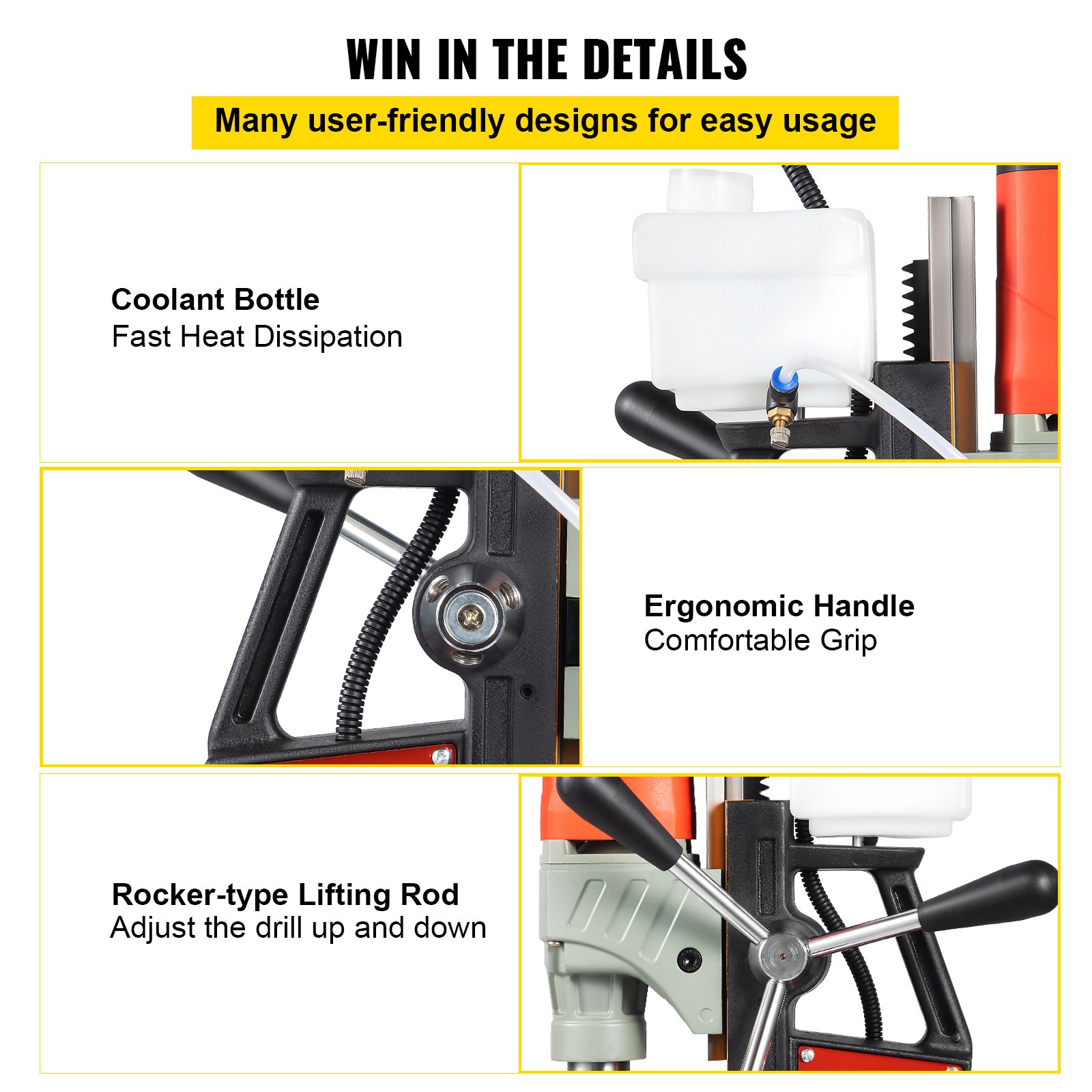

Thoughtful Details

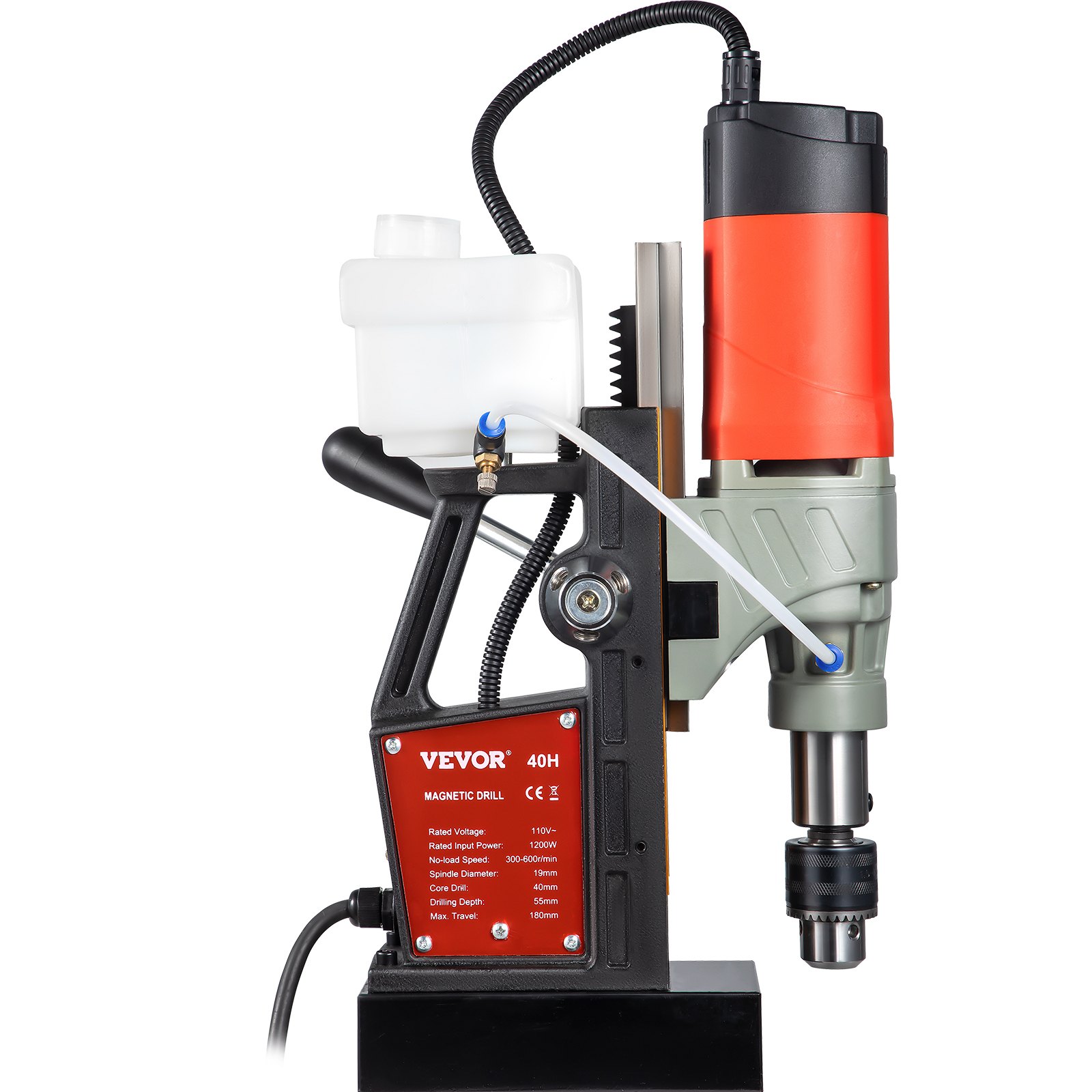

Coolant bottle features a quick push-fit tube connection included for long cutter life and smooth drilling. Three extended crank rods allow you to adjust the drill up and down with minimum effort. Ergonomically handles for easy carrying.
Versatile Usage
Our magnetic base drill is used in steel structures, shipbuilding, bridge construction, wind power generation, drilling, electric power construction, and many other fields.

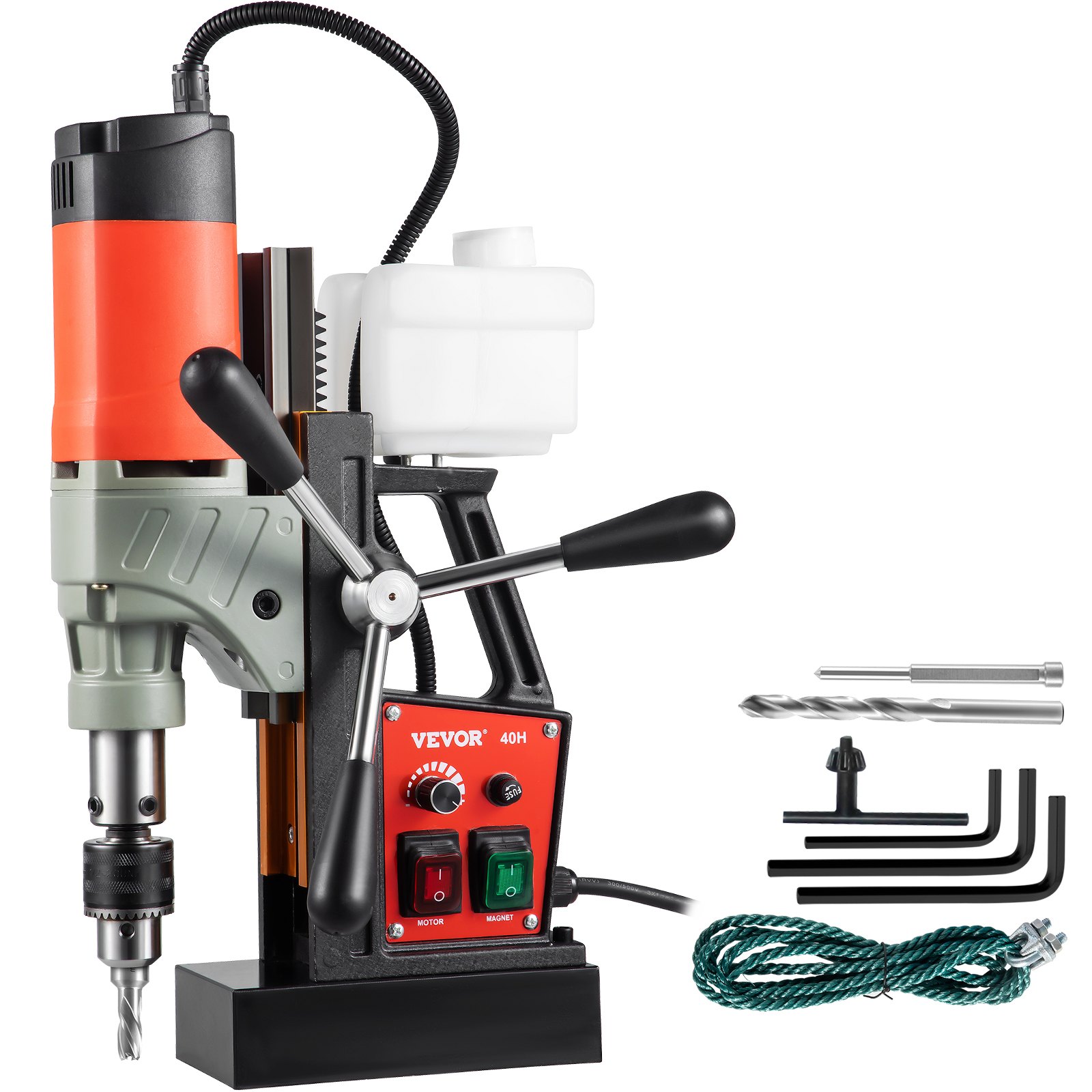

- 1 x Coring Bits (Φ0.47"/12 mm)
- 1 x Twist Drill (Φ0.4"/10 mm)

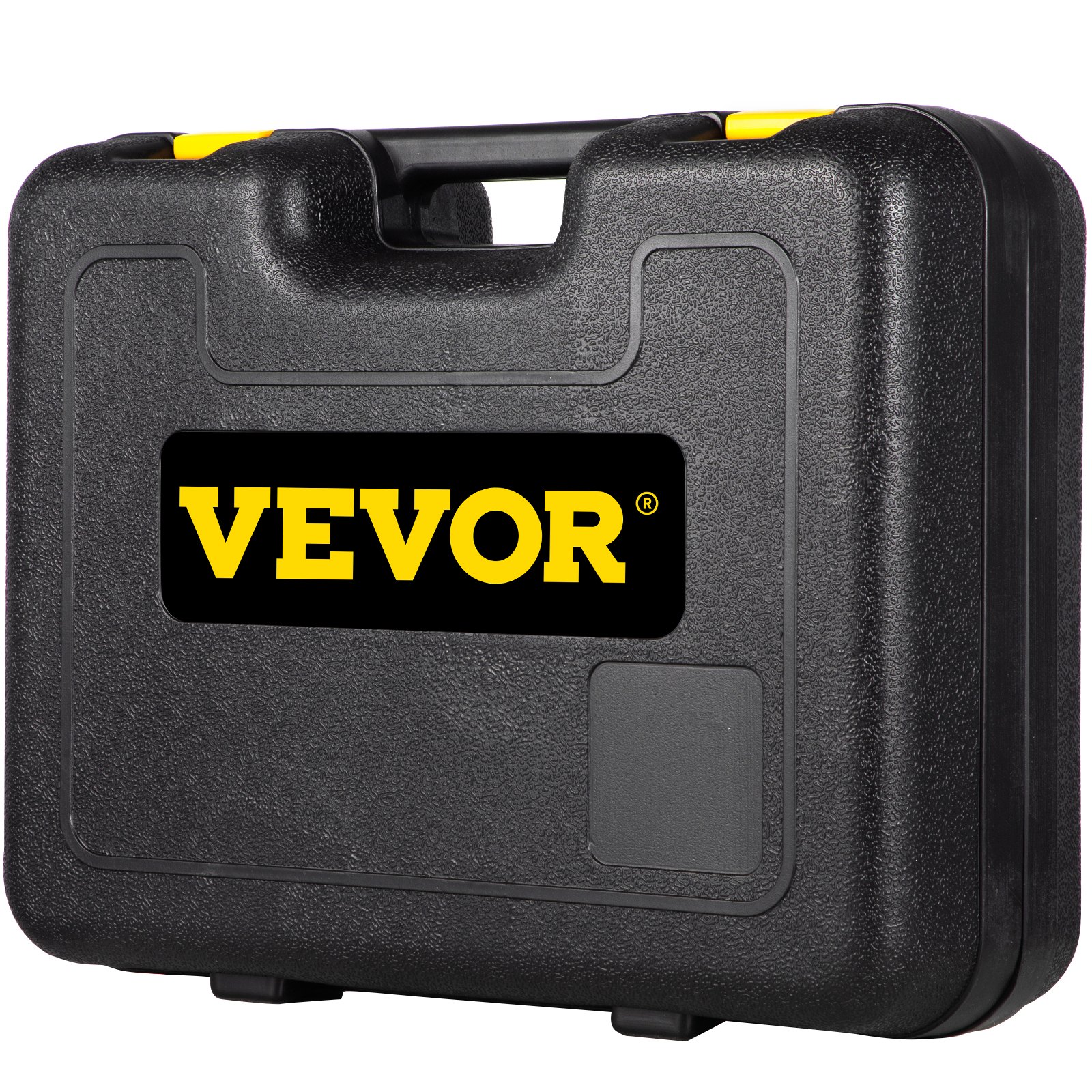

- 1 x Case
- 1 x Coolant Tank
- 1 x Drill Chuck
- 1 x Thimble (0.25"x 4"/6.34 x 102 mm)
- 1 x Rope
- 1 x Manual
- Model: VV-MD-UK2
- Power: 1200W, 50/60Hz, 220V, 2.6A
- Max. Boring Diameter(Coring Drill): 1.57"/40 mm
- Max. Boring Diameter(Twist Drill): 0.63"/16 mm
- Max. Travel Distance: 6.30"/160 mm
- Stepless Speed: 0 - 580 rpm
- Magnetic Force: 2922lbf/13000N
- Magnetic Base Size: 6.54" x 3.15" x 1.97"/166 x 80 x 50 mm
- Max. Boring Depth: 2.17"/55 mm
- Case Size: 20" x 15.7" x 7.1"/51 x 40 x 18 cm
- Product Size: 14.2" x 11" x 4.7"/36 x 28 x 12 cm
- Product Weight: 29lb/13kg
