VEVOR Air Hydraulic Pump Air Actuated Foot Pump 10,000PSI Frame Machine Pump VEVOR Air Hydraulic Pump Air Actuated Foot Pump 10,000PSI Frame Machine Pump VEVOR Air Hydraulic Pump Air Actuated Foot Pump 10,000PSI Frame Machine Pump VEVOR Air Hydraulic Pump Air Actuated Foot Pump 10,000PSI Frame Machine Pump VEVOR Air Hydraulic Pump Air Actuated Foot Pump 10,000PSI Frame Machine Pump VEVOR Air Hydraulic Pump Air Actuated Foot Pump 10,000PSI Frame Machine Pump VEVOR Air Hydraulic Pump Air Actuated Foot Pump 10,000PSI Frame Machine Pump
CGKQB18MJTHSFZYLPV0

VEVOR Air Hydraulic Pump Air Actuated Foot Pump 10,000PSI Frame Machine Pump

See All Customer Reviews
12 Reviews
Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive 5,00€ off for your first three orders on the App.
Download Now
Exclusive 5,00€ off for your first three orders on the App.
Scan the QR code to download

About this item

  • 10,000 PSI High Power: Achieve up to 10,000 PSI of hydraulic pressure with an airflow of 340 L/min. This air hydraulic foot pump offers 0.8 L/min (no load) and 0.16 L/min (load) flow rates, making it ideal for heavy-duty tasks like lifting, pressing, bending, straightening, cutting, assembling, and disassembling.
  • Factory-Filled with Oil: This air hydraulic pump comes with a large 1.6 L / 0.42 gal tank factory-filled with hydraulic oil (#13) so you can start working immediately. This feature cuts down on setup time and effort. It includes an air inlet with NPT 1/4 in and a high-pressure output with NPT 3/8 in.
  • Long Oil Hose: This air actuated treadle foot pump equipped with a 6.56 ft / 2 m rubber hose reinforced with three layers of steel wire, capable of handling pressures up to 125 MPa. This design prevents leaks and allows for flexible, long-distance operation.
  • Effortless Foot Operation: The foot-operated air hydraulic pump includes hydraulic oil-no extra purchases are needed. Press down to build pressure and release quickly, making your job more straightforward and efficient.
  • Durable and Tough: Made with aerospace-grade aluminum and a high-quality casing, this air hydraulic pump is built to withstand harsh industrial environments. The internal relief valve ensures reliable protection for the hydraulic components under pressure.
See More See Less

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Air Hydraulic Pump Air Actuated Foot Pump 10,000PSI Frame Machine Pump
Description Specification Questions and Answers Reviews

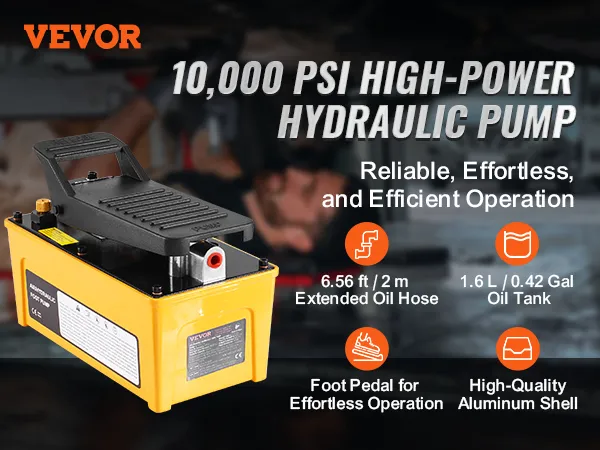

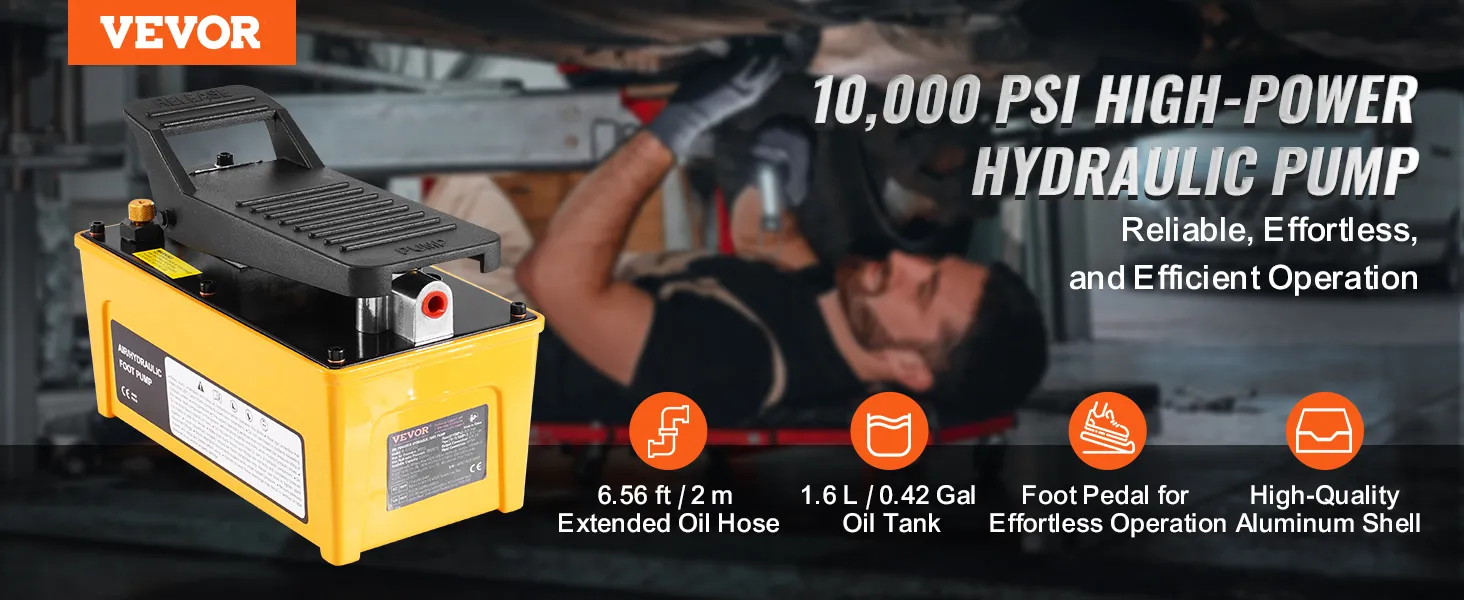

10,000 PSI Air Hydraulic Pump - Durable & Powerful
Get reliable power with our 10,000 PSI Air Hydraulic Pump. Built tough with a hard shell, long oil hose, and factory-filled with hydraulic oil (#13), it features easy controls, a shock-resistant base, and a quick setup. Ready for demanding jobs, it’s efficient and built to last.

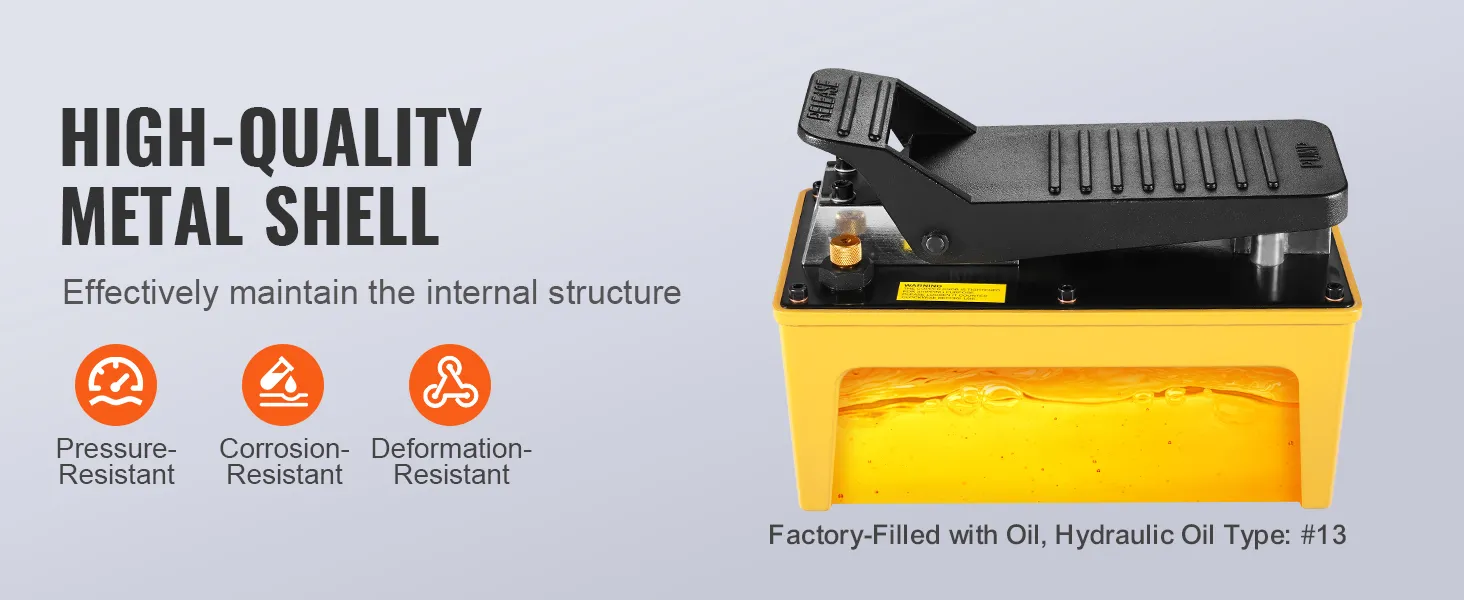

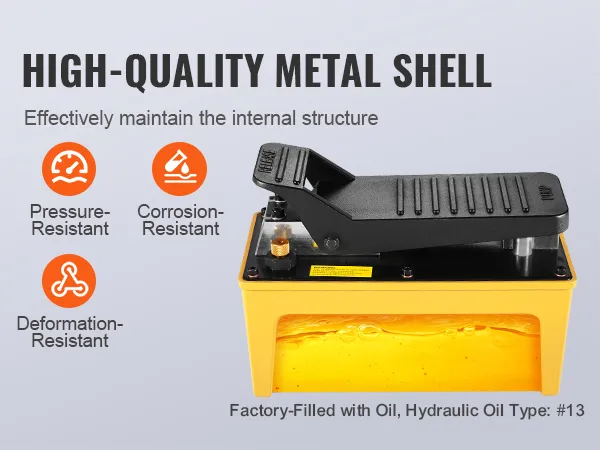

The hydraulic foot pump’s rugged outer shell protects the internal components like a champ. It’s pressure-resistant, corrosion-resistant and deformation-resistant in tough conditions. Factory-filled with hydraulic oil (#13), it ensures efficient, secure, and durable hydraulic operation.
The operation of this air actuated treadle foot pump couldn’t be more straightforward. Two controls—“Pump” to start and “Release” to let the fluid flow back smoothly and precisely—will put you in complete control of your hydraulic system with minimal effort.
With two fixing screw holes at the bottom, you can secure this air hydraulic foot pump for steady, vibration-free use. It’s all about keeping your operations stable and efficient.

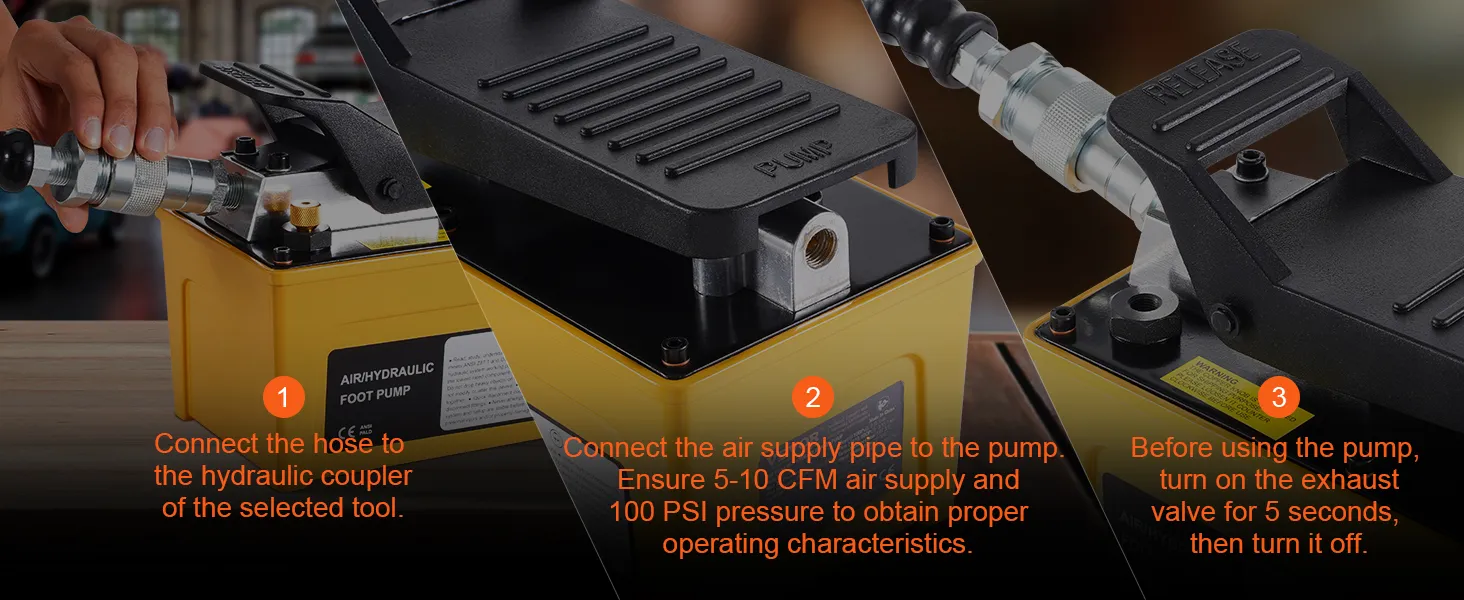

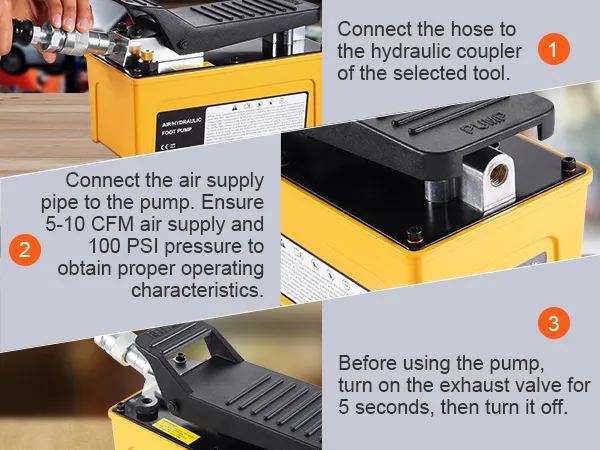

Just three simple steps and you’re all set! Remember, open the air vent for 5 minutes before getting started, then close it to keep things running smoothly.

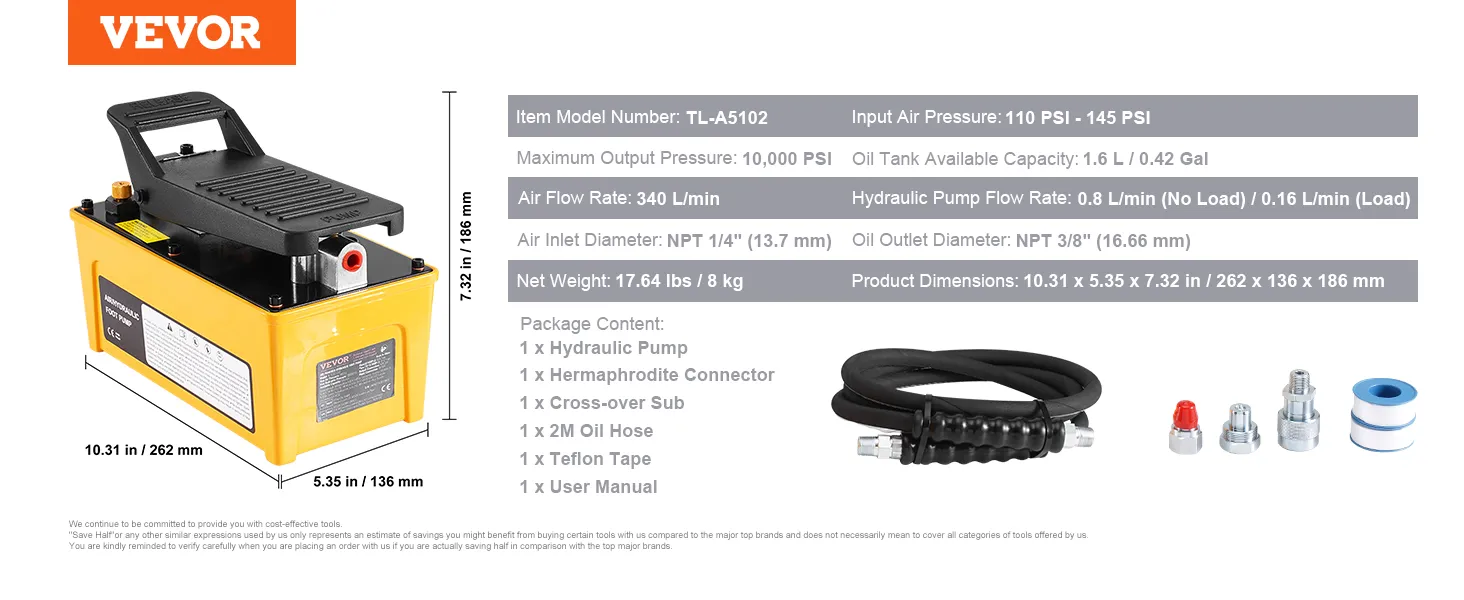

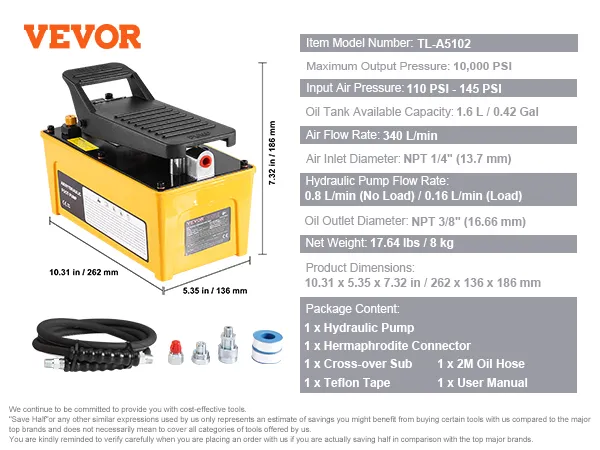

Specification

Item Model Number
TL-A5102
Input Air Pressure
110 PSI - 145 PSI
Maximum Output Pressure
10,000 PSI
Oil Tank Available Capacity
1.6 L / 0.42 Gal
Air Flow Rate
340 L/min
Hydraulic Pump Flow Rate
0.8 L/min (No Load) / 0.16 L/min (Load)

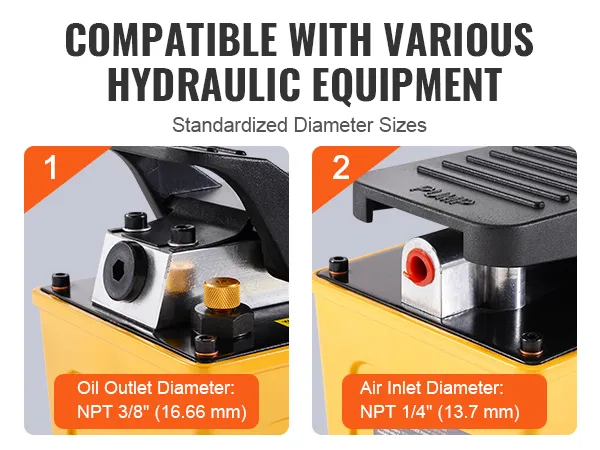

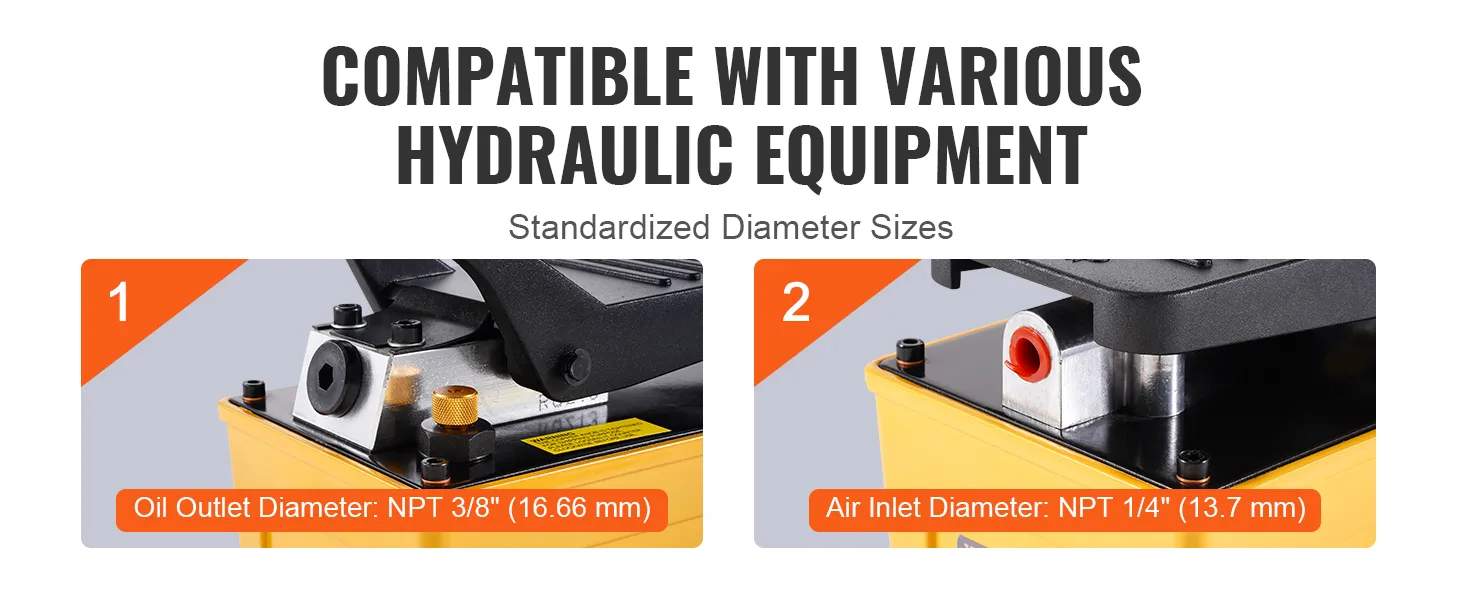

Air Inlet Diameter
NPT 1/4" (13.7 mm)
Oil Outlet Diameter
NPT 3/8" (16.66 mm)
Net Weight
17.64 lbs / 8 kg
Product Dimensions
10.31 x 5.35 x 7.32 in / 262 x 136 x 186 mm
Questions and Answers
Typical questions asked about products: Is the product durable? ...
Ask the First Question

Customer Reviews

4.7 Out of 5
Based on 12 reviews

Ratings by Features

  • 4.7
  • 4.5
  • 4.6
  • 4.5
  • See More See Less
12 Review(s)
Clear filters
Karim Karim
Lucht hydrolisch pomp
Goede kwaliteit maar zit geen goed beschrijving bij , beschrijving hoe je het pomp kan gebruiken ? .
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Gary Gary
Mr
Seems great for the money and, easy to fit set up and use. Fitted it to a quad bike lift for repairing them, and it makes life so much easier
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
MeMyselfAndI MeMyselfAndI
mr.
Received it very fast, not yet used but looks very solid and well finished. . _______________________________________________________________________________________________________________________________________________________________________________________________________________
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Cas Cas
Voetpomp
Goed product! Werkt naar behoren voor deze prijs is het helemaal een top product. Dus een aanrader om te bestellen.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Ian Ian
Me
Fanrtaaric kit especially for the price. No need to supply the flexible inlet hose and valve though
See More See Less
Helpful Sending feedback... Thank you for your feedback. 2 people found this helpful
Patrick Patrick
Hydraulick pump
Precies volgens specificatie en een kwaliteit die ik niet verwacht had voor de lage prijs. Ook over de functie ben ik zeer tevreden. Vevor dank jullie wel!!
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Neil Munro Neil Munro
MR
Good product, works well seems to be a nice piece of kit for the price I paid for it, easy to use and set up.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
. .
Knutselaar
Dan krijg je toch een apparaat wat veel beter werkt dan je zou verwachten voor die prijs. Ik gebruik hem samen met een kabelknipper, kabel is 6cm dik, kakken zonder douwen. Was er aangenaam verrast door. Past ook zo op cilinders van holmatro met de bijgeleverde slang en koppelingen.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
mike mike
manager
Very impressed at the price and delivery! Imported from ? with commercial invoice, not sure if import duty applicable but very impressed so far.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 1 people found this helpful
NAS Tools&MachinesBV NAS Tools&MachinesBV
Sales Manager
Snelle en goede service. Product goed voorbereid en makkelijk installatie begeleiding. Tevreden klanten over de product.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
