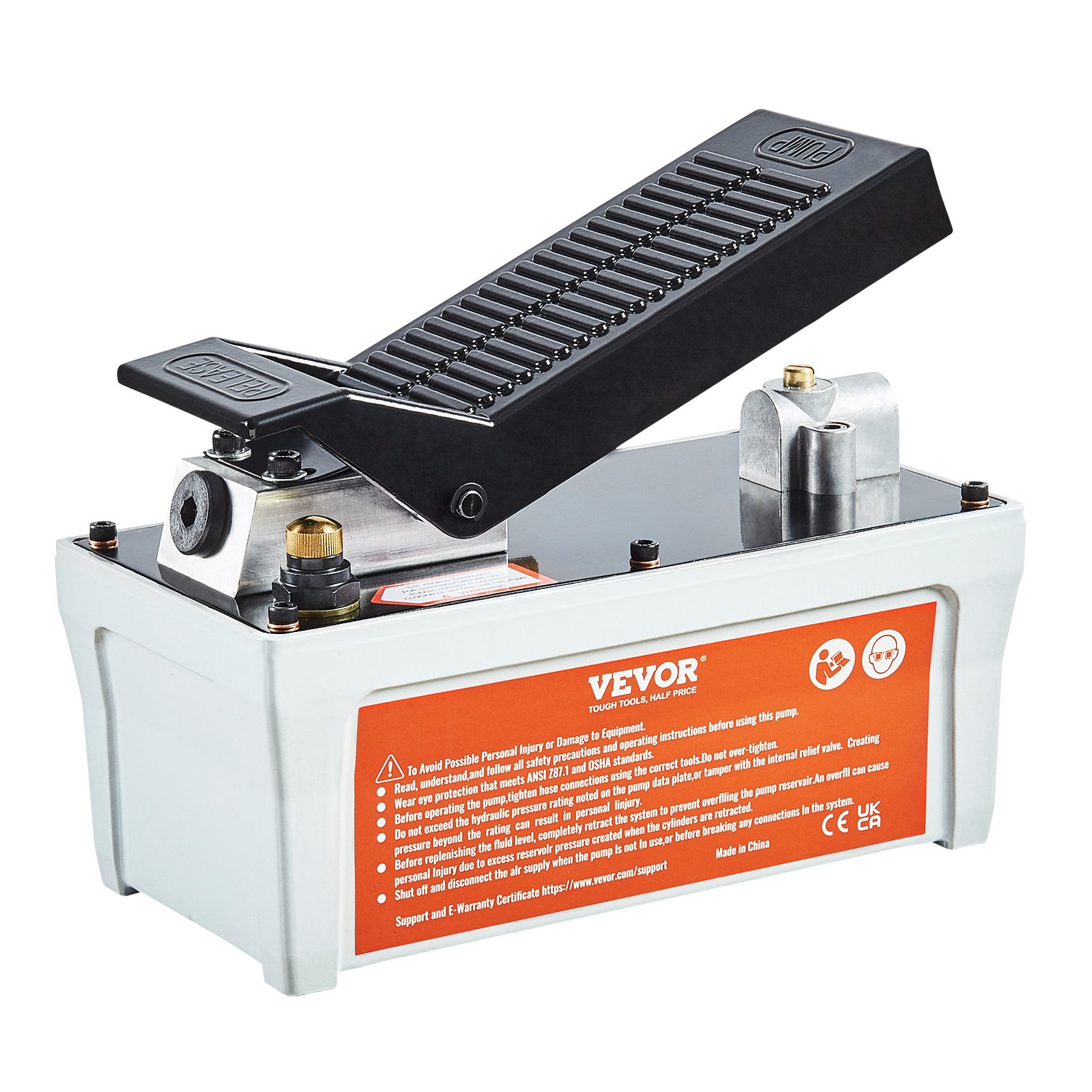

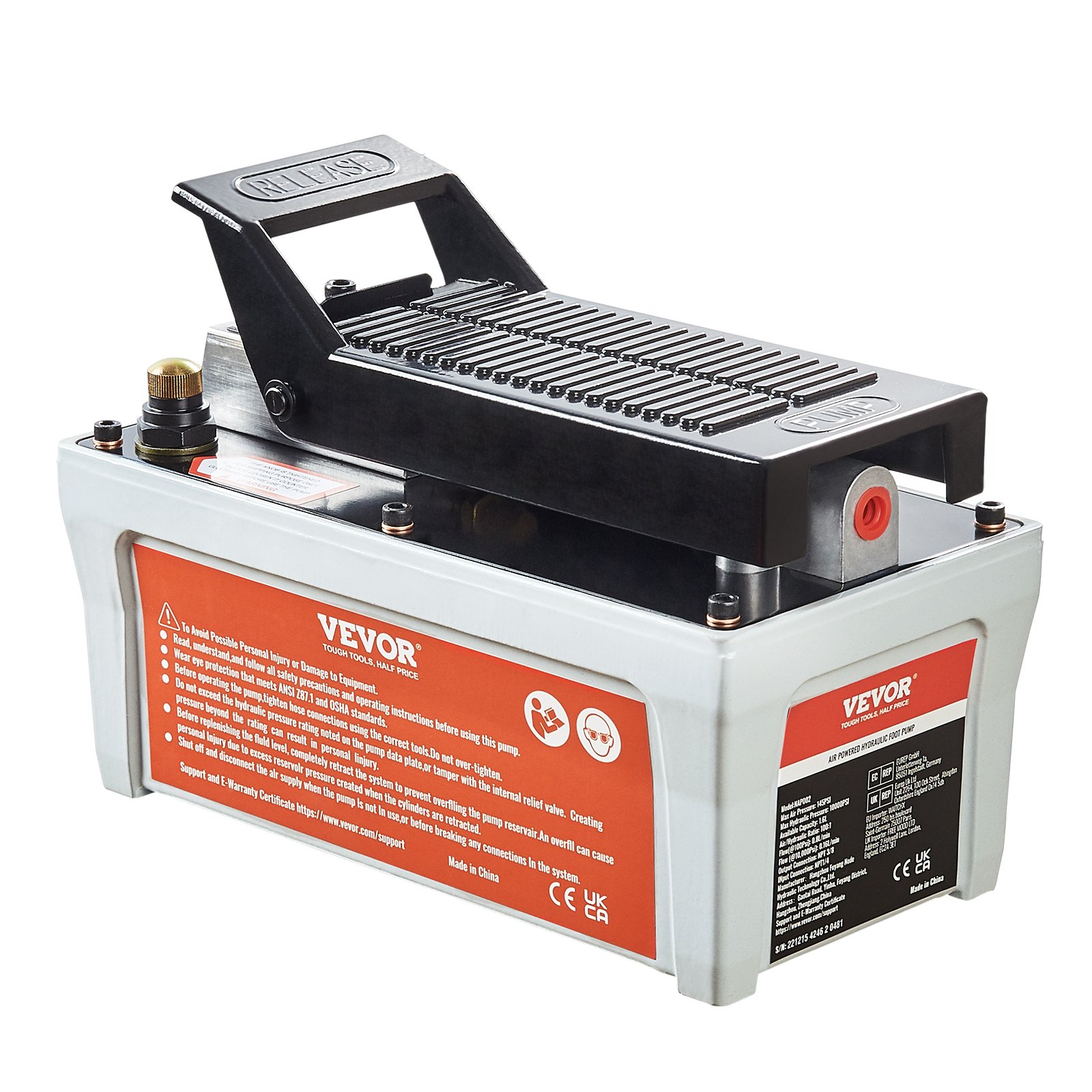

VEVOR Air Hydraulic Pump, 10,000 PSI 1/2 Gal Reservoir, NPT 3/8" Oil Outlet, NPT 1/4" Inlet, 6.6 ft Pipe, Foot Actuated Hydraulic Pump Air Treadle for Auto Body Frame Machines and Pulling Post, Gray
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive 5,00€ off for your first three orders on the App.
Download Now
Exclusive 5,00€ off for your first three orders on the App.
Scan the QR code to download
2 m
2 m
No
1.5 m
Gray
Gray
Blue
Orange
Yellow
1.6 L
1.6 L
2.3 L
0.69 L
About this item

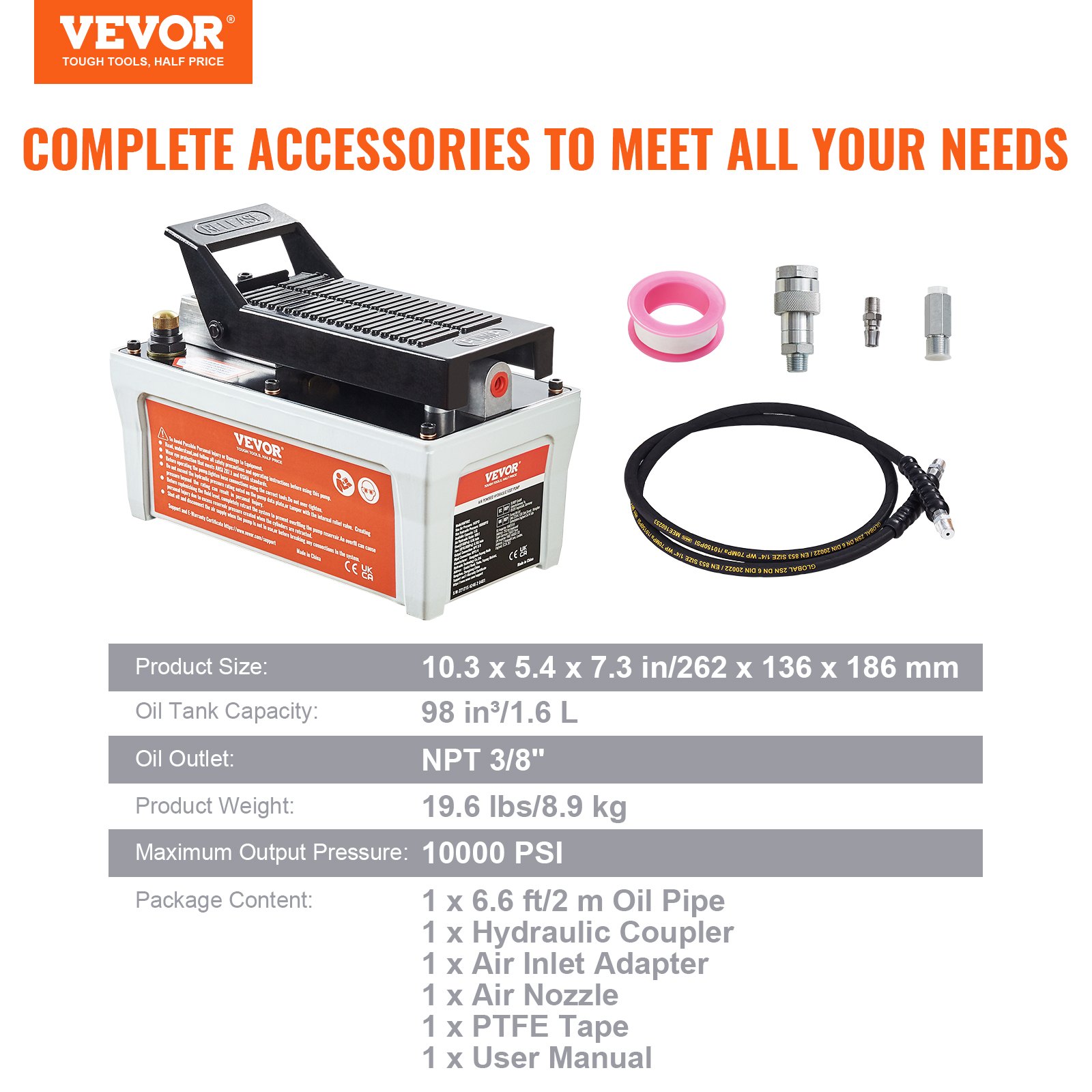

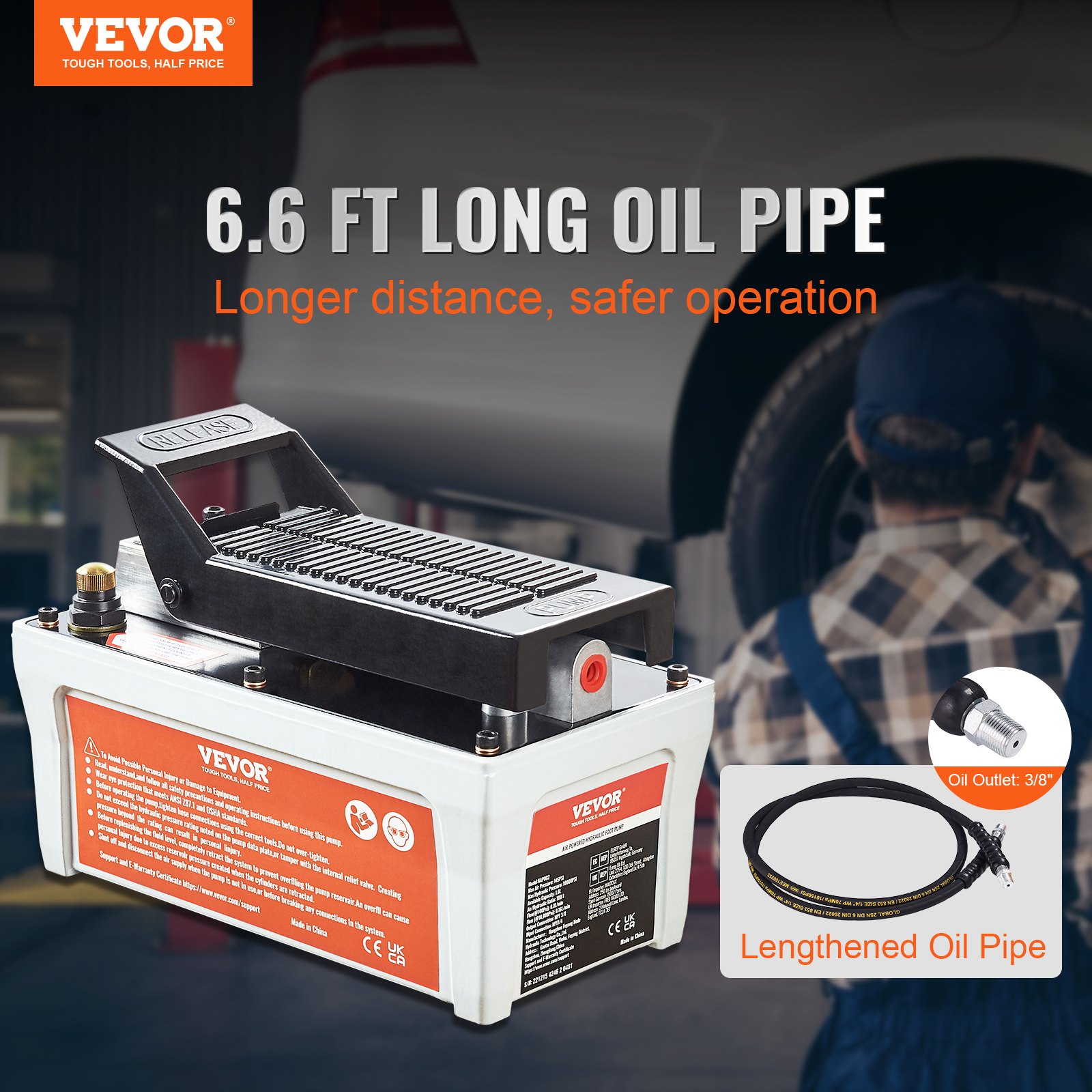

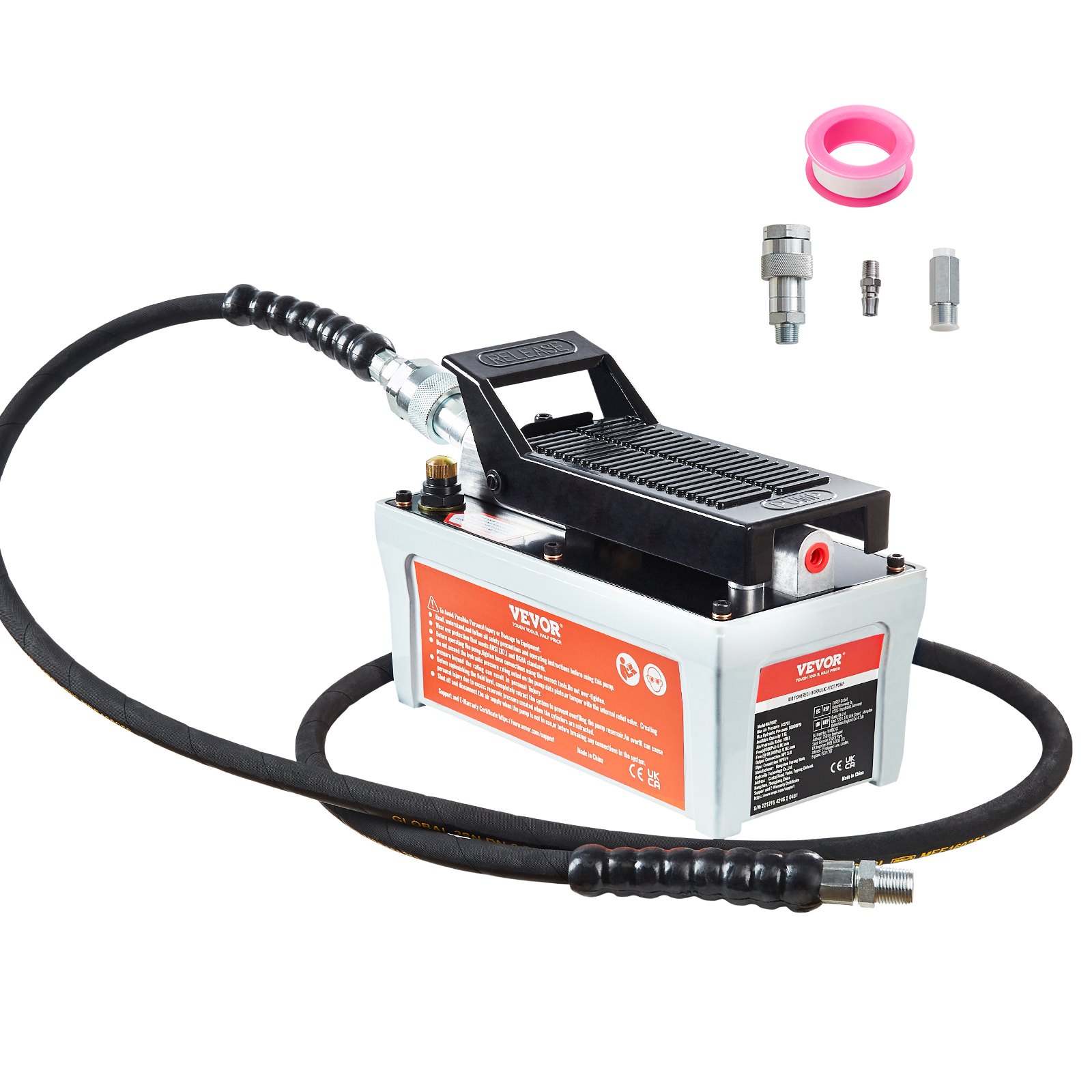

Extended Oil Reach: Are you ready to stretch further without breaking a sweat? This air hydraulic pump comes with a lengthened oil pipe of 6.6 ft/2 m, allowing for longer-distance operation and enhanced security. In addition, it includes a hydraulic coupler, air inlet adapter, and PTFE tape to meet all of your needs.

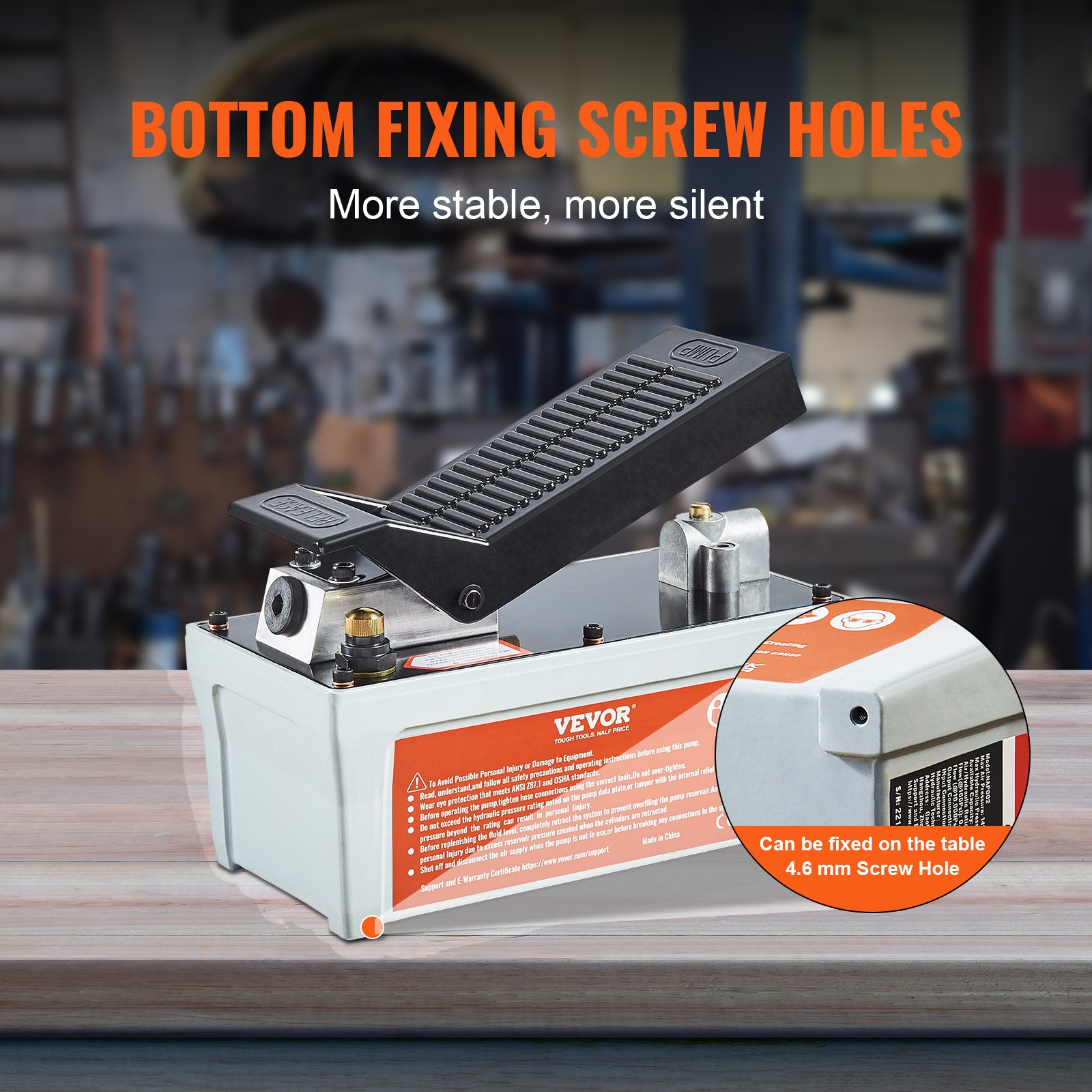

Non-slip and Shock-proof: With two fixing screw holes located at the bottom, the foot actuated hydraulic pump can be securely positioned, minimizing sliding and vibration during operation. This results in a quieter working environment, providing you with a more comfortable experience.

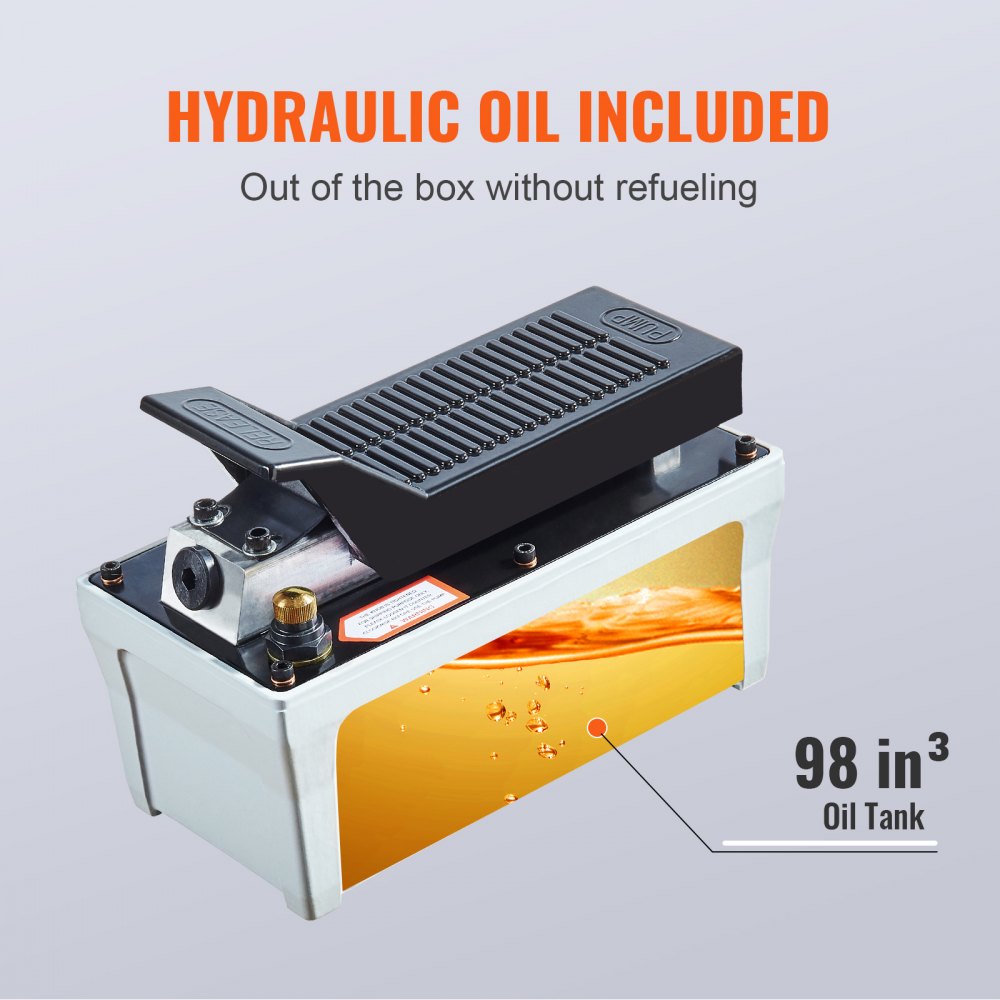

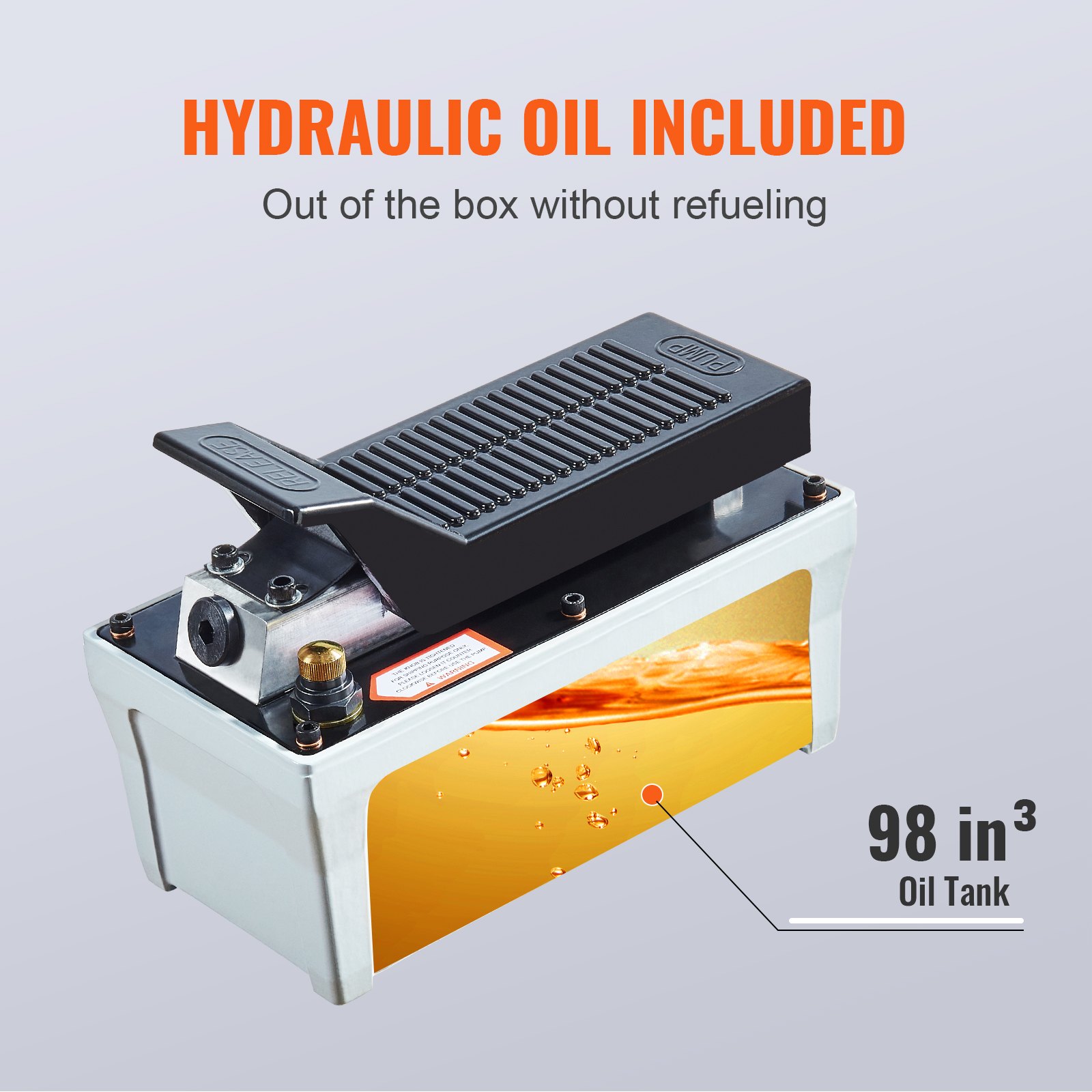

One Step Is All It Takes: Our foot operated air/hydraulic pump is equipped with hydraulic oil, eliminating the need for any additional purchases. It is ready to use straight out of the box! The user-friendly foot-actuated design makes operation more labor-saving. Simply apply pressure by gently stepping on it, and release pressure by rebounding back.

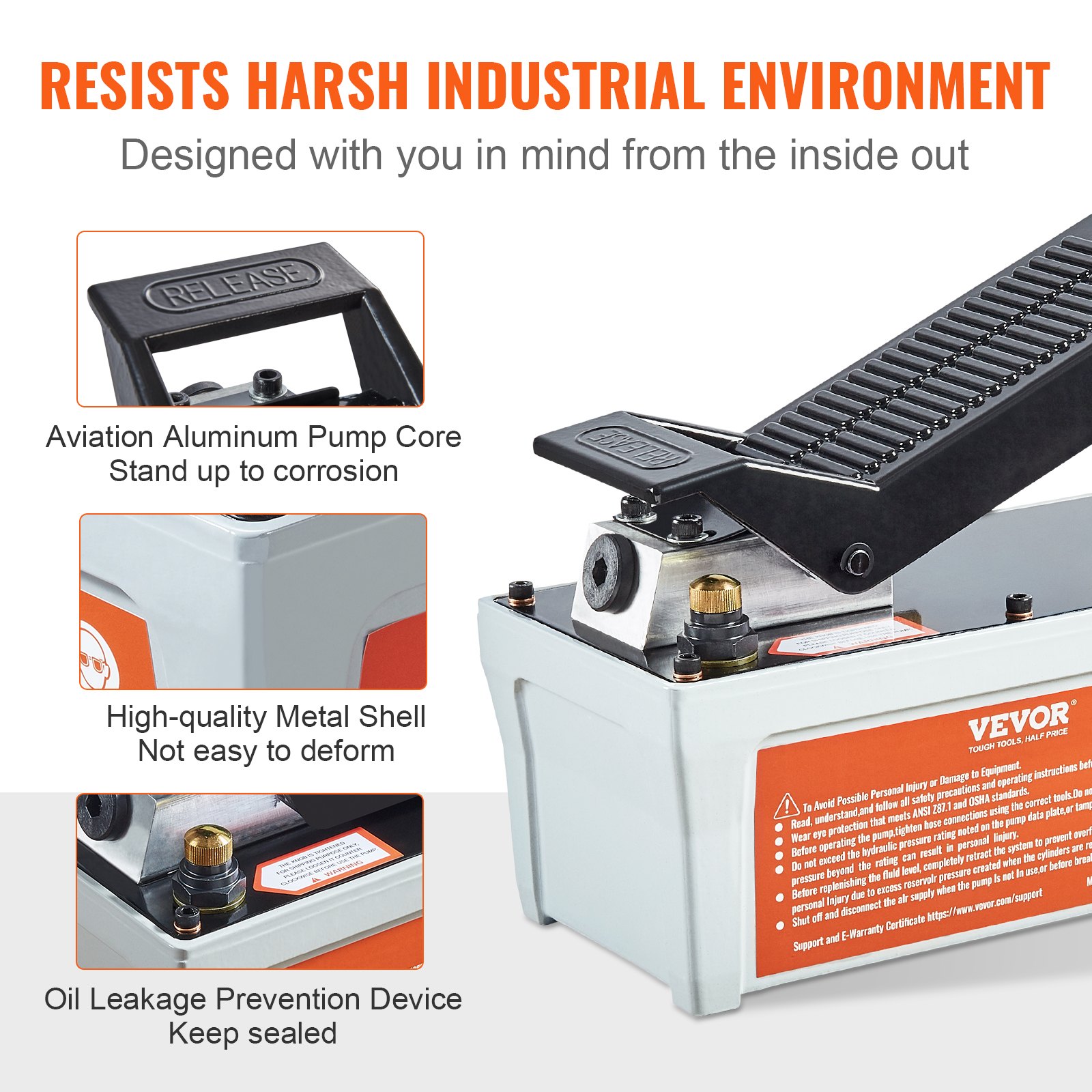

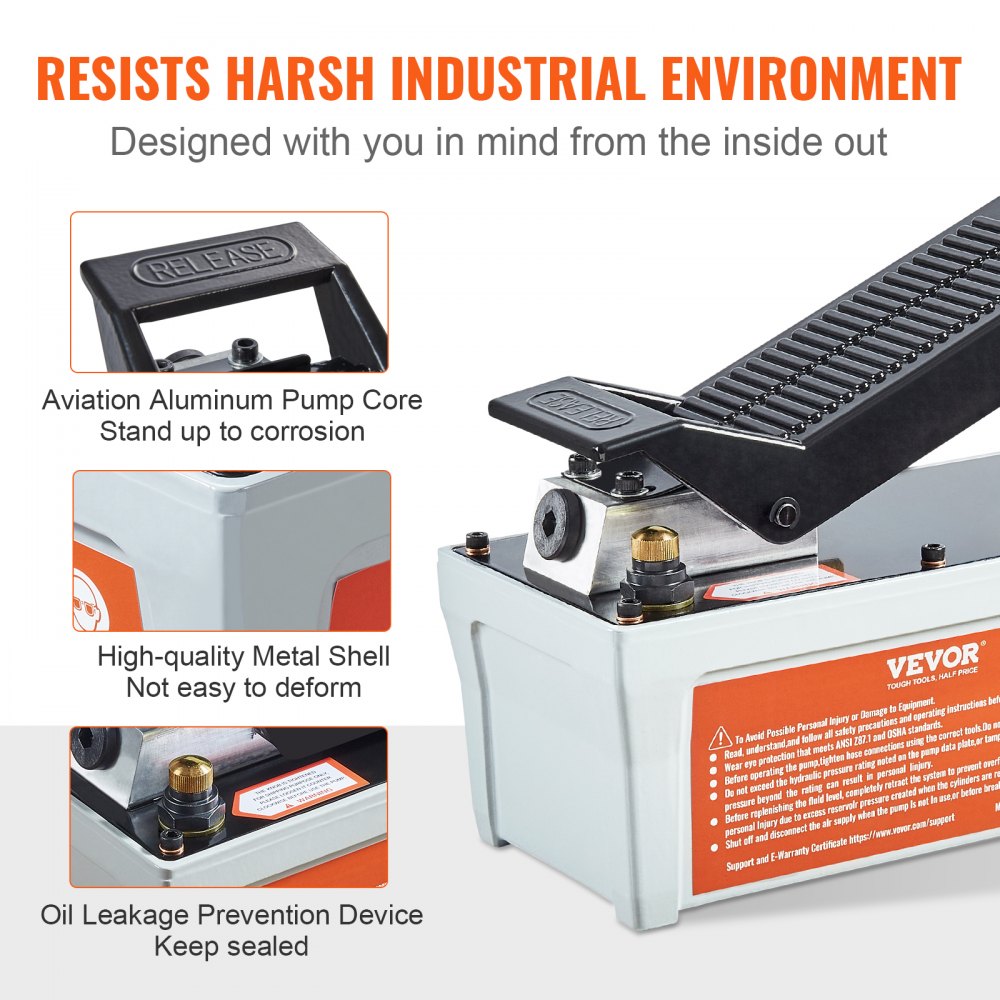

Sturdy & Compact Construction: This hydraulic air pump is designed for challenging industrial applications thanks to its featured aviation-grade aluminum pump core and high-quality metal shell. With a 98 in³ oil tank, it has a larger capacity to meet heavy-duty needs. Additionally, the internal relief valve protects hydraulic components, regardless of hydraulic pressure.

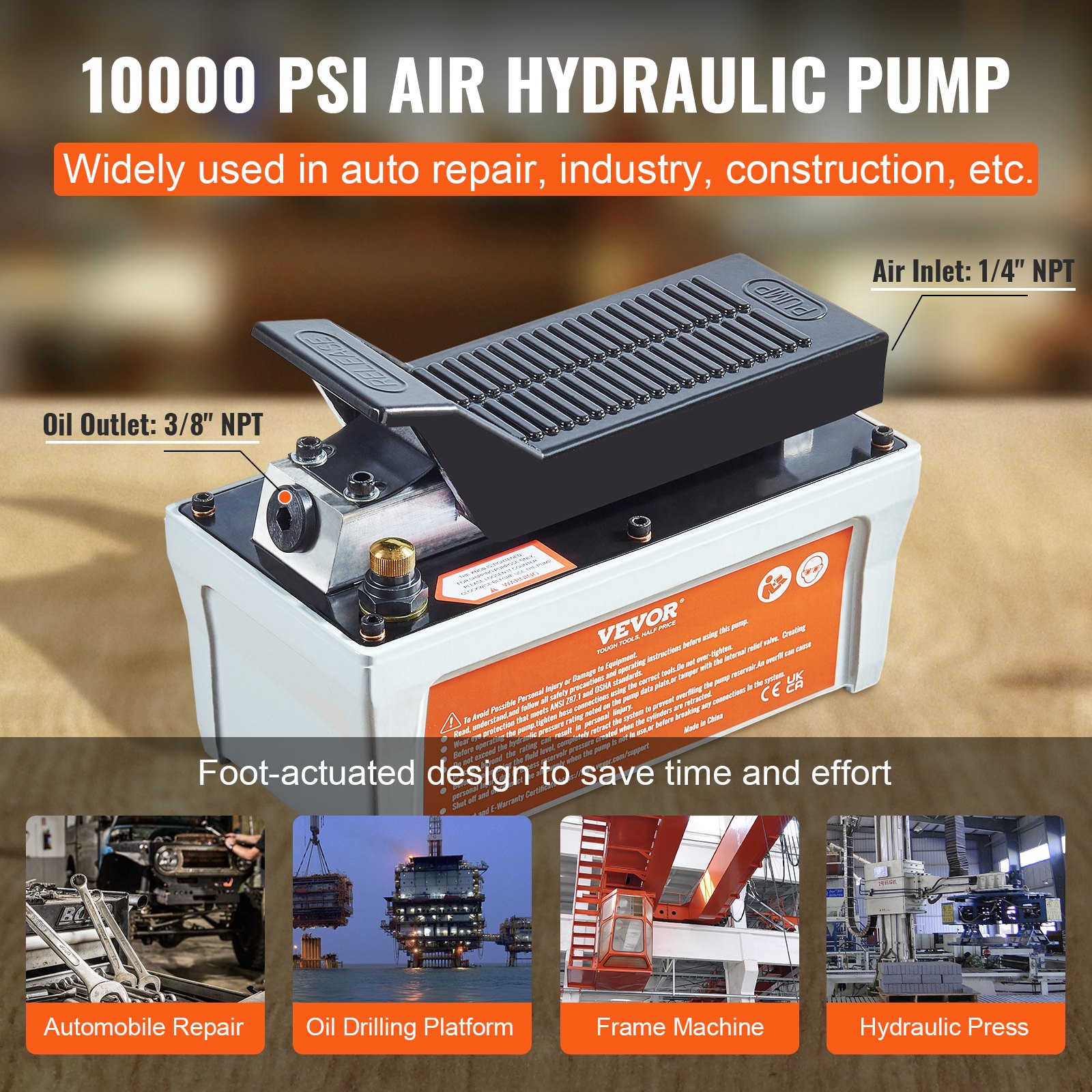

Wide Application: The air actuated hydraulic treadle pump is an excellent choice for single-acting ram applications in industrial and construction settings. It is an ideal all-around power house to use with a variety of rams, presses, and hydraulic pullers that operate at pressures of up to 10,000 PSI.
VEVOR Air Hydraulic Pump, 10,000 PSI 1/2 Gal Reservoir, NPT 3/8" Oil Outlet, NPT 1/4" Inlet, 6.6 ft Pipe, Foot Actuated Hydraulic Pump Air Treadle for Auto Body Frame Machines and Pulling Post, Gray
Looking for a secure and durable air hydraulic pump that delivers compact air over hydraulic? This pump comes equipped with a 6.6 ft oil pipe and 98-in³ tank, making it the perfect choice for all your auto body shop hydraulic needs. Pump up your productivity and take on new challenges today!
Key Features
NPT 1/4" Air Inlet
This air hydraulic pump is designed with a standard NPT 1/4" air inlet. We also provide an air inlet adapter and air nozzle for easy connection.
NPT 3/8" Oil Outlet
With NPT 3/8" oil outlet and a hydraulic coupler, you can quickly link the foot actuated hydraulic pump to any hydraulic-powered equipment.
Simple Foot Pedal Control

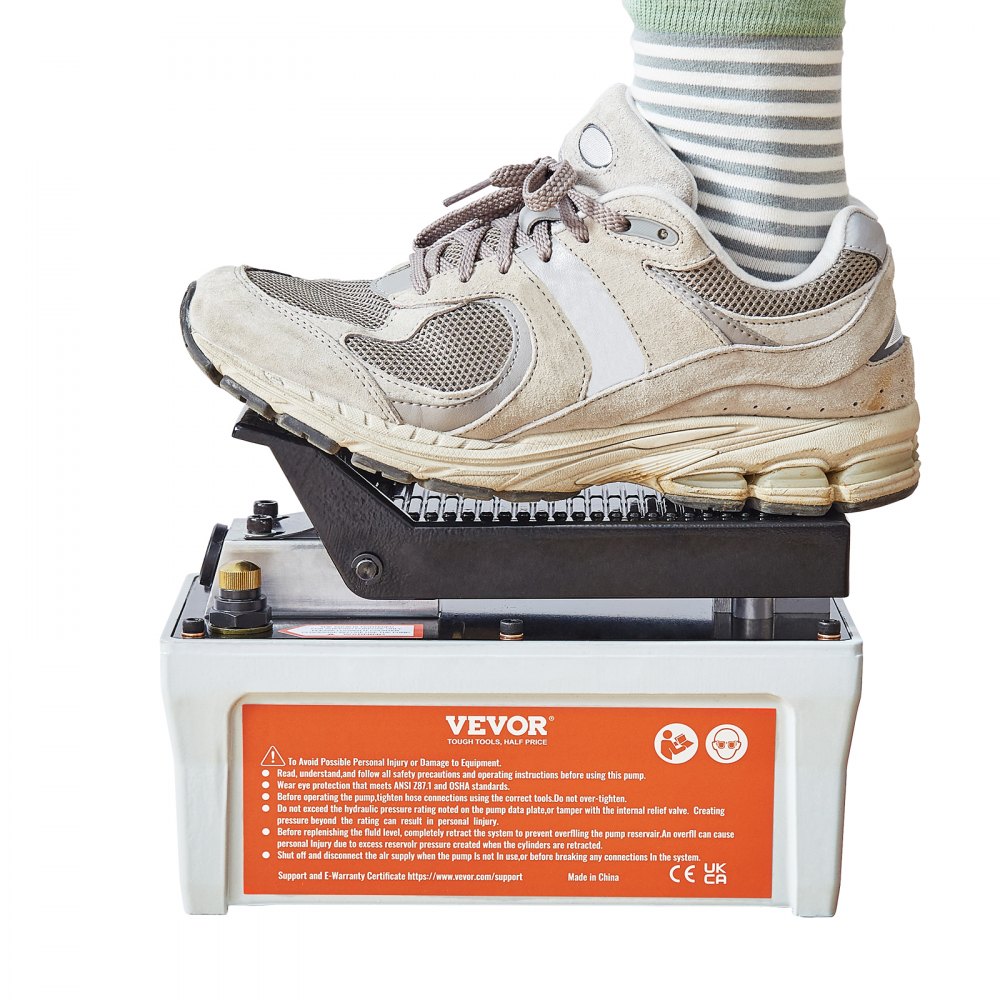

The hydraulic air pump features foot pedal control to provide hands-free operation for pumping and releasing the load. It saves time and effort due to its strong power and high output pressure.
Specification
Item Model Number
NAP002
Maximum Output Pressure
10,000 PSI
Input Air Pressure Range
110 PSI-145 PSI
Air Inlet
NPT 1/4"
Oil Outlet
NPT 3/8"
Oil Tank Capacity
98 in³/1.6 L
Hydraulic Pump Flow
0.8 L/min (No-load); 0.16 L/min (Load)
Product Size (L x W x H)
10.3 x 5.4 x 7.3 in/262 x 136 x 186 mm
Product Weight
19.6 lbs/8.9 kg
