About this item

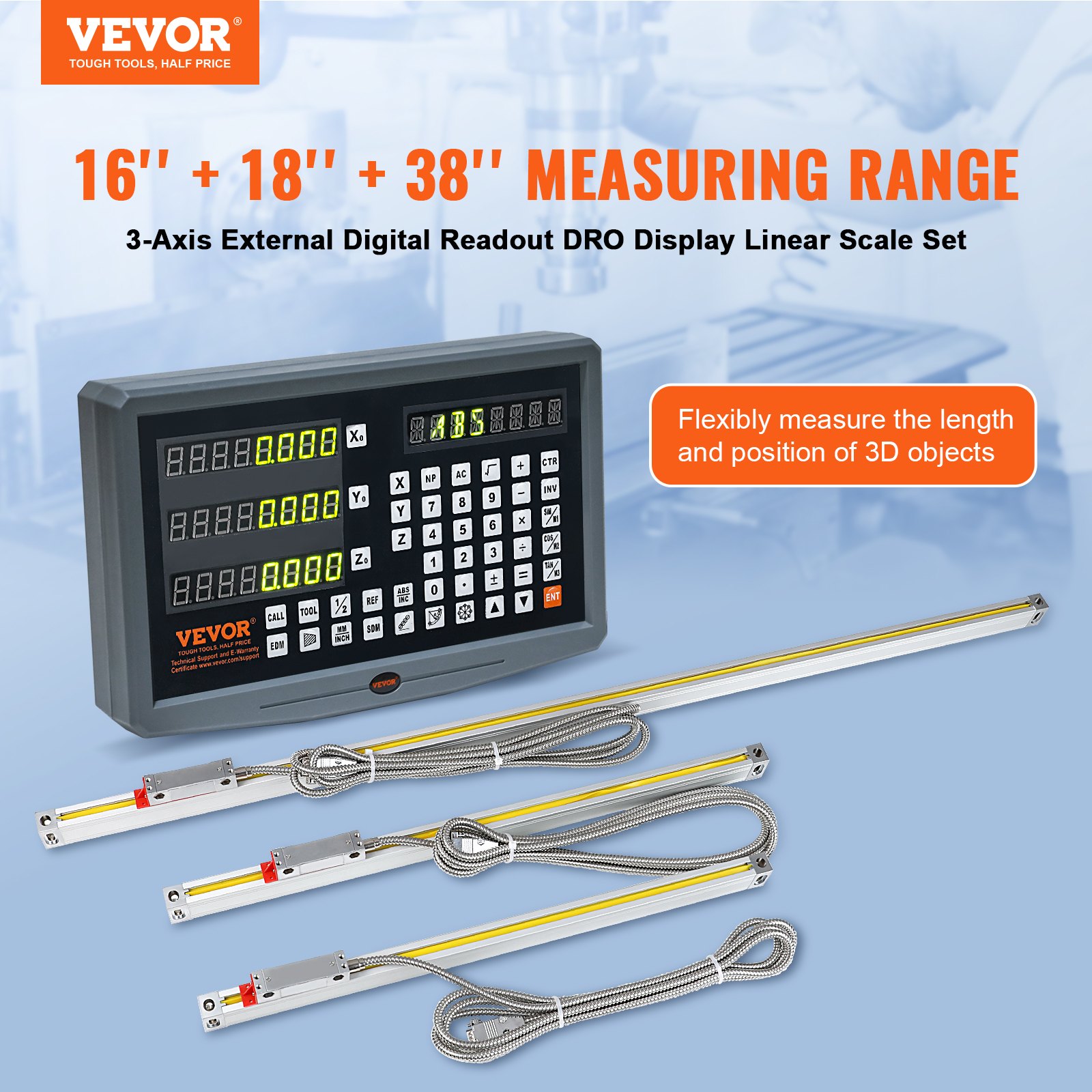

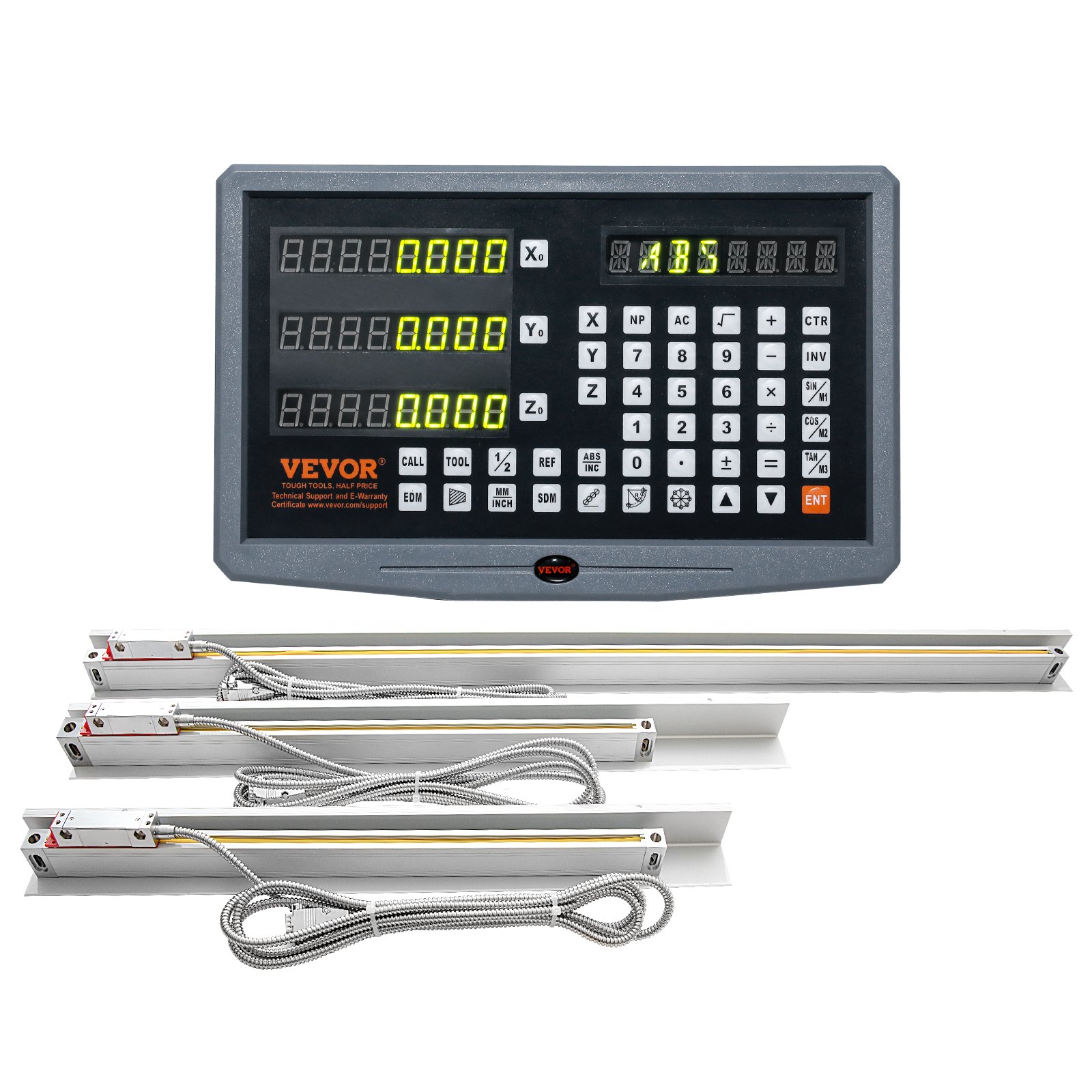

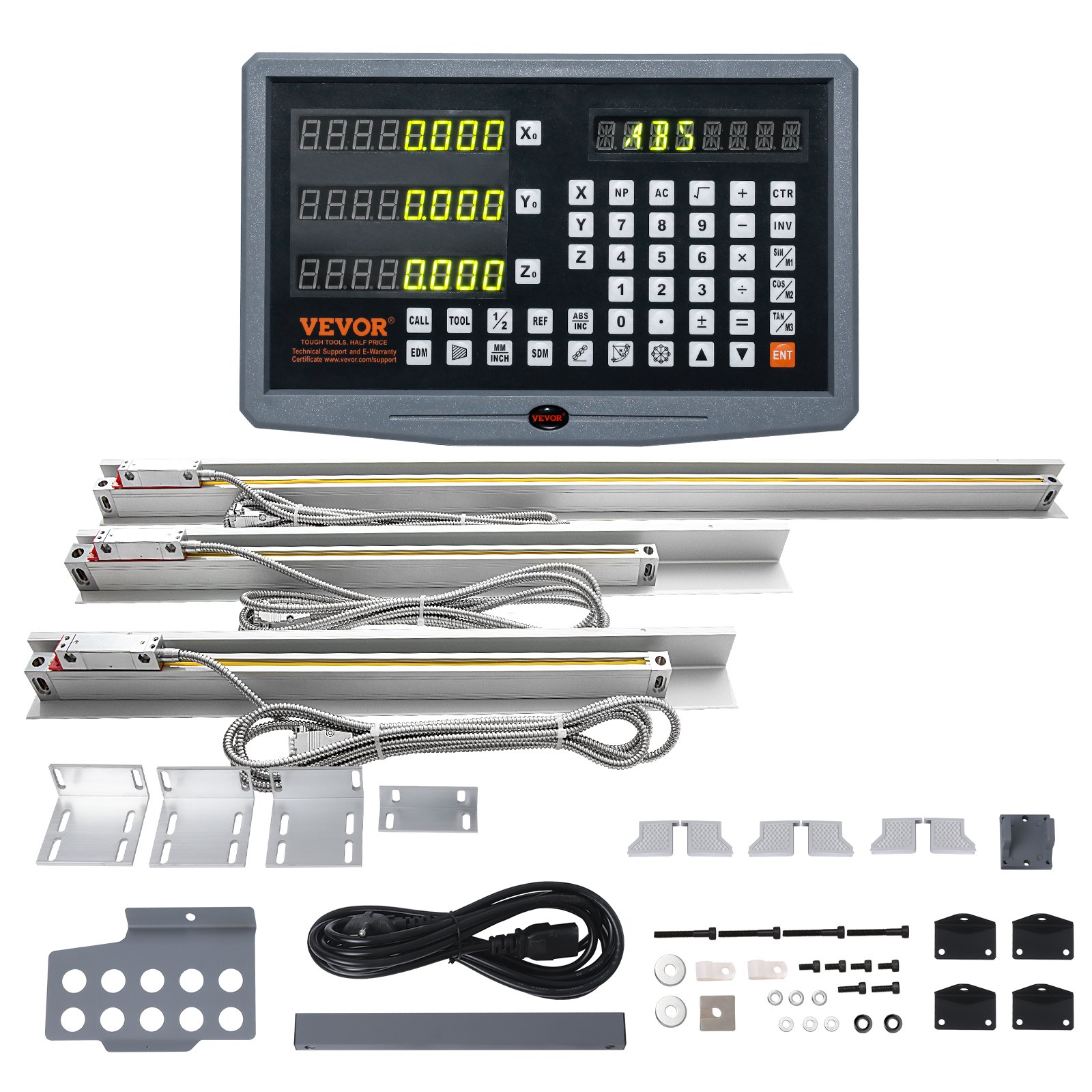

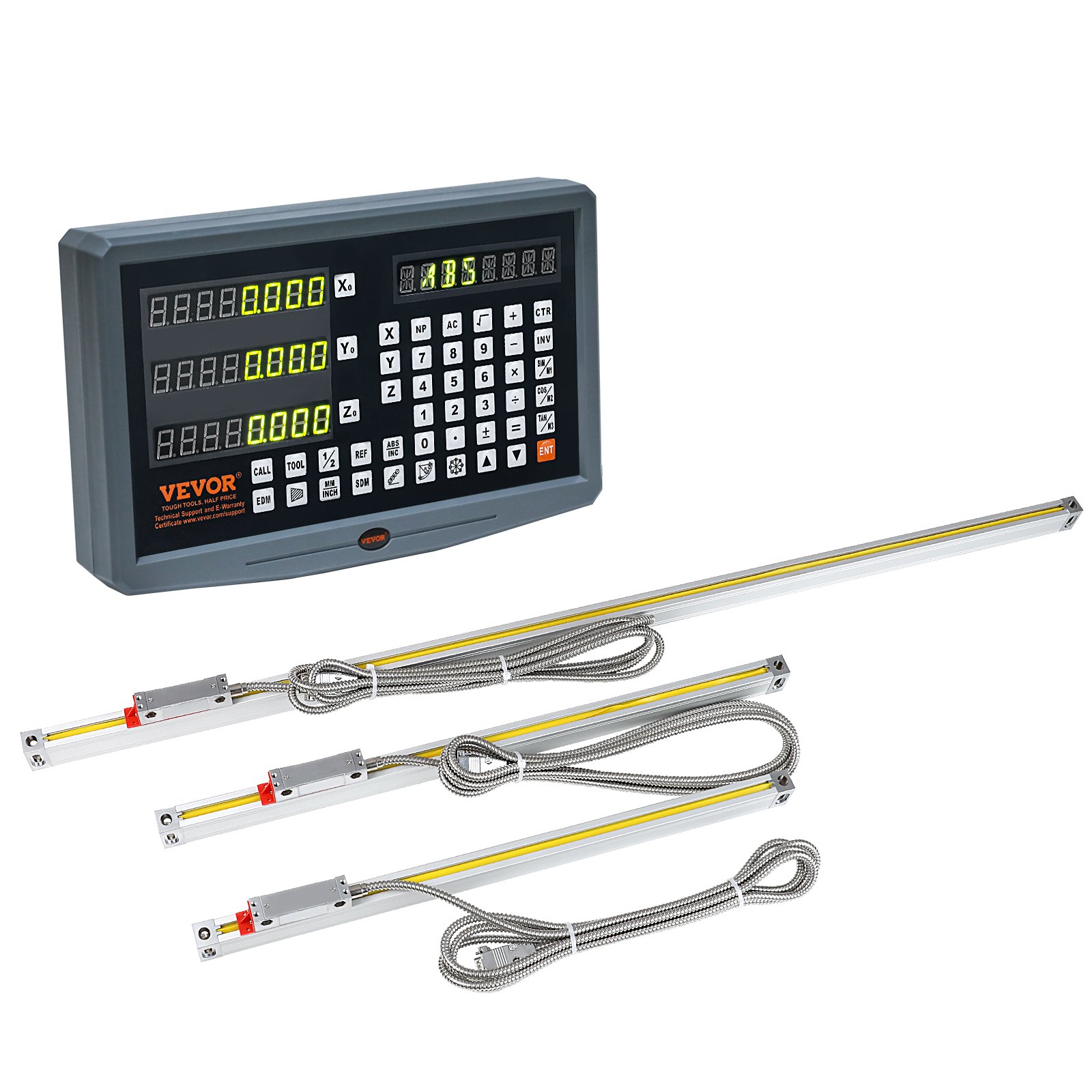

16'' + 18'' + 38'' Travel Length: Experience versatility with our 3-axis linear scale set, offering three travel lengths: 16 in/400 mm, 18 in/450 mm, and 38 in/950 mm. Adapt to your specific needs on the X-axis (length), Y-axis (height), and Z-axis (width), enabling seamless measurements of three-dimensional workpieces such as wood, stone, and metal. Facilitate high-precision processes such as circumference drilling.

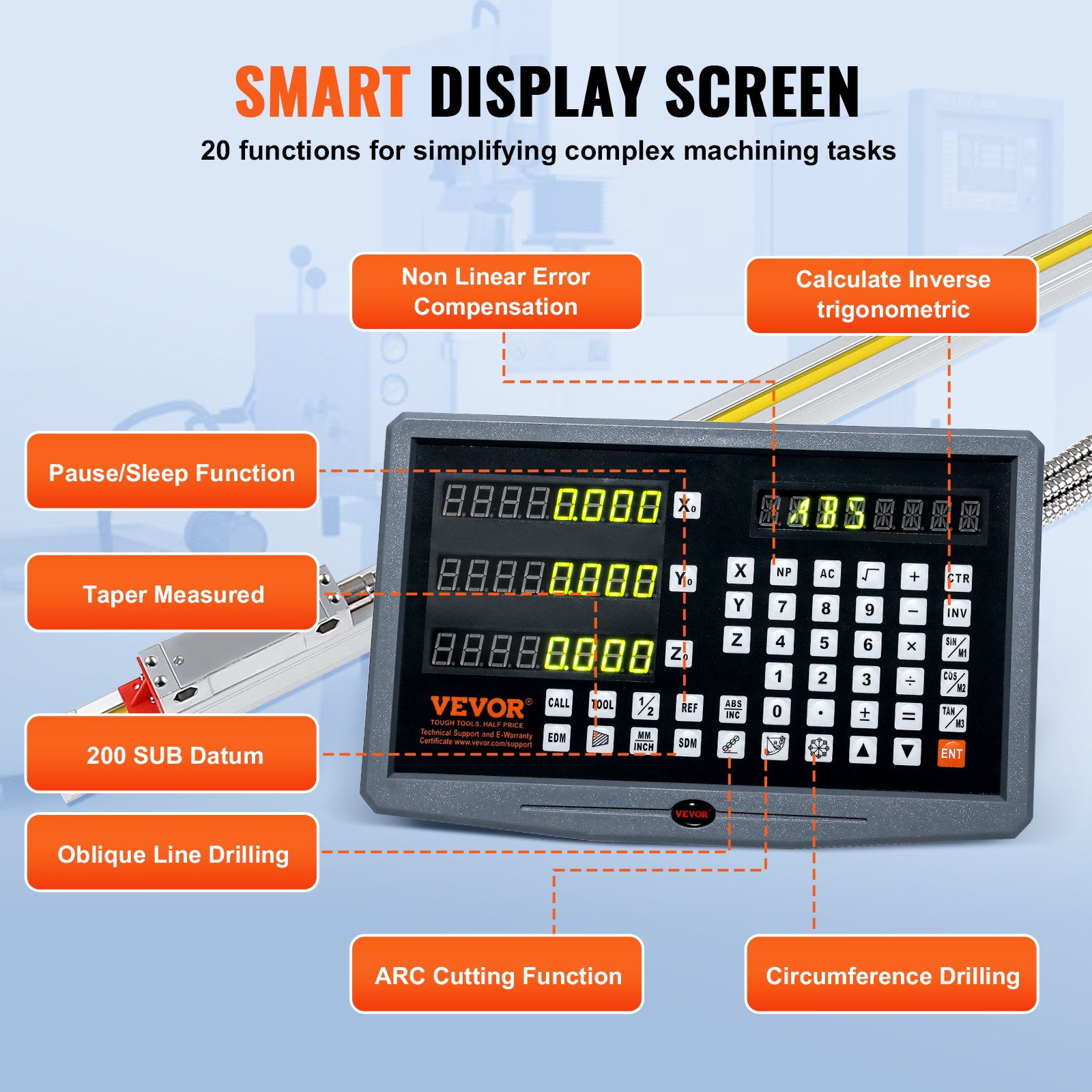

Multifunctional Crystal-Clear Display: Our display screen offers many basic and specialized functions to ensure convenient measurement and positioning. The basic functions include standard data measurement, calculation, zeroing, unit conversion, pause sleep, power-off memory, non-linear error compensation, and more. Specialized functions encompass ARC cutting function, circumference drilling, oblique line drilling, and calculate inverse trigonometric.

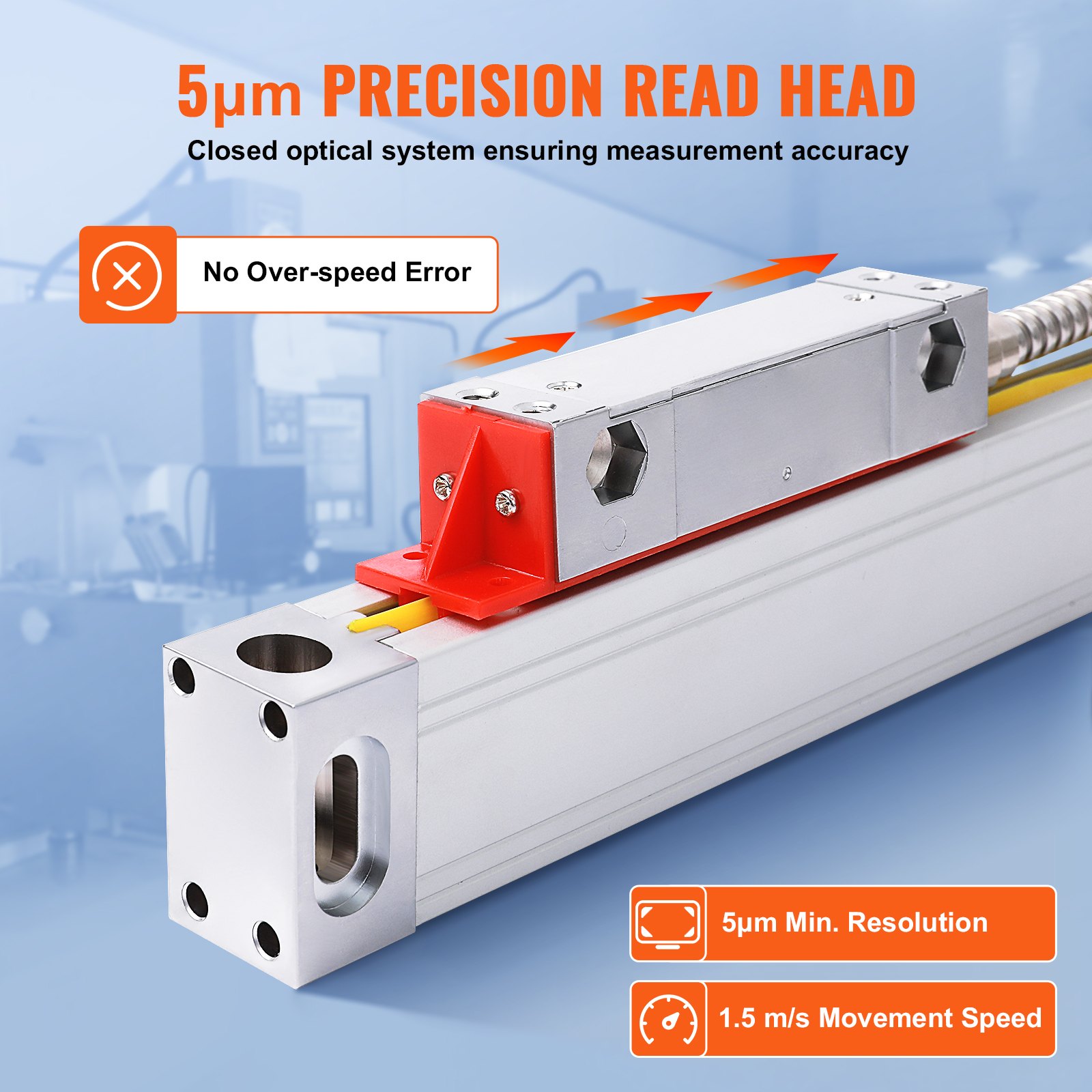

Precision 5μm Read Head: Our linear scale boasts a remarkable 5μm minimum resolution. Even at the longest range of 38 in(950 mm), it exhibits an error of only 0.004 in (0.1 mm) during standard and repeated measurements. With a rapid read head movement speed of 1.5 m/s, it leaves no room for overspeed errors. Precision redefined, where every micron counts.

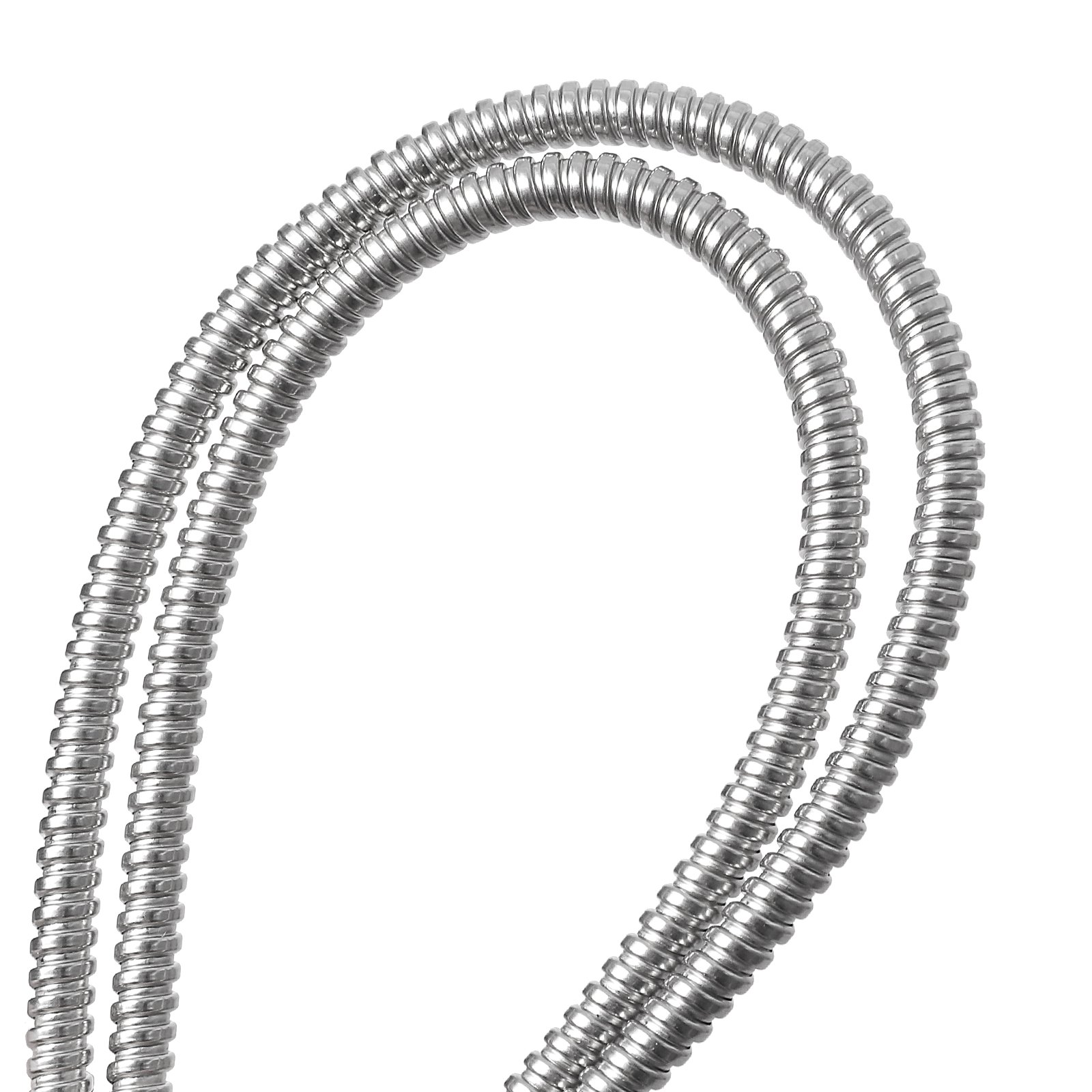

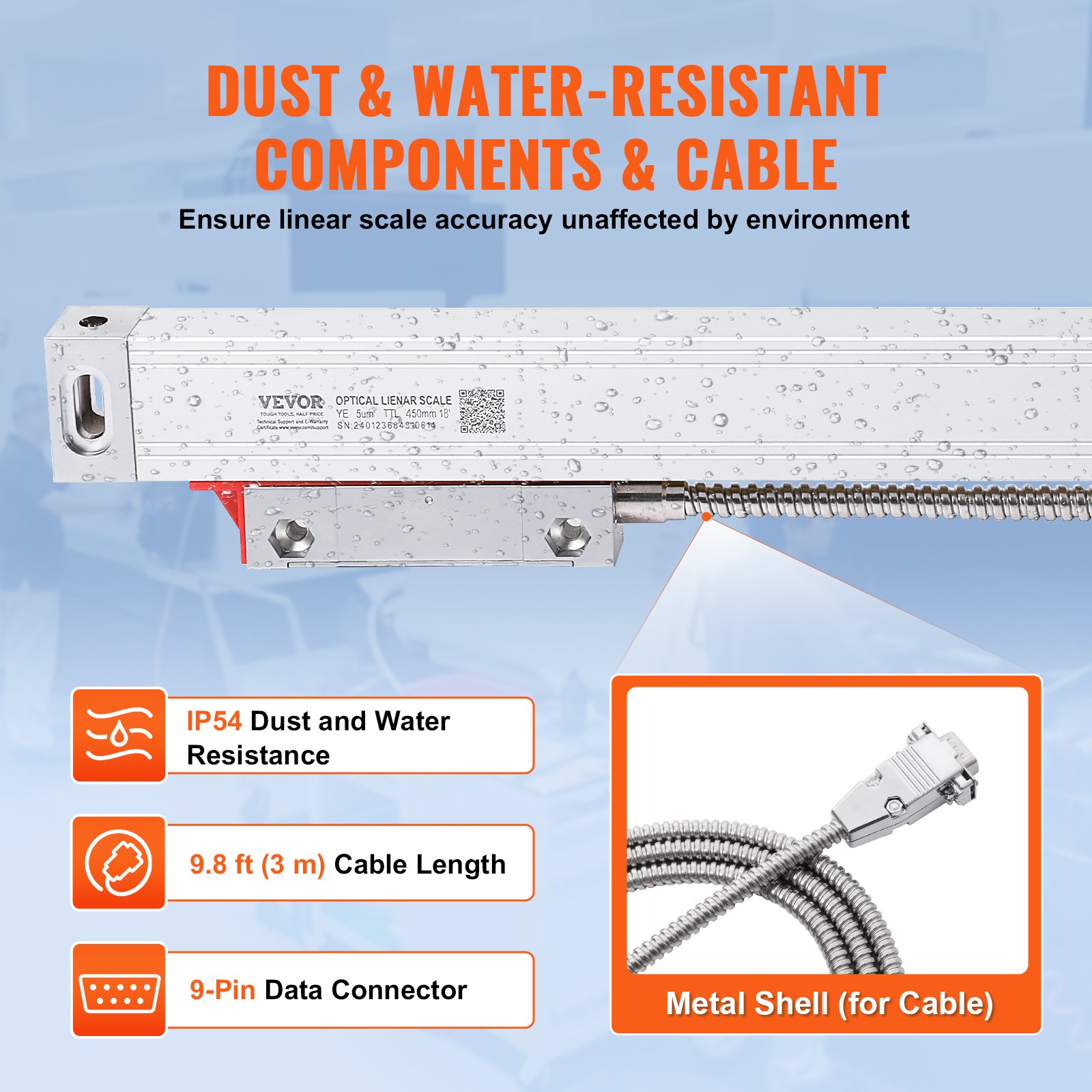

Defense Against Debris and Liquids: With a dual-layer lubricated seal and thickened optical glass protection, our linear scale achieves an IP54 dust and waterproof rating. It avoids dust accumulation and shields against splashes from all directions. The 9.8 ft (3 m) signal cable, equipped with a 9-pin data connector, features multiple layers of shielded steel wires and a soft metal casing, providing outstanding waterproofing and interference resistance.

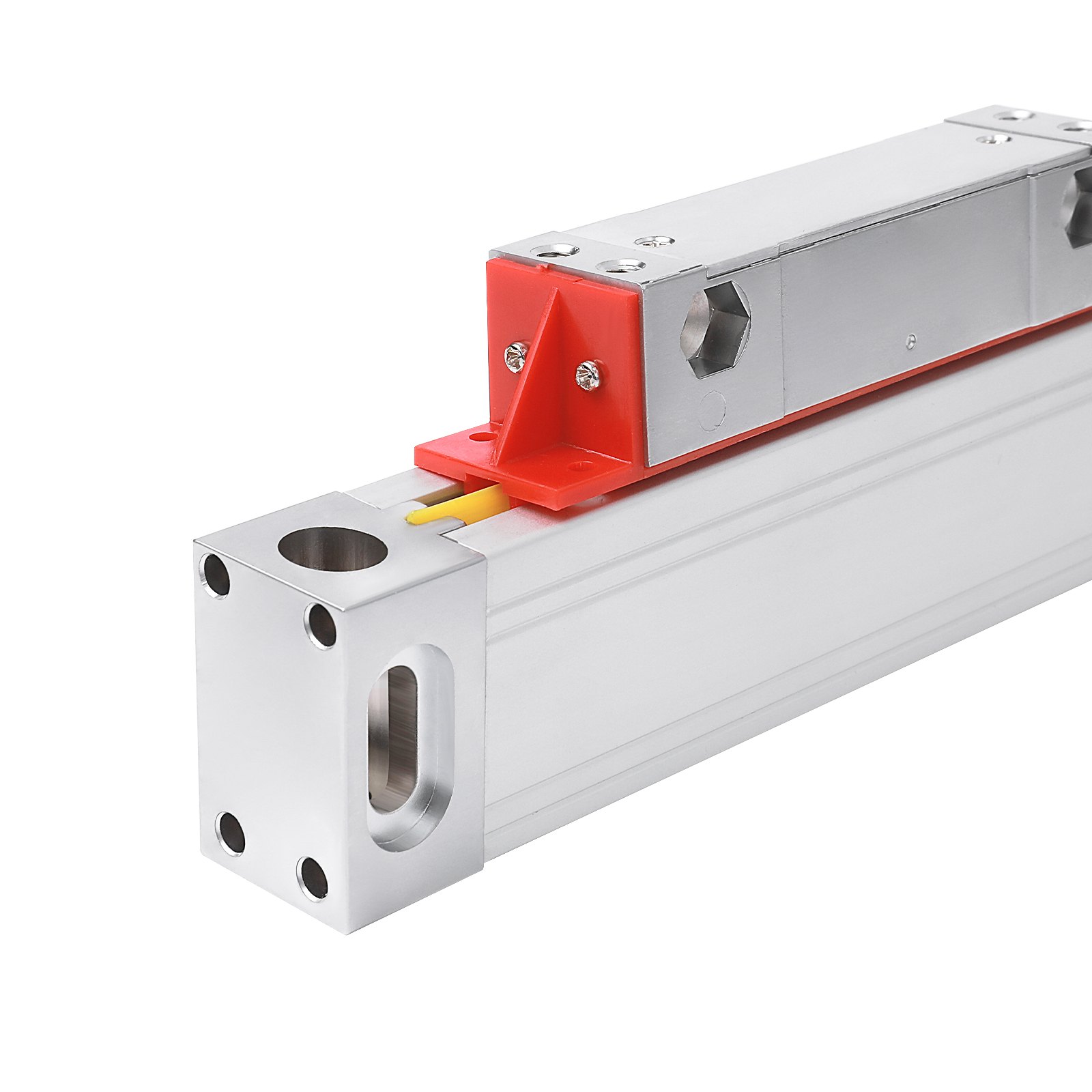

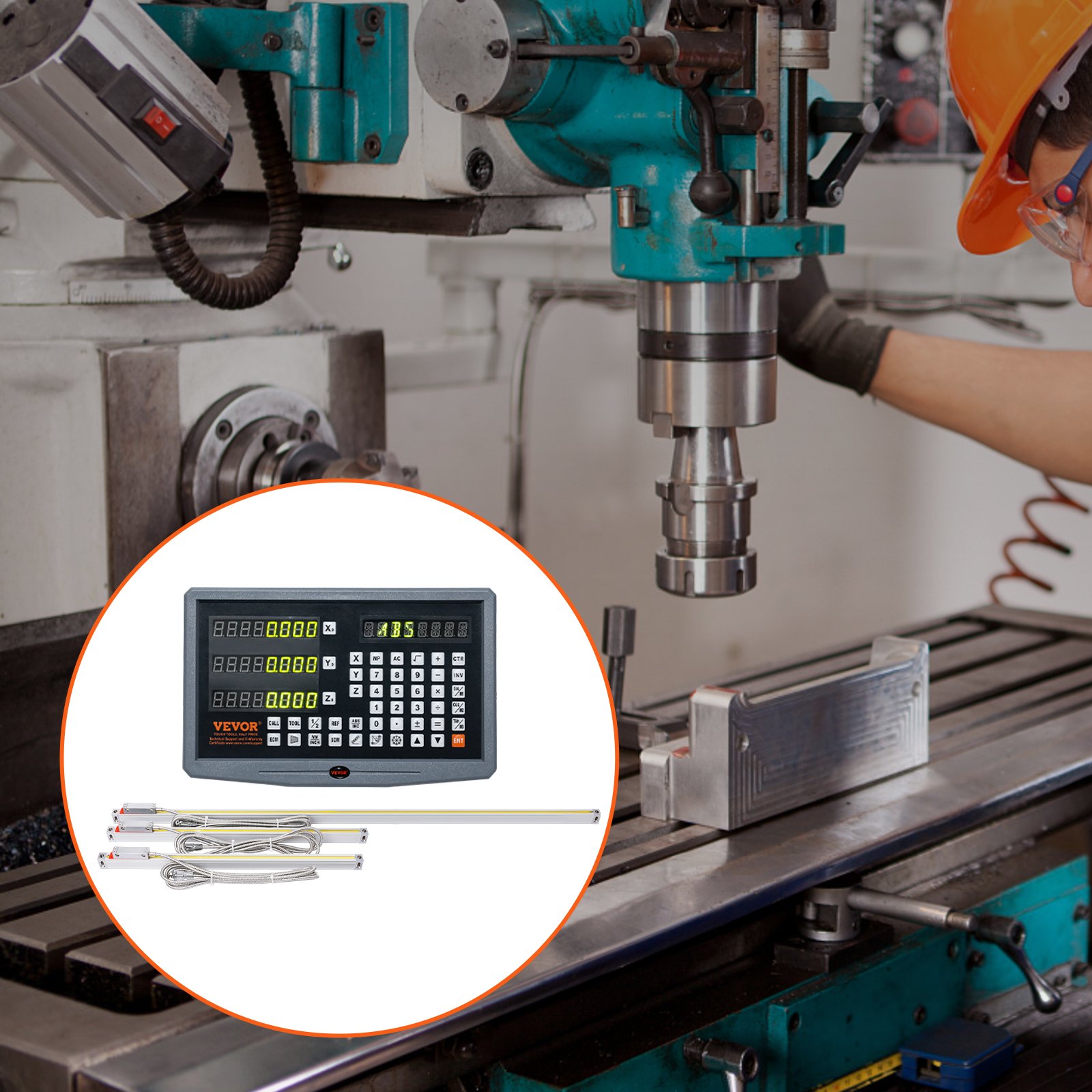

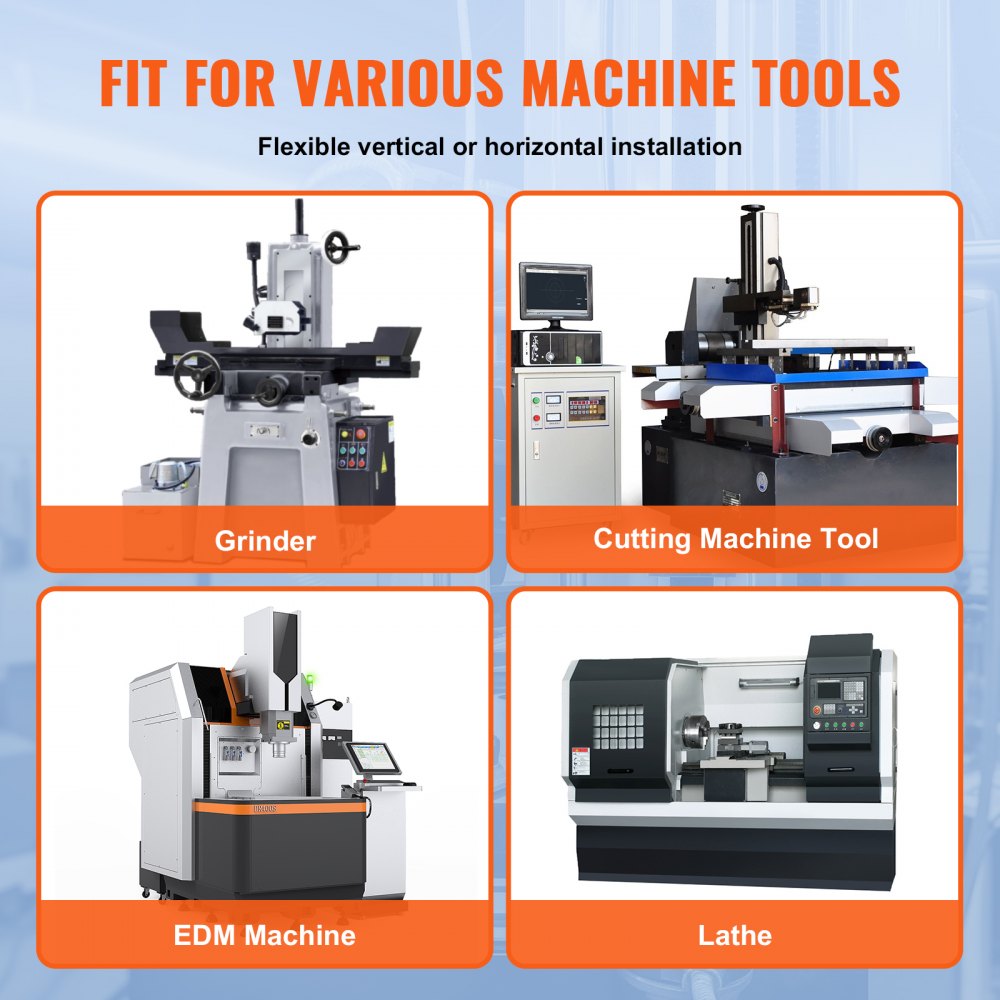

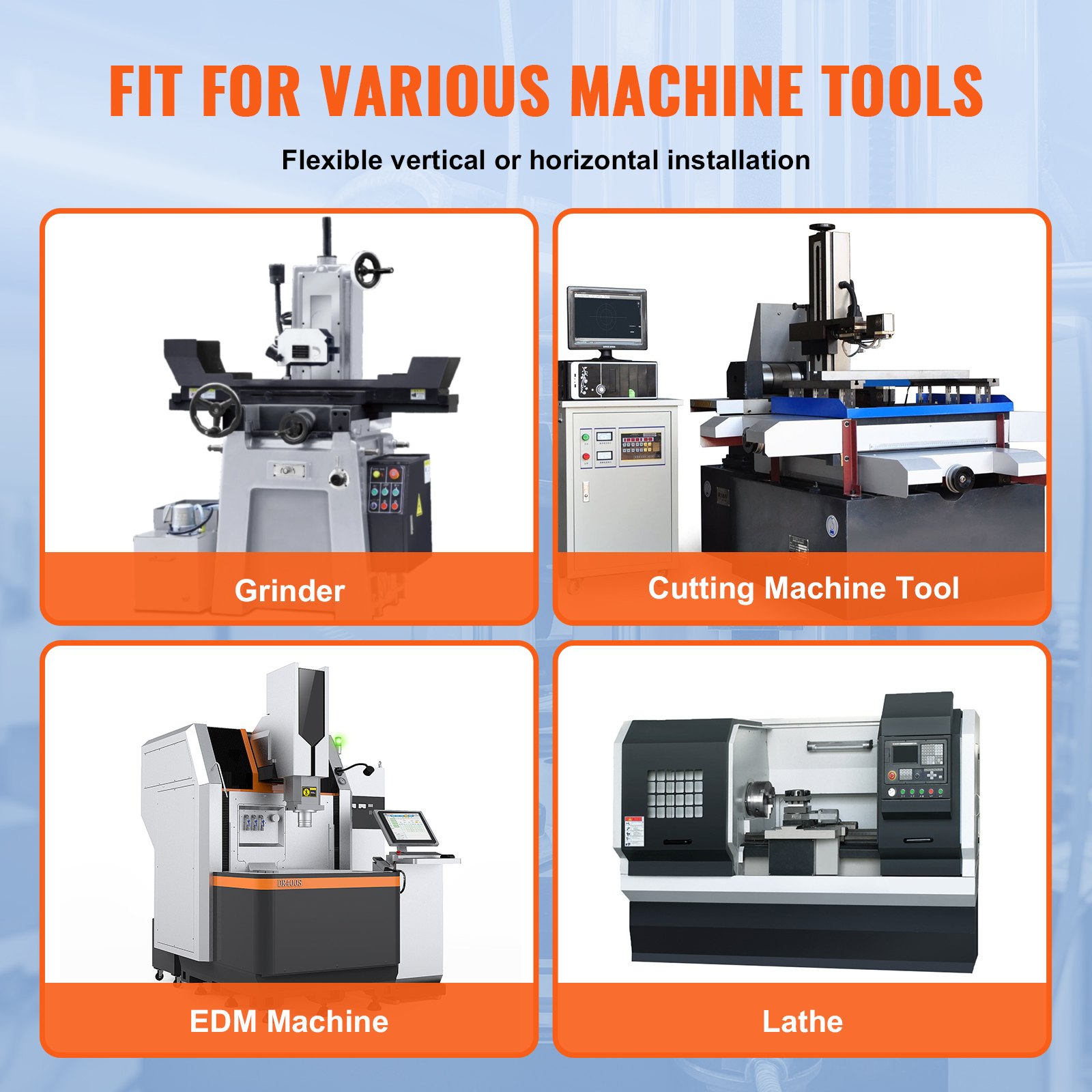

Vertical or Horizontal Installation: Our linear scale is designed for both vertical and horizontal installation on various machine tools, including cutting and drilling machines. During scale installation, ensure that the height direction is parallel to the mounting surface of the workbench with a tolerance of less than 0.1 mm. Please note that when installing on non-machined surfaces, shims must be added to the back of the scale for stability. Your precision setup is made easy.
Our 3-axis linear scale set delivers full-dimensional measurements of complex workpieces with 10μm resolution. It features a rapid-response display for instant, accurate data and 3 travel lengths of 16 in/400 mm, 18 in/450 mm, and 38 in/950 mm. Precision unleashed in 3d machining.
Choose from 3 travel lengths: 16 in/400 mm, 18 in/450 mm, 38 in/950 mm. If your needs extend beyond high-precision length measurements on machine tools, including complex tasks like arc cutting function and oblique line drilling, our linear scale set is the perfect match for you.
Our display screen simplifies operations with features like ARC cutting function and circumference drilling, in which the sleep function and power-off memory ensure that your settings and data remain intact even when leaving your work environment or experiencing power failure.
Our grating linear scale is the epitome of precision in measurements. With 5μm resolution, lightning-fast response, and real-time data displayed on the screen, it achieves astonishingly low errors of only ±15μm (0.0006''). Experience precision like never before.
Our linear scale boasts a comprehensive dust and waterproof design, safeguarding against environmental interference that could lead to data inaccuracies. Unlike ordinary single-layer seals, our linear scale features an optimized dual-layer sealing, enhancing its resistance to external factors.

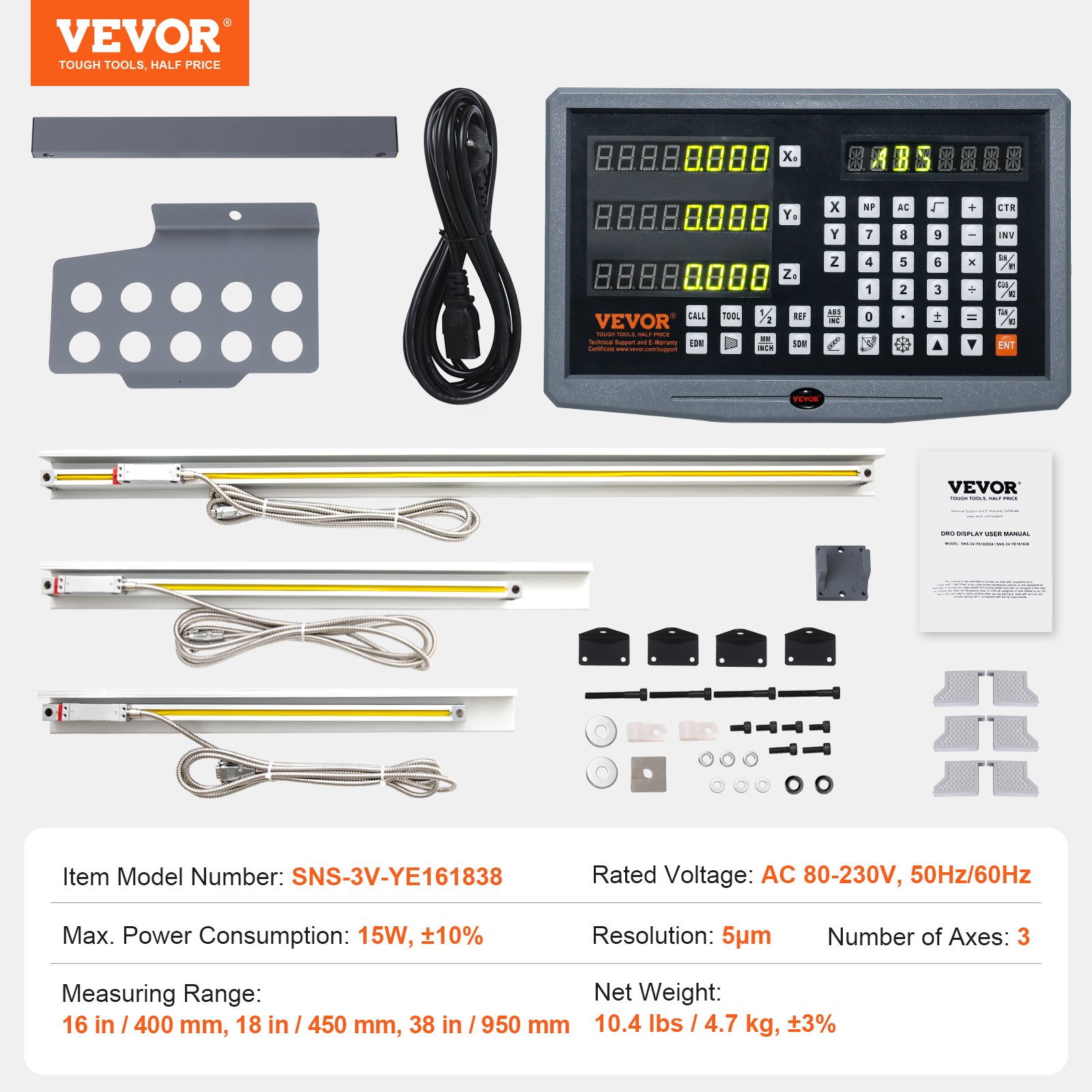

Specification
Item Model Number
SNS-3V-YE161838
Rated Voltage
AC 80-230V, 50 Hz/60 Hz
Max. Power Consumption
15W, ±10%
Resolution
5μm
Number of Axes
3
Measuring Range
16 in / 400 mm, 18 in / 450 mm, 38 in / 950 mm
Net Weight
10.4 lbs / 4.7 kg, ±3%
Questions and Answers
Typical questions asked about products: Is the product durable? ...
I decided that a DRO was needed for the Boxford A that was purchased for my son as a renovation project. Knowing that at least one of the glass slides would need to be cut I didnt want to throw money away.
To my surprise my son found cutting and bracketing dead easy and quickly, the XY DRO is very precise and was setbup in no time.
A good buy
