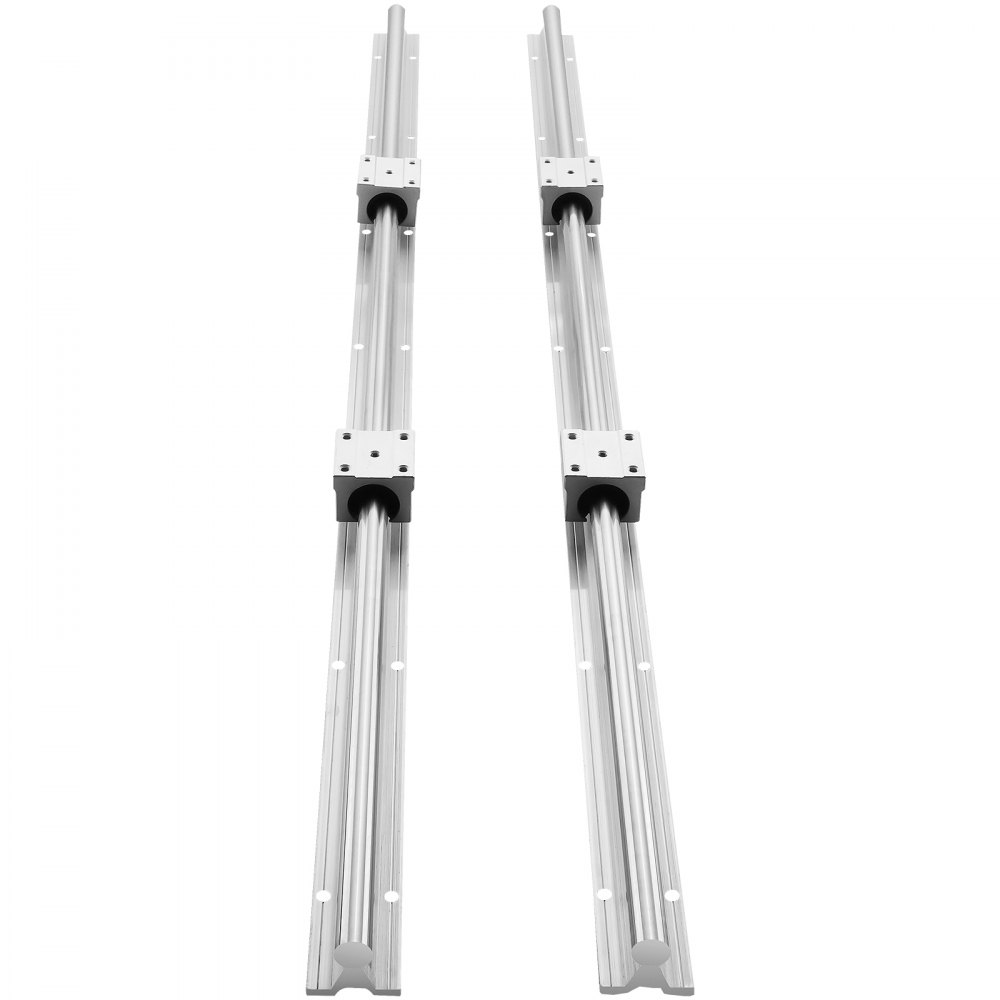

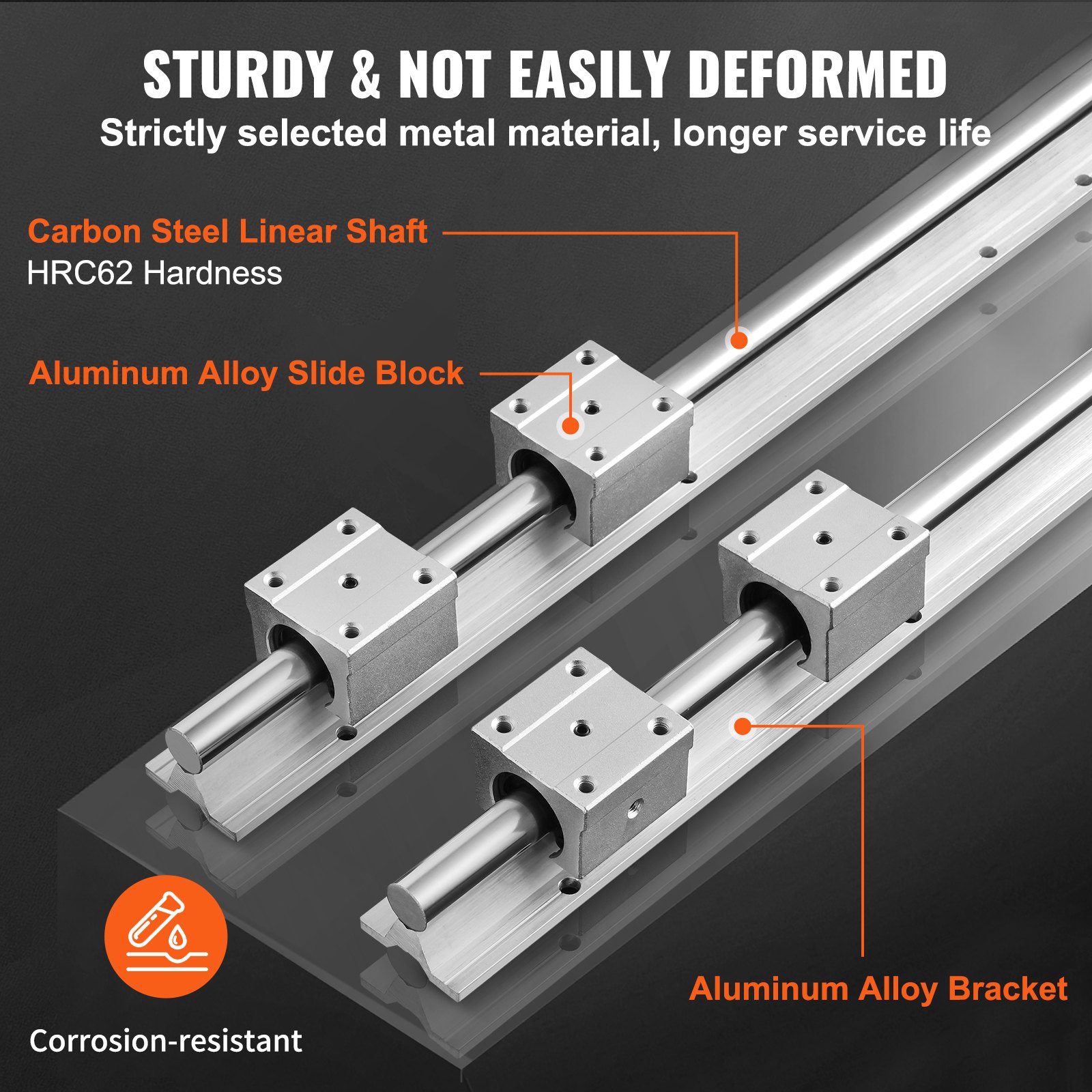

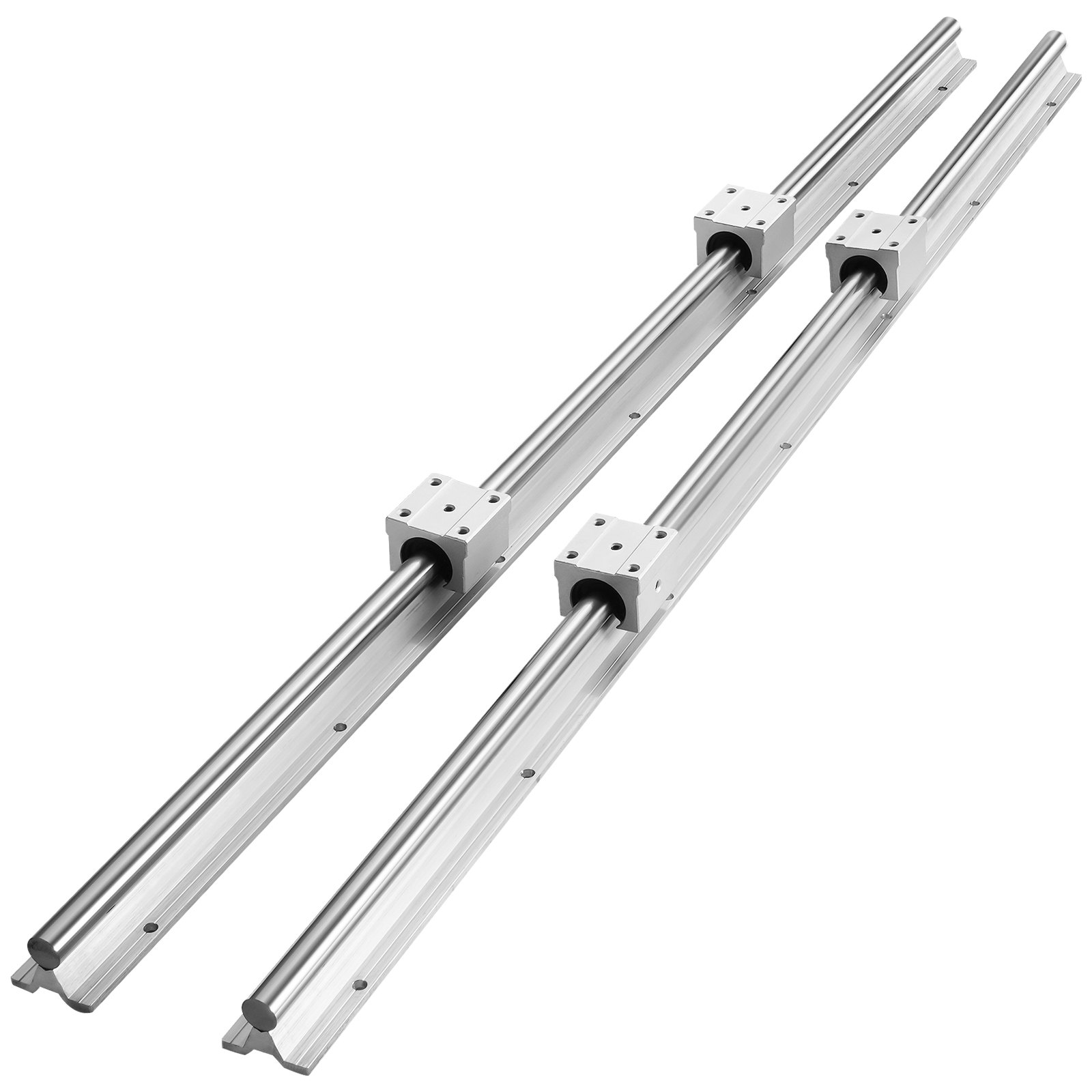

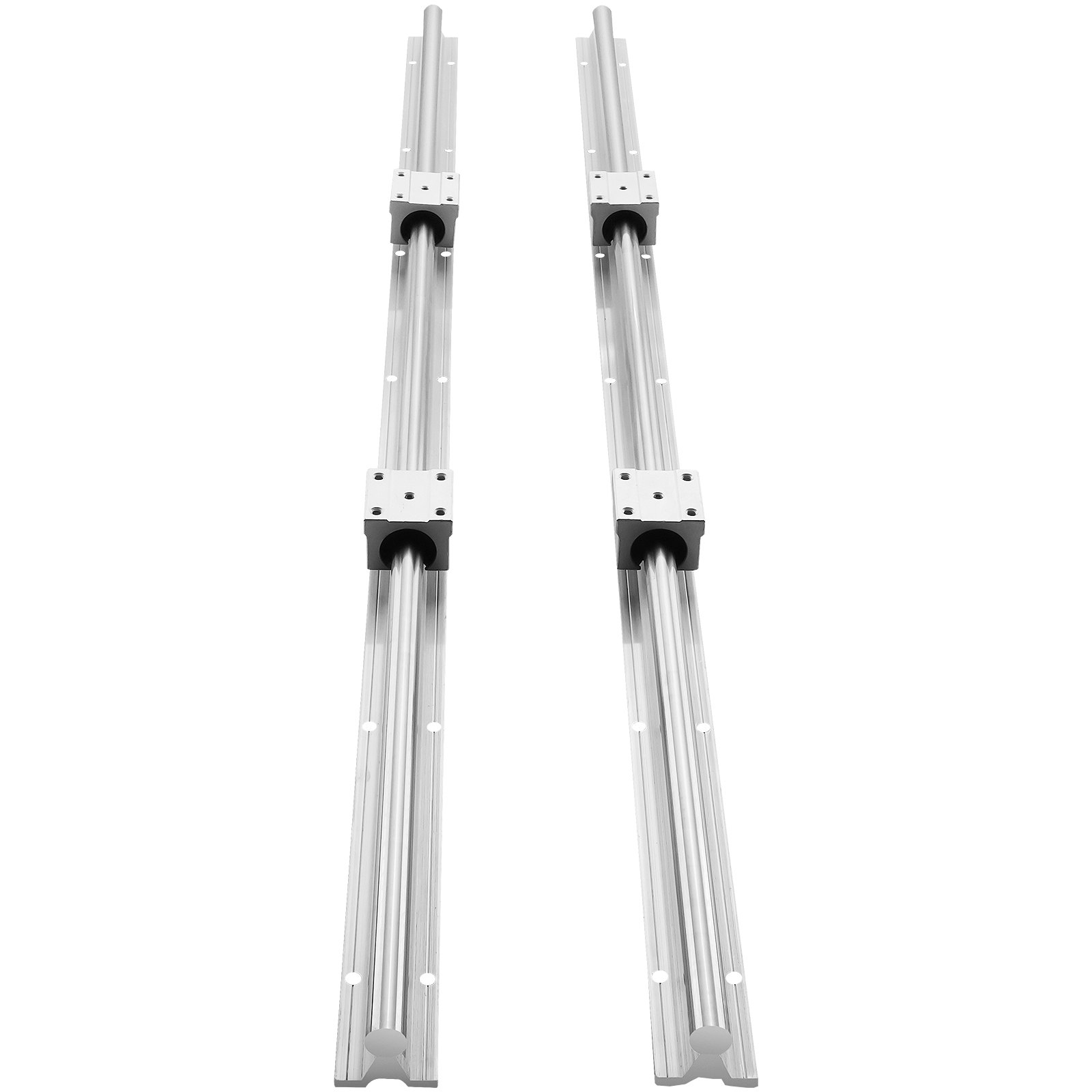

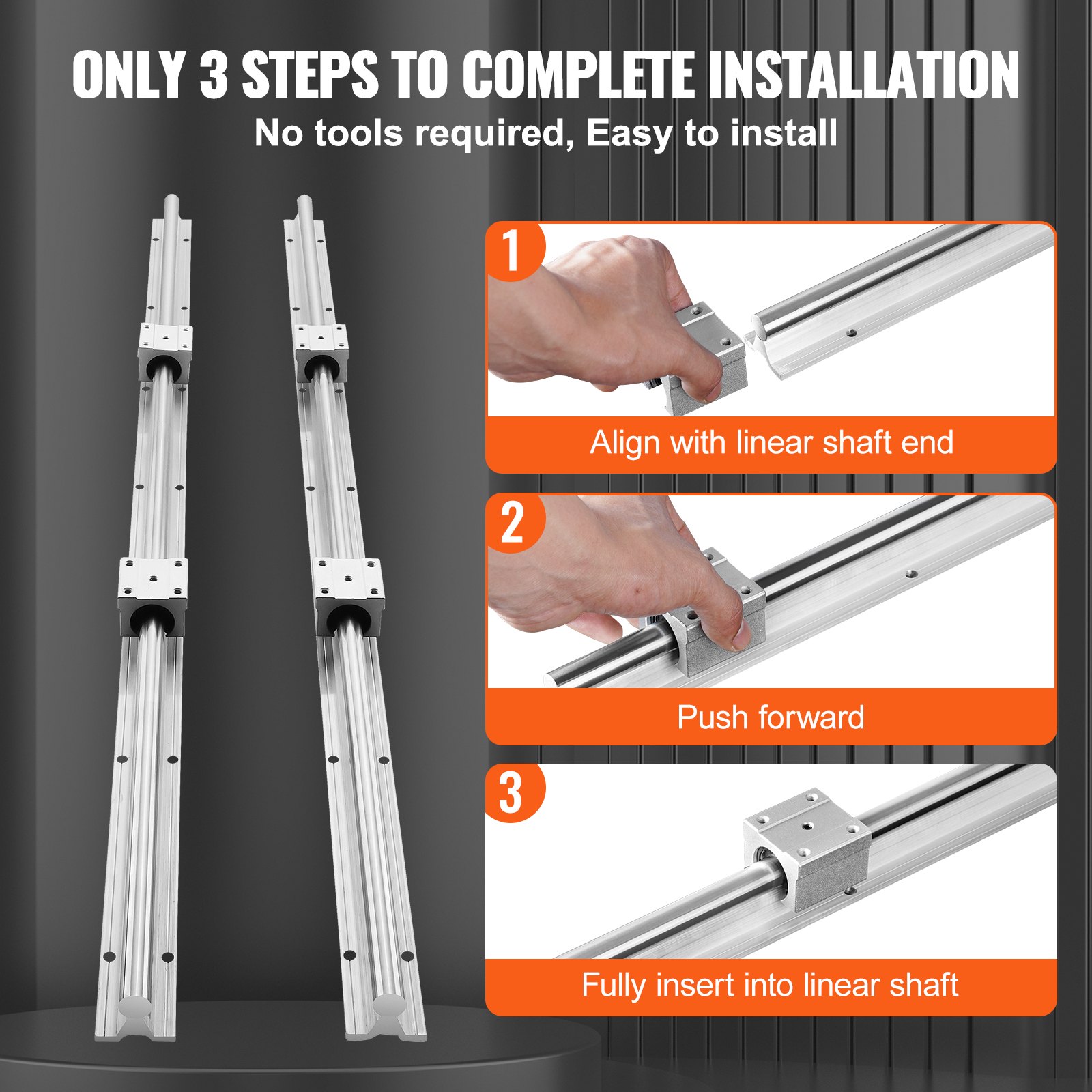

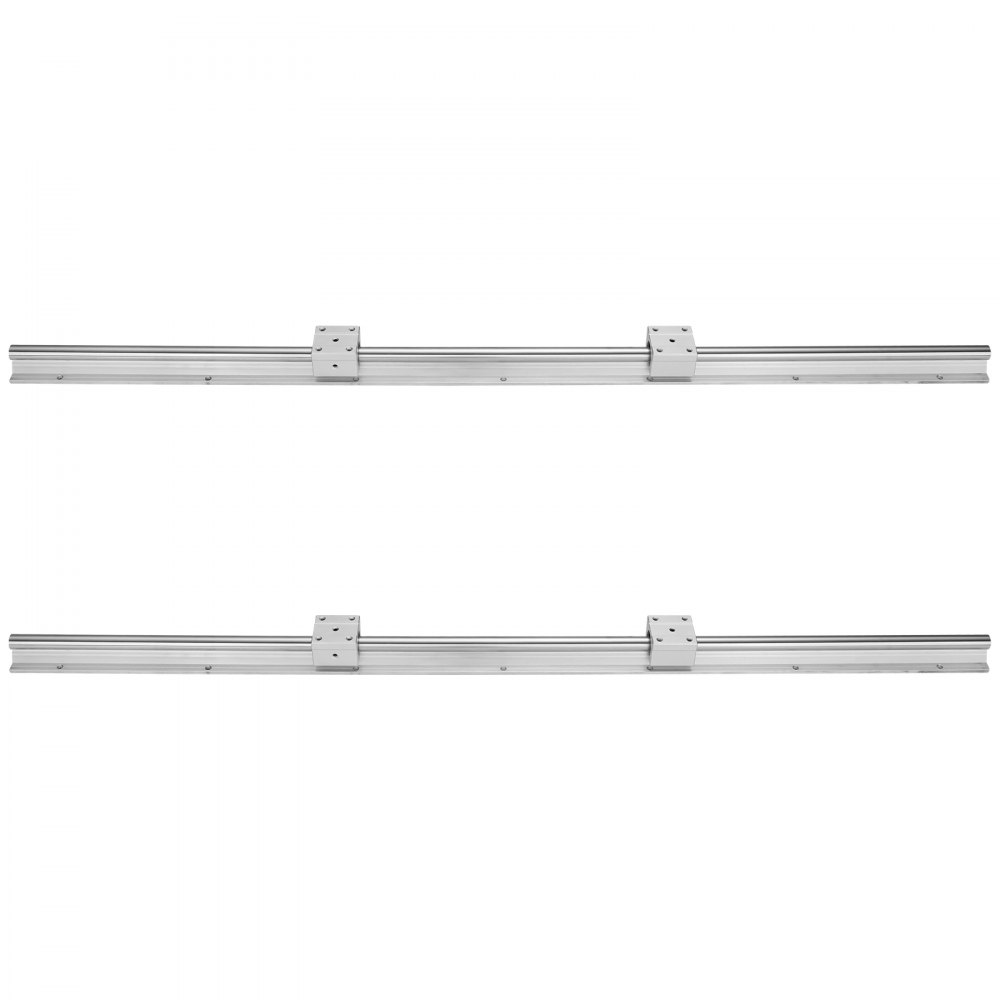

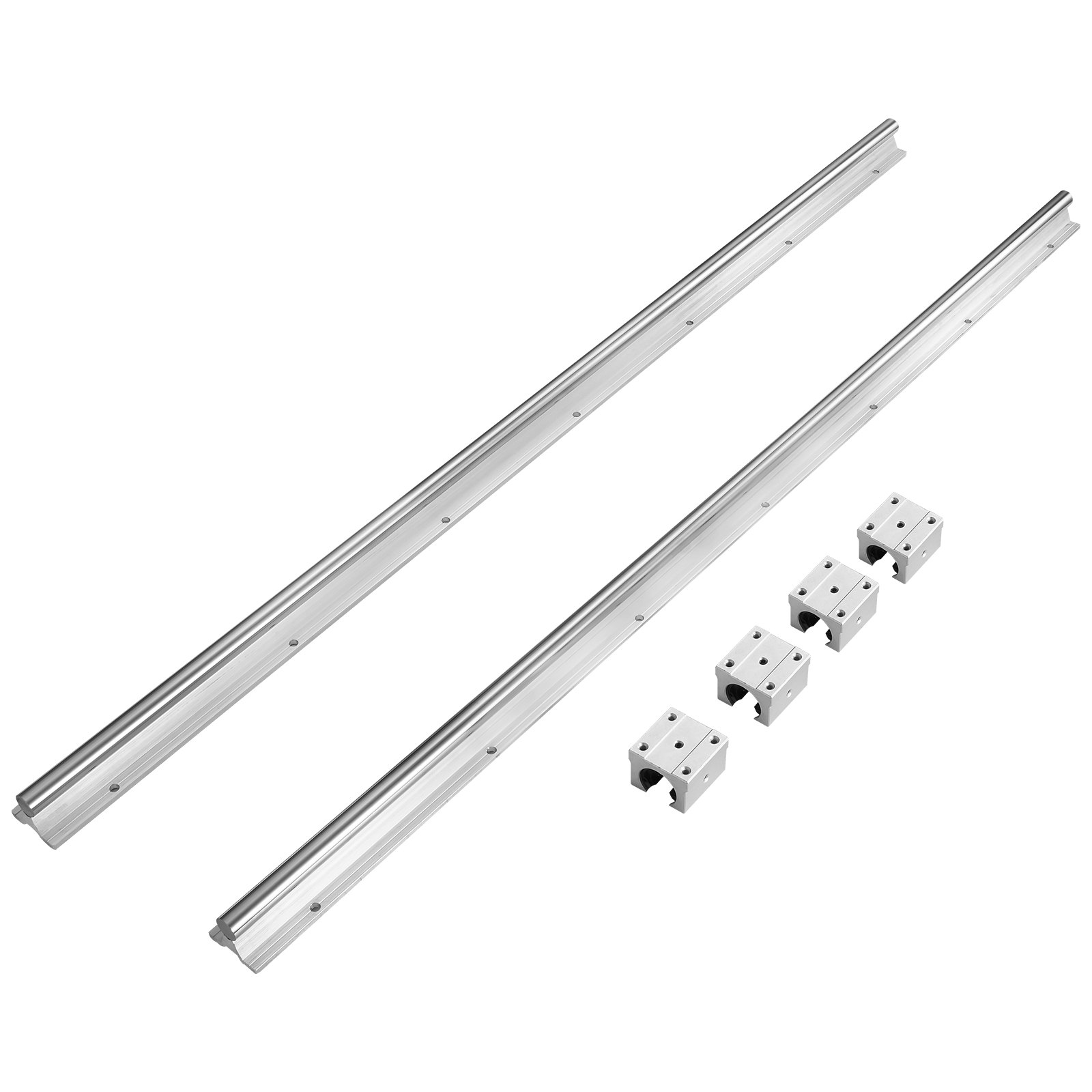

VEVOR linear guide rail set with two parallel rails and four bearing blocks on a white background. VEVOR linear guide rail set with 2 guide rails, 4 slide blocks for cnc machines and diy projects. VEVOR linear guide rail set with carbon steel linear shaft and aluminum alloy slide block and bracket. VEVOR linear guide rail set with slide block and ball bearing for low noise and unhindered movement VEVOR linear guide rail set: highly precise with accurate hole spacing and scratch-free rail surface. VEVOR linear guide rail set installation steps shown: align shaft end, push forward, fully insert. VEVOR linear guide rail set with specifications including length, diameter, and load capacity.
ZXDGSBR20MM125YV3V0

VEVOR Linear Guide Rail Set, SBR20 1200mm, 2 PCS 47.2 in/1200 mm SBR20 Guide Rails and 4 PCS SBR20UU Slide Blocks, Linear Rails and Bearings Kit for Automated Machines DIY Project CNC Router Machines

See All Customer Reviews
37 Reviews 1 answered questions
Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive 5,00€ off on your first three app orders. Only App.
Download Now
Exclusive 5,00€ off on your first three app orders. Only App.
Scan the QR code to download

20 mm

  • 20 mm
  • 12 mm
  • 25 mm

1200 mm

  • 800 mm
  • 650 mm
  • 1000 mm
  • 1800 mm
  • 1200 mm
  • 1500 mm
  • 2200 mm

About this item

  • SBR Linear Guide Rail Set: SBR20-1200 mm Linear motion guide rail includes 2 x 47.2 in/1200 mm length SBR20 guide rails and 4 x SBR20UU slide blocks. Dynamic Load Per Block: 882 N, Static Load Per Block: 1370 N.
  • Durable & Long-lasting: The linear rail is made of carbon steel and aluminum with a chrome-plated surface for rust resistance and high durability. Built-in 4 aluminum slide blocks and ball bearings for smooth and unobstructed sliding.
  • Low Noise Sliding: Aluminum SBR slide blocks and carbon steel linear shaft are perfectly paired. The built-in ball bearing provides low friction movement and is smooth and not tilted, allowing you to control more labor-saving.
  • High Precision: Precise circular shaft dimensions and straightness, ensuring high accuracy, repeatability, and stability in its motion. The sturdy aluminum base and slide block have accurate mounting holes, making it easy for users to perform reliable installation and connection.
  • Wide Application: The SBR linear rail set is versatile and suitable for all kinds of high-load automation equipment and DIY project, such as router/mill/lathe sleds, 3D printers, laser engravers, CNC machines, trainer rocker plates, etc.
See More See Less

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Linear Guide Rail Set, SBR20 1200mm, 2 PCS 47.2 in/1200 mm SBR20 Guide Rails and 4 PCS SBR20UU Slide Blocks, Linear Rails and Bearings Kit for Automated Machines DIY Project CNC Router Machines
20 mm 1200 mm
Description Specification Questions and Answers Reviews
vevorA+Template
SBR Linear Guide Rail
VEVOR sbr linear guide rail set with high precision, wear resistance, low noise, and anti-corrosion.
VEVOR sbr linear guide rail set with high precision, wear resistance, low noise, and anti-corrosion.
VEVOR high-quality SBR linear guide rail includes 2 guide rails and 4 slide blocks. The durable aluminum guide rails feature precise hole diameter and distance, while the SBR slide blocks utilize ball bearings for smooth and unobstructed movement.
highly stable VEVOR linear guide rail set with large load-bearing capacity for heavy machinery.
highly stable VEVOR linear guide rail set with large load-bearing capacity for heavy machinery.
The linear bearing adopts an all-metal structure, and the slide block is tightly locked on the linear shaft, which has a high bearing capacity.

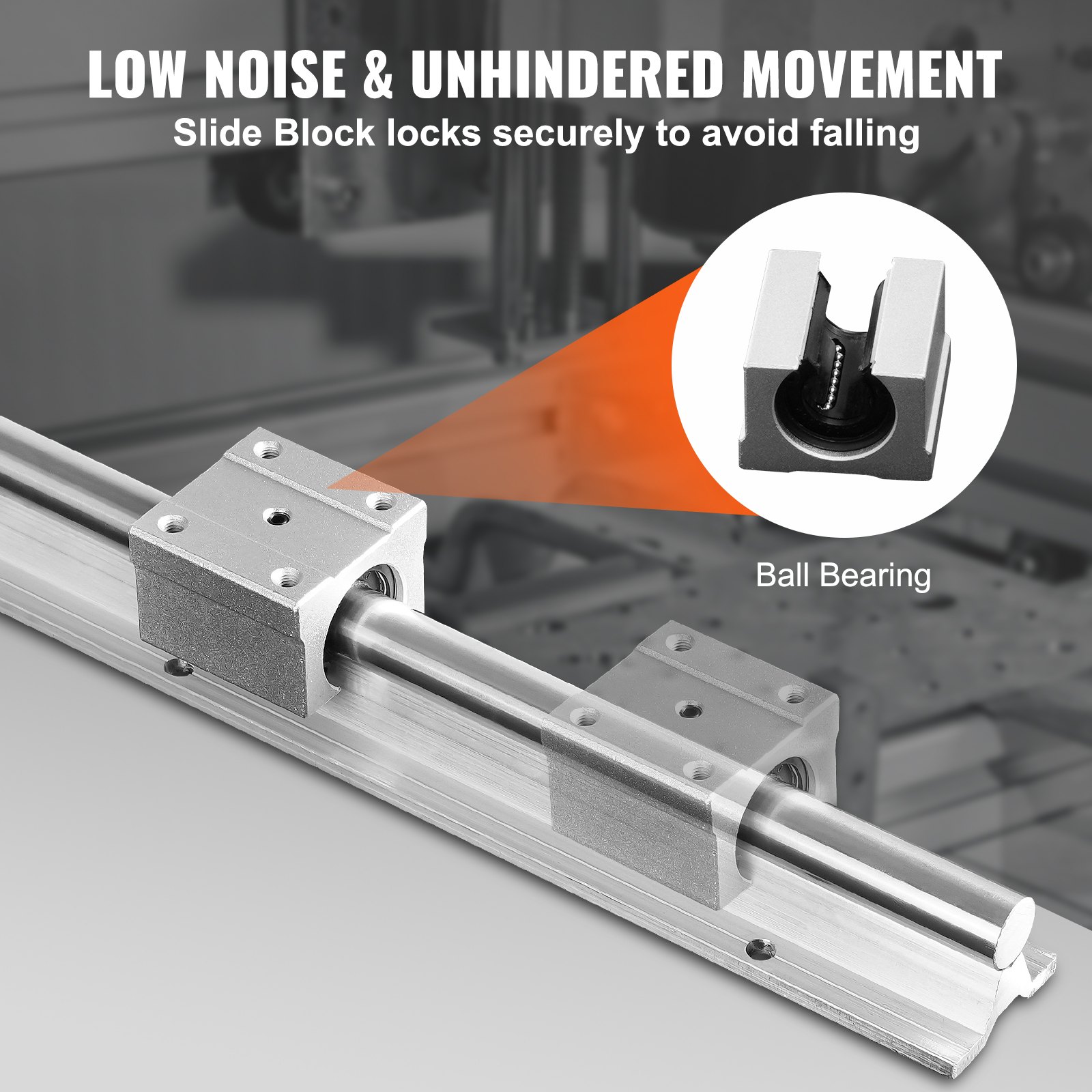

high precision VEVOR linear guide rail set with built-in ball bearing, dust-proof clip, pre-lubrication, and chrome plated surface.
high precision VEVOR linear guide rail set with built-in ball bearing, dust-proof clip, pre-lubrication, and chrome plated surface.
Aluminum SBR slide block and built-in ball bearings slide smoothly and move more effortlessly to ensure long-term stable operation.

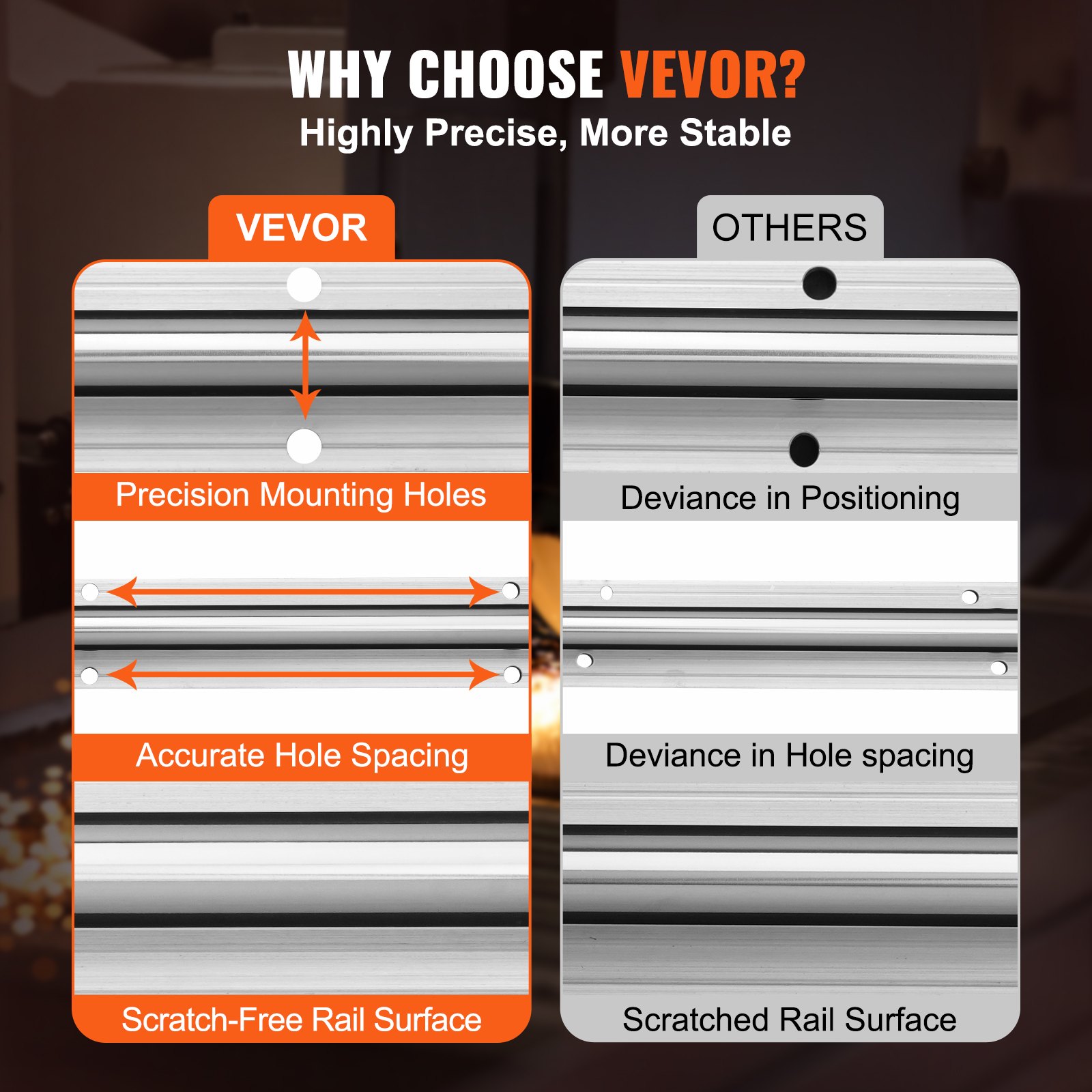

precision details of VEVOR linear guide rail set with accuracy metrics and high-quality components.
precision details of VEVOR linear guide rail set with accuracy metrics and high-quality components.
The linear motion guides have accurate hole distance, hole diameter, and standard shaft diameter, allowing you to install your equipment more precisely.

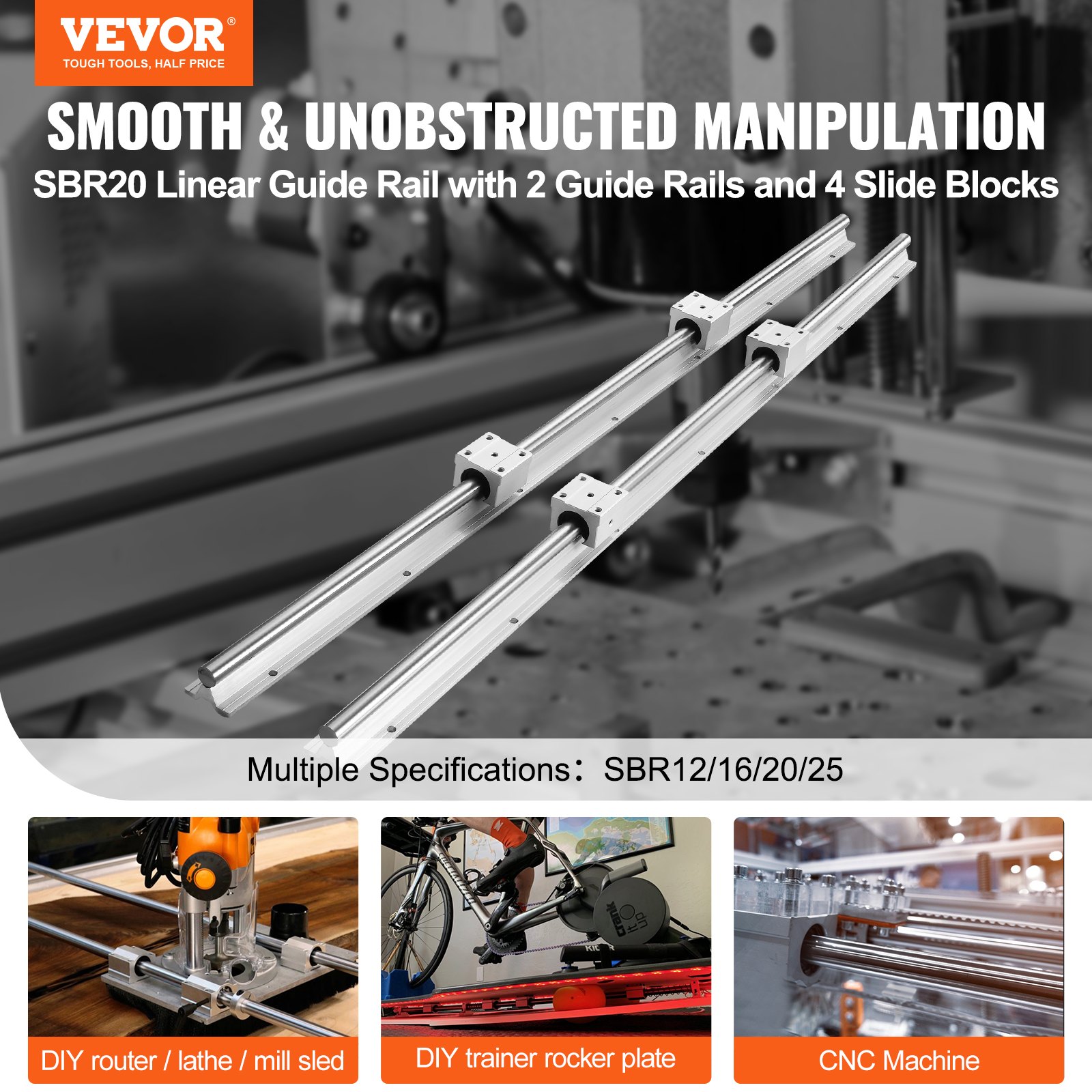

various uses of VEVOR linear guide rail set: diy router, trainer rocker plate, cnc machine.
various uses of VEVOR linear guide rail set: diy router, trainer rocker plate, cnc machine.
Linear rail kit is widely used in high-load automation equipment and DIY equipment production. For example, DIY CNC engraving machines, lathes, etc.

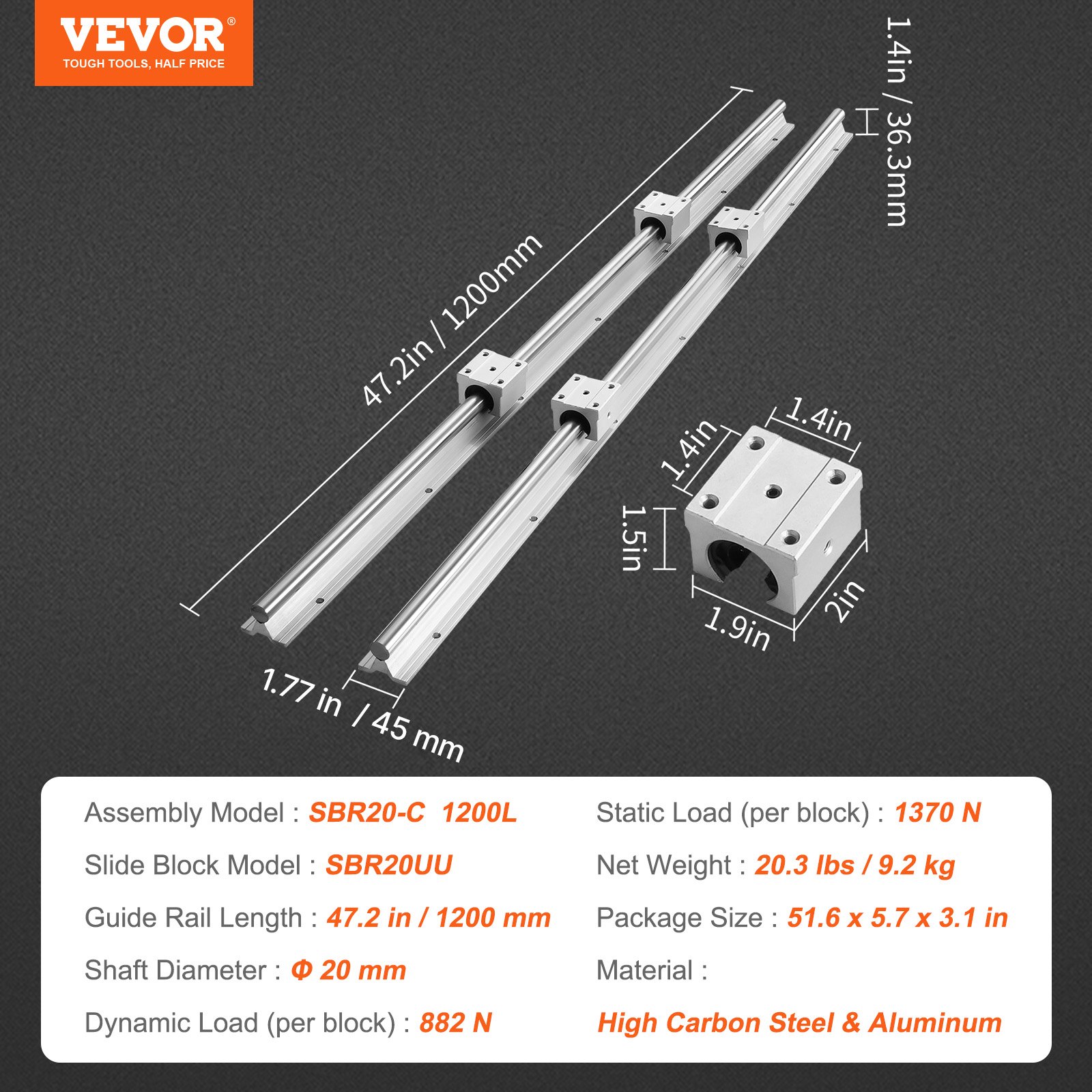

VEVOR linear guide rail set, 47.2in length, 20mm shaft diameter, high carbon steel and aluminum.
VEVOR linear guide rail set, 47.2in length, 20mm shaft diameter, high carbon steel and aluminum.

Specification

Model Number
SBR20-C 1200L
Slide Block Model
SBR20UU
Guide Rail Length
47.2 in/1200 mm
Shaft Diameter
Φ20 mm
Dynamic Load (per block)
882 N
Static Load (per block)
1370 N
Material
High Carbon Steel & Aluminum
Mounting Hole Distance A
1.4 in/35 mm
Mounting Hole Distance B
1.4 in/35 mm
Slide Block Size(L x W x H)
2 x 1.9 x 1.5 in/50 x 48 x 39 mm
Product Dimensions(L x W x H)
47.2 x 3.5 x 1.4 in/1200 x 90 x 36.3 mm
Package Size(L x W x H)
51.6 x 5.7 x 3.1 in/1310 x 145 x 80 mm
Net Weight
20.3 lbs/9.2 kg
Manual
Download Link
Questions and Answers
1 Questions
or Ask a Question
Beste, Kan jullie systeem ook omgekeerd gebruikt worden? Maw zou ik het kunnen gebruiken om er iets aan op te hangen? Mvg, Jan
Answer This Question
Ja, het product kan ondersteboven worden geïnstalleerd.
By vevor
Helpful ( 0 )

Customer Reviews

4.8 Out of 5
Based on 37 reviews

Ratings by Features

  • 4.7
  • 4.5
  • 4.6
  • 4.5
  • See More See Less
37 Review(s)
Clear filters
Brigitte Brigitte
Mrs
Very good product, just what I needed for my project. Good quality and reasonable price. I would buy again. Very good product, just what I needed for my project. Good quality and reasonable price. I would buy again.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Norman Norman
Mr
This item is an excellent product and at a very competative price when compared to other sellers. I would certainly purchase this or similar item again.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 1 people found this helpful
Willy W. O. R. Tel Willy W. O. R. Tel
Dhr.
Prima rail, zeker voor die prijs. Wij hebben hem toegepast voor iets dat niet heel zwaar belast wordt en ook maar weinig heen en weer gaat. Maar het loopt voor een geringe investering nu wel heel erg mooi en precies. Wij gaan er zeker nog meer van bestellen.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Marc Marc
Great Product
These were just right to build my router sled. very smooth rollers and glides really well. would purchase again
See More See Less
Helpful Sending feedback... Thank you for your feedback. 1 people found this helpful
hans van der spruit hans van der spruit
mooi product
top snel geleverd
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Paul Okami Paul Okami
Great value
I ordered these rails as a replacement setup for my home made panel saw. They arrived in good condition with all of the parts. The pillow blocks fit perfectly and run along the rail smoothly. They aren_ as smooth as high end blocks, but you can_ beat the price.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 1 people found this helpful
CoX CoX
Useful
Great for the router sled project I'm working on.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 1 people found this helpful
Thijs Thijs
niet recht!
Rails zijn niet recht, en een van de wagens is niet helemaal top. De rails op mijn granieten blad bekeken, laten duidelijk een flinke kromming zien. Bij de een een stuk minder erg dan de ander, maar het is niet acceptabel voor iets wat verkocht wordt als ''linear''. Dan verwacht je toch enige mate van rechtheid.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
G2138 G2138
Mr
I have used these to build a router ‘flattening sled’ - Really well made rails and bearings for this price. Delivery was on time, so all in all really very pleased. A nice touch would have been to provide bolts / screws to attach the bearing runners to “whatever your attaching” to them. That said I would highly recommend these, thank you Vevor.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Joris Joris
Super
Pakket is snel geleverd. Verpakking is goed. De geleiders doen wat ze moeten doen, afwerking is goed. Ik zal waarschijnlijk de 2200mm nog bestellen in de toekomst.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
