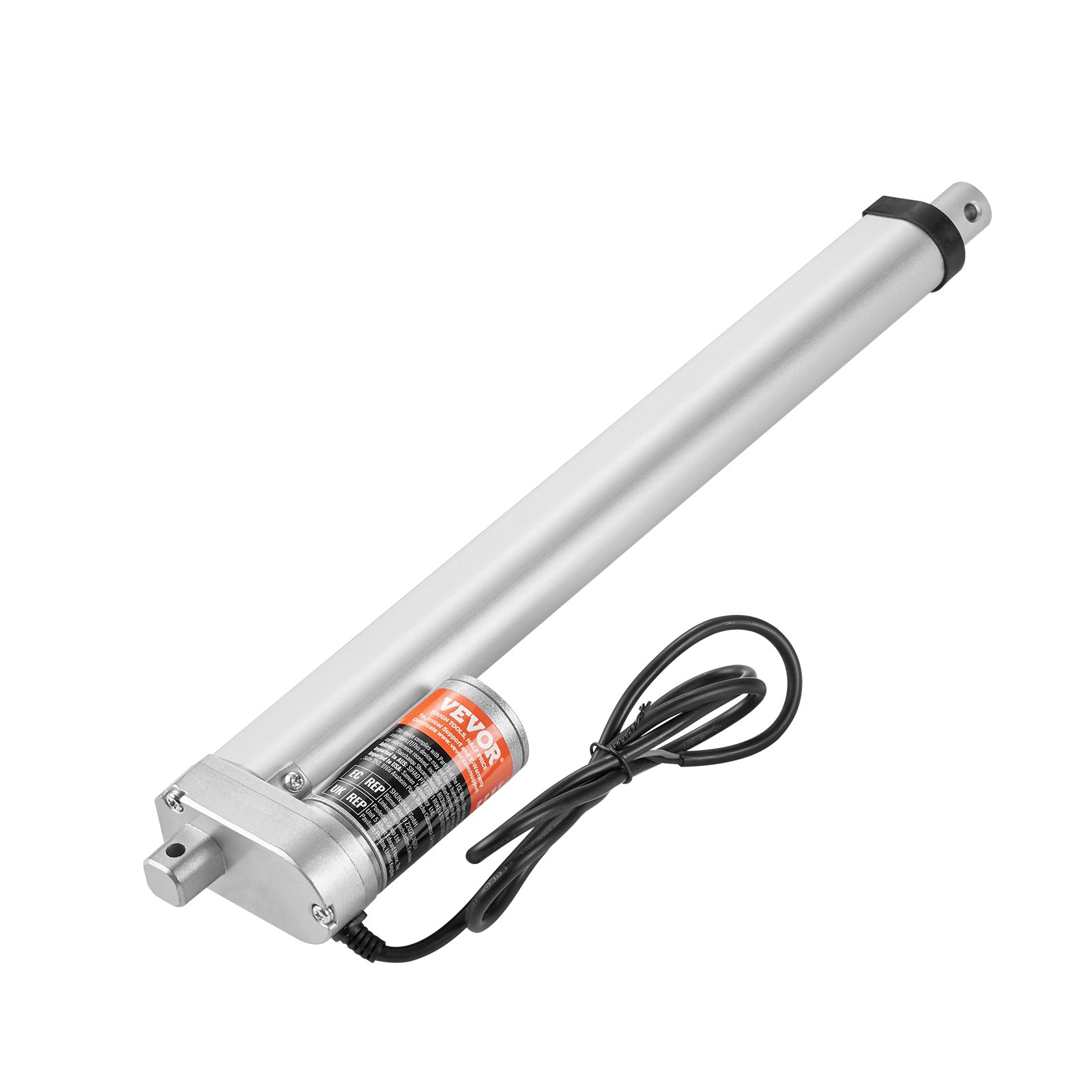

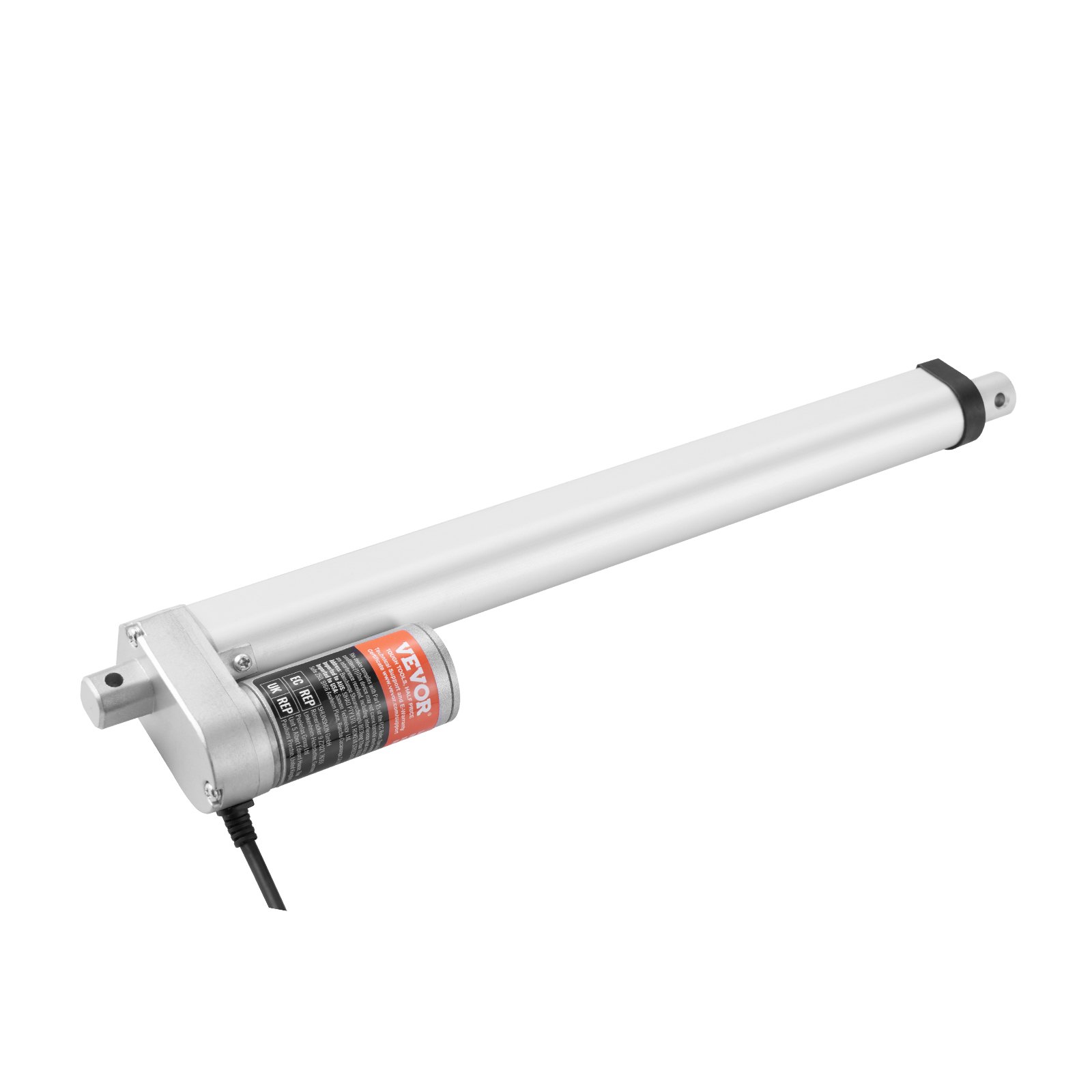

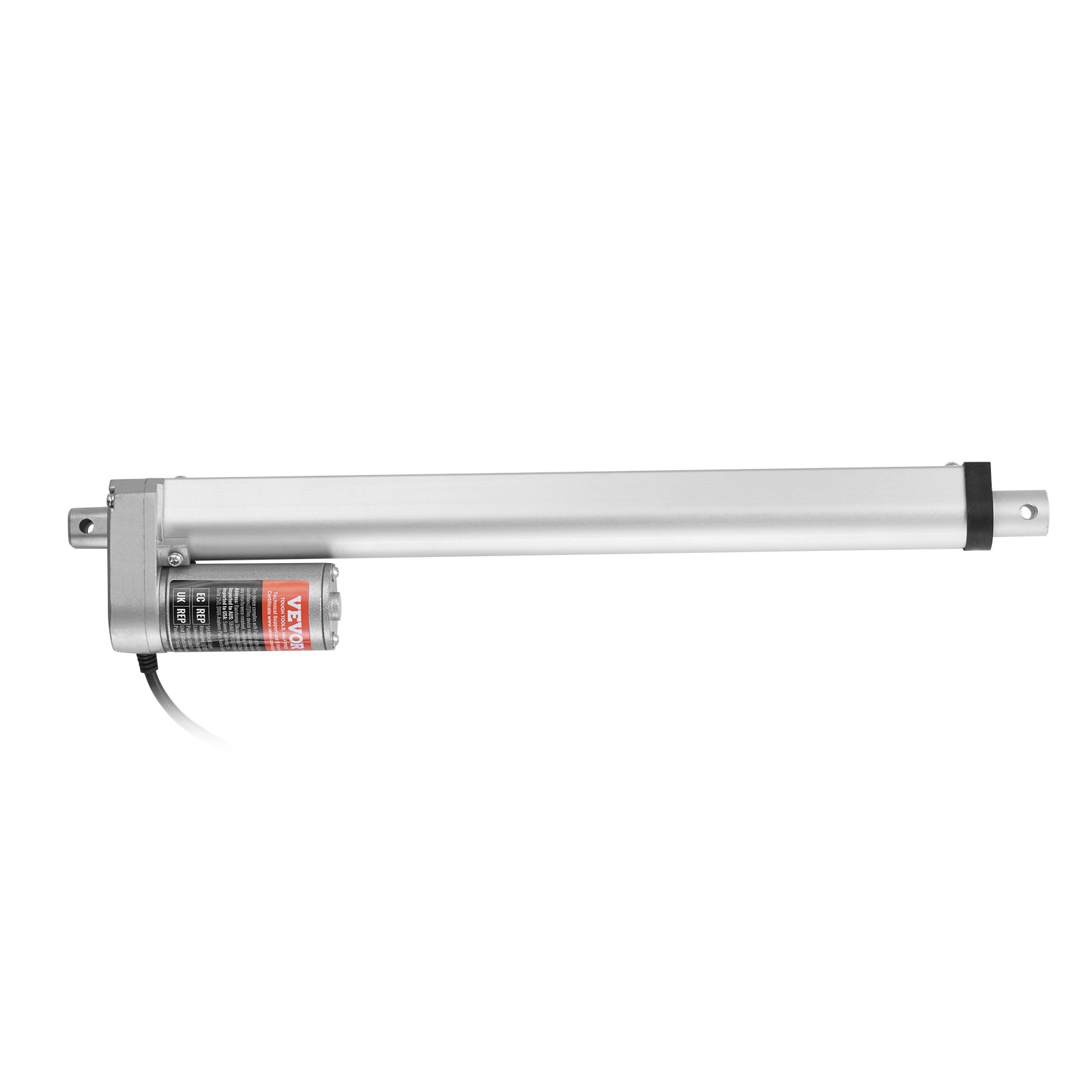

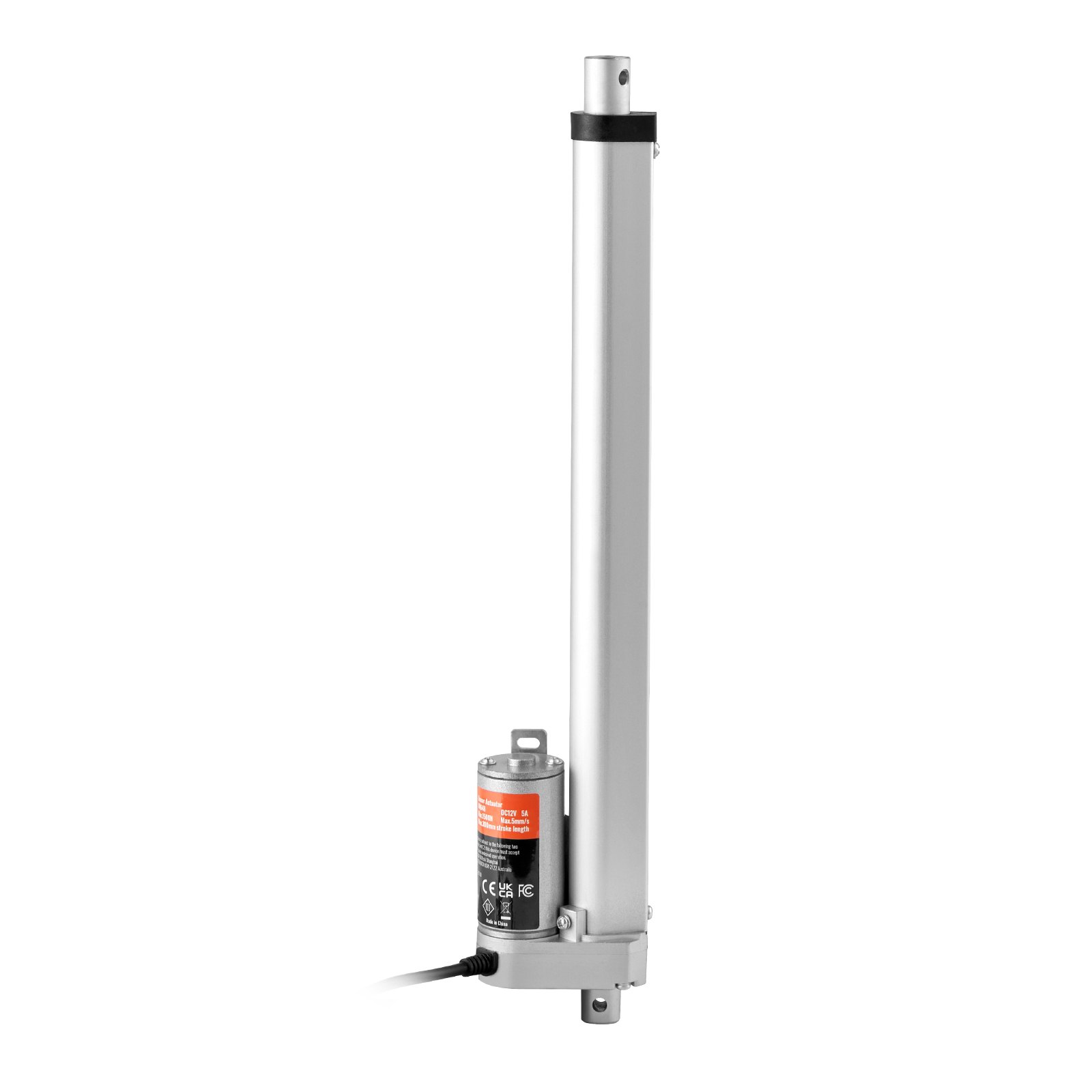

VEVOR linear actuator with two mounting brackets and screws on a white background.
CGXXZXQ12INC9PILMV9

VEVOR Linear Actuator 12V 12Inch 0.55"/s High Speed 220lbs/1000N IP54 Protection

See All Customer Reviews
1 Reviews 4 answered questions
3299 €
Earn at least 8,16 € (816 points) back calculated at checkout. Details
Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive 5,00 € off for your first three orders on the App.
Download Now
Exclusive 5,00 € off for your first three orders on the App.
Scan the QR code to download
Free delivery to Netherlands
Get it as soon as Sun. Apr. 6 Details
Shipping Rates & Policies
All products are currently free shipping, except in some remote areas. please verify your delivery address to ensure accurate shipping cost information is displayed.
Unless noted otherwise in the ordering pipeline, ships all items within two days of receiving an order.
The delivery date is for reference only and may be adjusted according to the delivery address. Please refer to the actual delivery time.

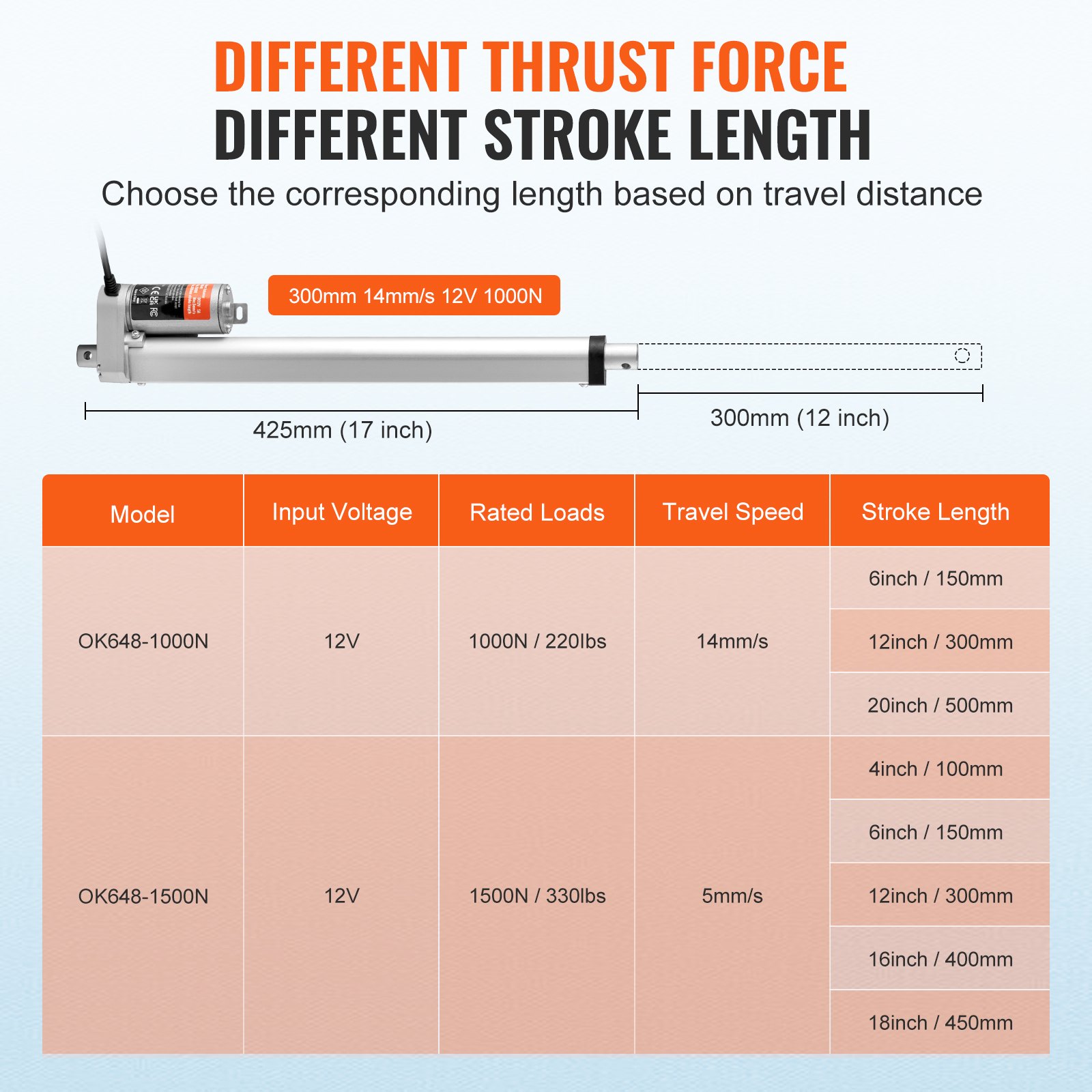

12 inch

  • 20 inch
  • 12 inch
  • 6 inch
In Stock
Add to Wish List

About this item

  • Fast & Efficient Stroke Adjustment: Lift or lower effortlessly with VEVOR linear actuator, moving at a swift 0.55"/s. Perfect for applications requiring frequent height adjustments, whether it's altering furniture heights or raising and lowering office desks and chairs.
  • Reliable Torque Output: 220lbs robust torque output ensure stable thrust for medium-duty tasks like lifting platforms and motorized doors and windows. Versatile for both home and industrial use, it delivers exceptional performance.
  • Versatility Unleashed: VEVOR's 12V linear actuator motor, with a noise level below 50db, are your go-to for furniture adjustment, automation systems, mechanical equipment, transportation and more. Enjoy seamless functionality wherever you need it!
  • IP54 Protection Rating: Dust, splashing water, or light humidity? No problem. VEVOR 12V linear actuator boasts an IP54 protection rating, ensuring reliable performance and protection whether in outdoor or industrial settings. (Caution: Water should not penetrate the interior of the motor)
  • Key Specifications: Stroke Length: 12 inch (300mm); Travel Speed: 0.55 in/s (14mm/s); Retracted Length: 16.73" (425mm); Extended Length: 28.73" (725mm); Current Draw: 5amps; Rated Voltage: DC12V; Duty Cycle: 25%.
See More See Less

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Linear Actuator 12V 12Inch 0.55"/s High Speed 220lbs/1000N IP54 Protection
12 inch
3299 € Only 1 Left, order soon
In Stock
Description Specification Questions and Answers Reviews
Move Faster, Work Smarter: Enable Automation in Every Step
Experience 0.55"/s high-speed movement and 220lbs strong actuation force with VEVOR 12-inch linear actuator! Powered by robust motor and offering precise rotation, it delivers strong support and high-efficiency motion for furniture adjustment, automation systems, mechanical equipment, and more.

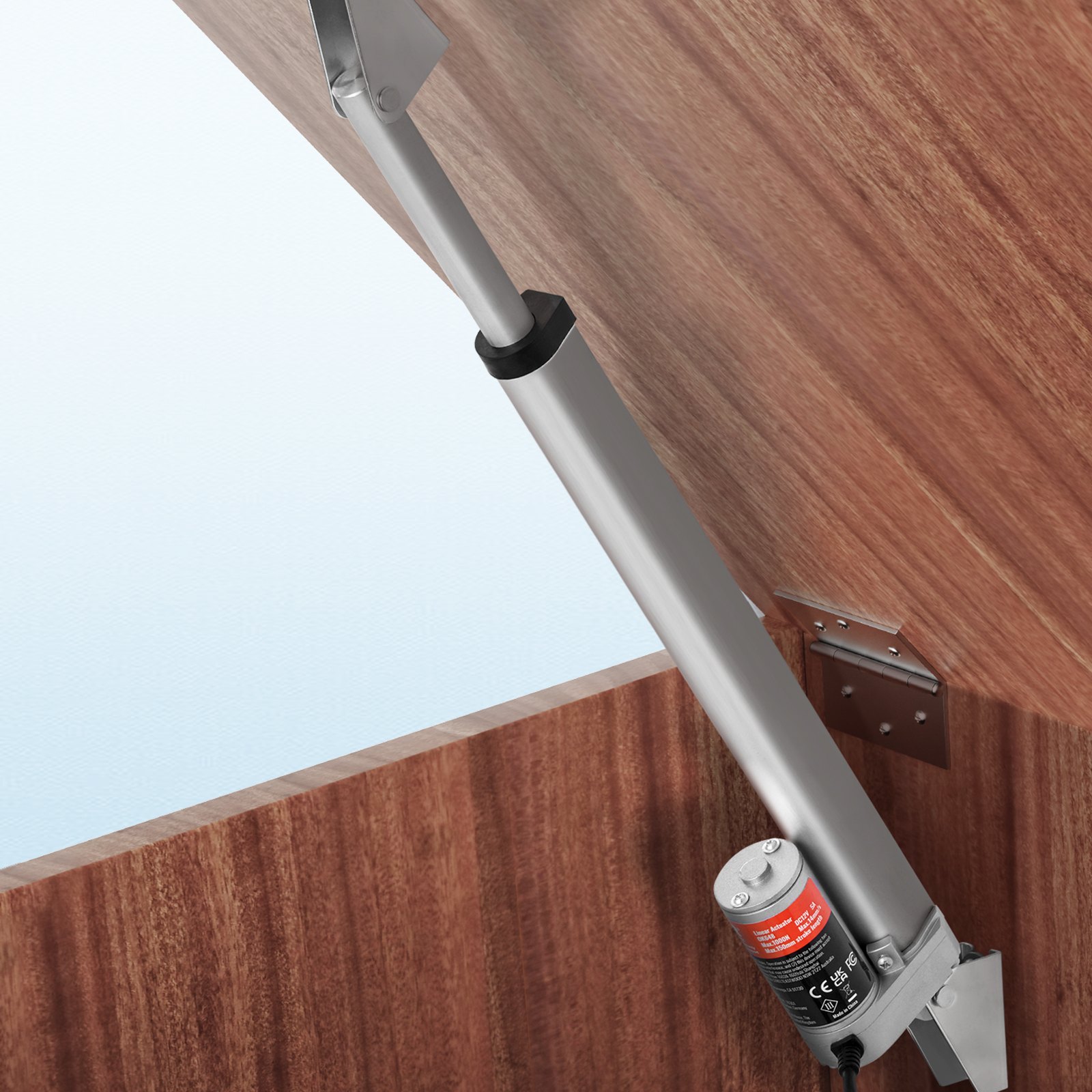

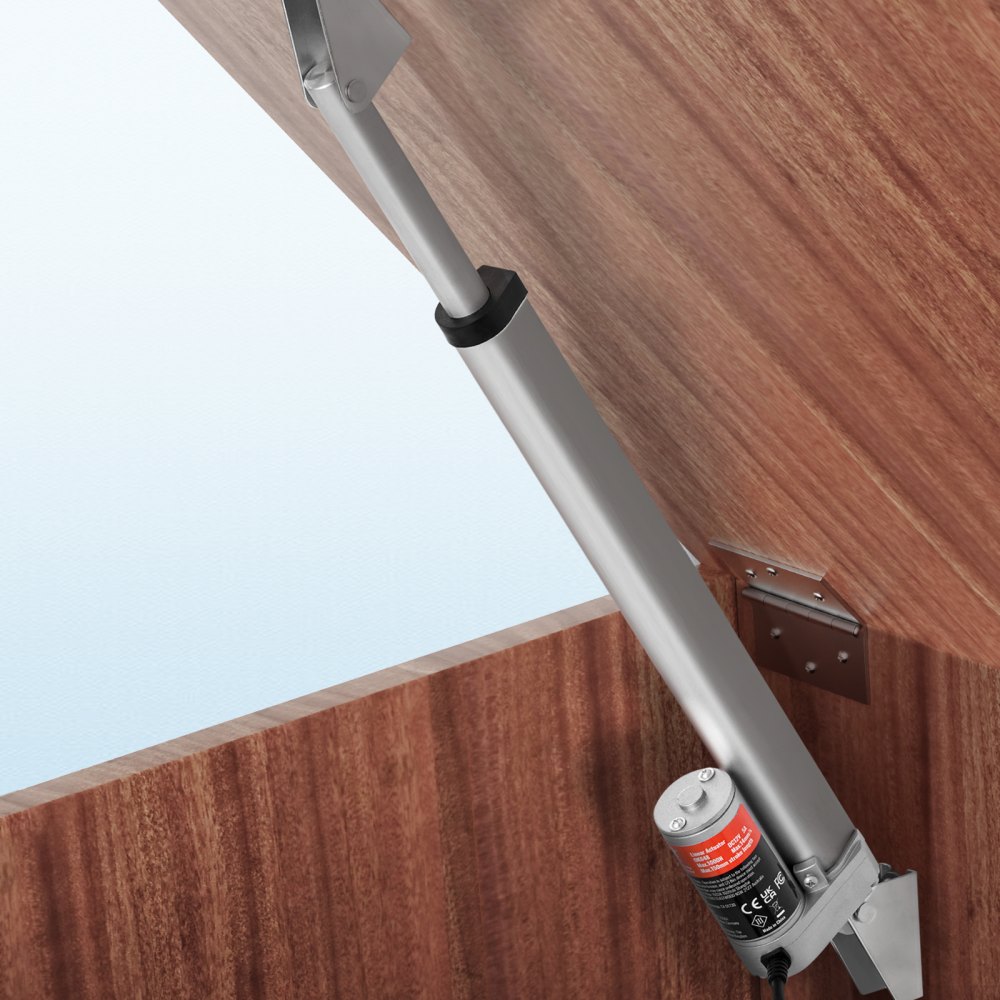

Seamlessly integrating into your living spaces, our linear motion actuator not only facilitates automatic raising and lowering of curtains and height adjustment systems but also drives electric door systems. It delivers more convenient, comfortable, and intelligent living experiences.

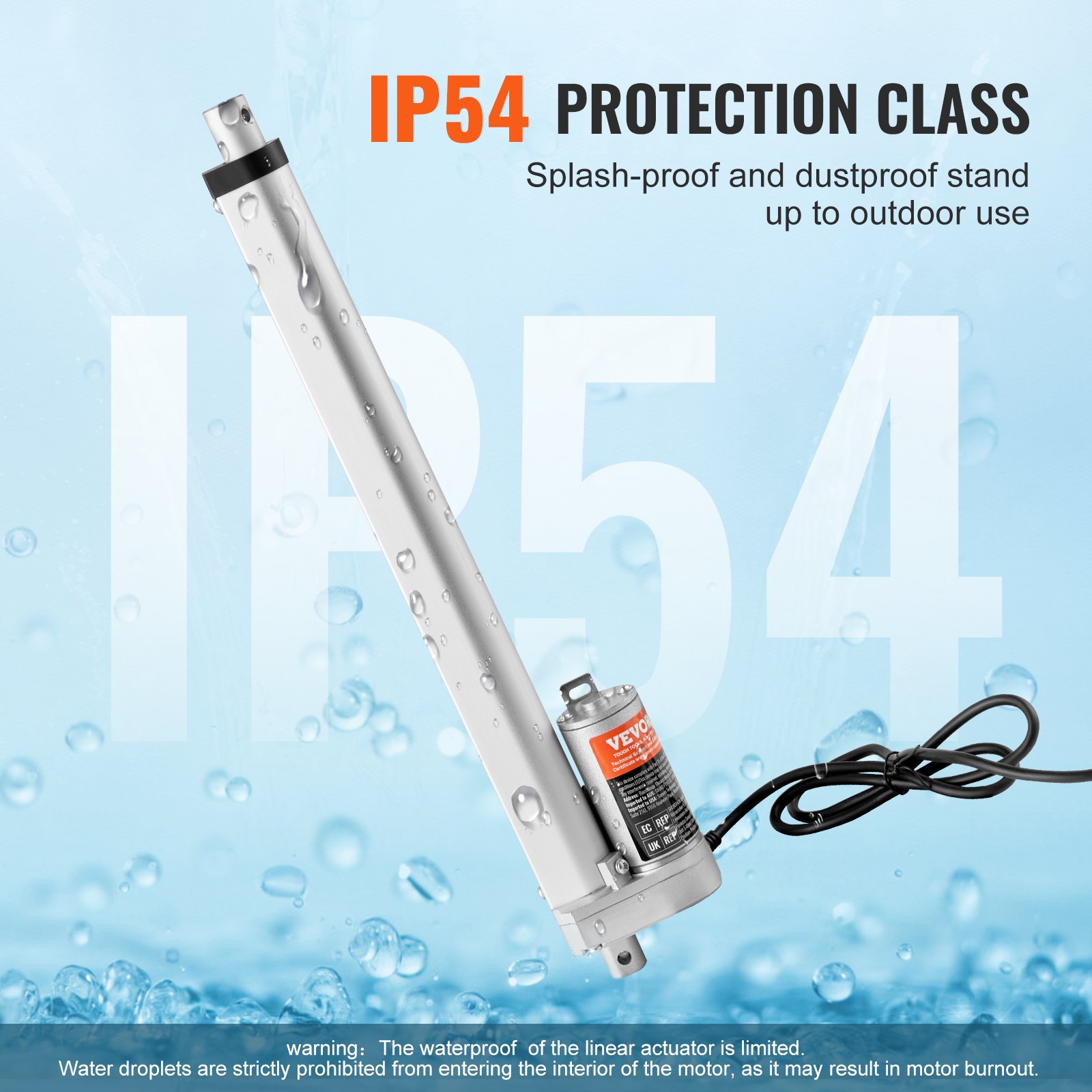

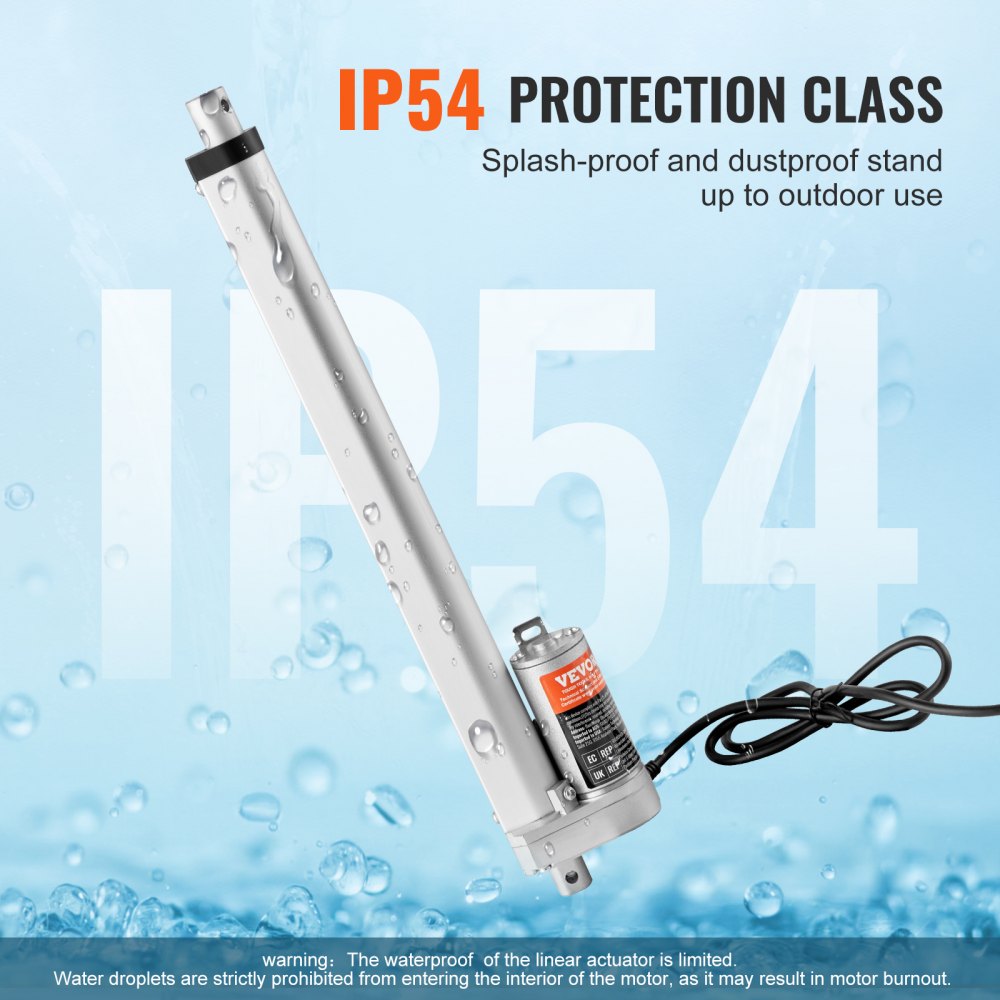

With an IP54 protection rating, our electric linear actuator provides reliable protective performance, maintaining stability in the face of dust, splashing water, and light humidity.(Caution: Water should not penetrate the interior of the motor, as it may result in motor burnout)

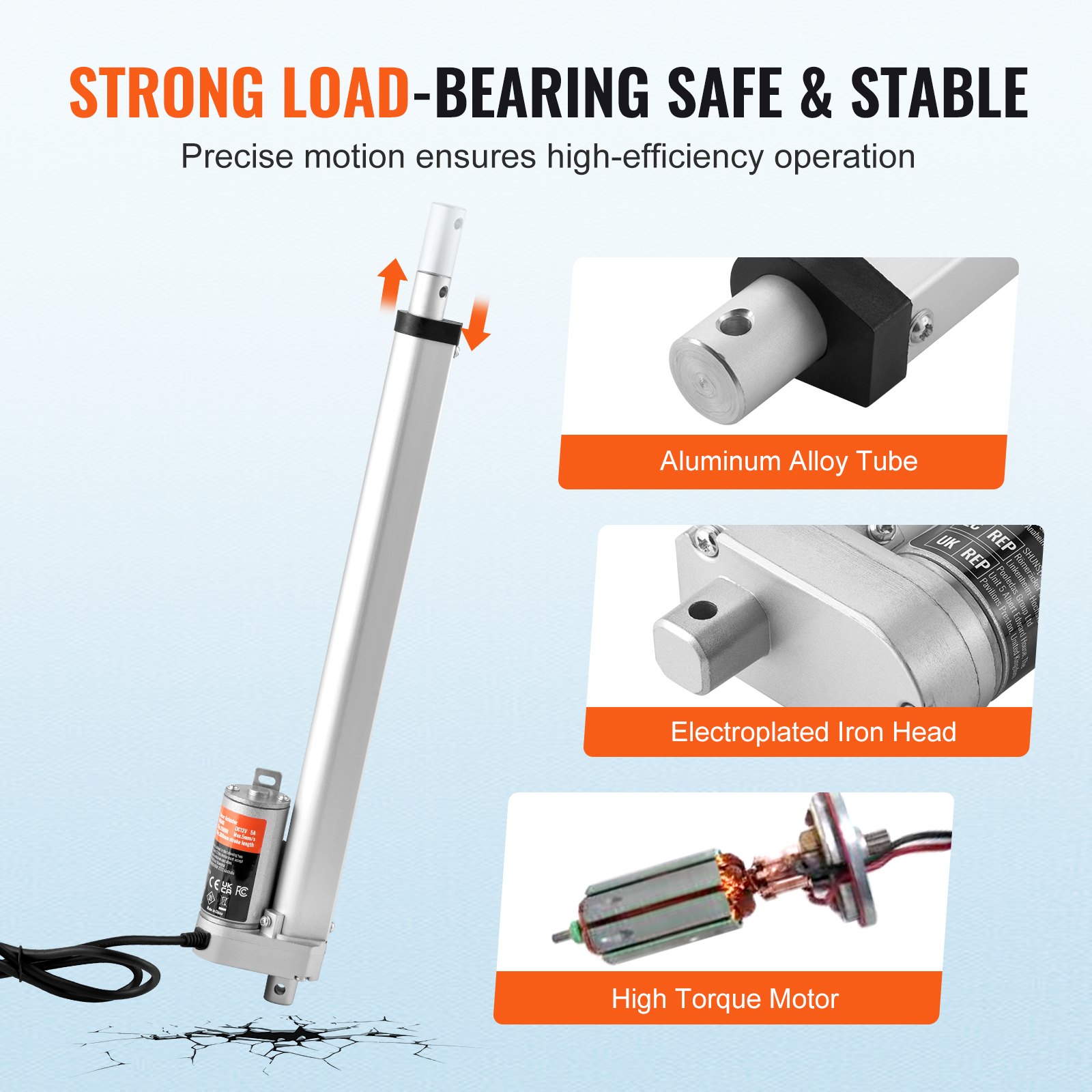

Crafted with precision and using high-quality materials, our stroke linear actuator ensures high precision and strength, significantly extending its lifespan. Engineered to endure frequent use, it maintains high stability, offering steadfast support for your various tasks.

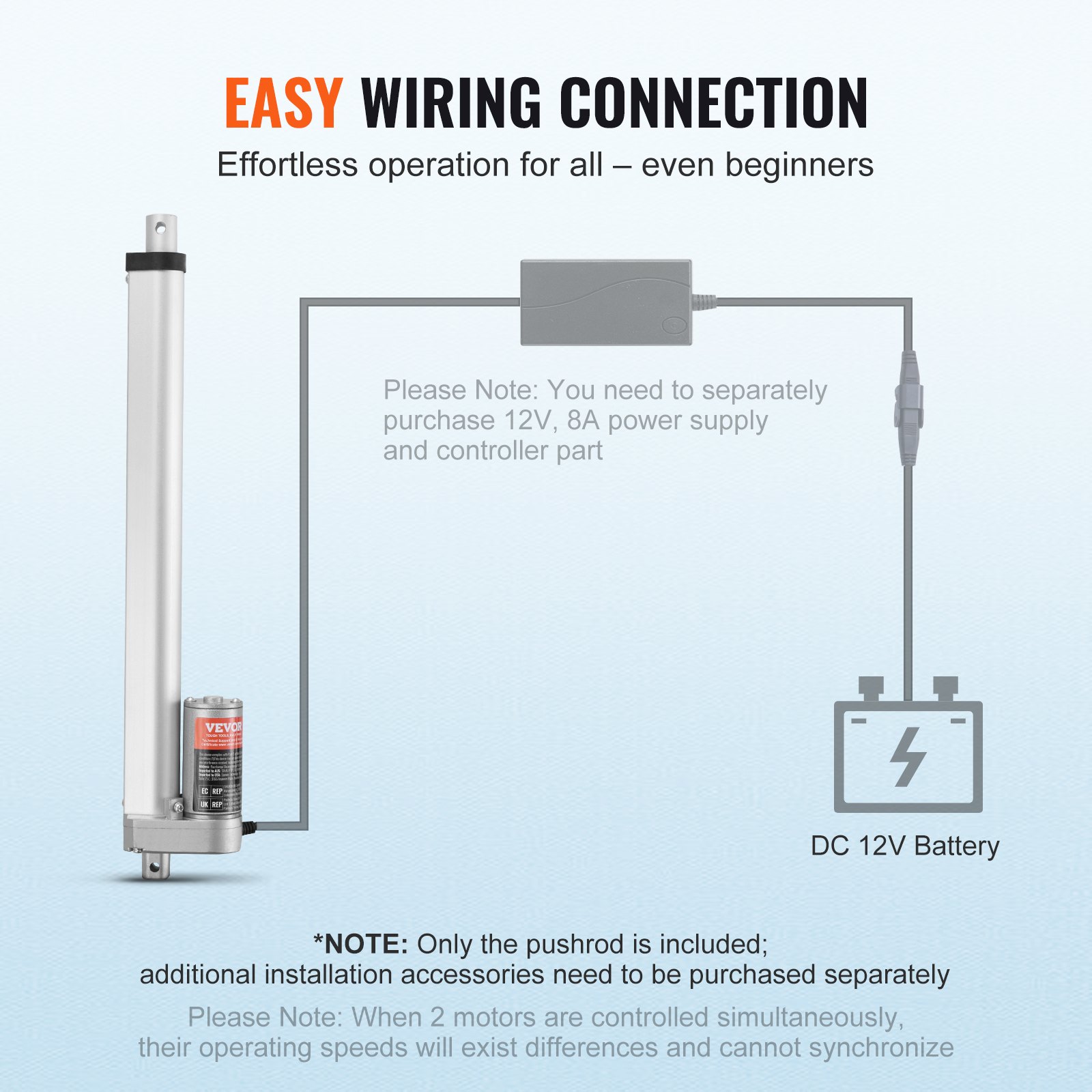

For optimal performance, we recommend using the linear actuator in conjunction with a controller, enabling more precise movement control. Please note that this product only includes the push rod; additional equipment required for installation need be purchased separately.

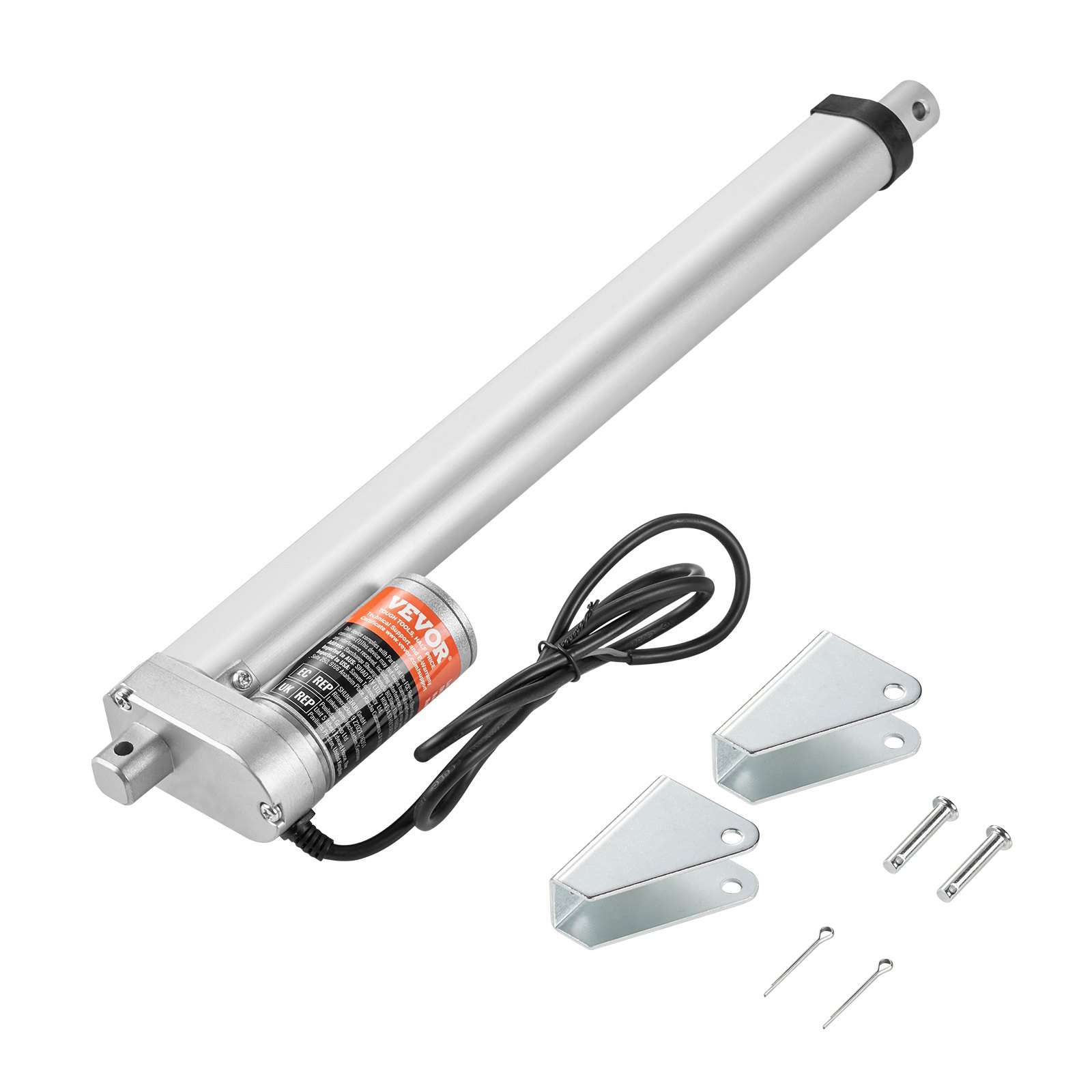

VEVOR linear actuator with 12v, 1000n force, 14mm/s speed, and ip54 protection, includes brackets and screws.
VEVOR linear actuator with 12v, 1000n force, 14mm/s speed, and ip54 protection, includes brackets and screws.

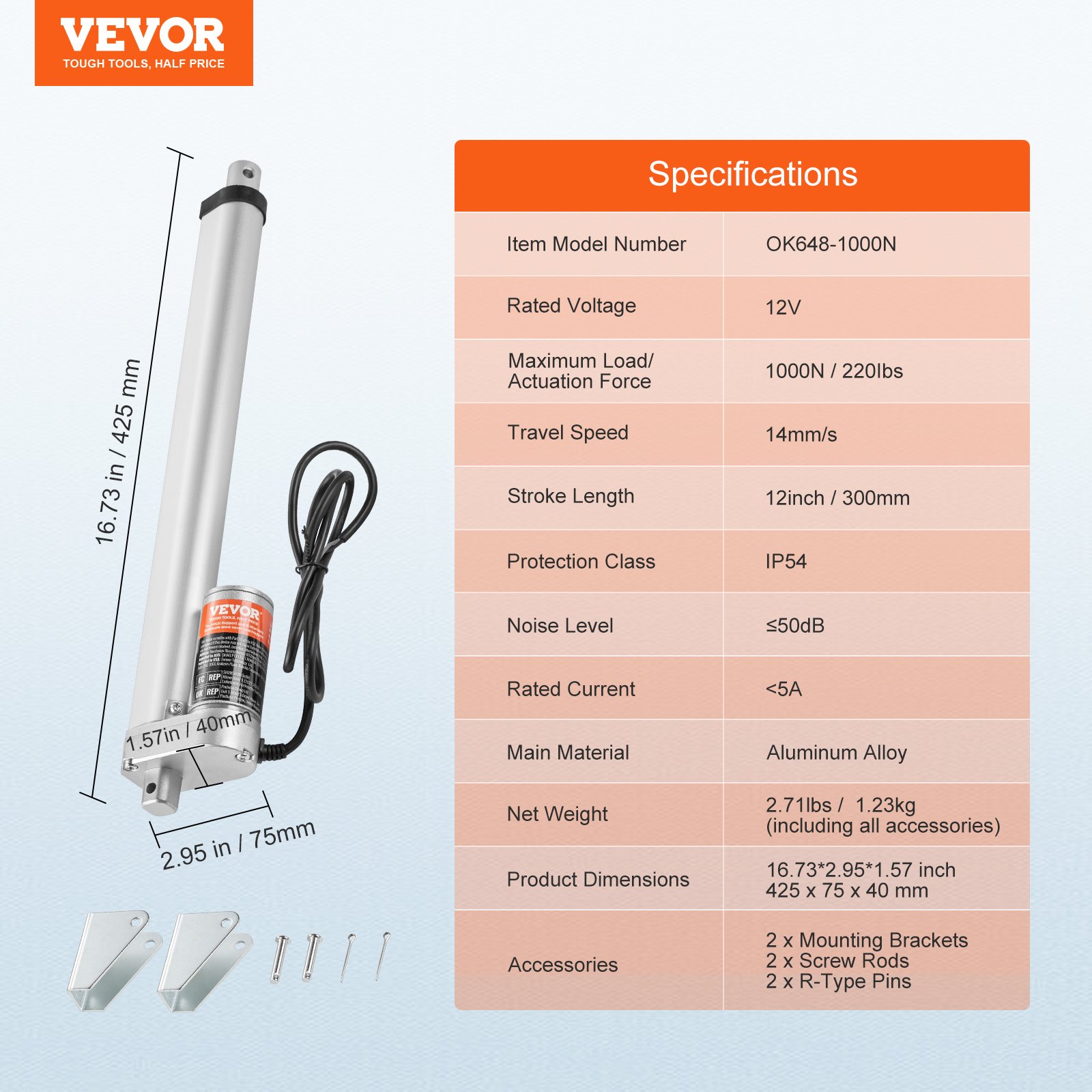

Specification

Item Model Number
OK648-100N
Rated Voltage
DC12V
Maximum Load/Actuation Force
1000N
Travel Speed
>0.55 inch/s / >14mm/s
Stroke Length
12 inch / 300 mm
Protection Class
IP54
Noise Level
≤50dB
Rated Current
<5A
Main Material
Aluminum Alloy
Net Weight
2.71 lbs / 1.23 kg (including all accessories)
Product Dimensions
16.73 x 2.95 x 1.57 inch / 425 x 75 x 40 mm
Questions and Answers
4 Questions
or Ask a Question
Featured questions
Goedendag, is de slaglengte eenvoudig instelbaar?
Answer This Question
Hallo, de slaglengte is niet instelbaar
By vevor on Jan 14, 2025
Helpful ( 0 )
Hallo, Wordt de polariteit door de eindschakelaars automatisch omgedraaid, zodat de actuator bij opnieuw inschakelen automatisch de andere kant op gaat?
Answer This Question
Nee, het vereist handmatige bediening.
By vevor on Dec 24, 2024
Helpful ( 0 )
Hallo, Op welke manier kan ik deze aansturen? is hier een bepaalde printmodule voor nodig of kan dit enkel met een 3 standenschakelaar?
Answer This Question
Hiervoor moet u uw eigen 12V, 8A-voeding configureren.
By vevor on Oct 28, 2024
Helpful ( 0 )
Hallo,ik zou graag weten of deze een eindschakelaar heeft ingebouwd. De eerdere die ik besteld heb had deze,nu zie ik geen vermelding en de andere zijn uitverkocht.
Answer This Question
Het product heeft ingebouwde eindschakelaars voor en achter.
By vevor on Aug 24, 2024
Helpful ( 0 )

Customer Reviews

5.0 Out of 5
Based on 1 reviews

Ratings by Features

  • 4.7
  • 4.5
  • 4.6
  • 4.5
  • See More See Less
1 Review(s)
Text, image, video
Text, image, video
Photos Only
Videos Only
All star
All star
5 star Only
4 star Only
3 star Only
2 star Only
1 star Only
Most Recent
Most Recent
Most Helpful
Clear filters
Marius Marius
Vevor 1000n
Het apparaat werkt prima, doet wat men beloofd heeft. Maakt wel best veel geluid maar misschien doen ze dat allemaal wel. Ben er blij mee.
