Name: VEVOR Drawer Slides, 1 Pair 34 Inch Soft Close Drawer Slides, Ball Bearing Side Mount Drawer Hardware Slides, 500 LBS Load Capacity 3-Section Full Extension Drawer Slides for Smooth Slide, Less Noise
Brand: VEVOR
SKU: CTDGBYCW500342RPVV0
Price: 59.99 EUR
Availability: InStock
Rating: 5.0 (4 reviews)

VEVOR Drawer Slides, 1 Pair 34 Inch Soft Close Drawer Slides, Ball Bearing Side Mount Drawer Hardware Slides, 500 LBS Load Capacity 3-Section Full Extension Drawer Slides for Smooth Slide, Less Noise

Price including VATSee details

Save up to 15% with PRO price. Sign up for free PRO Account.

Exclusive 5,00€ off on your first three app orders. Only App.

Download Now

Exclusive 5,00€ off on your first three app orders. Only App.

Scan the QR code to download

About this item

Three-Section Slides: 1 pair of 34"/ 86.36 cm in length, 3"/ 7.6 cm in width, 0.75"/ 1.9 cm in thickness. The fold and full extension drawer slides consist of three sections and can be fully pulled out to utilize the drawer's space (Actual size 34", extended size 68"/ 172.72 cm). And the slide drawers are also designed to ensure your drawers smoothly pushing and pulling.
Steel & 500 lbs Bearing: The heavy-duty drawer slides are constructed with thick cold rolled steel (CRS) plates for a strong bearing capacity of 500 lbs. Therefore, they are tough enough to bear the heavy wooden or iron things you need. In addition, zinc is plated on the surface to stay rust-proof, abrasion-proof for long-term service.
Smooth & Quite to Slide: Drawer hardware slides are equipped with ball-bearing action to create a quiet environment for your family and work. The row of balls on the two sides of sliding and the nylon buffer design on the second section, which aim to make less noise and friction at closing and open the drawer.
Choose the Right Size: How to choose the right size of slides for your drawer? Install distance (each side): 0.76"/19.5 mm. Please measure the length of the drawer without the frame board at first. The length of slides should be less than or equal to drawer depth minus 4 mm.
Installation & Usage: The heavy-duty drawer slides can be installed on the side of the cabinet or machine parts. All included screws and bolts are easy and quick to install. They are mainly used for industrial, commercial equipment, factory machines, office, vehicle, etc.

See More See Less

VEVOR drawer slides for full extension, 500lbs bearing, quiet work, smooth slide.

VEVOR drawer slides with mounting screws on a white background.

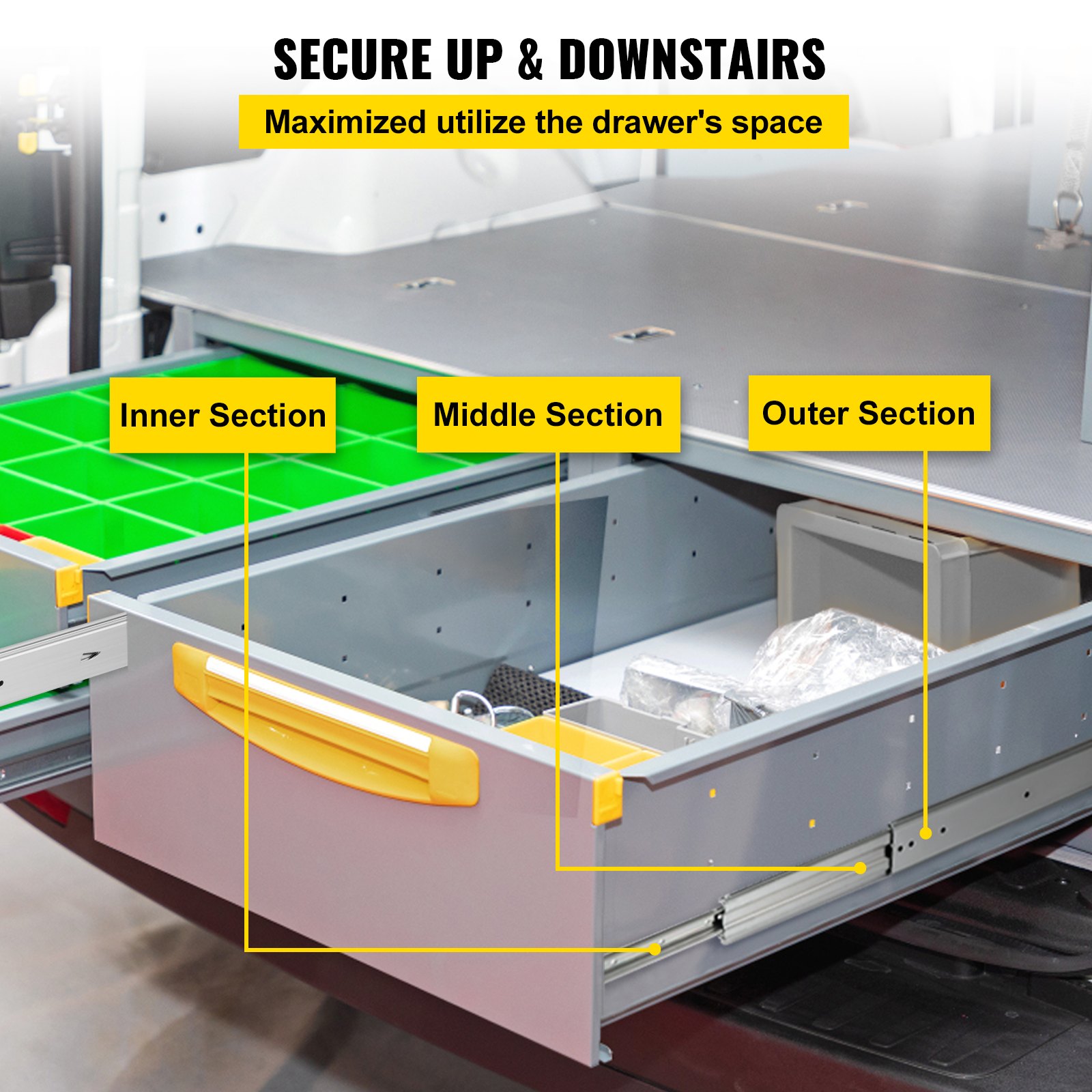

Full Extension Slide Drawers

The cold-rolled steel drawer slides are capable of high hardness with excellent stability and durability. In addition, you will be benefited from the ultra-secure, well-suited, and low-noise device with a detailed guide and handy screws. The universal places include cabinet warehouse containers, industrial drawers, commercial equipment, retrofitted vehicles, etc.

Three-Section Slides
Steel & 500 lbs Bearing
Smooth & Quite to Slide
Choose the Right Size

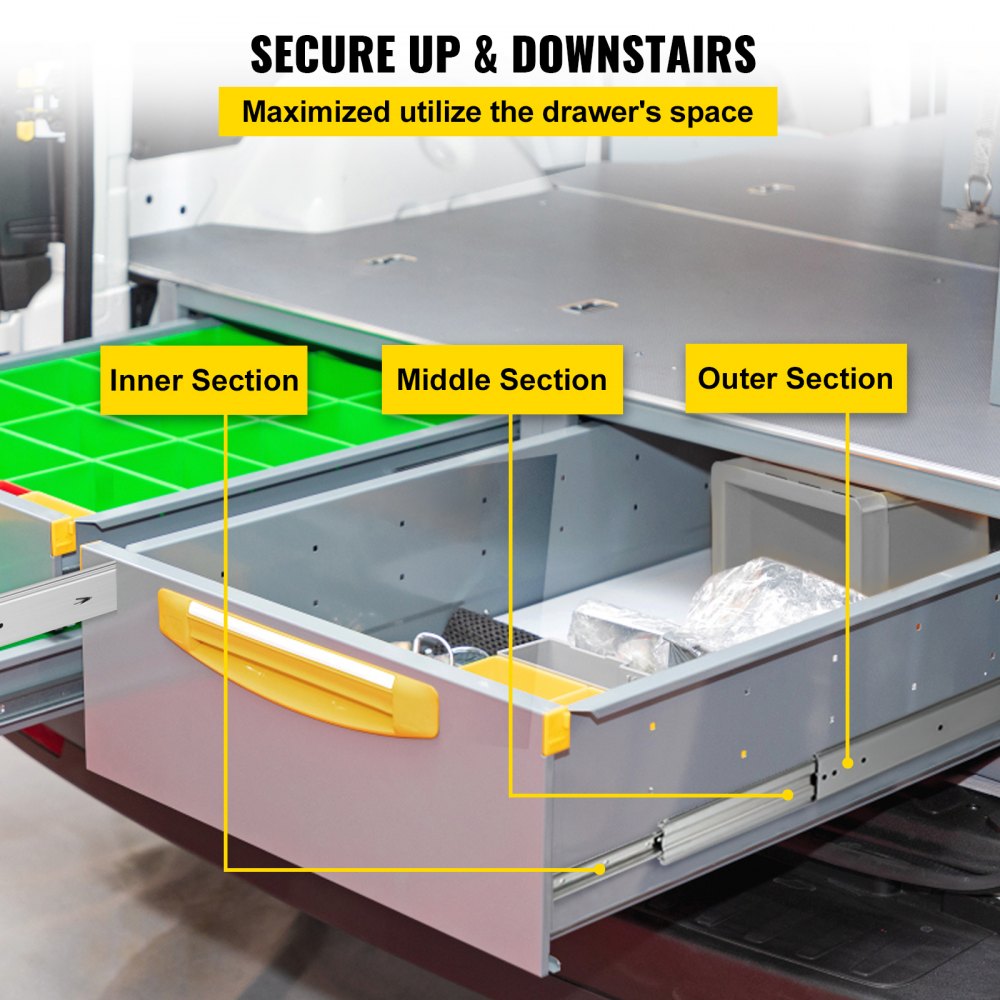

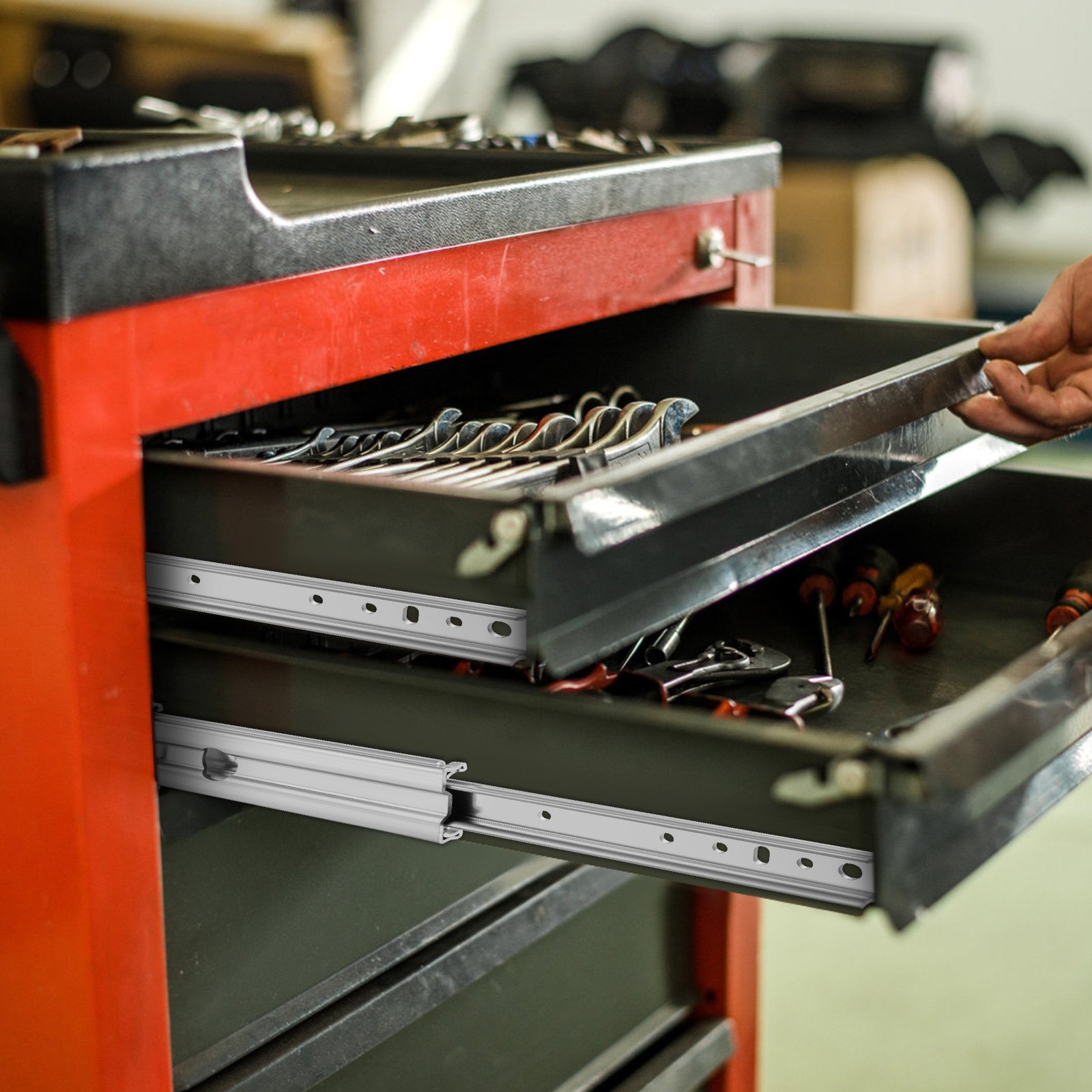

three-section tool cart with blue drawers and VEVOR drawer slides.

3-Fold Slide Drawers

Firstly, the drawers pull out the middle channels; the outer channel continues, and the inner channel lasts. The three-section slide drawers designs are for smooth slides.

Cold Rolled Steel

Made from high-grade cold-rolled steel that is zinc plated can effectively keep the drawer glides and slides scratch-proof, abrasion-proof, and away from corrosion and rust.

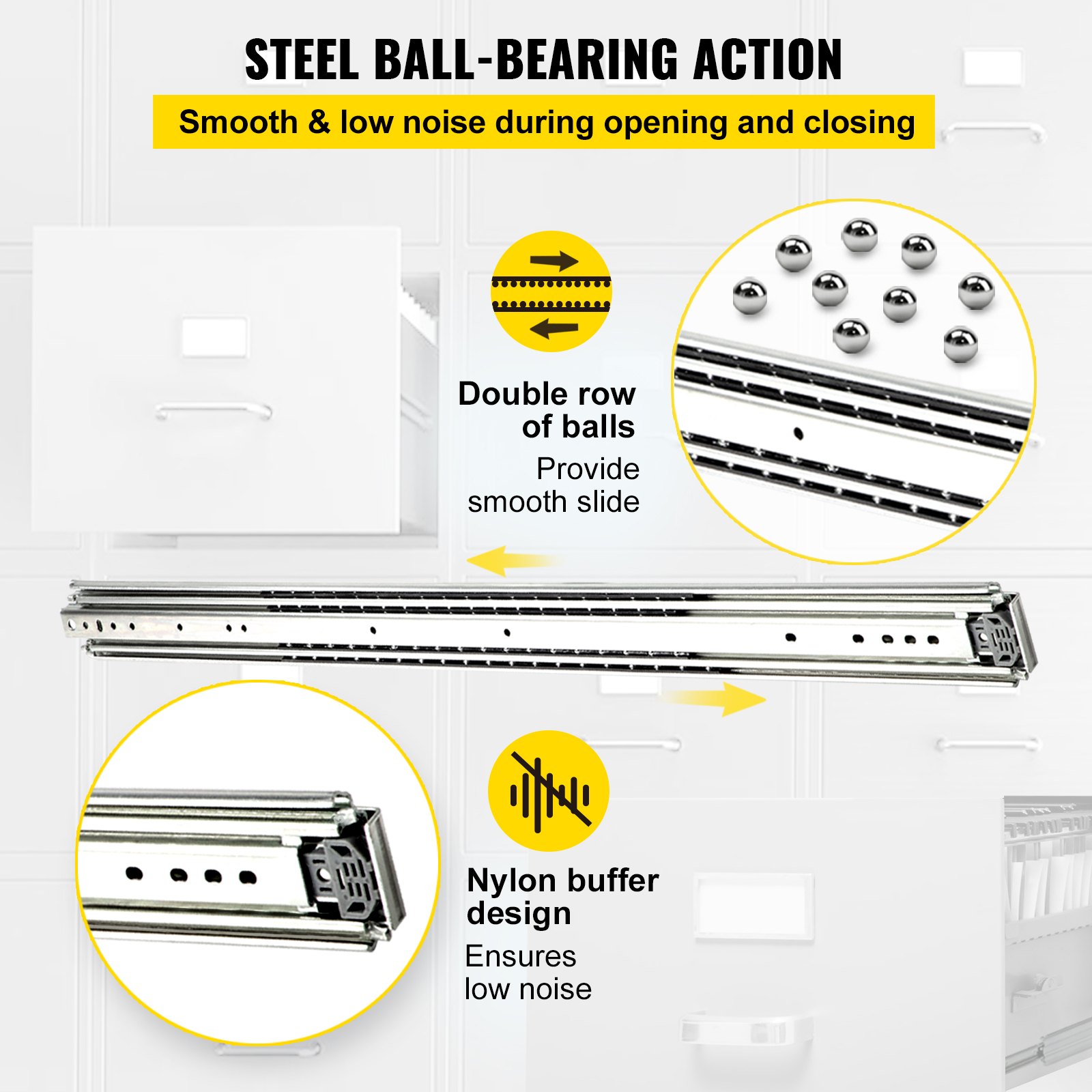

VEVOR drawer slides with steel ball-bearing action and nylon buffer for smooth, quiet use.

Low Noise Design Details

Nylon buffer can reduce the direct contact between the outer and the inner channel. In addition, the embedded steel balls make the smooth sliding and quiet.

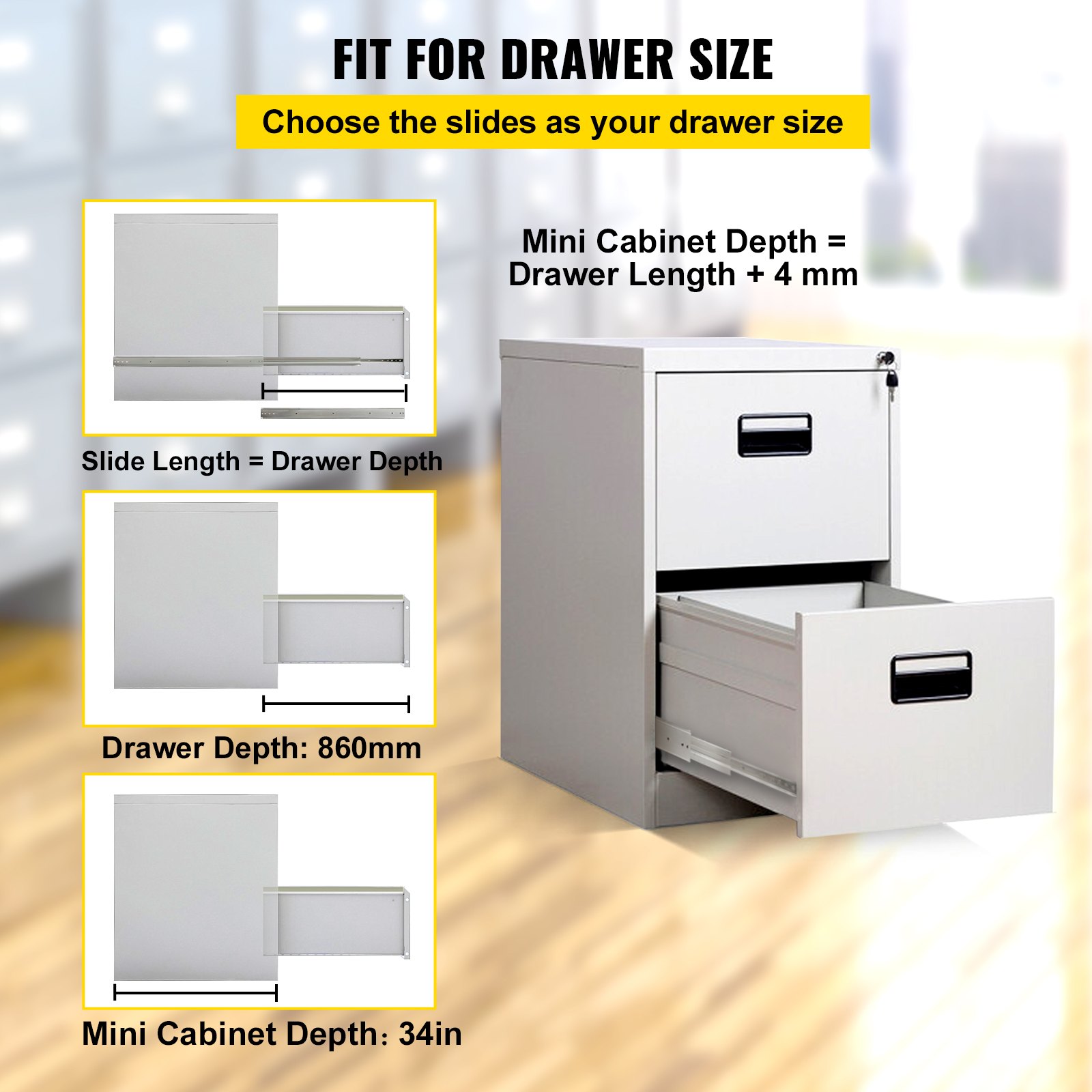

VEVOR drawer slides sizing guide highlighting drawer and mini cabinet depths.

Fit for Size

Slide length can be equal to drawer depth, and the minimized cabinet depth can be drawer length plus 4 mm. Please note that the side-mounted slide rails on both sides should be parallel.

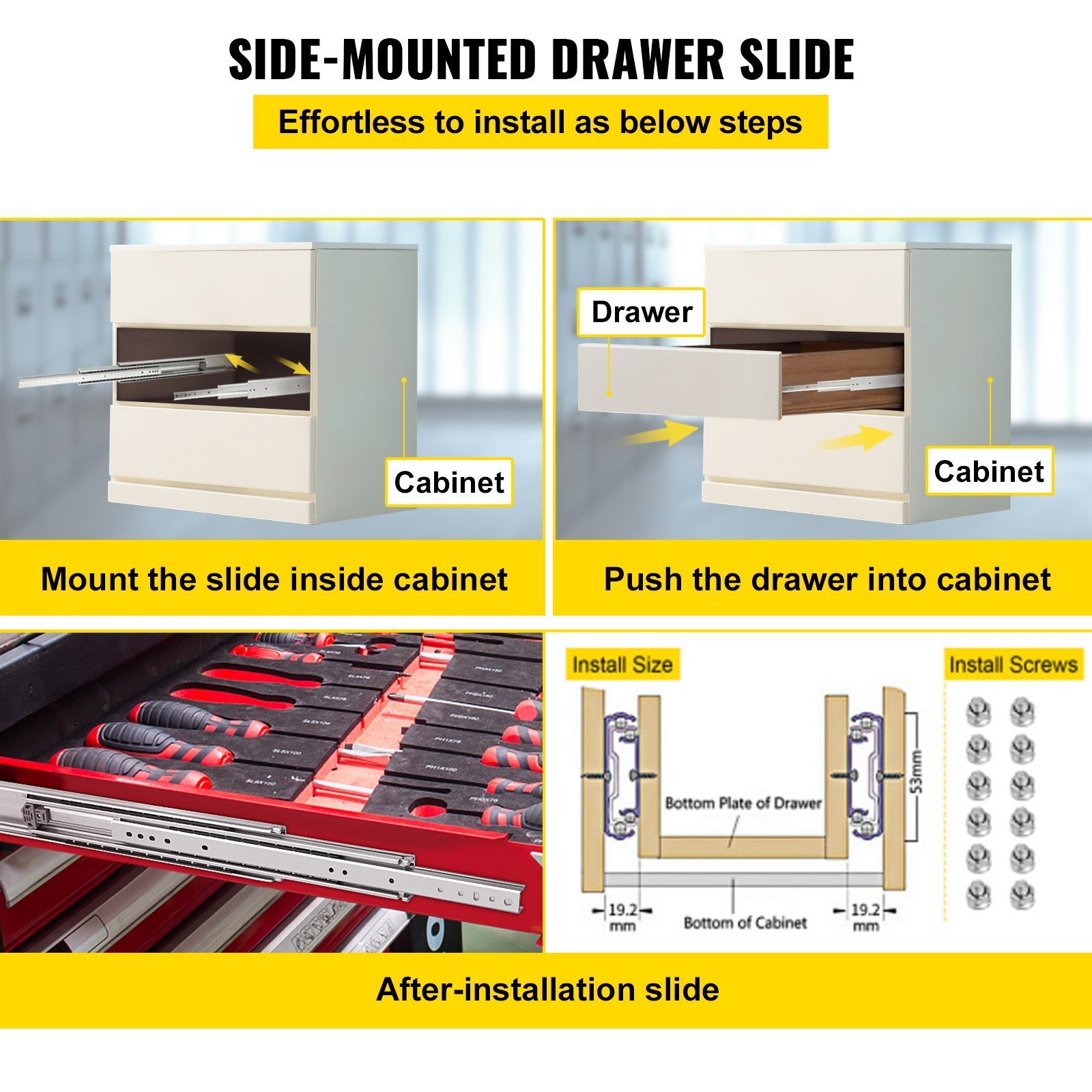

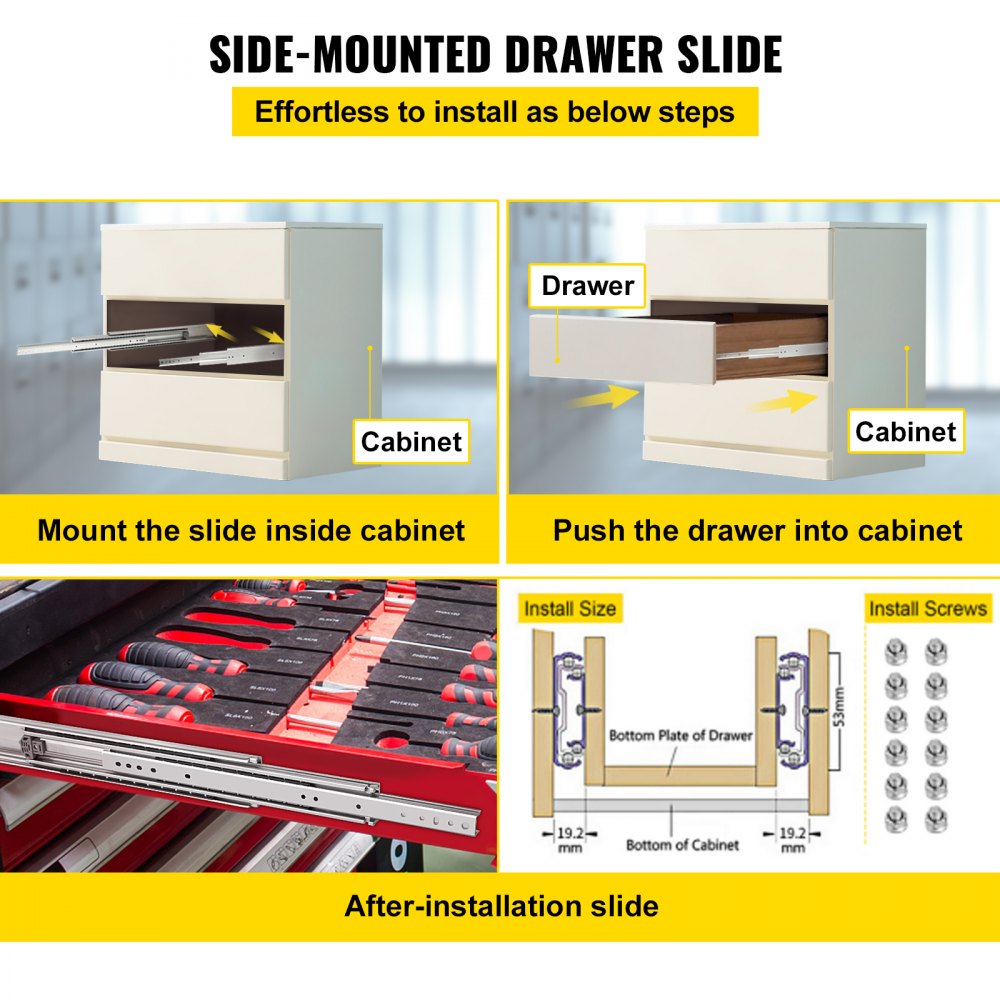

side-mounted drawer slide installation steps with VEVOR drawer slides.

Easy & Quick Assemble

It would be better to tighten the bolt between the side and the drawer from outside to inside. Then, the drawer and cabinet from inside to outside.

VEVOR drawer slides used in warehouse containers, industrial drawers, commercial equipment, and retrofitted vehicles.

Wide Application

The wood center mount drawer slides are suitable for the following places, such as industrial drawers, modified car drawers, office cabinets, tool rooms, etc.

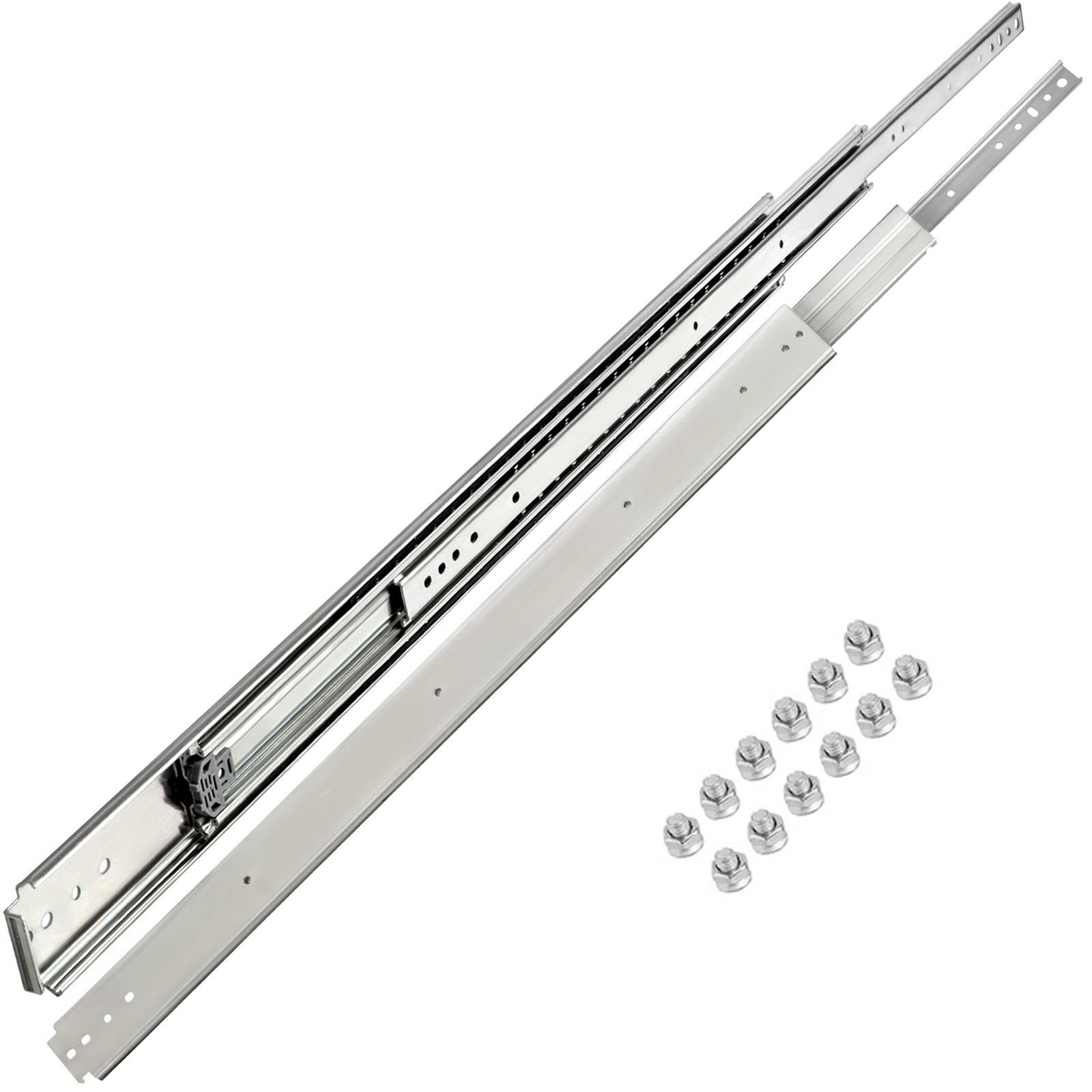

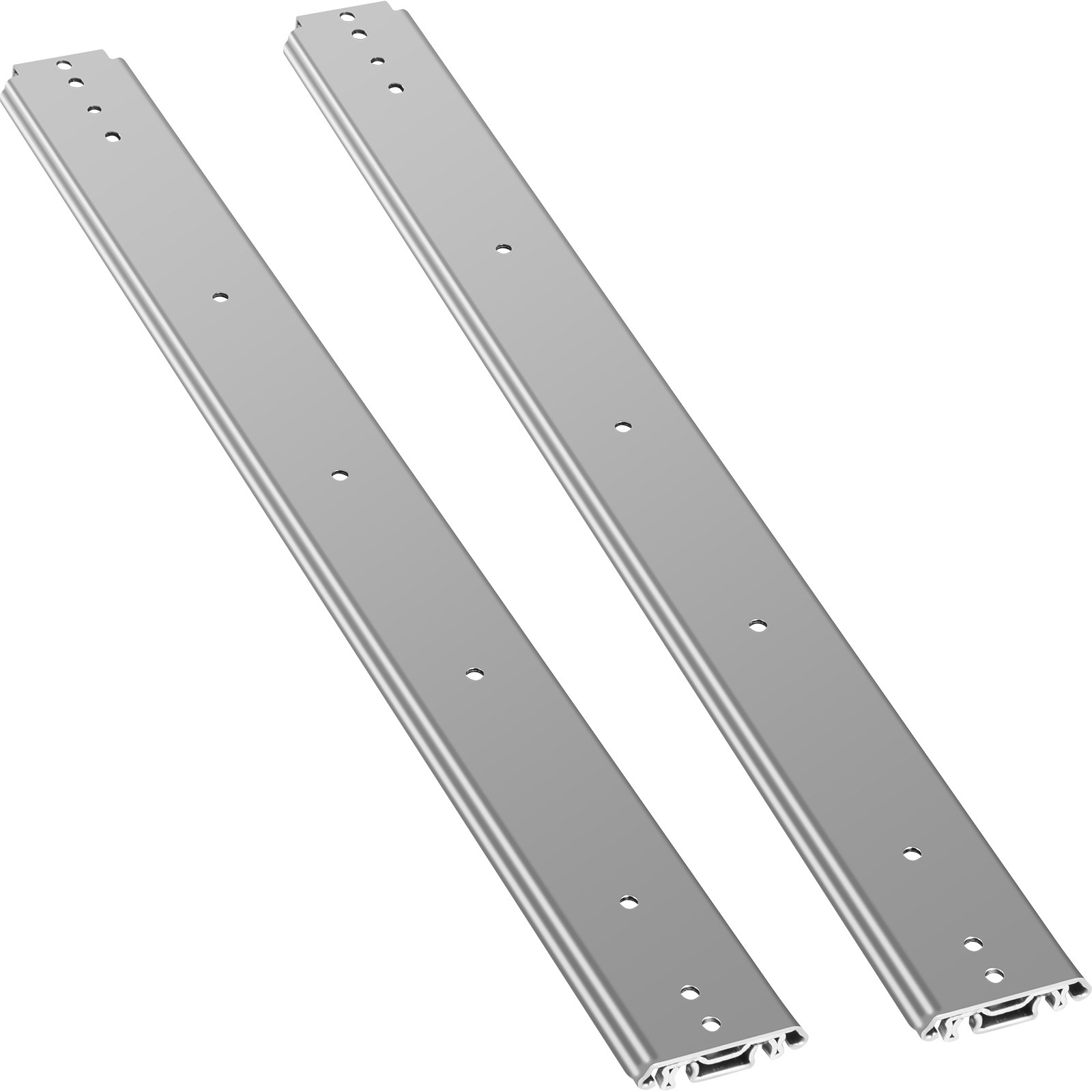

two VEVOR drawer slides with mounting screws on a white background.

2 x Drawer Slides
12 x M6 Screws
12 x M6 Screw Nuts

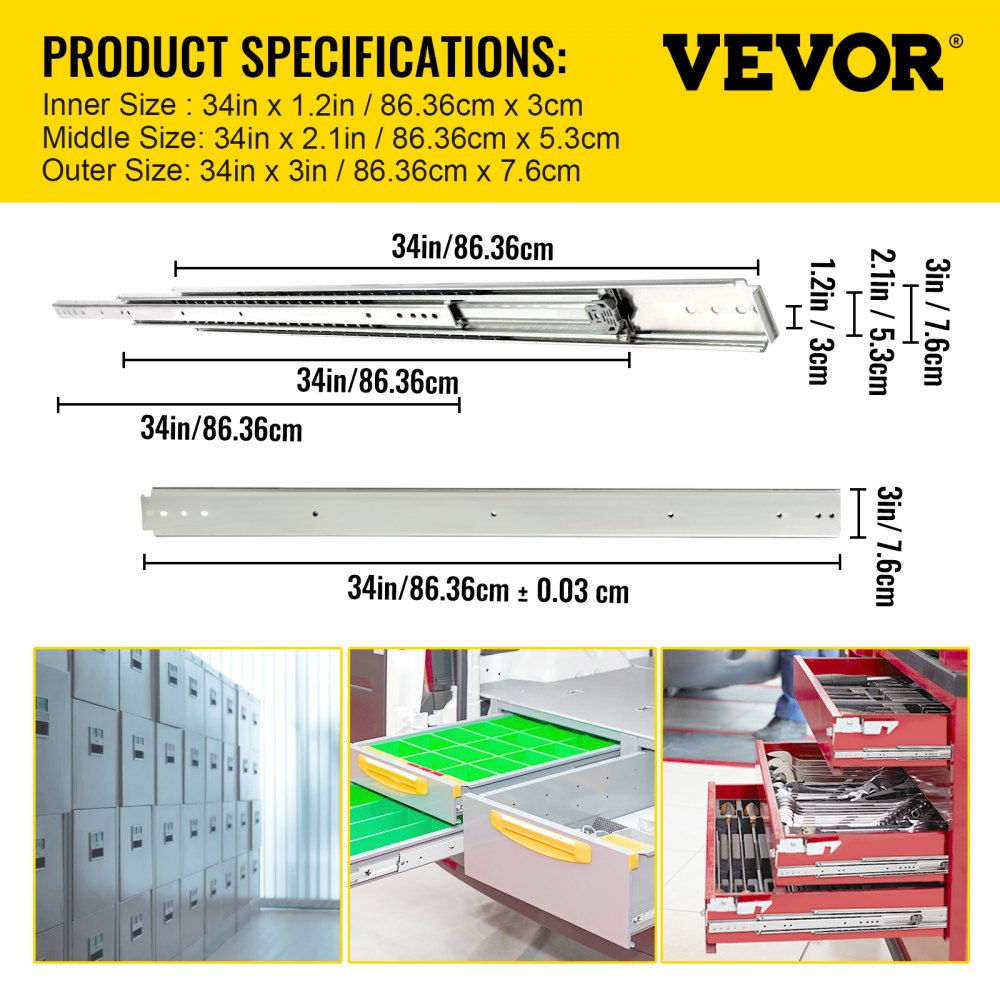

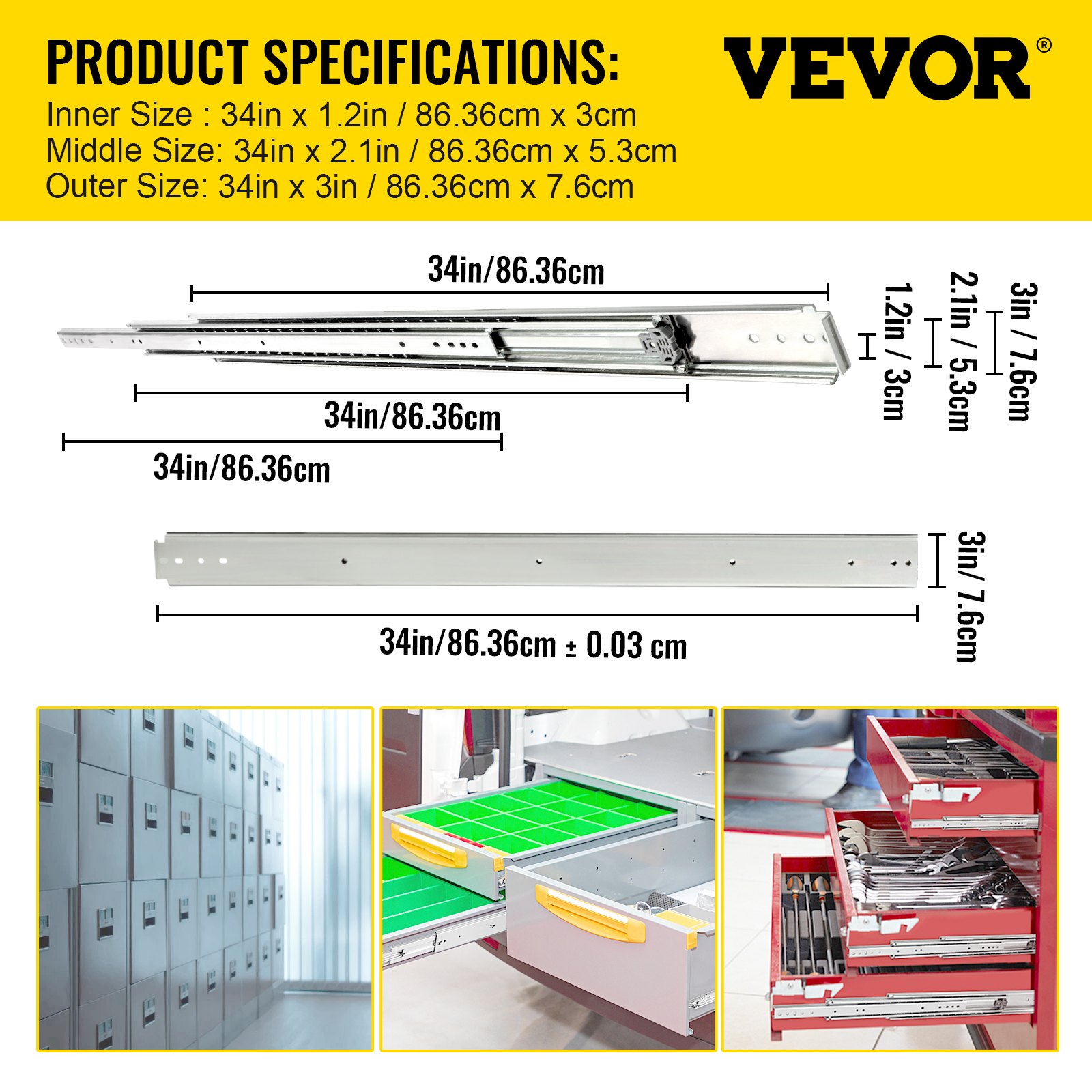

VEVOR drawer slides measurements: 34 in/86.4 cm length, 1.2 in/3 cm height.

Model: VV-CTDG-500B WS 34YC
Color: Sliver
Material: Cold Rolled Steel
Finish: Zinc Plated
Load Capacity: 500 lbs/ 225 kg
Fully Pull-Out Length: 68"/ 172.72 cm
Fold Product Size: 34 x 3 x 0.75"/ 86.36 x 7.6 x 1.9 cm
Inner Size: 34 x 1.2"/ 86.36 x 3 cm (L x W)
Middle Size: 34 x 2.1"/ 86.36 x 5.4 cm (L x W)
Outer Size: 34 x 3"/ 86.36 x 7.6 cm (L x W)

Specification

Model: VV-CTDG-500B WS 34YC

Color: Sliver

Material: Cold Rolled Steel

Finish: Zinc Plated

Load Capacity: 500 lbs/ 225 kg

Fully Pull-Out Length: 68"/ 172.72 cm

Fold Product Size: 34 x 3 x 0.75"/ 86.36 x 7.6 x 1.9 cm

Inner Size: 34 x 1.2"/ 86.36 x 3 cm (L x W)

Middle Size: 34 x 2.1"/ 86.36 x 5.4 cm (L x W)

Outer Size: 34 x 3"/ 86.36 x 7.6 cm (L x W)

I was using a large firepit bbq in an outbuilding and it was getting too smoky to bear. I built a platform so that I could slide it out and push back in when done. The problem was it’s a firepit uk outdoor kitchen which weighs circa 110kg without any wood stacked on it. I reckon it’s near 150kg as I have it loaded up. These were easy to install with 8mm coach bolts and screws and even on maximum extension the deflection is minimal. Time will tell if the bearings hold up, hopefully they will as this has given me a great solution to my problem. I’ve uploaded a video to Amazon showing how easy/smooth it now is to push my 150kg bbq back into place.

Well these say they can hold 500lbs. I honestly believe they can! I used them to hold my new aquarium I installed into my kitchen bar. It slides out so I can change the filter,etc.. Total weight on these is approx 375lbs. And they slide like a hot knife through butter!! Highly recommend!!
