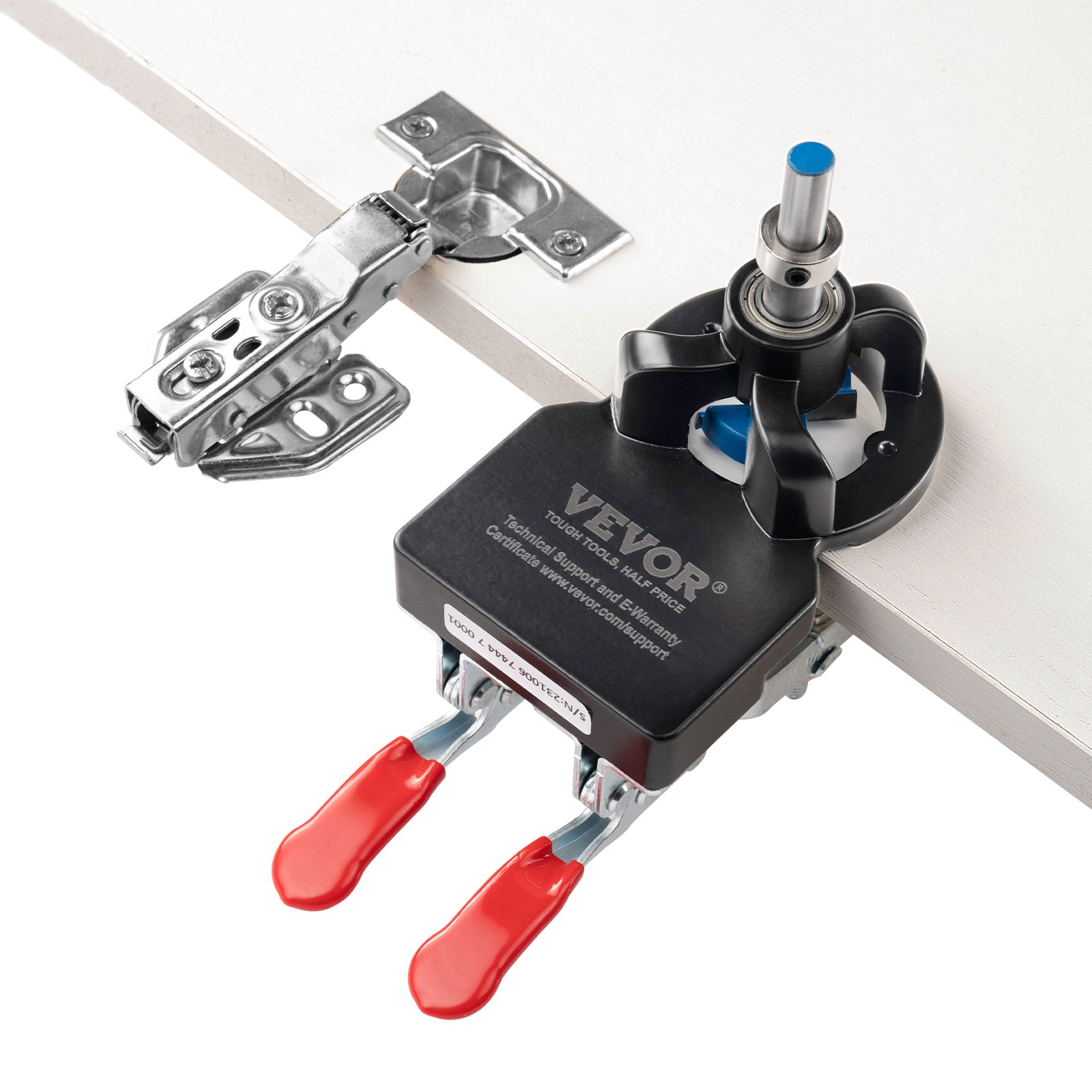

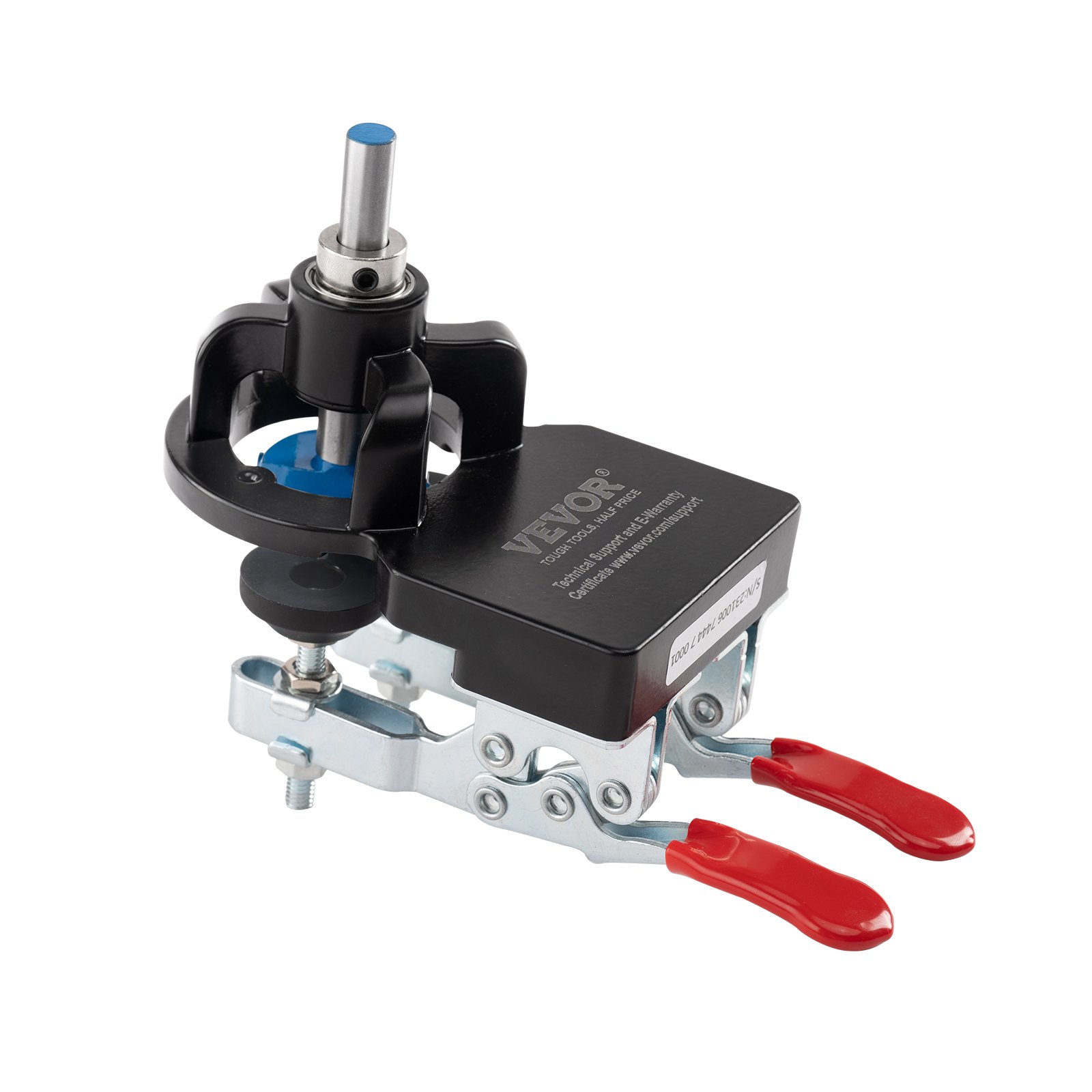

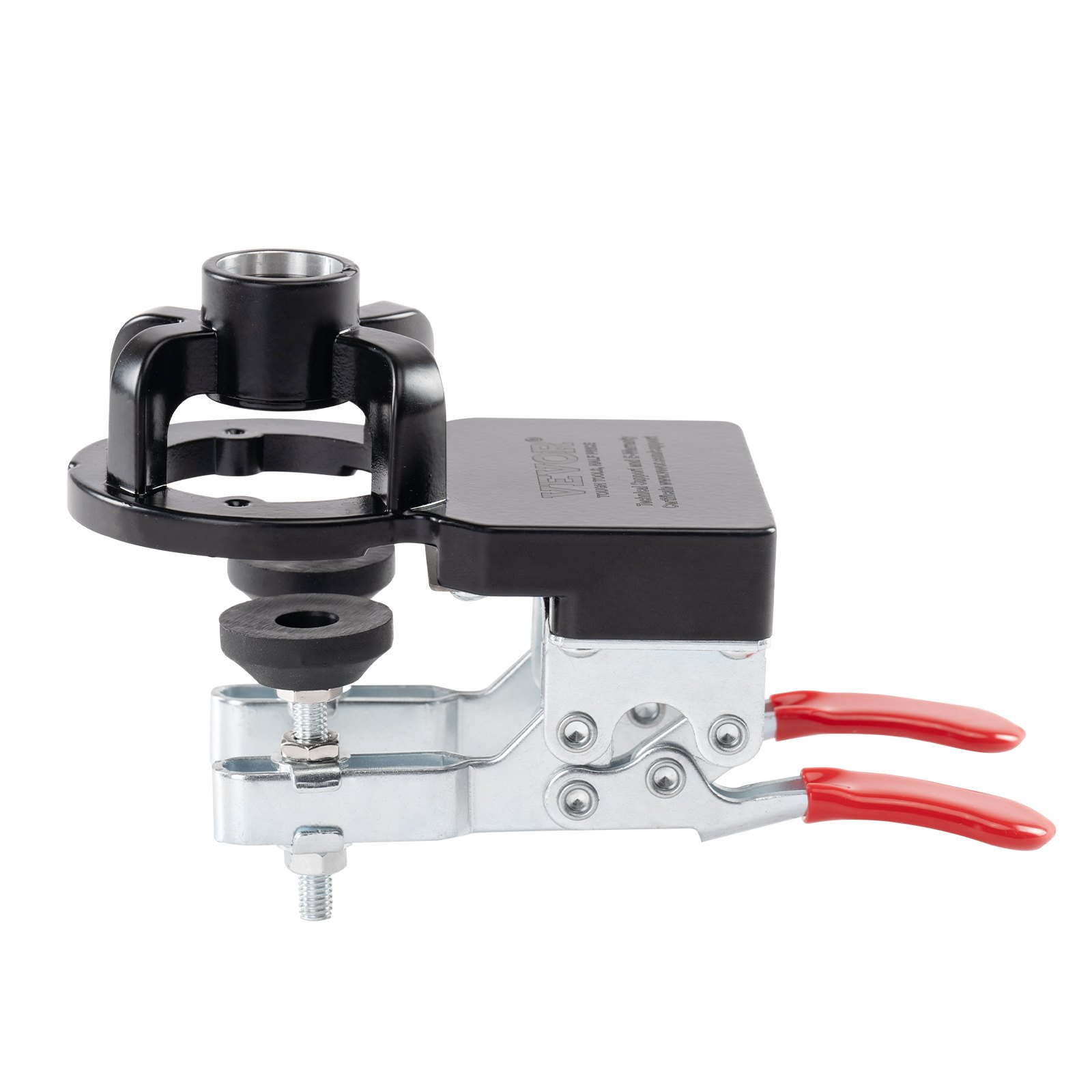

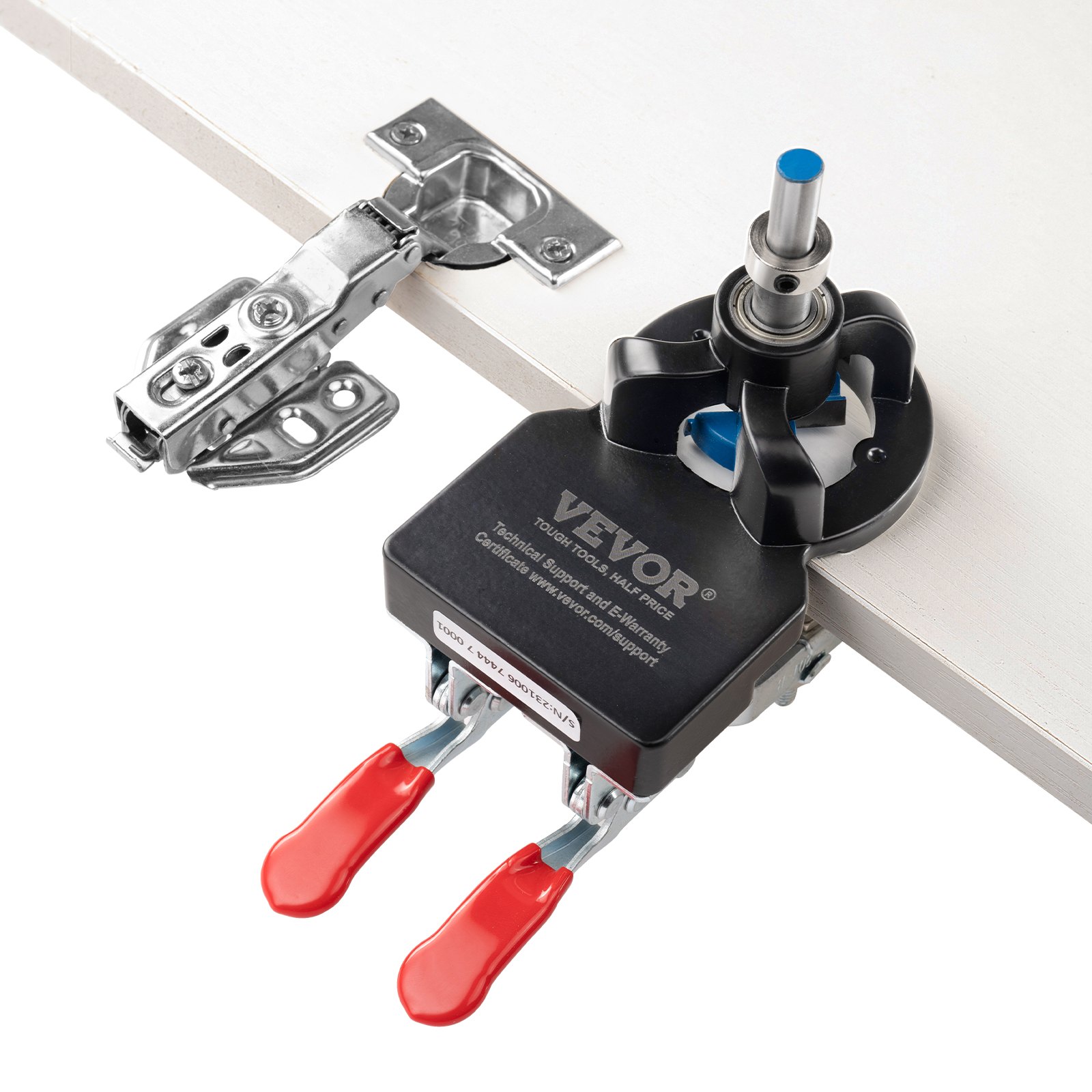

VEVOR 35 mm Concealed Door Hinge Jig, Aluminum Alloy Cabinet Hinge Jig, Accurate Locking Dual Clamp Fixation Hinge Drill Jig with Accessories, Woodworking Tool for Doors Cabinets Hinges Mounting

Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive 5,00€ off on your first three app orders. Only App.
Download Now
Exclusive 5,00€ off on your first three app orders. Only App.
Scan the QR code to download

With Self-Lock

  • With Self-Lock
  • With Fixed Clamp
  • adjustable

About this item

  • Dual-Clamp Fixation: This adjustable dual-clamp hinge jig ensures precise alignment, unlike single-clamp versions, providing superior stability and preventing slippage. Its built-in dual-clamp design quickly and securely holds workpieces in place, preventing displacement of hole positions and ensuring drilling accuracy and stability. It also minimizes drilling deviations caused by workpiece movement, reducing errors and maintaining drilling precision.
  • Sturdy and Durable: The door hinge jig frame is made of high-strength aluminum alloy, while the drilling tools are made of carbon steel and YG8 hard alloy. The overall structure is stable, ensuring durability and adaptability to different environments, including harsh weather conditions, high temperatures, and moisture. It maintains its strength and stability, with minimal risk of deformation or damage even with prolonged use.
  • Precision Drilling: This tabletop concealed hinge jig achieves quick and precise hole alignment through the adjustable positioning plate for edge spacing and the top-bearing depth adjustment. You can easily adjust the edge spacing by loosening the screws, with a range of 0.12-0.28 inches (3-7 mm), and the drilling depth ranges from 0.39-0.59 inches (10-15 mm). The higher the top-bearing height, the more precise the holes it drills.
  • User-Friendly: Our hinge jig kit is easy to operate and install without professional assistance. Just follow the 4-step instructions in the manual: Step 1, replace the top nut with a butterfly nut; Step 2, install the tools, top bearing, and limit ring in sequence; Step 3, adjust the hole spacing and clamp the workpiece securely; Step 4, use an electric drill to fix, drill the holes and side holes, and install the hinge. You can complete the installation in just a few minutes.
  • Wide Application: This cabinet hinge jig is designed for 1.38'' hinges and can be used with various drill bits to meet different usage scenarios. It is ideal for everyday household equipment installations and repairs, such as cabinets, wardrobes, and door locks. It has a 1.38''/35 mm drill bit for drilling holes. The distances between hinge screws are 1.81'' (46 mm), 1.89'' (48 mm) or 2.05'' (52 mm).

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR 35 mm Concealed Door Hinge Jig, Aluminum Alloy Cabinet Hinge Jig, Accurate Locking Dual Clamp Fixation Hinge Drill Jig with Accessories, Woodworking Tool for Doors Cabinets Hinges Mounting
With Self-Lock
VEVOR Door Hinge Jig, Empowering precise and fast woodworking drilling

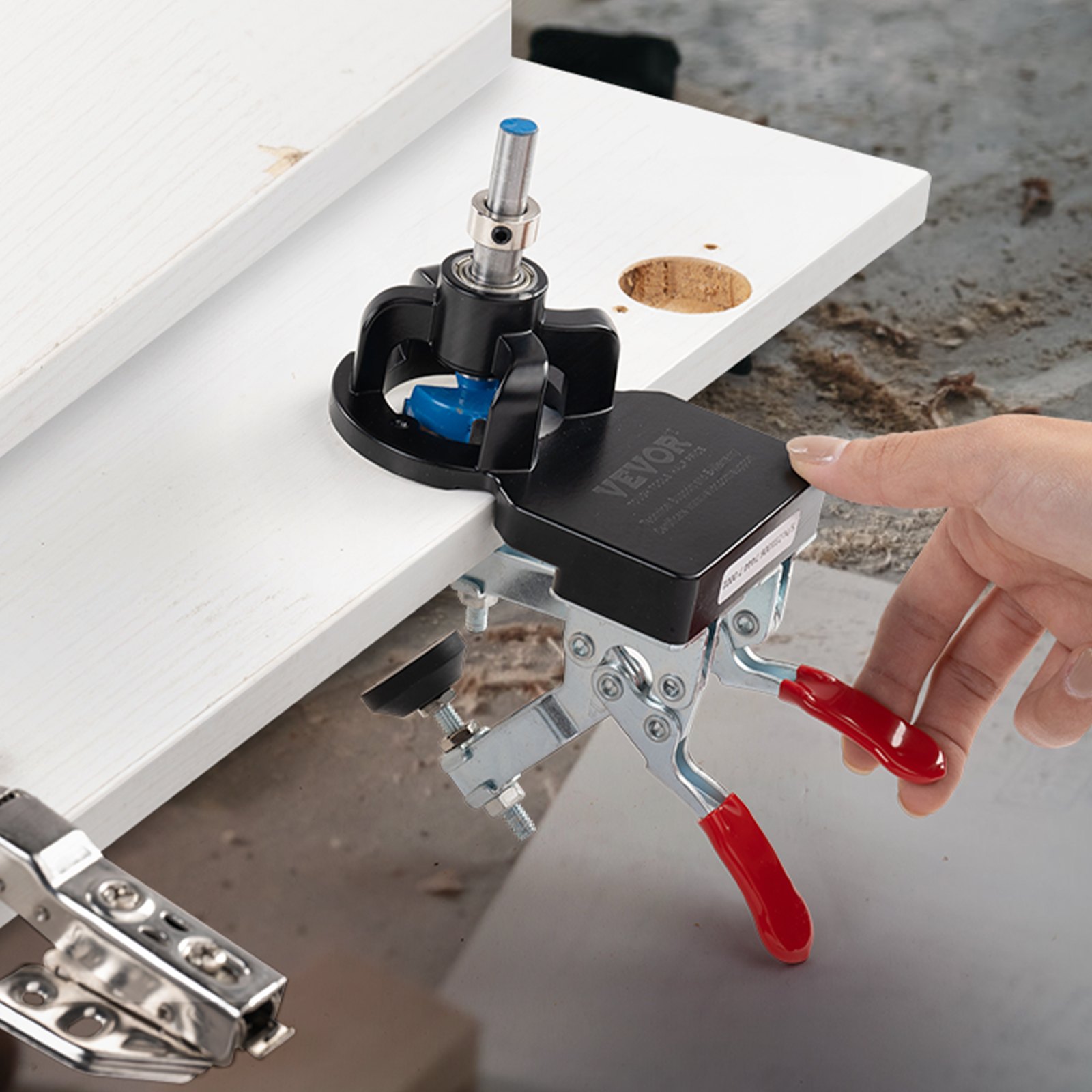

VEVOR door hinge jig used by a person in a kitchen setting, showcasing stability, strength, and durability.
VEVOR door hinge jig used by a person in a kitchen setting, showcasing stability, strength, and durability.

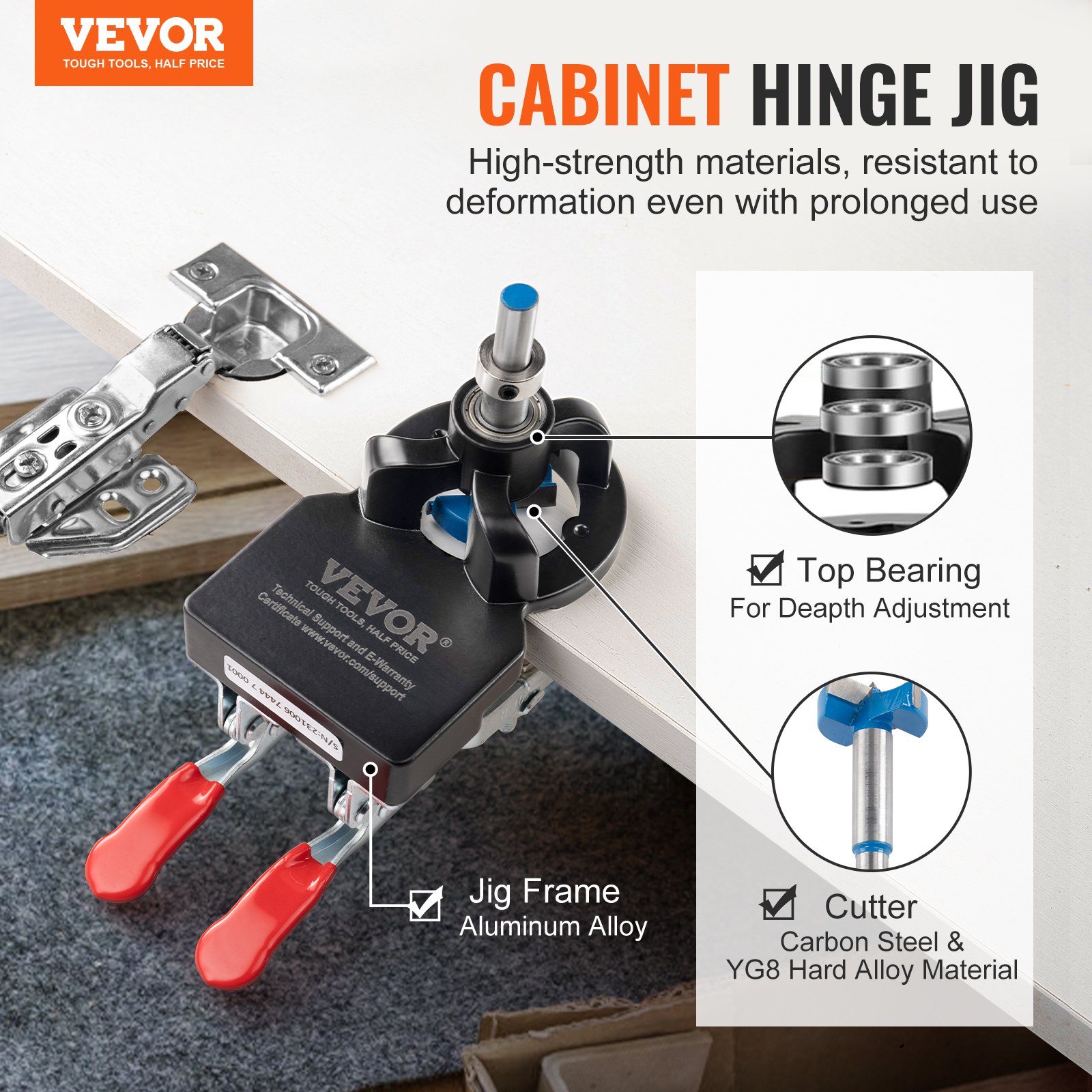

Our hinge jig features a frame made of high-strength aluminum alloy and drilling tools made of carbon steel + YG8 hard alloy. Its stable structure can withstand substantial weight and pressure, extending its lifespan. It can also maintain stability in various complex environments.
adjustable hole spacing for the VEVOR door hinge jig shown with positioning plate and higher top bearing.
adjustable hole spacing for the VEVOR door hinge jig shown with positioning plate and higher top bearing.
This door hinge jig features adjustable hole spacing, allowing for more precise drilling. The adjustable range for spacing is 0.12-0.28 inch, with a drilling depth of 0.39-0.59 inch, easily adjustable by loosening the screws. The higher the top bearing, the more precise the holes.

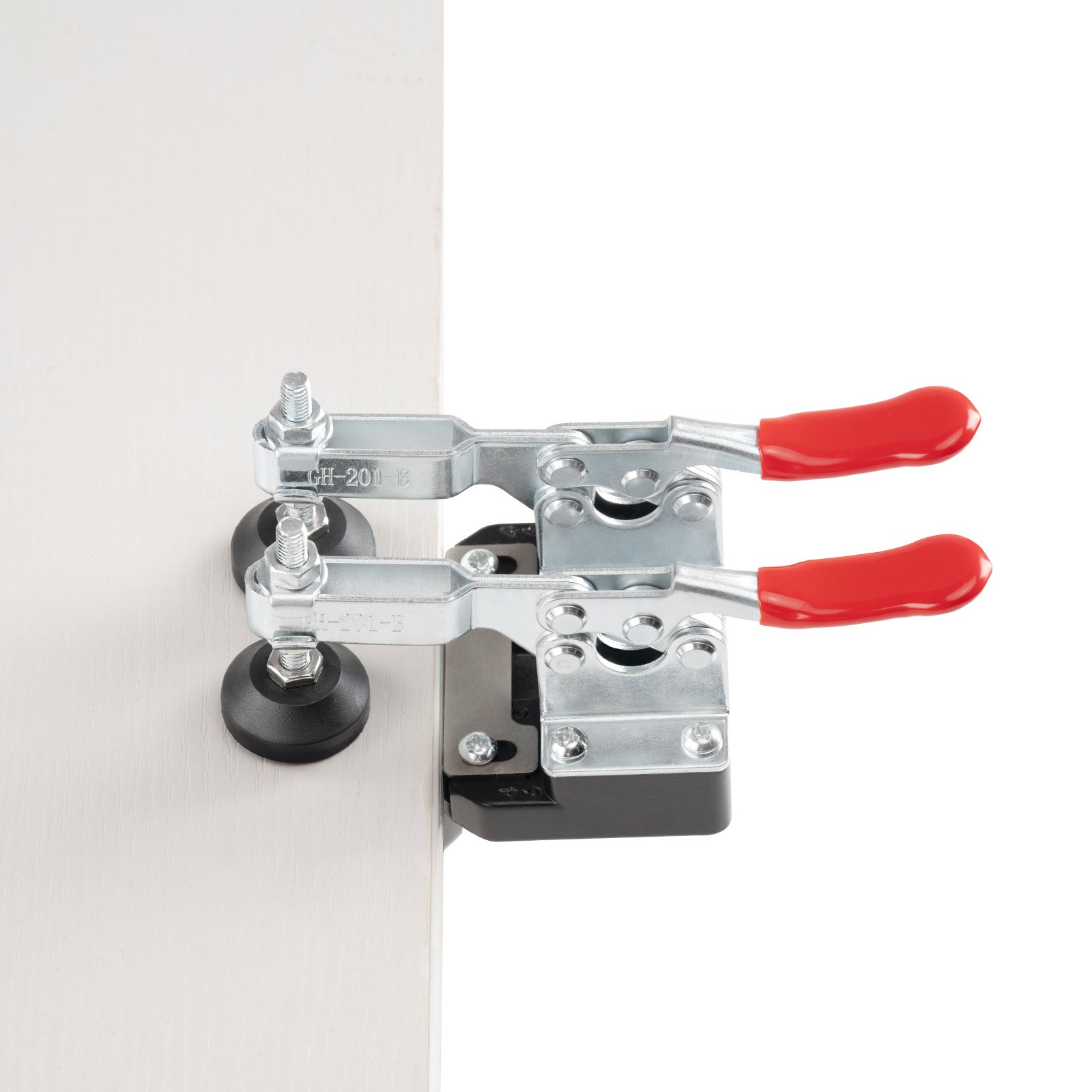

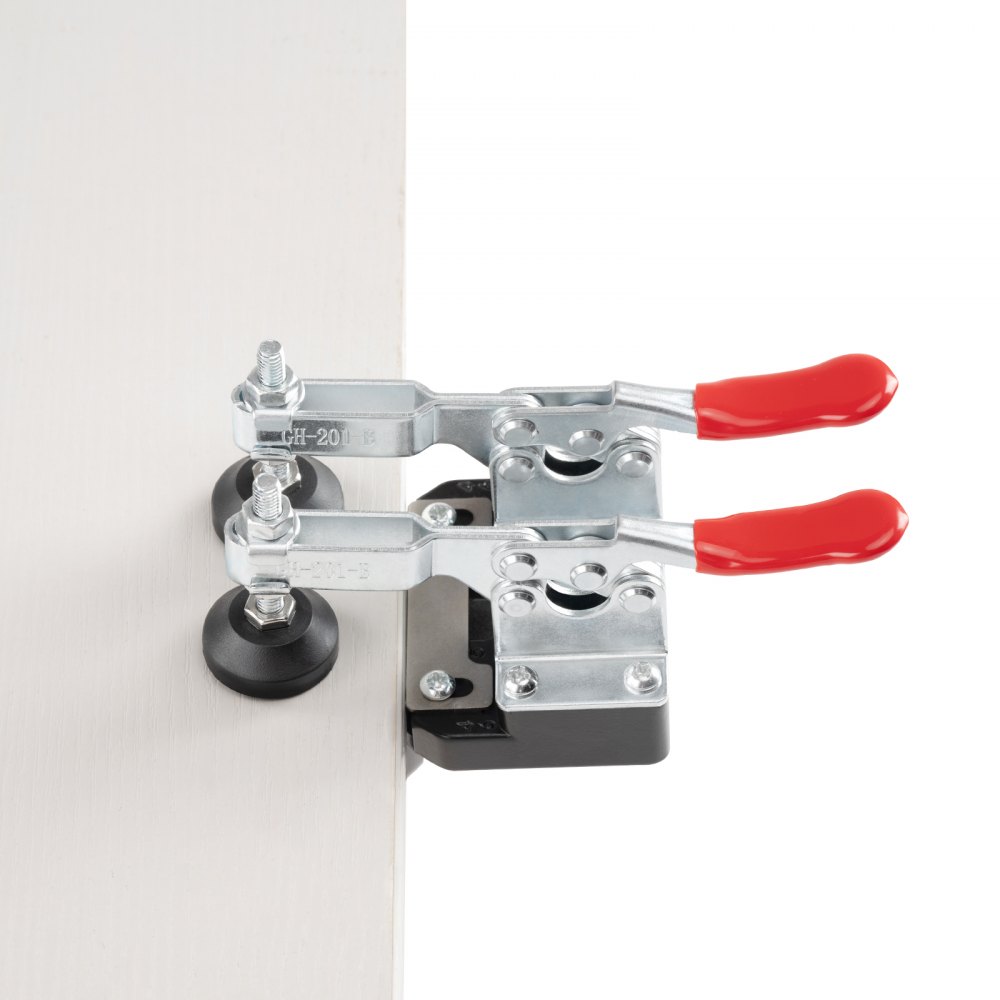

dual clamp gripping VEVOR door hinge jig for fast multi-angle hole drilling, clamping thickness 12-25mm.
dual clamp gripping VEVOR door hinge jig for fast multi-angle hole drilling, clamping thickness 12-25mm.
Our hinge jig kit comes with dual clamps for a secure grip, ensuring that the workpiece won't move or wobble and reducing the risk of the workpiece shifting during drilling. It accommodates different-sized workpieces, providing a stable, efficient, and safe experience.

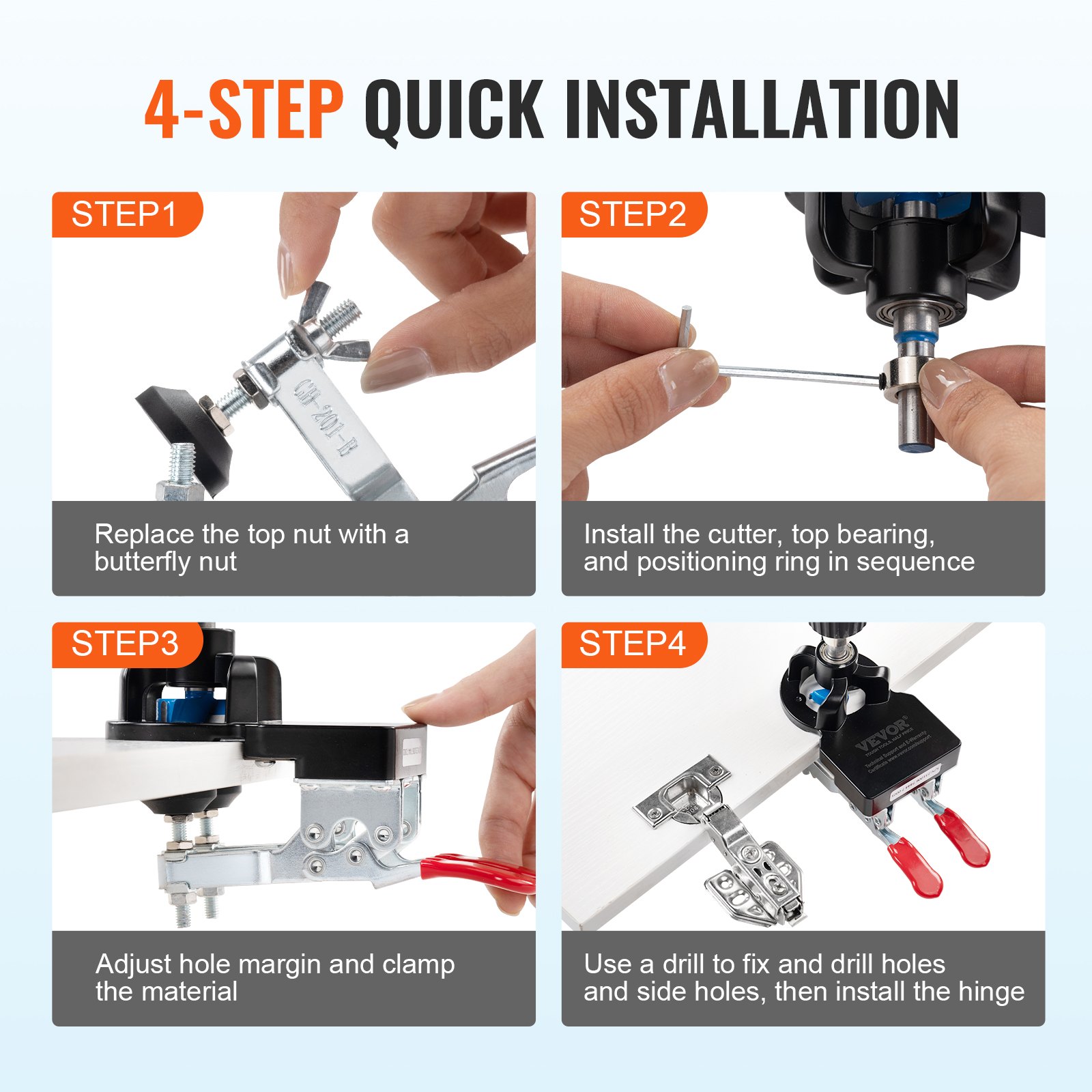

VEVOR door hinge jig being installed in four steps for easy and fast installation.
VEVOR door hinge jig being installed in four steps for easy and fast installation.
This concealed hinge jig is user-friendly and easy to install, requiring no professional training. It eliminates complex setup steps and tedious installation processes, saving time and increasing work efficiency. It also reduces errors during operation, ensuring correctness and drilling precision.
VEVOR door hinge jig compatible with 1.38" hinges for bookshelves, doors, wardrobes, and cabinets.
VEVOR door hinge jig compatible with 1.38" hinges for bookshelves, doors, wardrobes, and cabinets.

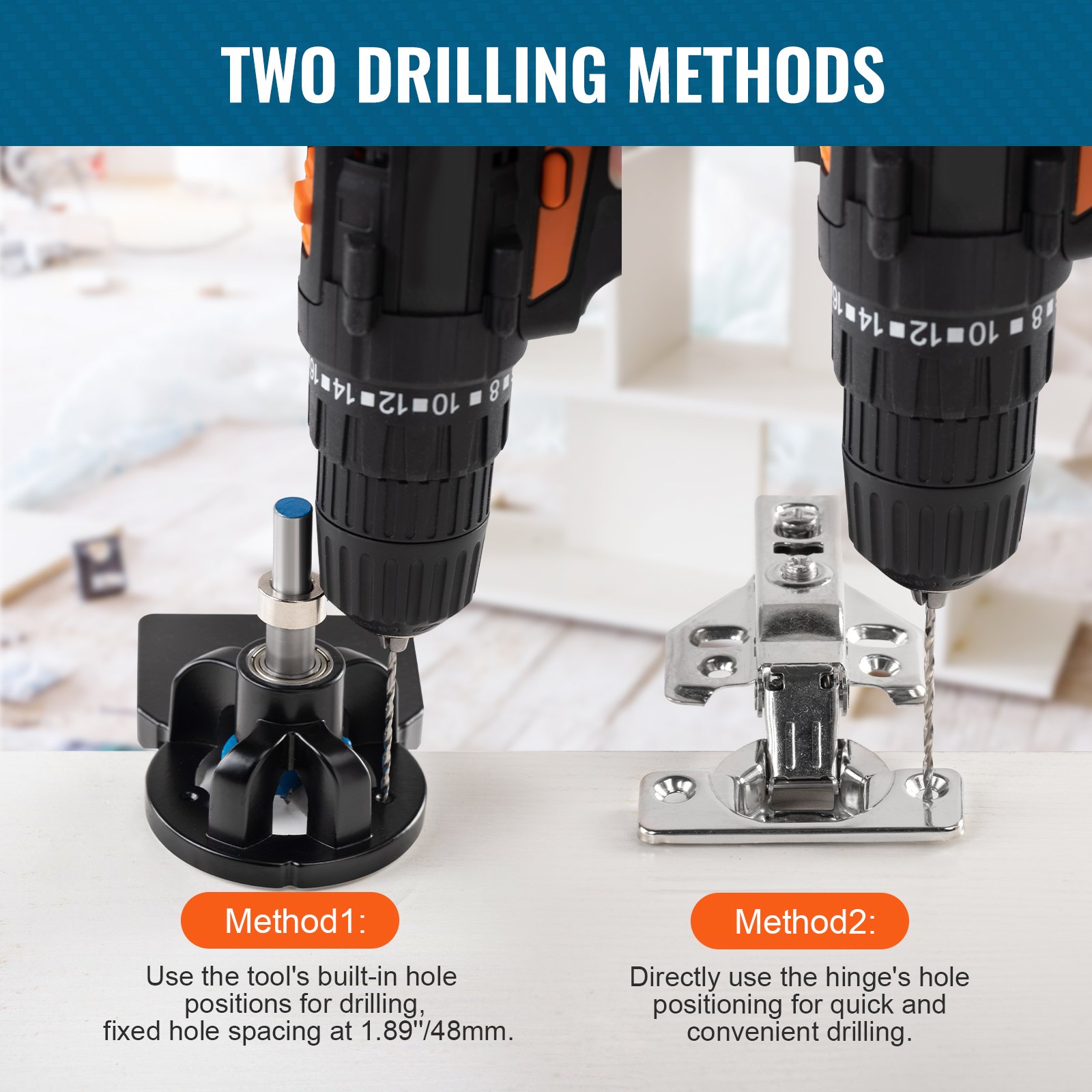

This versatile cabinet hinge jig is suitable for 1.38'' hinges, meeting the hinge hole needs for cabinets, doors, wardrobes, bookshelves, and more. Equipped with a 1.38''/35mm drill bit and depth stop, it features a drilling axis hole function. The hinge screw distances are 46mm, 48mm, or 52mm.

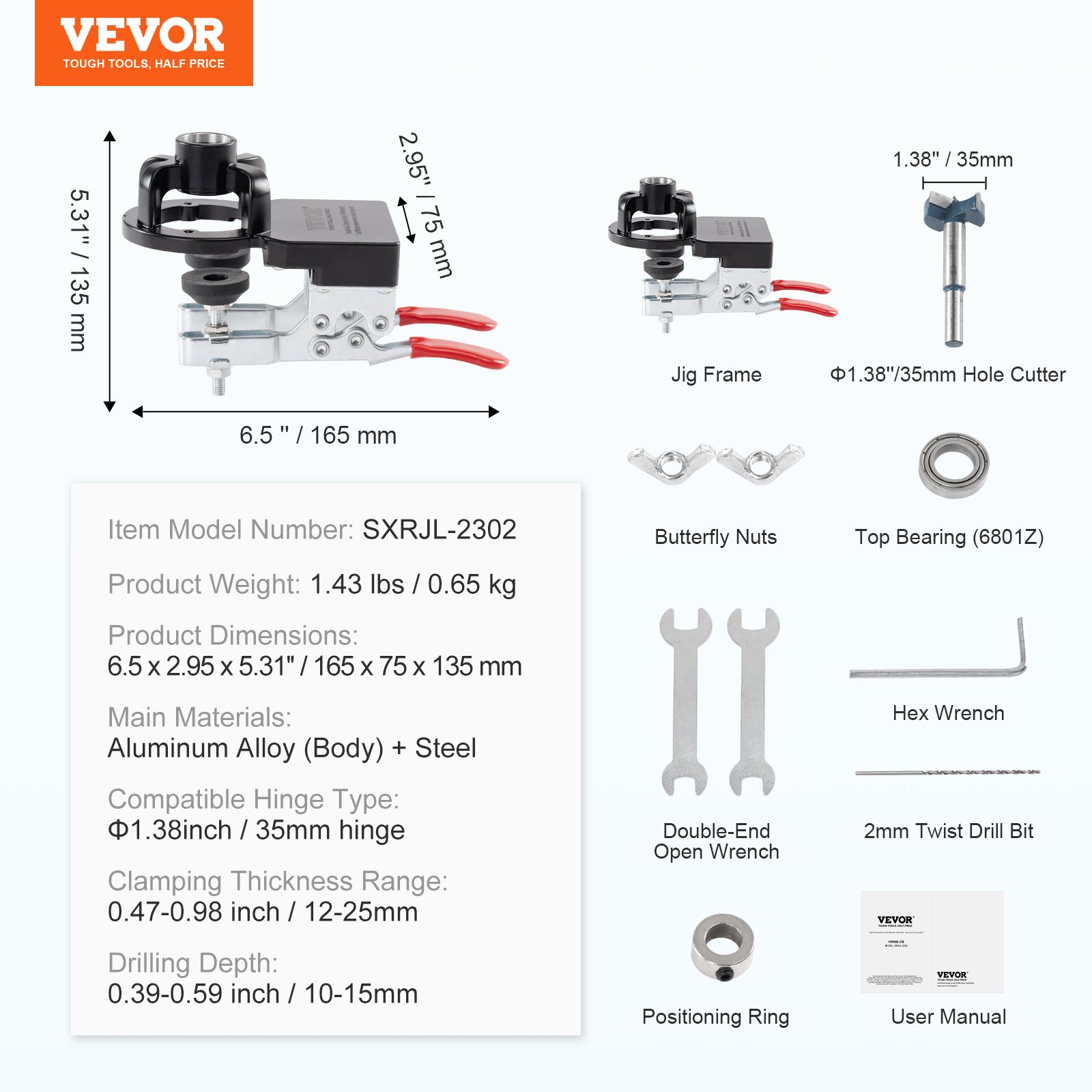

VEVOR door hinge jig with jig frame, hole cutter, wrench set, butterfly nuts, top bearing, and manual.
VEVOR door hinge jig with jig frame, hole cutter, wrench set, butterfly nuts, top bearing, and manual.

Specification

Item Model Number
SXRJL-2302
Compatible Hinge Type
Φ1.38inch / 35mm hinge
Clamping Thickness Range
0.47-0.98 inch / 12-25mm
Drilling Depth
0.39-0.59 inch / 10-15mm
Main Materials
Aluminum Alloy (Body) + Steel
Product Weight
1.43 lbs / 0.65 kg
Product Dimensions
6.50 x 2.95 x 5.31 inch / 165 x 75 x 135 mm
