1/2" Body 1/2" NPT Flat Face Hydraulic Couplers with Dust Caps
Here we present you this hydraulic coupling quick connect set, made from hardened steel with zinc plating treatment, comes with caps, and can endure high-temper and max pressure, resistance to corrosion, and rust. It is widely used for the public utility to avoid leakage like engineering machinery, petroleum machinery, coal mine machinery, etc.
- Harden Steel Construction
- 1/2" Body With 1/2" NPT Thread
- High Flow Performance
- Quick Connect & Disconnect

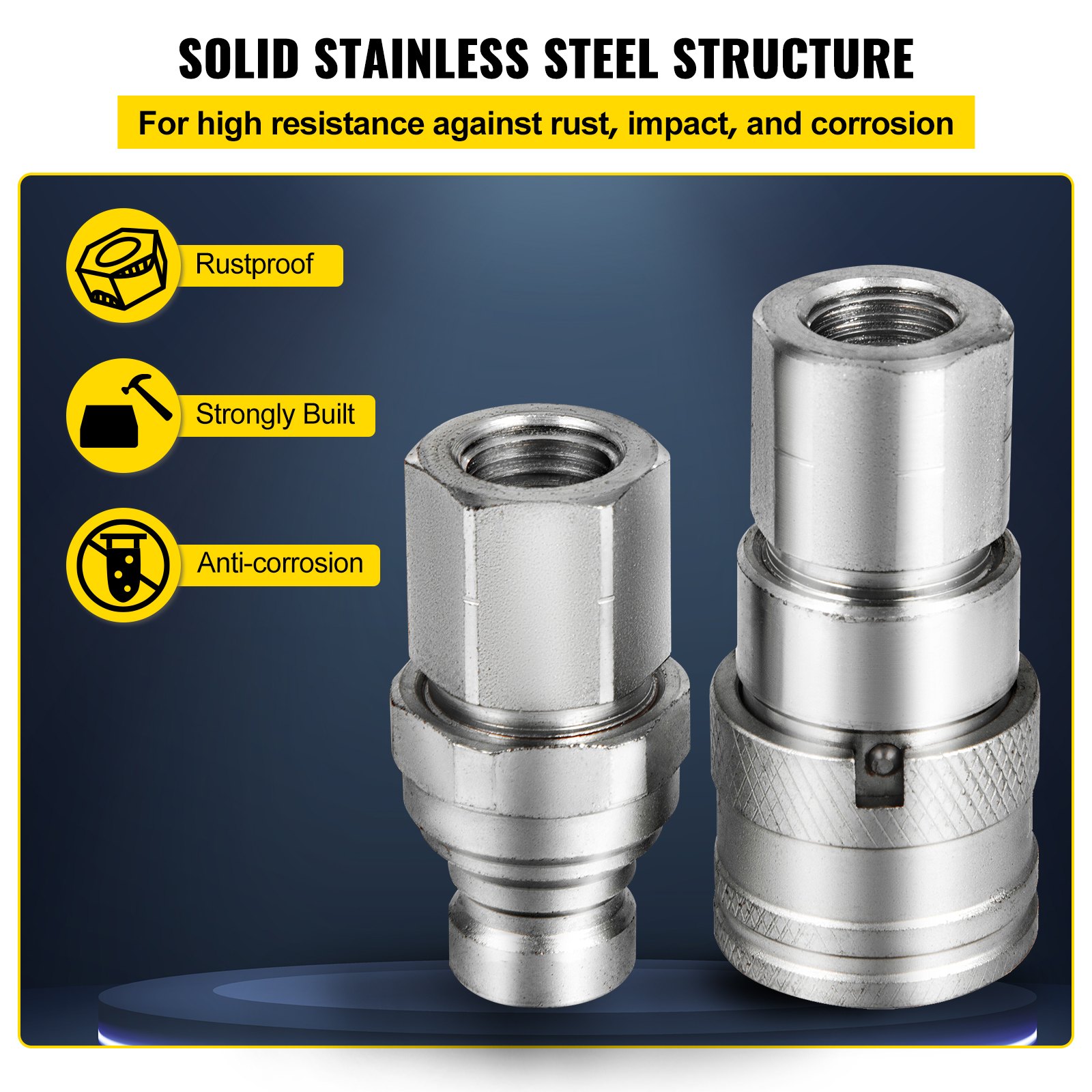

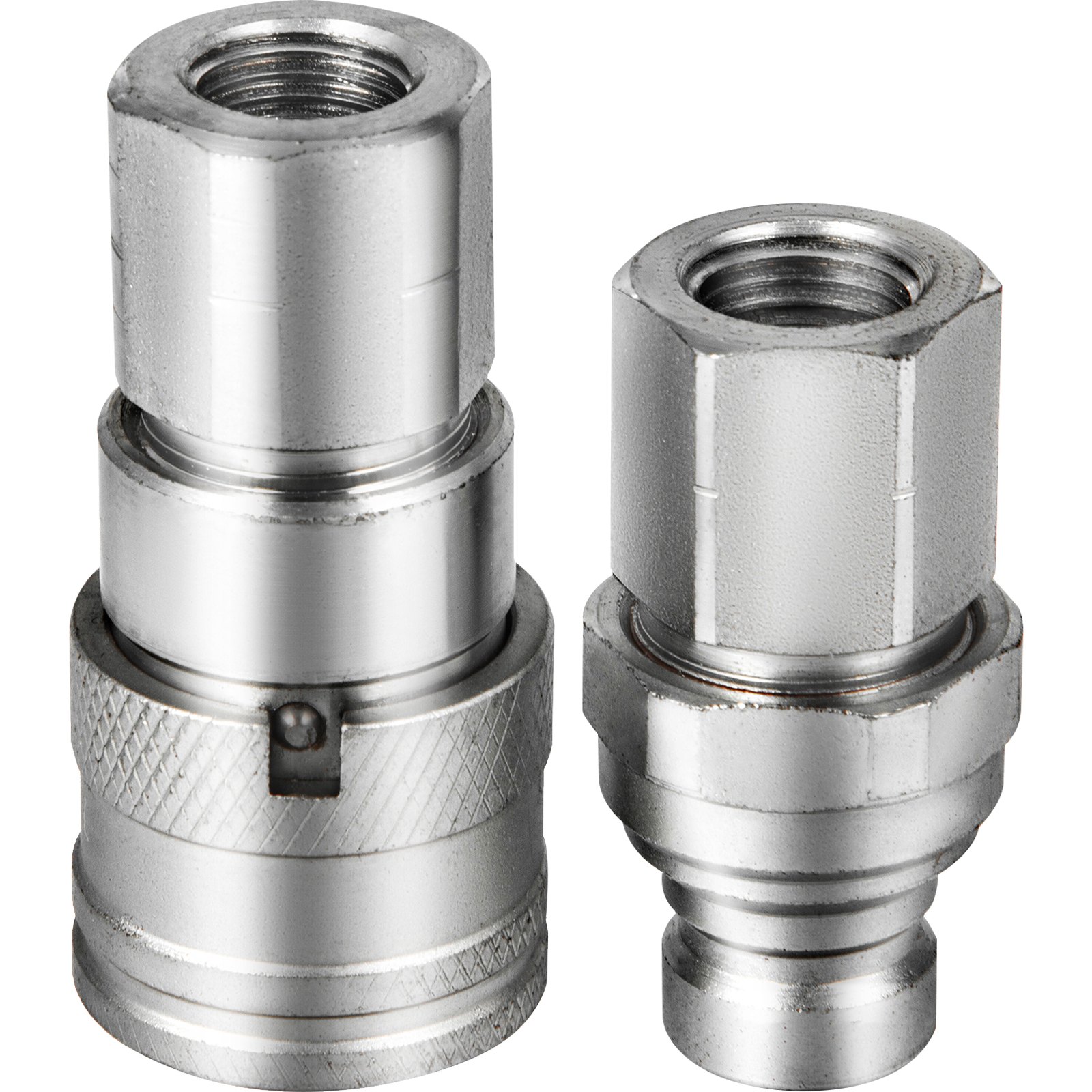

Quenching Treatment Steel
This flat face coupler is made of high-strength hardened steel in a plug and socket structure. It also goes through zinc plating treatment to endure high-temper, corrosion, and rust for long-lasting use.

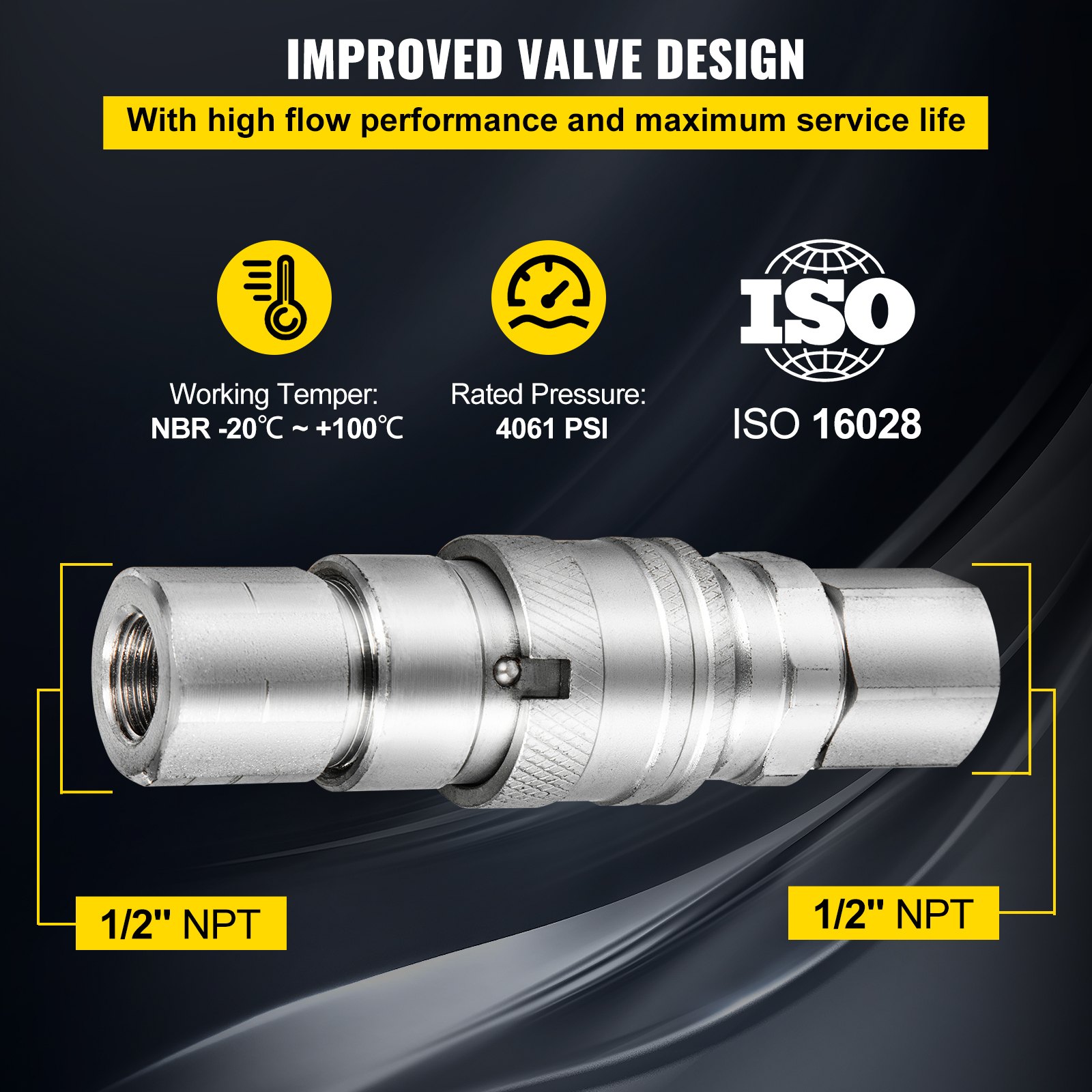

1/2" Body & 1/2" NPT Thread
It is built in standard dimensions, with body size 1/2" and thread size 1/2". Both male and female couplers match seamlessly to each other, leaving no risk of fluid loss, with Max pressure: 280 bar.
Sleeve Locking Mechanism
The skid steers quick coupler has a compact profile and a valve design inside to ensure complete sealing for each connection. Flat face design prevents contaminants from entering the hydraulic fluid system.

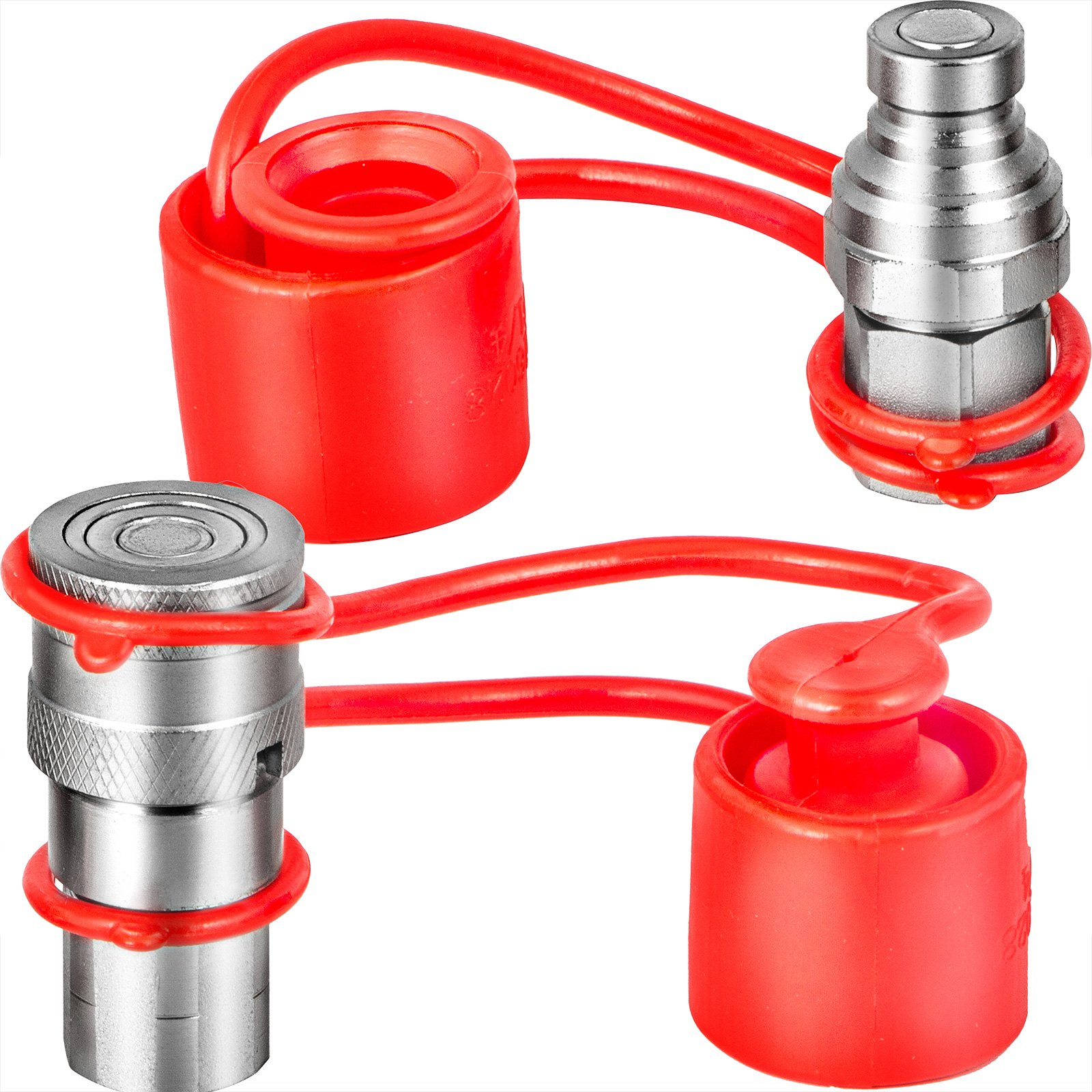

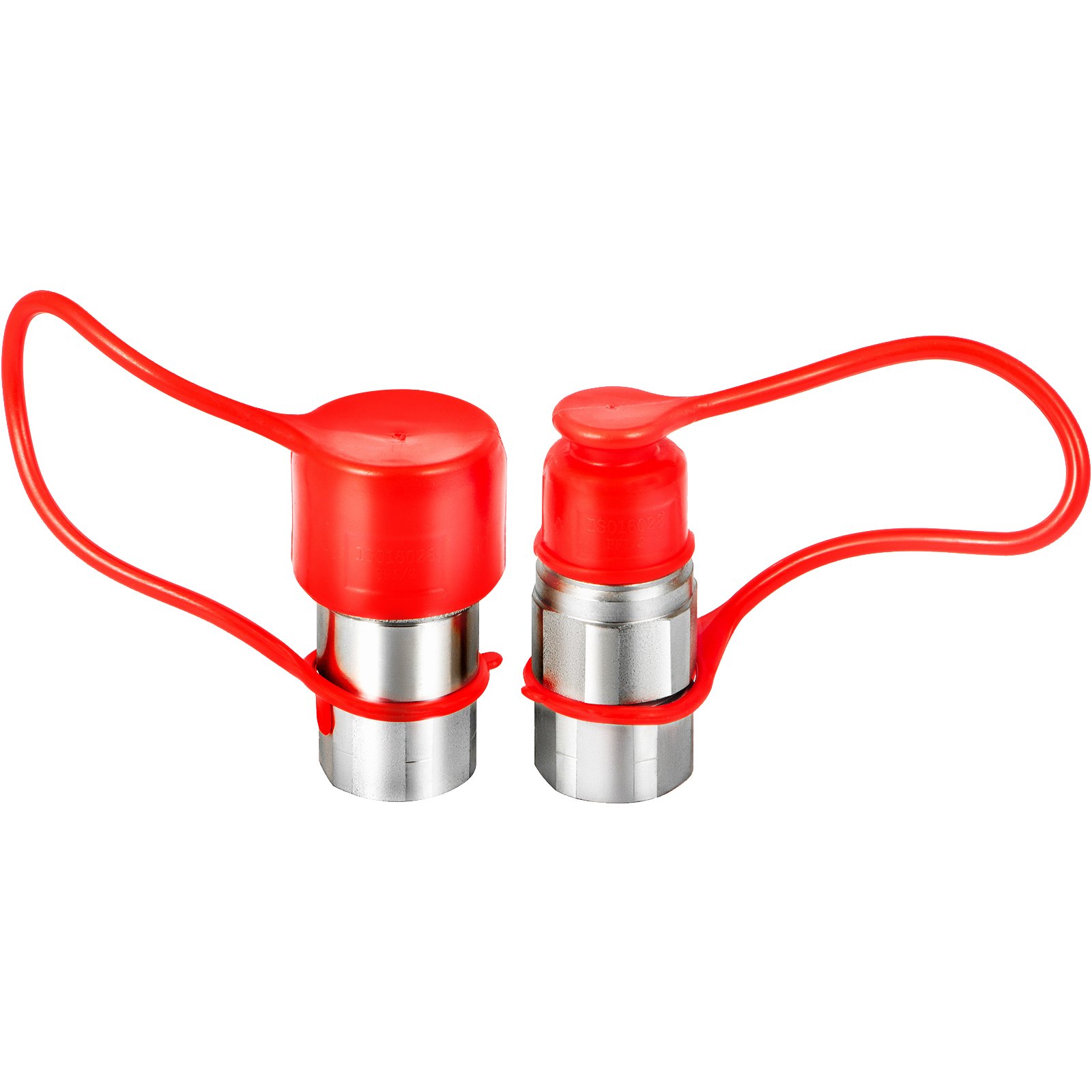

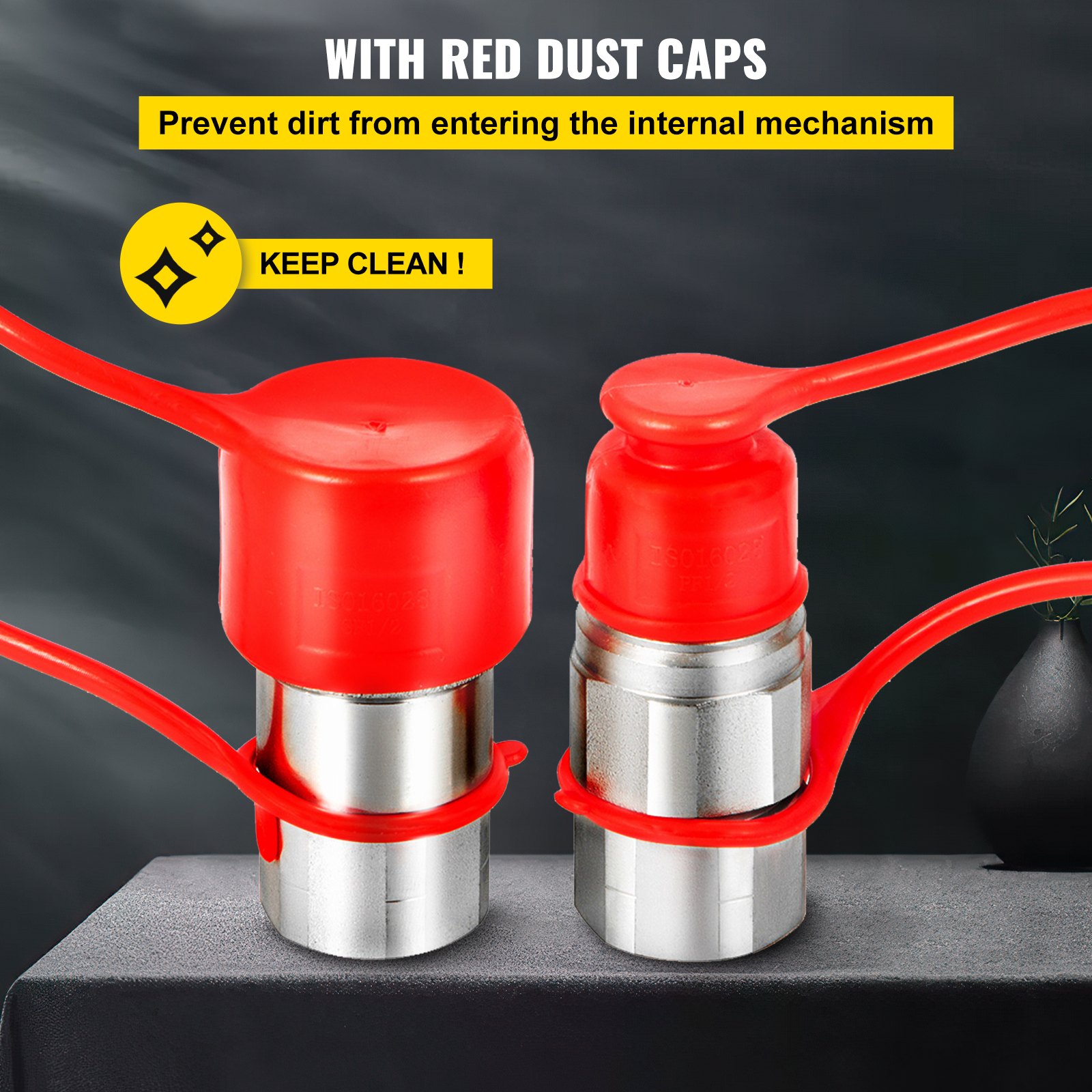

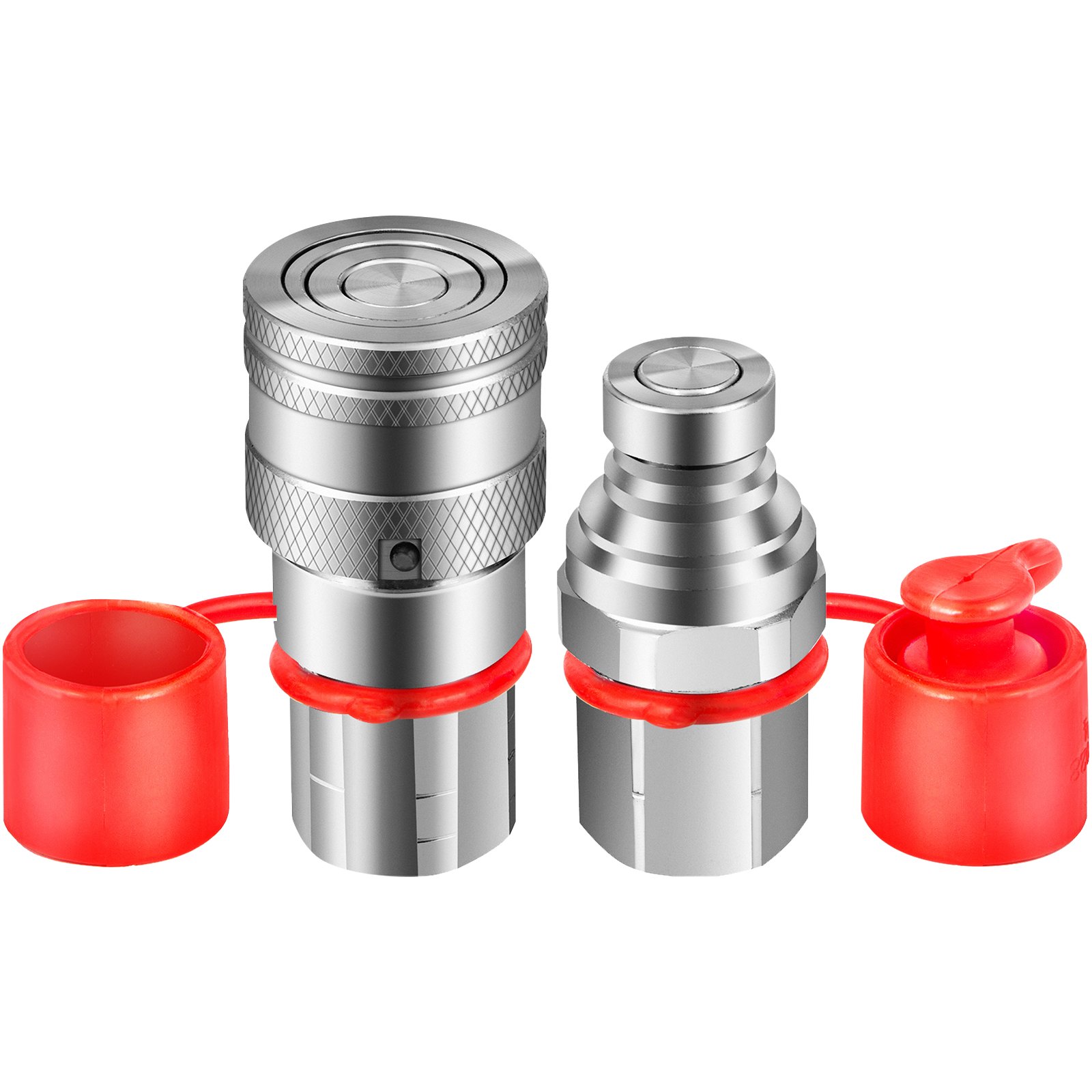

Complete Accessories
The coupler set consists of a male and a female coupler. It also comes with a pair of protective PVC dust caps to maintain the hydraulic system's cleanness. It features cleaner storage and safer use.

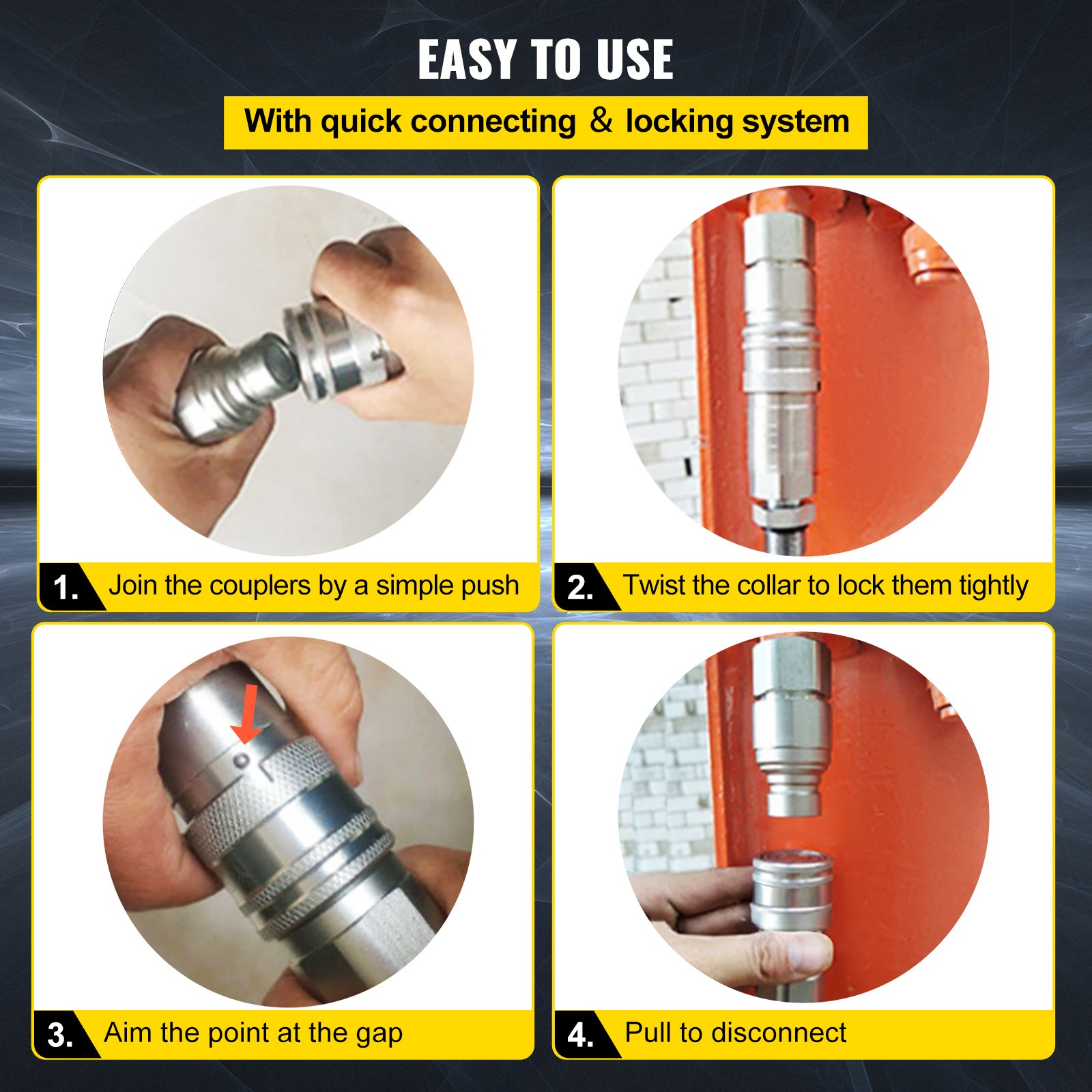

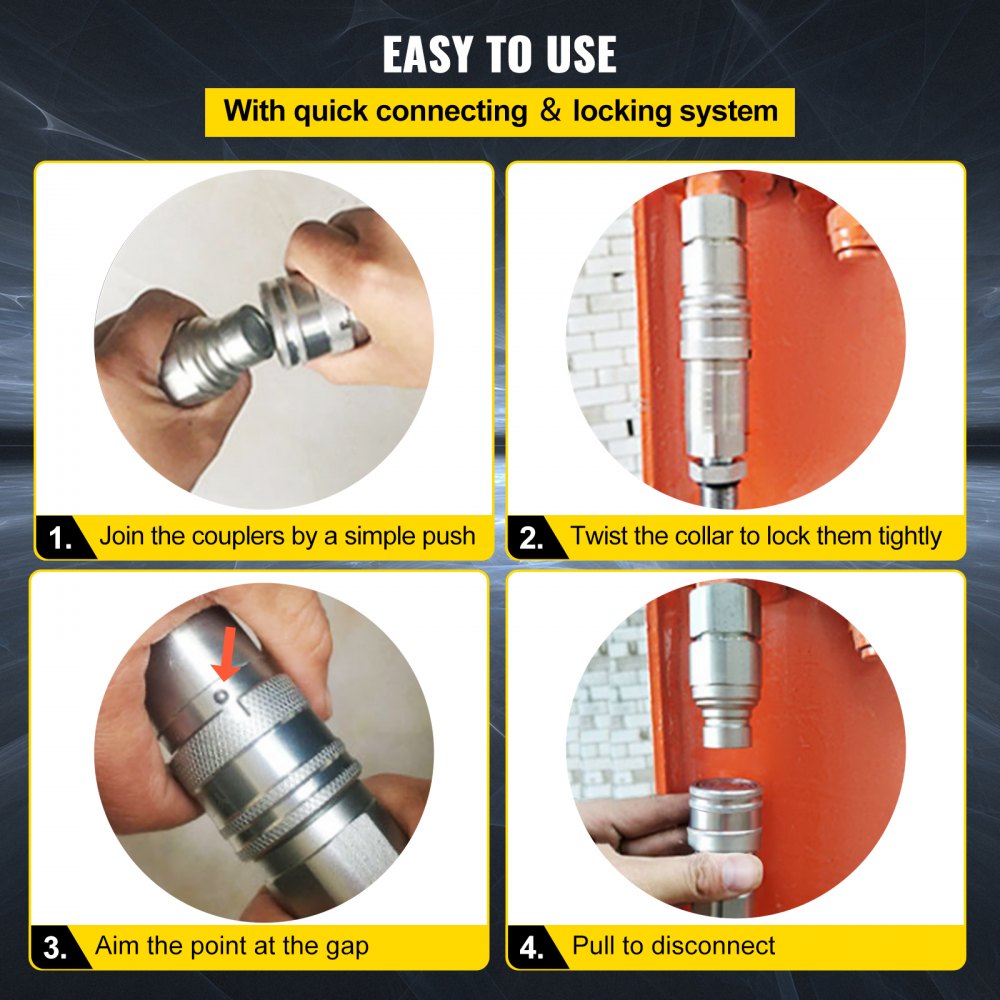

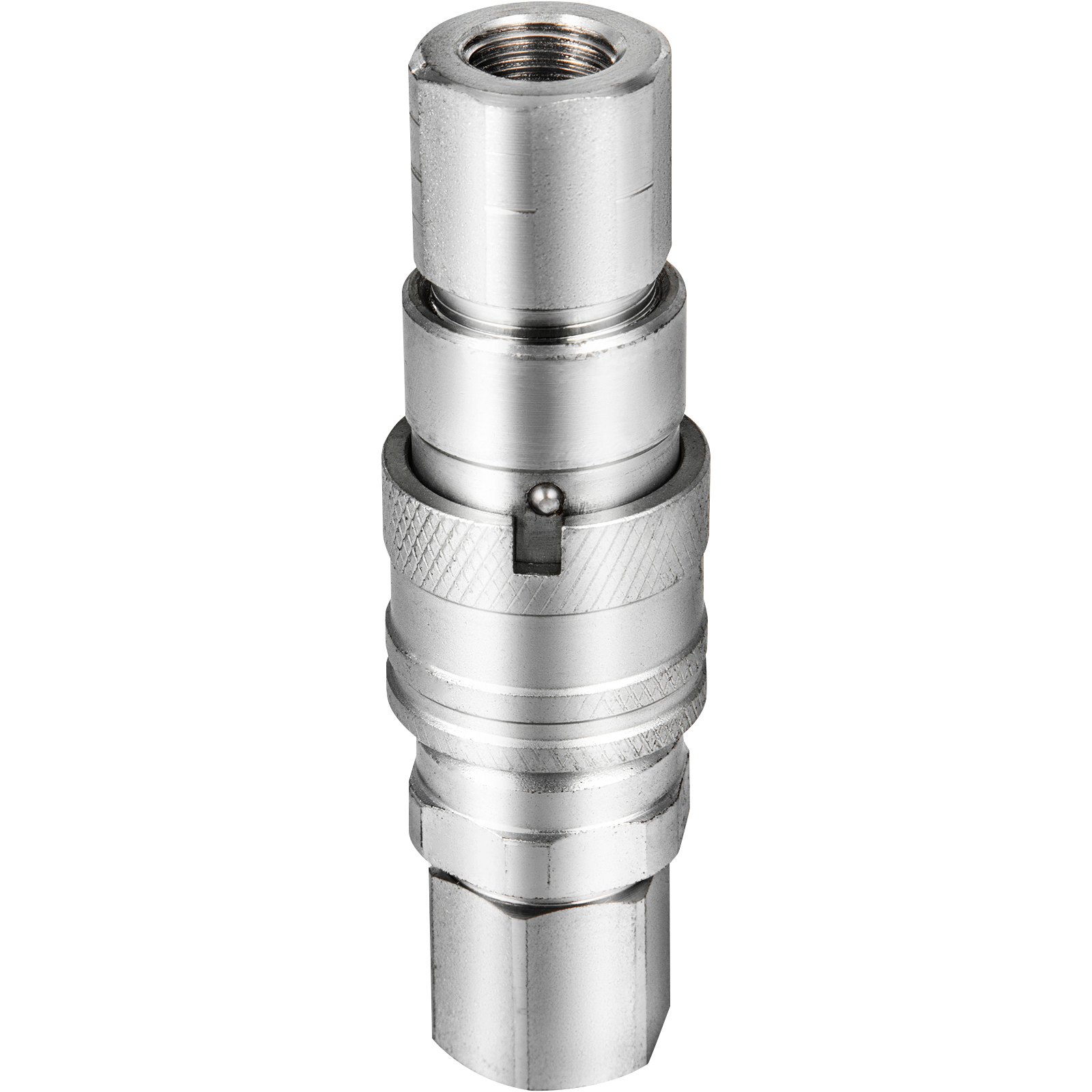

Quick Connect Coupler
This heavy-duty quick coupling is easy and fast to connect and disconnect. You need to parallel the plug (Male) to the parent body (Female) and joint them, then rotating the outer ring to both sides for locking.

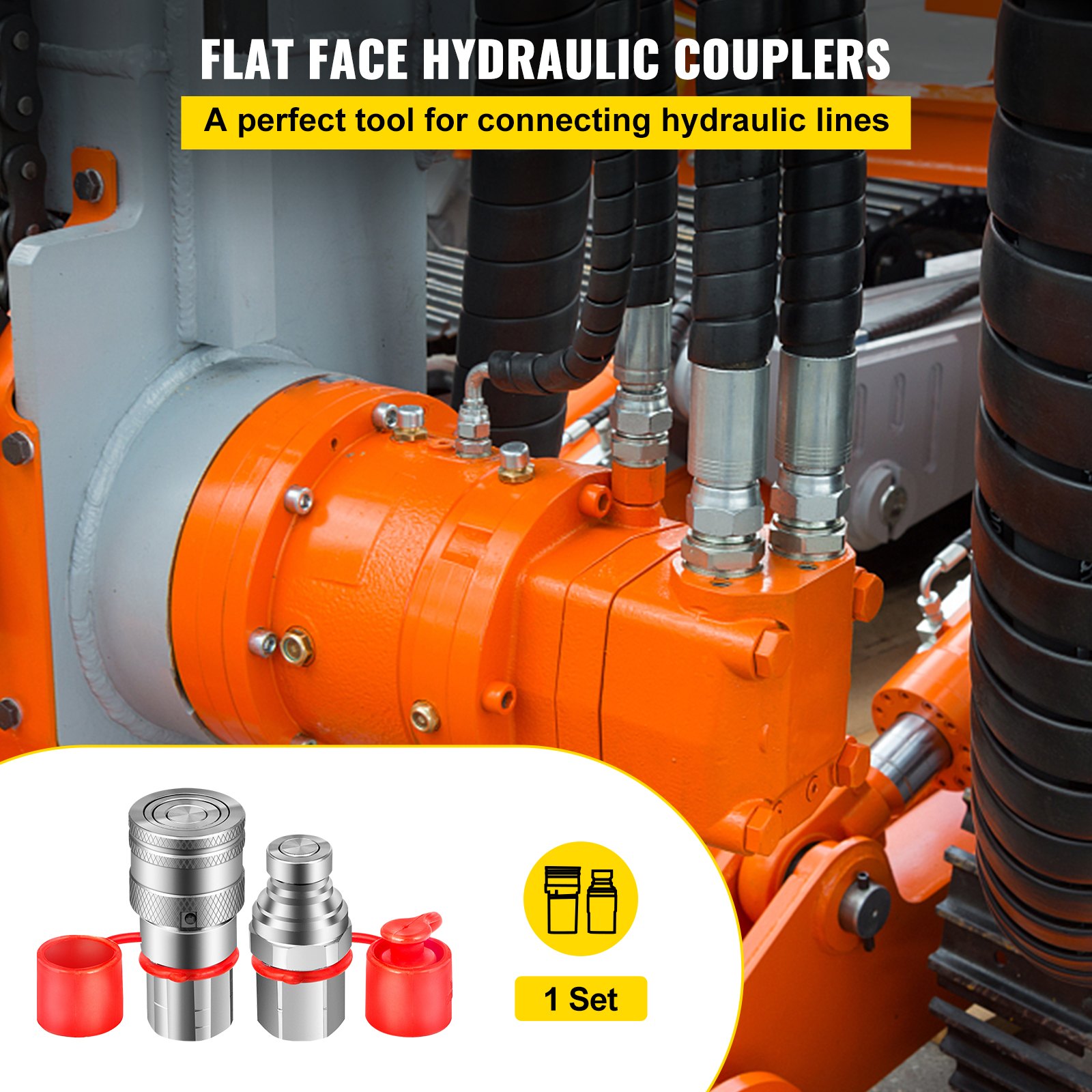

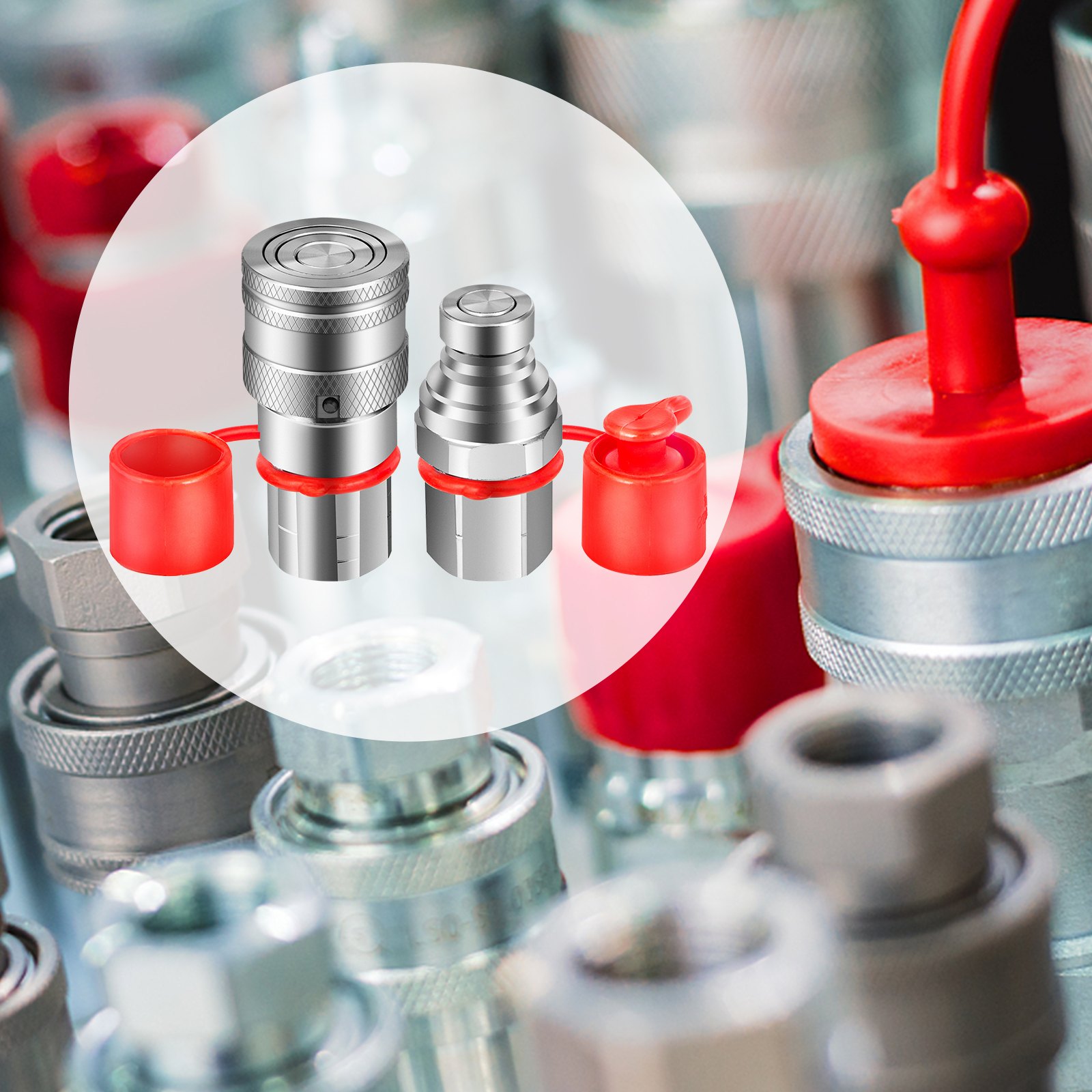

Wide Application
This hydraulic coupler with ISO16028 standards is widely applied in machinery like engineering, petroleum, and coal mine. It can be attached to skid steers loaders like Bobcat, New Holland, Kubota.
- 1 x Set of Hydraulic Couplers (Male & Female)
- 1 x Set of PVC Protective Dust Caps
- Product Type: Hydraulic Quick Connect Coupler Set
- Valve Type: Flat Face
- Material Type: Steel & PVC
- Plating Type: Corrosion-resistant Trivalent Zinc
- Working Temper: NBR -20℃ ~ +100℃ (FKM -20℃ ~ +180℃)

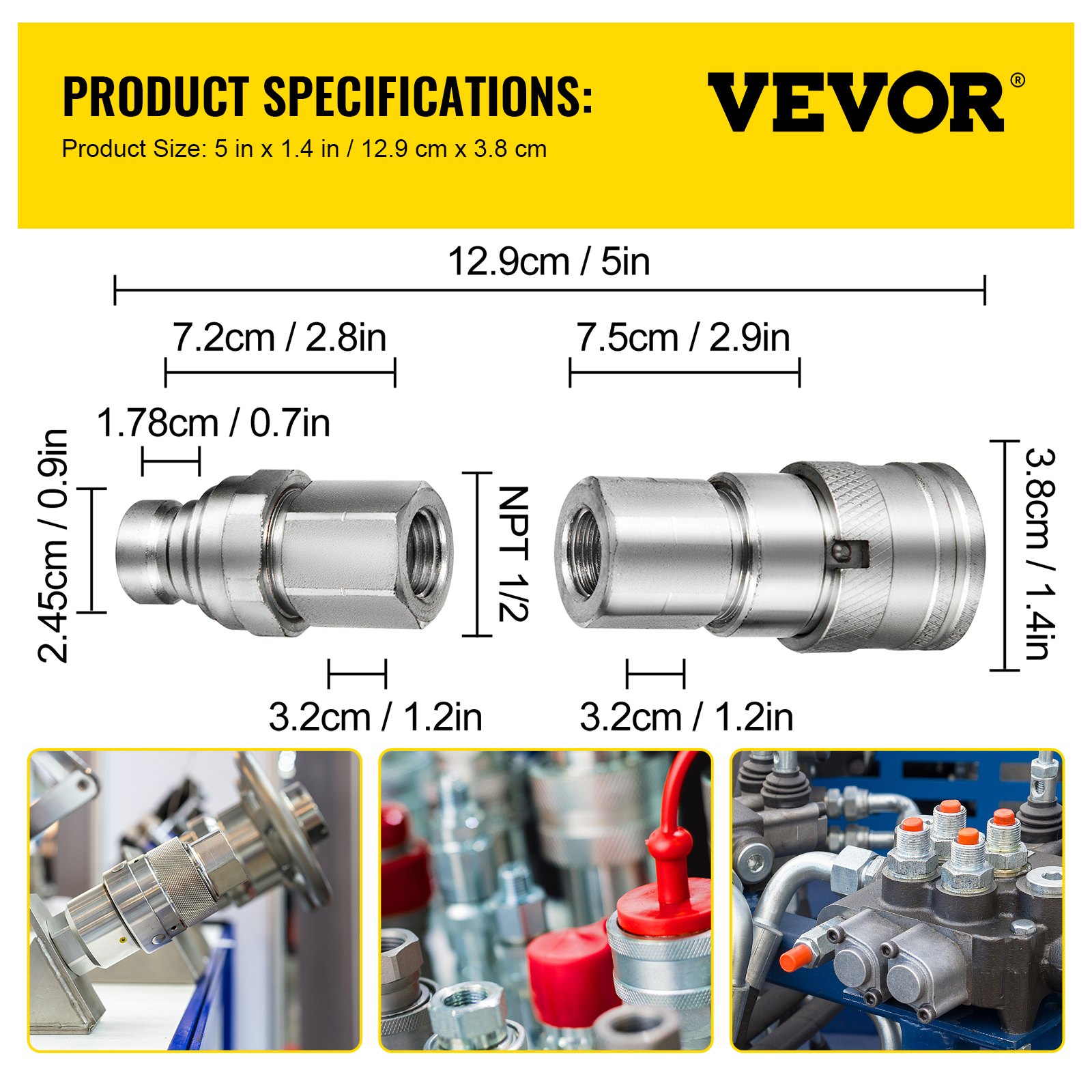

- Body Size: 1/2" (12.7 mm)
- Thread Size: 1/2" NPT
- Coupled Length: 5" (129 mm)
- Max. Pressure: 4061 PSI (280 Bar)
- ISO Standards: ISO 16028
- Gross Weight: 3 lbs (1.36 kg)
