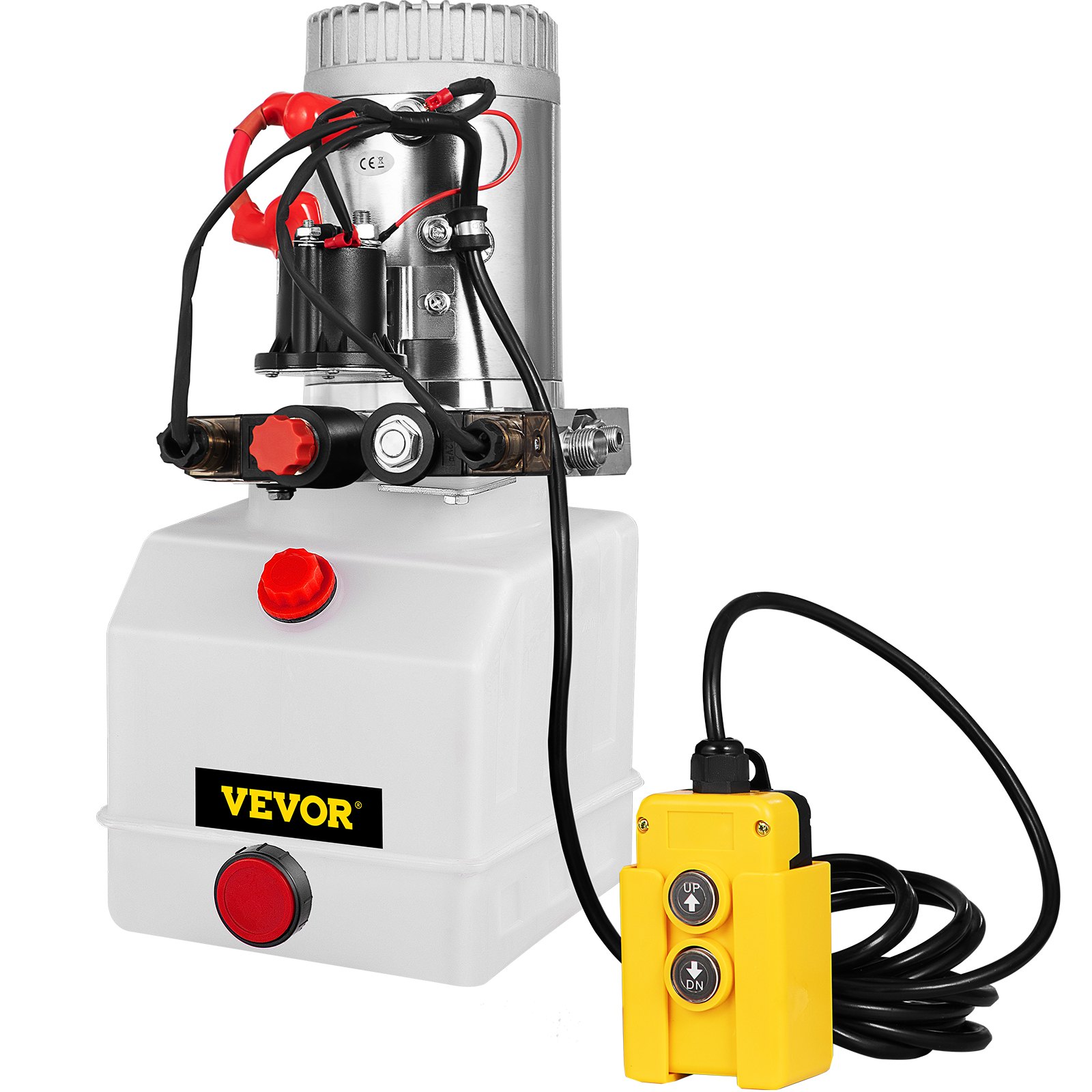

VEVOR hydraulic pump with a white reservoir, attached wires, and a yellow control switch. VEVOR hydraulic pump with control panel and yellow dump truck in background. VEVOR hydraulic pump for double acting lifting in trucks. VEVOR hydraulic pump with remote control and sae#6 connectors. fully assembled. VEVOR hydraulic pump with labeled parts including motor, reservoir, and remote control. VEVOR hydraulic pump installation on dump truck, scissor lift, and boom lift. VEVOR hydraulic pump with specifications; dimensions shown: 8.2in x 16.5in x 7.4in.
CZYYB3KTSLSZY0001V0

VEVOR Hydraulic Pump, Double Acting Hydraulic Power Unit, 12V DC Tipper Trailer Pump, 2850 RPM, Hydraulic Power Unit for Lifting Tipper Trailers and Cars (3 Quart, Double Acting)

CLEARANCE
Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive 5,00€ off for your first three orders on the App.
Download Now
Exclusive 5,00€ off for your first three orders on the App.
Scan the QR code to download

About this item

  • Product Details: Our hydraulic pump is designed with a 12V DC motor (Power: 1.6-3.0kw) and a 3-quart reservoir. The max relief pressure on A port (SAE#6) is 3200 PSI, and on B port (SAE#6) is 1500 PSI; and it is a double-acting pump for both power up and power down.
  • Easy to Use: This 12V hydraulic power unit has been fully assembled in advance. The wiring is simple and comes with operating instructions. 4 SAE#6 connectors and one 15 ft remote control are included in the package.
  • Reliable Quality: The dump trailer pump is made of sturdy plastic; thus, the oil tank is not easy to crack or be damaged. As a power unit, this is a perfect replacement pump for remote hydraulic systems. Equipped with relief valves, it avoids overpressure, safer and reliable.
  • Rapid Start: With its powerful motor, this hydraulic electric pump is quick to start and quick to output oil; it can provide strong power for hydraulic systems like dump trailers, dump beds and is able to complete lifting in a short time.
  • Wide Application: This power unit is widely used in stackers, small, and medium-sized lifting platforms. It is compatible with many dump trailers and movers and is a direct replacement for 12V DC remotely controlled hydraulic systems.
See More See Less

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Hydraulic Pump, Double Acting Hydraulic Power Unit, 12V DC Tipper Trailer Pump, 2850 RPM, Hydraulic Power Unit for Lifting Tipper Trailers and Cars (3 Quart, Double Acting)
Description Specification Questions and Answers

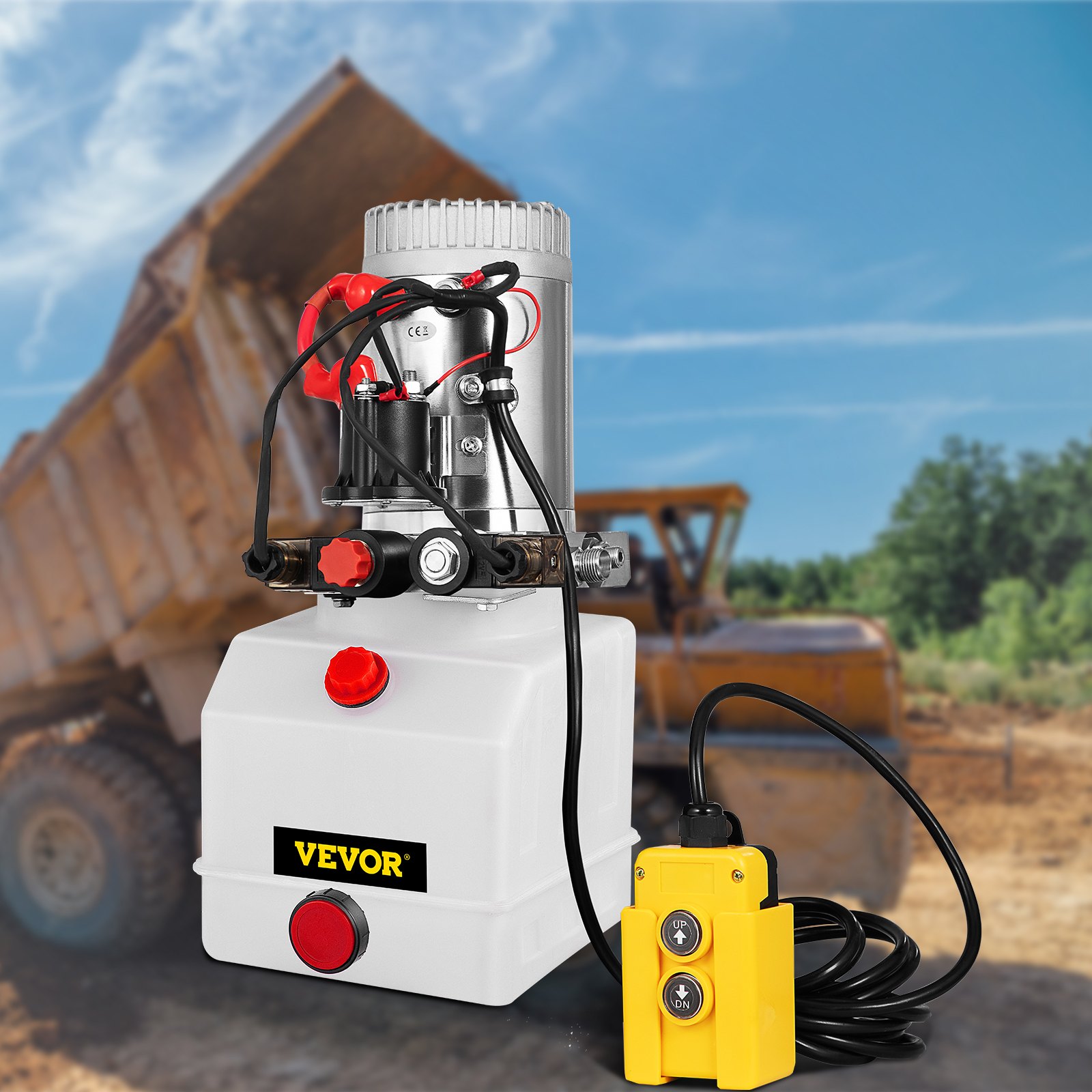

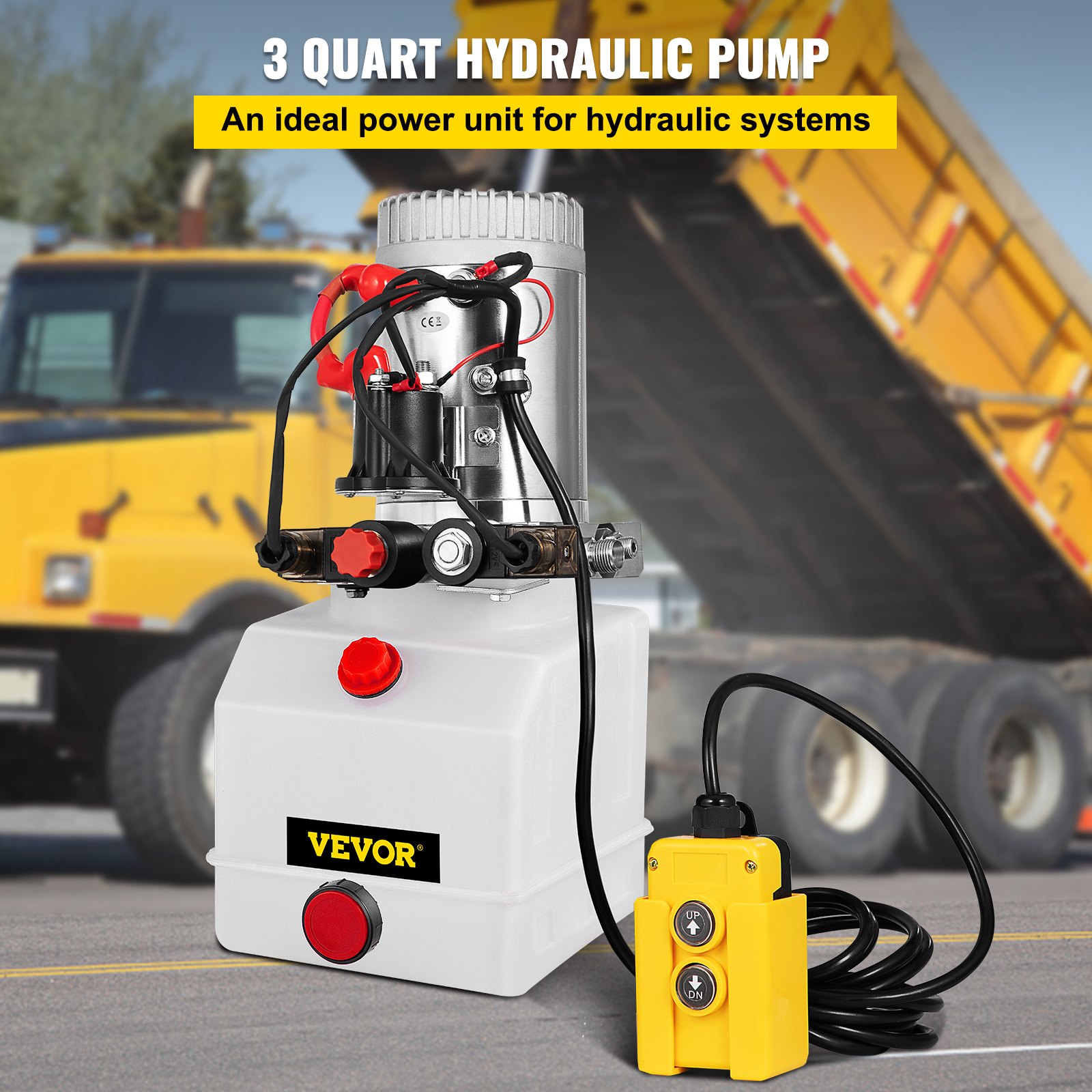

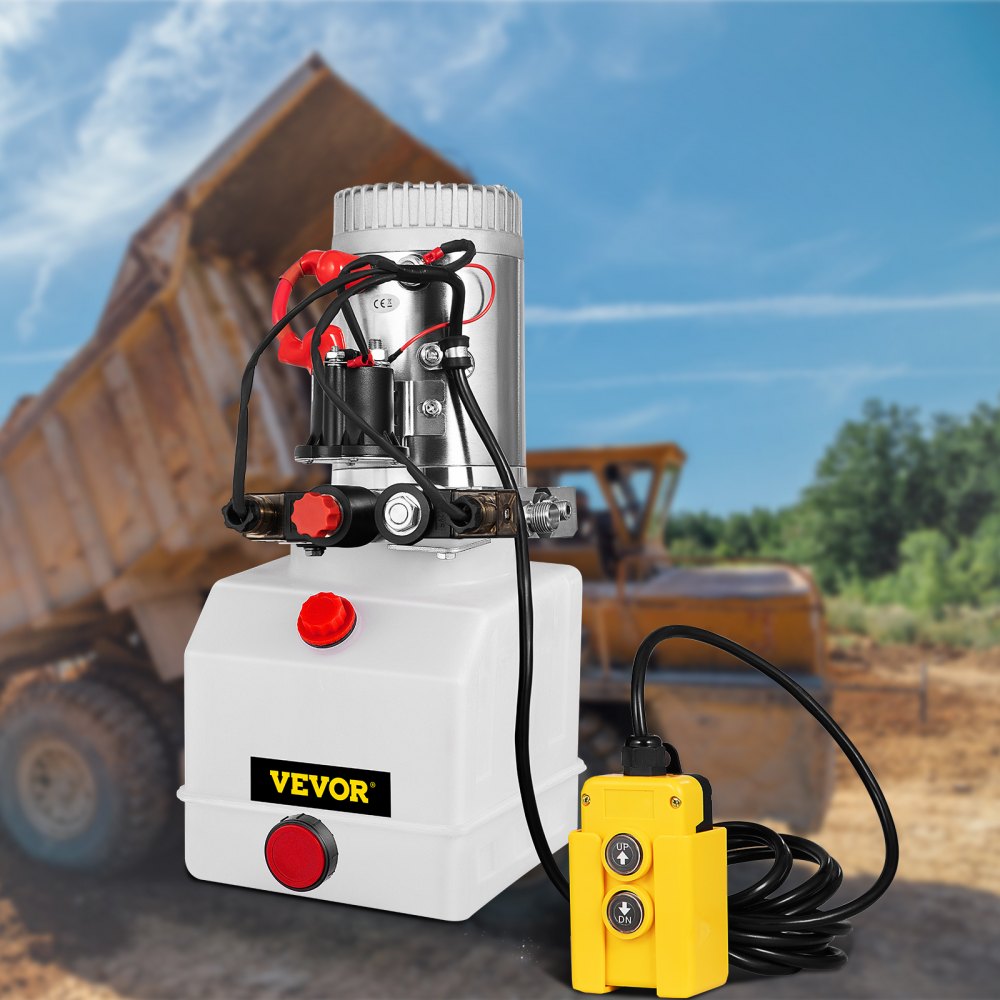

VEVOR hydraulic pump for dump trailer, 3 quart double acting, next to a dump truck.

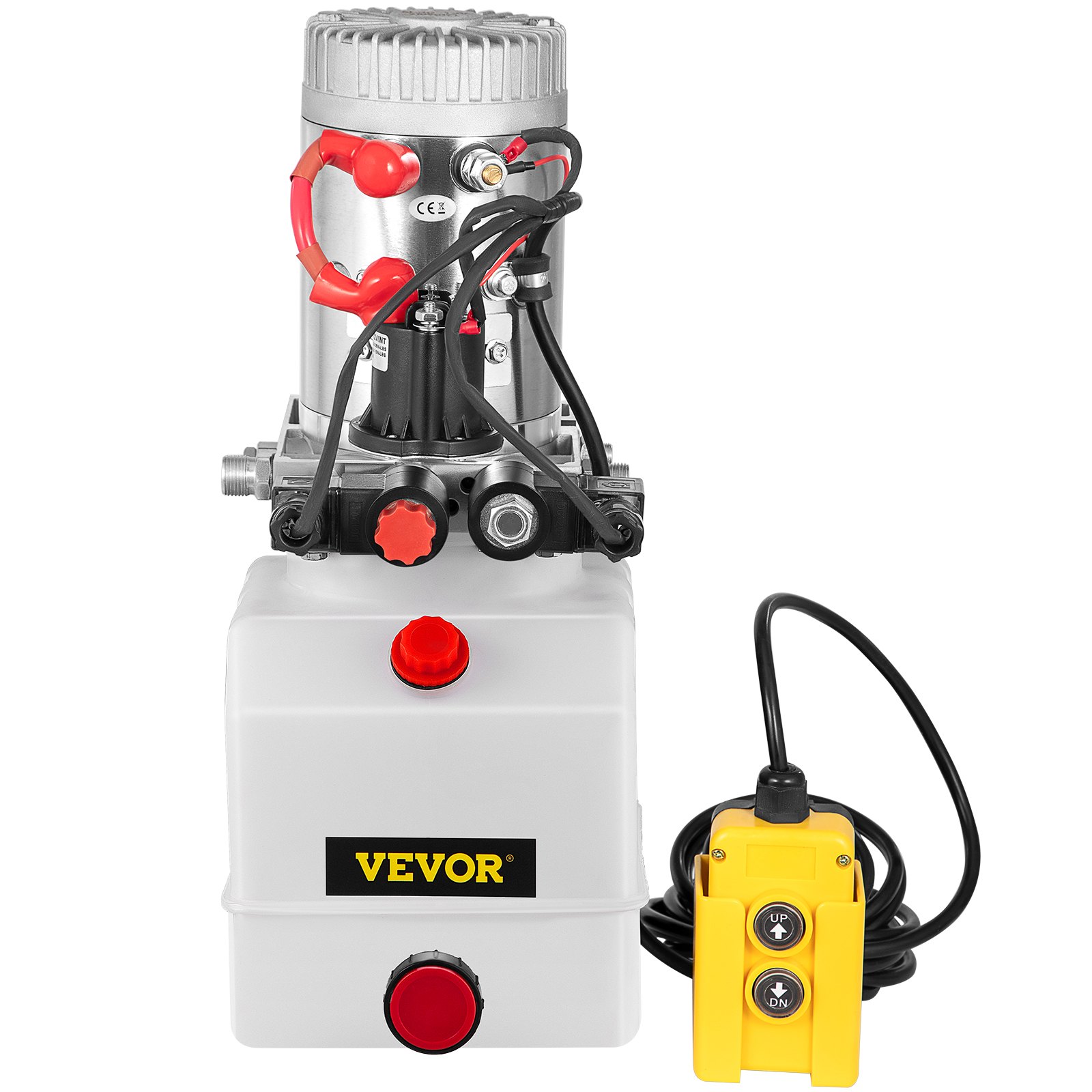

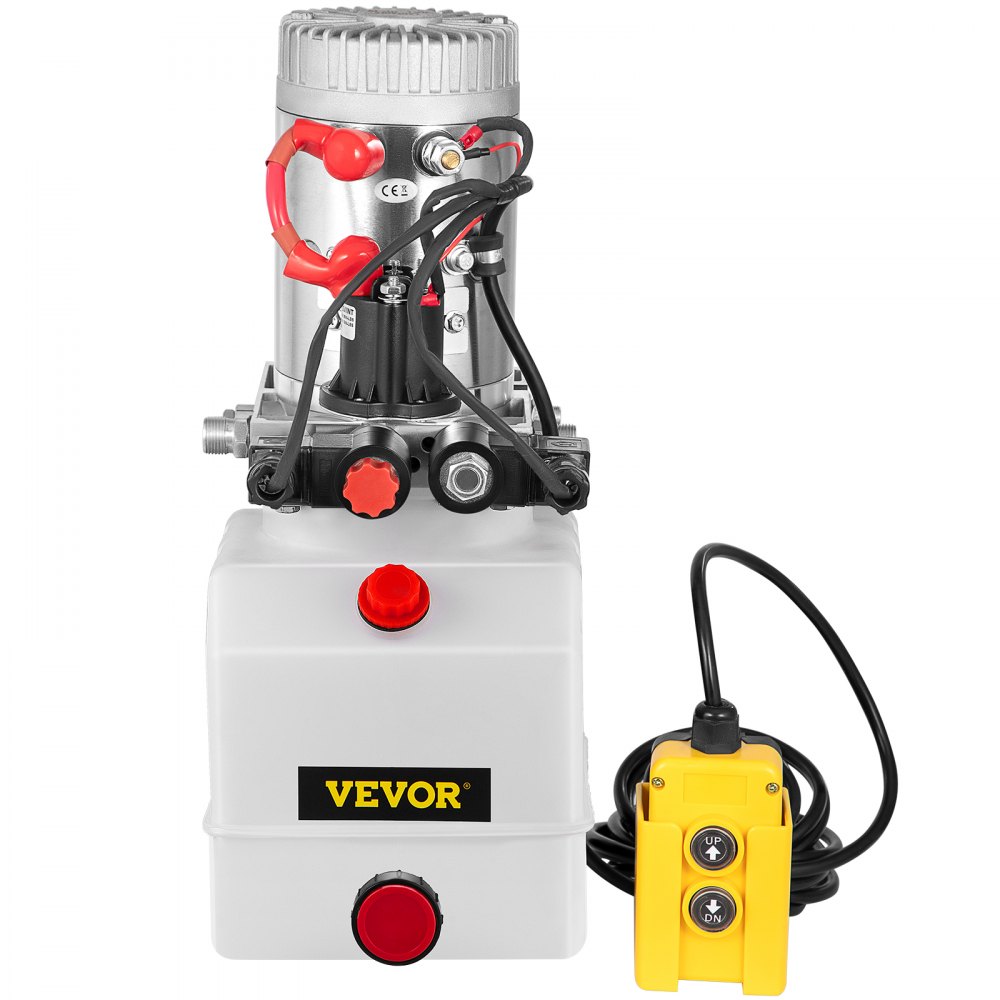

VEVOR hydraulic pump with control switch and two metal fittings.
3 Quart Double Acting Hydraulic Pump
This hydraulic pump is a double-acting power unit for both lifting and lowering. It has a 3-quart sturdy plastic reservoir and is designed with a 12V DC motor that can provide strong power for hydraulic systems like dump trailers, forklifts, lifting platforms, etc.
  • Product Details
  • Easy to Use
  • Reliable Quality
  • Rapid Start
  • Wide Application
VEVOR hydraulic pump with control unit, 1.6-3.0 kw, 12v dc, 3-quart capacity.
Double-Acting Power Unit
This double-acting hydraulic power unit has a 12V DC motor (Power:1.6-3.0kw) and a 3-quart plastic reservoir; it has SAE#6 ports with 3200 PSI max relief setting on A and 1500 PSI on B port. Rated speed: 2850 r/min.

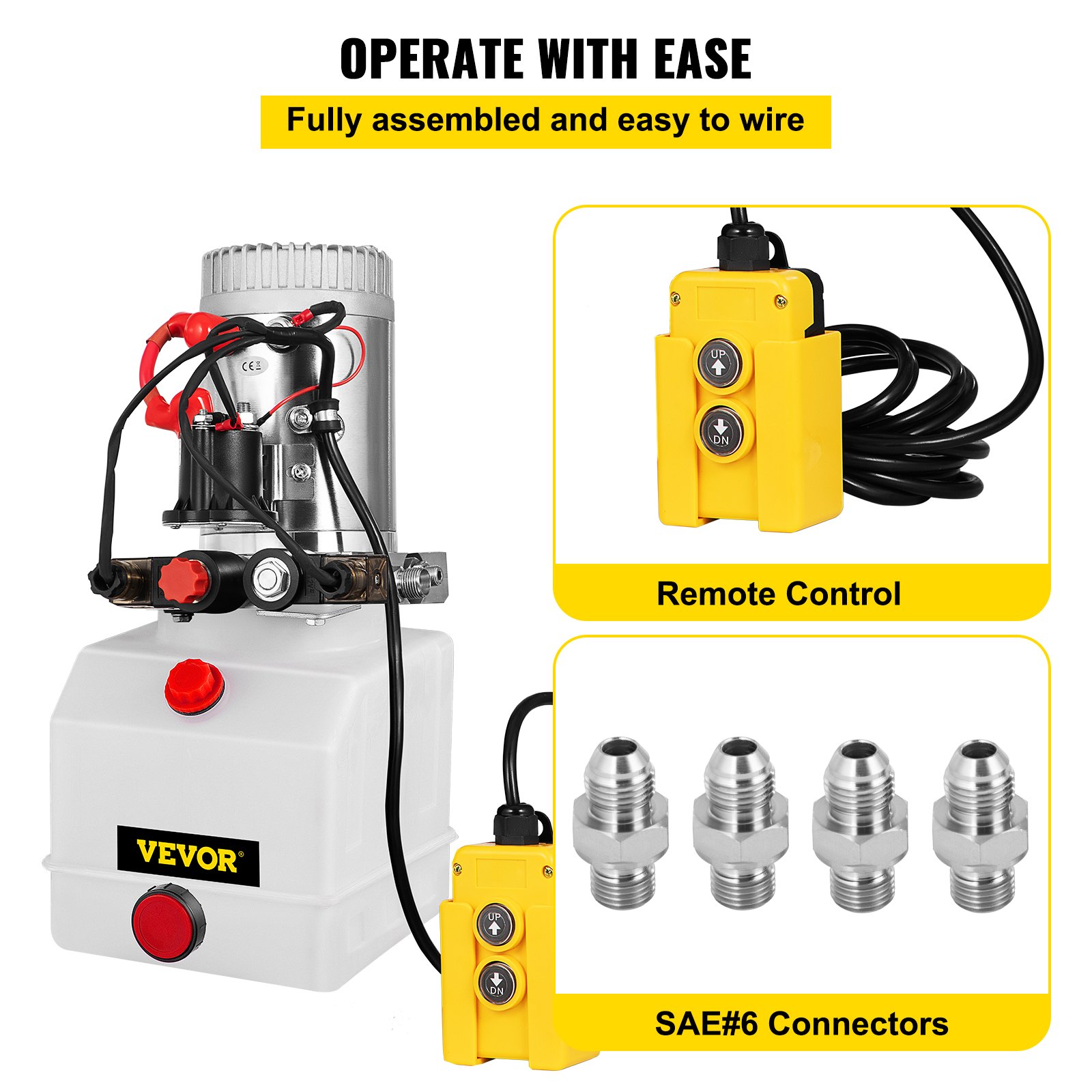

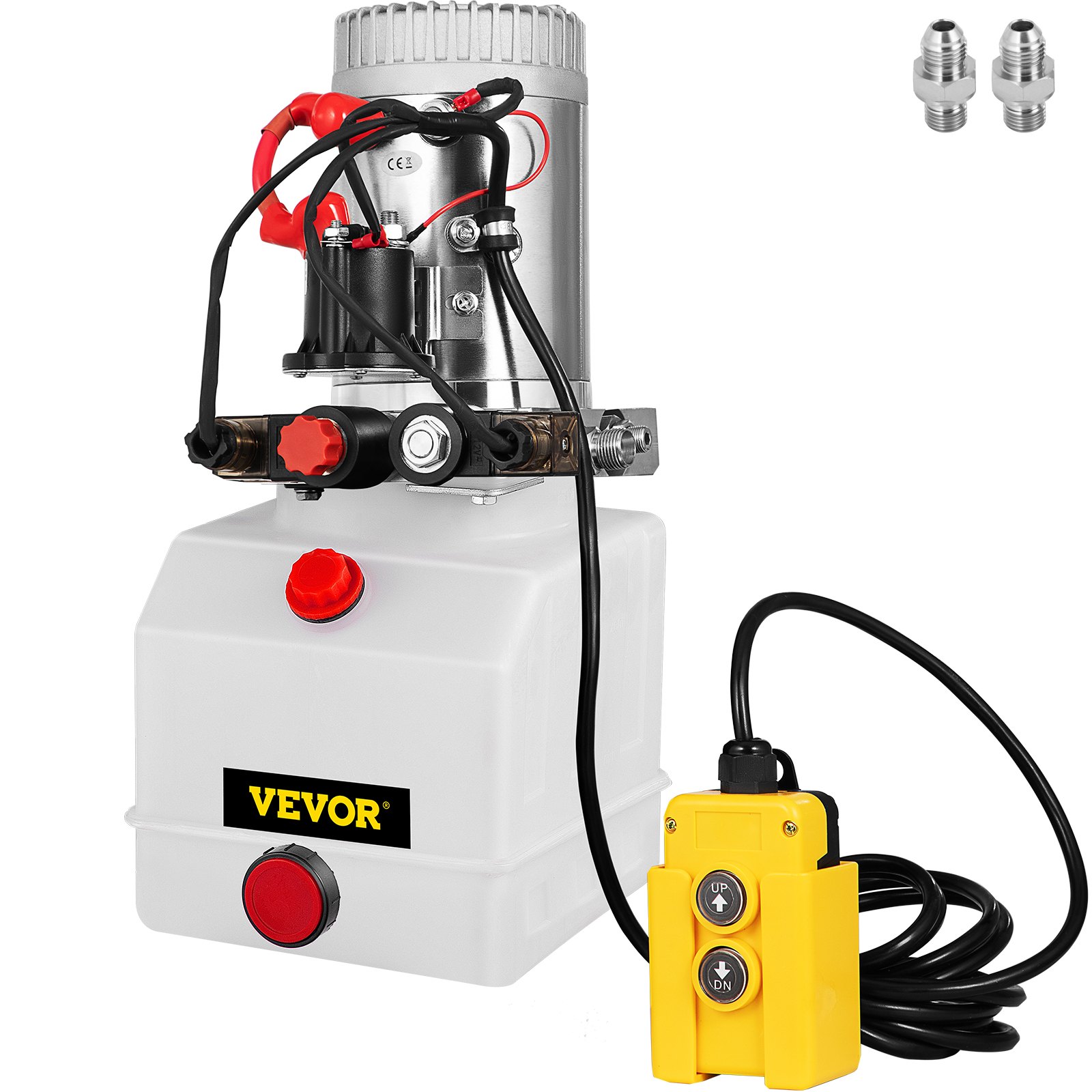

VEVOR hydraulic pump with 3-quart reservoir, sae#6 connectors, and remote control.
Convenient Design
Our hydraulic electric pump has been fully assembled. It comes with a hand-held remote control and 4 SAE#6 connectors. The whole power unit is easy to wire and easy to operate.

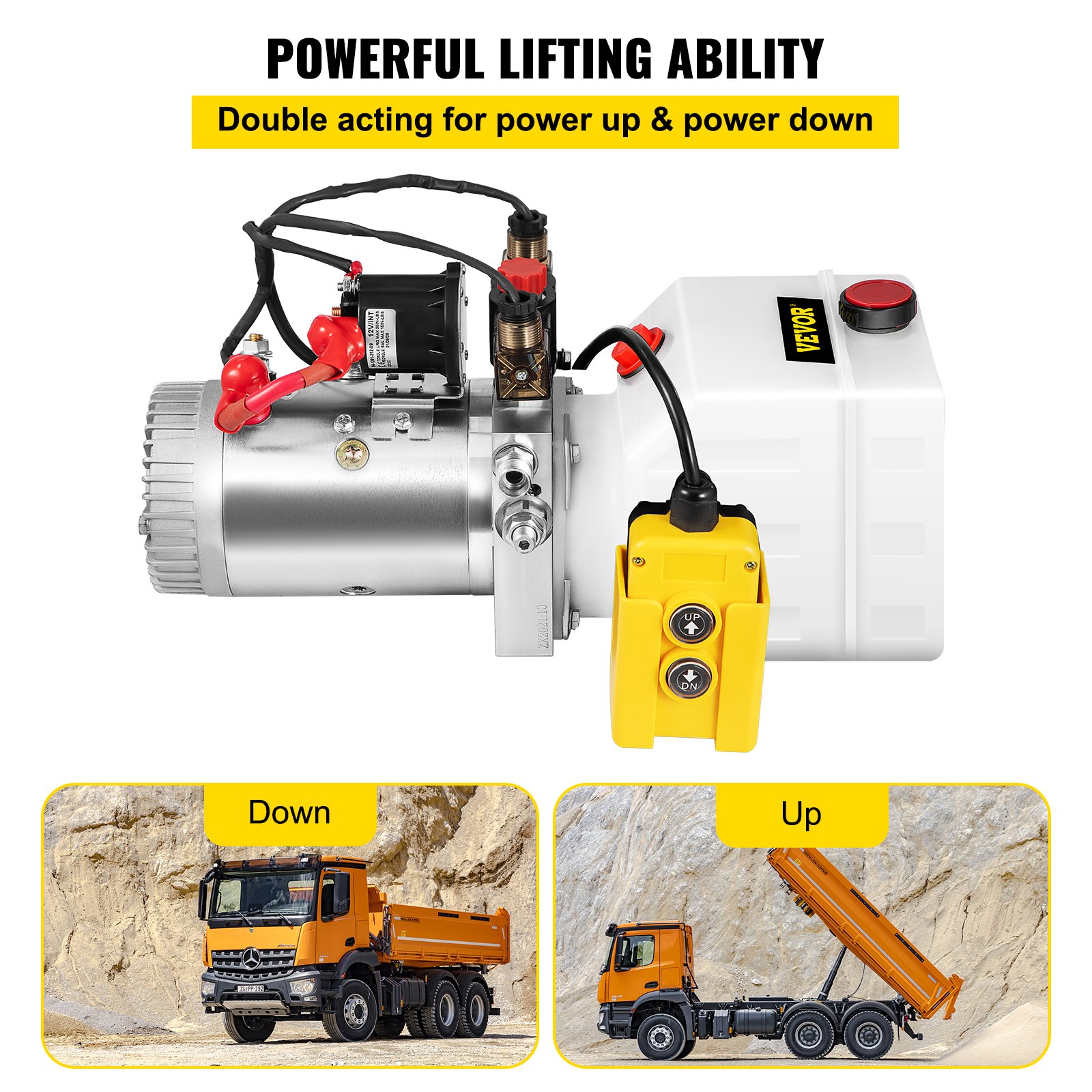

VEVOR hydraulic pump for quick start and lifting with power up and down control.
Quick Start＆Lifting
With the powerful 12V DC electric motor, our hydraulic pump for dump trailers can start rapidly and provide quick oil output. In addition, it can provide strong power that will lift heavy objects in a short period.

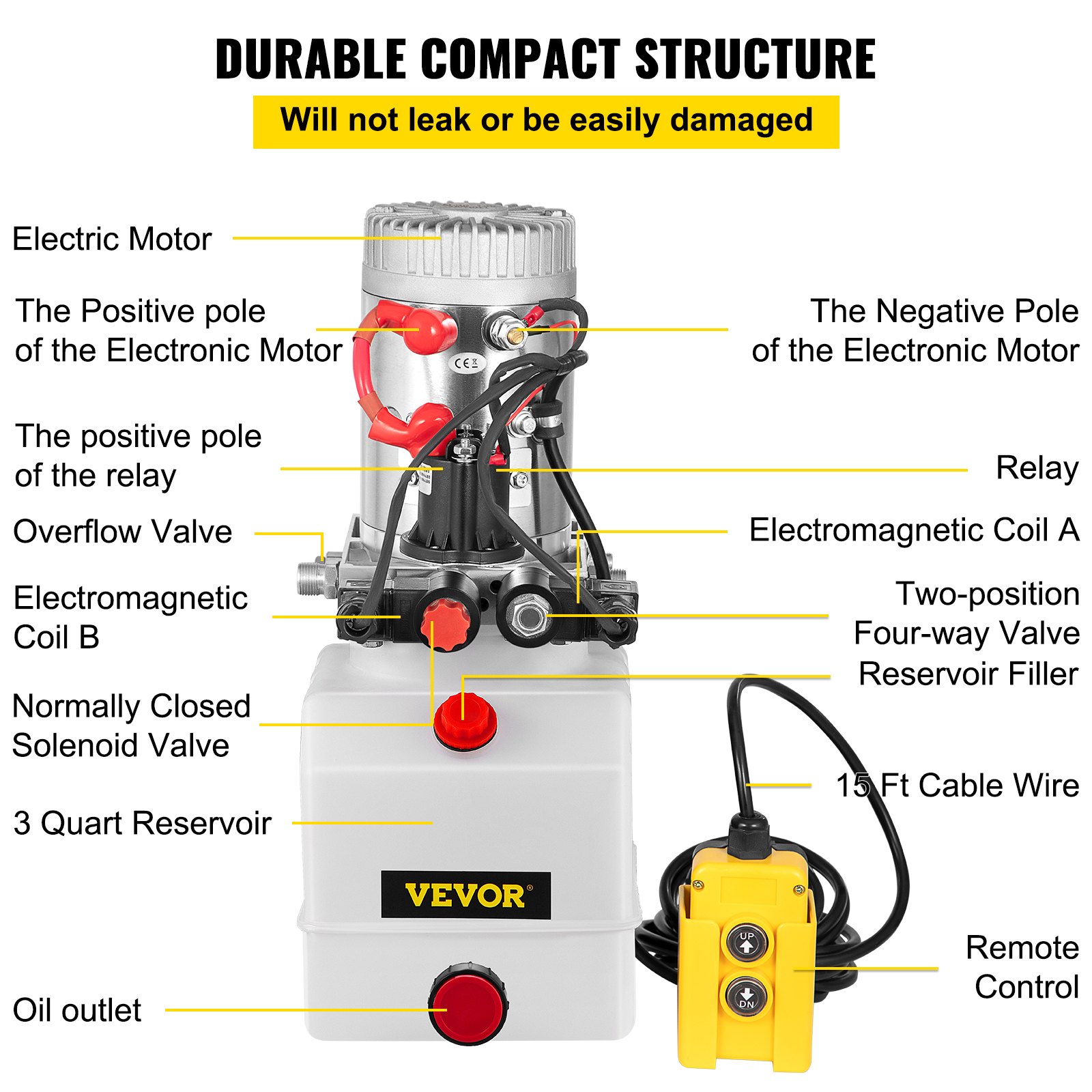

VEVOR hydraulic pump with a sturdy plastic tank, powerful electric motor, reinforced structure
Long Lasting
You can rely on the quality of this electric hydraulic pump as it is made of special-treated sturdy plastic, and the whole structure has been reinforced. It is also equipped with a powerful electric motor that you can use as often as you like.

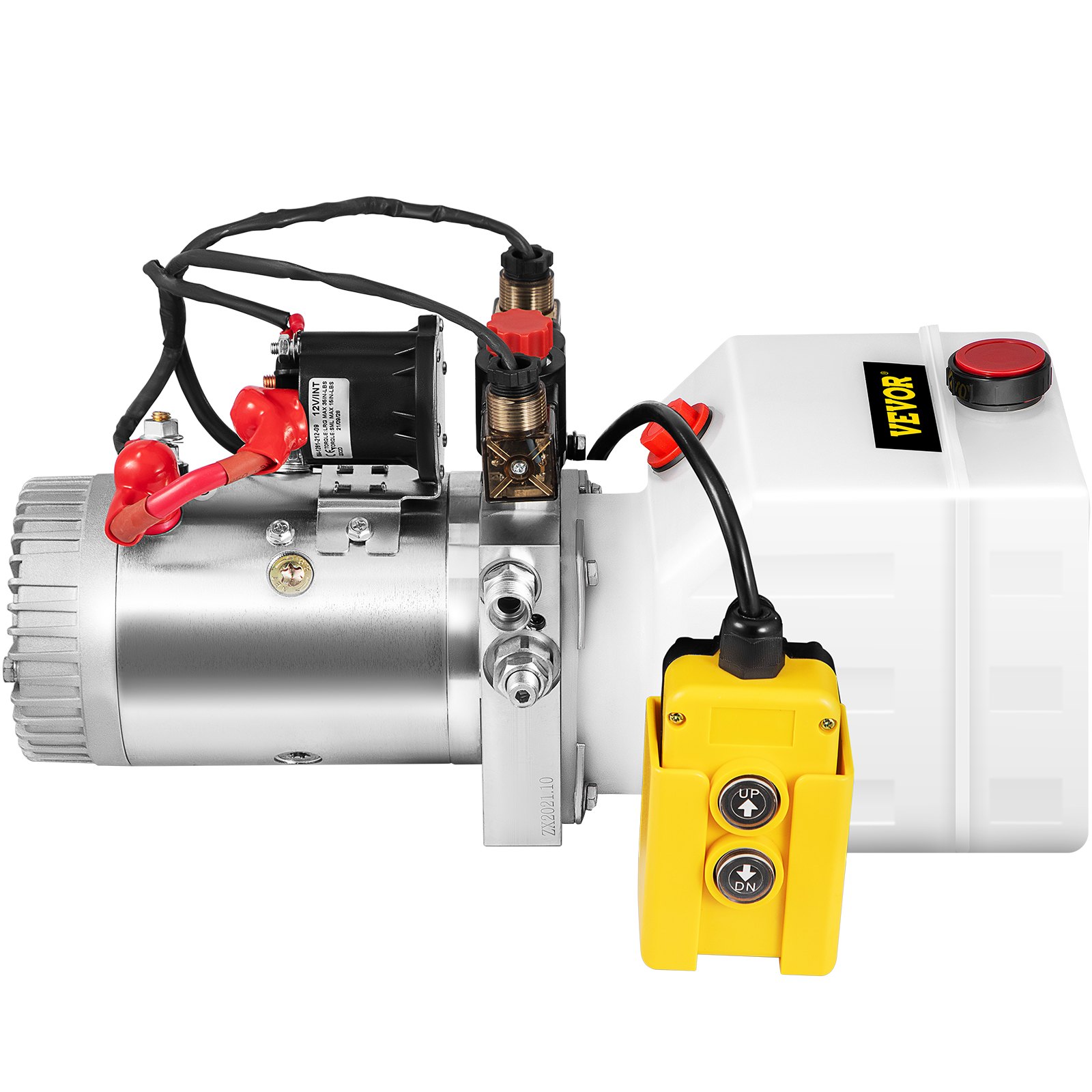

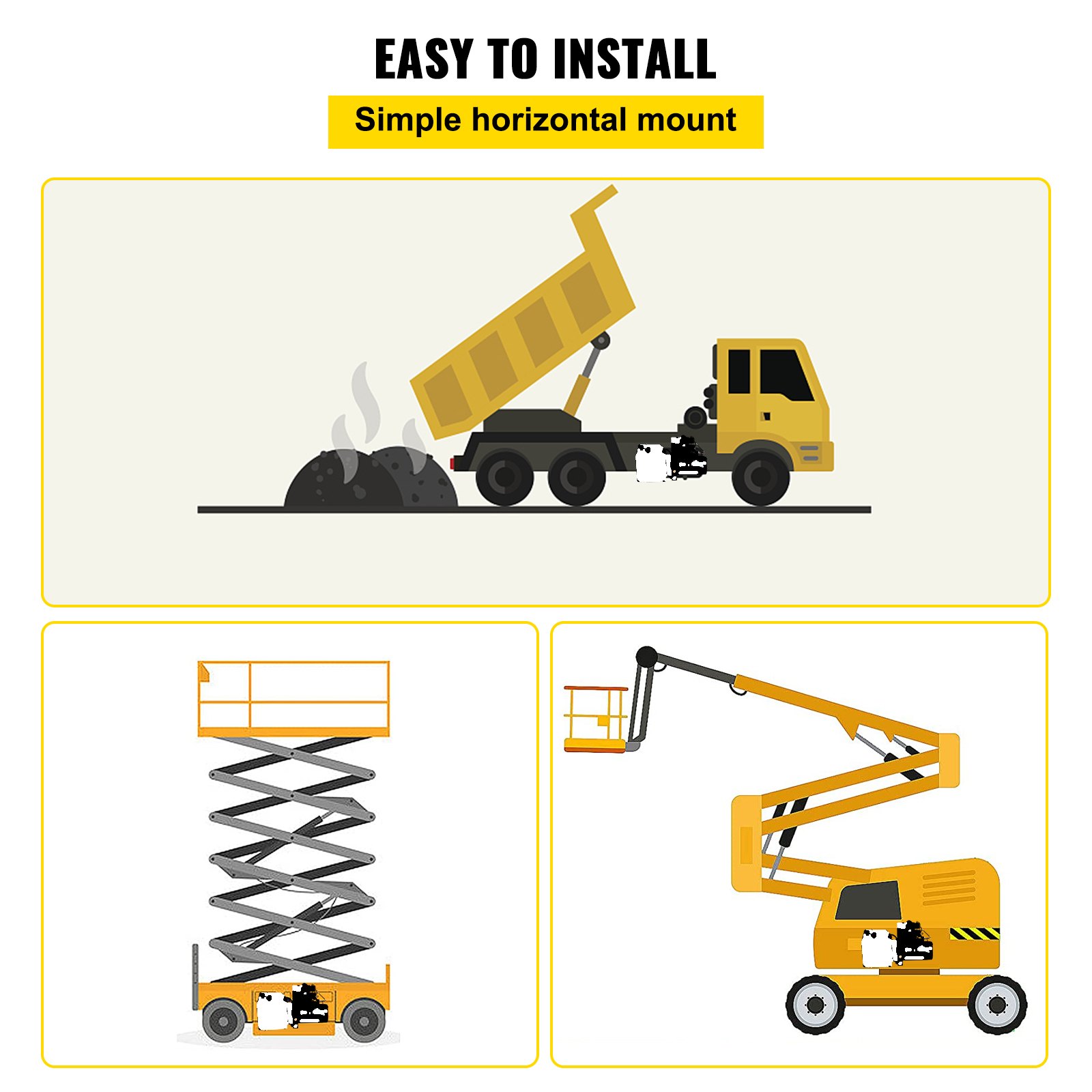

VEVOR hydraulic pump with simple installation for horizontal mounting on trucks.
Simple Installation
All of our 12-volt hydraulic power units have been pre-assembled before delivery, and we provide instructions for operation so that you can install and use the hydraulic pump easily. Horizontal mount is recommended.
VEVOR hydraulic pump featured with crane, forklift, and dump truck applications.
Wide Application
As a great power unit, this hydraulic pump can be used for many things, such as truck tailgate lift, RV leveling, scissor lift, dump trailers, lift truck, snowplow, aerial platform, road signs, material handling, wheelchair lifts, etc.

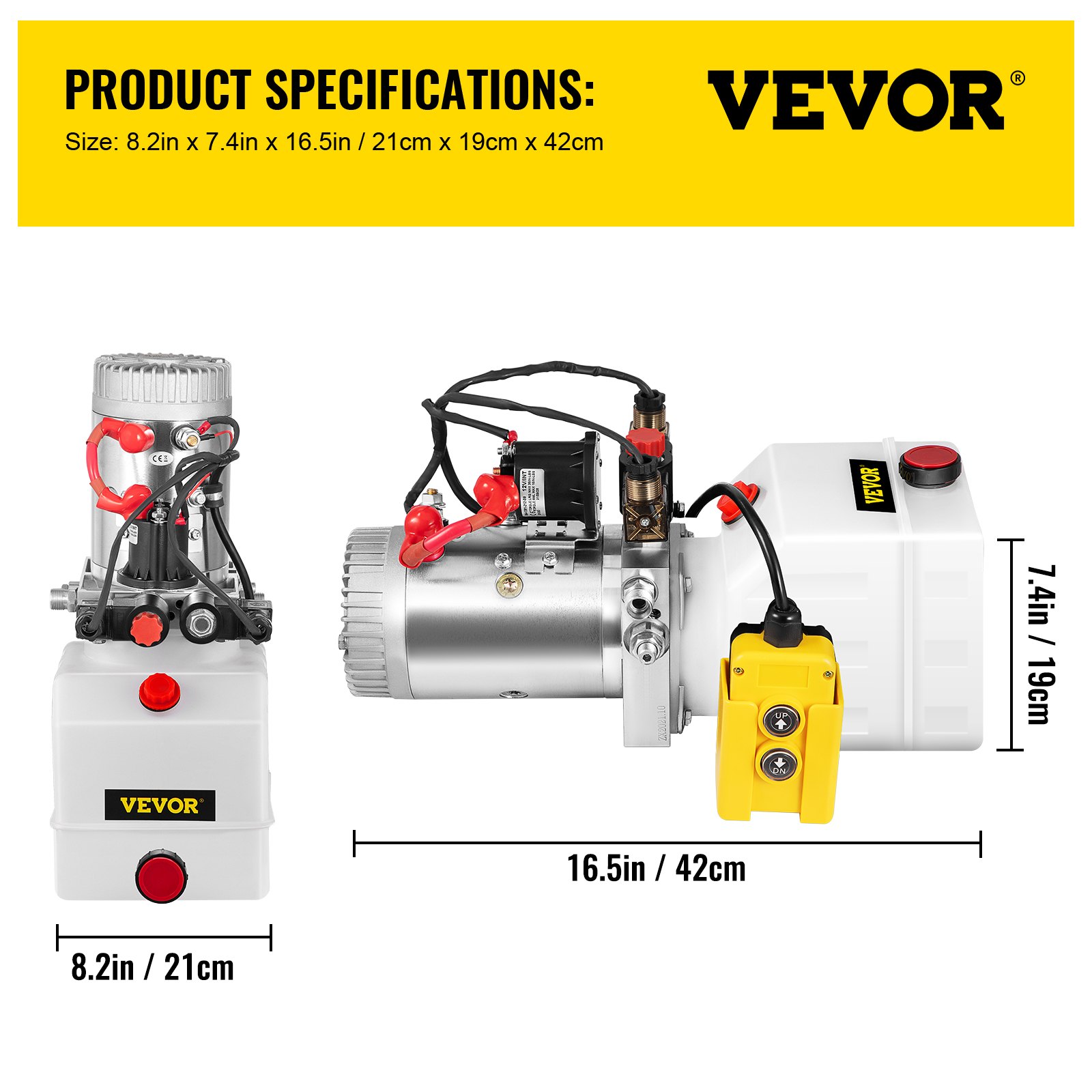

front and side views of the VEVOR hydraulic pump with dimensions displayed.
  • Mode: Double-Acting Power-Up/ Power-Down
  • Tank Material: Plastic (Translucent)
  • Tank Capacity: 3L/ 3Quart/ 0.75 Gal
  • Flow: 2.0 GPM
  • Max. Relief Valve Setting A Port: 3200 PSI
  • Max. Relief Valve Setting B Port: 1500 PSI
  • Rated Speed: 2850R/MIN
  • Voltage: DC12V
  • Power: 1.6KW (Rated), 3.0KW (Max)
  • Duty: 3 Min
  • Traffic: 1.1 cc/r
  • Rotation: Clockwise
  • Connector: SAE # 6
  • Mount Position: Horizontal/ Vertical
  • Control: Solenoid and Handheld Pendant
  • Pendant Control Length: 15ft/ 4.5 m
  • Gross Weight: 29.1 lb (13.2 kg)
VEVOR hydraulic pump with electric control unit, fluid tank, and fittings.
  • 1 x 3 Quart Double Acting Hydraulic Pump
  • 1 x English Manual
  • 2 x SAE # 6 Connectors
VEVOR hydraulic pump for dump trailer, 3 quart double acting, next to a dump truck.
VEVOR hydraulic pump with control switch and two metal fittings.
3 Quart Double Acting Hydraulic Pump
This hydraulic pump is a double-acting power unit for both lifting and lowering. It has a 3-quart sturdy plastic reservoir and is designed with a 12V DC motor that can provide strong power for hydraulic systems like dump trailers, forklifts, lifting platforms, etc.
  • Product Details
  • Easy to Use
  • Reliable Quality
  • Rapid Start
  • Wide Application
VEVOR hydraulic pump with control unit, 1.6-3.0 kw, 12v dc, 3-quart capacity.
Double-Acting Power Unit
This double-acting hydraulic power unit has a 12V DC motor (Power:1.6-3.0kw) and a 3-quart plastic reservoir; it has SAE#6 ports with 3200 PSI max relief setting on A and 1500 PSI on B port. Rated speed: 2850 r/min.
VEVOR hydraulic pump with 3-quart reservoir, sae#6 connectors, and remote control.
Convenient Design
Our hydraulic electric pump has been fully assembled. It comes with a hand-held remote control and 4 SAE#6 connectors. The whole power unit is easy to wire and easy to operate.
VEVOR hydraulic pump for quick start and lifting with power up and down control.
Quick Start＆Lifting
With the powerful 12V DC electric motor, our hydraulic pump for dump trailers can start rapidly and provide quick oil output. In addition, it can provide strong power that will lift heavy objects in a short period.
VEVOR hydraulic pump with a sturdy plastic tank, powerful electric motor, reinforced structure
Long Lasting
You can rely on the quality of this electric hydraulic pump as it is made of special-treated sturdy plastic, and the whole structure has been reinforced. It is also equipped with a powerful electric motor that you can use as often as you like.
VEVOR hydraulic pump with simple installation for horizontal mounting on trucks.
Simple Installation
All of our 12-volt hydraulic power units have been pre-assembled before delivery, and we provide instructions for operation so that you can install and use the hydraulic pump easily. Horizontal mount is recommended.
VEVOR hydraulic pump featured with crane, forklift, and dump truck applications.
Wide Application
As a great power unit, this hydraulic pump can be used for many things, such as truck tailgate lift, RV leveling, scissor lift, dump trailers, lift truck, snowplow, aerial platform, road signs, material handling, wheelchair lifts, etc.
VEVOR hydraulic pump with electric control unit, fluid tank, and fittings.
  • 1 x 3 Quart Double Acting Hydraulic Pump
  • 1 x English Manual
  • 2 x SAE # 6 Connectors
front and side views of the VEVOR hydraulic pump with dimensions displayed.
  • Mode: Double-Acting Power-Up/ Power-Down
  • Tank Material: Plastic (Translucent)
  • Tank Capacity: 3L/ 3Quart/ 0.75 Gal
  • Flow: 2.0 GPM
  • Max. Relief Valve Setting A Port: 3200 PSI
  • Max. Relief Valve Setting B Port: 1500 PSI
  • Rated Speed: 2850R/MIN
  • Voltage: DC12V
  • Power: 1.6KW (Rated), 3.0KW (Max)
  • Duty: 3 Min
  • Traffic: 1.1 cc/r
  • Rotation: Clockwise
  • Connector: SAE # 6
  • Mount Position: Horizontal/ Vertical
  • Control: Solenoid and Handheld Pendant
  • Pendant Control Length: 15ft/ 4.5 m
  • Gross Weight: 29.1 lb (13.2 kg)

Specification

Mode
Double-Acting Power-Up/ Power-Down
Tank Material
Plastic (Translucent)
Tank Capacity
3L/ 3Quart/ 0.75 Gal
Flow
2.0 GPM
Max. Relief Valve Setting A Port
3200 PSI
Max. Relief Valve Setting B Port
1500 PSI
Rated Speed
2850R/MIN
Voltage
DC12V
Power
1.6KW (Rated), 3.0KW (Max)
Duty
3 Min
Traffic
1.1 cc/r
Rotation
Clockwise
Connector
SAE # 6
Mount Position
Horizontal/ Vertical
Control
Solenoid and Handheld Pendant
Pendant Control Length
15ft/ 4.5 m
Gross Weight
29.1 lb (13.2 kg)
