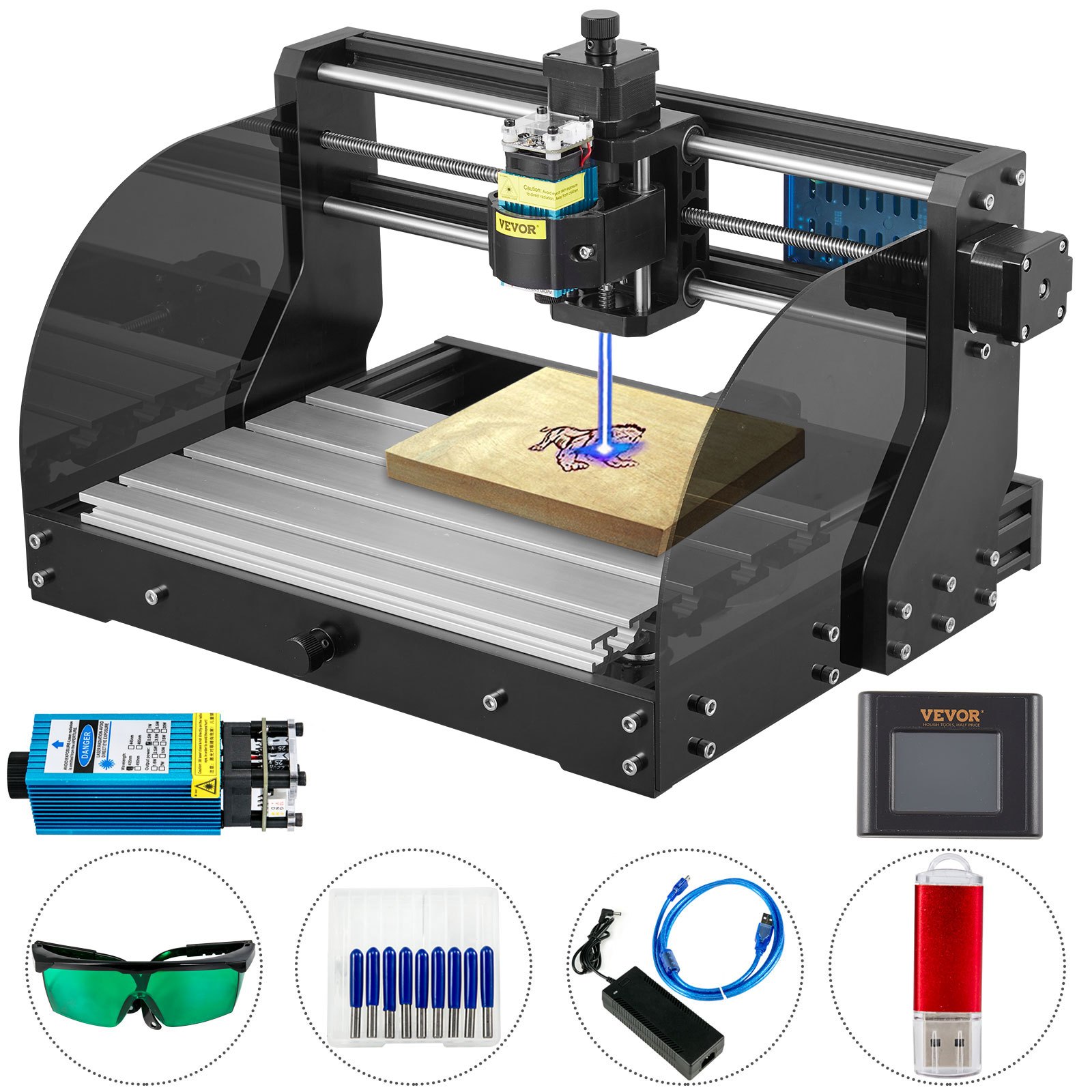

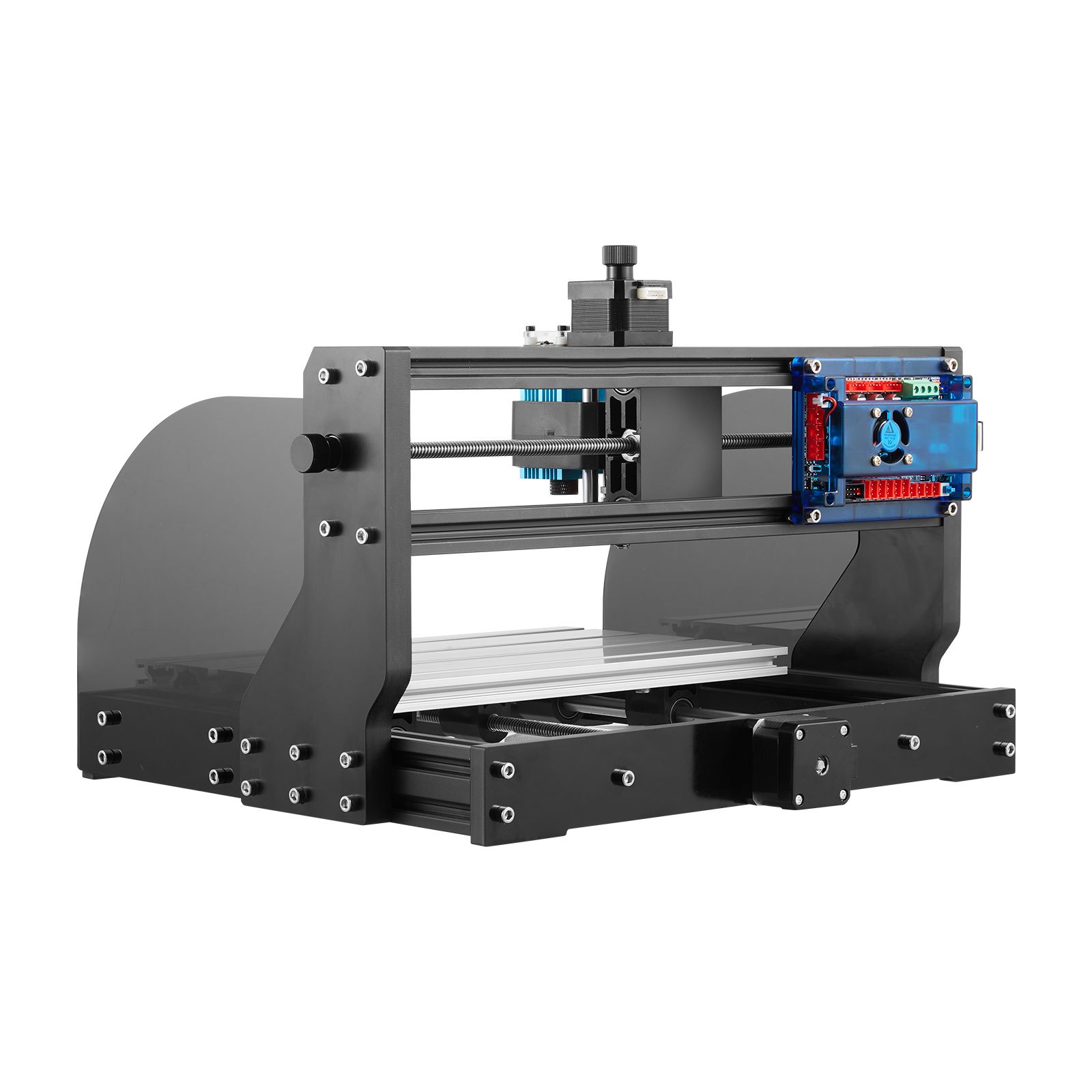

VEVOR CNC 3018 Pro CNC Router 300×180×45mm CNC Machine 500MW GRBL Control Mini Laser Engraver with Offline Controller 3 Axis Laser Engraving Machine for Carving Milling Plastic, Acrylic, PVC, Wood VEVOR CNC 3018 Pro CNC Router 300×180×45mm CNC Machine 500MW GRBL Control Mini Laser Engraver with Offline Controller 3 Axis Laser Engraving Machine for Carving Milling Plastic, Acrylic, PVC, Wood VEVOR CNC 3018 Pro CNC Router 300×180×45mm CNC Machine 500MW GRBL Control Mini Laser Engraver with Offline Controller 3 Axis Laser Engraving Machine for Carving Milling Plastic, Acrylic, PVC, Wood VEVOR CNC 3018 Pro CNC Router 300×180×45mm CNC Machine 500MW GRBL Control Mini Laser Engraver with Offline Controller 3 Axis Laser Engraving Machine for Carving Milling Plastic, Acrylic, PVC, Wood VEVOR CNC 3018 Pro CNC Router 300×180×45mm CNC Machine 500MW GRBL Control Mini Laser Engraver with Offline Controller 3 Axis Laser Engraving Machine for Carving Milling Plastic, Acrylic, PVC, Wood VEVOR CNC 3018 Pro CNC Router 300×180×45mm CNC Machine 500MW GRBL Control Mini Laser Engraver with Offline Controller 3 Axis Laser Engraving Machine for Carving Milling Plastic, Acrylic, PVC, Wood VEVOR CNC 3018 Pro CNC Router 300×180×45mm CNC Machine 500MW GRBL Control Mini Laser Engraver with Offline Controller 3 Axis Laser Engraving Machine for Carving Milling Plastic, Acrylic, PVC, Wood
MGDKJ3018M500MW01V2

VEVOR CNC 3018 Pro CNC Router 300×180×45mm CNC Machine 500MW GRBL Control Mini Laser Engraver with Offline Controller 3 Axis Laser Engraving Machine for Carving Milling Plastic, Acrylic, PVC, Wood

See All Customer Reviews
14 Reviews 3 answered questions
Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive 5,00€ off on your first three app orders. Only App.
Download Now
Exclusive 5,00€ off on your first three app orders. Only App.
Scan the QR code to download

About this item

  • 【DURABLE ALUMINUM PROFILES】 - CNC 3018 PRO is an upgraded version of 3018 CNC. The frame is mainly made of aluminum alloy and bakelite materials, with high strength and high precision. Also, it has two pieces of acrylic bezels on both sides, so you can safely monitor the engraving process. The working travel of this engraving machine is 300(X) x 180(Y) x 45(Z) mm.
  • 【UPGRADED THREE AXES】 - Three refined axes are designed to achieve plane engraving. With the knob, the axes can be moved manually, which facilitates the carving tool settings. The driving units consist of T8 stainless steel screw rods whose lead distance is 4 mm. It uses double copper nuts to clear round trip errors.
  • 【GRBL & OFFLINE CONTROL】 - The GRBL control features an XYZ axis drive and full functionality. And the advantages of the offline controller lies in the following ones: 1. No need to connect to the computer; 2. Arbitrary selection of offline files for engraving. 3. Manually adjust the X, Y, and Z axes position as the engraving starting point, manually turn on or off the spindle.
  • 【HIGH-SPEED MOTORS】 - This CNC engraving machine is equipped with three 42 stepper motors and a 775 (12-36V) 24V spindle motor with a rotational speed of 10000r/min. Also, an extra 500mw laser whose wavelength is 405nm is available for you. And the engraver supports Windows XP SP3, win7, win8, win10 (32/64), macOS system, and other software to directly import JPG, BMP, PNG, DXF format files for engraving.
  • 【EFFORTLESS OPERATION】 - For your convenience, we provide a detailed user manual, assembly instructions, and installation video. Assemble the engraver machine according to the installation instructions; then, you can enjoy the delight of engraving plastics, soft aluminum, acrylics, PVCs, PCBs, and many more.
See More See Less

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR CNC 3018 Pro CNC Router 300×180×45mm CNC Machine 500MW GRBL Control Mini Laser Engraver with Offline Controller 3 Axis Laser Engraving Machine for Carving Milling Plastic, Acrylic, PVC, Wood
Description Specification Questions and Answers Reviews
CNC 3018 Pro MAX Engraving Machine
This CNC engraving machine with an effective working area of 11.8"(X)x7.1"(Y)x1.8"(Z) is made of aluminum and bakelite. It features a USB port, GRBL control board, and an offline controller, convenient for you to operate efficiently with/without computers. It is an ideal tool to engrave all types of plastics, soft aluminum, wood, PVC, etc., which is an excellent affordable self-learning engraving tool.
  • Durable Aluminum Profiles
  • Upgraded Three Axes
  • GRBL & Offline Control
  • High-Speed Motors
  • Effortless Operation

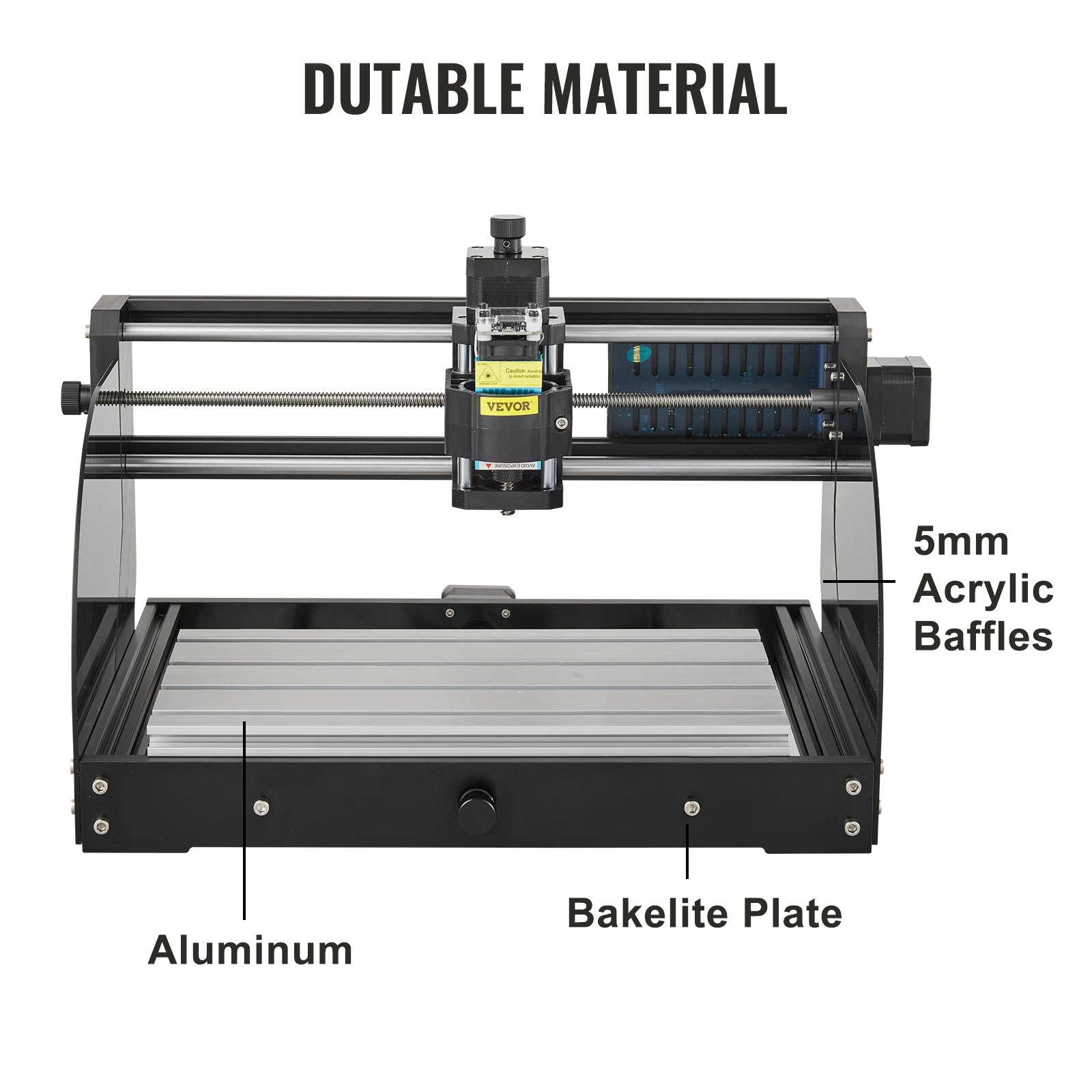

Aluminum Material
Constructed with aluminum alloy and bakelite materials, the CNC 3018 Pro is rustproof, hard-wearing and durable. Two pieces of acrylic baffles on both sides help you monitor the engraving process conveniently.

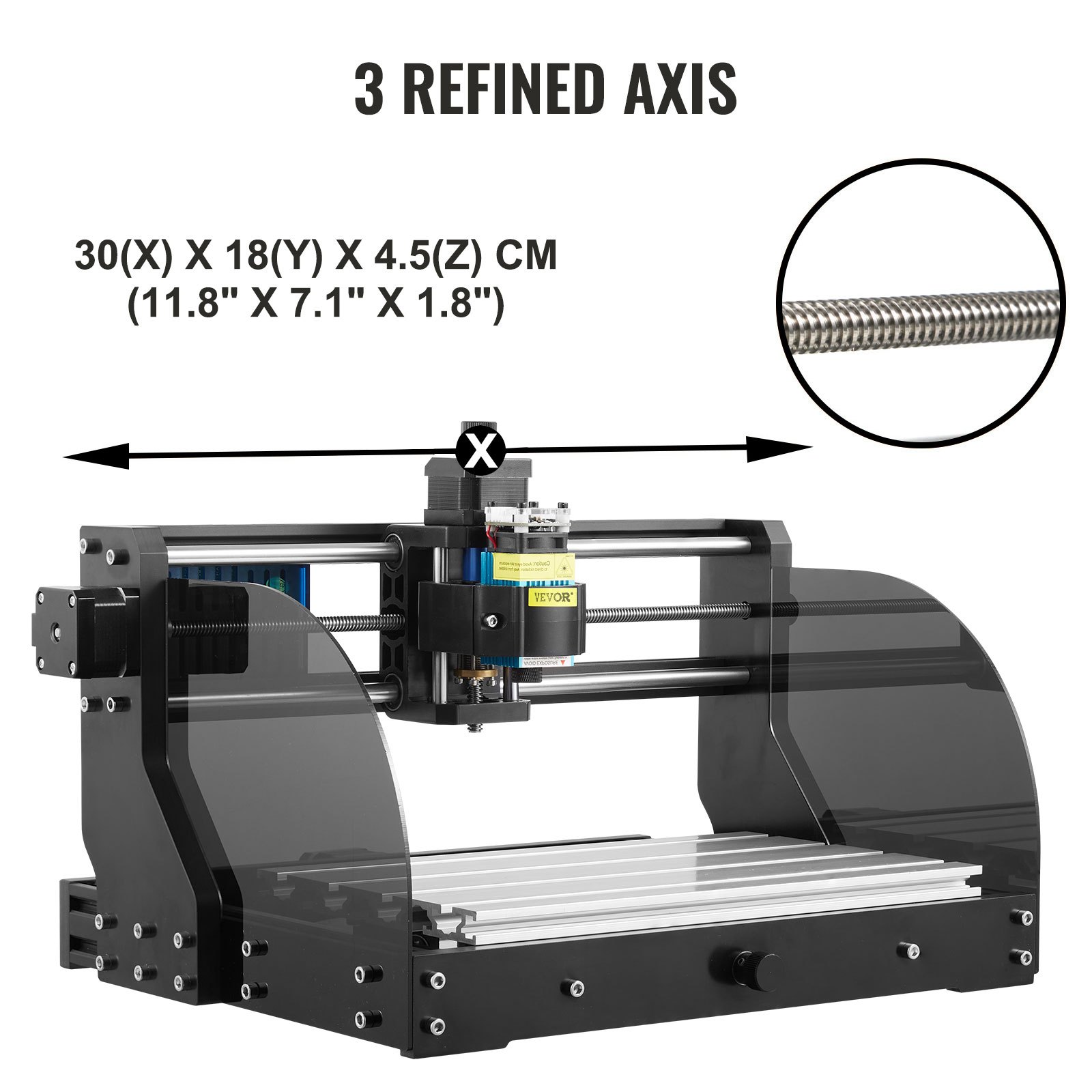

Three Refined Axes
The axes are equipped with knobs to help you move the carving machine manually, significantly improving working efficiency for a precise carving setting.

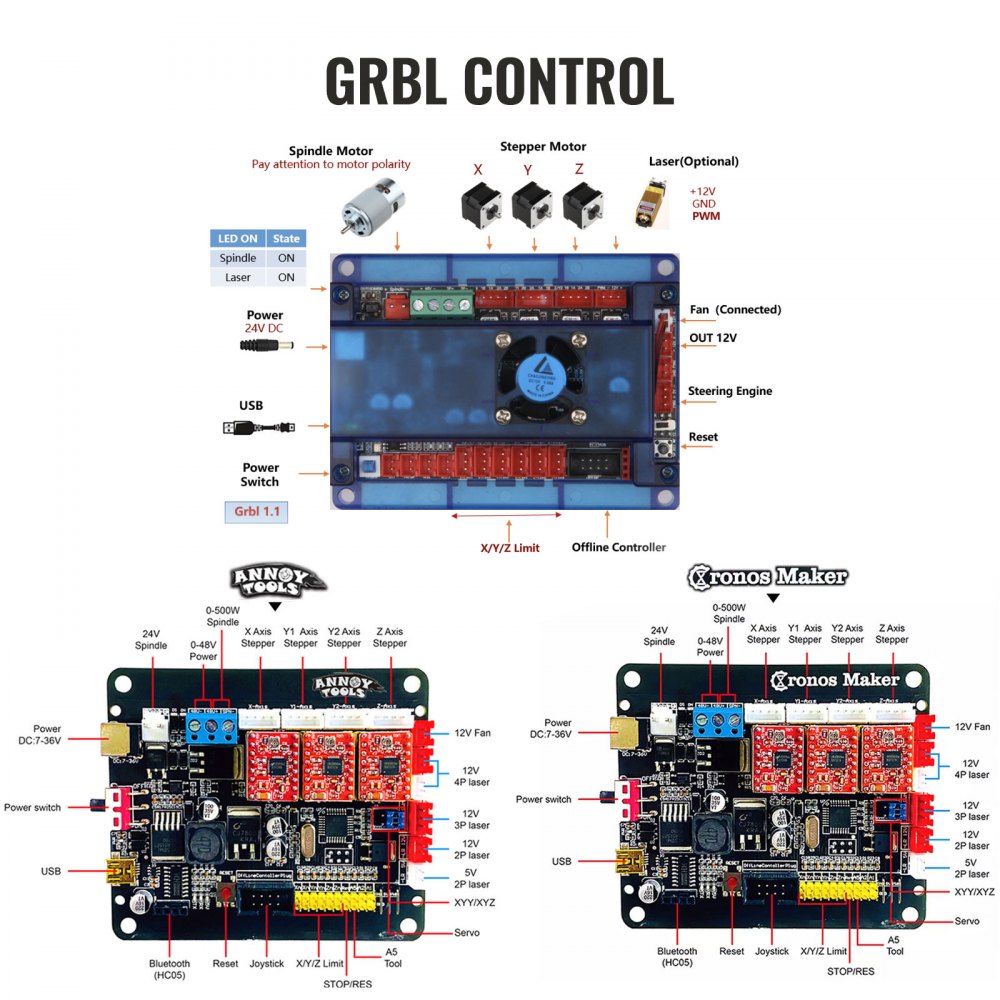

GRBL Control Board
The GRBL control board could be connected to a computer via a USB interface. And the 3Pin laser driver interfaces support PWM, TTL functions for full function laser engraving.

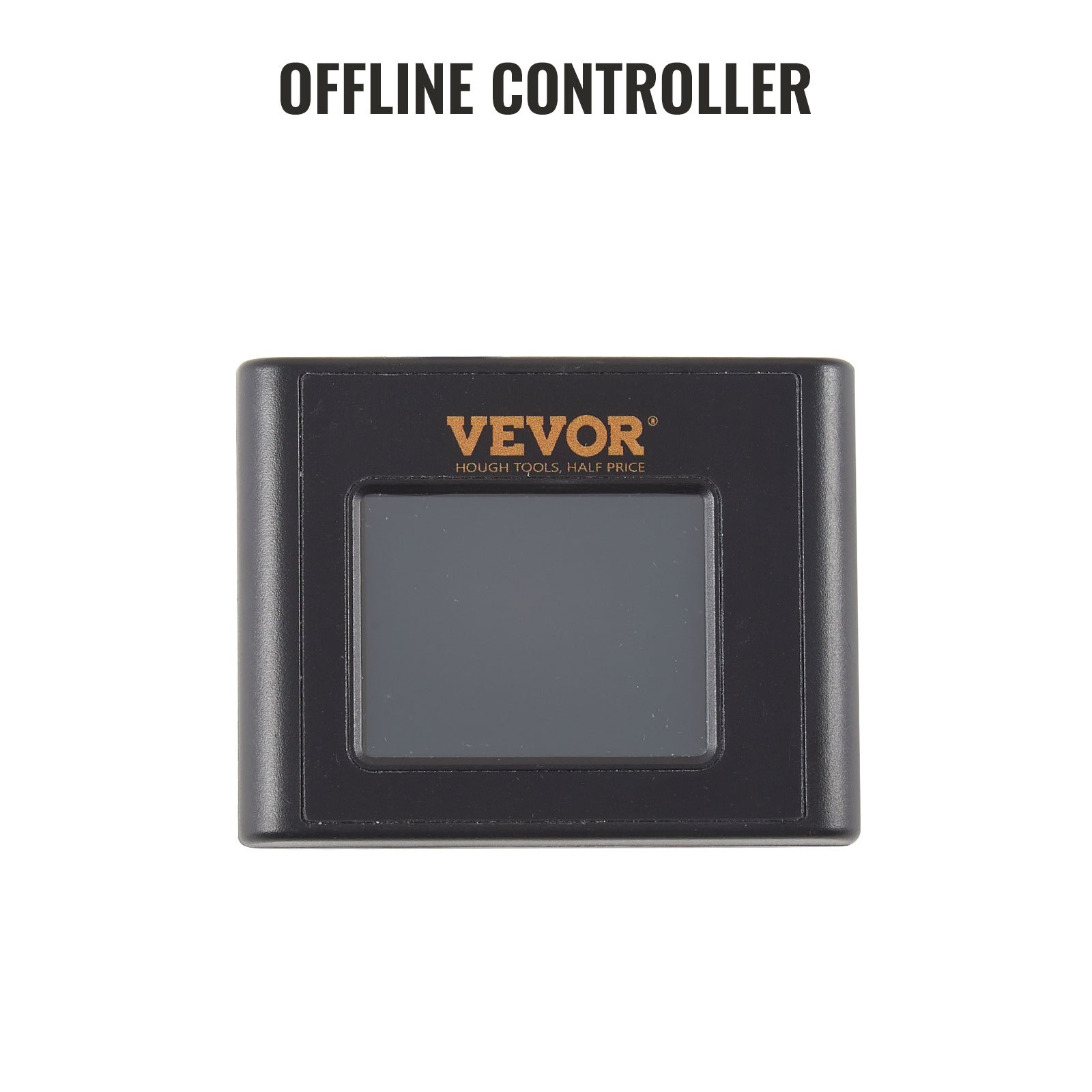

Offline Controller
An offline controller of the CNC router is also included for easy remote control without a computer to improve your working efficiency.

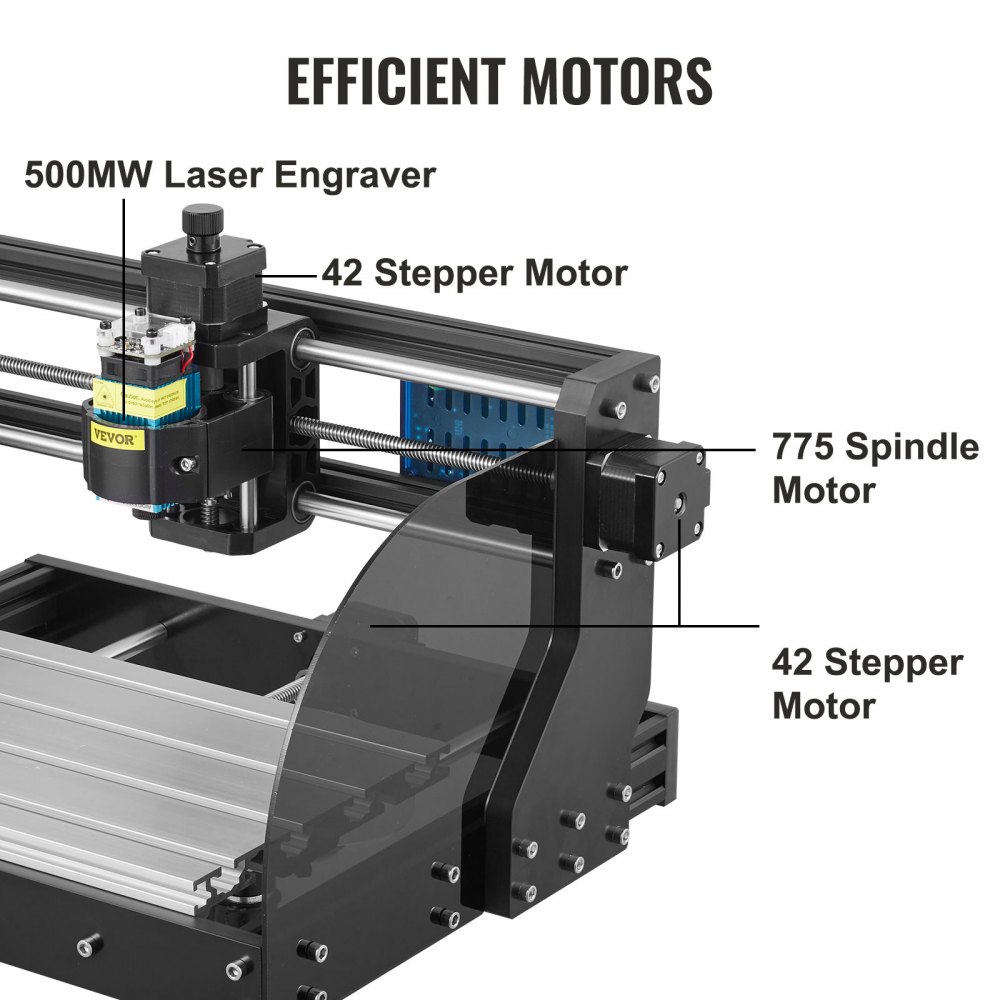

High-efficiency Motors
There are three 42 stepper motors on three axes for smooth movement. The 775 (12-36V)24V spindle motor on the Z-axis can reach the speed of 10000r/min.
Extensive Application
This CNC engraving machine can engrave all types of plastics, soft aluminum, woods, acrylics, PVCs, PCBs, and a wide range of other soft materials.
  • Model: VG-S3018 Pro MAX
  • Effective Working Area(X x Y x Z): 11.8" x 7.1" x 1.8" / 300 x 180 x 45 mm
  • Materials: Aluminum Profile & Bakelite
  • Control Software: GRBL Control
  • Input Power: DC 24V 5A
  • Spindle Speed: 10000 rpm
  • Stepping Motor: Size 42, 12V; Torque: 0.25 N/m
  • Driving Units: T8 Stainless Steel Screws
  • Cutter Diameter: 0.125" / 3.175 mm
  • Positioning Accuracy: 0.003"-0.004" / 0.08-0.1 mm

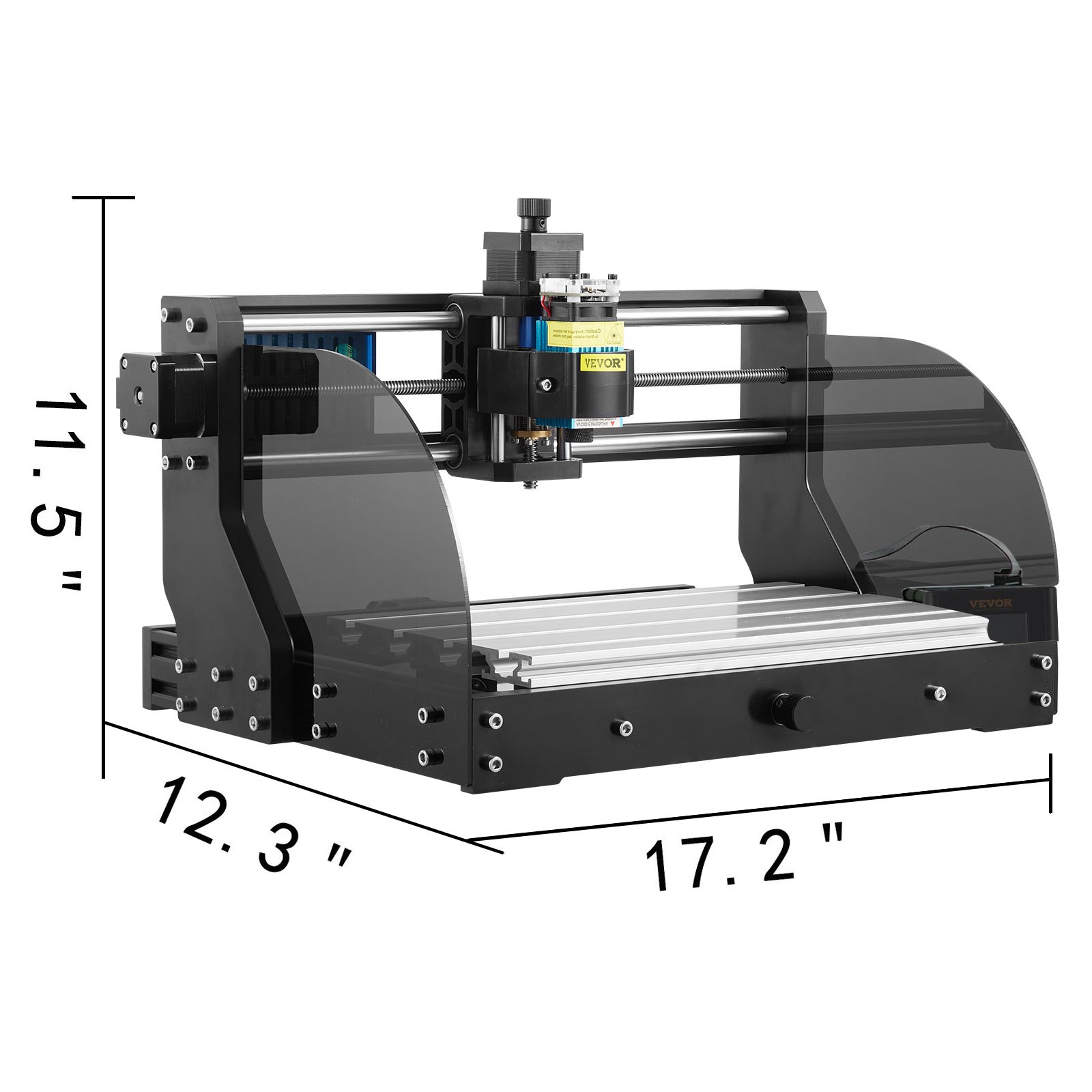

  • Item Dimension: 15.7" x 11.8" x 9.4" / 400 x 300 x 240 mm

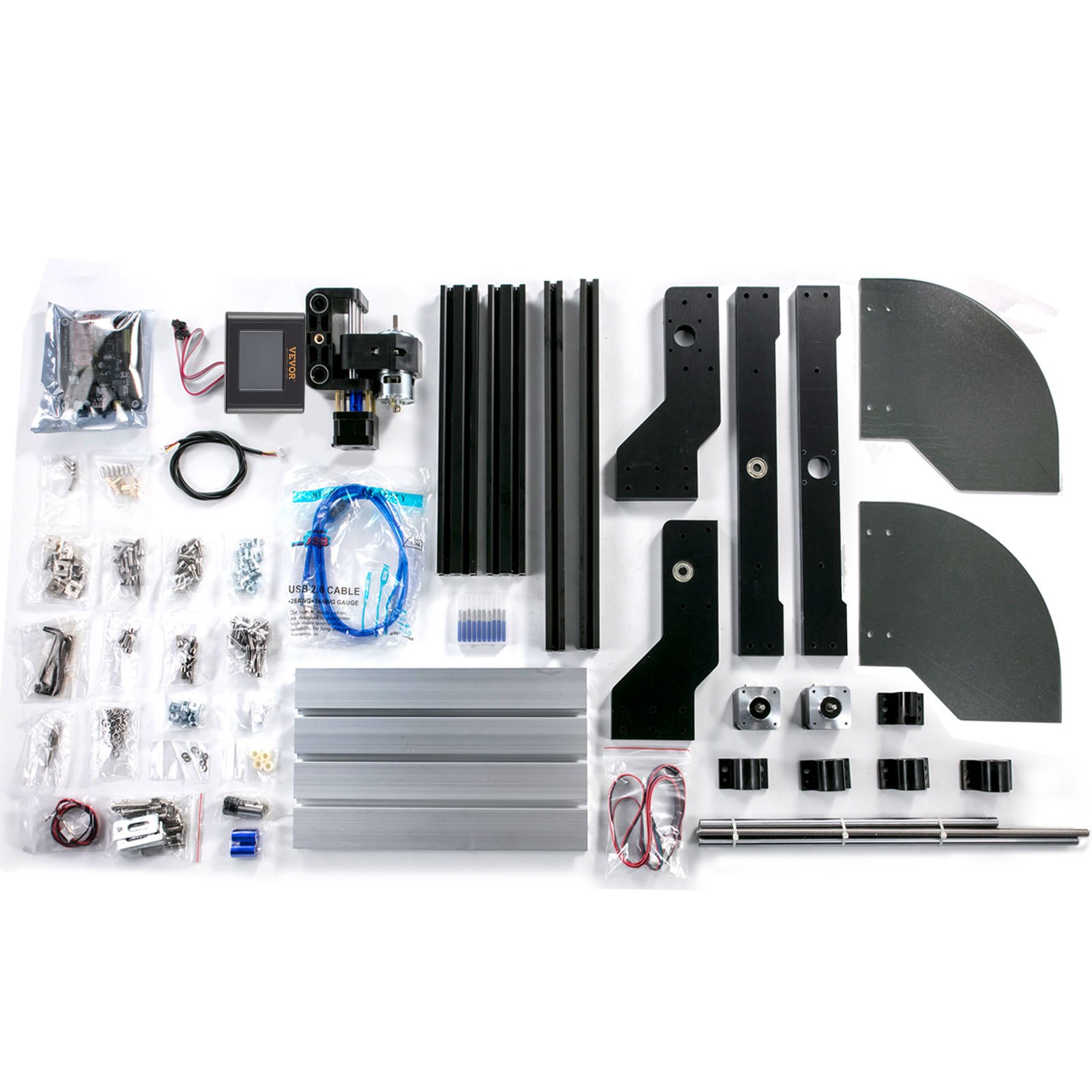

  • 1 x 3018 CNC Router Kit
  • 1 x 500mw Laser Module
  • 1 x Spindle
  • 1 x U-Disk (Software & Instruction)
  • 1 x Set of Milling Cutter
  • 1 x Pair of Protective Glasses
  • 1 x USB Cable
  • 1 x Power Supply
  • 1 x Set of Tools
  • 1 x Brush
  • 1 x Manual
CNC 3018 Pro MAX Engraving Machine
This CNC engraving machine with an effective working area of 11.8"(X)x7.1"(Y)x1.8"(Z) is made of aluminum and bakelite. It features a USB port, GRBL control board, and an offline controller, convenient for you to operate efficiently with/without computers. It is an ideal tool to engrave all types of plastics, soft aluminum, wood, PVC, etc., which is an excellent affordable self-learning engraving tool.
  • Durable Aluminum Profiles
  • Upgraded Three Axes
  • GRBL & Offline Control
  • High-Speed Motors
  • Effortless Operation
Aluminum Material
Constructed with aluminum alloy and bakelite materials, the CNC 3018 Pro is rustproof, hard-wearing and durable. Two pieces of acrylic baffles on both sides help you monitor the engraving process conveniently.
Three Refined Axes
The axes are equipped with knobs to help you move the carving machine manually, significantly improving working efficiency for a precise carving setting.
GRBL Control Board
The GRBL control board could be connected to a computer via a USB interface. And the 3Pin laser driver interfaces support PWM, TTL functions for full function laser engraving.
Offline Controller
An offline controller of the CNC router is also included for easy remote control without a computer to improve your working efficiency.
High-efficiency Motors
There are three 42 stepper motors on three axes for smooth movement. The 775 (12-36V)24V spindle motor on the Z-axis can reach the speed of 10000r/min.
Extensive Application
This CNC engraving machine can engrave all types of plastics, soft aluminum, woods, acrylics, PVCs, PCBs, and a wide range of other soft materials.
  • 1 x 3018 CNC Router Kit
  • 1 x 500mw Laser Module
  • 1 x Spindle
  • 1 x U-Disk (Software & Instruction)
  • 1 x Set of Milling Cutter
  • 1 x Pair of Protective Glasses
  • 1 x USB Cable
  • 1 x Power Supply
  • 1 x Set of Tools
  • 1 x Brush
  • 1 x Manual
  • Model: VG-S3018 Pro MAX
  • Effective Working Area(X x Y x Z): 11.8" x 7.1" x 1.8" / 300 x 180 x 45 mm
  • Materials: Aluminum Profile & Bakelite
  • Control Software: GRBL Control
  • Input Power: DC 24V 5A
  • Spindle Speed: 10000 rpm
  • Stepping Motor: Size 42, 12V; Torque: 0.25 N/m
  • Driving Units: T8 Stainless Steel Screws
  • Cutter Diameter: 0.125" / 3.175 mm
  • Positioning Accuracy: 0.003"-0.004" / 0.08-0.1 mm
  • Item Dimension: 15.7" x 11.8" x 9.4" / 400 x 300 x 240 mm

Specification

Model
VG-S3018 Pro MAX
Effective Working Area(X x Y x Z)
11.8" x 7.1" x 1.8" / 300 x 180 x 45 mm
Materials
Aluminum Profile & Bakelite
Control Software
GRBL Control
Input Power
DC 24V 5A
Spindle Speed
10000 rpm
Stepping Motor
Size 42, 12V; Torque
Driving Units
T8 Stainless Steel Screws
Cutter Diameter
0.125" / 3.175 mm
Positioning Accuracy
0.003"-0.004" / 0.08-0.1 mm
Item Dimension
15.7" x 11.8" x 9.4" / 400 x 300 x 240 mm
Manual
Download Link
Questions and Answers
3 Questions
or Ask a Question
De software werkt niet. Is er nieuwe softwae beschikbaar? waar kan ik deze downloaden? is deze ook in het Nederlands te verkrijgen? Ik gebruik nu Candle 1.1.7
Answer This Question
1. Er is geen nieuwe software. De graveersoftware bevindt zich op de USB-flashdrive die bij het product wordt geleverd. 2. De lasersoftware gebruikt LaserGRBL en het graveren van het gereedschap gebruikt Candle. LaserGRBL kan de Nederlandse taal op de software kiezen en Candle heeft een Engelse interface.
By vevor
Helpful ( 8 )
Does this unit comes with pre-installed laser unit or the milling unit?
Answer This Question
Yes, this product contains a low-power laser head, which can be used for tool engraving + laser engraving.
By vevor
Helpful ( 1 )
Ik heb bij u een S 3018 pro gekocht met een Ofline controller. Aan de zijde waar de 8 polige stekker zit bij deze controller, zit ook nog een 1pens connector. Moet hier nog een voeding op aangesloten worden? En wat voor voeding is dat dan? Gaarne uw reactie en bij voorbaat dank. Met vr.gr. G
Answer This Question
De offline controller kan worden aangesloten op de grijsschaallijn, de andere hoeft niet te worden aangesloten, de 1-pins aansluiting hoeft niet te worden aangesloten, deze hoeft niet apart te worden geleverd, idle niet erop aangesloten.
By vevor
Helpful ( 0 )

Customer Reviews

4.7 Out of 5
Based on 14 reviews

Ratings by Features

  • 4.7
  • 4.5
  • 4.6
  • 4.5
  • See More See Less
14 Review(s)
Clear filters
Bart Bart
Goede starterset
Als je op zoek bent naar een manier om een nieuwe hobby te beginnen is dit een echte aanrader! Zowel laser graveren als cnc frezen. Na het onder de knie krijgen van de programma's maak je al snel de mooiste dingen.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Danni Danni
Mrd
A good machine just a little fiddly to put together. The machine it's self is easy to use once set up and the programme is also easy to use. I am not so keen on the cutting it can take a few attempts to get the settings correct to achieve a clean cut
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Jamey Jamey
Graveermachine
Top machine, top service via vevor. Alles naar wens, snelle bezorging en hulp bij vragen gekregen. In het vervolg bestel ik al mijn elektronische apparatuur via vevor!
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Bryan Lewis Bryan Lewis
5 * kit for beginners
Very easy to get up and running with this laser engraver / cnc machine. I initially bought it for the cnc capability which it handles really well. I have tried it mainly on softwoods but I have managed to engrave a sign into oak as well. The laser is easily fitted. You just power it off, remove the drill motor from the z axis (remember to unplug it from the controller card), and put the laser module where the drill motor was (facing down, obviously). Plug the laser wires into the relevant places on the controller card and you're good to go. Before you start engraving you will need to ensure that the laser is switched on (mine has a little switch on the laser module itself) otherwise nothing will be engraved. Be sure to wear the safety glasses - you only get one pair of eyes! The software that comes with the kit is functional. If you want something better there are lots of programs which can help you out - just Google for laser controller software. The laser worked really well engraving onto a variety of woods both soft and hard. It also works well on white tiles if you spray them with white paint first (white paint with a high zinc content seems to work the best). Unfortunately I don't have any images readily available to show you, but I hope this brief review is helpful. In short, if you're just wanting to dabble with cnc and laser engraving, then I highly recommend this kit. If you make it into a business you may want to invest in a larger co2 laser in the future, but this should give you a good start while you're learning the ropes.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 7 people found this helpful
Ricky Ricky
Amazing bit of kit!
Great price! Great customer service! Easy to assemble, and easy to set up. Amazing bit of kit! No need for buying mega expensive machines with this machine
See More See Less
Helpful Sending feedback... Thank you for your feedback. 2 people found this helpful
Ron van Issum Ron van Issum
Dhr
Snelle levering, gemakkelijk in elkaar te zetten, maar daarna begint het voor mij. Helaas alles in het engels, dus voordat ik het eerste goede bestand er in gezet heb, ben ik alweer vergeten hoe ik het deed. Toch een keer goed voor gaan zitten
See More See Less
Helpful Sending feedback... Thank you for your feedback. 2 people found this helpful
PFIris PFIris
Prima
Prima lasersnijder. Redelijk makkelijk in elkaar te zetten en met de bijgeleverde software kan je snel aan het werk. Helaas is de bijgeleverde laser niet sterk genoeg om door 3-4mm hout heen te snijden, na 70x er overheen op 100% ben je er nog niet doorheen. Mijn advies zou zijn om een te kopen zonder laser (goedkoper) en er dan een goede, sterkere laser bij te kopen.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 1 people found this helpful
Albert Albert
Perfect apparaat
De levering ging erg snel. Het monteren van het apparaat was helemaal duidelijk tot het moment van het aansluiten van de bekabeling, daar is niets over te vinden. De printplaat gefotografeerd en uitvergroot, toen lukte het wel. Ik had grag gezien dat de printplaat op enige maniier beschermd zou zijn om de kwetsbaarheid van de electronica te beschermen. Dat vind ik echt een minpuntje. De nazorg van Vevor is geweldig. Mailtjes met vragen worden heel snel beantwoordt. Als het antwoord naar de mening van de klantenservice te lang uitblijft werdt dit onmiddelijk middels een kadobon goed gemaakt
See More See Less
Helpful Sending feedback... Thank you for your feedback. 1 people found this helpful
COl COl
Mr
Great product, easy to setup and use, suggest using inkscape to create engravings as its quite easy with the Gcode tools
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
fen fen
Fenwick Walker
product arrived and was quite easy to assemble if you take your time and follow instructions. The results so far have been amazing considering the cost, the only problems have been small grubscrews coming loose which can be frustrating. I think something like loctite might cure this, All in all delighted with machine. Fenwick Walker
See More See Less
Helpful Sending feedback... Thank you for your feedback. 2 people found this helpful
