Features & Details
- CNC 3040 Router Machine: CNC 3040 is an upgraded version of the old product. We provide a detailed user manual, assembly instructions, and installation video for your convenience. You can enjoy the delight of engraving plastics, soft aluminum, acrylics, PVC, PCB, and many more.
- Large Working Area: The effective engraving area of this engraving machine is 11.8(X) x 15.7(Y) x 2.2(Z) inches. Three refined axes are designed to achieve plane engraving. With the knob, the axes can be moved manually, which facilitates the carving tool settings. X & Y axis screw and nuts can reduce friction and improve accuracy.
- Excellent Motor: This CNC engraving machine is equipped with three stepper motors(2A; 18V) and 300W DC spindle motors with a 12000 r/min rotational speed. And the engraver supports Windows XP, Windows 7, Windows 8, Windows 10 system, and other software to directly import .nc/.ncc/.txt/.tap/ format files for engraving. High precision: less than 0.002 inches.
- Upgraded Control Box: Flexible coupling can be used for high torque transmission. This cutting machine has an independent offline controller. 1. No need to connect to the computer. 2. Arbitrary selection of offline files for engraving. 3. Manually adjust the X, Y, and Z axes position as the engraving starting point, manually turn on or off the spindle. 4. Helpful speed control and emergence stop bottoms. 5. Supported software: Mach 3.
- Sturdy Material: The frame is mainly made of aluminum alloy materials, with high strength. The chrome shafts are not easy to deform, designed aluminum dust-proof plate for easy cleaning, and suitable for long time use. Moreover, it is durable enough to withstand the rigors of all-day use repeatedly.
Frequently Bought Together
Reviews 4.5
All reviews are from verified purchases
Average rating based on 4 reviews
Reviews 4.5
All reviews are from verified purchases
See all 4 reviews
About this item
Product specification
- Effective Working Area(X x Y x Z)
- 11.8 x 15.7 x 2.2 inch/ 30 x 40 x 5.5 cm
- Materials
- Aluminum Alloy
- Spindle Speed
- 12000 rpm
- Stepping Motor
- 2A 18V; ≥2400mN.m torque
- Spindle Motor
- 300W DC Motor, 0V~48V
- Control Software
- Mach 3
- Cutter Diameter
- 0.125 inch / 3.175 mm
- Machine Weight
- 25.5kg (56.2 lbs)
- Positioning Accuracy
- 0.002 inch/ 0.05 mm
- Item Dimension
- 26 x 21.1 x 16.9 inch/ 66 x 53.5 x 43 cm
Description

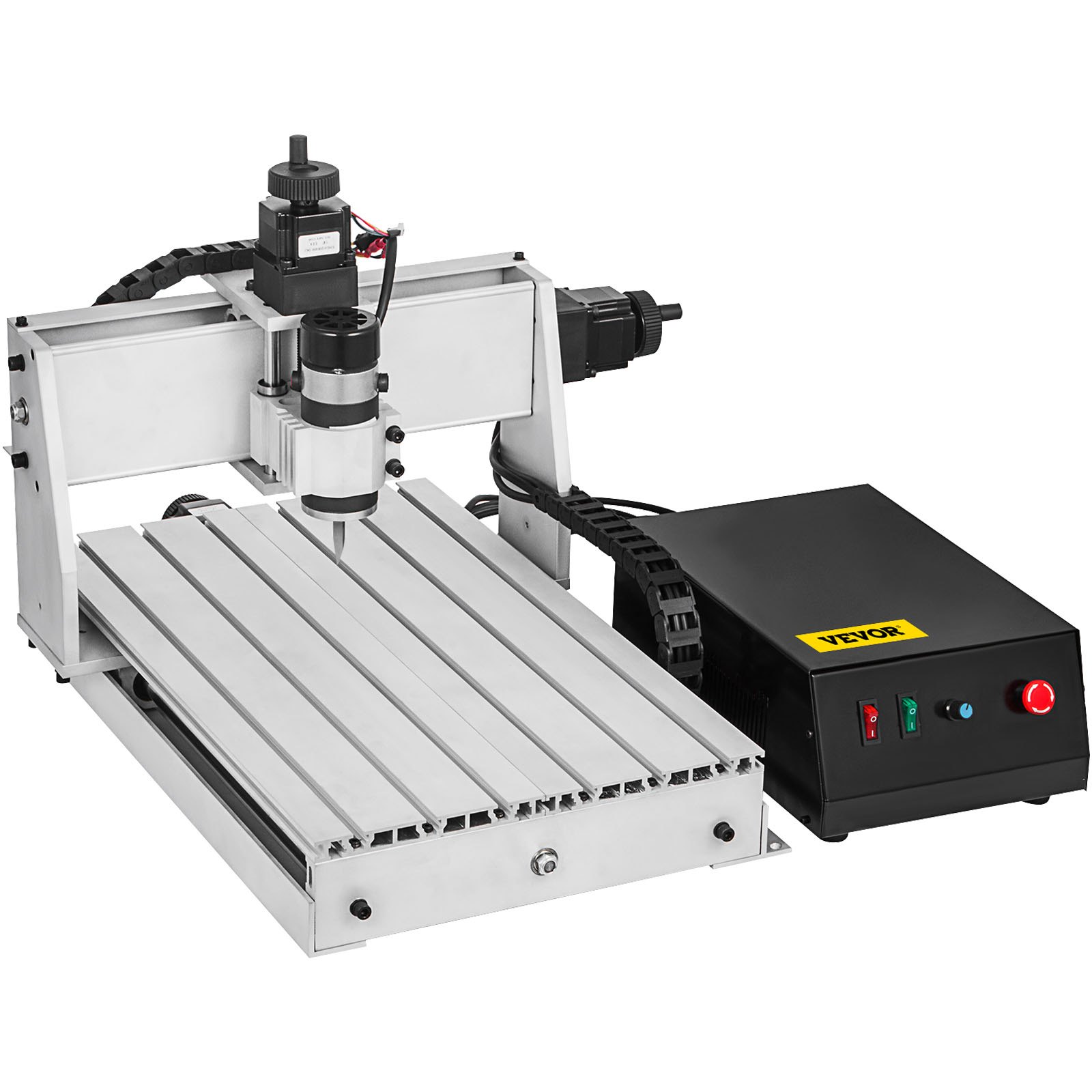

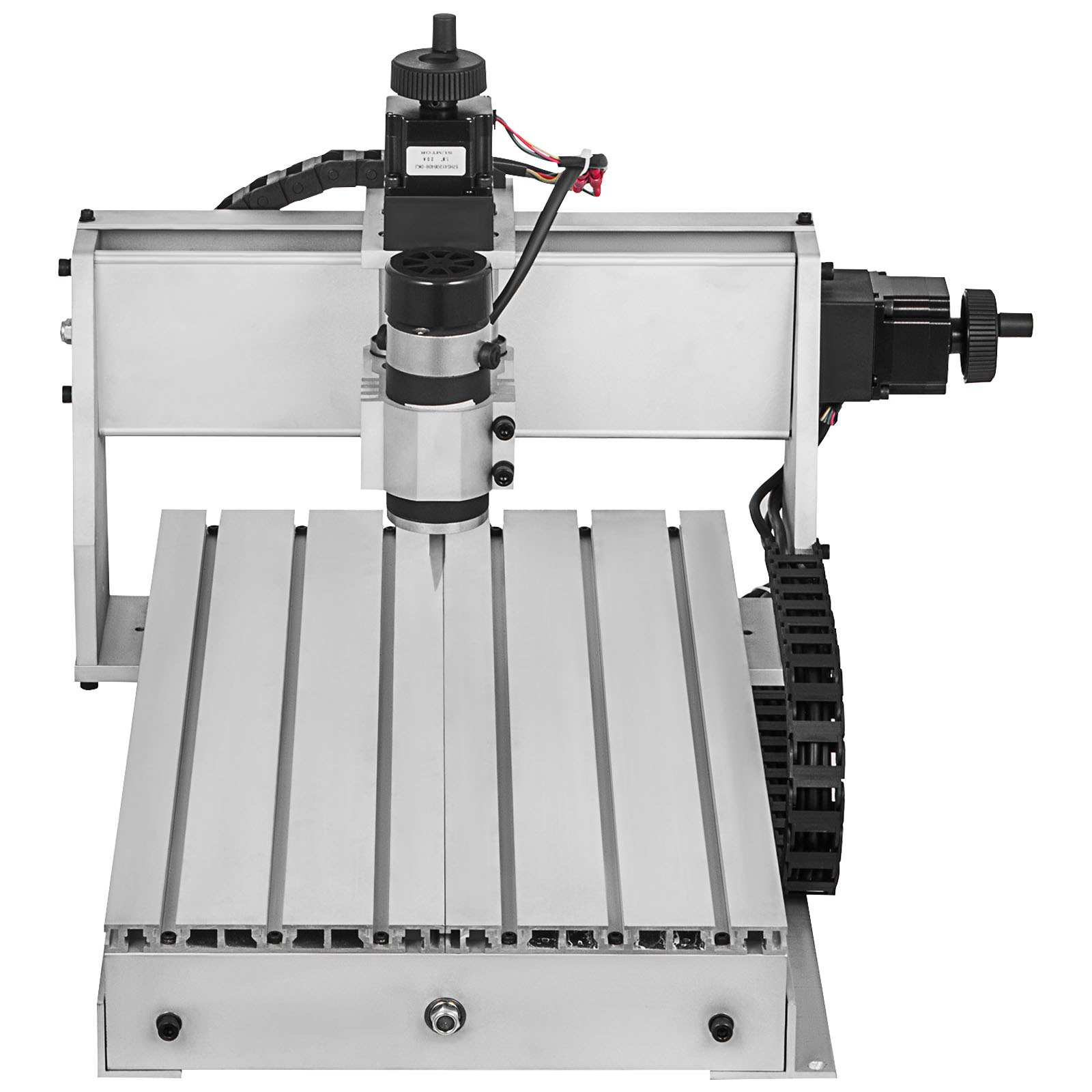

CNC 3040 Engraving Machine
Easy to Use & Upgrade Material & Complete Accessories
This CNC engraving machine with an effective working area of 11.8(X) x 15.7(Y) x 2.2(Z) inches is made of aluminum. It features a USB port, control board, and an offline controller, convenient for you to operate efficiently with/without computers. It is an ideal tool to engrave all types of plastics, soft aluminum, wood, PVC, etc. It is an excellent affordable self-learning engraving tool.
- CNC 3040 Router Machine
- Large Working Area
- Excellent Motor
- Upgraded Control Box
- Sturdy Material

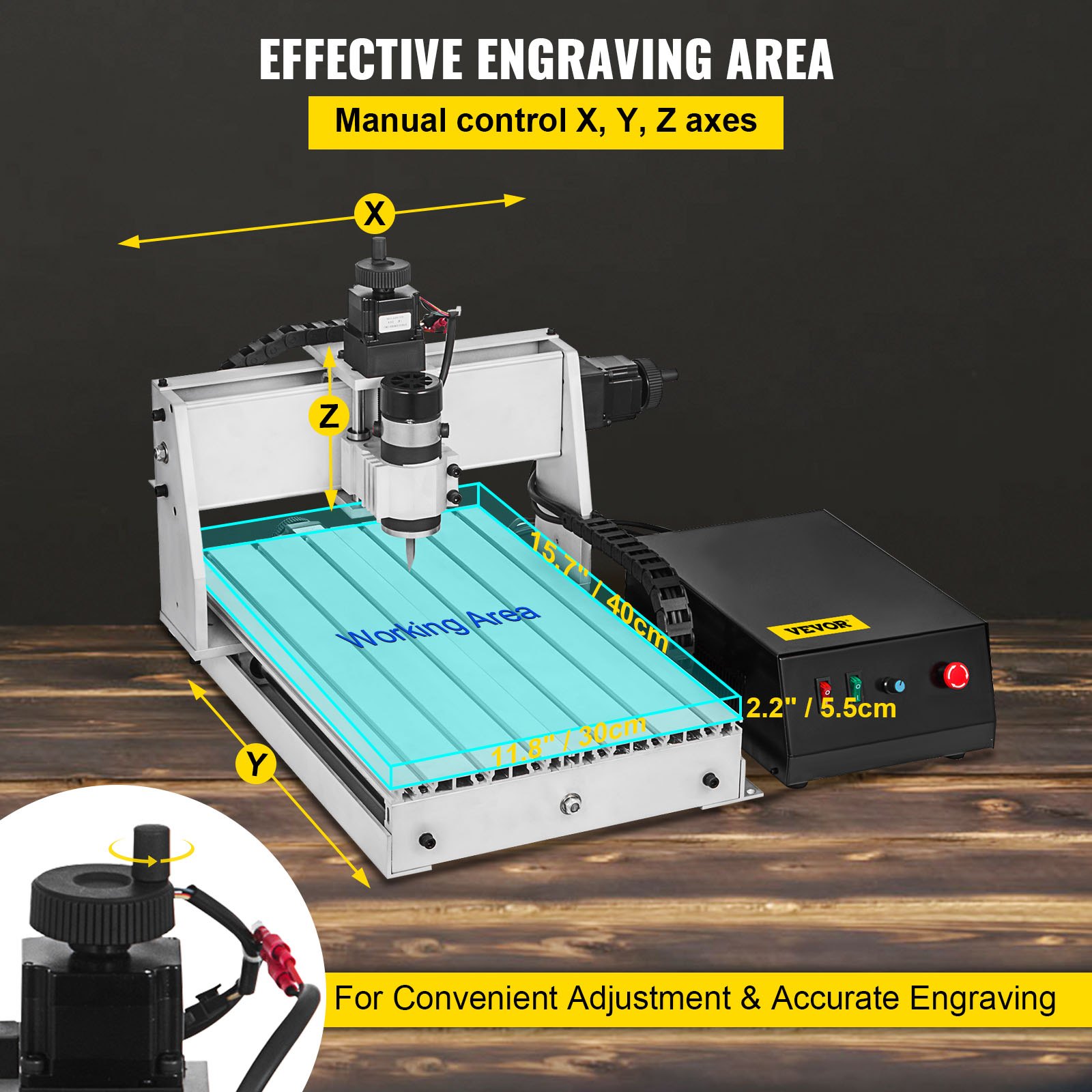

Large Working Area
The effective engraving area of this engraving machine is 11.8(X) x 15.7(Y) x 2.2(Z) inches. The axes are equipped with knobs to help you move the carving machine manually, improving working efficiency.

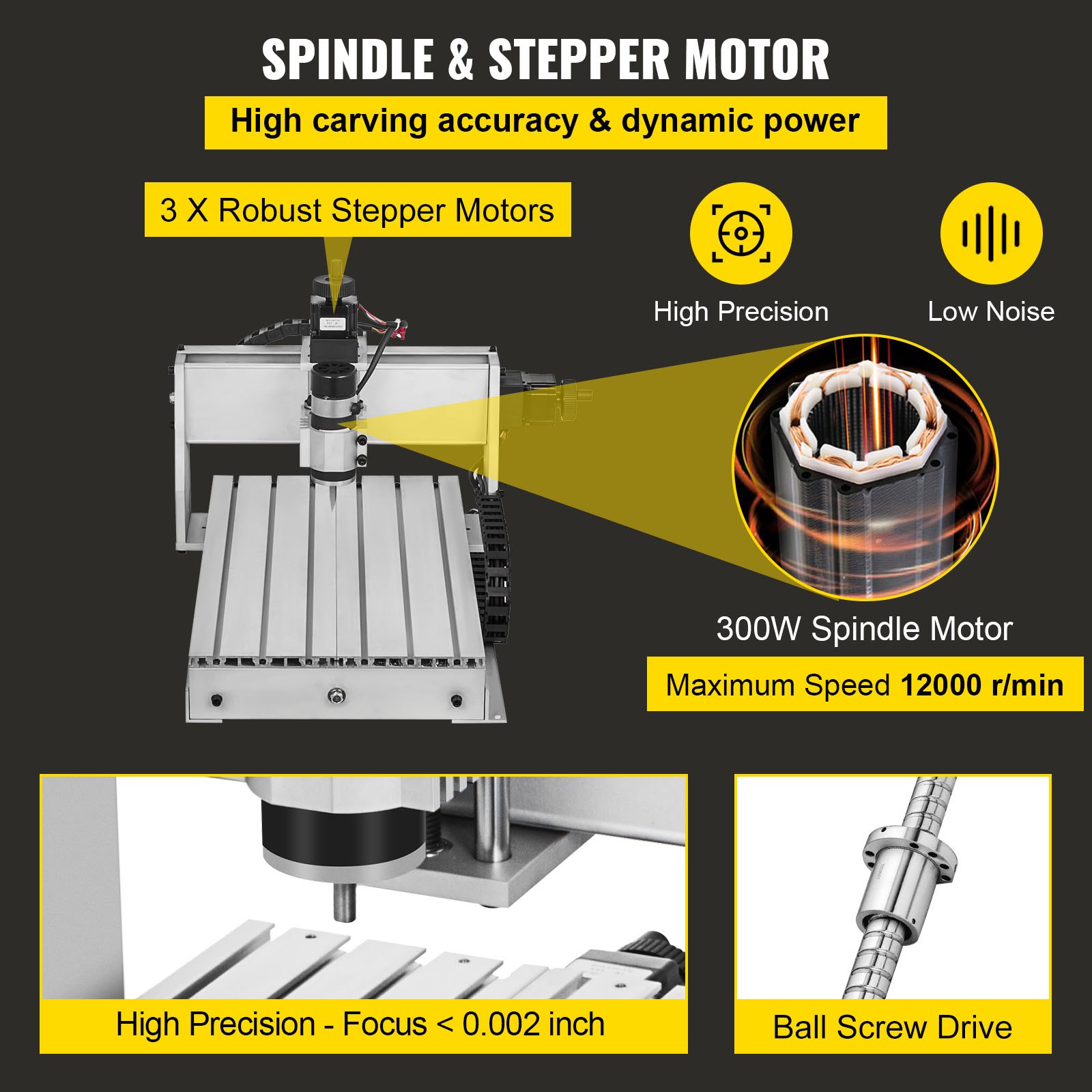

Powerful Motor
There are three stepper motors on three axes for smooth movement. The 300W DC spindle motor on the Z-axis can reach the speed of 12000r/min.

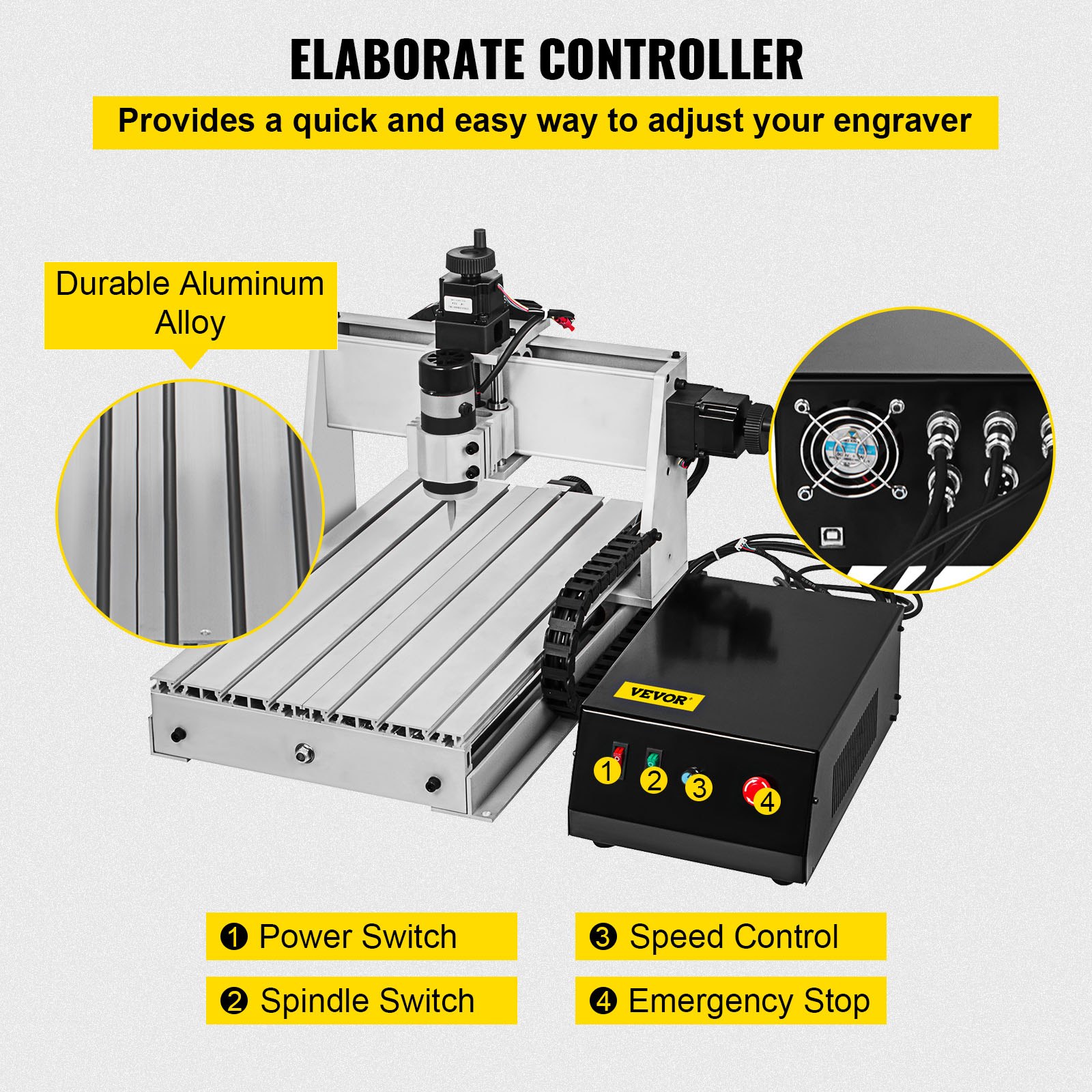

Functional Control Board
The Mach 3 control board could be connected via a USB interface to a computer. It features full functionality and can gear toward long-lasting use.
Extraordinary Quality
This machine has a powerful offline controller. It is also constructed with aluminum alloy materials, the CNC 3040 is characterized by high durability.
Easy to Install
We provide a detailed user manual, assembly instructions, and installation video for your convenience. Assemble the engraver machine according to the installation instructions.

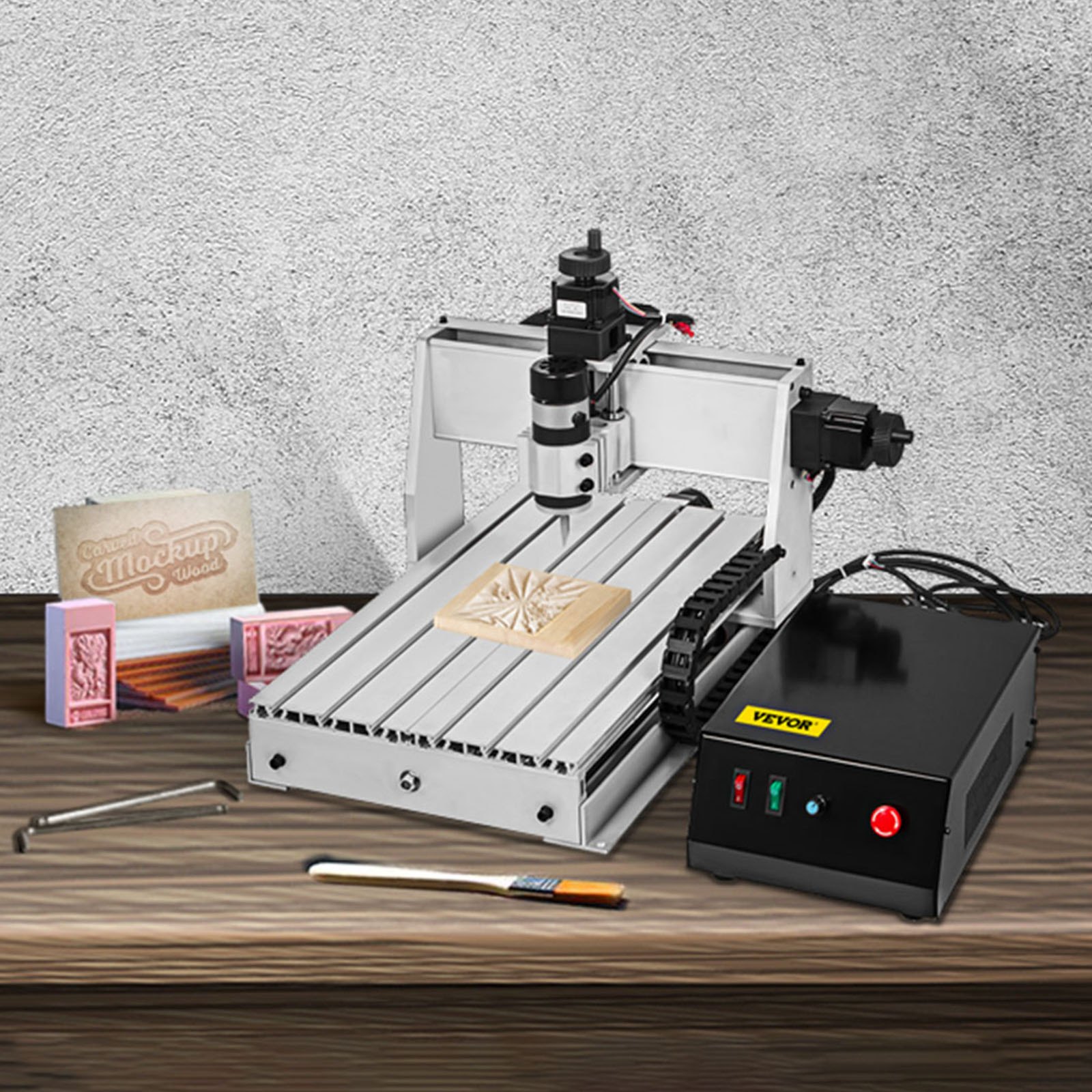

Extensive Application
This CNC engraving machine can engrave all types of plastics, soft aluminum, woods, acrylics, PVCs, PCBs, and a wide range of other soft materials.

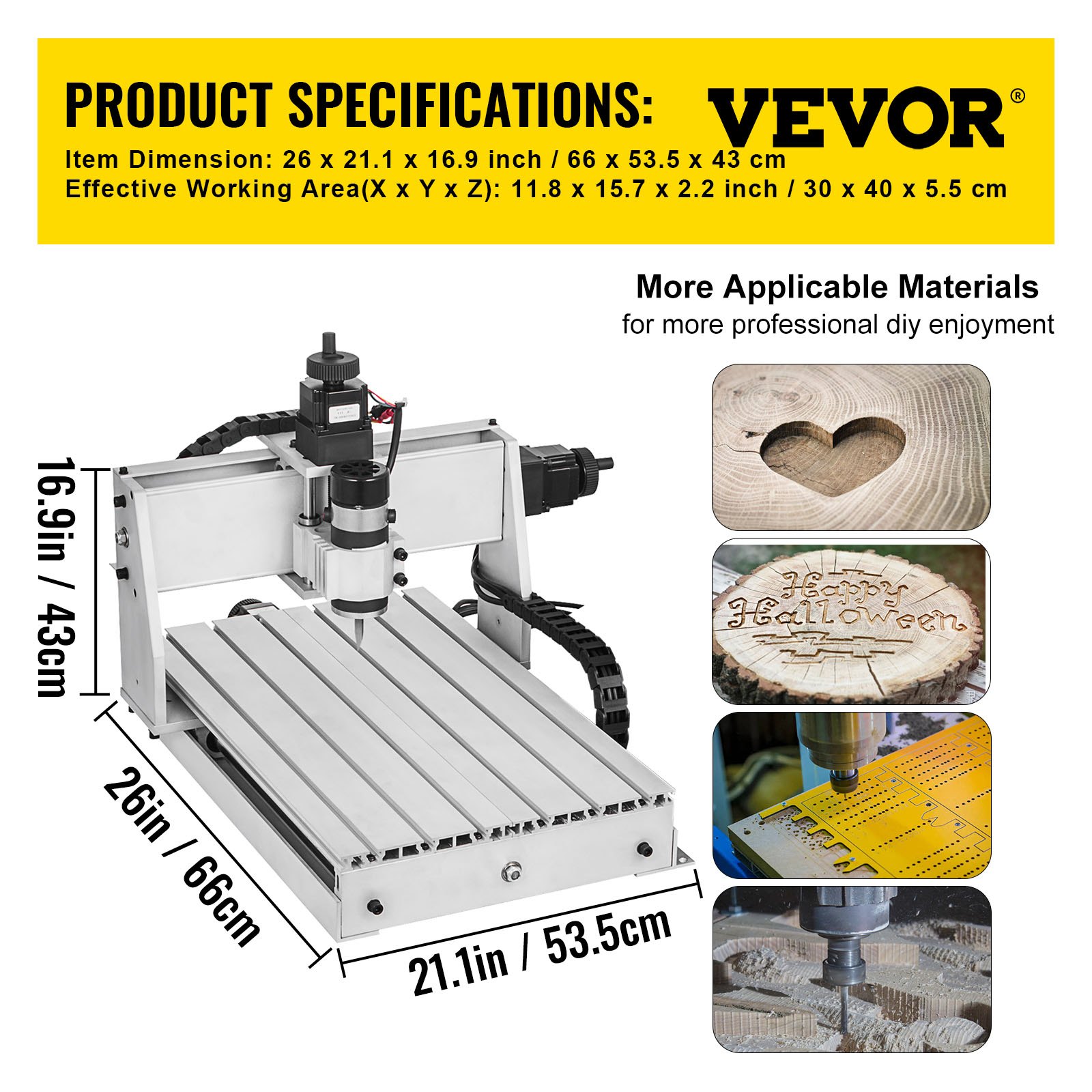

- Effective Working Area(X x Y x Z): 11.8 x 15.7 x 2.2 inch/ 30 x 40 x 5.5 cm
- Materials: Aluminum Alloy
- Spindle Speed: 12000 rpm
- Stepping Motor: 2A 18V; ≥2400mN.m torque
- Spindle Motor: 300W DC Motor, 0V~48V
- Control Software: Mach 3
- Cutter Diameter: 0.125 inch / 3.175 mm
- Machine Weight: 25.5kg (56.2 lbs)
- Positioning Accuracy: 0.002 inch/ 0.05 mm
- Item Dimension: 26 x 21.1 x 16.9 inch/ 66 x 53.5 x 43 cm

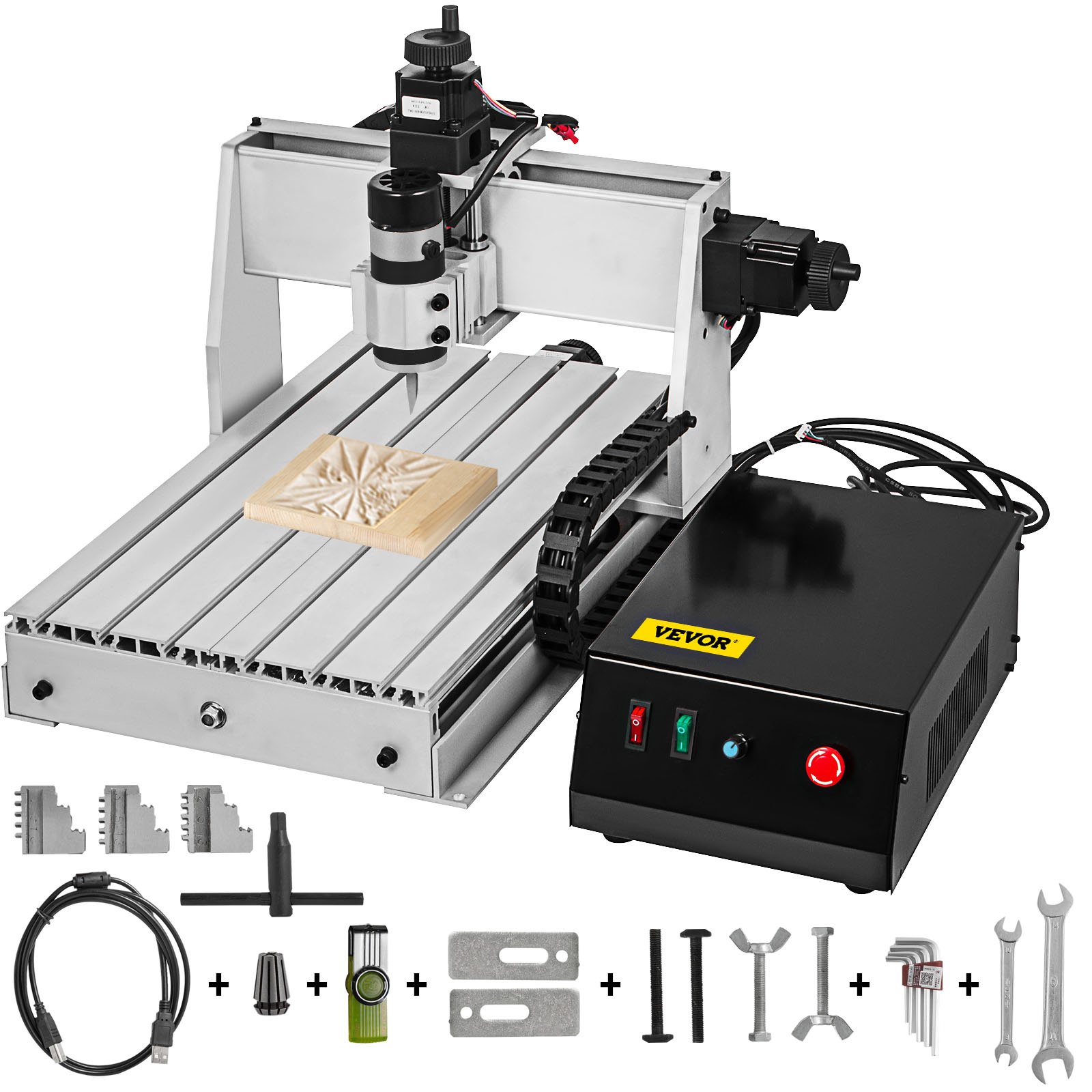

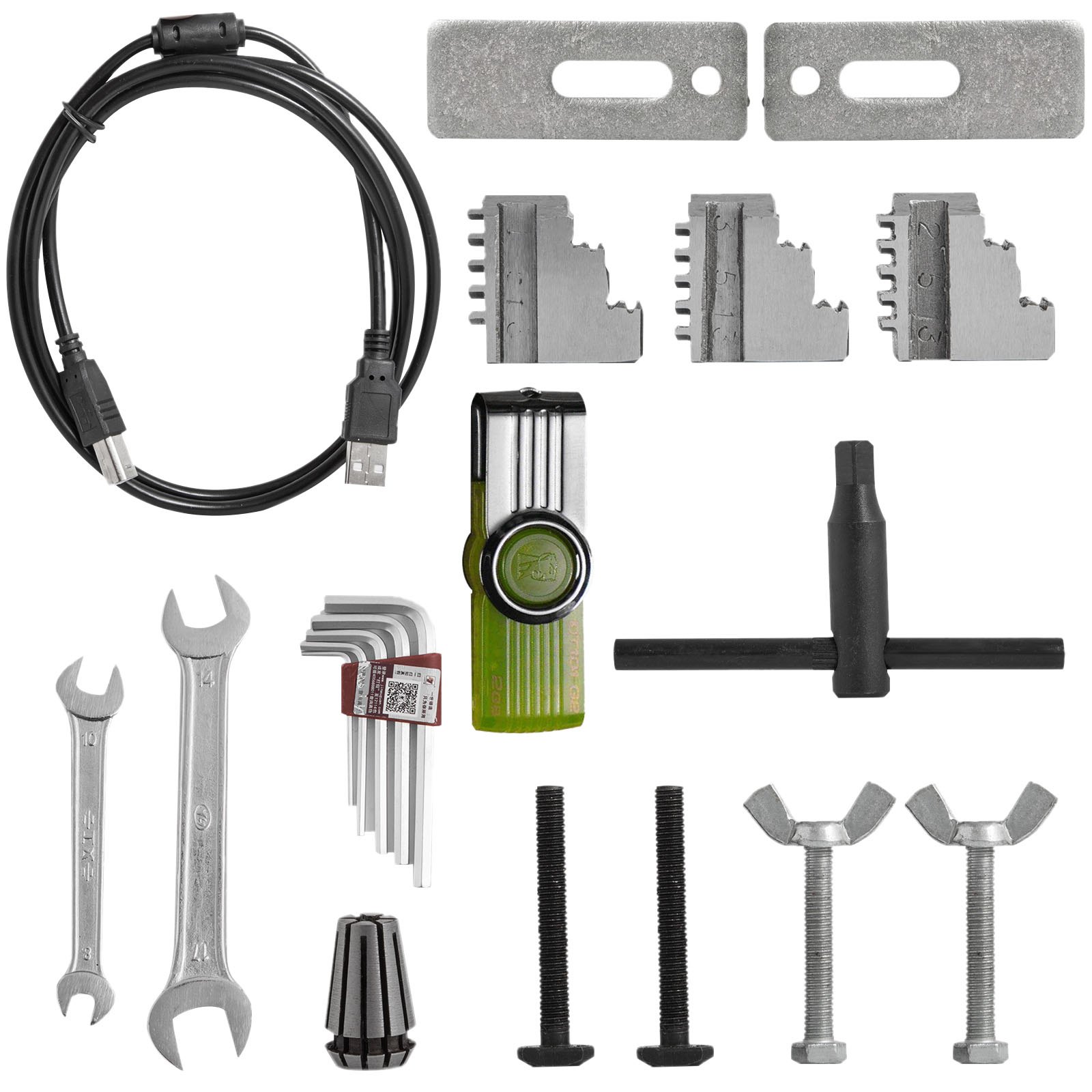

- 1 x CNC Engraving Milling Machine
- 1 x Offline Controller
- 1 x USB Cable
- 1 x USB
- 1 x A Set Of Installation Tools
- 1 x User Manual
CNC 3040 Engraving Machine
Easy to Use & Upgrade Material & Complete Accessories
This CNC engraving machine with an effective working area of 11.8(X) x 15.7(Y) x 2.2(Z) inches is made of aluminum. It features a USB port, control board, and an offline controller, convenient for you to operate efficiently with/without computers. It is an ideal tool to engrave all types of plastics, soft aluminum, wood, PVC, etc. It is an excellent affordable self-learning engraving tool.
- CNC 3040 Router Machine
- Large Working Area
- Excellent Motor
- Upgraded Control Box
- Sturdy Material
Large Working Area
The effective engraving area of this engraving machine is 11.8(X) x 15.7(Y) x 2.2(Z) inches. The axes are equipped with knobs to help you move the carving machine manually, improving working efficiency.
Powerful Motor
There are three stepper motors on three axes for smooth movement. The 300W DC spindle motor on the Z-axis can reach the speed of 12000r/min.
Functional Control Board
The Mach 3 control board could be connected via a USB interface to a computer. It features full functionality and can gear toward long-lasting use.
Extraordinary Quality
This machine has a powerful offline controller. It is also constructed with aluminum alloy materials, the CNC 3040 is characterized by high durability.
Easy to Install
We provide a detailed user manual, assembly instructions, and installation video for your convenience. Assemble the engraver machine according to the installation instructions.
Extensive Application
This CNC engraving machine can engrave all types of plastics, soft aluminum, woods, acrylics, PVCs, PCBs, and a wide range of other soft materials.
- 1 x CNC Engraving Milling Machine
- 1 x Offline Controller
- 1 x USB Cable
- 1 x USB
- 1 x A Set Of Installation Tools
- 1 x User Manual
- Effective Working Area(X x Y x Z): 11.8 x 15.7 x 2.2 inch/ 30 x 40 x 5.5 cm
- Materials: Aluminum Alloy
- Spindle Speed: 12000 rpm
- Stepping Motor: 2A 18V; ≥2400mN.m torque
- Spindle Motor: 300W DC Motor, 0V~48V
- Control Software: Mach 3
- Cutter Diameter: 0.125 inch / 3.175 mm
- Machine Weight: 25.5kg (56.2 lbs)
- Positioning Accuracy: 0.002 inch/ 0.05 mm
- Item Dimension: 26 x 21.1 x 16.9 inch/ 66 x 53.5 x 43 cm
Product guides and documents
User manual-en (PDF) Review
Questions and Answers (5)
hallo,
Ik ben aan het uitkijken naar een CNC voor het maken van PCBs. Ik kwam op deze machine terecht.
Doch enkele vraagjes.
Werkt deze met MACH4 Hobby?
Is de machine Windows 11 compliant (drivers)?
Is er de mogelijkheid voor Z-probing? Deze is belangrijk voor het maken van PCB
Bedankt!
Het is uitgerust met mach3-software, compatibel met Win11, en kan Z-detectie uitvoeren.
By vevor
Helpful
(
3
)
Is dit echt ball screw drive?
Kan dit ook werken op Universal G-code Sender (UGS), Lasergrbl of Candle cnc?
Dit product is geen kogelomloopspindel, maar een schroef, die wordt uitgevoerd door het importeren van G-code.
By vevor
Helpful
(
1
)
Hallo . naar welke dingen moet kijken als ik wil spindel motor vervangen naar meer krachtig .hebben u in stok. Zprobe kan angesloten
Het product kan de krachtige spindel niet vervangen.
By vevor
Helpful
(
0
)
Als ik deze machine koop kan ik hier mee werken of heb ik nog een ander programma nodig om te werken
De machine is uitgerust met mach3-software en de machine kan uitvoeren en werken na het importeren van G-code.
By vevor
Helpful
(
0
)
Hello
I have a question regarding the 3 Axis CNC 3040 Milling Machine With USB Engraving Machine Router for Metal Glass Wood Stone.
I would like to buy a cnc router that can also cut aluminum. Since it is only mentioned that this machine can engrave, I was wondering if it is also suitable for milling (aluminum).
Thanks in advance.
It can only mill thin sheets made of aluminium. Aluminum cannot be milled with it.
By vevor
Helpful
(
0
)
