VEVOR Fiber Fusion Splicer 4 Motors Clad Alignment 9s Splicing 9-25s Heating VEVOR Fiber Fusion Splicer 4 Motors Clad Alignment 9s Splicing 9-25s Heating VEVOR Fiber Fusion Splicer 4 Motors Clad Alignment 9s Splicing 9-25s Heating VEVOR Fiber Fusion Splicer 4 Motors Clad Alignment 9s Splicing 9-25s Heating VEVOR Fiber Fusion Splicer 4 Motors Clad Alignment 9s Splicing 9-25s Heating VEVOR Fiber Fusion Splicer 4 Motors Clad Alignment 9s Splicing 9-25s Heating
GXRJJXXDZ4PKP9QOMV2

VEVOR Fiber Fusion Splicer 4 Motors Clad Alignment 9s Splicing 9-25s Heating

See All Customer Reviews
1 Reviews
Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive 5,00€ off on your first three app orders. Only App.
Download Now
Exclusive 5,00€ off on your first three app orders. Only App.
Scan the QR code to download

4

  • 6
  • 4

About this item

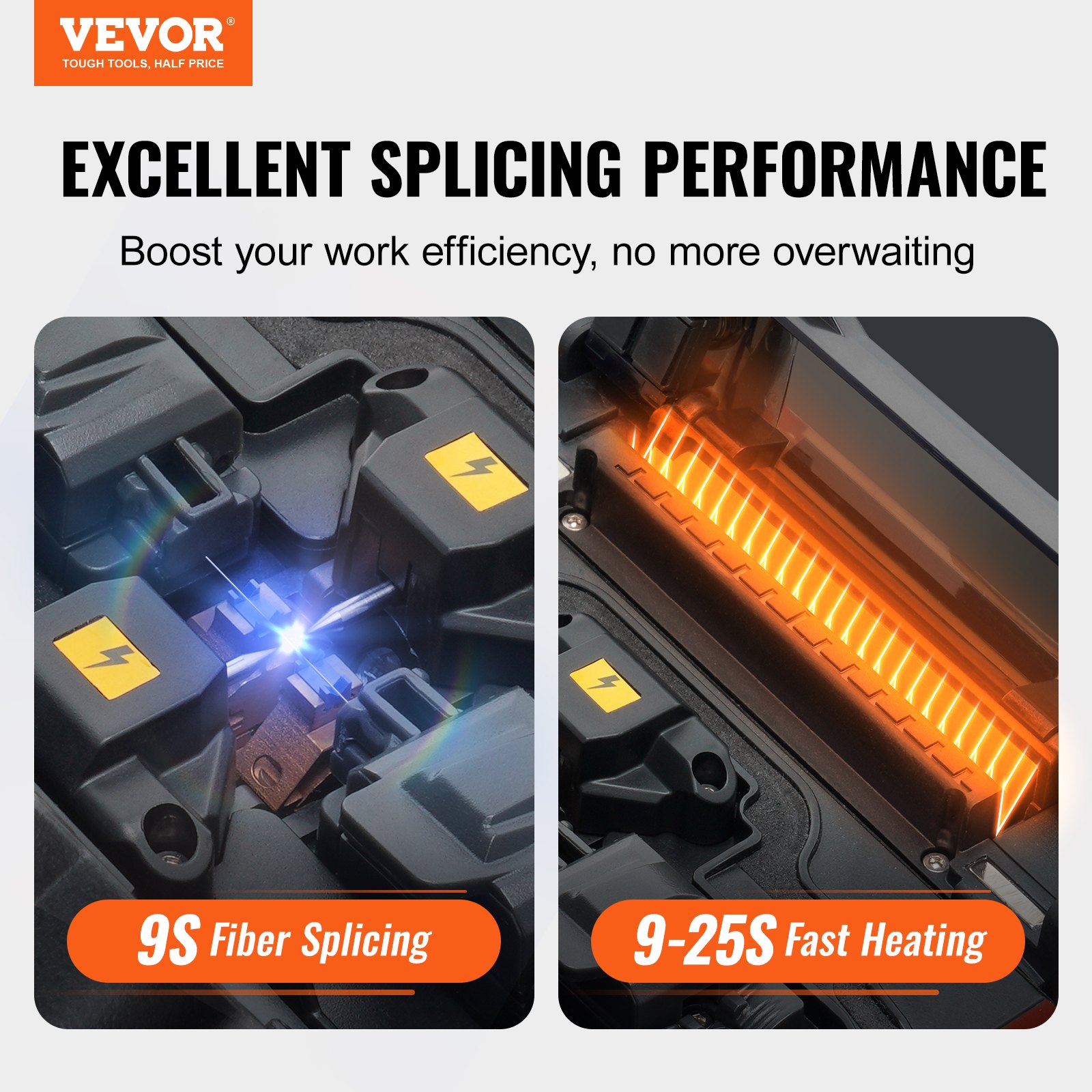

  • Highly Splicing Efficiency: VEVOR fiber fusion splicer boasts 4 high-precision motors, cladding alignment and autofocus function, supporting rapid splicing in as fast as 9 seconds and quick heating in 9-25 seconds, with fusion loss as low as 0.02dB(SM).

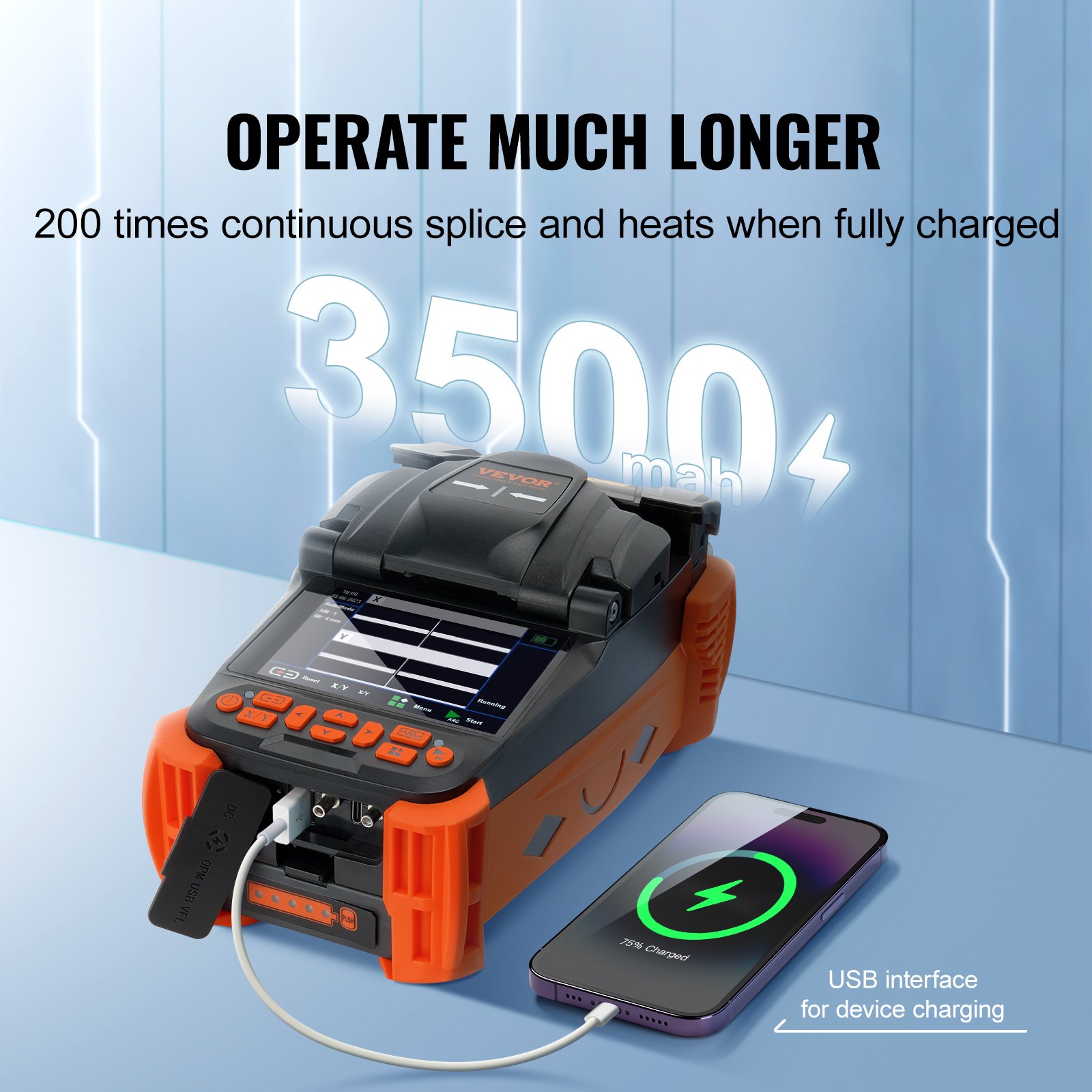

  • Operate Much Longer: Built in 3500mAh high-capacity rechargeable battery can perform over 200 continuous fusion splicing and heating cycles on a full charge. There is a USB port on the side, allowing for charging mobile phones, lighting devices, and more.

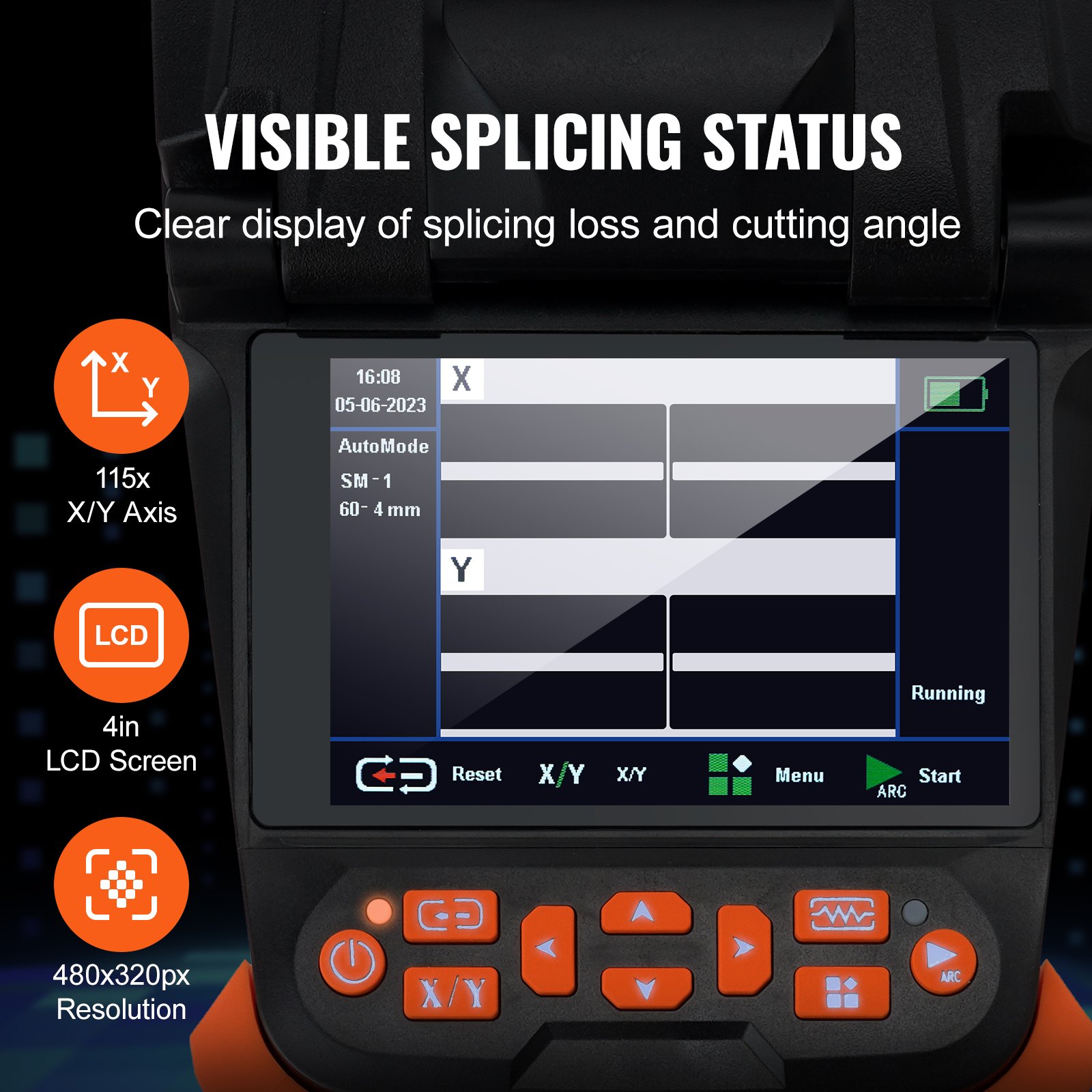

  • High-Definition Display: 4-inch high-resolution LCD screen that offers multiple display mode options and crystal-clear display. It provides independent 230x X or Y magnification display and simultaneous 115x X/Y display, ensuring clear and visible fiber cores.

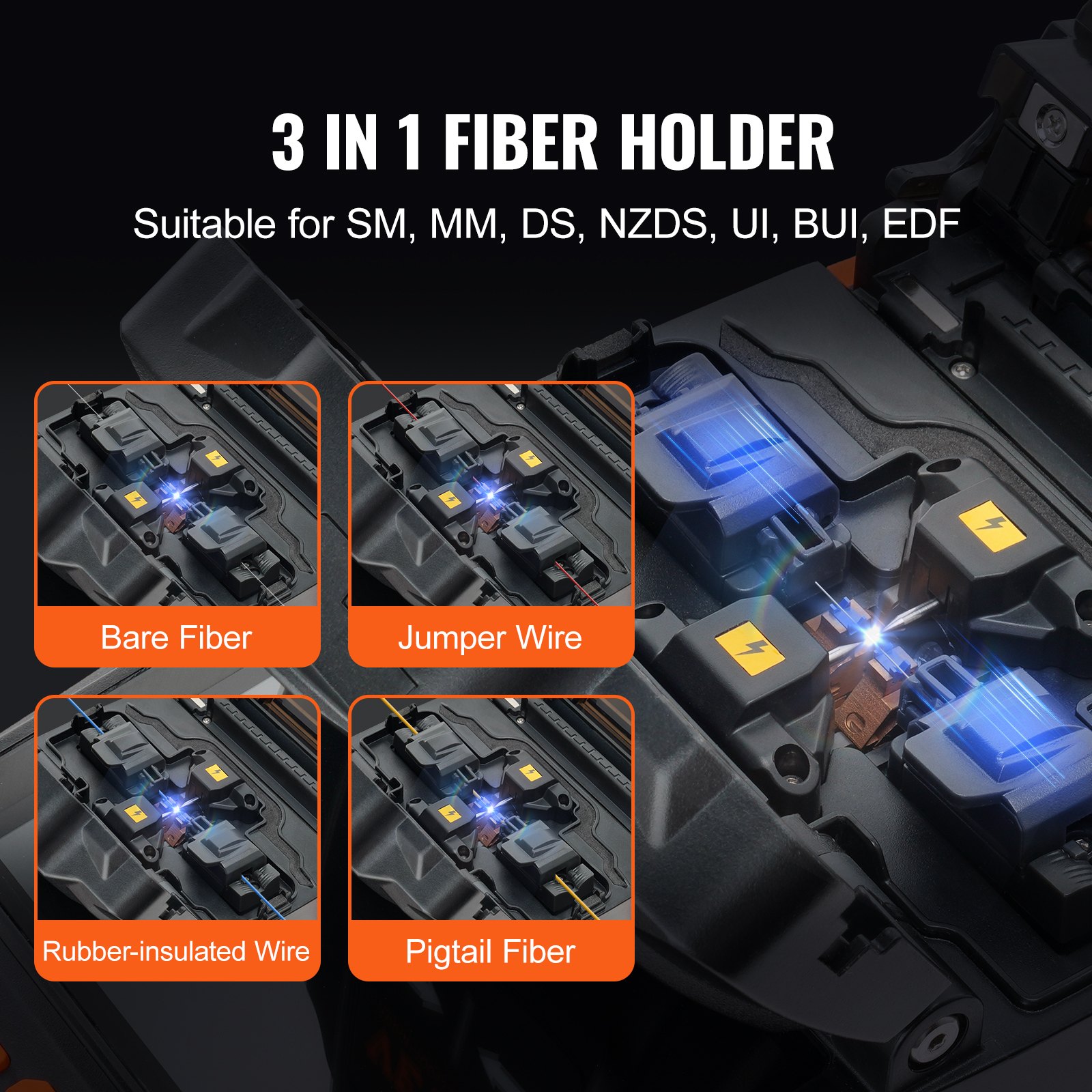

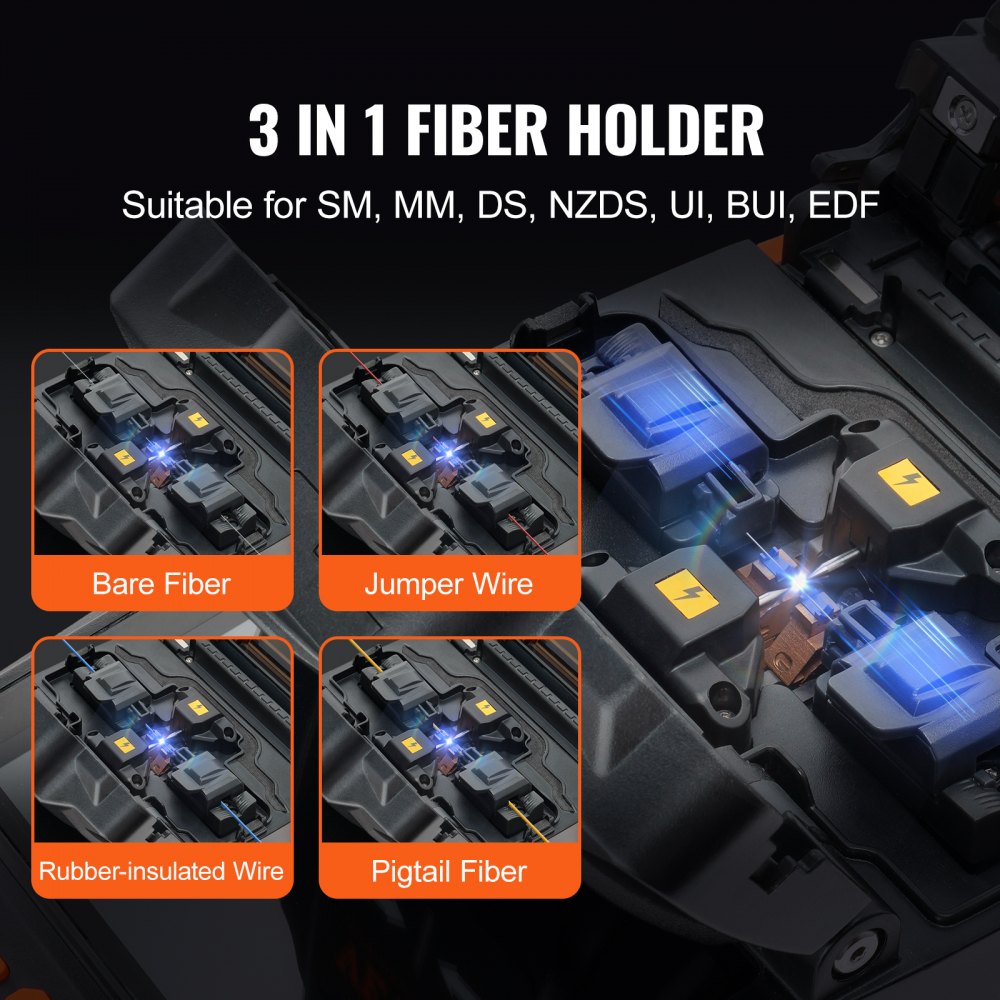

  • Wide Applications: 3 in 1 optical fiber holder is widely compatible with SM, MM, DS, NZDS, UI, BUI, and EDF fibers. Built-in OPM and VFL can effectively measure connection loss, verifying continuity and assessing fiber link transmission quality.

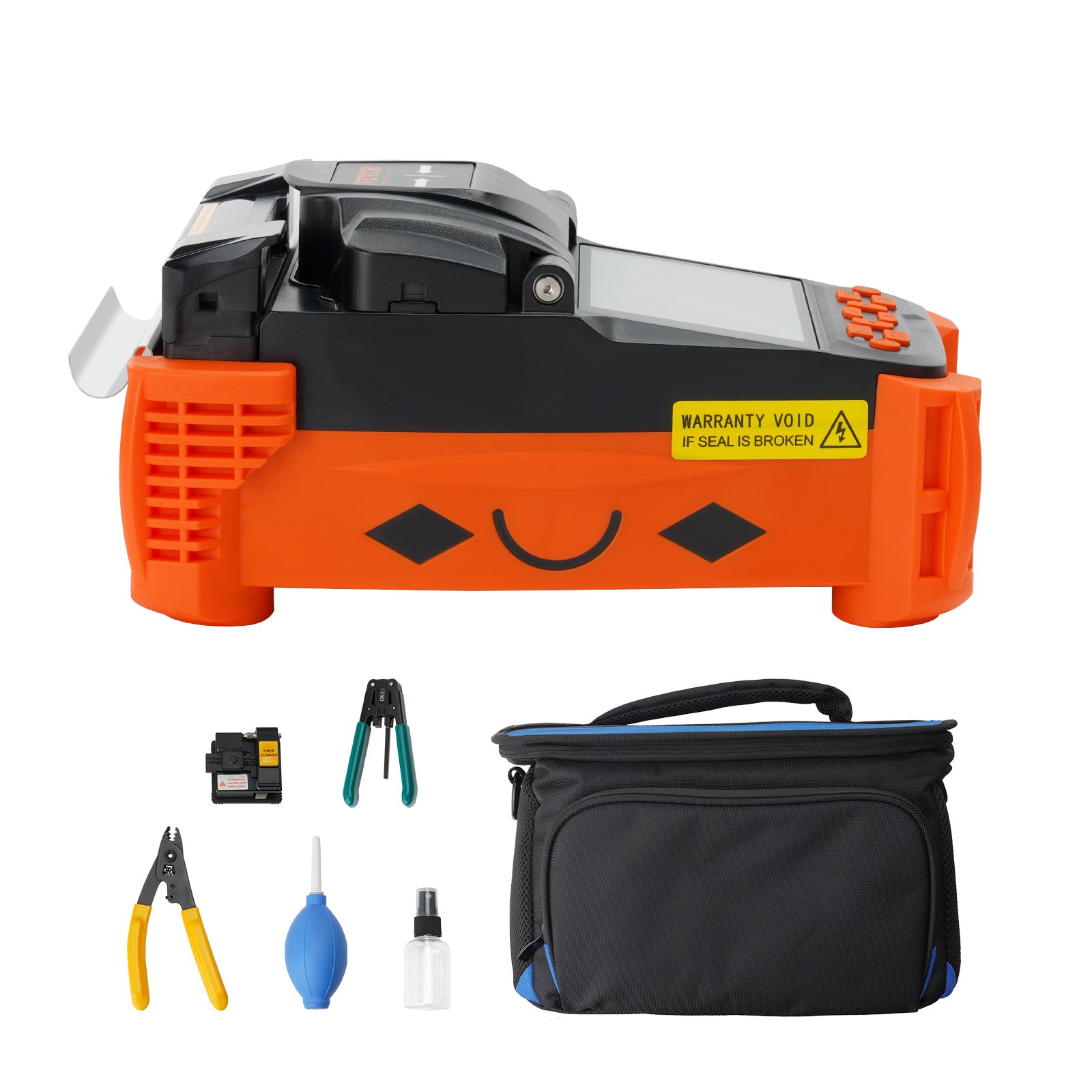

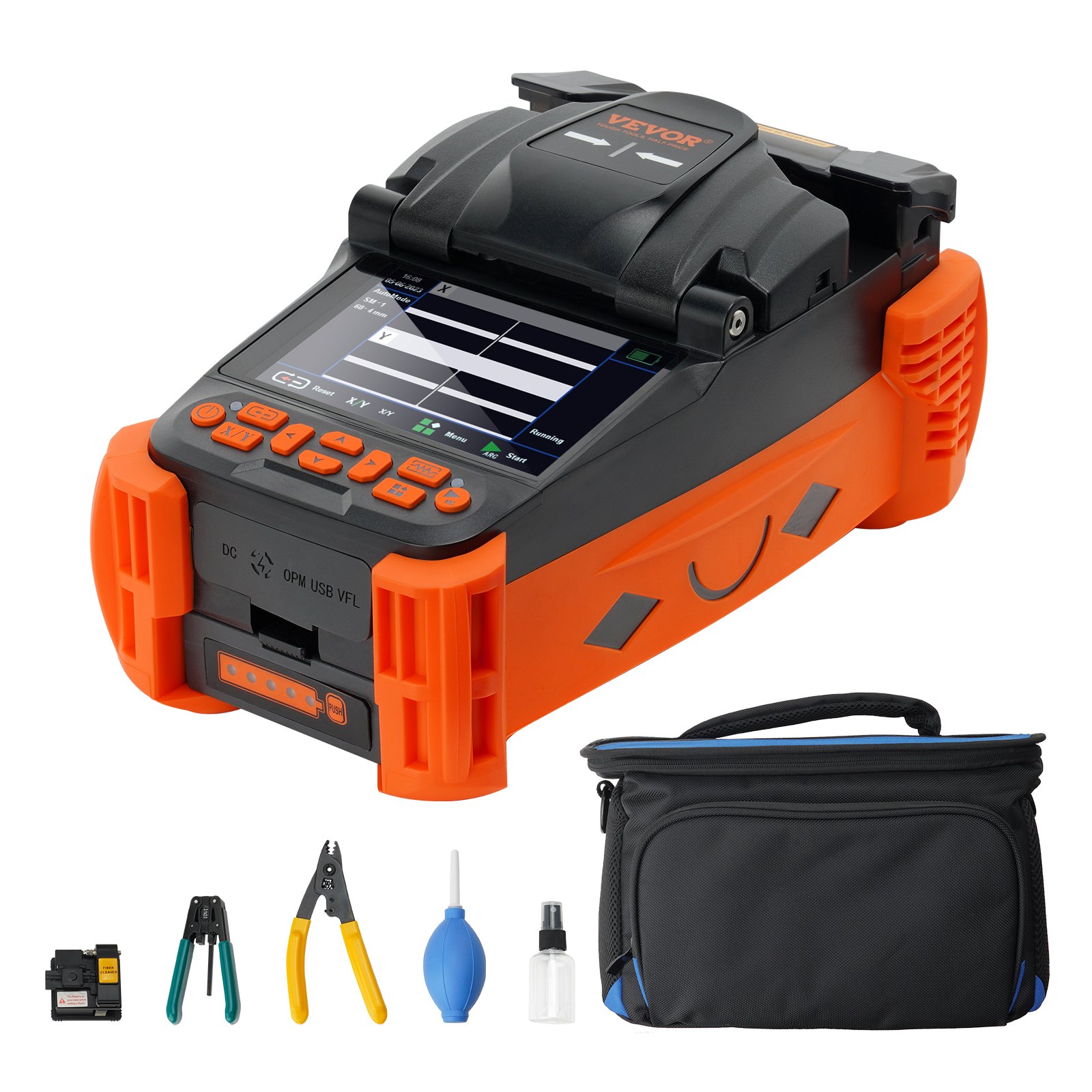

  • All-in-One Versatile Kit: Necessary tools are all ready! Each optical fusion splicer kit includes a main unit, fiber cleaver, wire stripper, 3-hole stripper, alcohol dispenser, blowing ball, power adapter, power cord, cooling tray, and a portable carrying bag.
See More See Less

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Fiber Fusion Splicer 4 Motors Clad Alignment 9s Splicing 9-25s Heating
4
Description Specification Questions and Answers Reviews
Achieve High Speed, Reliable and Efficient Fiber Fusion！
Introducing VEVOR High-end Fiber Fusion Splicer-Clad alignment technology with auto focus and 4 high-precision motors. Achieve lightning-fast fusion in just 9 seconds and rapid heating in 9-25 seconds, with fusion loss as low as 0.02dB(SM). Meet diverse fiber optic projects demands with accuracy.
Unfazed by extreme weather conditions! Our fiber optic fusion splicer exhibits outstanding weather resistance, shock resistance, frost resistance, wind resistance, impact resistance, and waterproofing features. Capable of operating in dry climates, snowstorms, and high-altitude environments.

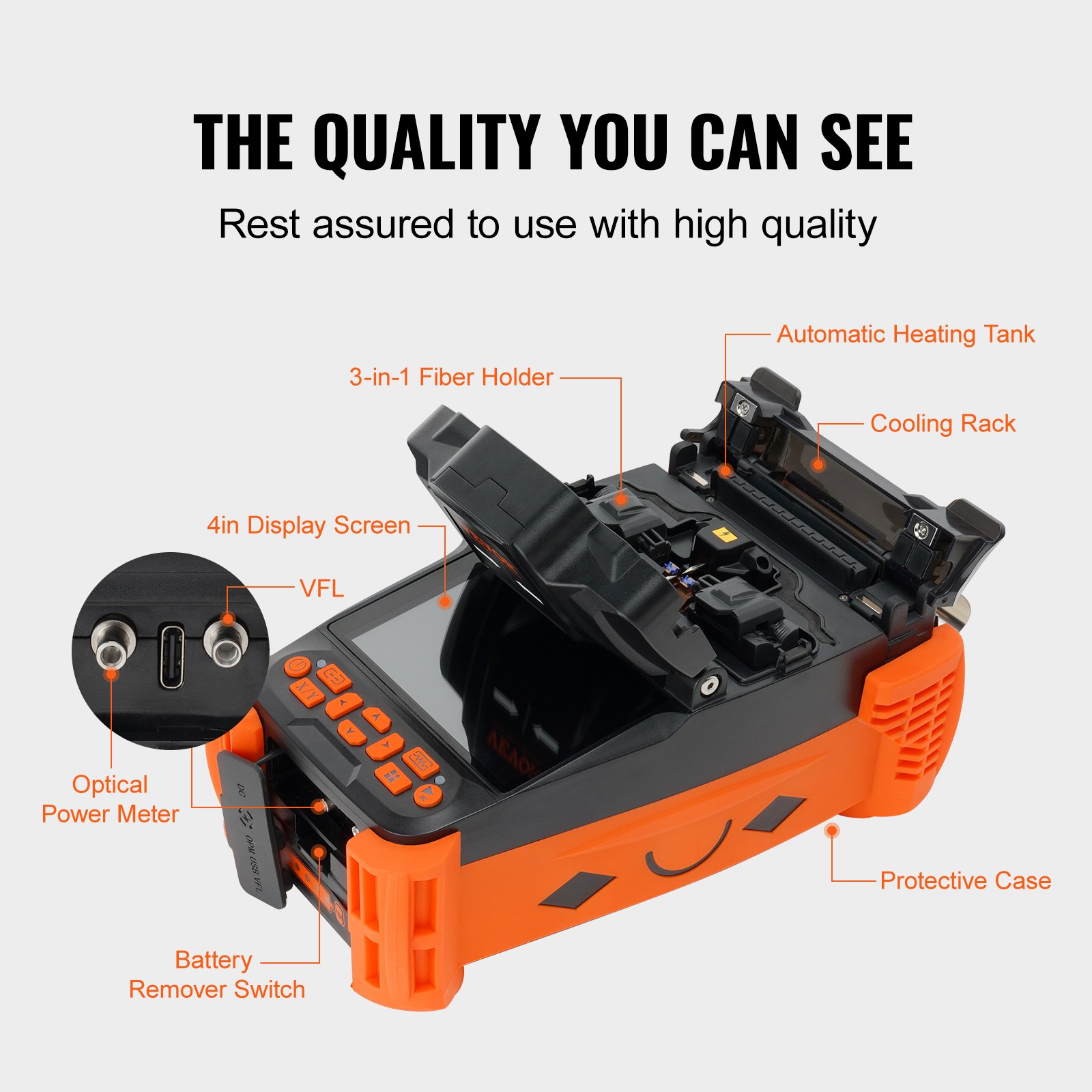

The windproof cover is equipped with dual LED lighting, allowing for better fiber placement even during nighttime operations. Ensures clear visibility for fusion splicing tasks conducted in low-light conditions.
Built-in OPM and VFL, controlled by a microprocessor with high accuracy and minimal errors. The wavelength memory function allows them to remember the test wavelength set before shutting down. 6 different testing wavelengths are suitable for various testing environments.
With a wide range of accessories, our auto focus optical fiber cleaver kit offers a user-friendly experience. It is extensively applicable to medium to short-haul trunk construction, FTTH (Fiber-to-the-Home) projects, and fiber optic cable splicing projects in security and surveillance applications.

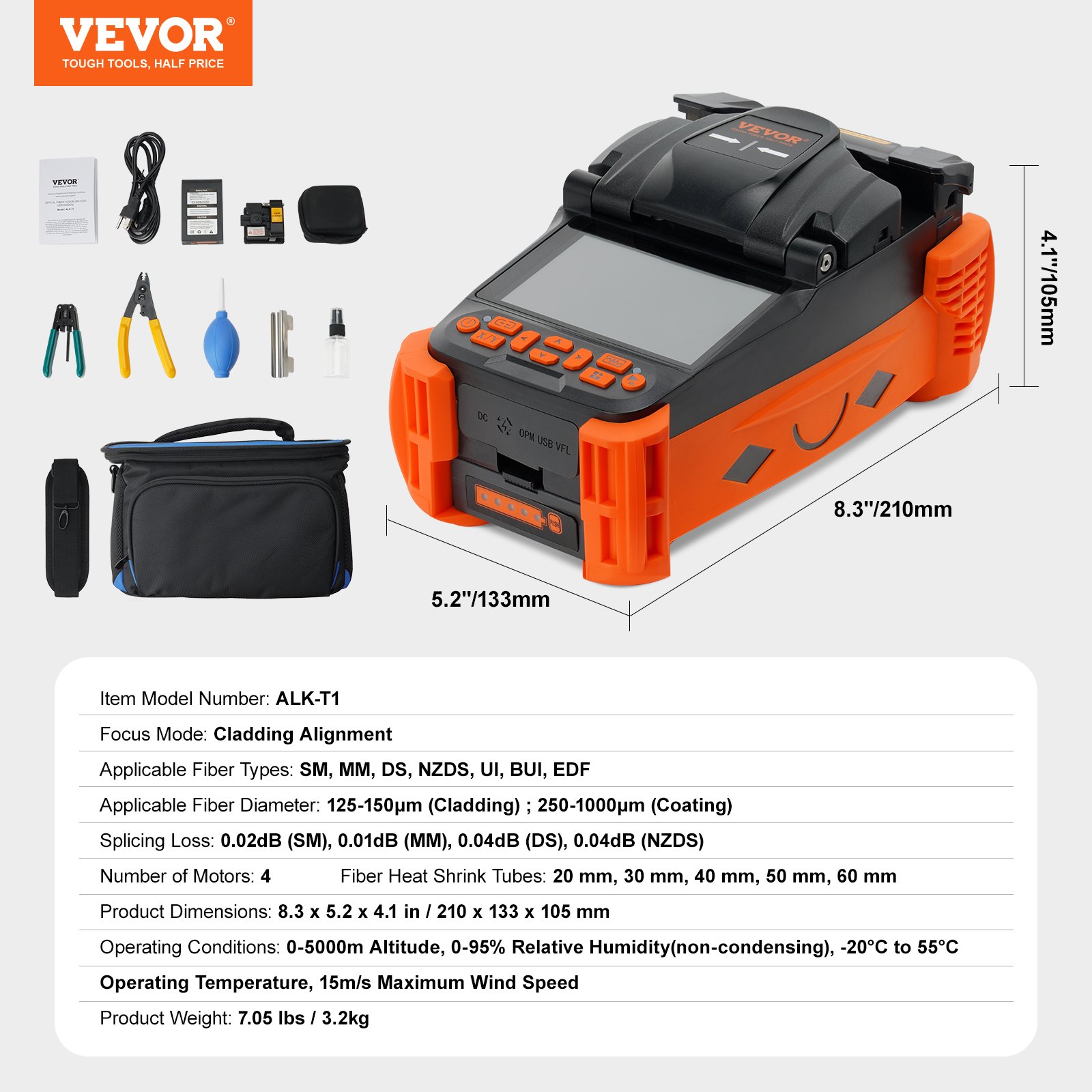

Specification

Item Model Number
ALK-T1
Focus Mode
Cladding Alignment
Applicable Fiber Types
SM, MM, DS, NZDS, UI, BUI, EDF
Applicable Fiber Diameter
125-150μm (Cladding) ; 250-1000μm (Coating)
Splicing Loss
0.02dB (SM), 0.01dB (MM), 0.04dB (DS), 0.04dB (NZDS)
Number of Motors
4
Fiber Heat Shrink Tubes
20 mm, 30 mm, 40 mm, 50 mm, 60 mm
Product Dimensions
8.3 x 5.2 x 4.1 in / 210 x 133 x 105 mm
Product Weight
7.05 lbs / 3.2kg
Manual
Download Link
Questions and Answers
Typical questions asked about products: Is the product durable? ...
Ask the First Question

Customer Reviews

5.0 Out of 5
Based on 1 reviews

Ratings by Features

  • 4.7
  • 4.5
  • 4.6
  • 4.5
  • See More See Less
1 Review(s)
Clear filters
Leon Leon
Dhr.
Ik heb altijd een glas las apparaat gehuurd, dit omdat het apparaat te prijzig was om te kopen. Nu toch maar gekocht en ik was aangenaam verrast over de kwalieit en finctionaliteit van het apparaat. Ik heb nu singel mode gelast werkte perfect, binnenkort de multimode gaan lassen. Maar ik denk dat die ook wel gaan lukken. Erg goed apparaat benieuwd naar de levensduur van het apparaat.
