VEVOR Fiber Fusion Splicer 6 Motors Core Alignment 5-6s Splicing 9-25s Heating
VEVOR Fiber Fusion Splicer 6 Motors Core Alignment 5-6s Splicing 9-25s Heating
VEVOR Fiber Fusion Splicer 6 Motors Core Alignment 5-6s Splicing 9-25s Heating
VEVOR Fiber Fusion Splicer 6 Motors Core Alignment 5-6s Splicing 9-25s Heating
VEVOR Fiber Fusion Splicer 6 Motors Core Alignment 5-6s Splicing 9-25s Heating
VEVOR Fiber Fusion Splicer 6 Motors Core Alignment 5-6s Splicing 9-25s Heating
+7
More
VEVOR Fiber Fusion Splicer 6 Motors Core Alignment 5-6s Splicing 9-25s Heating
VEVOR Fiber Fusion Splicer 6 Motors Core Alignment 5-6s Splicing 9-25s HeatingVEVOR Fiber Fusion Splicer 6 Motors Core Alignment 5-6s Splicing 9-25s Heating

Features & Details

  • Highly Splicing Efficiency: VEVOR fiber fusion splicer boasts 6 high-precision motors, core alignment and autofocus function, supporting rapid splicing in as fast as 5-6 seconds and quick heating in 9-25 seconds, with fusion loss as low as 0.01dB(MM).

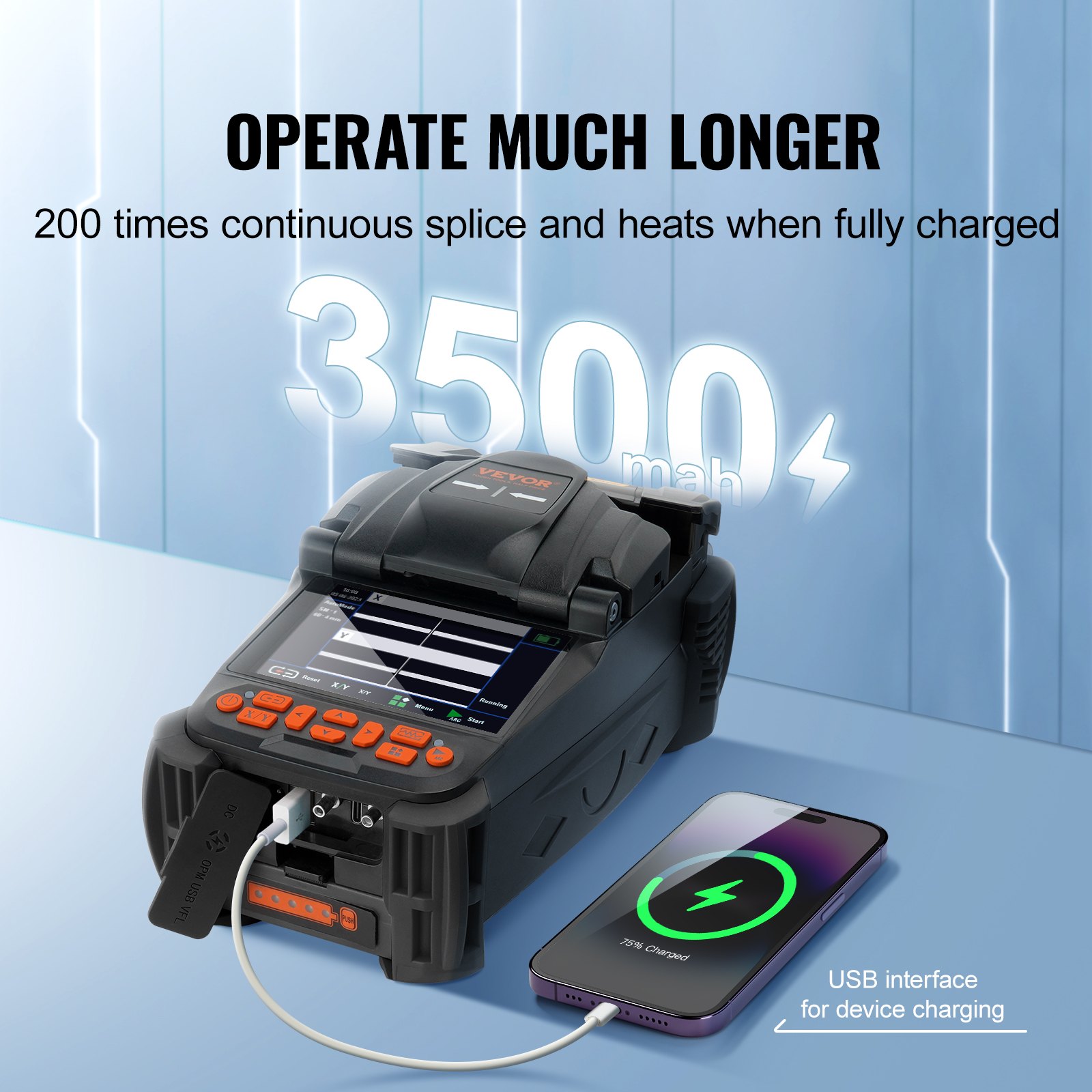

  • Operate Much Longer: Built in 3500mAh high-capacity rechargeable battery can perform over 200 continuous fusion splicing and heating cycles on a full charge. There is a USB port on the side, allowing for charging mobile phones, lighting devices, and more.

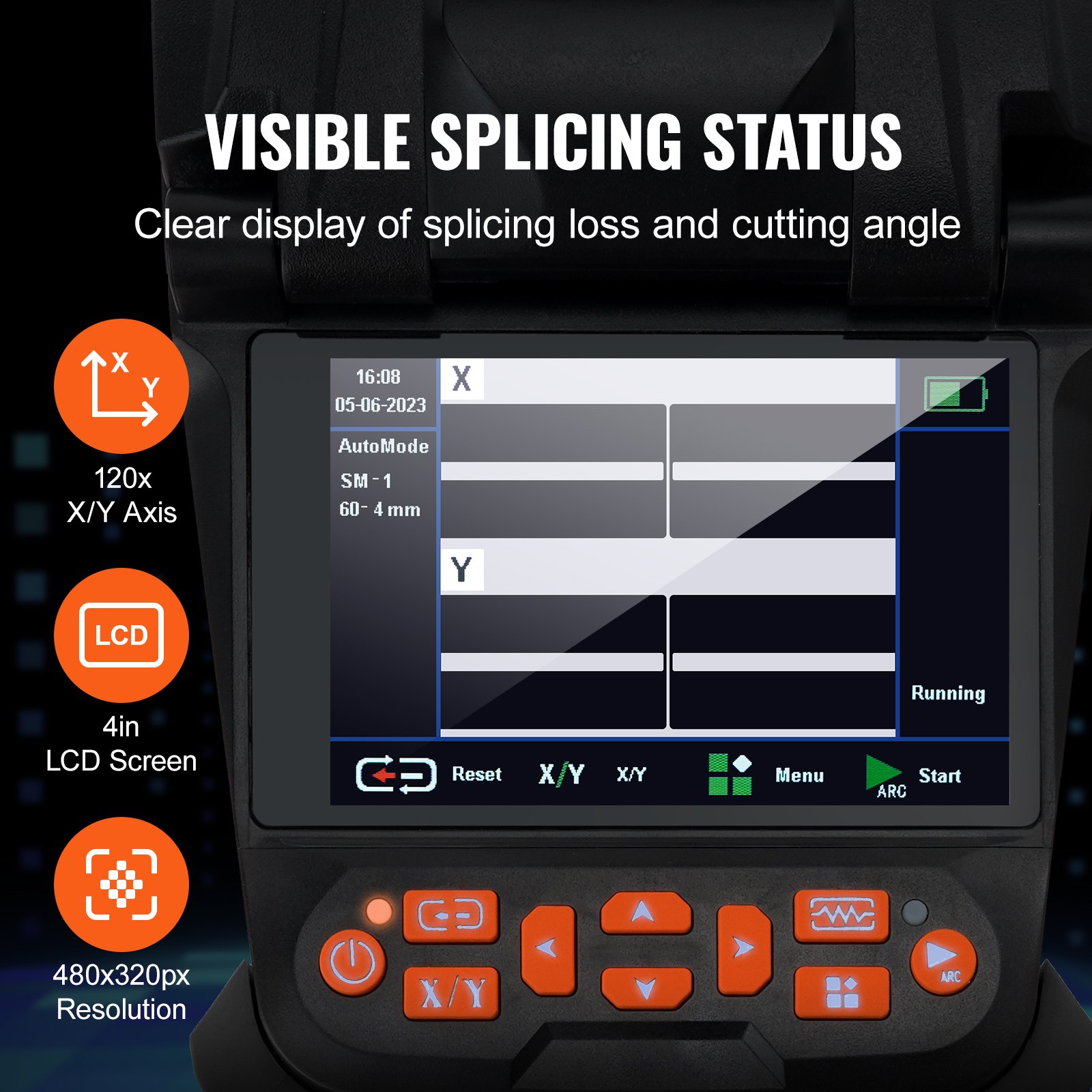

  • Image Storage: Automatically capture and save crucial images during the fiber fusion process, providing you with a visual record. 4-inch high-resolution LCD screen offers independent 240x X or Y magnification display and simultaneous 120x X/Y display, ensuring clear and visible fiber cores.

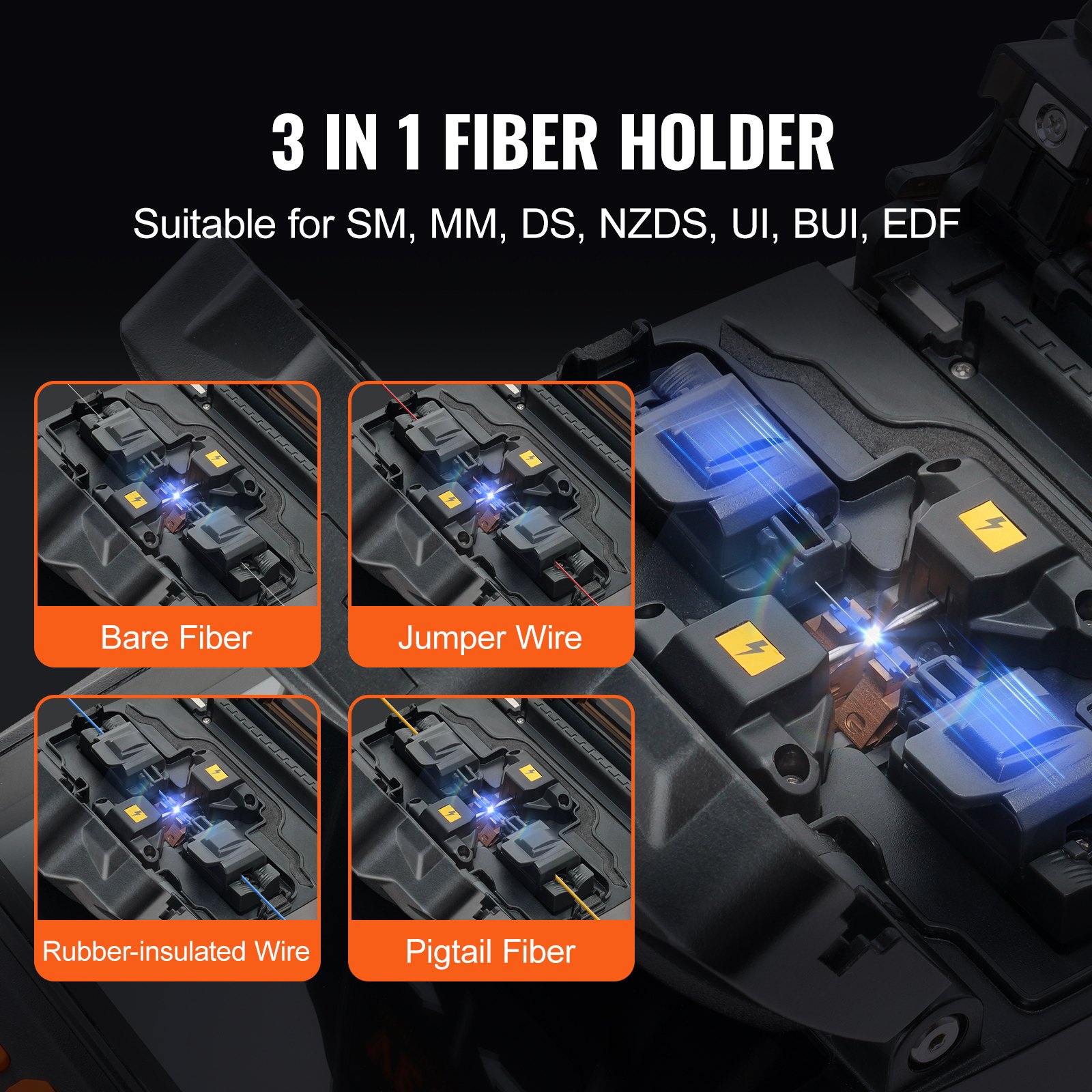

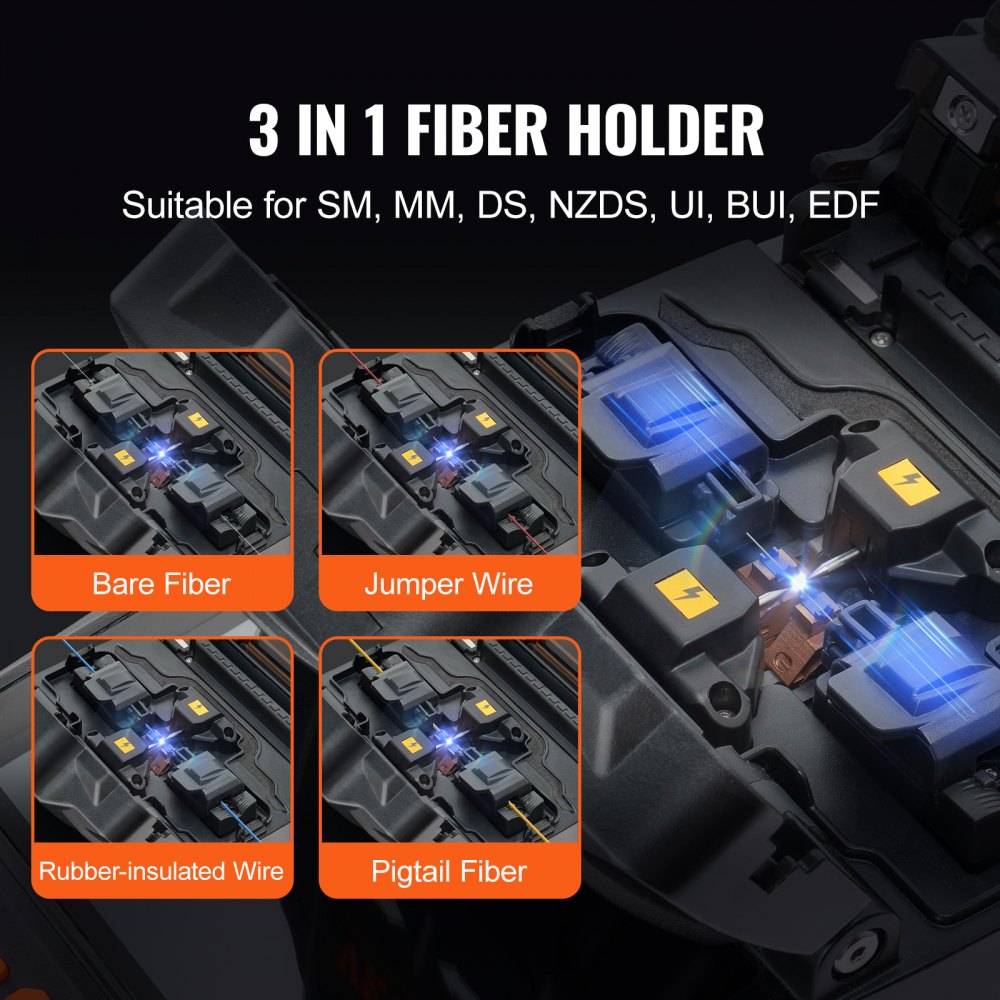

  • Wide Applications: 3 in 1 optical fiber holder is widely compatible with SM, MM, DS, NZDS, UI, BUI, and EDF fibers. Built-in OPM and VFL can effectively measure connection loss, verifying continuity and assessing fiber link transmission quality.

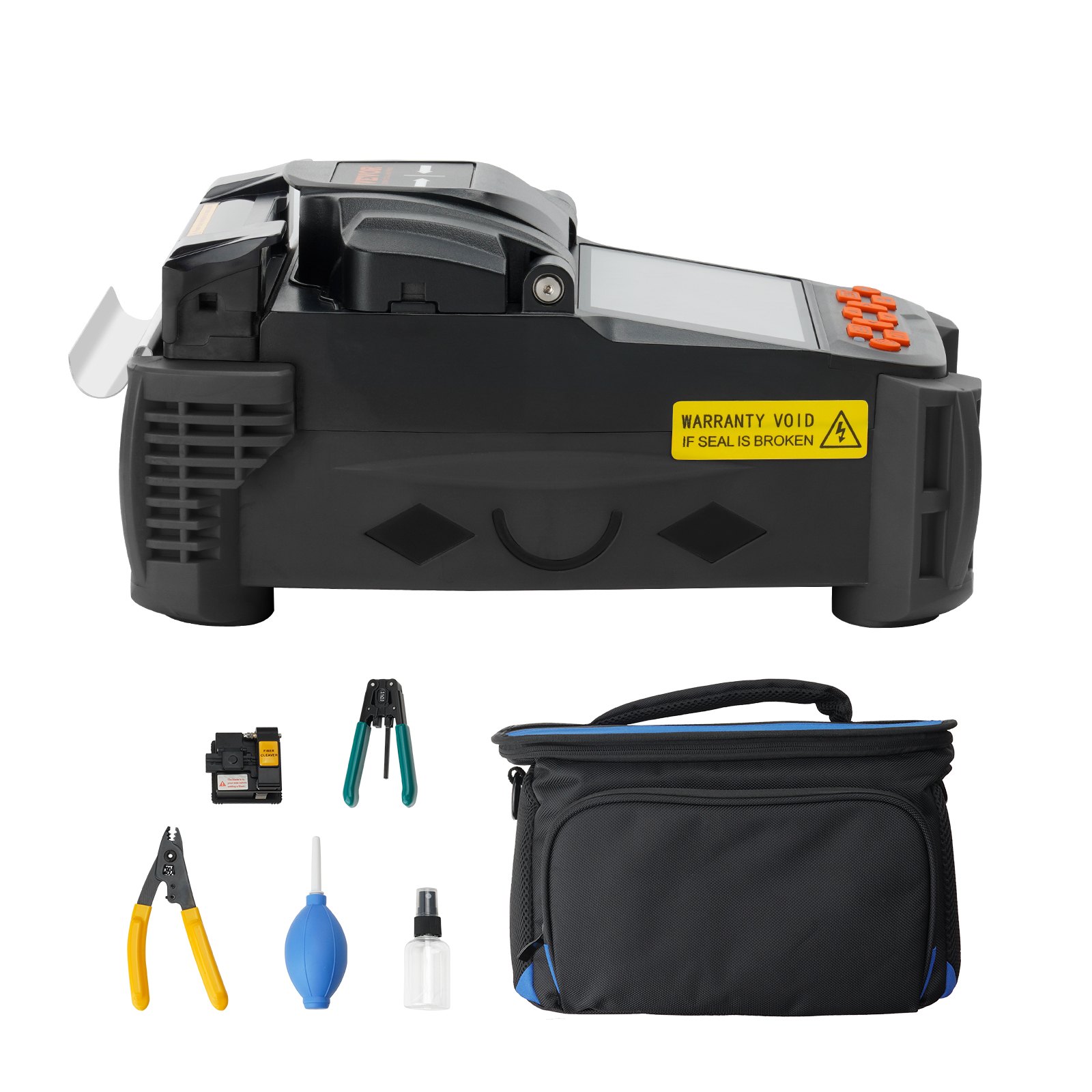

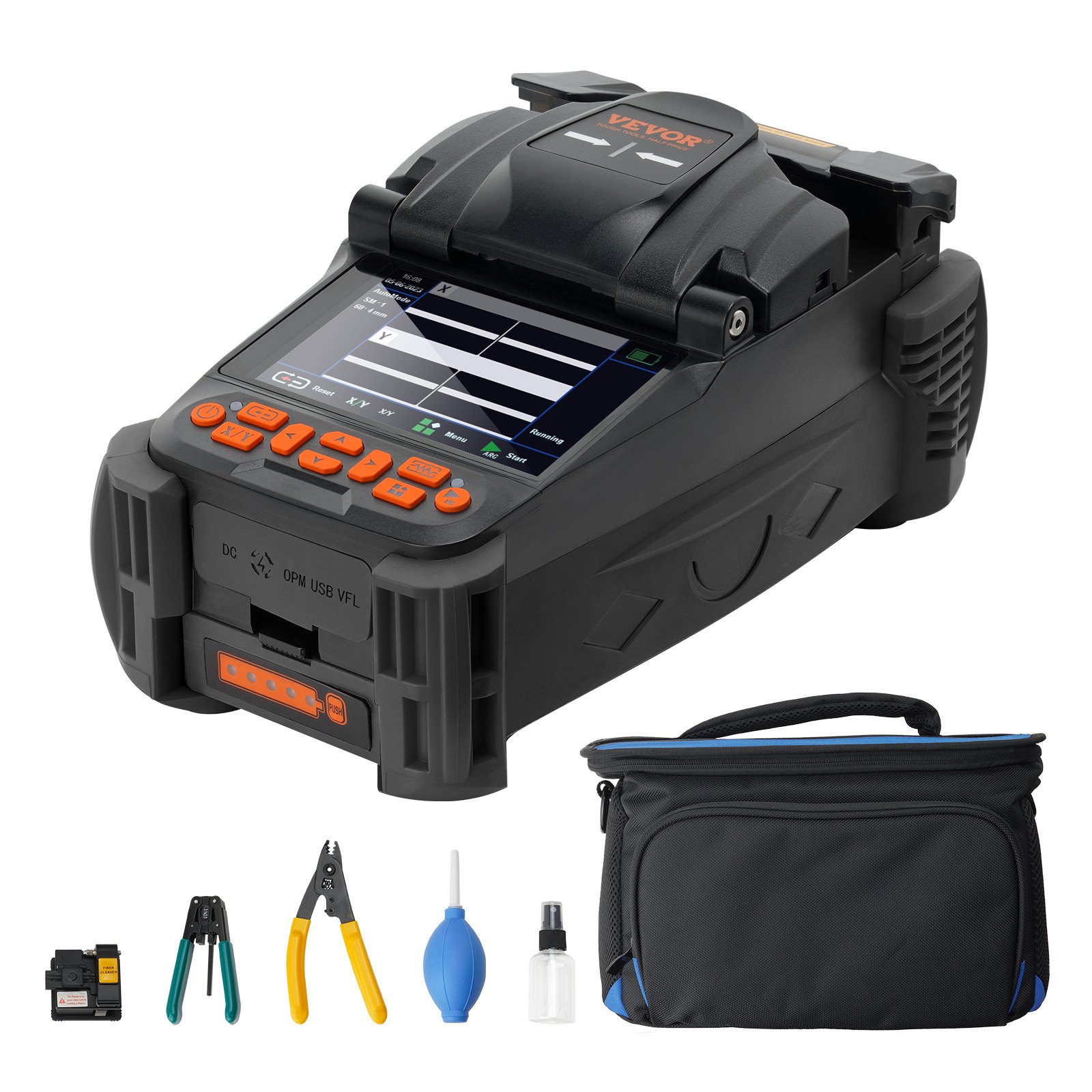

  • All-in-One Versatile Kit: Necessary tools are all ready for your fiber fusion work. Each optical fusion splicer kit includes a main unit, fiber cleaver, wire stripper, 3-hole stripper, alcohol dispenser, blowing ball, power adapter, power cord, cooling tray, and a portable carrying bag.
See More

Reviews 5.0
All reviews are from verified purchases
Average rating based on 1 reviews

Leon
Reviewed on Sep 01,2024
I have always rented a welding machine because it was too expensive to buy. Now I have bought one and I was pleasantly surprised by the quality and functionality of the machine. I have now welded in single mode, it worked perfectly, soon I will be welding in multi-mode. But I think that will also go well. Very good machine, curious about the lifespan of the machine.
I have always rented a welding machine because it was too expensive to buy. Now I have bought one and I was pleasantly surprised by the quality and functionality of the machine. I have now welded in single mode, it worked perfectly, soon I will be welding in multi-mode. But I think that will also go well. Very good machine, curious about the lifespan of the machine.
About this item

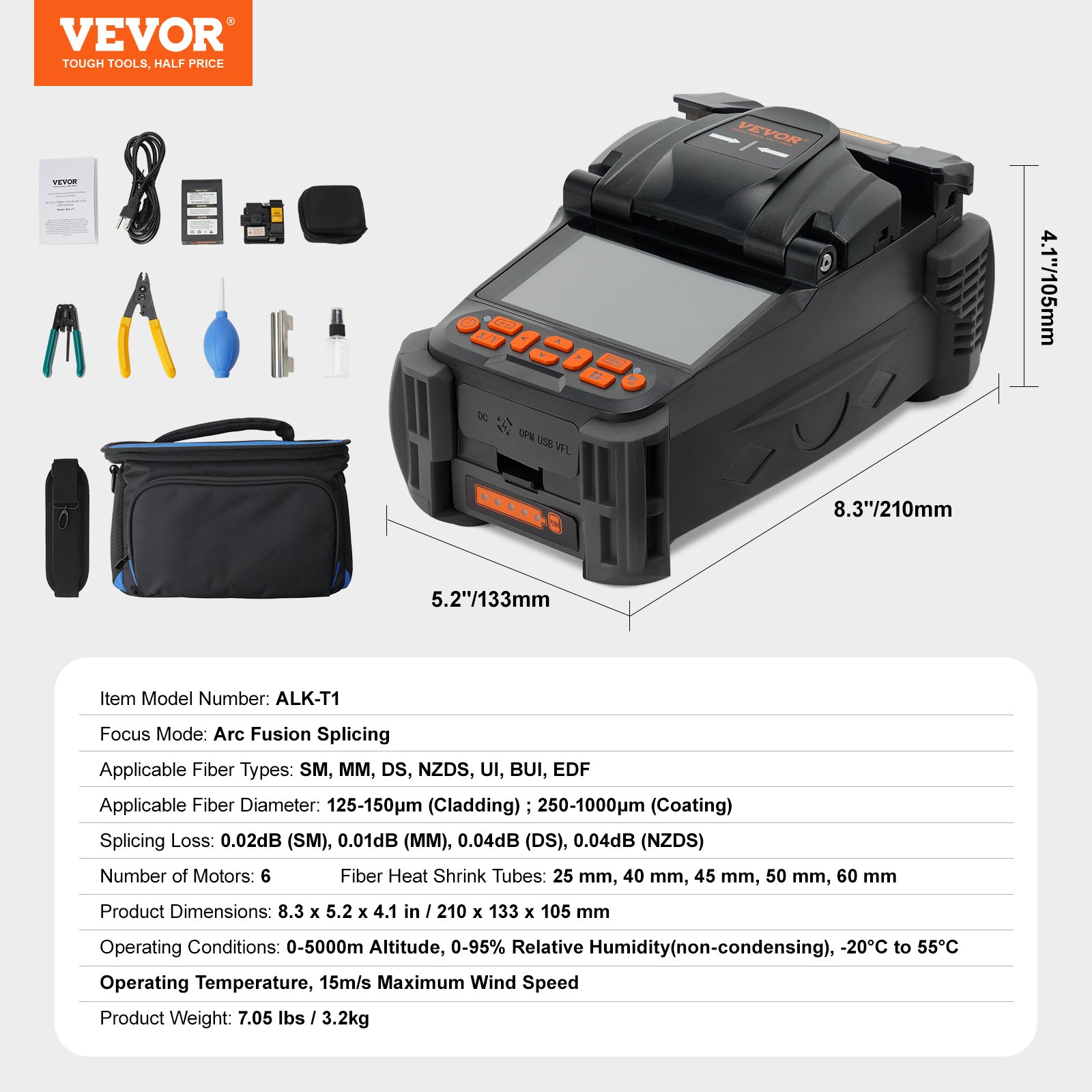

Product specification
Item Model Number
ALK-T1
Focus Mode
Arc Fusion Splicing
Applicable Fiber Types
SM, MM, DS, NZDS, UI, BUI, EDF
Applicable Fiber Diameter
125-150μm (Cladding) ; 250-1000μm (Coating)
Splicing Loss
0.02dB (SM), 0.01dB (MM), 0.04dB (DS), 0.04dB (NZDS)
Number of Motors
6
Fiber Heat Shrink Tubes
25 mm, 40 mm, 45 mm, 50 mm, 60 mm
Product Dimensions
8.3 x 5.2 x 4.1 in / 210 x 133 x 105 mm
Product Weight
7.05 lbs/3.2kg
Description
Achieve High Speed, Reliable and Efficient Fiber Fusion！

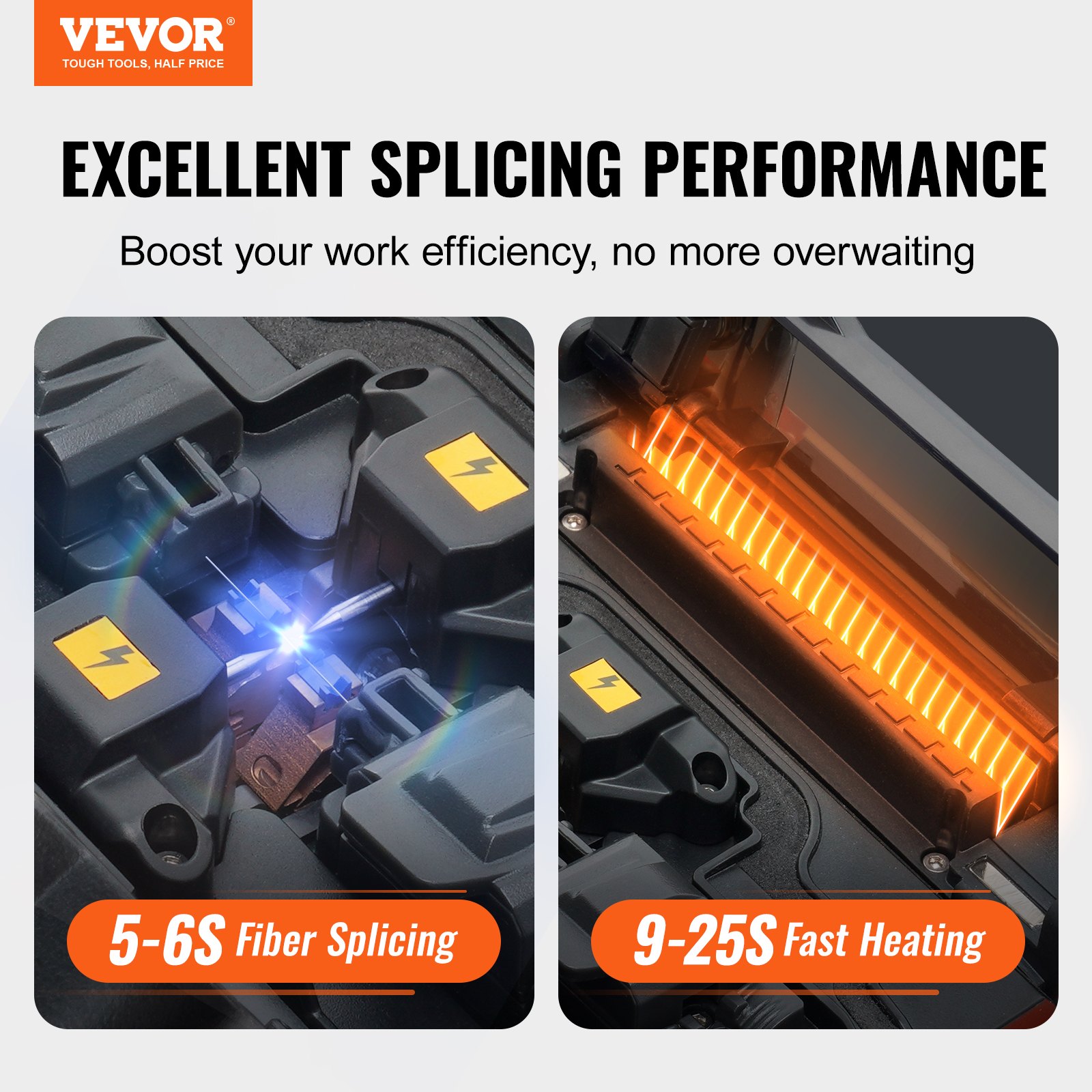

Introducing VEVOR High-end Fiber Fusion Splicer-Core alignment technology with auto focus and 6 high-precision motors. Achieve lightning-fast fusion in just 5-6 seconds and rapid heating in 9-25 seconds, with fusion loss as low as 0.01dB(MM). Meet diverse fiber optic projects demands with accuracy.
Unfazed by extreme weather conditions! Our fiber optic fusion splicer exhibits outstanding weather resistance, shock resistance, frost resistance, wind resistance, impact resistance, and waterproofing features. Capable of operating in dry climates, snowstorms, and high-altitude environments.
The windproof cover is equipped with dual LED lighting, allowing for better fiber placement even during nighttime operations. Ensures clear visibility for fusion splicing tasks conducted in low-light conditions.

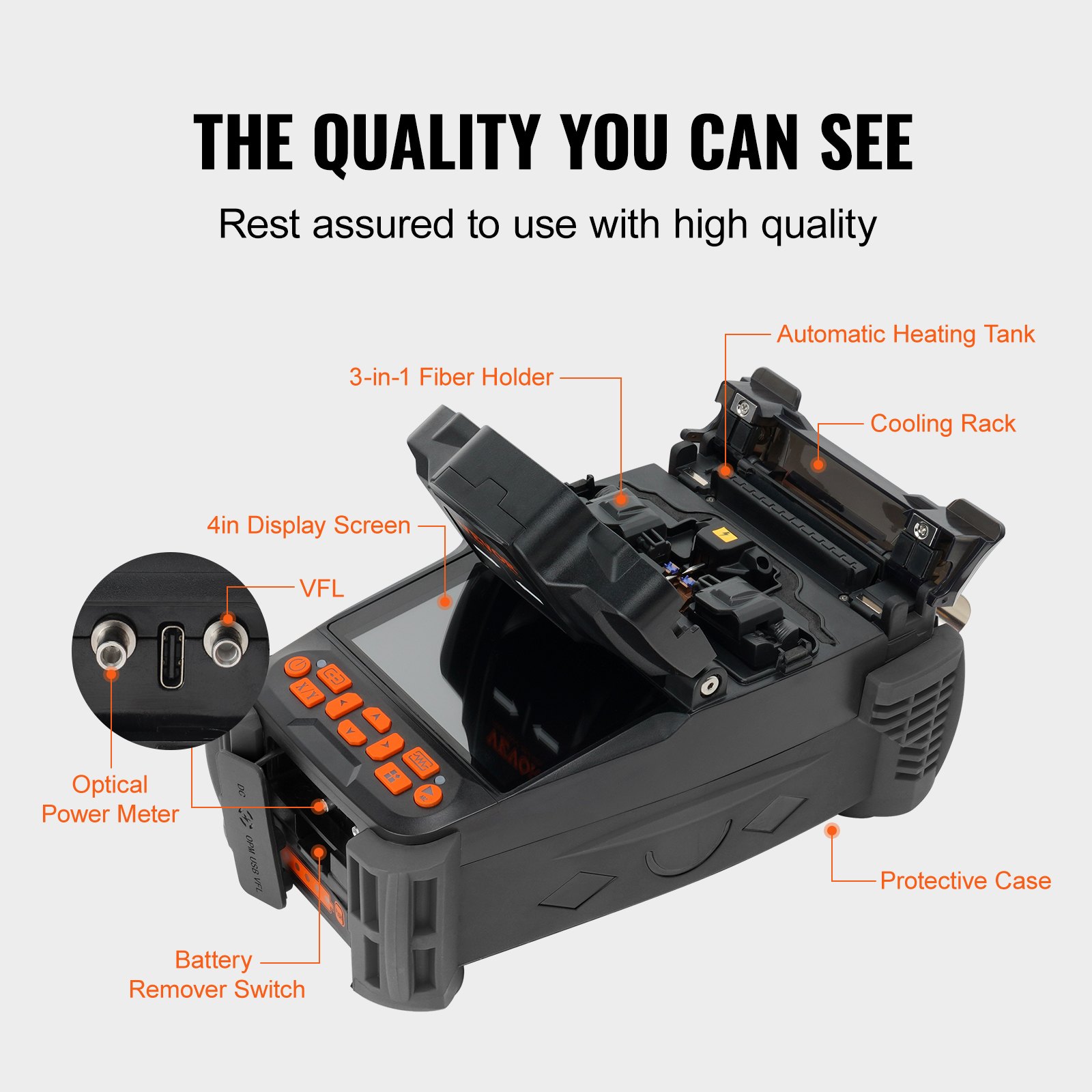

Built-in OPM and VFL, controlled by a microprocessor with high accuracy and minimal errors. The wavelength memory function allows them to remember the test wavelength set before shutting down. 6 different testing wavelengths are suitable for various testing environments.
With a wide range of accessories, our auto focus optical fiber cleaver kit offers a user-friendly experience. It is extensively applicable to medium to short-haul trunk construction, FTTH (Fiber-to-the-Home) projects, and fiber optic cable splicing projects in security and surveillance applications.
