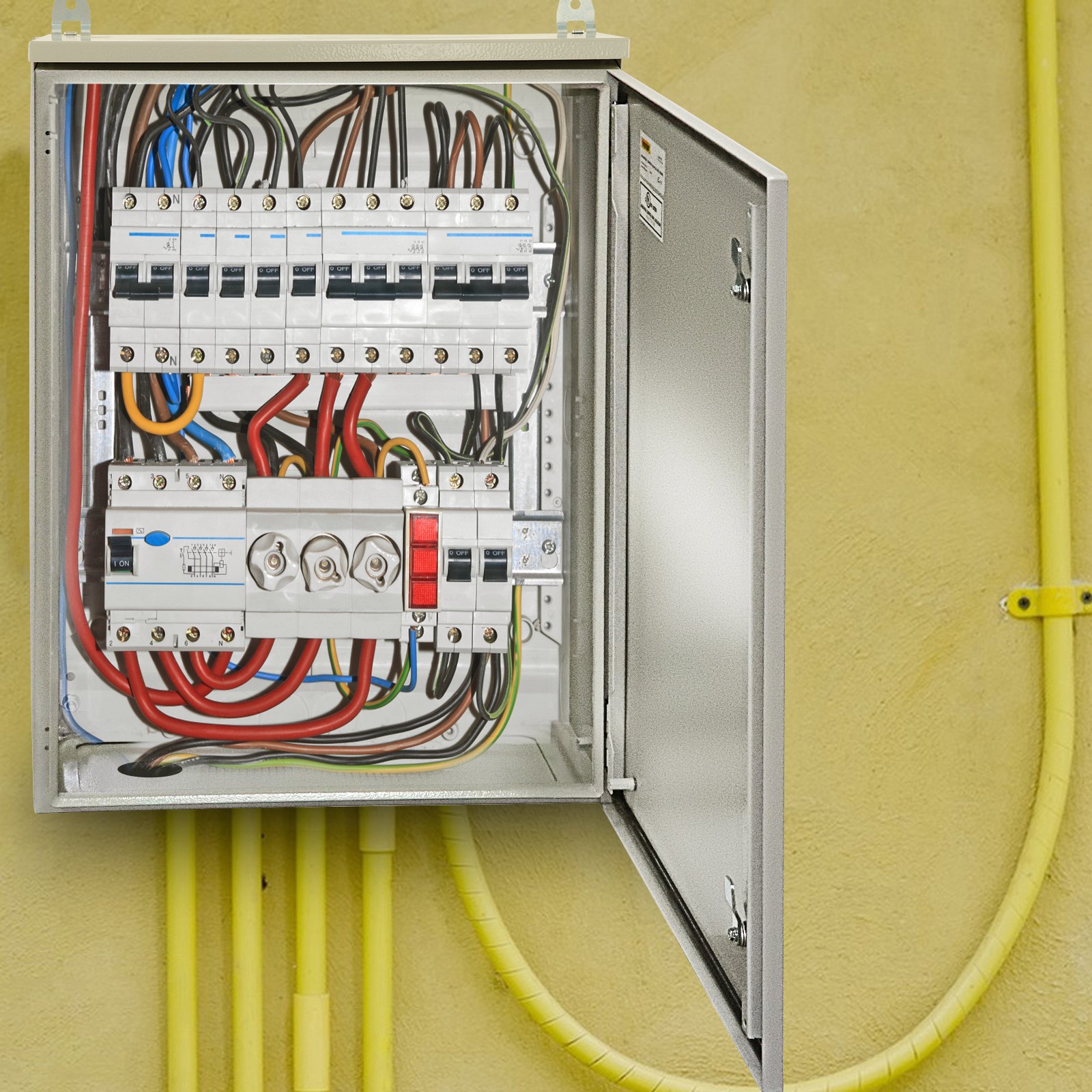

VEVOR electrical enclosure with open hinged door displaying a spacious, customizable interior. VEVOR electrical enclosure with wiring and circuit breakers, ideal for wire and power arrangement. VEVOR electrical enclosure made of durable 0.06 in cold-rolled carbon steel with strong tightness and corrosion resistance. VEVOR electrical enclosure with waterproof sealing strip, rain hood, and ce tuv sud certification. VEVOR electrical enclosure, high-strength hinge, safety lock, bottom outlet, ground screw, round corner design VEVOR electrical enclosure with easy installation, back corner design, and all necessary accessories included. VEVOR electrical enclosure: specifications, dimensions, and uses for factory, home, square, and shopping mall.
TUL70X50X20CM6E7QV0

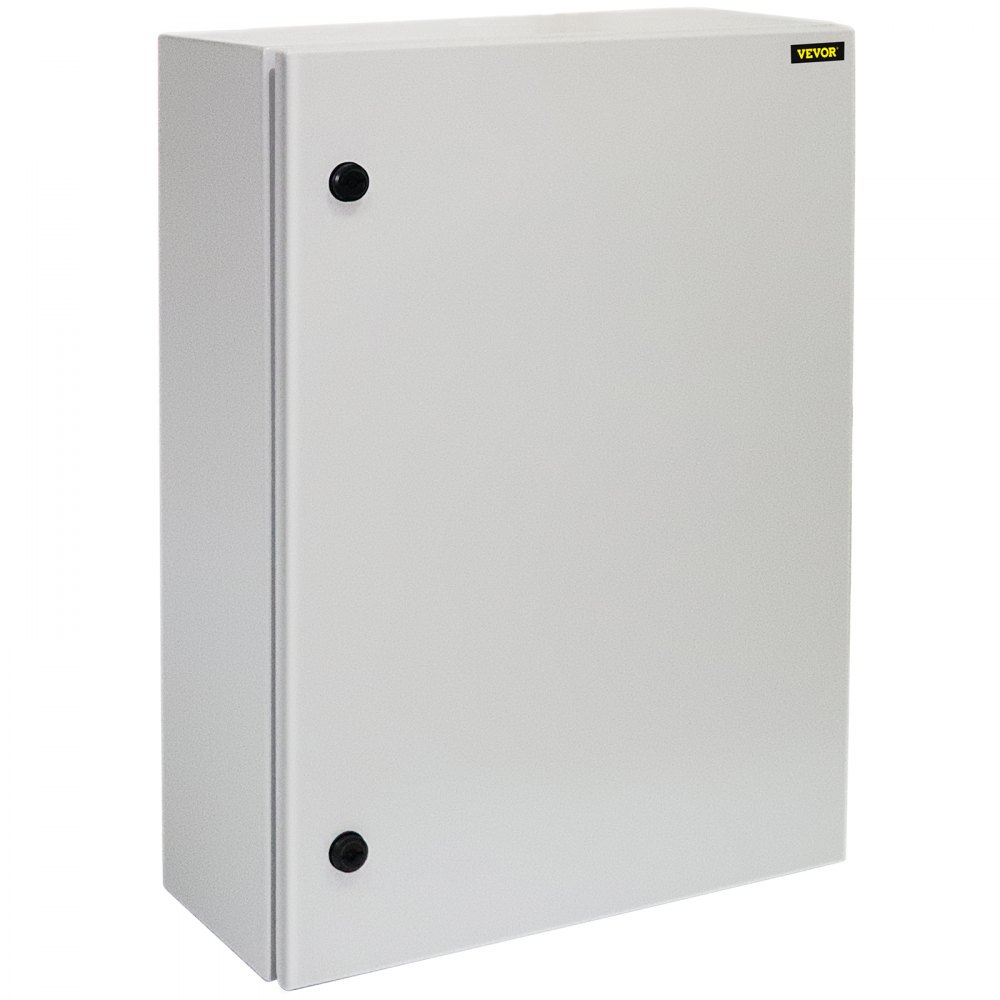

VEVOR Electrical Enclosure, 28\'\' x 20\'\' x 8\'\', UL Certified NEMA 4 Outdoor Enclosure, IP65 Waterproof & Dustproof Cold-Rolled Carbon Steel Hinged Junction Box for Outdoor Indoor Use, with Rain H

Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive 5,00€ off on your first three app orders. Only App.
Download Now
Exclusive 5,00€ off on your first three app orders. Only App.
Scan the QR code to download

28" x 20" x 8"

  • 28" x 20" x 8"
  • 24 x 24 x 12 inch
  • 24 x 24 x 8 inch

About this item

  • Sturdy Steel Construction: Certification: UL 508A (CSA C22.2 No. 14-13.), TUV, CE. The electrical enclosure is meticulously crafted from cold-rolled carbon steel made by precise cutting and welding. It has stronger wear resistance and keeps your equipment well protected in harsh environments.
  • IP65 Waterproof Grade: The sealing strip of foam / Nylon has excellent sealing performance, and the NEMA outdoor enclosure provides an optimal protection level of IP65. A rain hood can be mounted on top of the electrical box, which avoids dirt and water from entering the box when the lid is opened.
  • Reinforced Lock & Hinge: The electrical outdoor enclosure features a high-quality lock core to increase security and lockability, making it less likely to fall off. The high-strength hinged lid is designed to ensure that the door is not easily damaged or broken due to squeezing.
  • Convenient Operation: The metal electrical enclosure box is equipped with a detachable galvanized mounting backplate for the effortless installation of electrical components. Complete accessories and four mounting holes on the back can quickly fix the NEMA enclosure on the wall.
  • Exquisitely Designed Details: The bottom of the electrical box is designed to facilitate threading. The grounding screws have been installed in advance, and the cutouts are smooth to avoid damage to the cables. Ideal for various applications ranging from industrial equipment to home devices.
See More See Less

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Electrical Enclosure, 28\'\' x 20\'\' x 8\'\', UL Certified NEMA 4 Outdoor Enclosure, IP65 Waterproof & Dustproof Cold-Rolled Carbon Steel Hinged Junction Box for Outdoor Indoor Use, with Rain H
28" x 20" x 8"
Description Specification Questions and Answers
VEVOR electrical enclosure box, 28x20x8", cold rolled carbon steel, wall-mounted, ce and tuv certified.

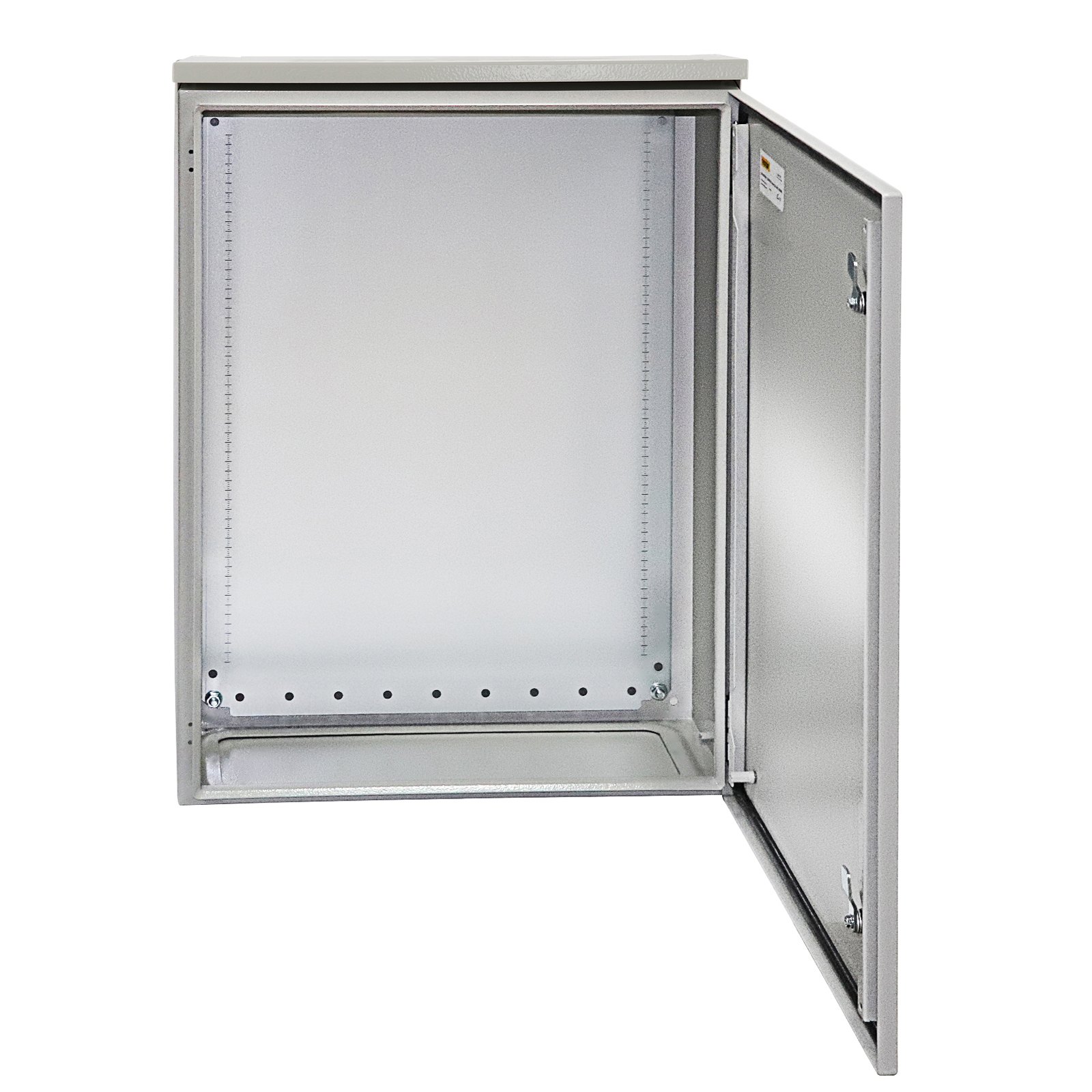

VEVOR electrical enclosure with open door showing empty interior and mounting holes.
Electrical Enclosure Box--Begin your security setups!
28 x 20 x 8 in & UL Certified & IP65 Grade
The electric enclosure box is crafted from high-quality carbon steel. Precise lock design, high-strength hinges, and rain hood are all used to secure your plug-ins, power cords, and other equipment from harsh weather effects. Widely used for indoor and outdoor applications, such as electricity, construction, and other industries. A robust well-crafted electrical enclosure box provides optimal protection and ensures consistent performance all year long. Choose a name you can trust, VEVOR.
  • Sturdy Steel Construction
  • IP65 Waterproof Grade
  • Reinforced Lock & Hinge
  • Convenient Operation
  • Exquisitely Designed Details

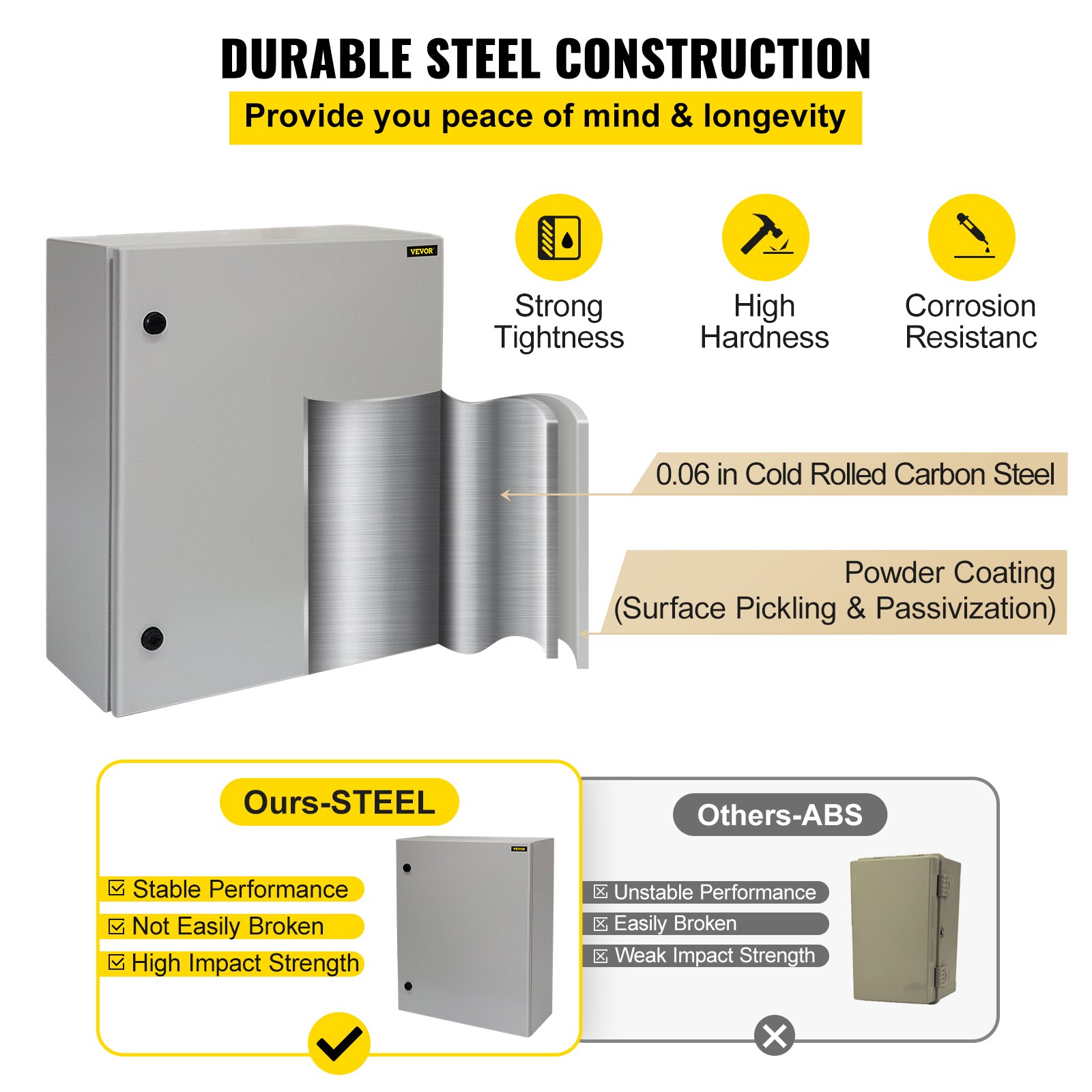

VEVOR electrical enclosure made of carbon steel with powder coating, high strength, and corrosion resistance.
Premium Steel Material
The electrical junction box metal features cold-rolled carbon steel for high toughness and rust resistance. Finish: Powder Coating (Surface Pickling & Passivization), has superb mechanical properties.

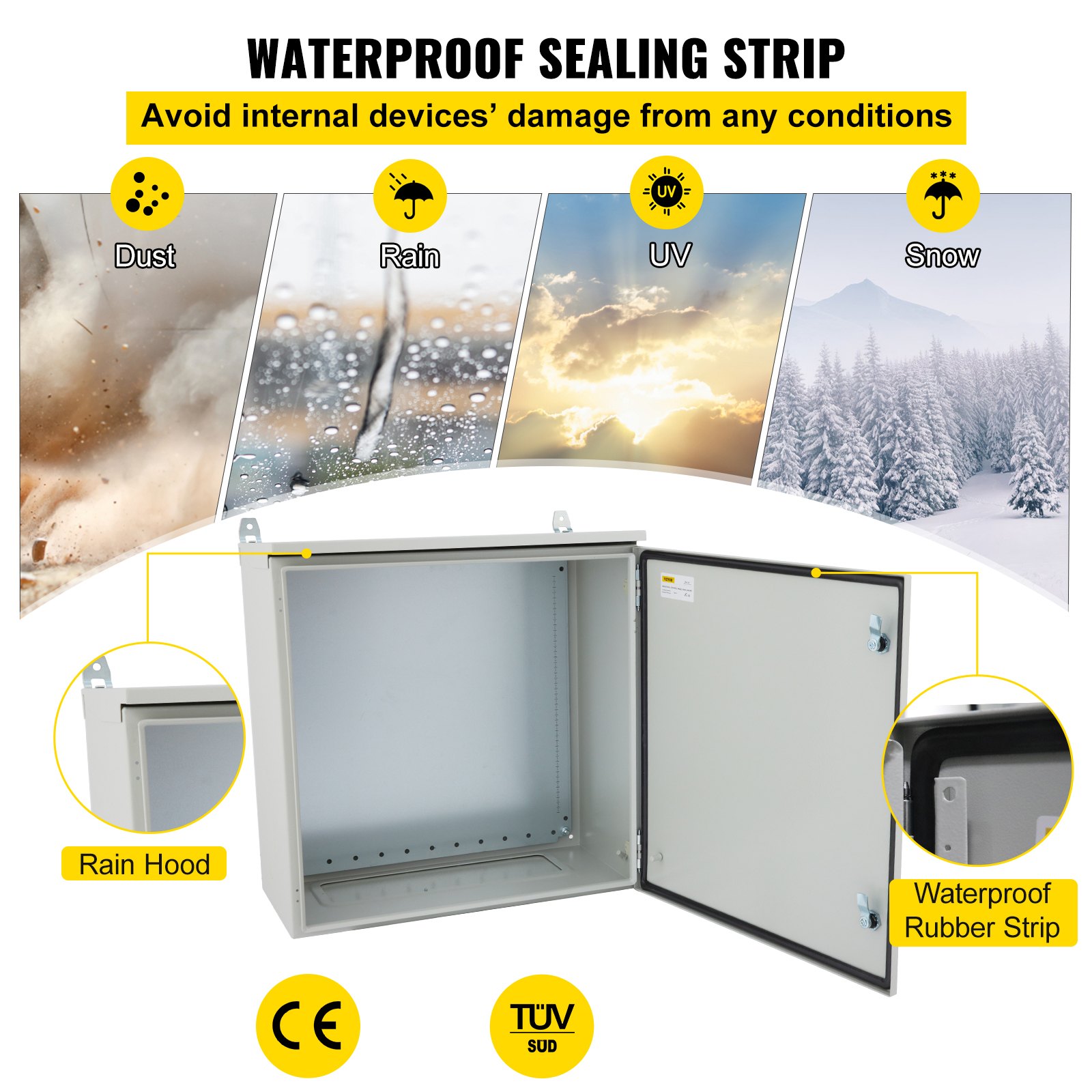

VEVOR electrical enclosure with ip65 protection level, blocking water, rain, dust, snow, and oil.
IP65 Protection Level
The IP65 protection level ensures protection from dust, moisture, water, rain, snow, oil, etc. It keeps all your electrical equipment dry and ensures greater security on construction sites.
VEVOR electrical enclosure with hinge and lock security features, triangle hinge, and security lock.
Hinge and Lock Security
The inner lock core is made of metal to avoid damage caused by excessive force or unauthorized opening. The reinforced hinge ensures that repeated opening and closing will not cause damage.

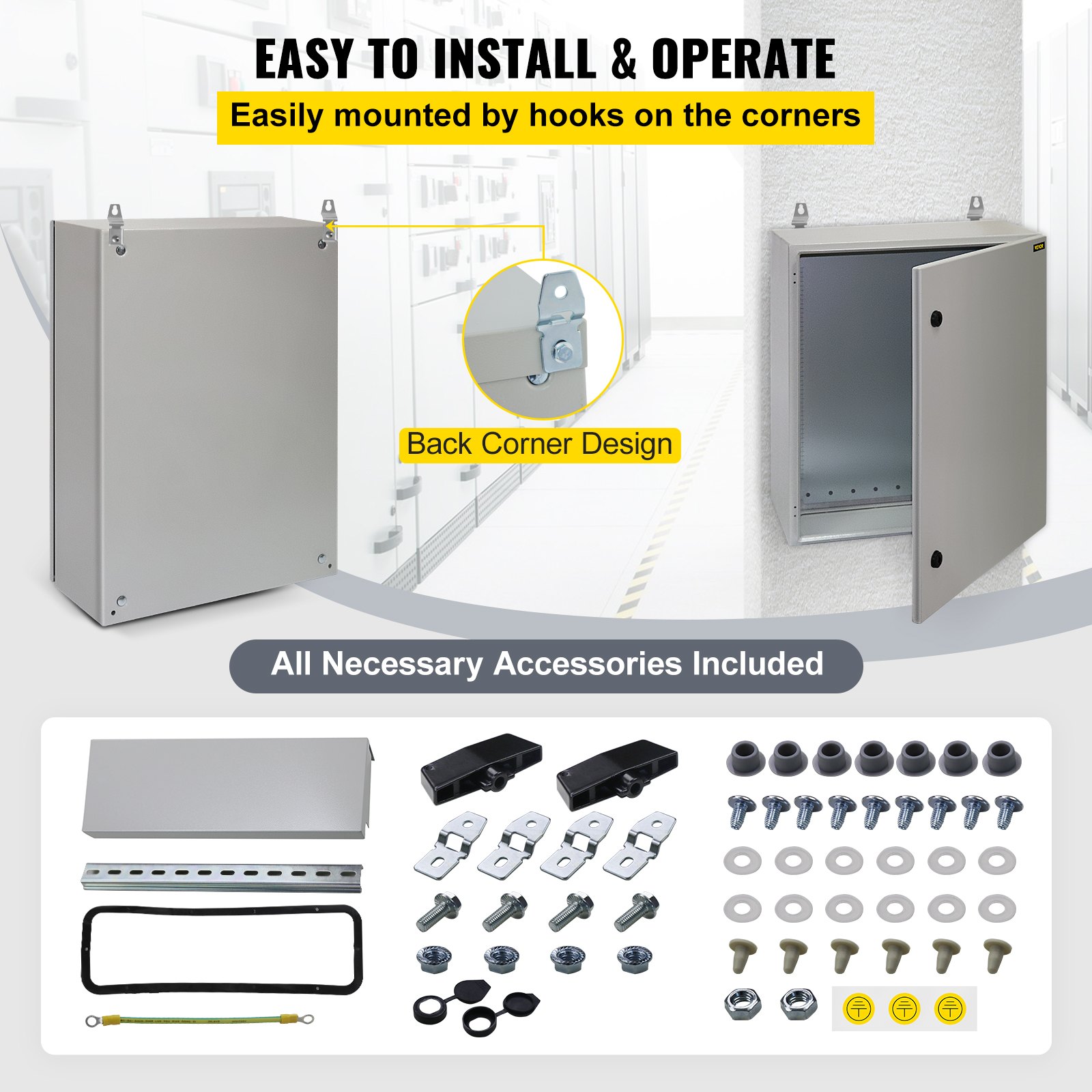

VEVOR electrical enclosure, wall-mounted design, complete accessories, suitable for various walls.
Effortless Installation
The detachable galvanized backplate is easy to install on PCB boards, terminals, or any other electrical components that need a fixed position. There are also four mounting holes on the back for easy wall mounting.

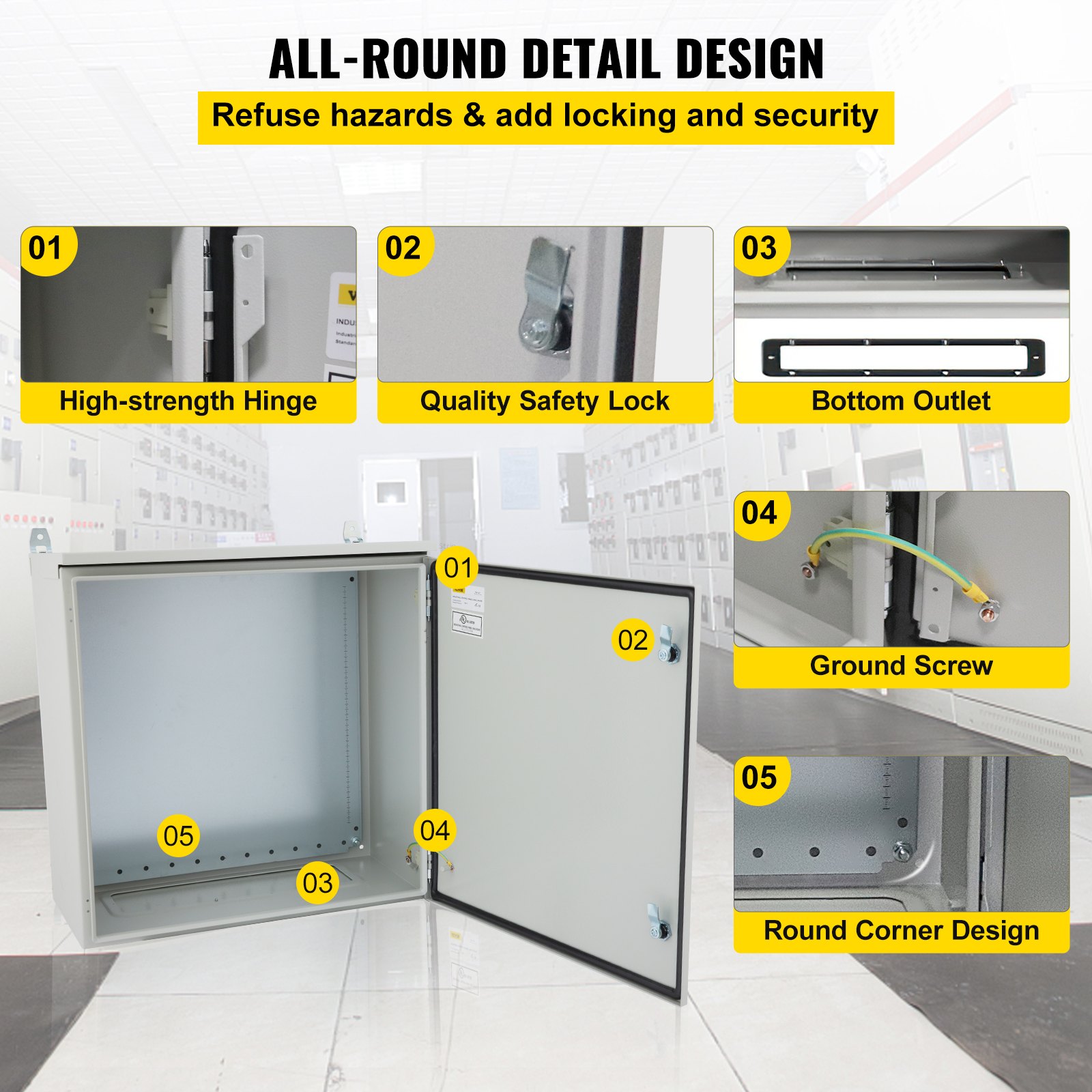

VEVOR electrical enclosure with organized routes, ground screw, and pre-installed plate in modern urban setting.
Thoughtful Design
The detachable outlet hole at the bottom is convenient for cable entry and exit; the ground wire in the box has been installed in advance, and the rounded corners are designed to avoid damage to the cables.

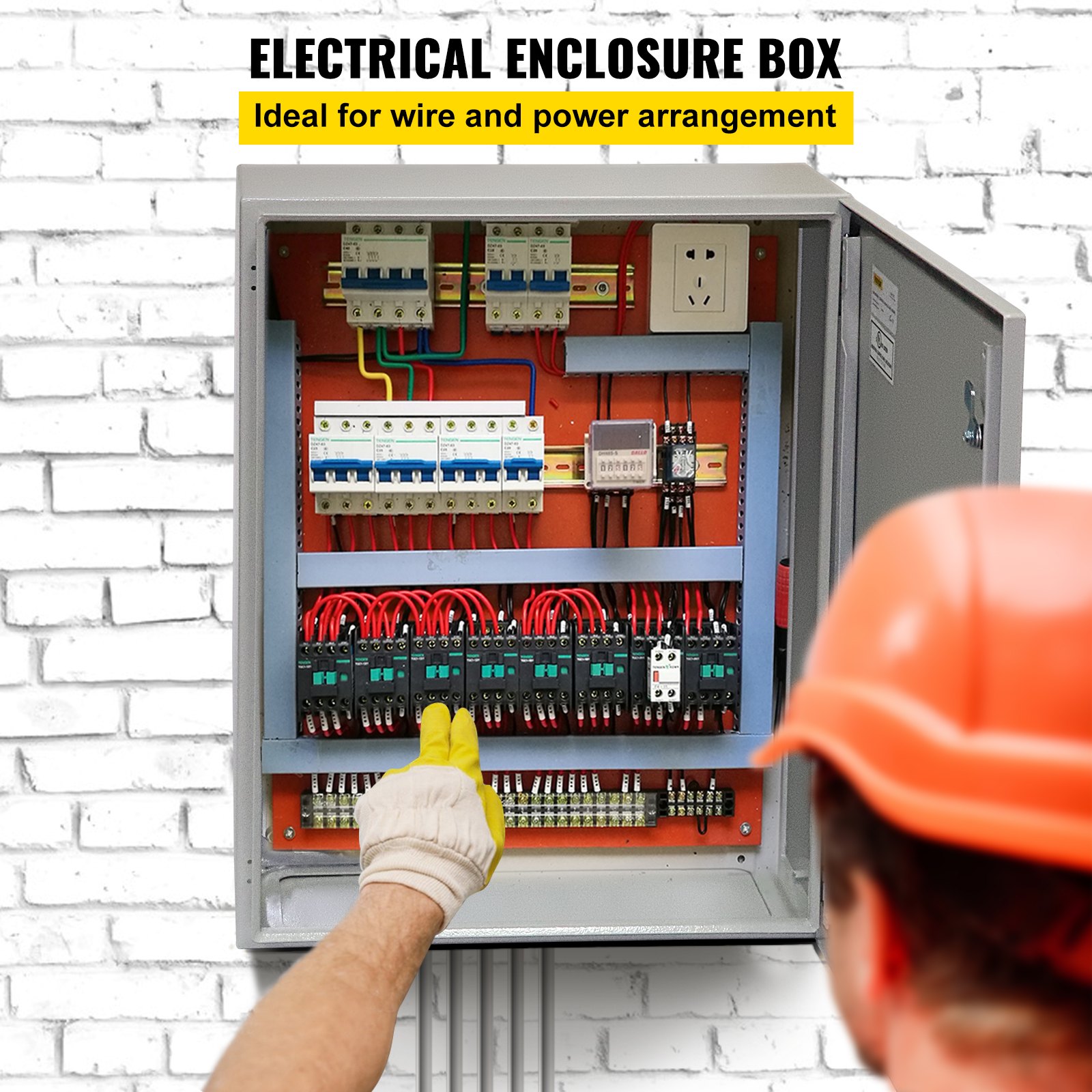

extensive application of VEVOR electrical enclosure in factory, school, courtyard, power grid, shopping mall, and construction site.
Extensive Application
A hinged electrical enclosure is suitable for indoor and outdoor applications, which require the protection of circuits and other electrical components. Applicable to factories, construction sites, shopping malls, squares, etc.

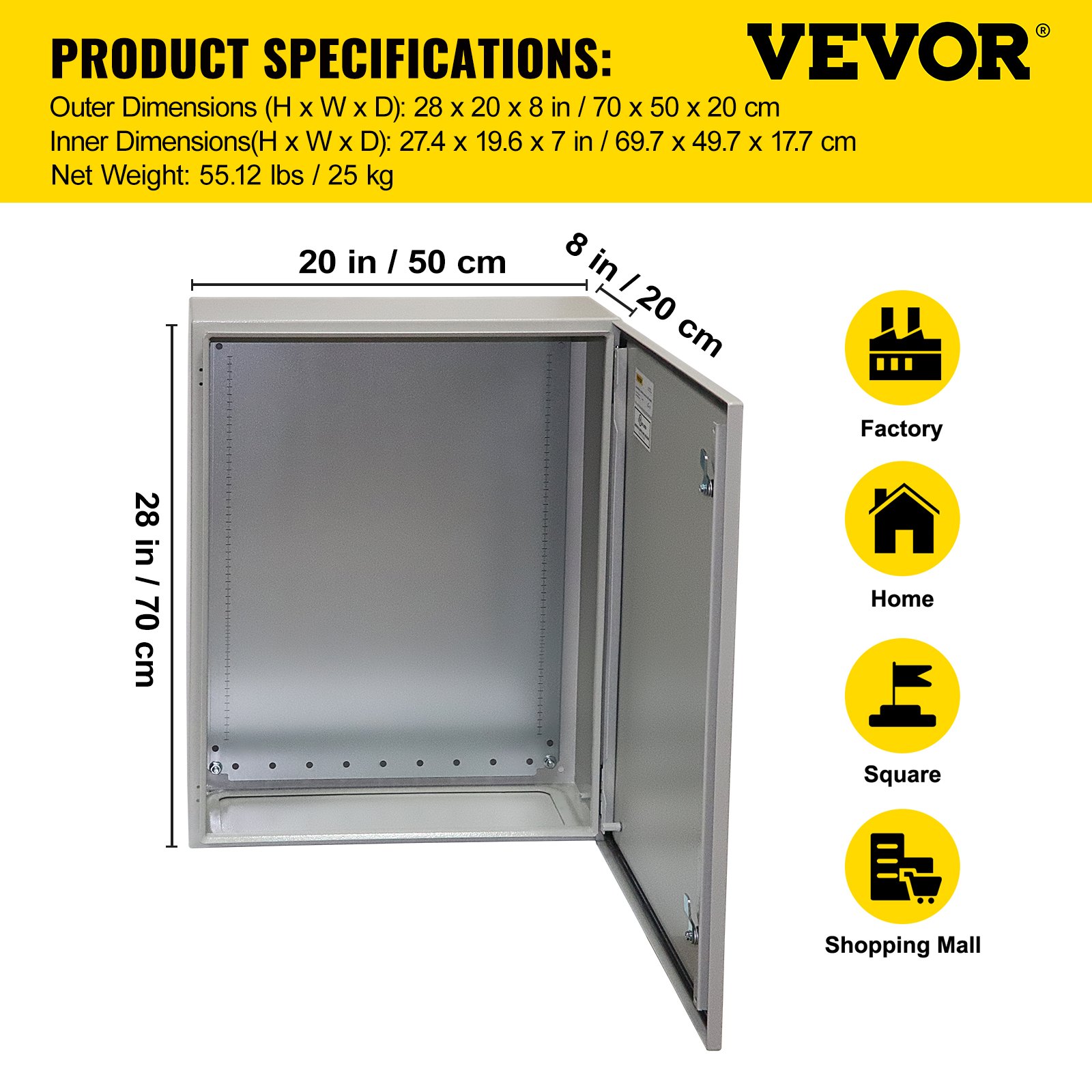

VEVOR electrical enclosure with dimensions 28 in x 20 in x 8 in, opened to show interior space.
  • Model: ST7520
  • Color: RAL 7035 (White Gray)
  • Body Material: 0.06 in / 0.15 cm Cold-Rolled Carbon Steel
  • Inner Plate: 0.06 in / 0.15 cm Galvanized Plate
  • Finish: Powder Coating(Surface Pickling and Passivization)
  • Certification: TUV, CE, UL 508A (CSA C22.2 No. 14-13.)
  • Ratings: NEMA Type 4
  • Protection Grade: IP65, IK10
  • Construction: Continuously Welded
  • Ambient Temperature: -40 to 122℉ / -40 to 55°C
  • Gasket Material: Seamless Foam/ Nylon(washer or plug)
  • Outer Dimensions(H x W x D): 28 x 20 x 8 in / 70 x 50 x 20 cm
  • Inner Dimensions(H x W x D): 27.4 x 19.6 x 7 in / 69.7 x 49.7 x 17.7 cm
  • Galvanized Backplate Dimensions(H x W): 26.2 x 18 in / 66.5 x 45 cm
  • Mounting Hole Diameter(± 0.2 cm): 0.35 in / 0.9 cm
  • Net Weight: 55.12 lbs / 25 kg

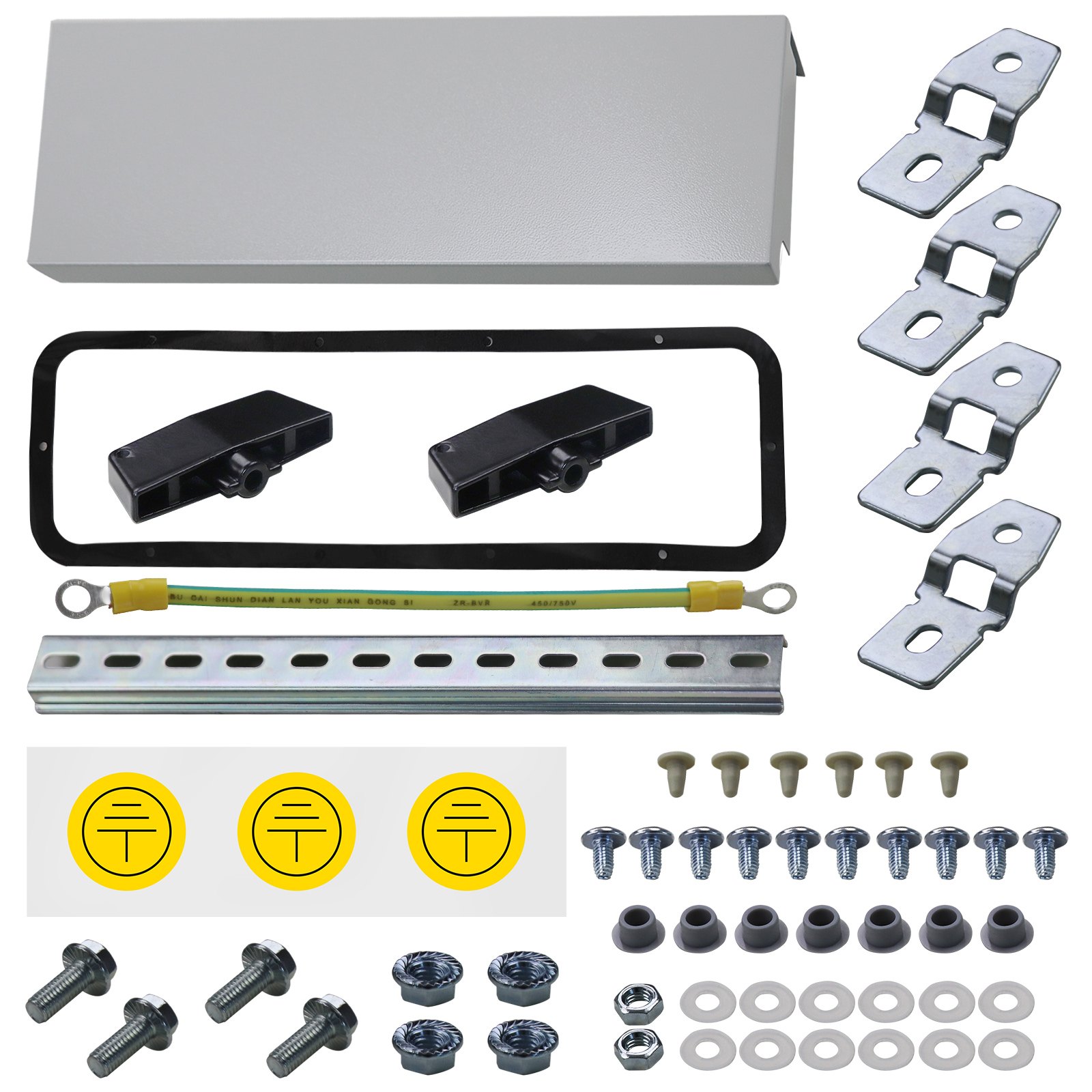

VEVOR electrical enclosure with open door, accessories including screws, bolts, connectors, and seals.
  • 1 x Guide Rail
  • 1 x Rain Hood
  • 4 x Hanging Lug
  • 1 x Gasket (For Enclosing Plate)
  • 1 x Earth Wire
  • 3 x Earth Label
  • 2 x Key
  • 8 x Plug
  • 1 x Set of Accessories Package
  • 1 x Set of Fasteners(Quantity Various on Type)
VEVOR electrical enclosure box, 28x20x8", cold rolled carbon steel, wall-mounted, ce and tuv certified.
VEVOR electrical enclosure with open door showing empty interior and mounting holes.
Electrical Enclosure Box--Begin your security setups!
28 x 20 x 8 in & UL Certified & IP65 Grade
The electric enclosure box is crafted from high-quality carbon steel. Precise lock design, high-strength hinges, and rain hood are all used to secure your plug-ins, power cords, and other equipment from harsh weather effects. Widely used for indoor and outdoor applications, such as electricity, construction, and other industries. A robust well-crafted electrical enclosure box provides optimal protection and ensures consistent performance all year long. Choose a name you can trust, VEVOR.
  • Sturdy Steel Construction
  • IP65 Waterproof Grade
  • Reinforced Lock & Hinge
  • Convenient Operation
  • Exquisitely Designed Details
VEVOR electrical enclosure made of carbon steel with powder coating, high strength, and corrosion resistance.
Premium Steel Material
The electrical junction box metal features cold-rolled carbon steel for high toughness and rust resistance. Finish: Powder Coating (Surface Pickling & Passivization), has superb mechanical properties.
VEVOR electrical enclosure with ip65 protection level, blocking water, rain, dust, snow, and oil.
IP65 Protection Level
The IP65 protection level ensures protection from dust, moisture, water, rain, snow, oil, etc. It keeps all your electrical equipment dry and ensures greater security on construction sites.
VEVOR electrical enclosure with hinge and lock security features, triangle hinge, and security lock.
Hinge and Lock Security
The inner lock core is made of metal to avoid damage caused by excessive force or unauthorized opening. The reinforced hinge ensures that repeated opening and closing will not cause damage.
VEVOR electrical enclosure, wall-mounted design, complete accessories, suitable for various walls.
Effortless Installation
The detachable galvanized backplate is easy to install on PCB boards, terminals, or any other electrical components that need a fixed position. There are also four mounting holes on the back for easy wall mounting.
VEVOR electrical enclosure with organized routes, ground screw, and pre-installed plate in modern urban setting.
Thoughtful Design
The detachable outlet hole at the bottom is convenient for cable entry and exit; the ground wire in the box has been installed in advance, and the rounded corners are designed to avoid damage to the cables.
extensive application of VEVOR electrical enclosure in factory, school, courtyard, power grid, shopping mall, and construction site.
Extensive Application
A hinged electrical enclosure is suitable for indoor and outdoor applications, which require the protection of circuits and other electrical components. Applicable to factories, construction sites, shopping malls, squares, etc.
VEVOR electrical enclosure with open door, accessories including screws, bolts, connectors, and seals.
  • 1 x Guide Rail
  • 1 x Rain Hood
  • 4 x Hanging Lug
  • 1 x Gasket (For Enclosing Plate)
  • 1 x Earth Wire
  • 3 x Earth Label
  • 2 x Key
  • 8 x Plug
  • 1 x Set of Accessories Package
  • 1 x Set of Fasteners(Quantity Various on Type)
VEVOR electrical enclosure with dimensions 28 in x 20 in x 8 in, opened to show interior space.
  • Model: ST7520
  • Color: RAL 7035 (White Gray)
  • Body Material: 0.06 in / 0.15 cm Cold-Rolled Carbon Steel
  • Inner Plate: 0.06 in / 0.15 cm Galvanized Plate
  • Finish: Powder Coating(Surface Pickling and Passivization)
  • Certification: TUV, CE, UL 508A (CSA C22.2 No. 14-13.)
  • Ratings: NEMA Type 4
  • Protection Grade: IP65, IK10
  • Construction: Continuously Welded
  • Ambient Temperature: -40 to 122℉ / -40 to 55°C
  • Gasket Material: Seamless Foam/ Nylon(washer or plug)
  • Outer Dimensions(H x W x D): 28 x 20 x 8 in / 70 x 50 x 20 cm
  • Inner Dimensions(H x W x D): 27.4 x 19.6 x 7 in / 69.7 x 49.7 x 17.7 cm
  • Galvanized Backplate Dimensions(H x W): 26.2 x 18 in / 66.5 x 45 cm
  • Mounting Hole Diameter(± 0.2 cm): 0.35 in / 0.9 cm
  • Net Weight: 55.12 lbs / 25 kg

Specification

Model
ST7520
Color
RAL 7035 (White Gray)
Body Material
0.06 in / 0.15 cm Cold-Rolled Carbon Steel
Inner Plate
0.06 in / 0.15 cm Galvanized Plate
Finish
Powder Coating(Surface Pickling and Passivization)
Certification
TUV, CE, UL 508A (CSA C22.2 No. 14-13.)
Ratings
NEMA Type 4
Protection Grade
IP65, IK10
Construction
Continuously Welded
Ambient Temperature
-40 to 122℉ / -40 to 55°C
Gasket Material
Seamless Foam/ Nylon(washer or plug)
Outer Dimensions(H x W x D)
28 x 20 x 8 in / 70 x 50 x 20 cm
Inner Dimensions(H x W x D)
27.4 x 19.6 x 7 in / 69.7 x 49.7 x 17.7 cm
Galvanized Backplate Dimensions(H x W)
26.2 x 18 in / 66.5 x 45 cm
Mounting Hole Diameter(± 0.2 cm)
0.35 in / 0.9 cm
Net Weight
55.12 lbs / 25 kg
