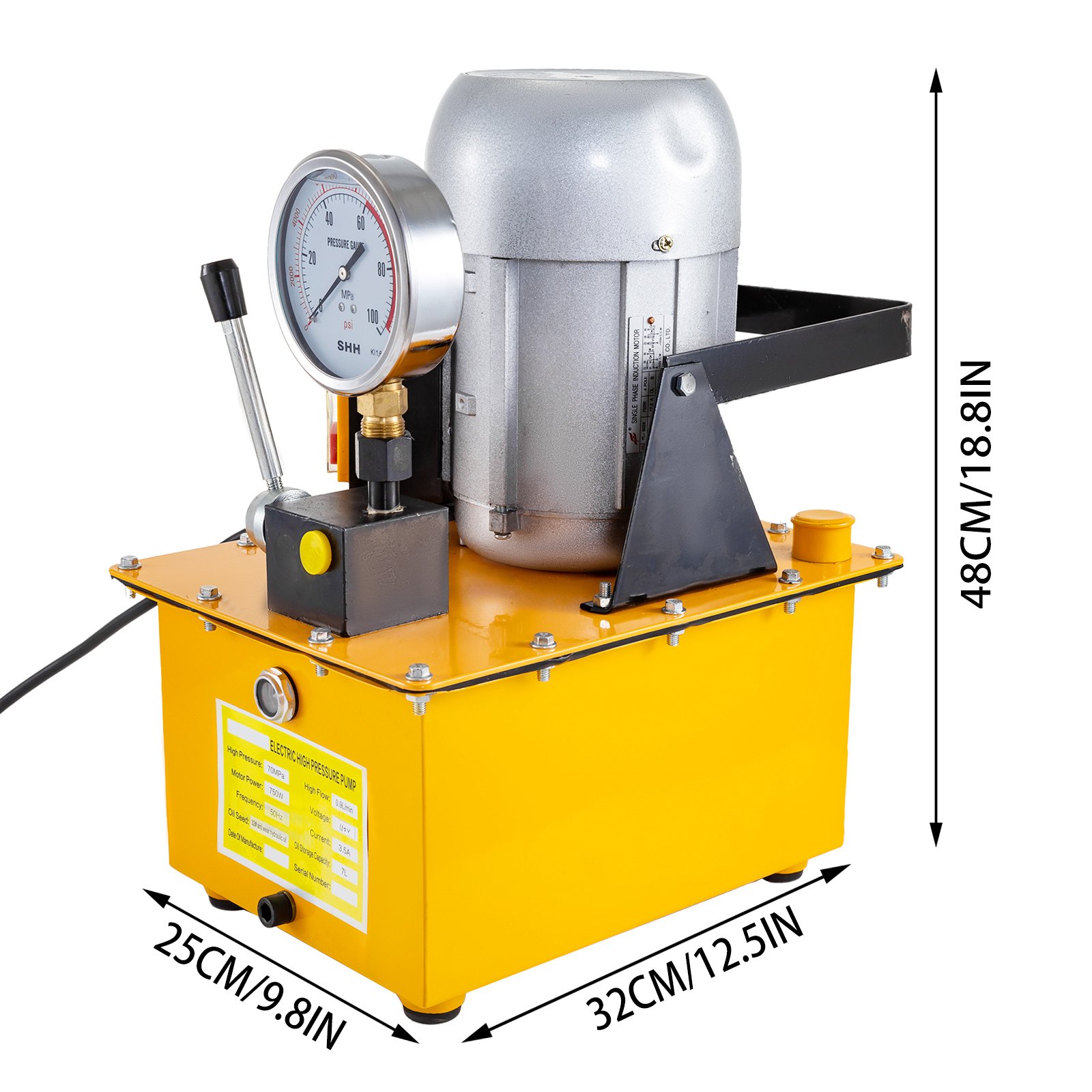

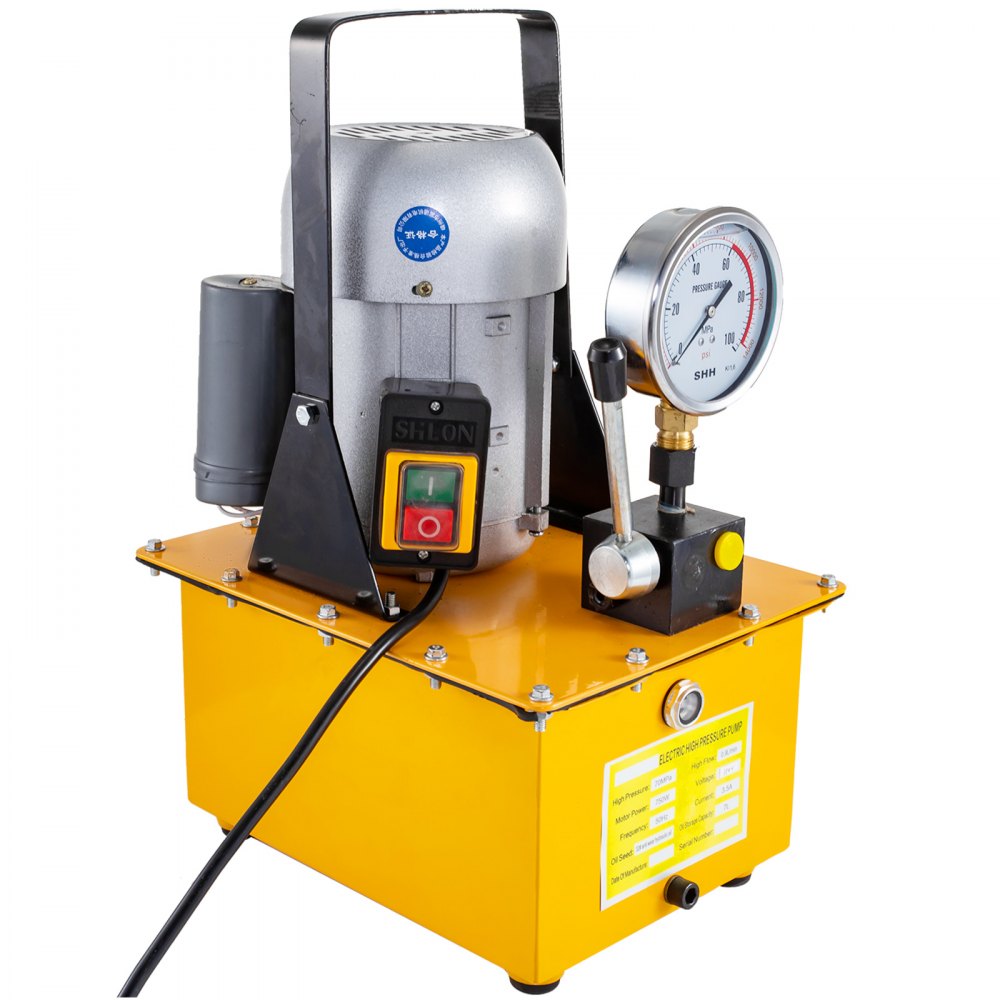

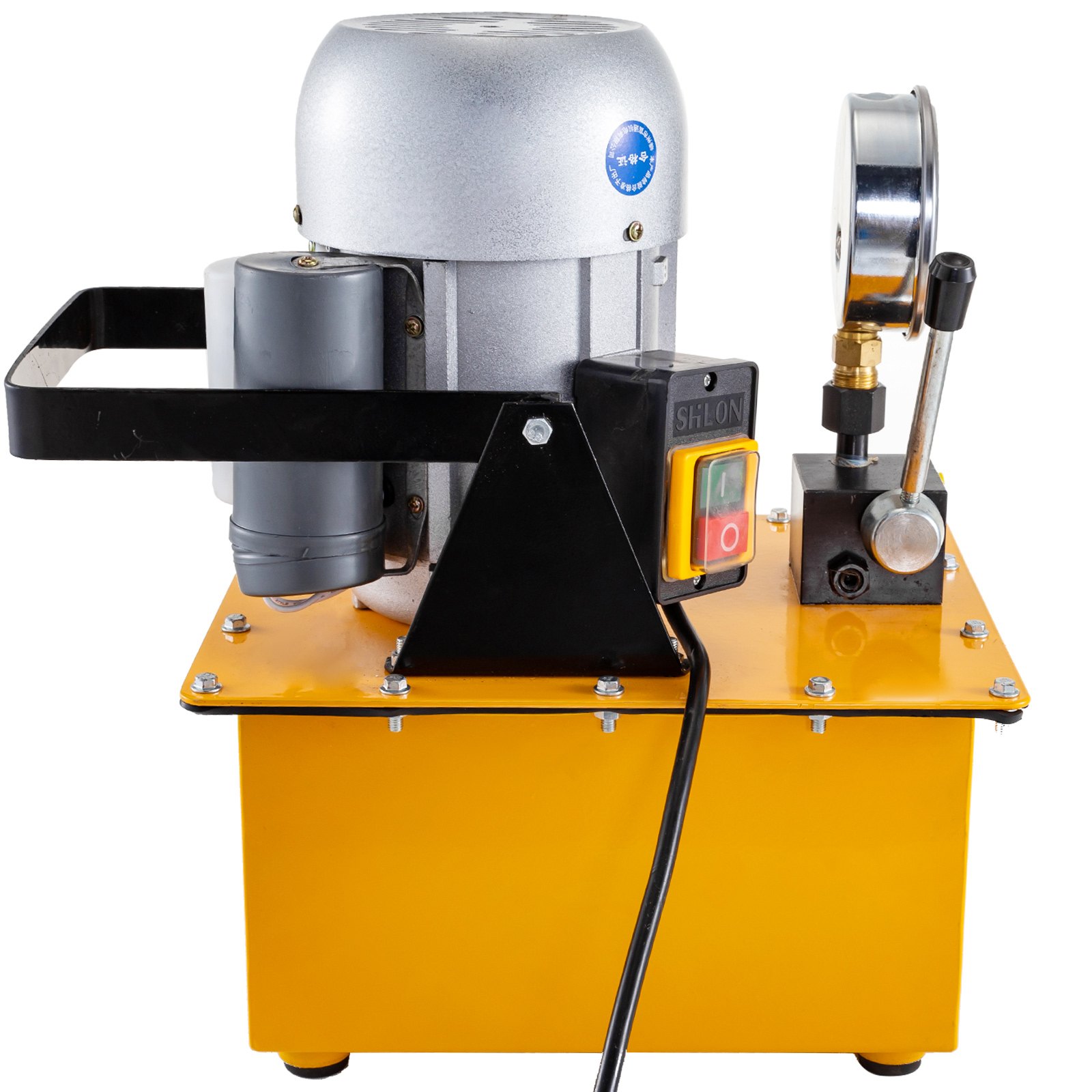

Electric Hydraulic Pump 10000PSI Single Acting Manual Valve
750W Copper Motor & 7L Oil Tank & 0.9-5 L/min Flow Rate

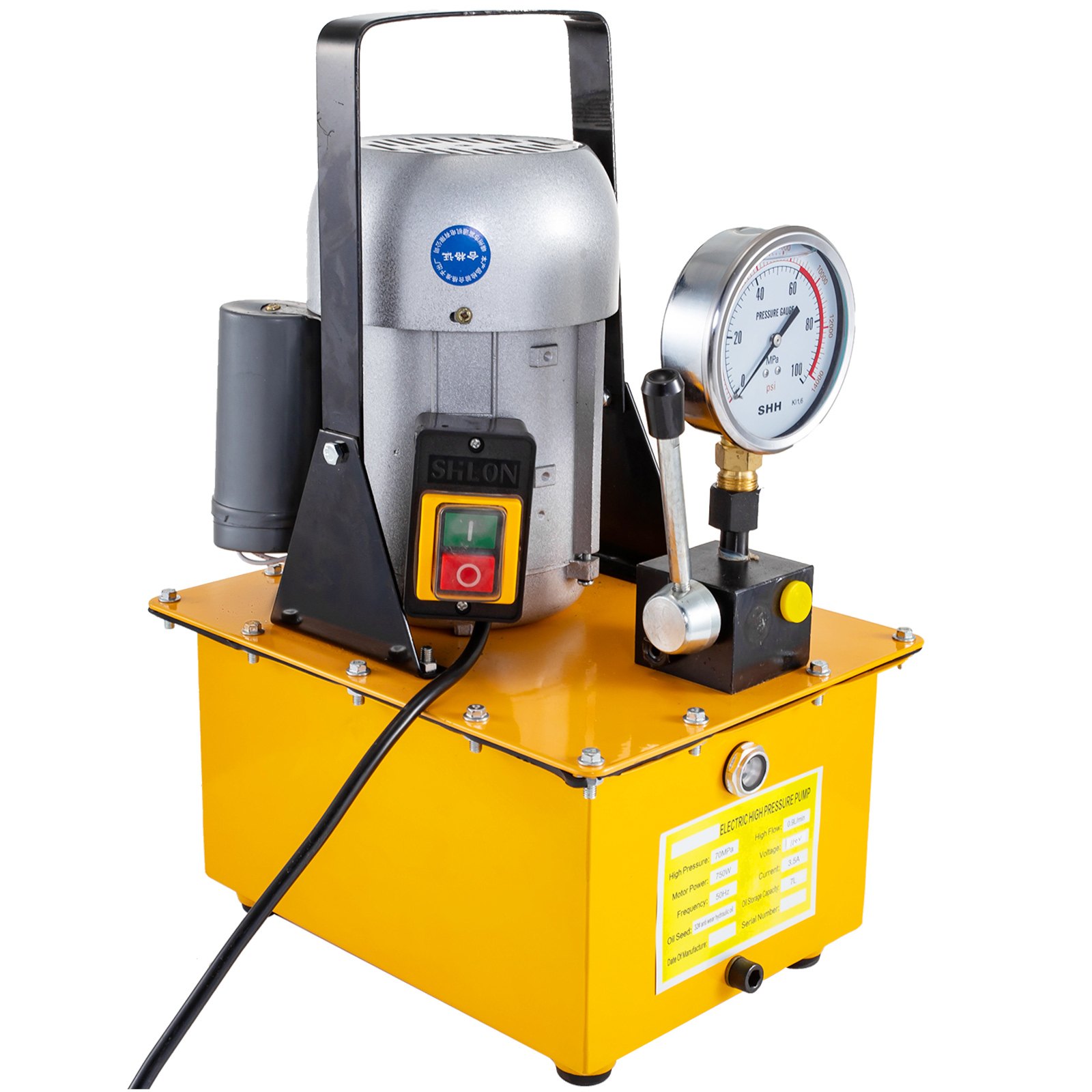

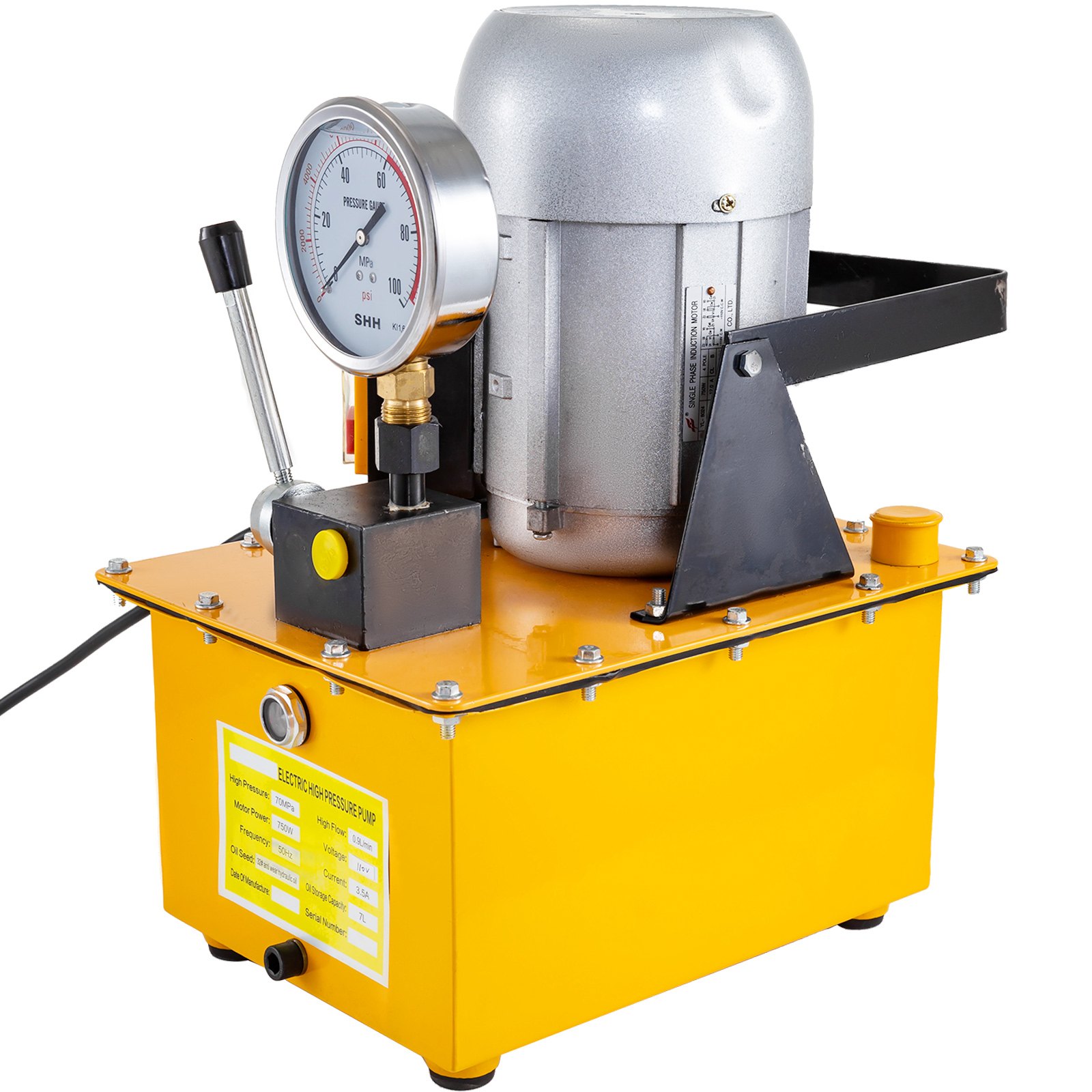

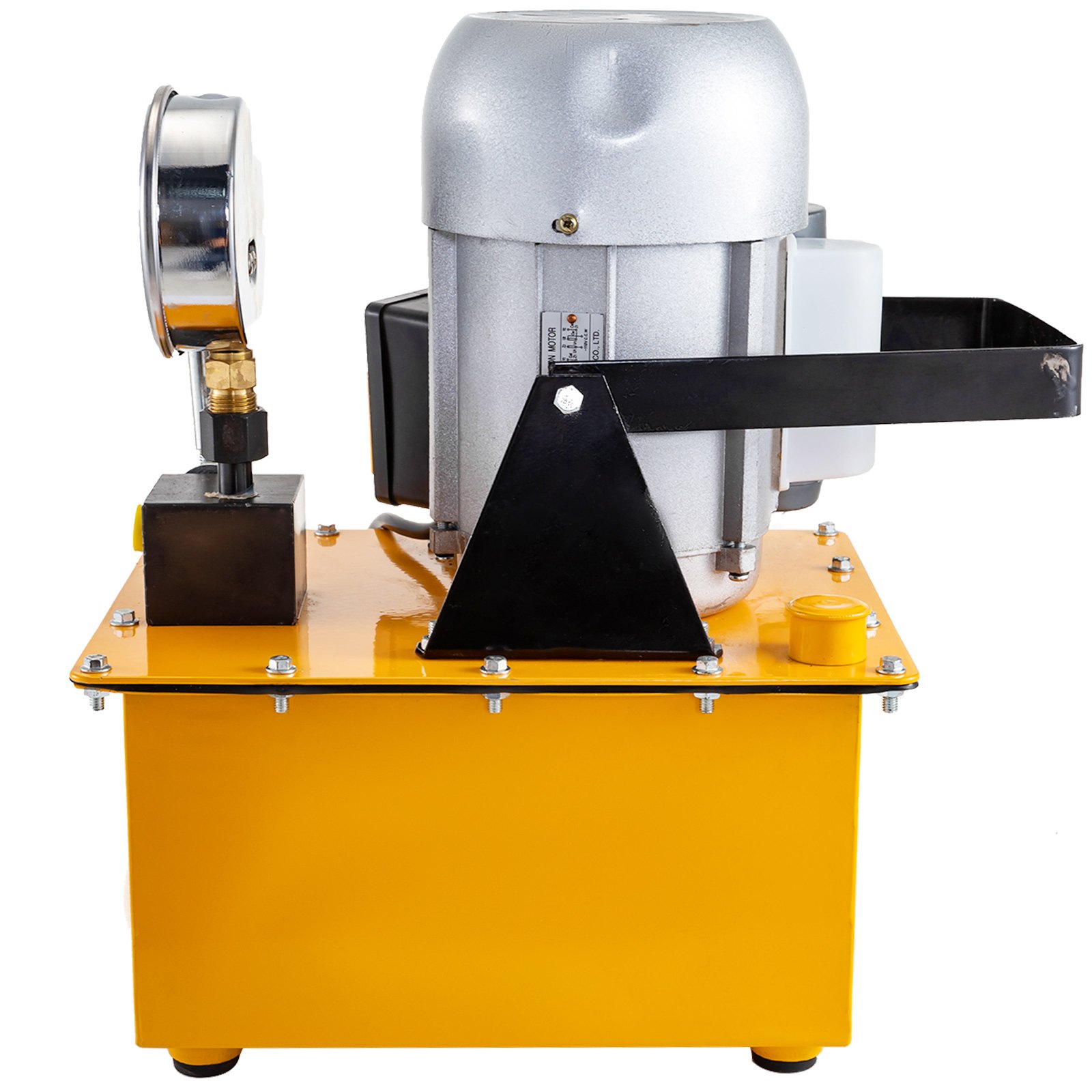

This single acting hydraulic pump unit is composed of single-phase asynchronous motor, high-pressure oil pump, and fuel tank. It has the advantages of small size, high pressure, lightweight, simple structure and easy to use. This pump reduces manual work and maximizes work efficiency. The oil pump's regular working temperature is between 10-50.
- Efficient Motor
- Large Capacity Tank
- Accurate Pressure Gauge
- Effective Oil Volume

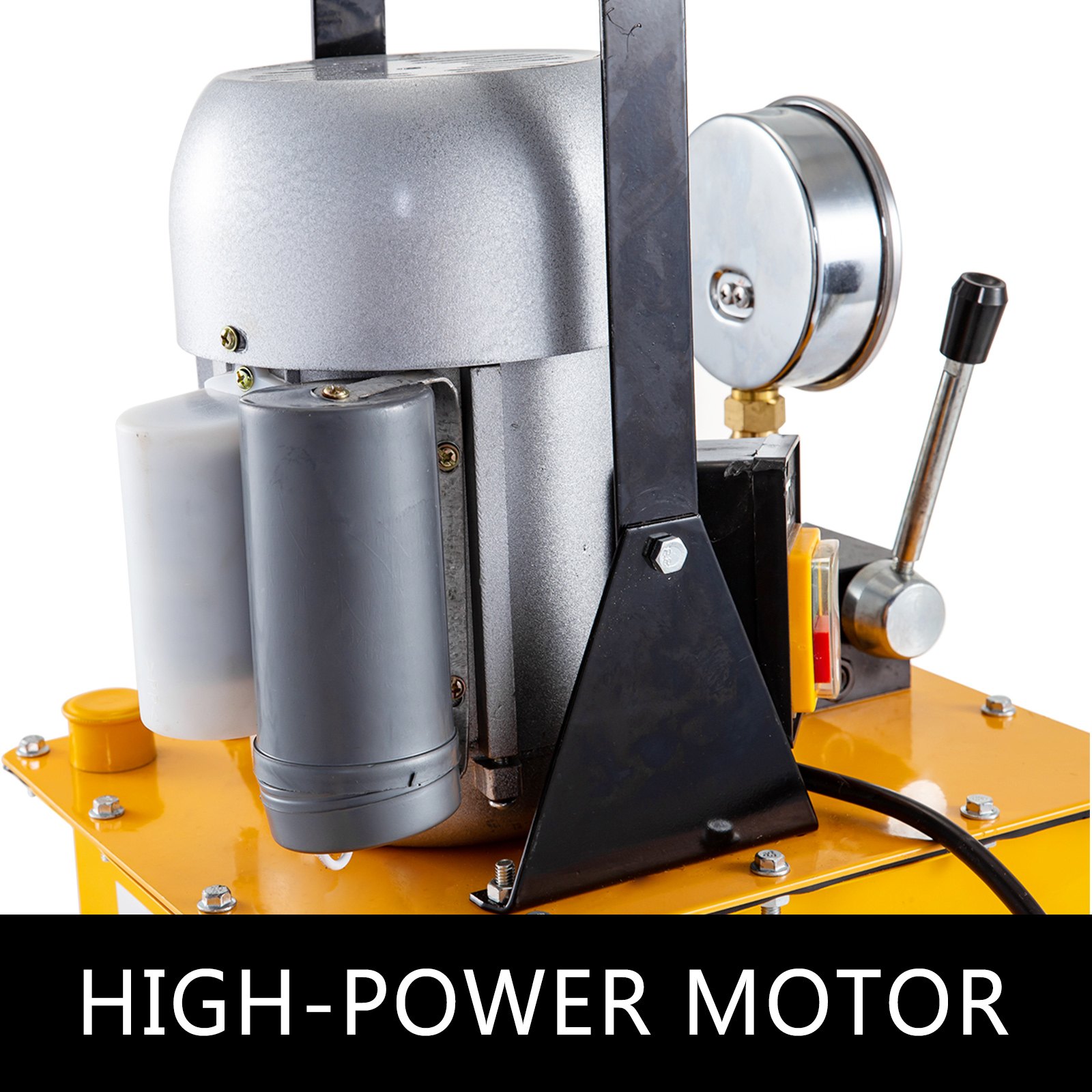

High-power Motor
This manual hydraulic pump uses 750W power pure copper motor with aluminum shell, saving power and effort, freeing your hands. 1400 revolutions per minute, fast speed and high work efficiency.

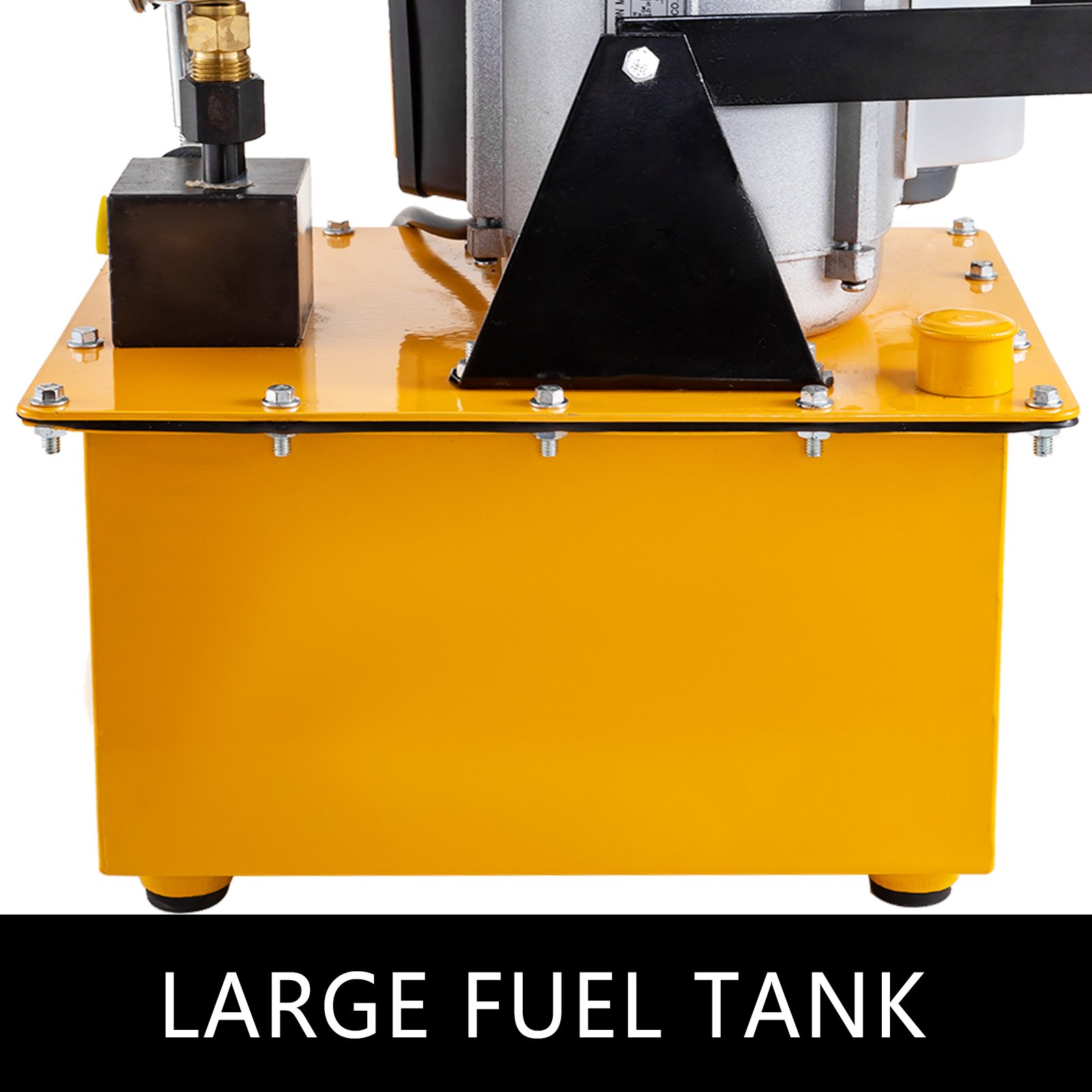

Large Fuel Tank
This electric hydraulic cylinder can store 7L of oil, the 15th hydraulic oil. Large capacity extends working hours. Observe the hydraulic oil at any time through a visible window to inlet the oil in time.

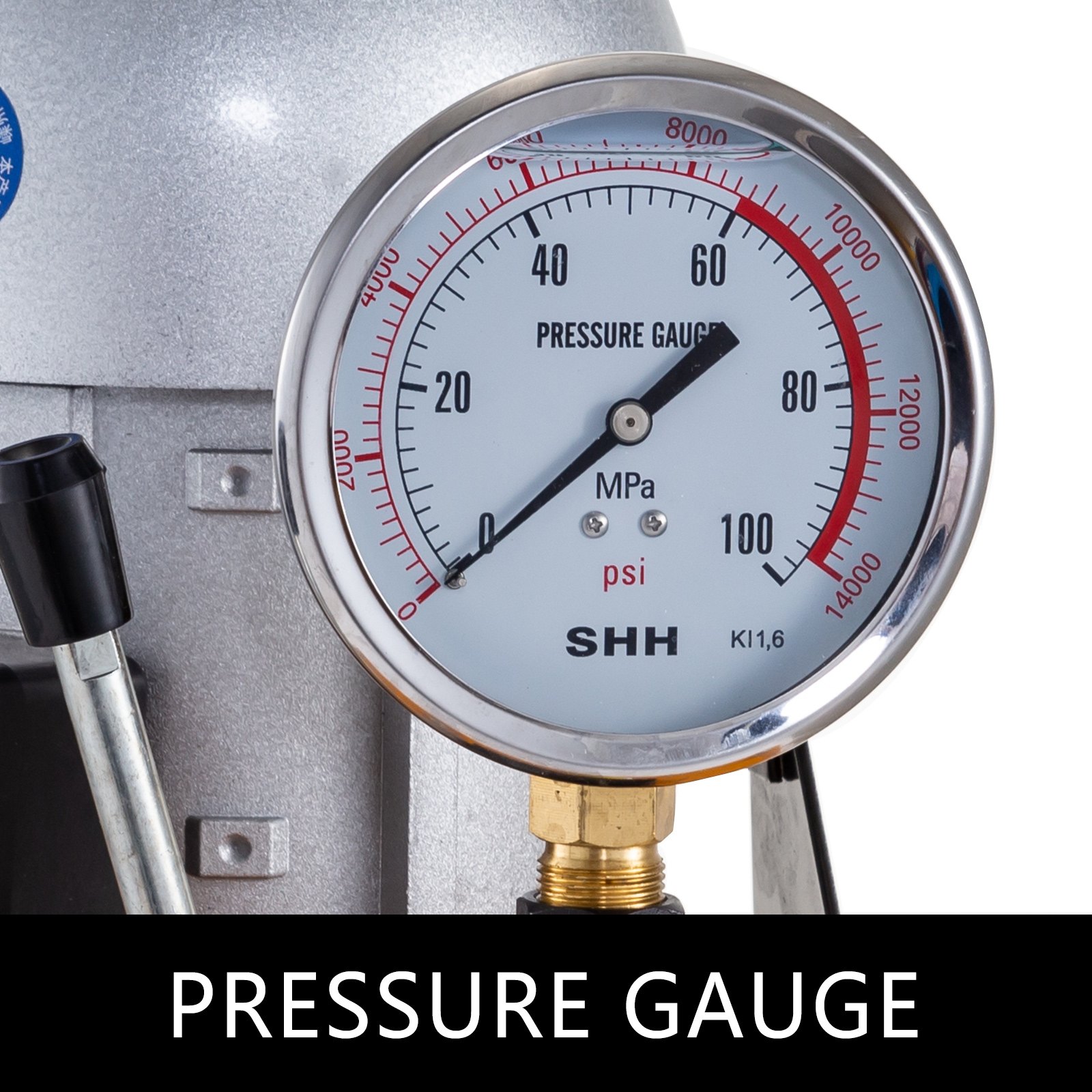

Pressure Gauge
A precise pressure gauge is accurate. The hydraulic press is a 10,000 psi hydraulic pump, higher than most products at the market. High pressure is for driving piston and low pressure is for piston reset.

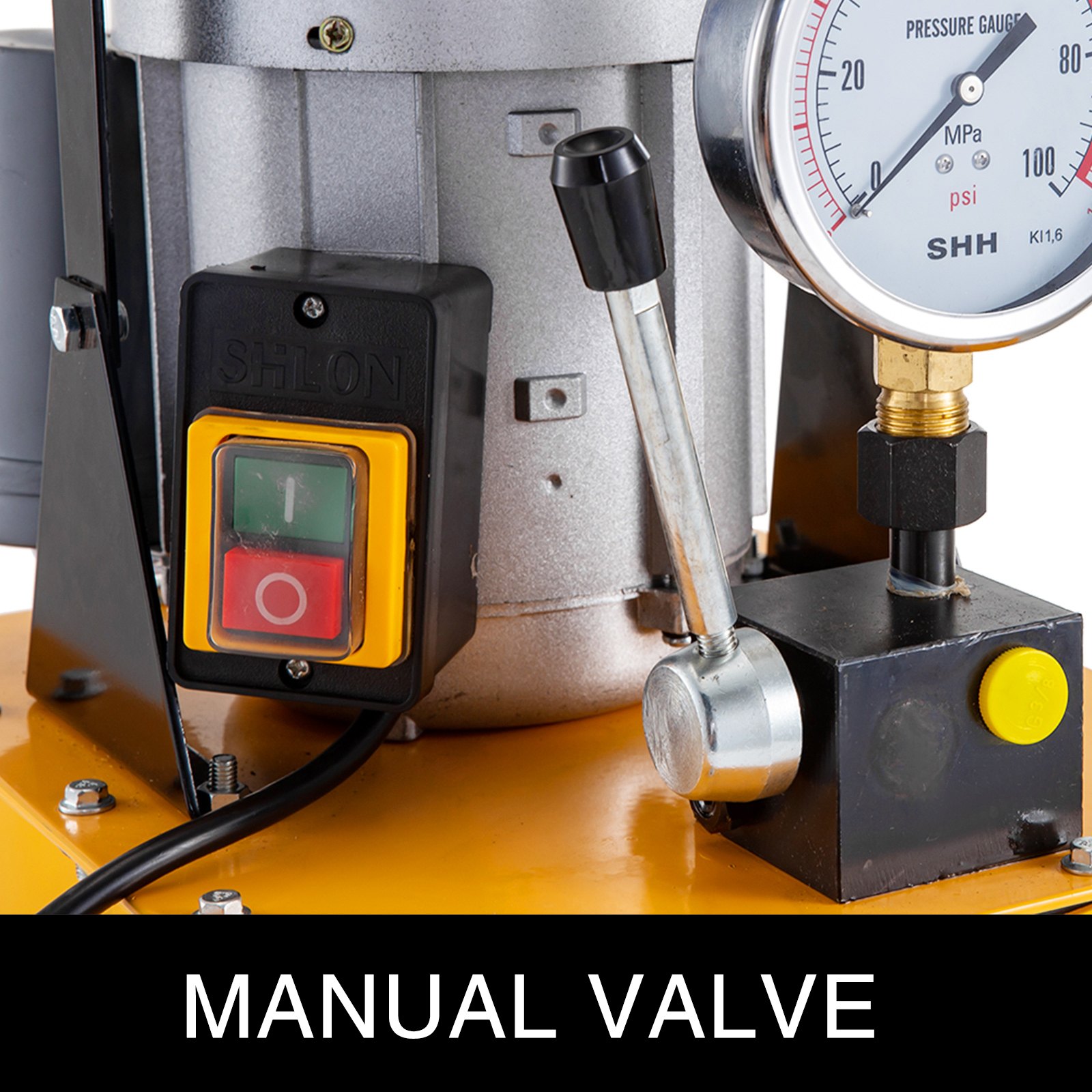

Manual Valve
Operate the electric hydraulic valve manually to control the input and output of the oil. The valve up, giving pressure; The valve down, relieving pressure. Sensitive on/off switch.

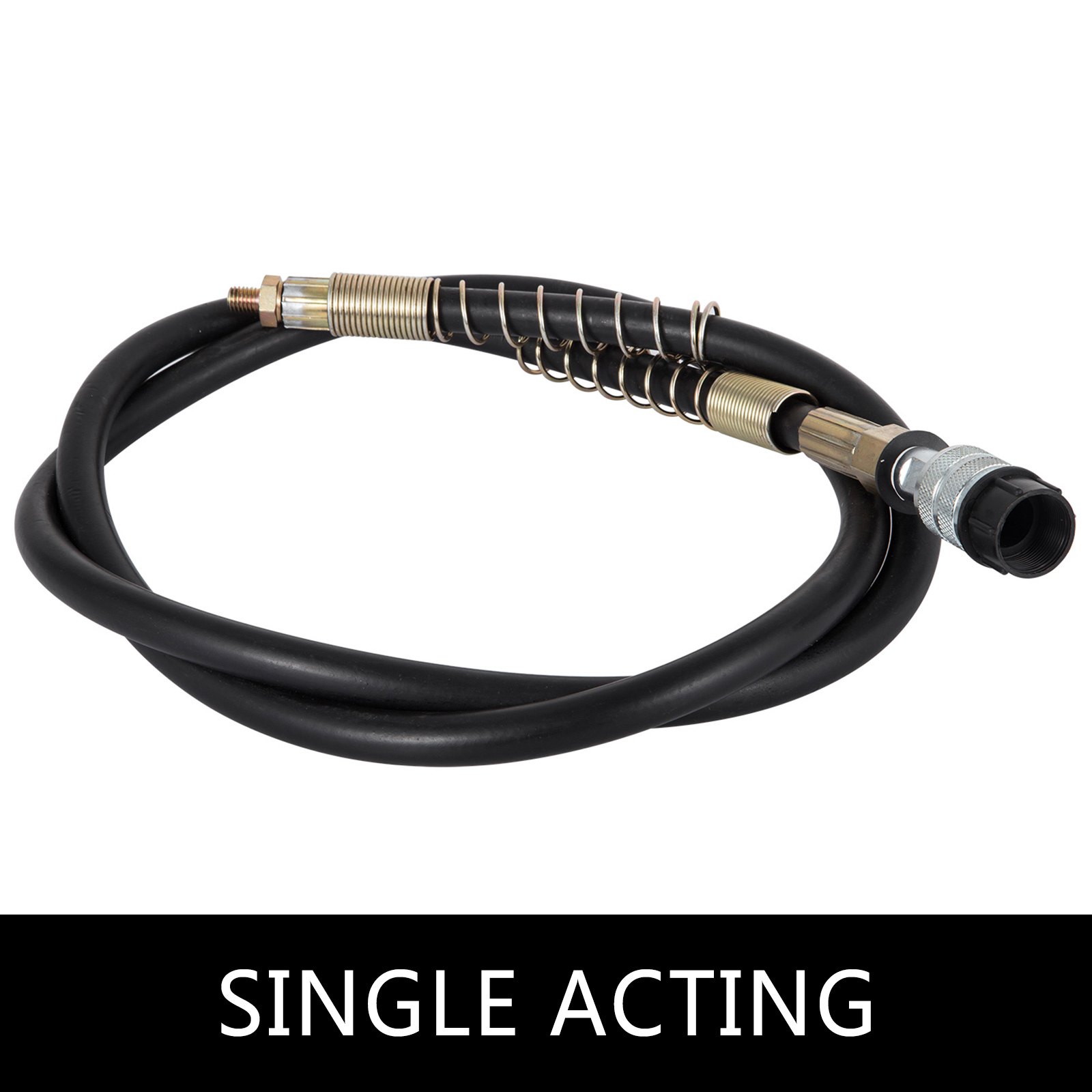

Single Acting
Single-acting is convenient and quick. Fitted with M10 thread, high-pressure oil pipe is high-quality and durable. Dust caps save the oil pipe from dirt.
Wide Application
If the hydraulic gear pump is equipped with other hydraulic tools, it can work on several assignments such as lifting, pressing, bending, straightening, cutting, assembly and disassembly.

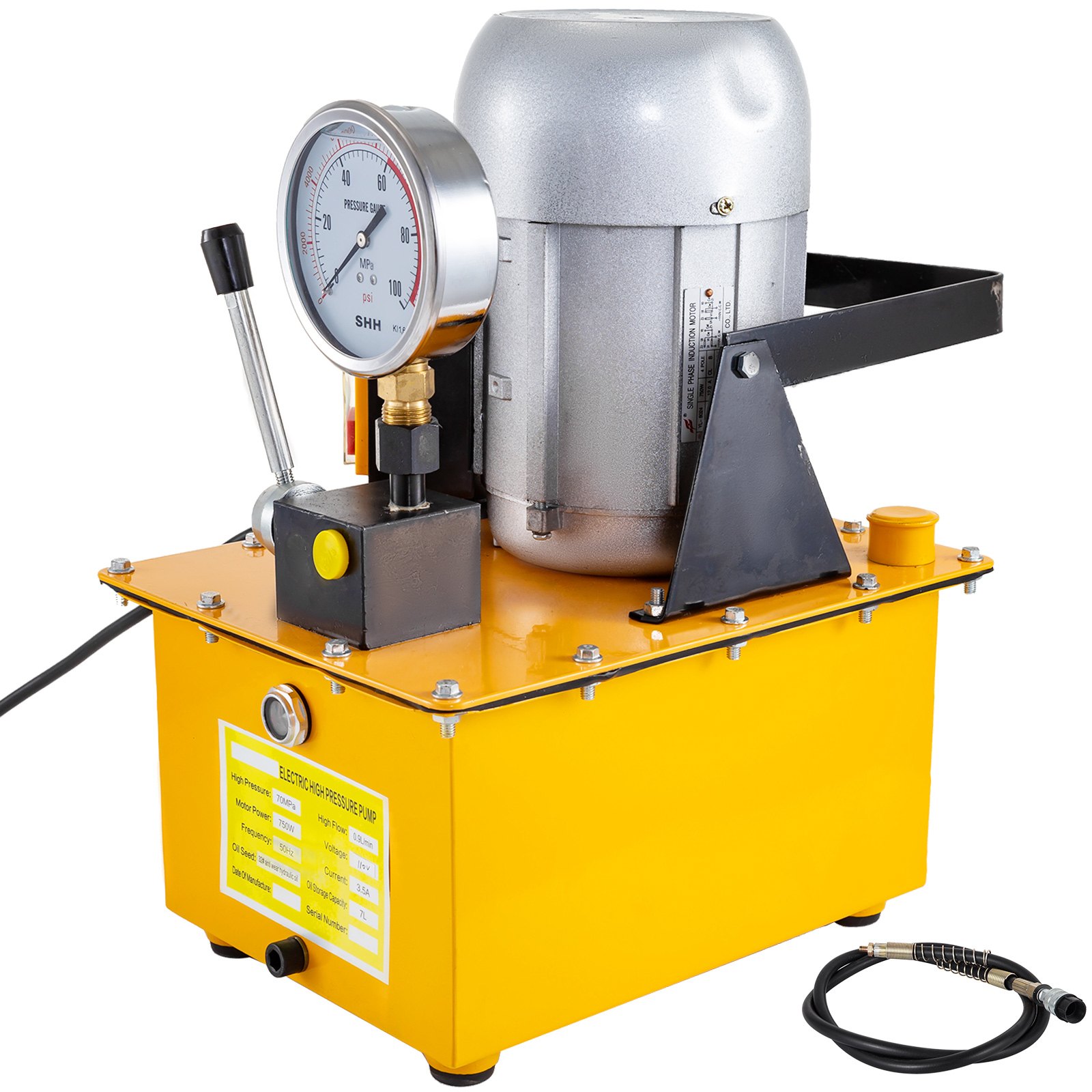

- 1 x Electric Driven Hydraulic Pump
- 1 x Oil Hose
- Model: ZCB-63A
- Input Voltage: AC 220V 50HZ
- Flow Rate: 0.9L/min - 5L/min
- Working Pressure: 290PSI - 10152PSI/2Mpa - 70Mpa
- Motor Power: 750W
- Oil Capacity: 7 L
- Low Pressure Stage Flow Rate: 1.3 Gallons per minute
- High Pressure Stage Flow Rate: 0.18 Gallons per minute
- Max Output Hydraulic Pressure: 10,000 PSI (adjustable range is 725-10,000 PSI)
