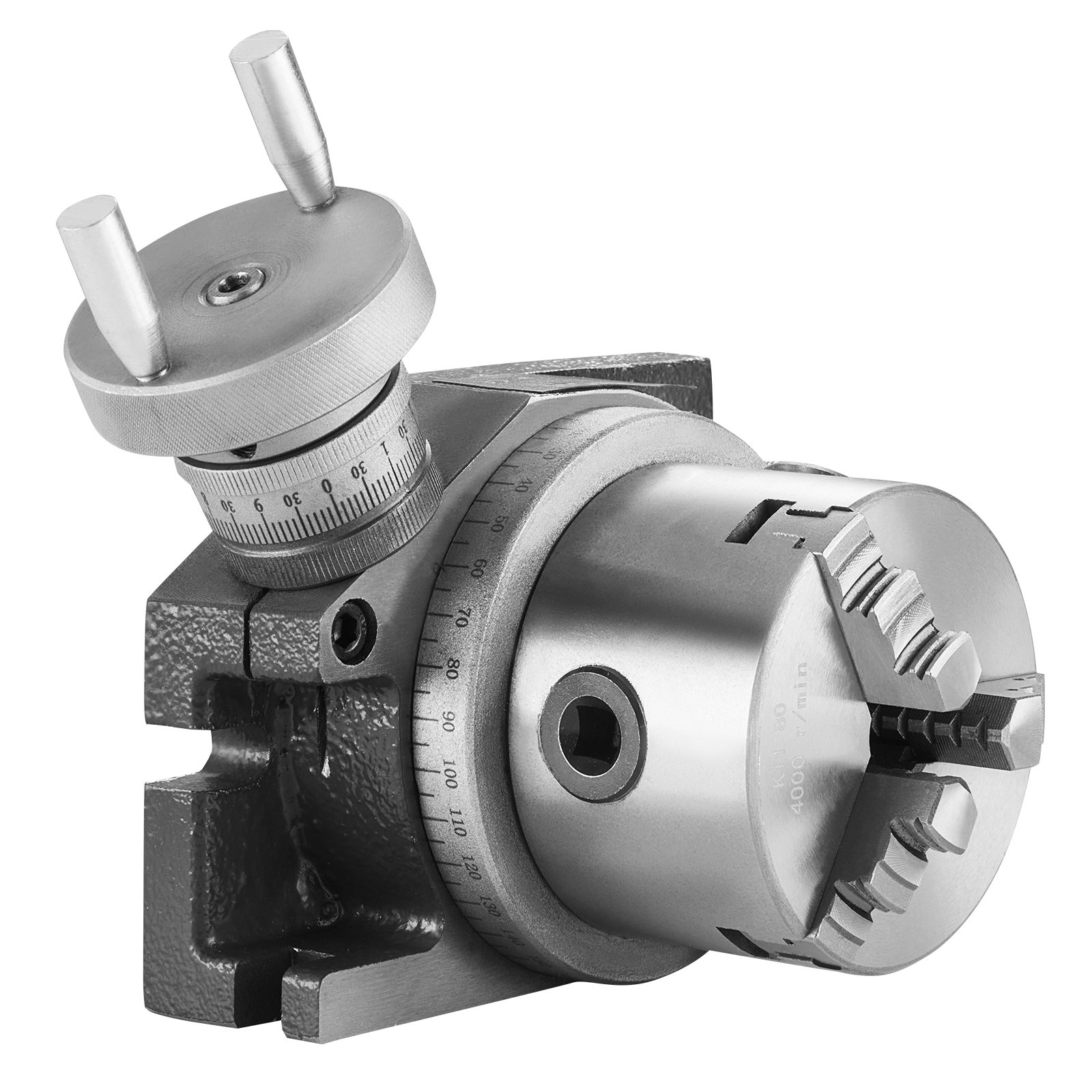

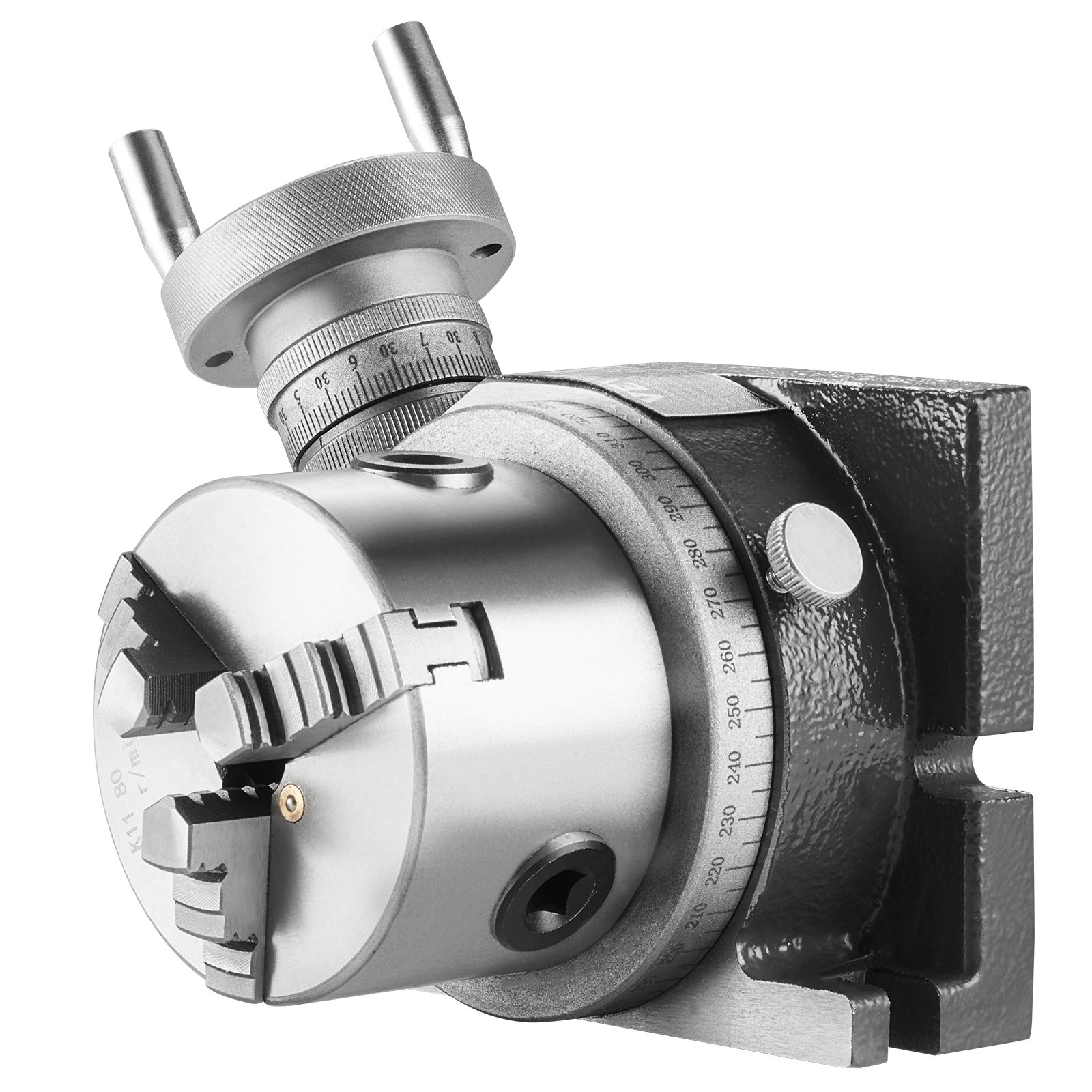

VEVOR Rotary Table for Milling Machines, 100 mm, Horizontal Vertical Model Precision Milling Rotary Table, with 80 mm 3-Jaw Chuck M10 T-Bolts Nuts, for Milling Engineering Indexing Tools

Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive 5,00€ off for your first three orders on the App.
Download Now
Exclusive 5,00€ off for your first three orders on the App.
Scan the QR code to download

No Groove

  • No Groove
  • 3 Slots
  • 4 Slots

100 mm

  • 100 mm
  • 200 mm

About this item

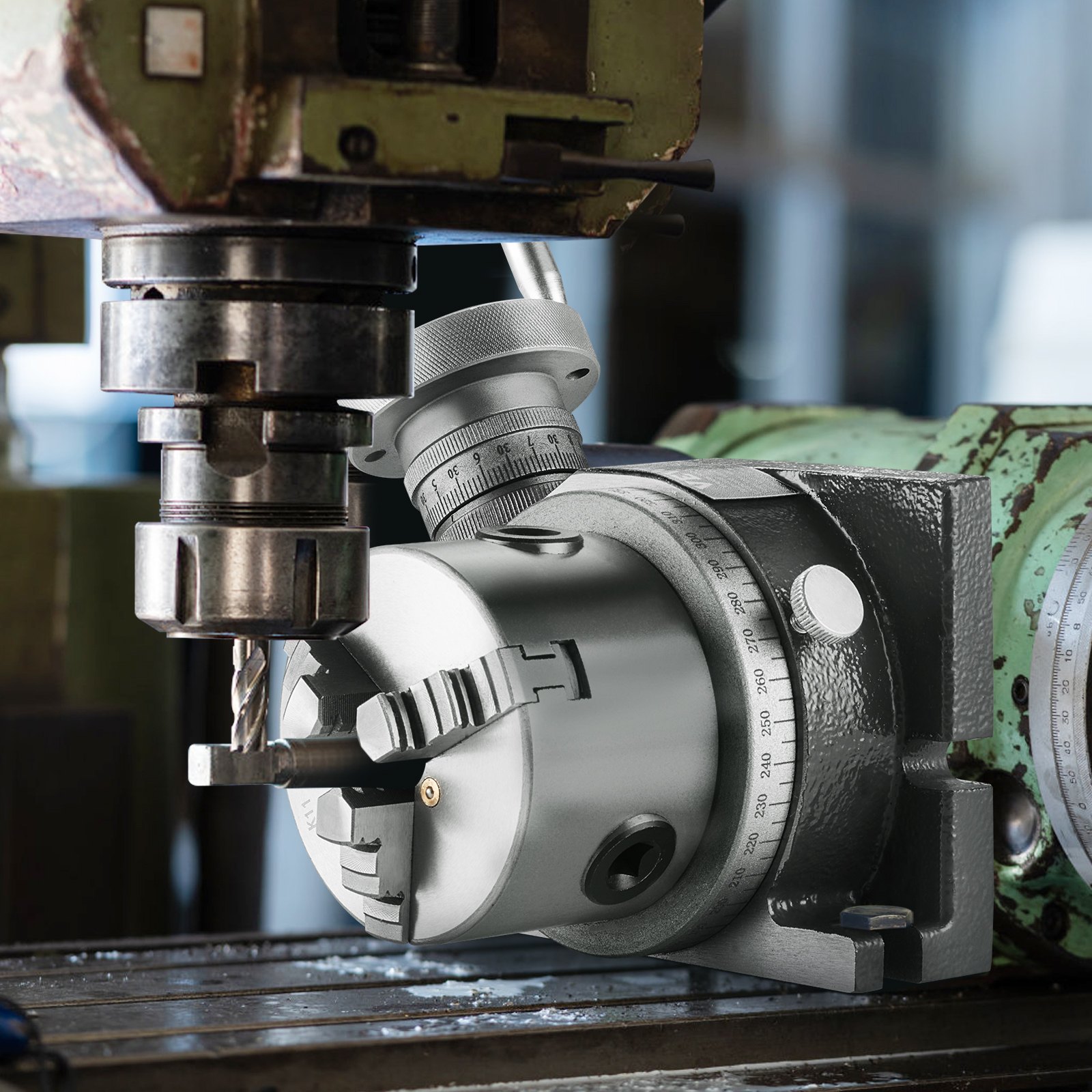

  • 4-Inch Milling Machine Rotary Table: Elevate your milling capabilities with our φ4'' / 100 mm rotary table, which is ideal for small milling machines. It is designed for precise positioning, rotation, indexing, and clamping of wood and metal workpieces for curved surface machining, elongated hole processing, and precision drilling. Widely used in automotive, mold-making, and general machinery, underscores its essential role in mechanical processing.

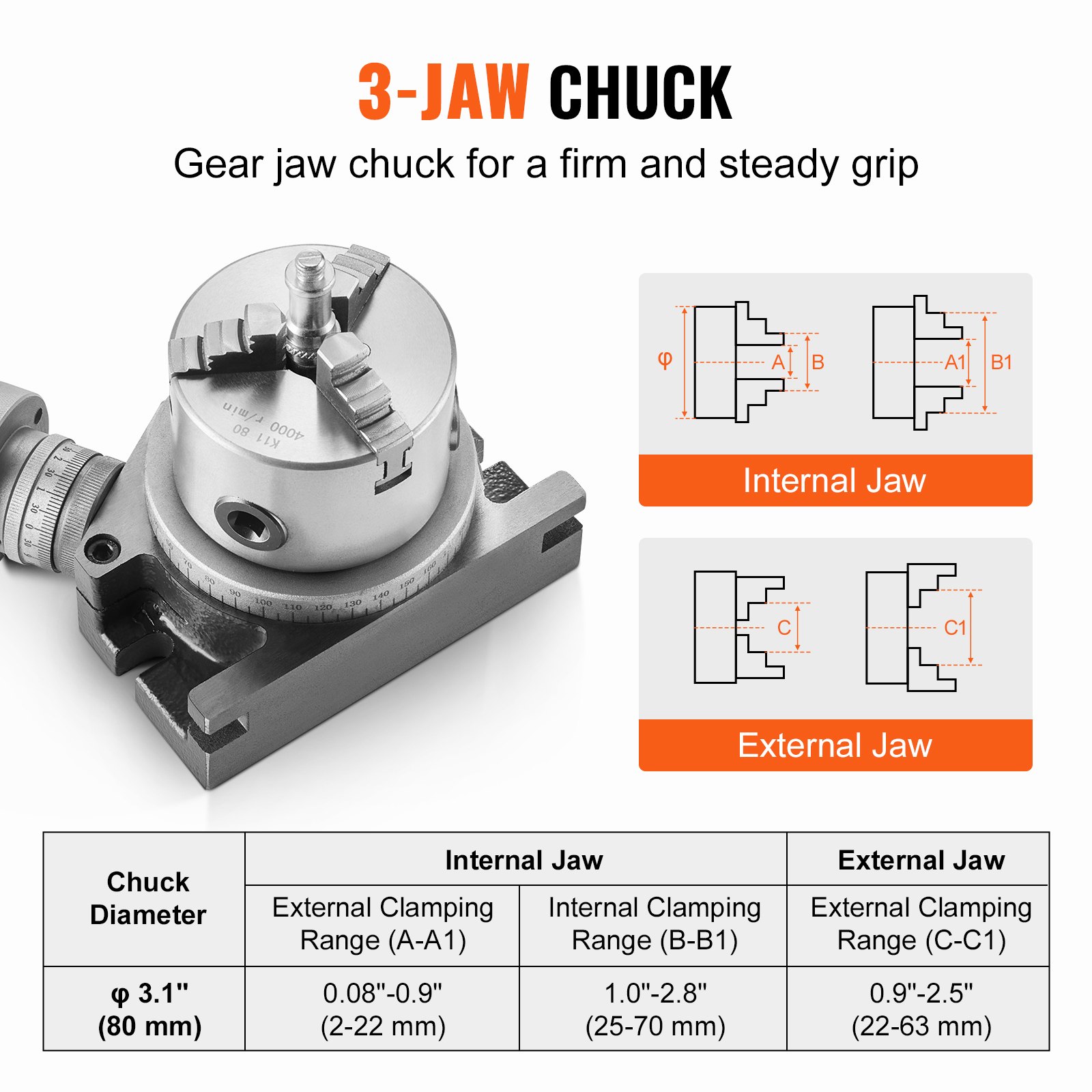

  • Secure Small Workpieces with Ease: Our rotary table comes with a 3-jaw chuck, and the serrated jaw ensures a firm grip on even the small workpieces. Chuck Diameter: φ 3.1'' / 80 mm. The internal jaw can be used for internal & external clamping. External Clamping Range: 0.08''-0.9'' / 2-22 mm, Internal Clamping Range: 1.0''-2.8'' / 25-70 mm. It includes an external jaw and external clamping range of 0.9''-2.5'' / 22-63 mm. Enjoy the precise and secure machining of small components!
  • High Precision at Your Fingertips: The milling machine rotary table is operated by a handwheel, complete with crystal-clear scales on both the wheel and the table for precise measurements. The handwheel scale number is 100, while the table itself is marked with 360 degrees. With a worm gear ratio of 1:36, a single rotation of the handwheel results in a 10-degree turn of the table, aligning perfectly with intuitive operation and allowing for precise control over even the slightest rotation.
  • Horizontal & Vertical Installation: When mounted horizontally, the chuck top height is 4.7'' / 120 mm (±3 mm), and when mounted vertically, the chuck center height is 2'' / 50 mm. Our rotary table fits industrial and home-use milling machines as long as your milling machine tool height is higher than vertical/horizontal installation heights. Additionally, the table's bottom features positioning slots for easy and secure attachment to your milling machine.

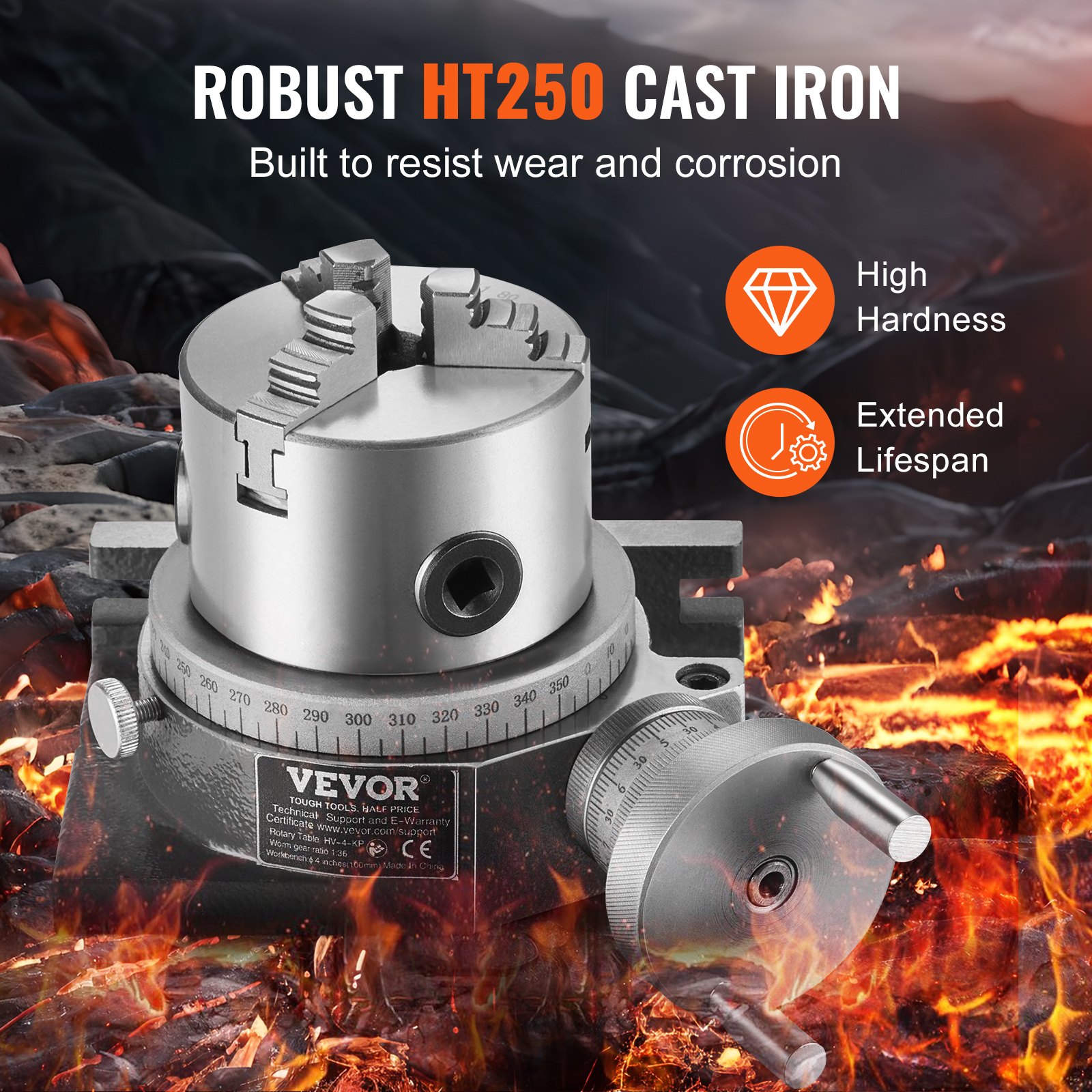

  • Exceptional Durability, Built to Last: Step up your milling game with our exceptionally durable rotary table crafted from HT250 cast iron for maximum wear resistance and a high-hardness surface that resists scratches and corrosion, ensuring an extended lifespan. Even under heavy loads, high pressure, and rapid rotation, our rotary table maintains its integrity and durability. Choose our HT250 cast iron rotary table for a high-quality performance in your milling operations.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Rotary Table for Milling Machines, 100 mm, Horizontal Vertical Model Precision Milling Rotary Table, with 80 mm 3-Jaw Chuck M10 T-Bolts Nuts, for Milling Engineering Indexing Tools
No Groove 100 mm

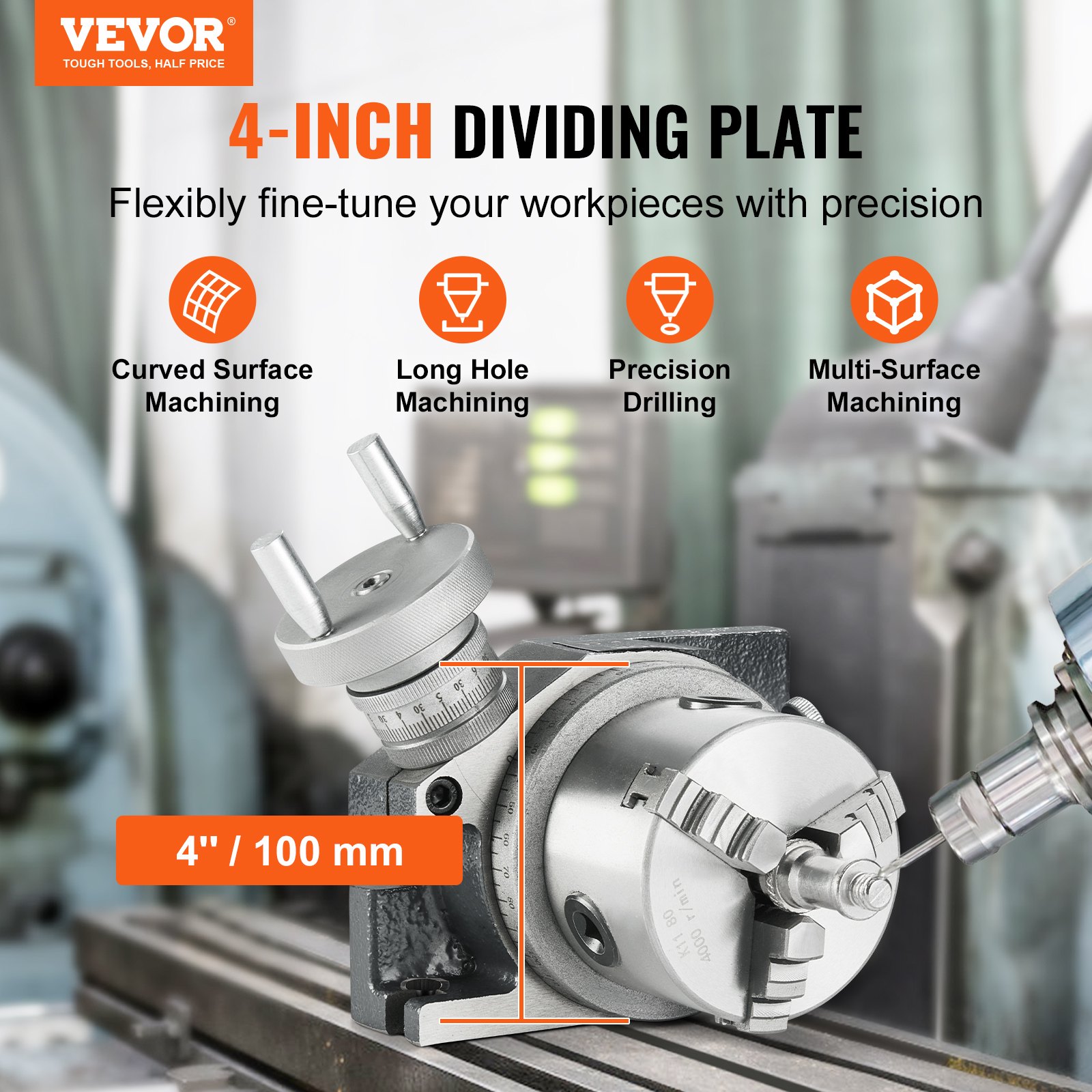

4-Inch Rotary Table for Milling Machine

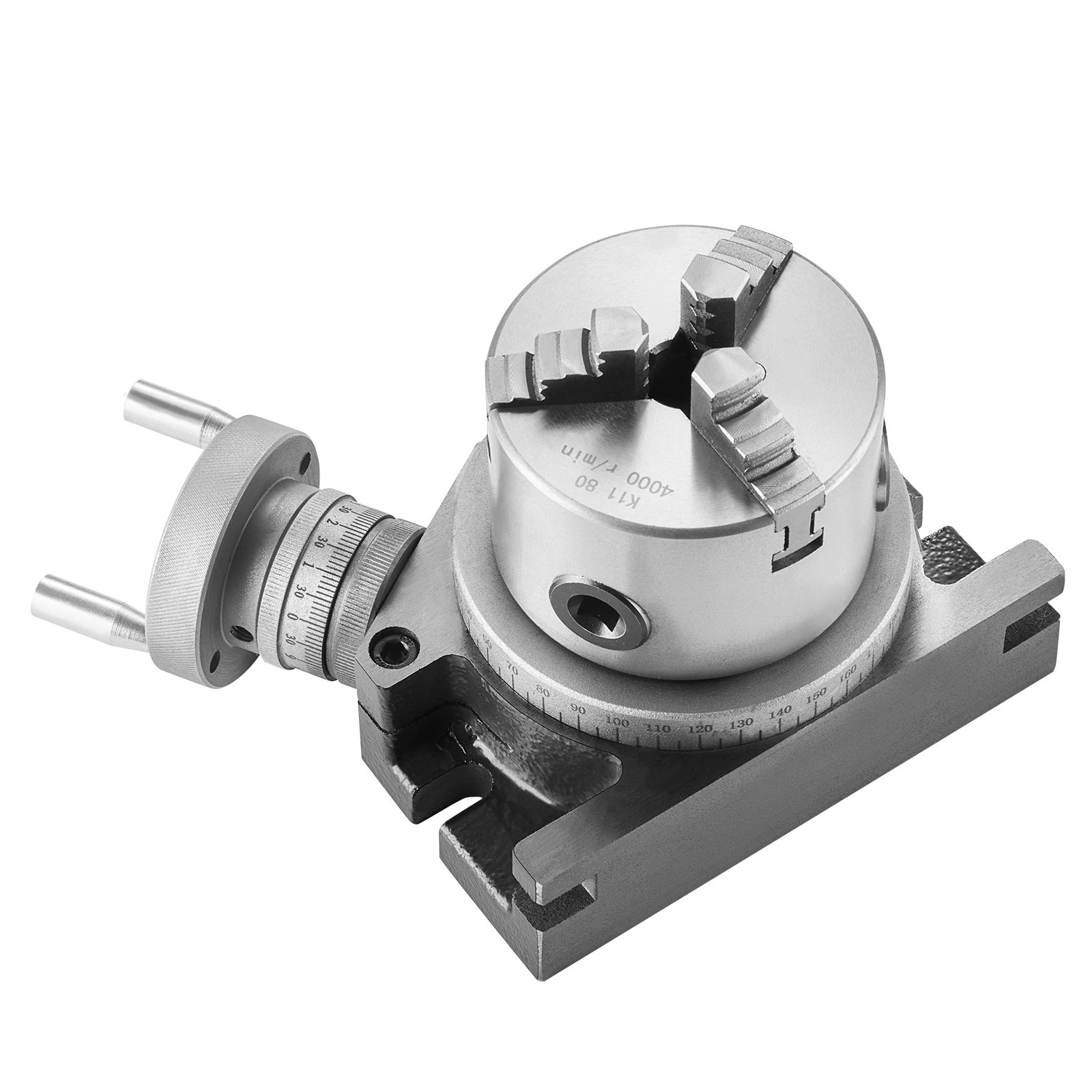

VEVOR rotary table with 3-jaw chuck, worm gear ratio 1:36, for vertical and horizontal milling.
VEVOR rotary table with 3-jaw chuck, worm gear ratio 1:36, for vertical and horizontal milling.
Our 4''/100 mm diameter rotary table is the perfect companion for small milling machines or specialized machinery and is designed for intricate and complex dividing cuts. Embrace the efficiency and versatility of our 4-inch rotary table and take your milling projects to the next level of accuracy.
VEVOR rotary table with adjustable 3-jaw chuck clamping range for various industrial parts.
VEVOR rotary table with adjustable 3-jaw chuck clamping range for various industrial parts.
Our rotary table comes with a 3-jaw chuck and requires additional installation! We offer two types of jaws, internal jaw and external jaw, which easily open and close with a T-shaped chuck wrench, ensuring a secure and precise grip on your workpieces.

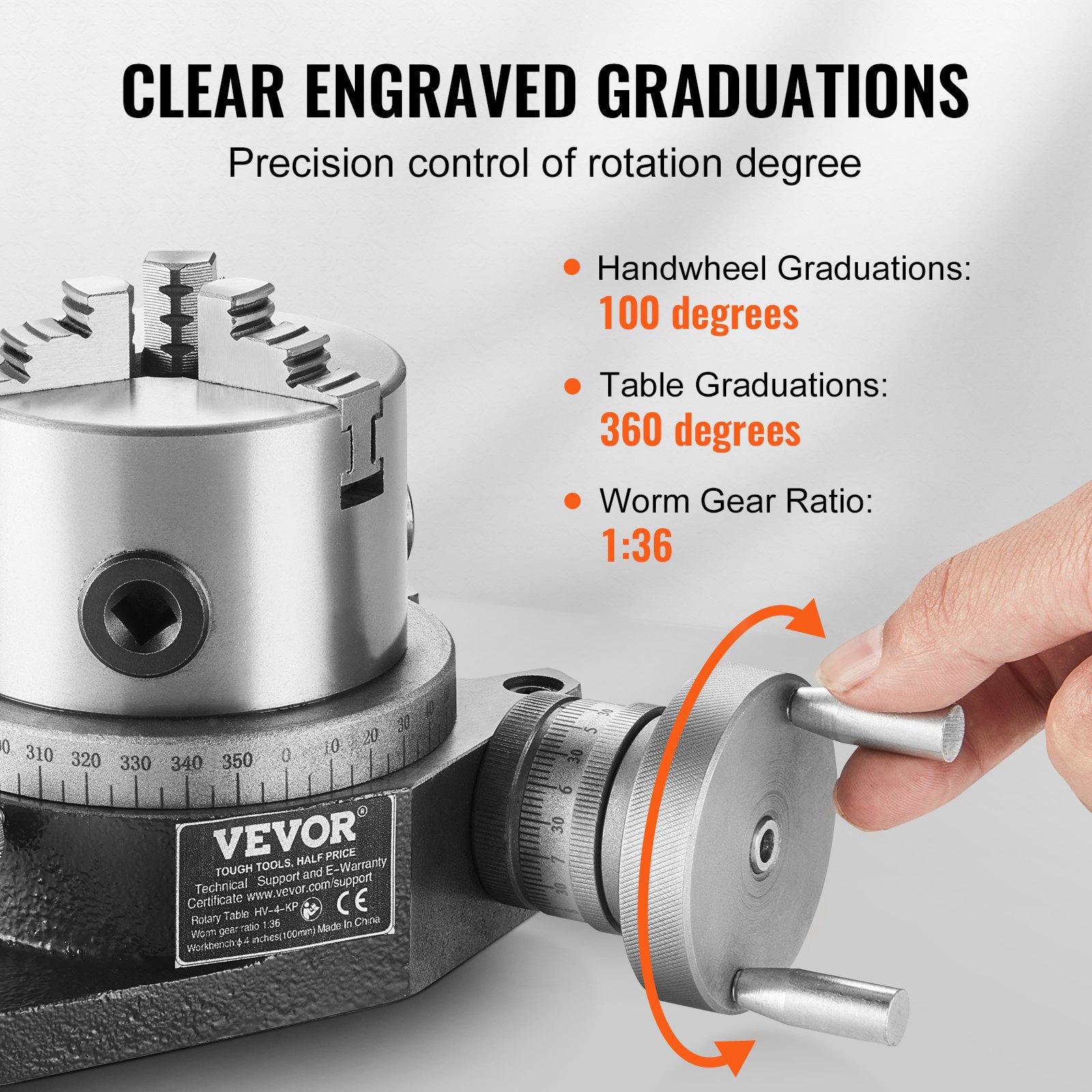

VEVOR rotary table features 10-degree rotation, 100-degree handwheel graduations, and 1:36 worm gear ratio.
VEVOR rotary table features 10-degree rotation, 100-degree handwheel graduations, and 1:36 worm gear ratio.
Enjoy the precise machining with our meticulously designed milling rotary table featuring a worm gear ratio of 1:36 and a fine, clear scale. Every rotation is under your control, with a dedicated degree lock. Once you set your angle, it stays put, ensuring stability and consistency in your work.

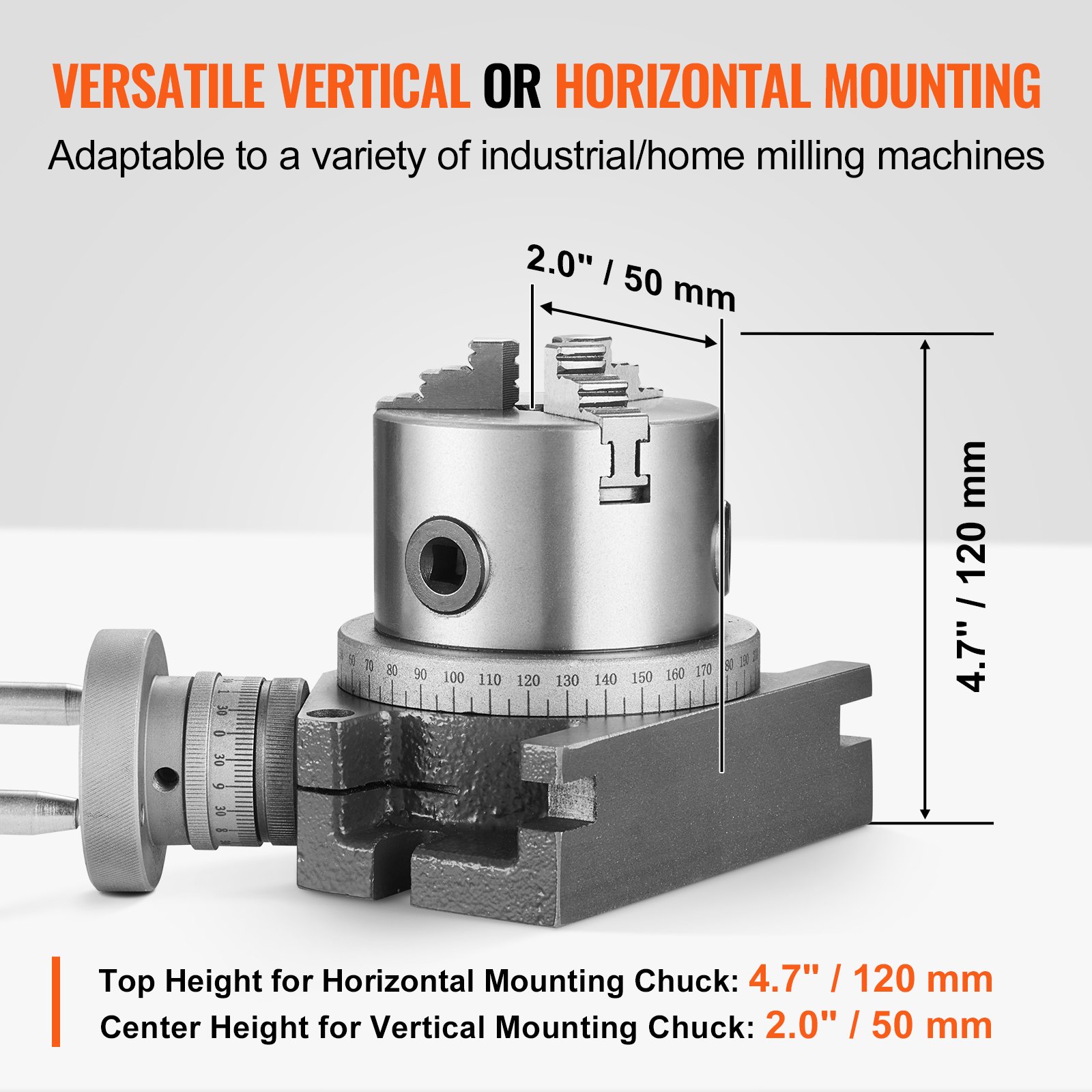

VEVOR rotary table with dual-use vertical and horizontal mounting, featuring locating pin and pressure plate groove.
VEVOR rotary table with dual-use vertical and horizontal mounting, featuring locating pin and pressure plate groove.
Discover unparalleled versatility with our milling machine rotary table, ingeniously designed for both horizontal and vertical applications. The precise positioning slot on the bottom ensures the rotary table remains stable and shake-free during operation.
high-hardness cast iron rotary table in use in automotive, woodworking, mold making, and machinery industries.
high-hardness cast iron rotary table in use in automotive, woodworking, mold making, and machinery industries.
Our rotary table is crafted from HT250 cast iron for exceptional wear resistance and high hardness and is a staple in precision and heavy-duty machining industries. Choose our rotary table for a lasting addition to your workshop, where strength meets precision at every turn.

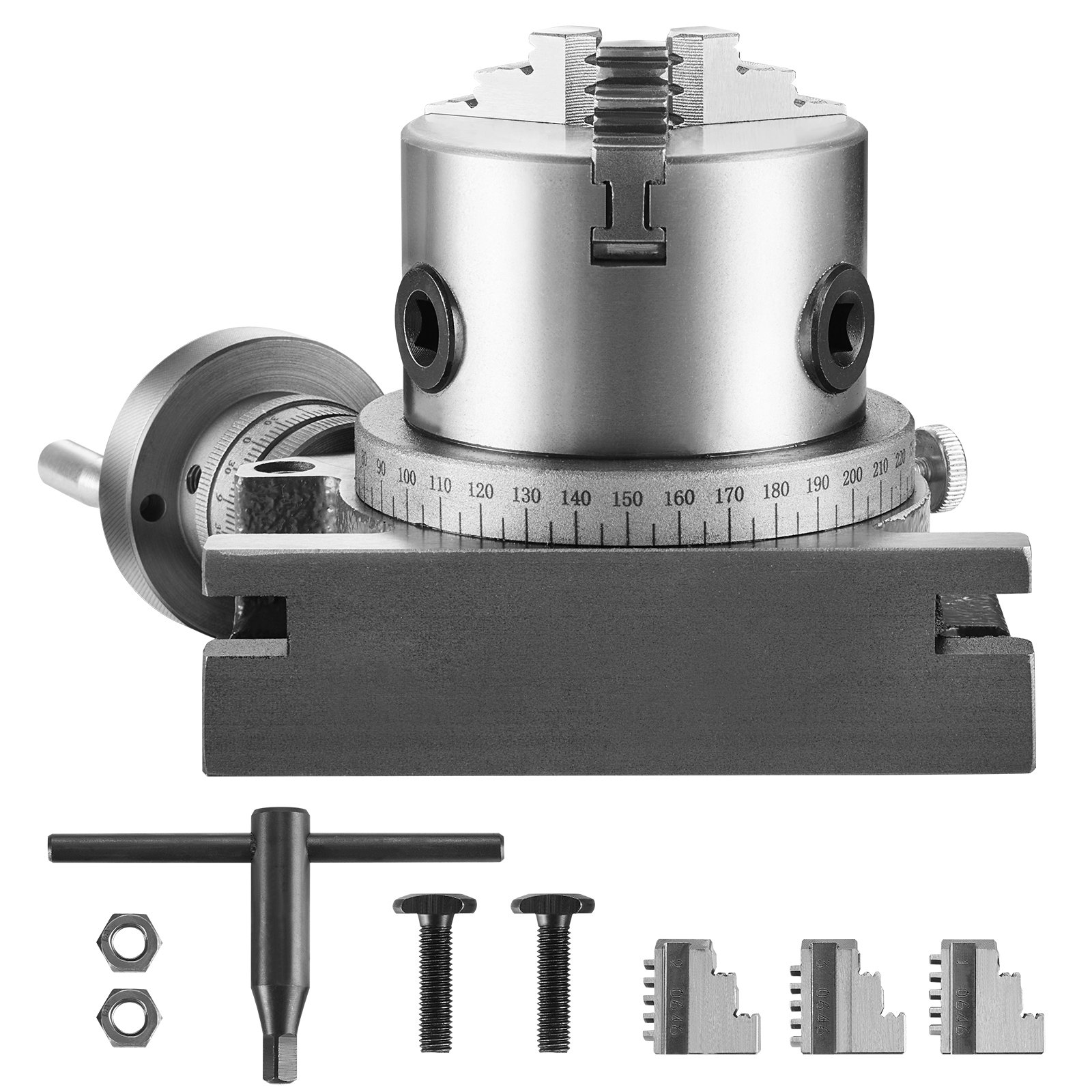

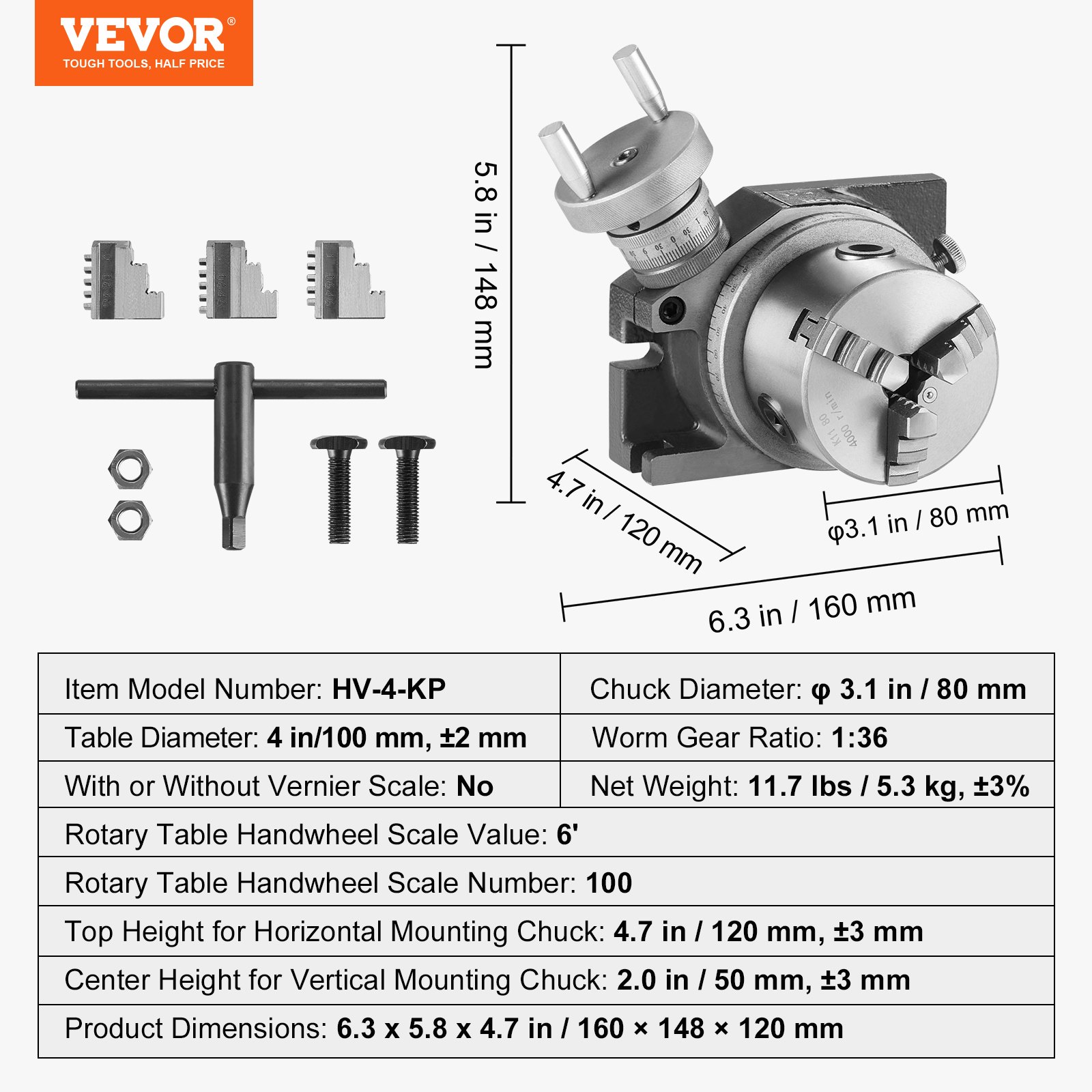

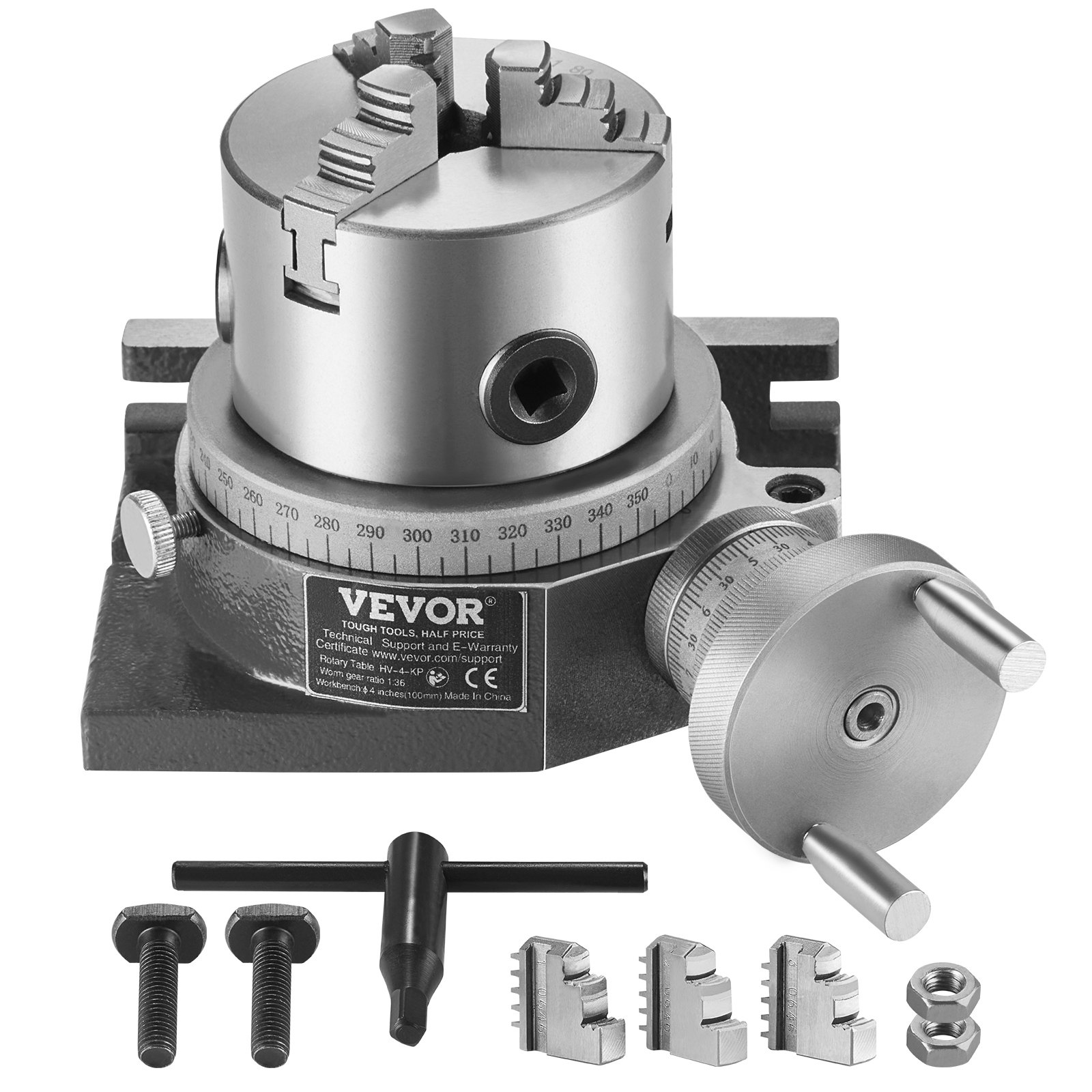

VEVOR rotary table hv-4-kp with 4 inch diameter, 1:36 gear ratio, 3 jaw chuck, and package contents.
VEVOR rotary table hv-4-kp with 4 inch diameter, 1:36 gear ratio, 3 jaw chuck, and package contents.

Specification

Item Model Number
HV-4-KP
Table Diameter
4 in / 100 mm, ±2 mm
Top Height for Horizontal Mounting Chuck
4.7 in / 120 mm, ±3 mm
Center Height for Vertical Mounting Chuck
2 in / 50 mm
Rotary Table Handwheel Scale Value
6'
Rotary Table Handwheel Scale Number
100
With or Without Vernier Scale
No
Worm Gear Ratio
1
Chuck Diameter
φ 3.1 in / 80 mm
Net Weight
11.7 lbs / 5.3 kg ± 3%
Product Dimensions
6.3 x 5.8 x 4.7 in / 160 × 148 × 120 mm
Questions and Answers
Typical questions asked about products: Is the product durable? ...

Customer Reviews

Ratings by Features

  • 4.7
  • 4.5
  • 4.6
  • 4.5
  • See More See Less
4 Review(s)
Clear filters
VEVOR Customer VEVOR Customer
Good quality rotary table.
I use this rotary table on my milling machine, the quality is good and represents good value for money.
Hobbybob Hobbybob
Super waar voor je geld
De tafel werd dezelfde dag nog verstuurd met GLS. Hij kwam goed verpakt aan, in dik piepschuim in een stevige kartonnen doos, en goed in het vet. Optisch als mechanisch is hij dik in orde, en voor een hobbyist / semi prof als ik met een kleine maar industriële freesbank is dit eigenlijk een ideale tafel. Houd er rekening mee dat Vevor verschillende maten verkoopt, en dan ook nog met 3 of 4 T-sleuven. Voor mij was de 200mm met 4 gleuven het handigste, maar voor jou kan dit allicht anders zijn, dus even goed opletten voordat je besteld. Verder heeft deze tafel een MC3 schacht, wat ik erg handig vind omdat ik voor mijn draaibank al heel veel MC3 accessoires heb. Deze tafels worden onder allerlei merknamen verkocht, de bekendste zijn HBM en Vertex, maar de kwaliteit is eigenlijk overal hetzelfde. Dus onder de streep komt het er vooral op neer waar je de beste deal kunt doen. Al met al is dit gewoon een mooie verdeeltafel, voor een super prijs, en ik kan hem dus ook 100% aanbevelen.
Yorkshire Lad Yorkshire Lad
Ed The Engineer
A very good well made, high quality product at an excellent price. Bought it to carry out a special vertical milling modification to a cylindrical casting. The exercise was completed with ease using the table in the vertical position, very pleased. It would be helpful if the correct type of tapped tee slot nuts for table clamping were supplied with the unit, also an option for a clamping set would be beneficial and would have saved me the time spent sourcing/obtaining these.
wobbs wobbs
excellent value
ok so it's not the best available but that said you have to consider what you get for your money and that is a perfectly adequate tool for the home workshop. Needed a good clean before use and the odd bit of deburring but hey look at the price
