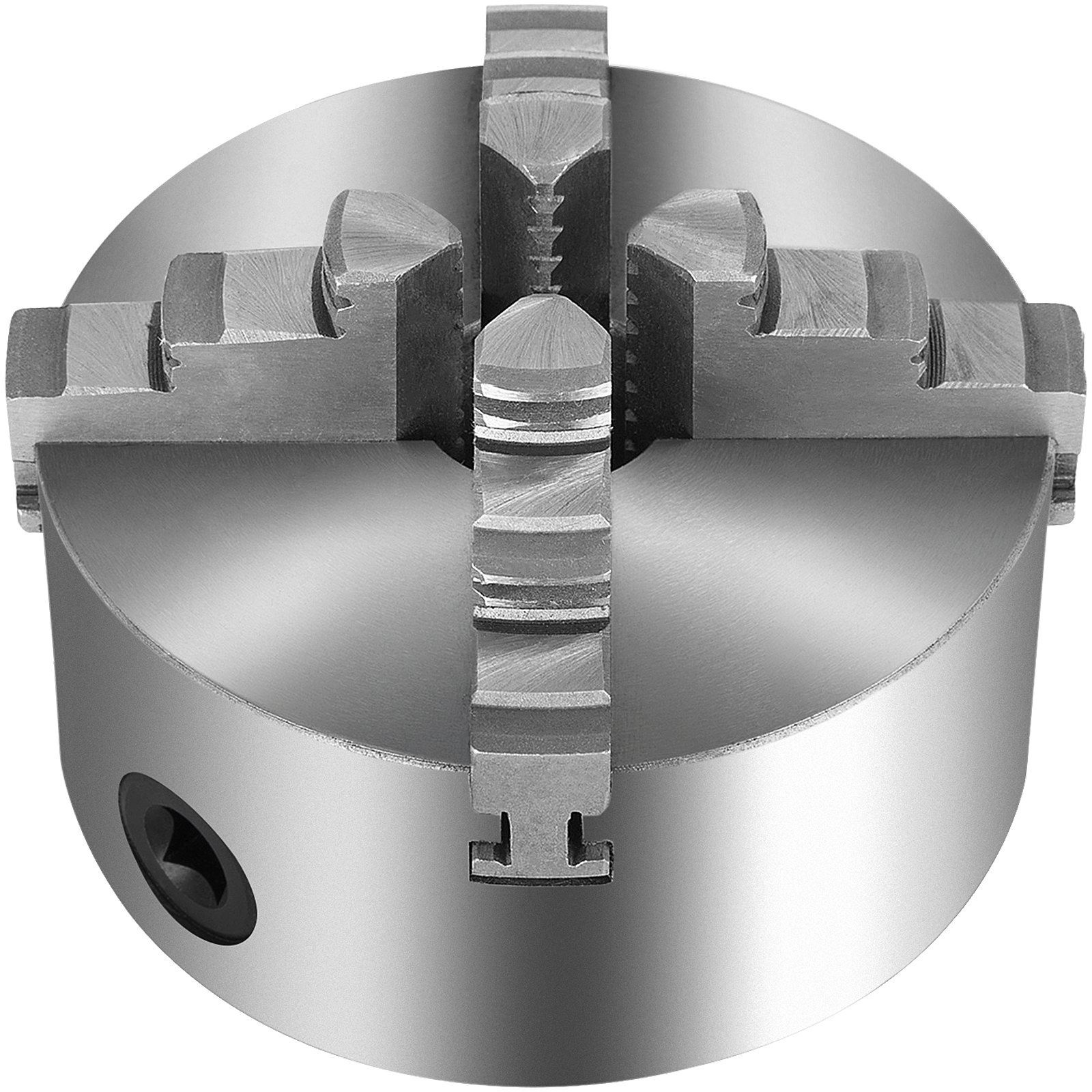

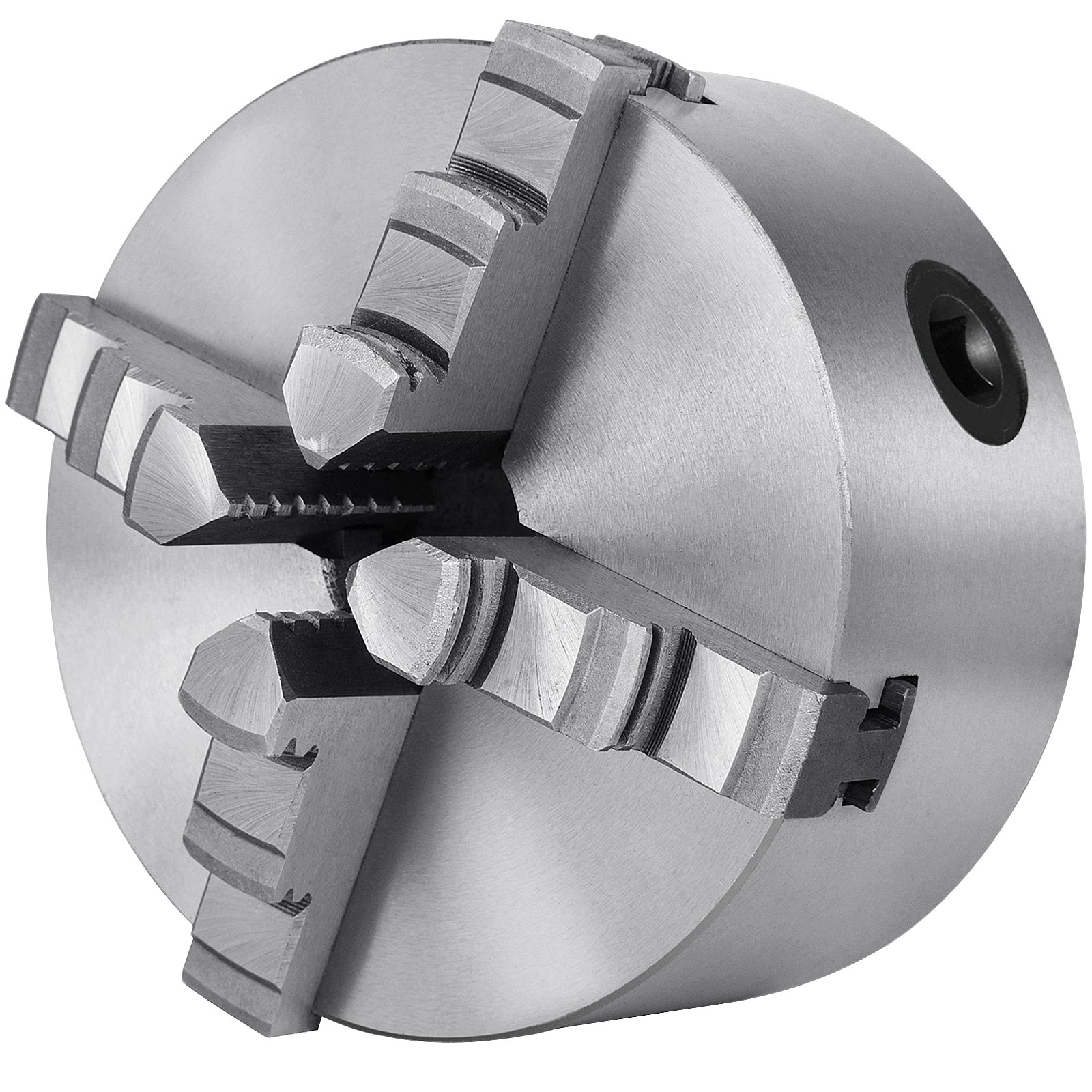

K12-125 4-Jaw Chuck for Metal Lathe
Self-Centering & 0.002" Accuracy & Extra 4 Jaws
The self-centering lathe chuck is composed of a strong cast iron body and four steel jaws so that it can withstand harsh working environments. It features a wide clamping range and high precision. After fastened by a single T handle, it can handle more objects than a 3-jaw one, in various shapes.
- Premium Construction

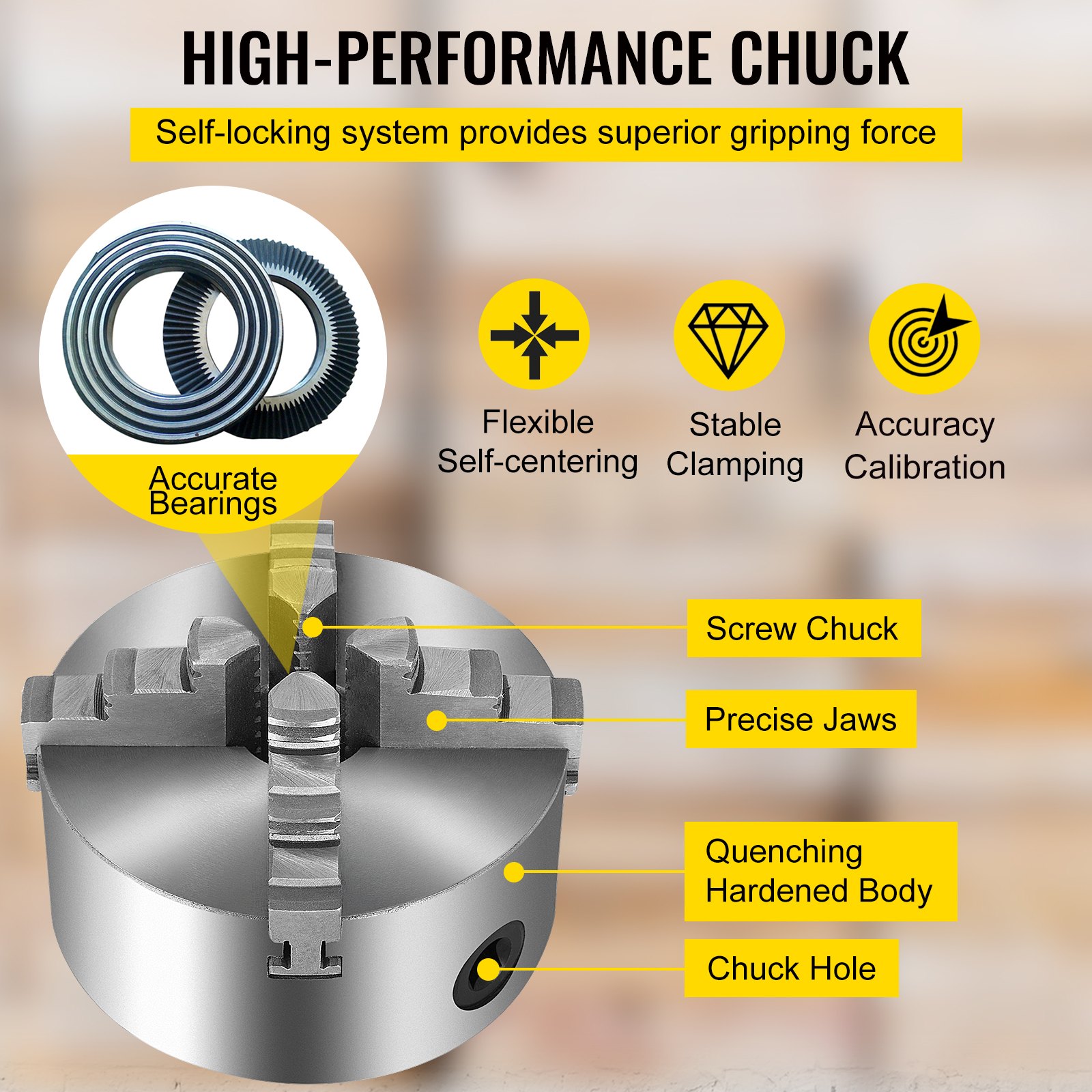

- High-Performance Chuck
- High Precision & Efficiency
- Effortless to Operate

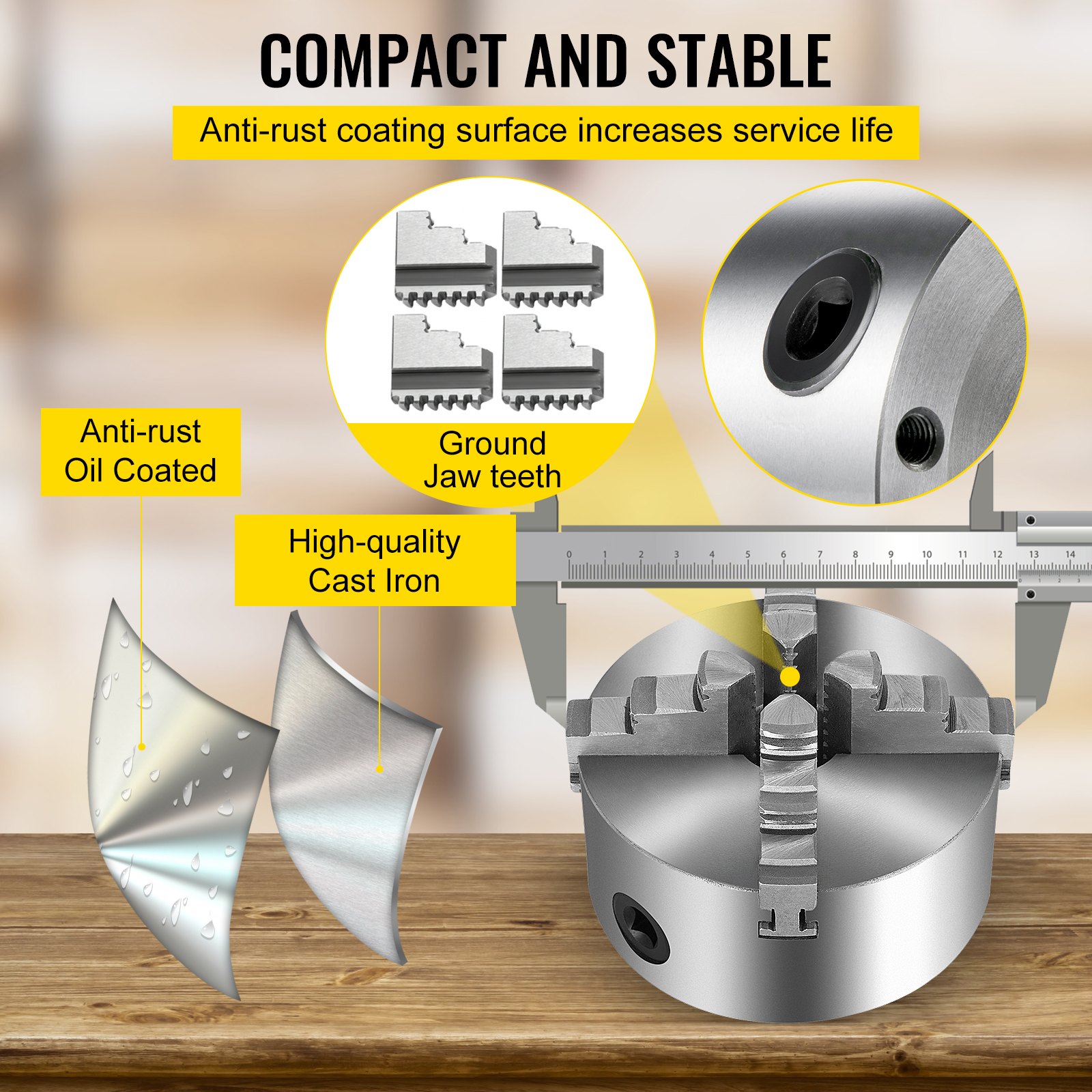

Quality Cast Iron
The lathe chuck is made of high-quality cast iron materials, rust and corrosion resistance. The surface is nicely ground with a nice radius on all external edges.
Two Sets of Jaws
The anti-skid lathe collet chuck comes with quenching stepped jaws. Jaws Material: 40CR Steel, supports high tensile strength, and adopts accurate treatment.
Self Centering Chuck

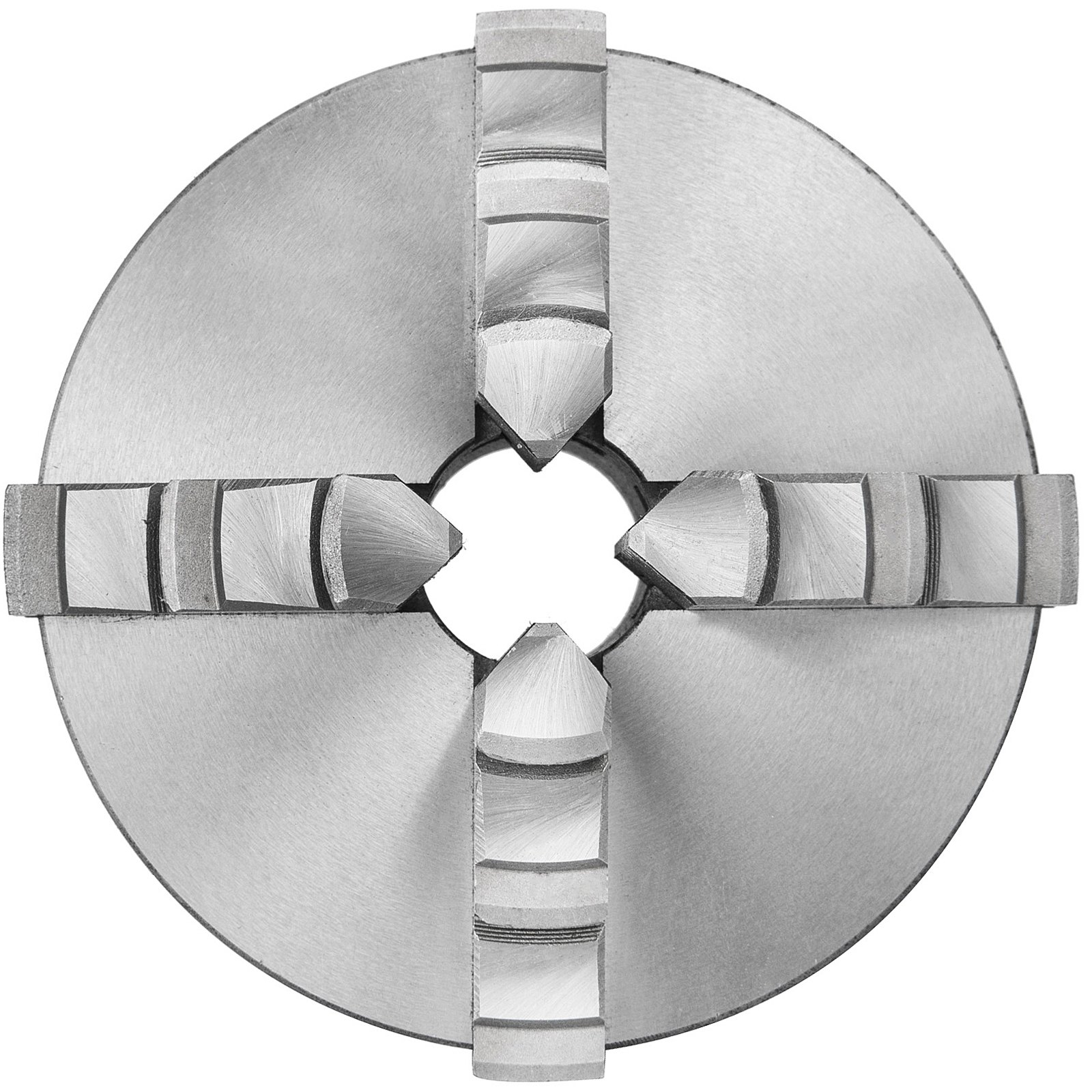

The four jaws will efficiently push the material to be processed from 4 directions simultaneously until it is held tightly. Linkage jaws make regulation more facilitate.
With Great Accuracy
The tolerance of the 4-jaw mini lathe chuck ≤ 0.003" / 0.07 mm works with few vibrations, ensuring accomplishing finished parts accurately.

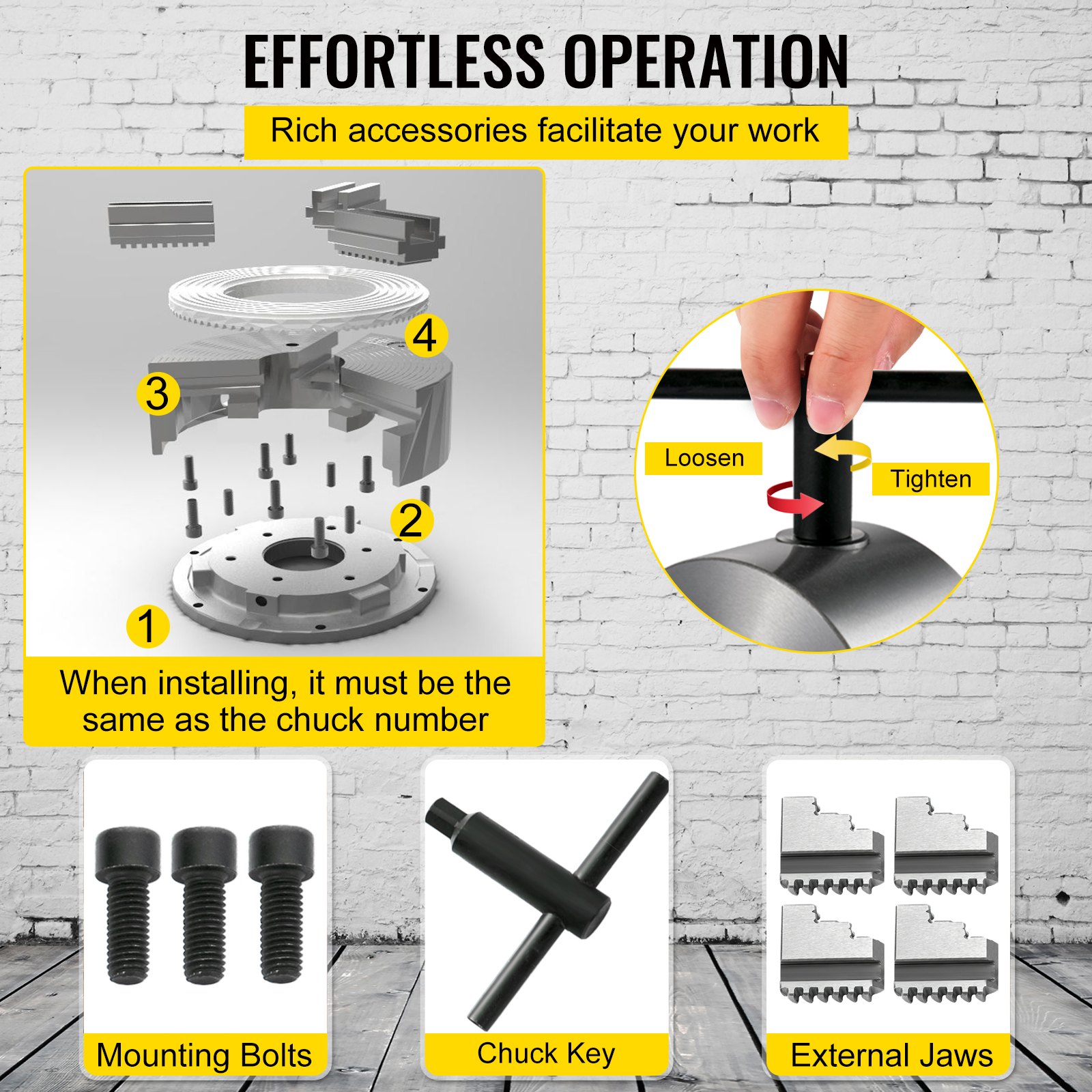

Simple Operation
It is effortless for you to adjust the jaws by turning the chuck key. Quicker installation leaves more time for real work, helps you to save time.
Wide Application

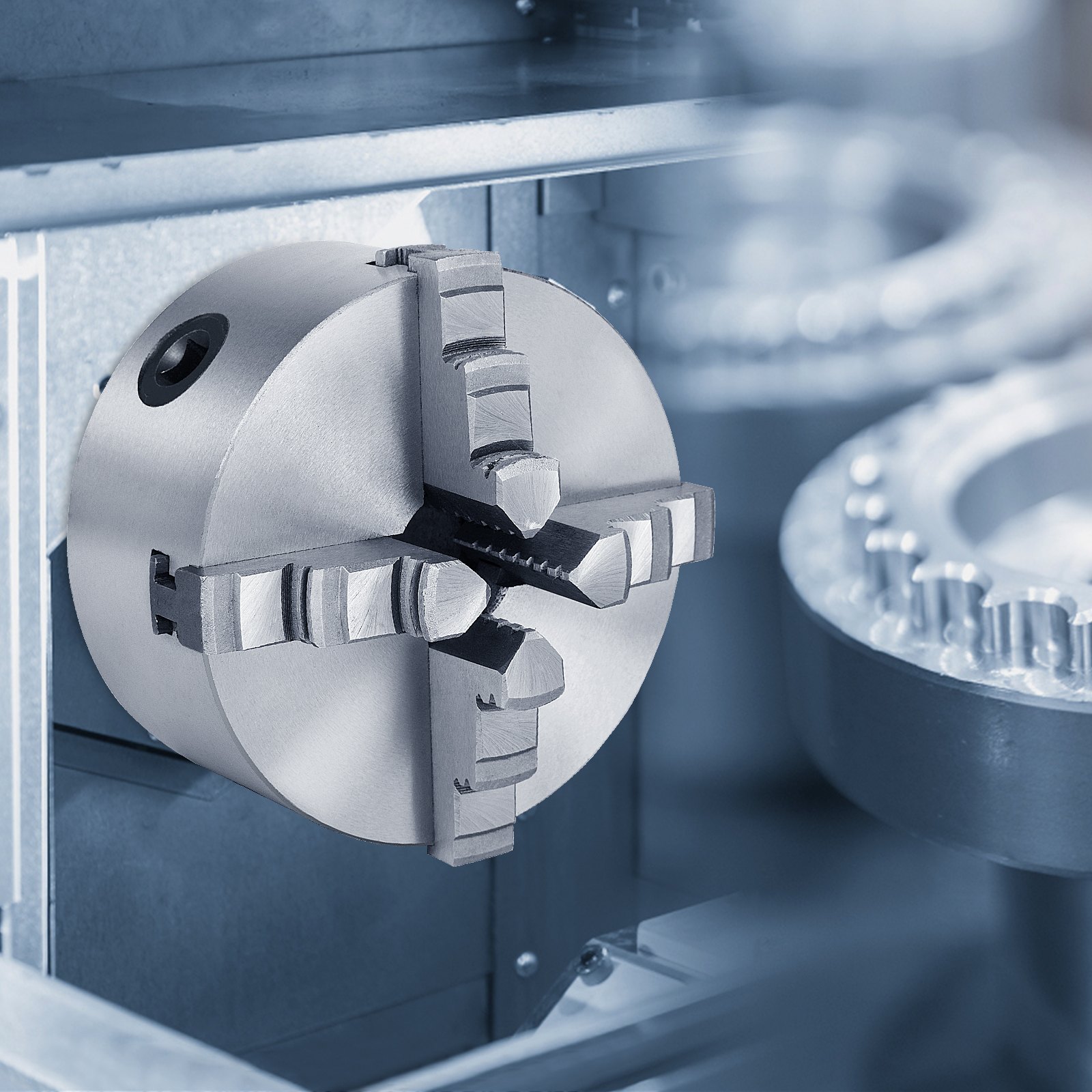

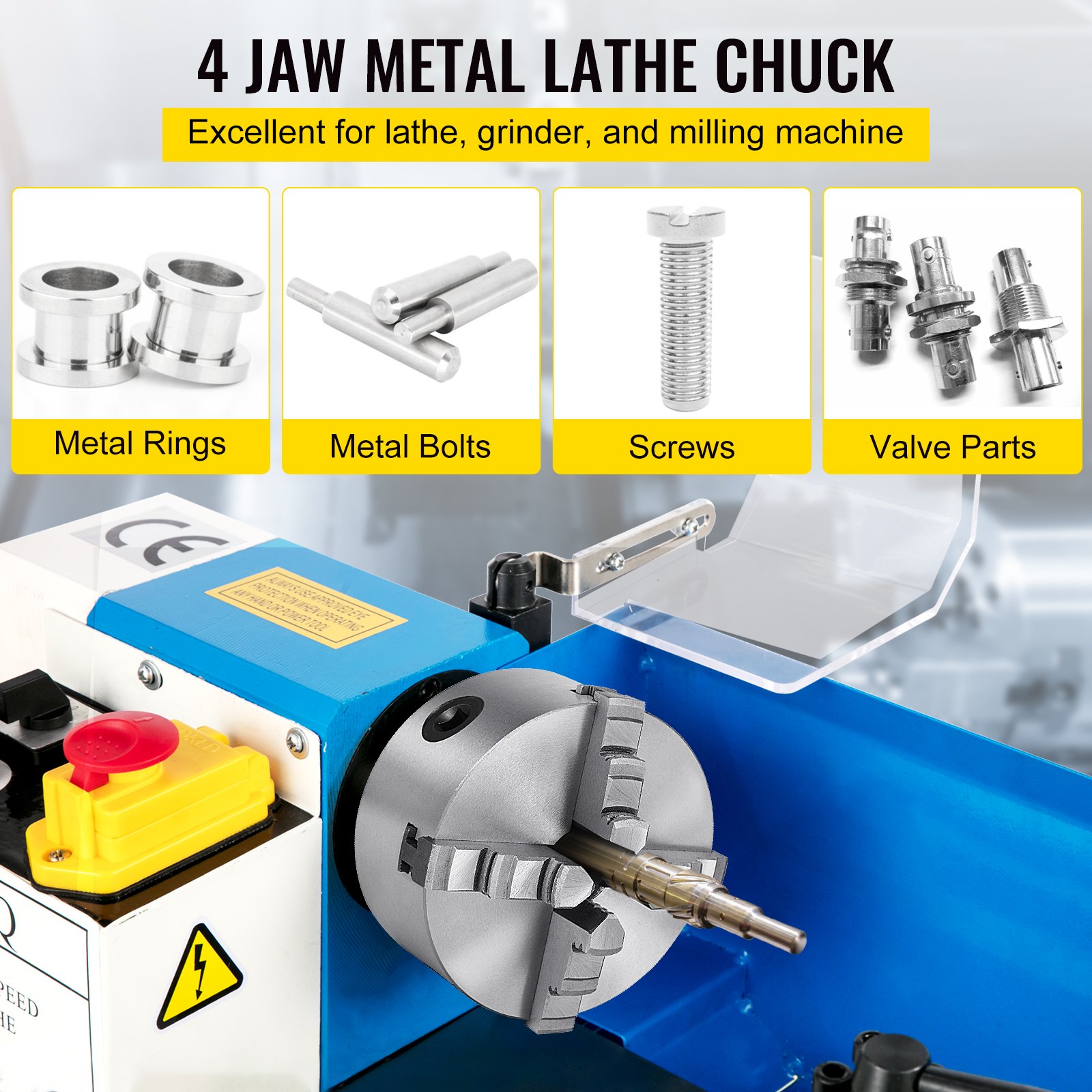

The manual self-centering chuck is compact and convenient, and it is the perfect choice for your lathe machine, grinding machines, or milling machines.

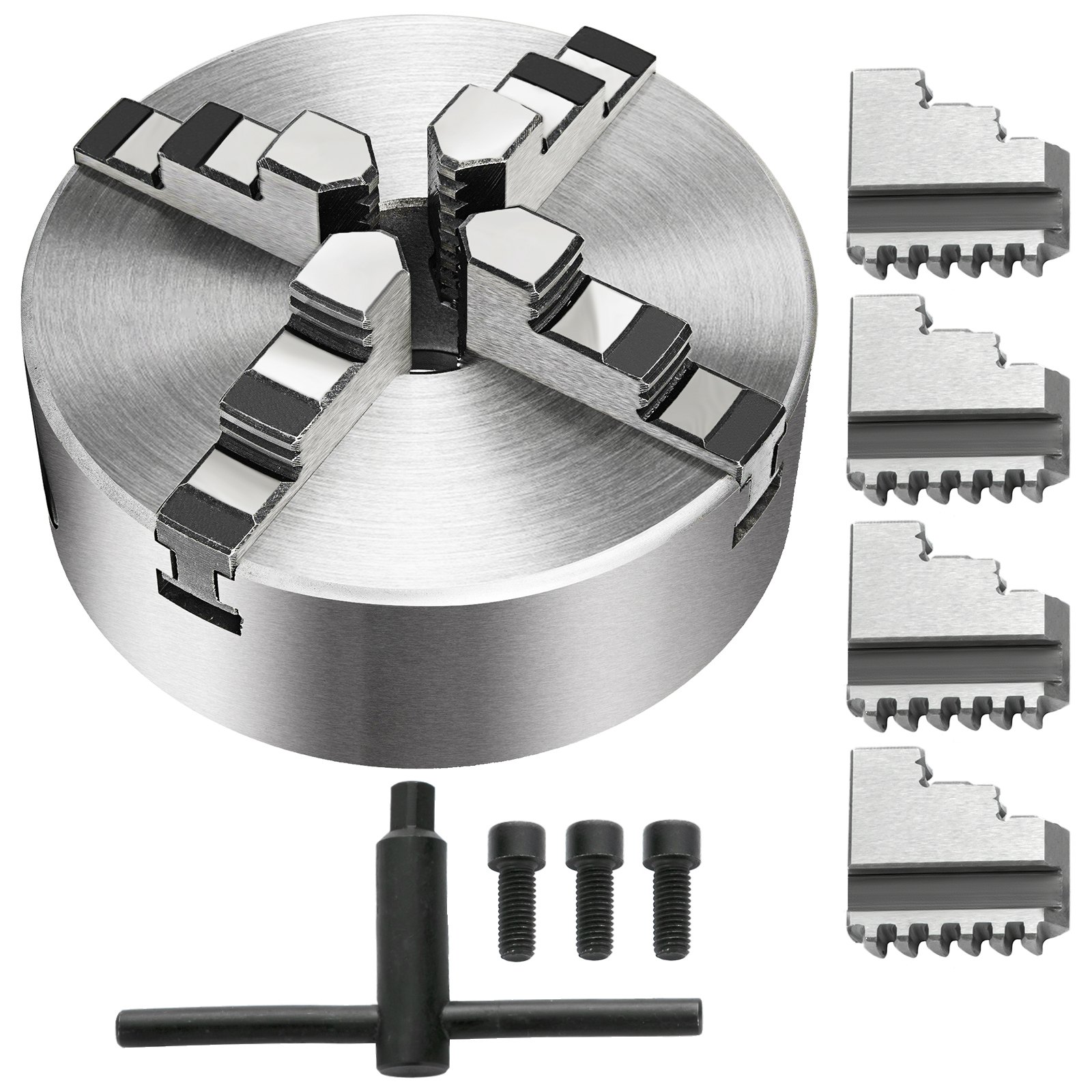

- 1 x Lathe Chuck Body
- 4 x Internal Jaws
- 4 x External Jaws
- 3 x Mounting Bolts
- 1 x Chuck Key
- Chuck Body Material: Cast Iron
- Jaws Material: 40CR Steel
- Bevel Gear Material: 40CR Steel
- Pinions Material: 20CR Steel

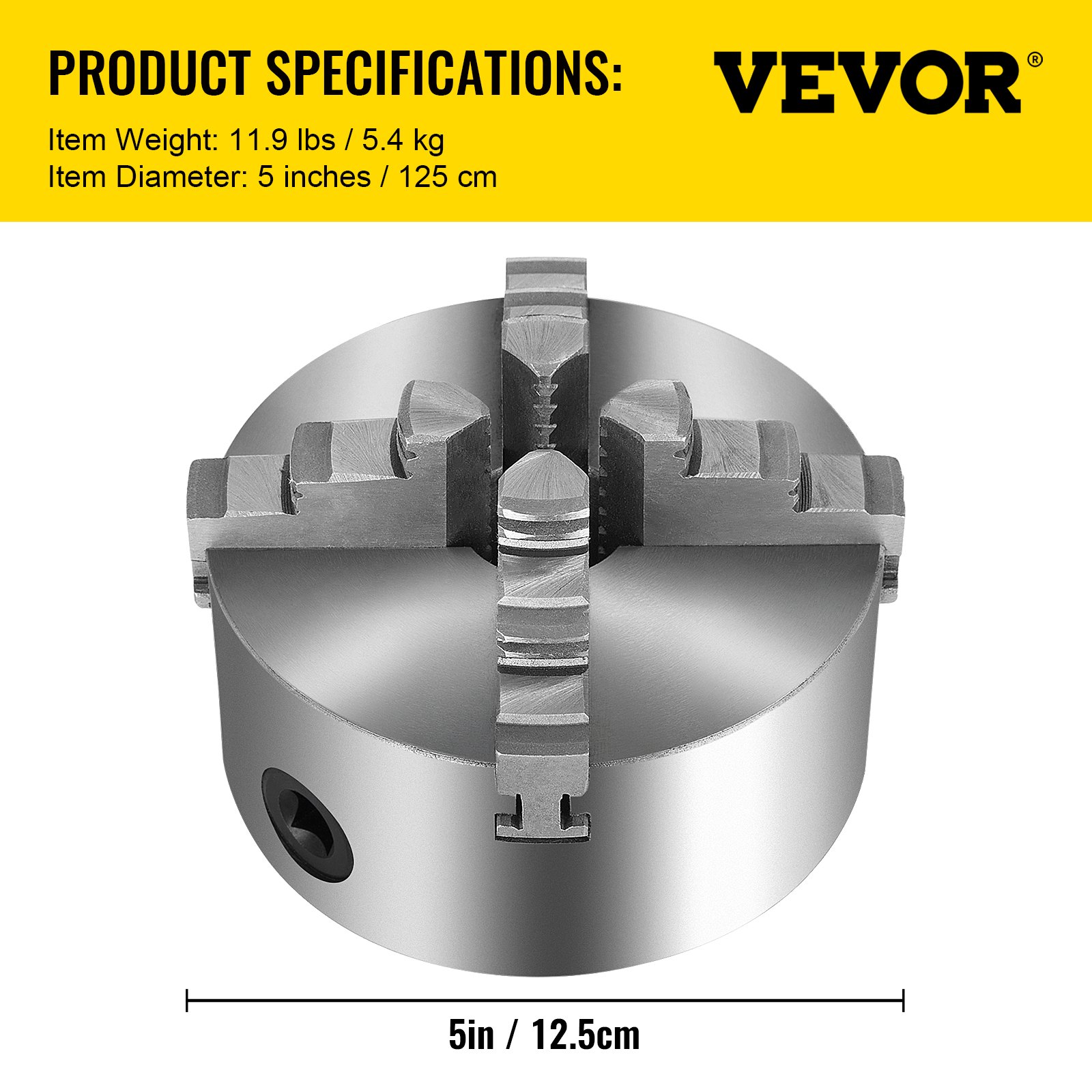

- Chuck Size: 5" / 125 mm
- Outside Diameter: 5" / 125 mm

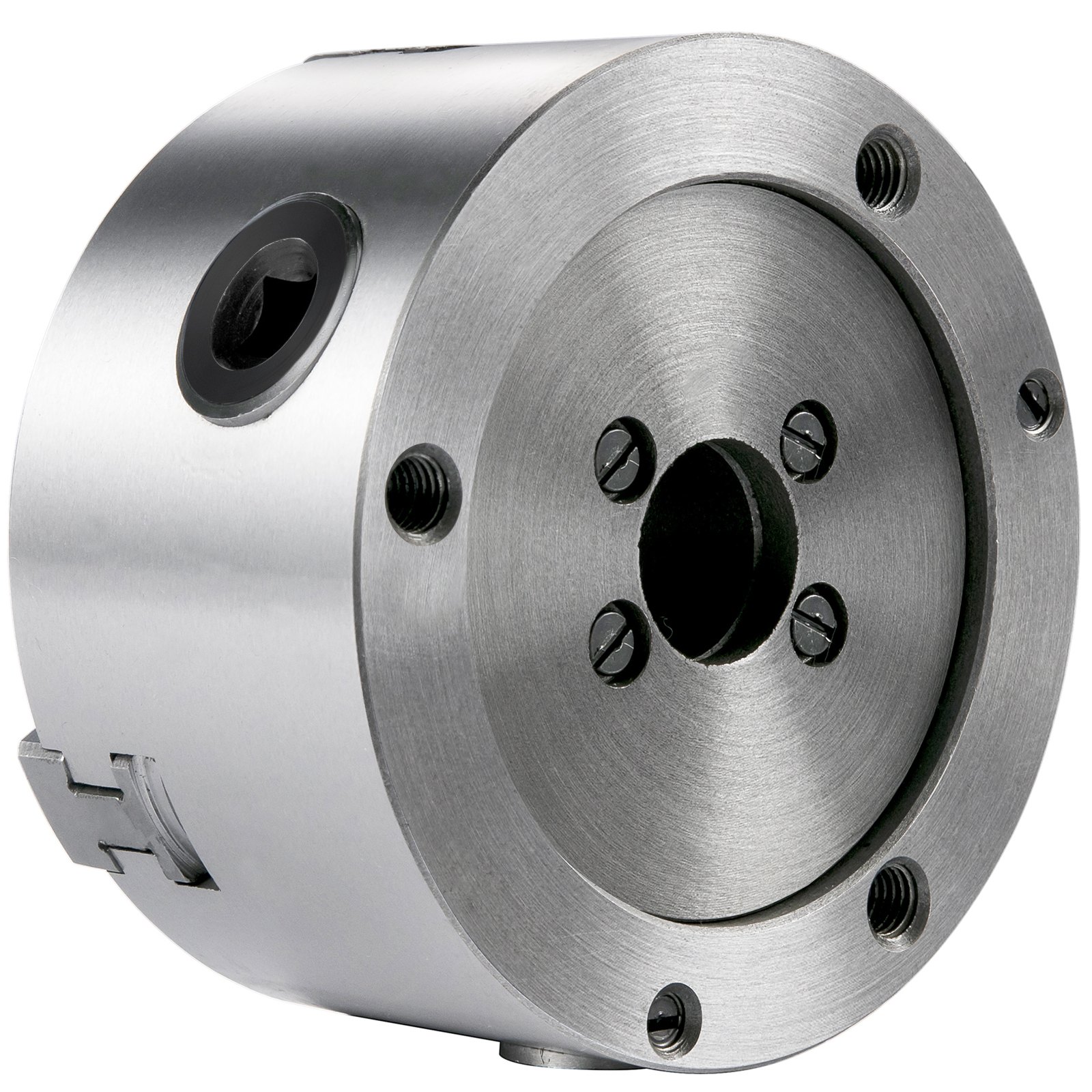

- Bolt Circle Diameter: 4.25" / 108 mm
- Center Thru Hole Diameter: 1.18" / 30 mm

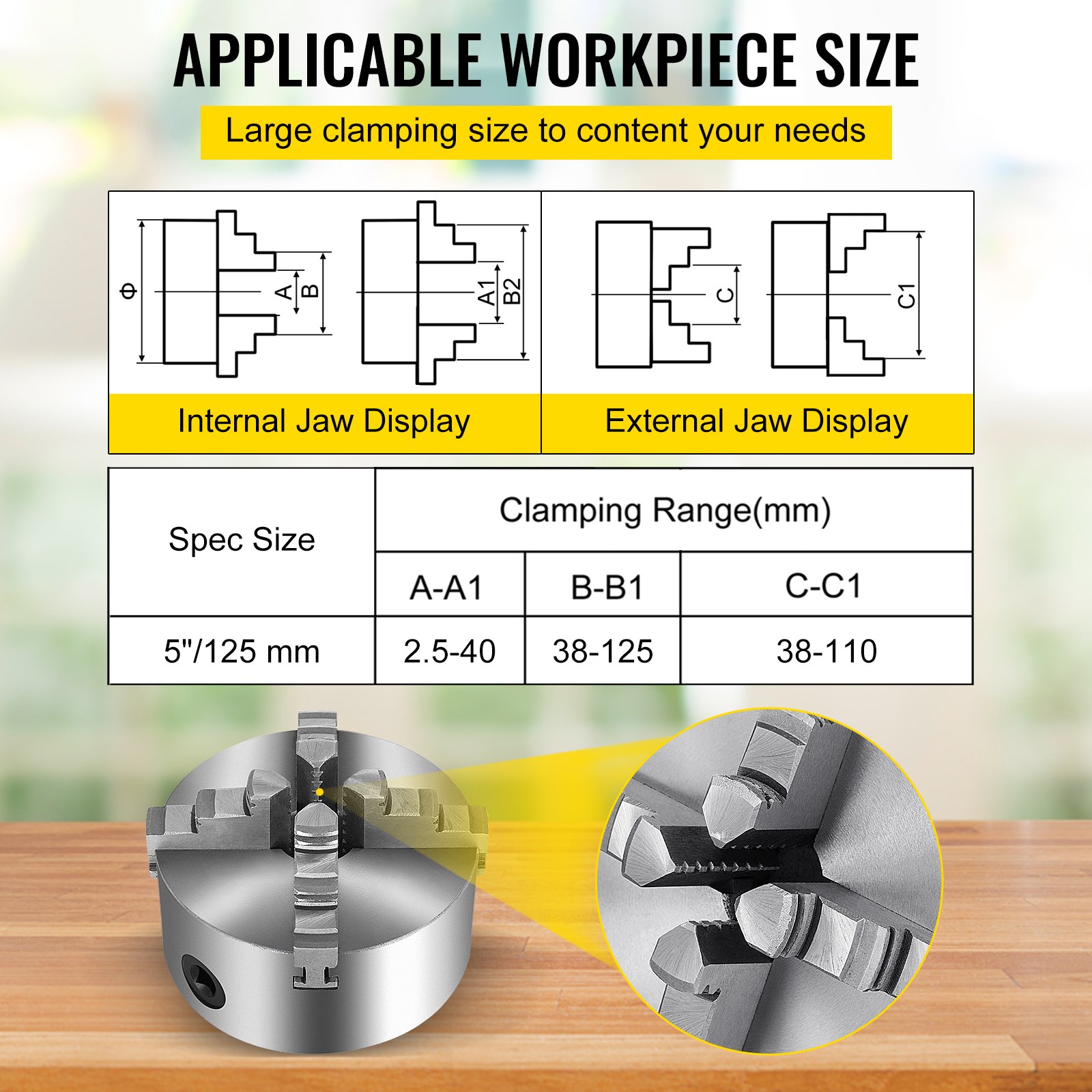

- Internal Jaw Clamping Range (A-A1): 0.098" - 1.575" / 2.5 - 40 mm
- Internal Jaw Jamming Range (B-B1): 1.5" - 5" / 38 - 125 mm
- External Jaw Clamping Range (C-C1): 1.5" - 4.33" / 38 - 110 mm
- Mounting Thread: 3-M8
- Accuracy: 0.003" / 0.07 mm
- Gross Weight: 11.9 lbs / 5.4 kg
