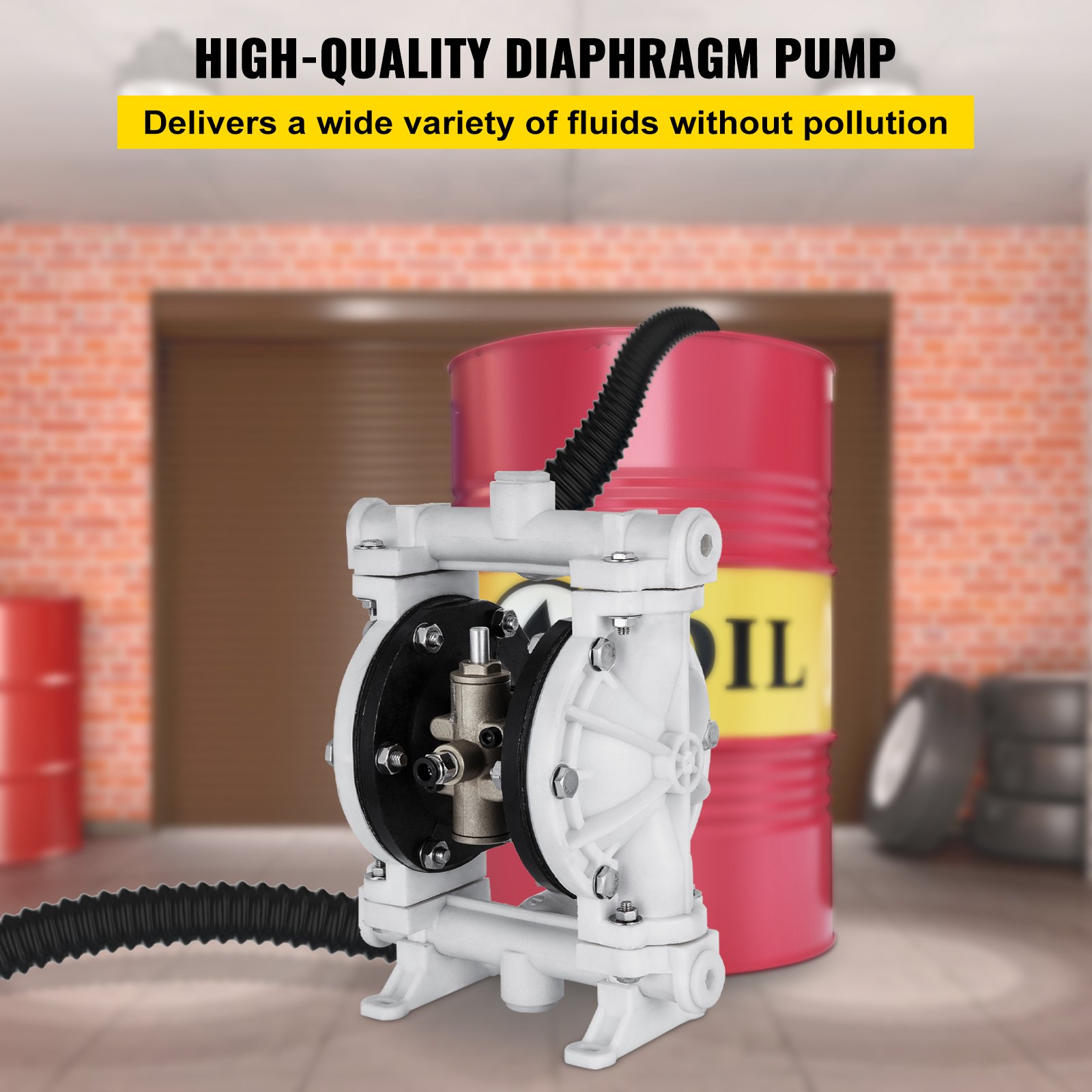

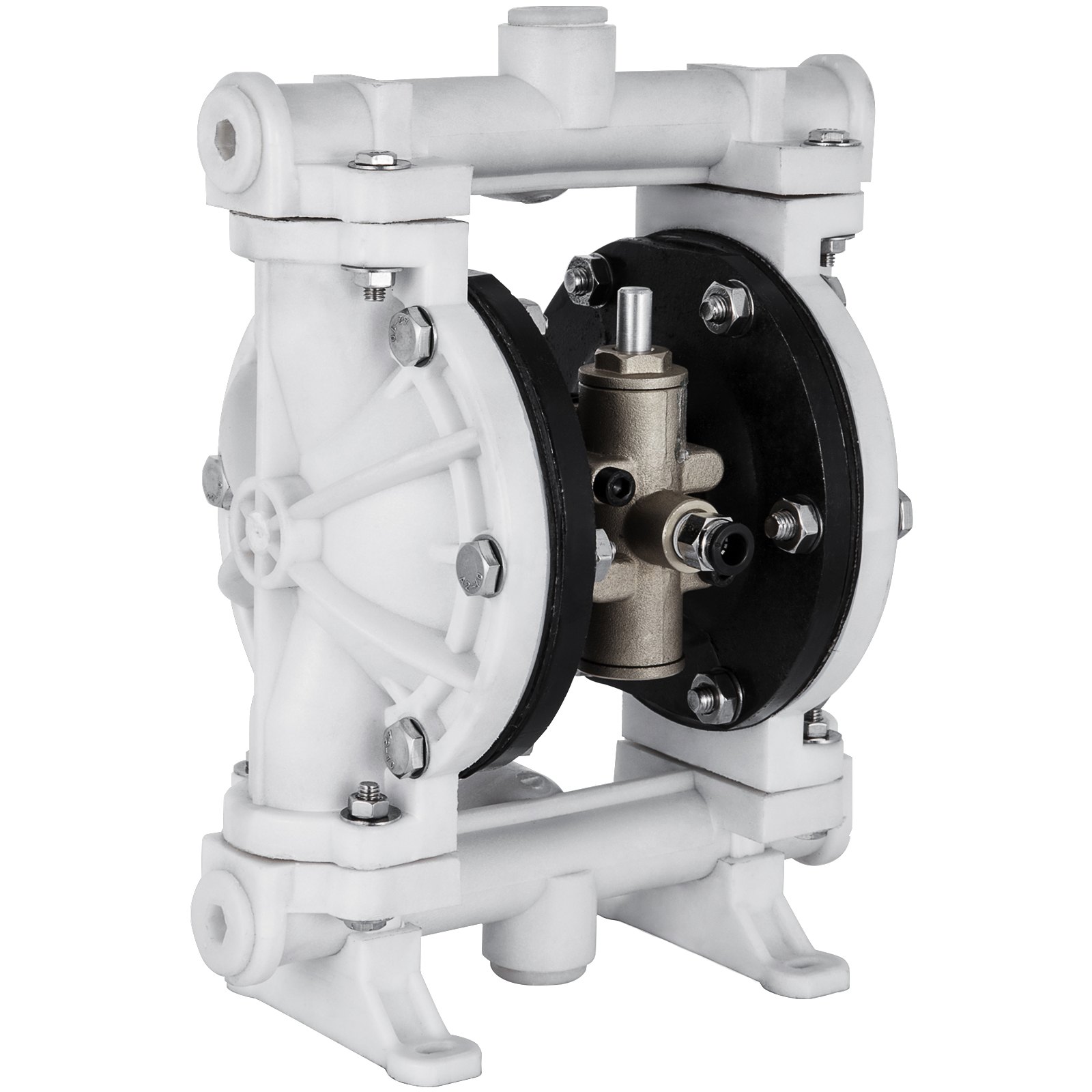

VEVOR air-operated double diaphragm pump with white and black design. VEVOR air-operated double diaphragm pump in front of oil drum in warehouse. VEVOR air-operated double diaphragm pump with bolted pp body, leak-proof, corrosion-proof. VEVOR air-operated double diaphragm pump with corrosion-resistant double ptfe diaphragms. VEVOR air-operated double diaphragm pump with labeled inlet and outlet ports. VEVOR air-operated double diaphragm pump conveying waste oil, alcohol, hydraulic fluid, ink, drinks, detergent, gasoline, diesel, and water. VEVOR air-operated double diaphragm pump dimensions and usage in industrial settings.
YBGMBQBY-15PP0001V0

Air Double Diaphragm Pump 2.5 GPM 150℉ 1/2Inch Inlet And Outlet

Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive 5,00€ off for your first three orders on the App.
Download Now
Exclusive 5,00€ off for your first three orders on the App.
Scan the QR code to download

Plastic

  • Plastic
  • Stainless steel
  • Cast Iron

2,5 GPM

  • 2,5 GPM
  • 7 GPM
  • 12 GPM
  • 72 GPM

About this item

  • Premium Double PTFE Diaphragms: Our air-operated double diaphragm pump adopts PTFE diaphragms, durable, corrosion-proof, and long-lasting. Max. Temperature: 150 ℉/66 ℃; Max. Pressure: 80 psi; Max. Flow Rate：2.5 GPM; Max Head Lift：226.4 ft/69 m.
  • Sturdy & Leak-proof Construction: The diaphragm pump housing is made of polypropylene material, bolted against leakage, sturdy, and corrosion-proof for long-time use.
  • Excellent Air-operated Performance: Inlet/Outlet Port Size: 1/2 inch (12.7 mm); Air Inlet Size: FNPT 1/4 inch (6.35 mm). A high-quality glyd ring, the double-acting sealing, strengthens air performance.
  • Unique & Professional Designs: Our double diaphragm pump features an externally available air distribution system. The modular air valve is stainless. This low pulsation air valve provides smooth and rapid changeover for increased efficiency and minimizes downtime.
  • Wide Applications: This diaphragm pump can handle various fluids, such as waste oil, alcohol, hydraulic fluid, gasoline, diesel, detergent, drink, and so on. It is widely used in many industries, such as petroleum, metallurgy, mining, coating, printing, water treatment, and automobile.
See More See Less

Frequently Bought Together

People Who Bought This Item Also Bought

Air Double Diaphragm Pump 2.5 GPM 150℉ 1/2Inch Inlet And Outlet
Plastic 2,5 GPM
Description Specification Questions and Answers

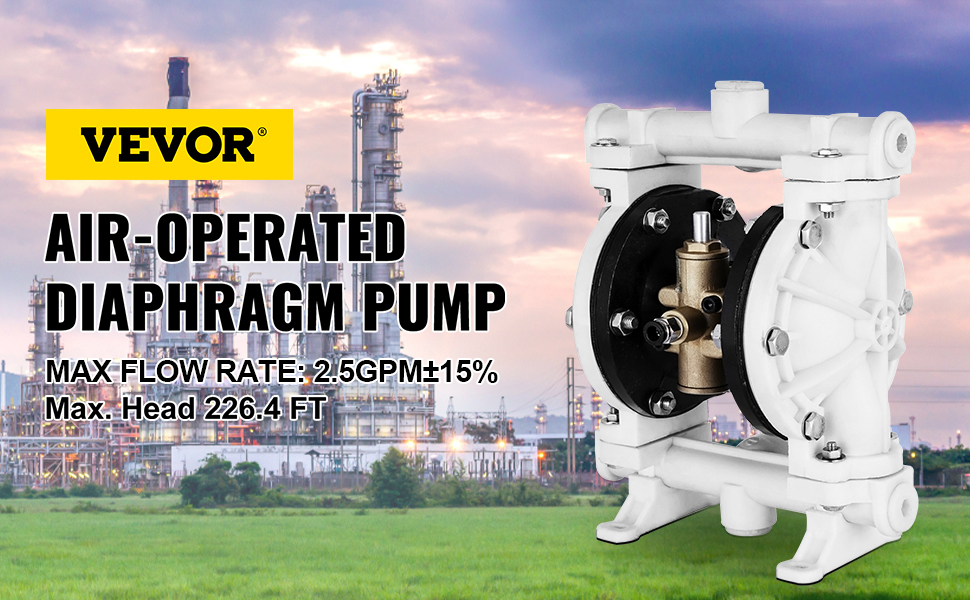

VEVOR air-operated double diaphragm pump with industrial background and specs.

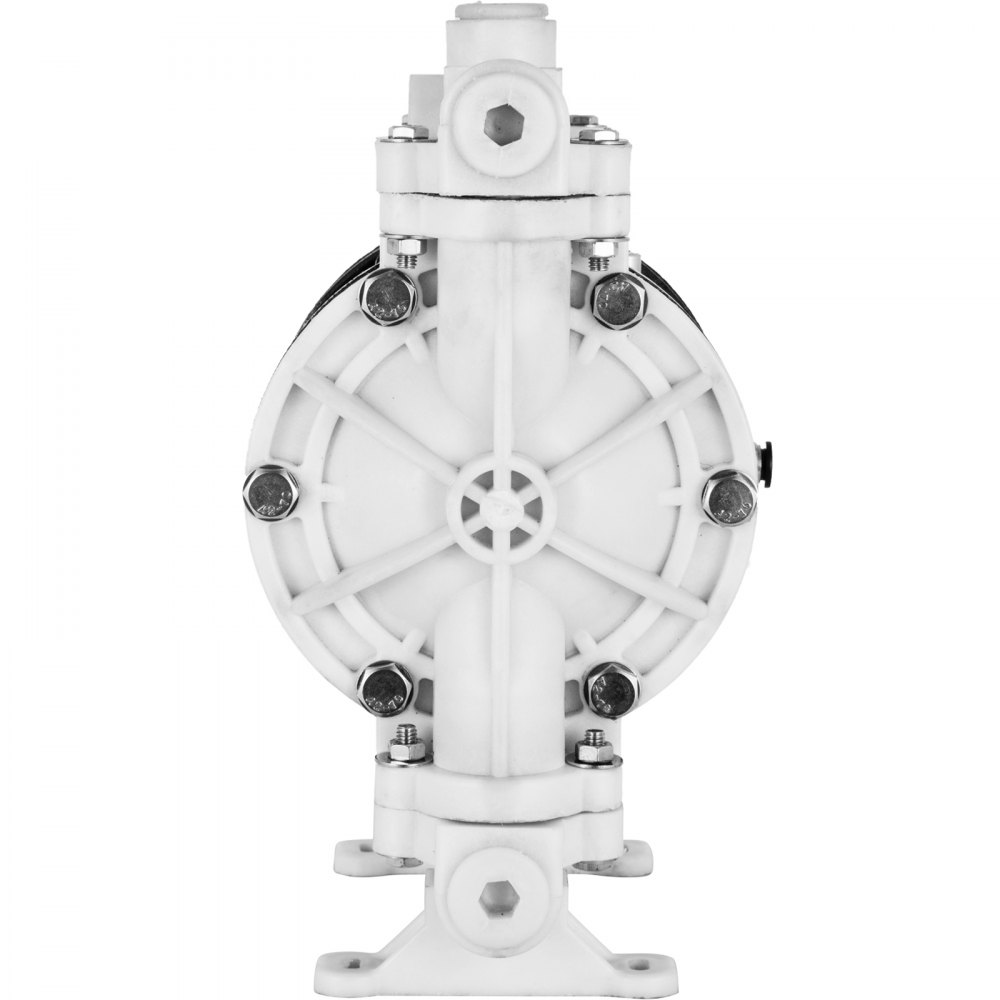

VEVOR air-operated double diaphragm pump with dual chambers and stainless steel bolts.
Air-Operated Double Diaphragm Pump Polypropylene Construction & PTFE Diaphragm & 2.5 GPM Flow Rate Our self-priming diaphragm pump features an all-bolted polypropylene body and double PTFE diaphragms, sturdy and corrosion-proof, without leakage. Sealed ball valves and non-stall operation provides outstanding performance. It is perfect for transferring viscous and flammable fluids. Our top of the line self-priming diaphragm pump will ensure your operations are flowing smoothly.
Premium Double PTFE Diaphragms
Excellent Air-operated Performance
  • Unique & Professional Designs

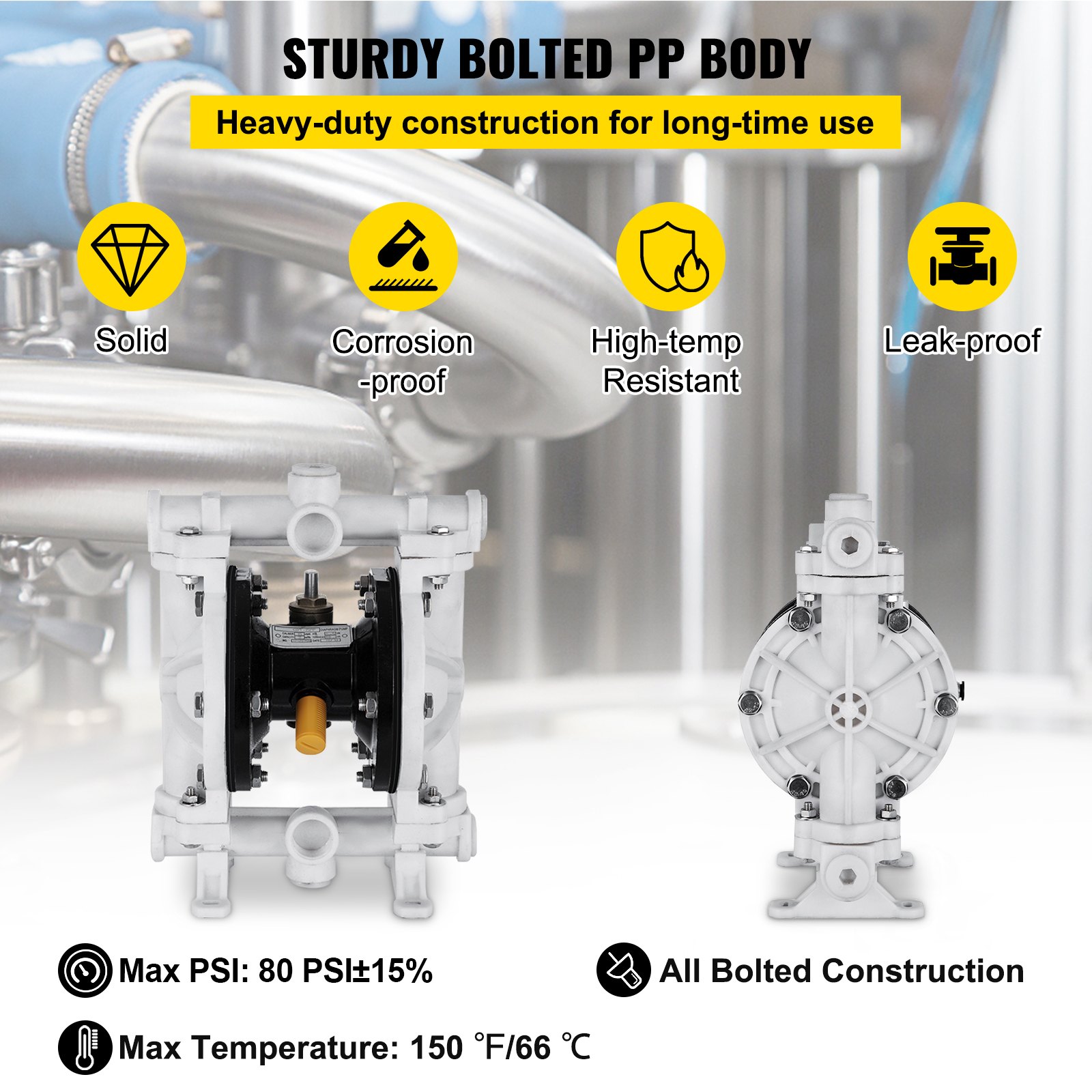

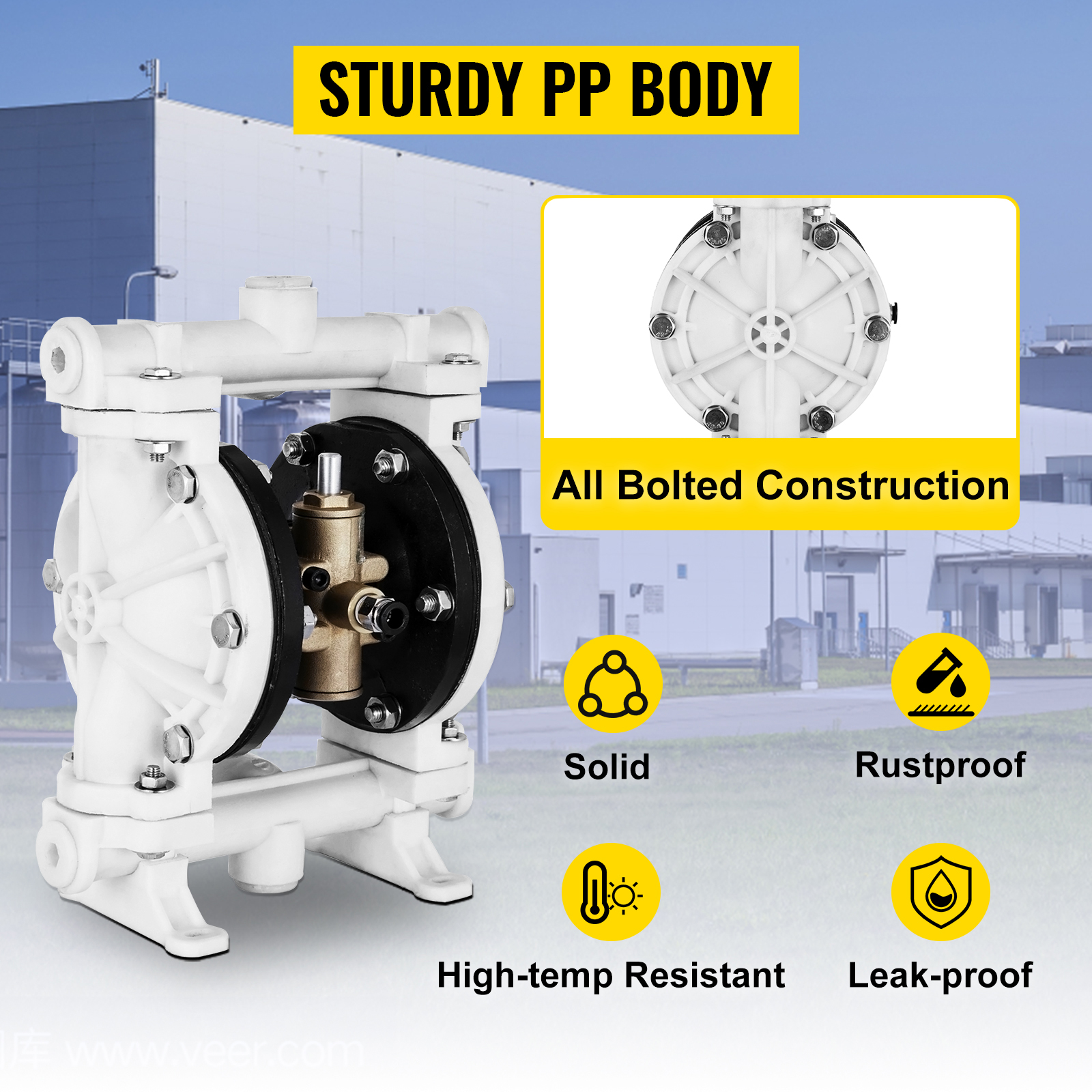

VEVOR air-operated double diaphragm pump with sturdy pp body, solid, rustproof, and leak-proof features.
Sturdy Polypropylene Body
The shell of the air-operated diaphragm pump adopts polypropylene construction, all bolted, solid, and corrosion-proof. Max. Temperature: 150 ℉/66 ℃; Max. Pressure: 80 psi.

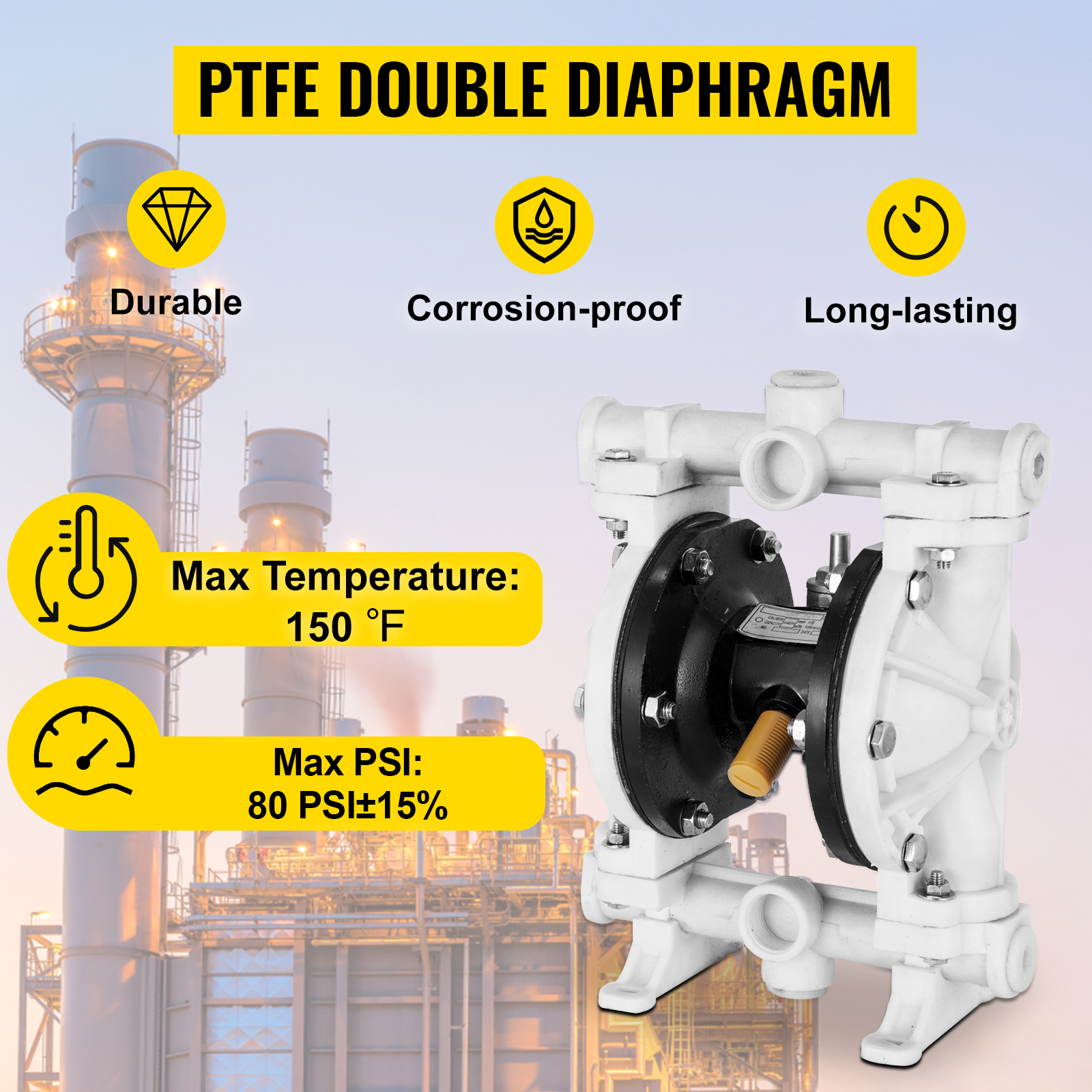

VEVOR air-operated double diaphragm pump: durable, corrosion-proof, long-lasting.
PTFE Double Diaphragm

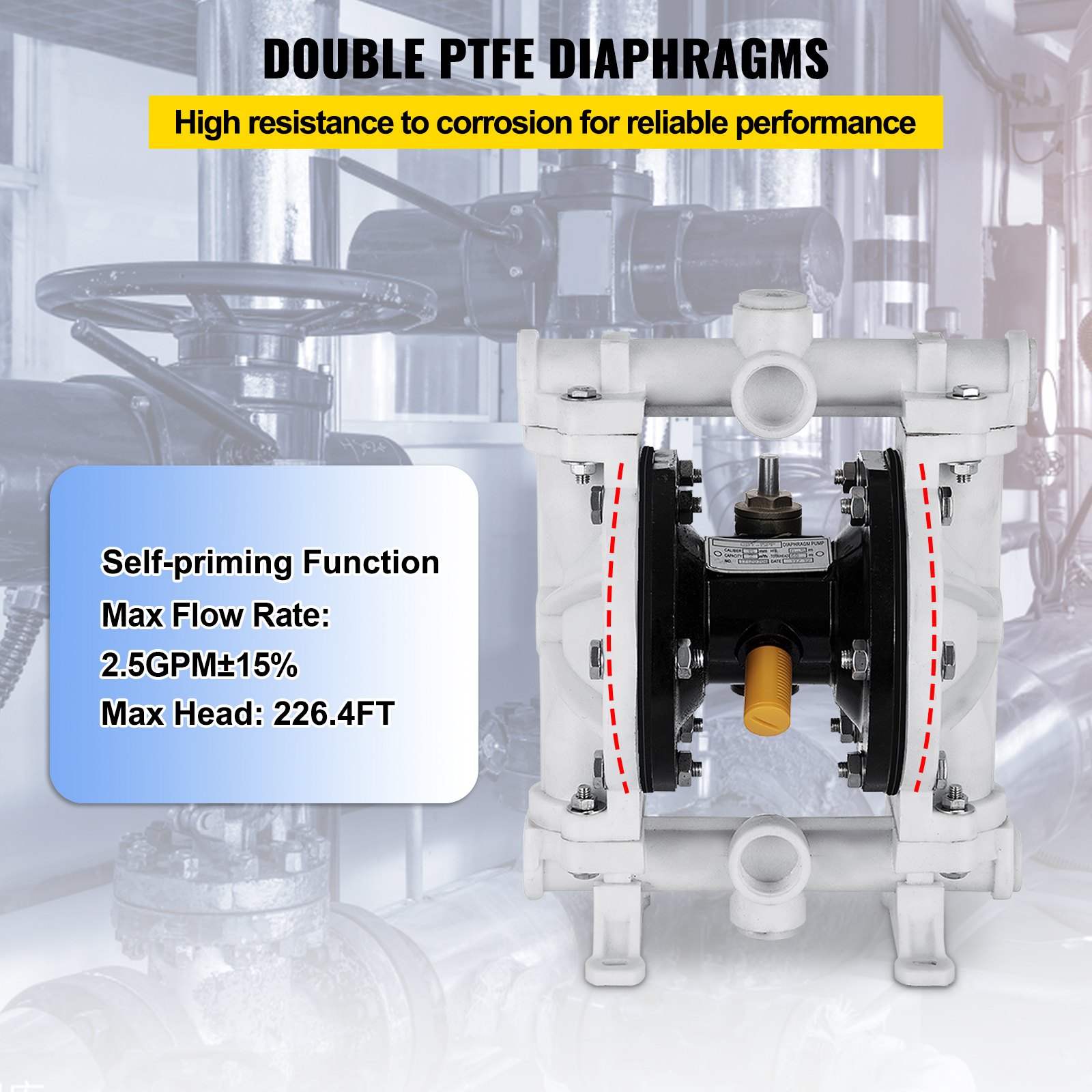

The self-priming pump features double PTFE diaphragms, which have high resistance to corrosion and aging. Max. Flow Rate：2.5 GPM; Max Head Lift：226.4 ft/69 m.

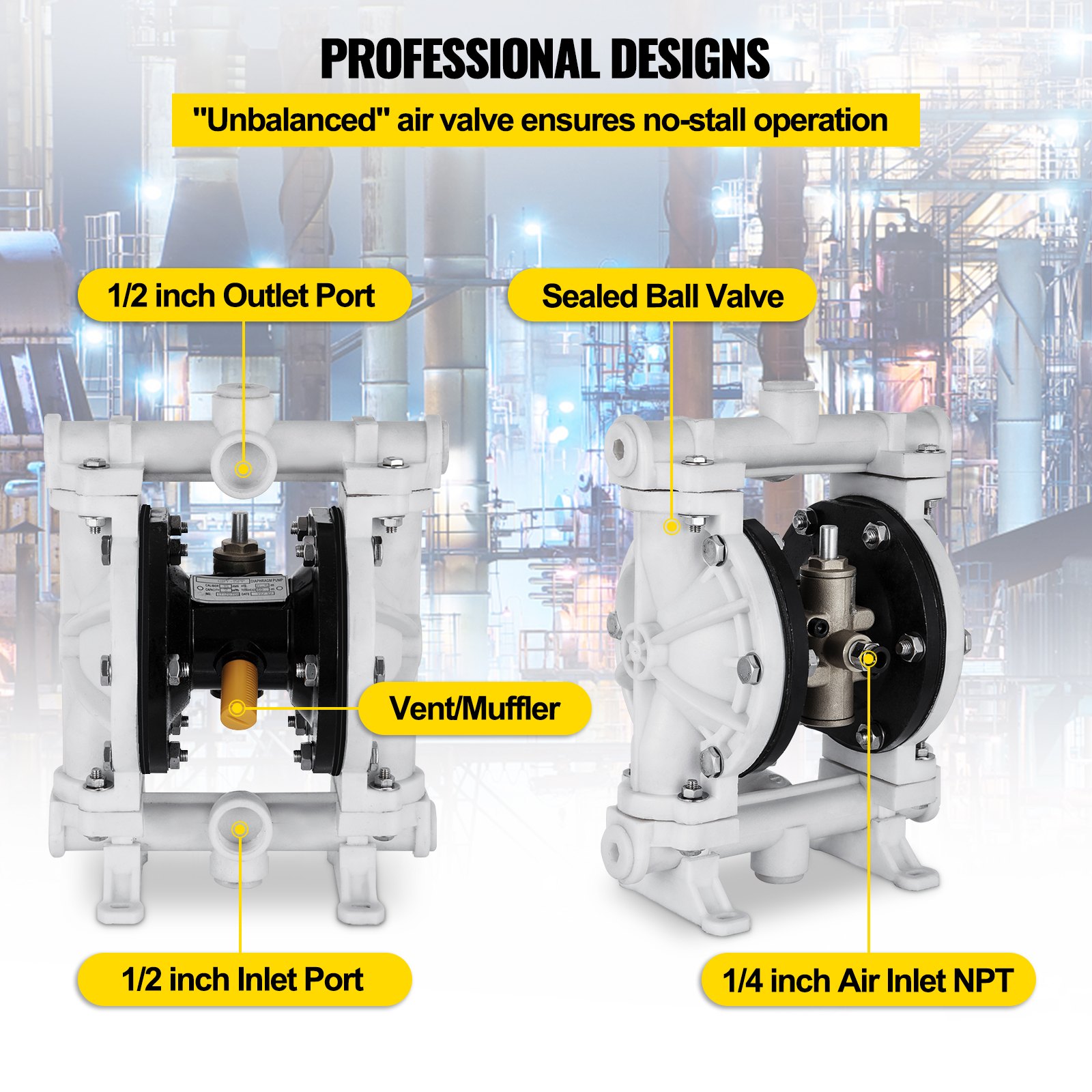

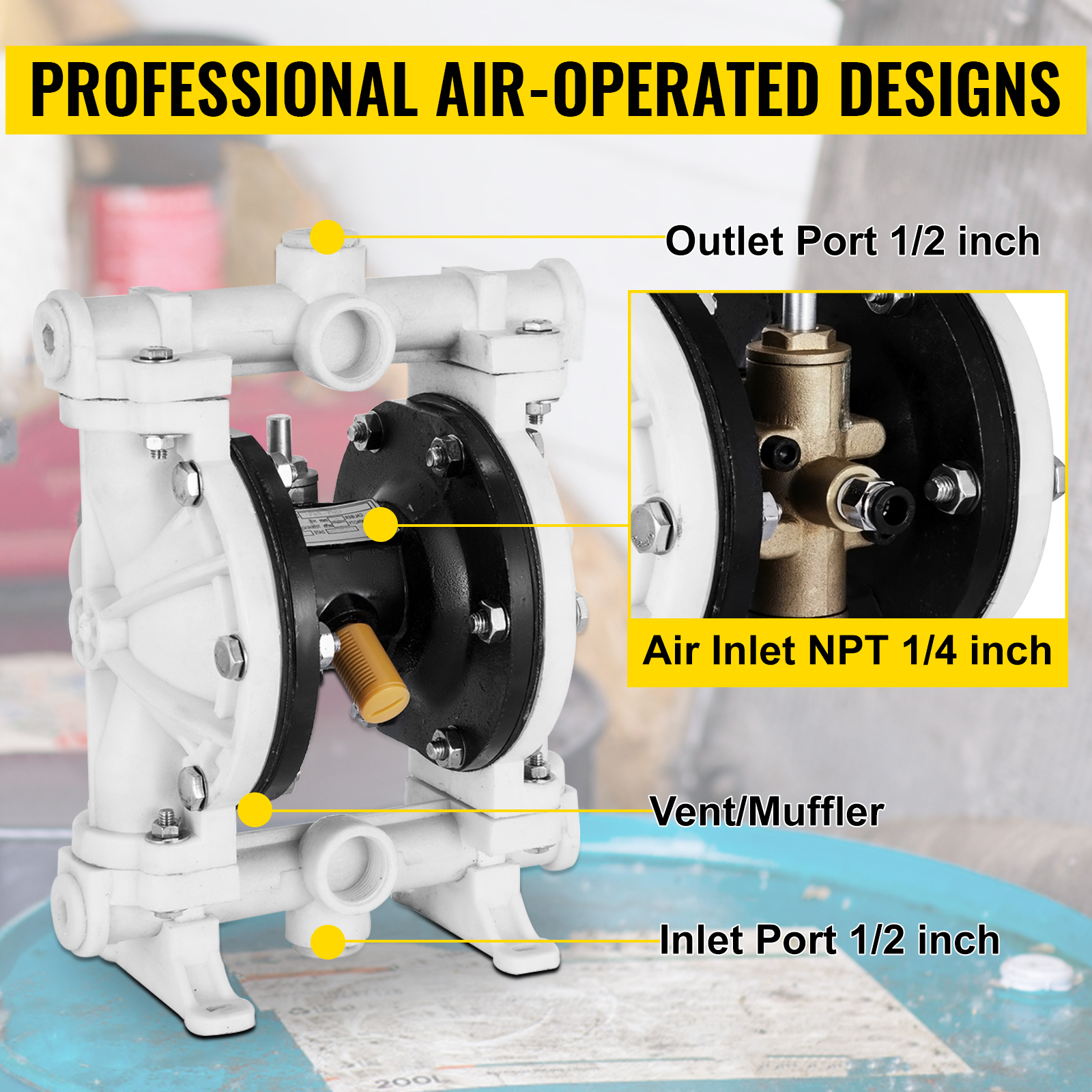

VEVOR air-operated double diaphragm pump with labeled ports and inlets.
Professional Air-Operated Designs
Our diaphragm pump is built to meet the international standard for reliable performance. Inlet/Outlet Port Size: 1/2 inch (12.7 mm); Air Inlet Size: FNPT 1/4 inch (6.35 mm).

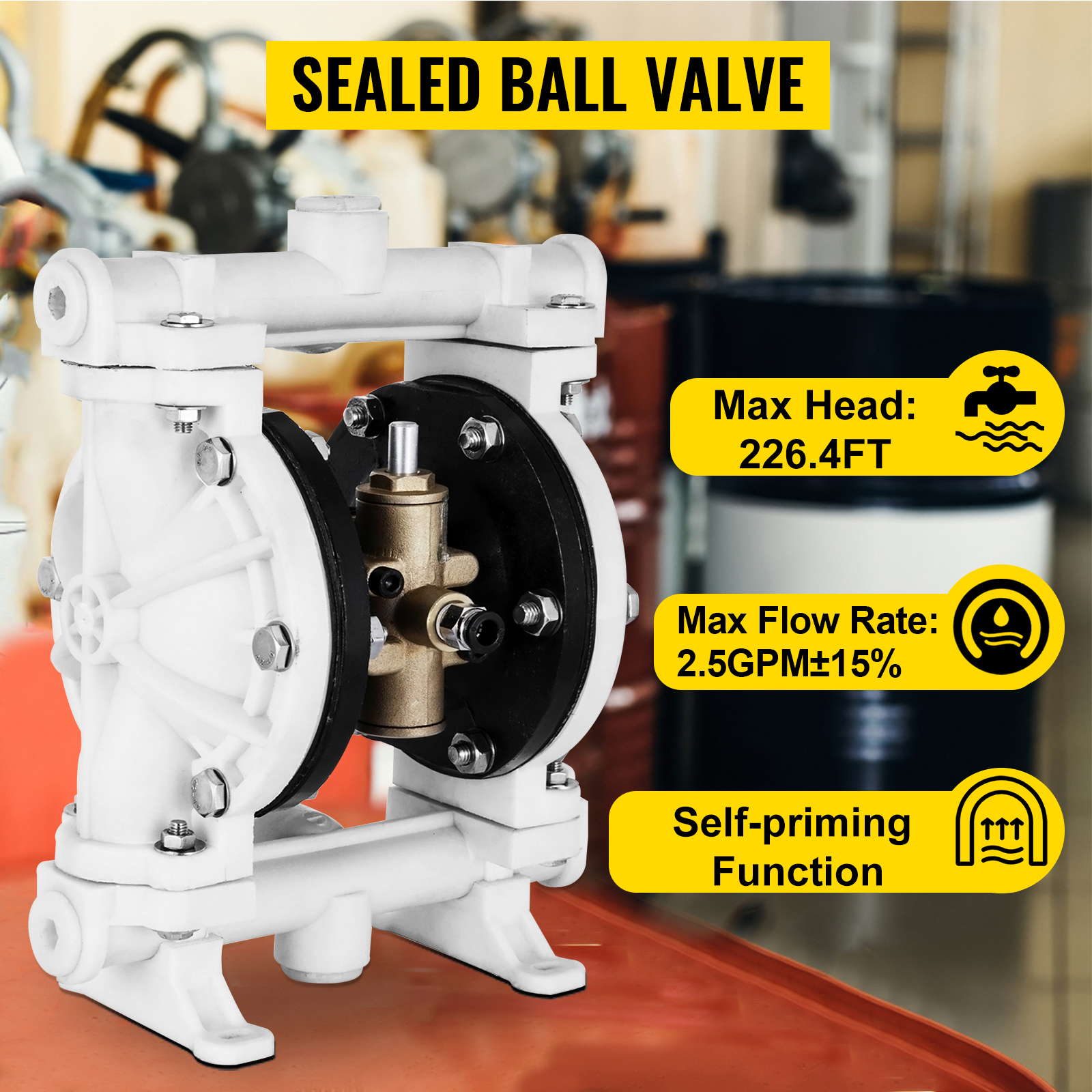

VEVOR air-operated double diaphragm pump with sealed ball valve on a workshop table.
Sealed Ball Valve
It is easily accessible to ball checks and fluid caps for maintenance and repairs. In addition, the motor design delivers optimum air efficiency. An “Unbalanced" air valve ensures no-stalling during operation.
VEVOR air-operated double diaphragm pump handling various materials like waste oil and water.
Handle Various Material
This air-operated diaphragm pump can transfer many viscous and flammable fluids, including waste oil, alcohol, hydraulic fluid, gasoline, diesel, detergent, drinking water, and so on.

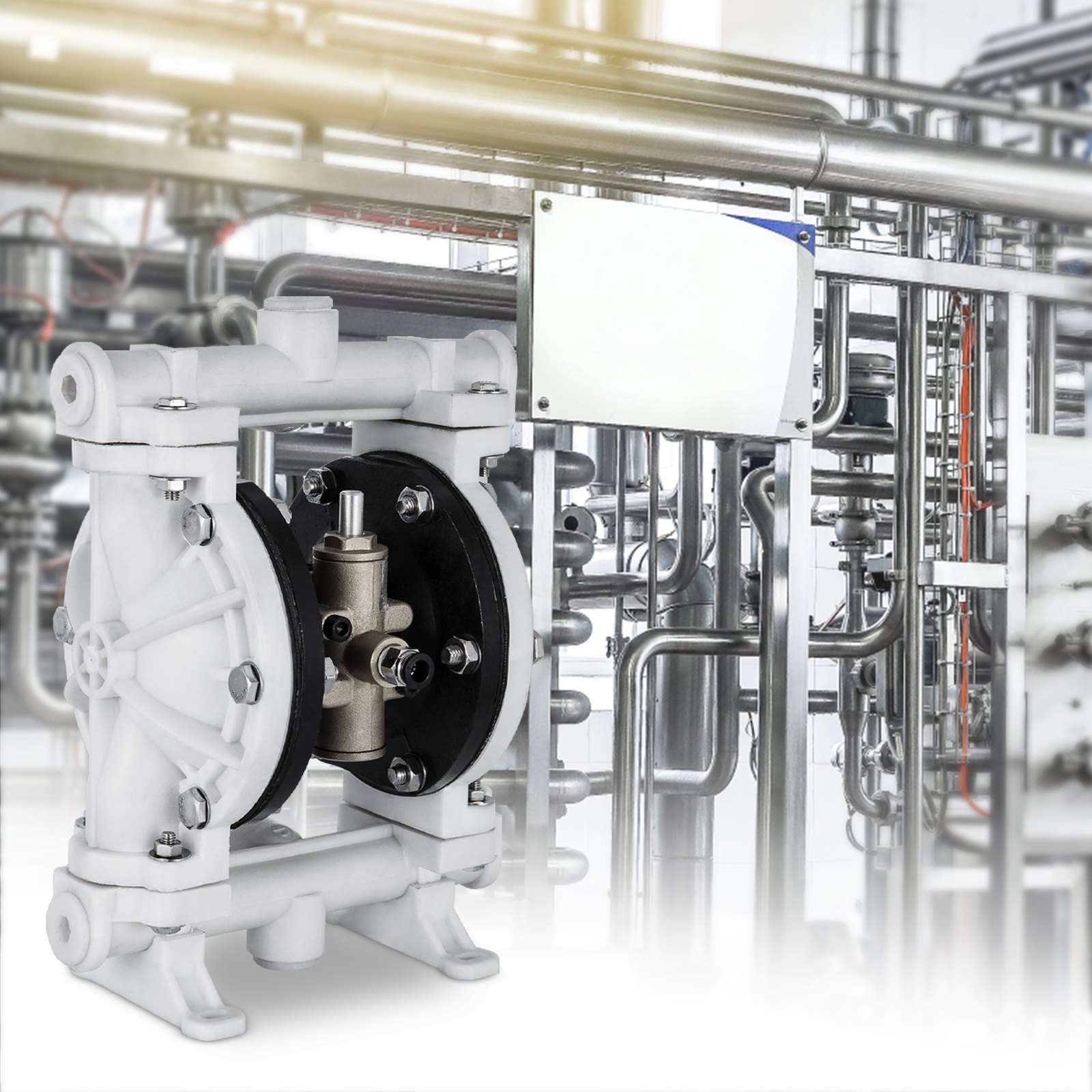

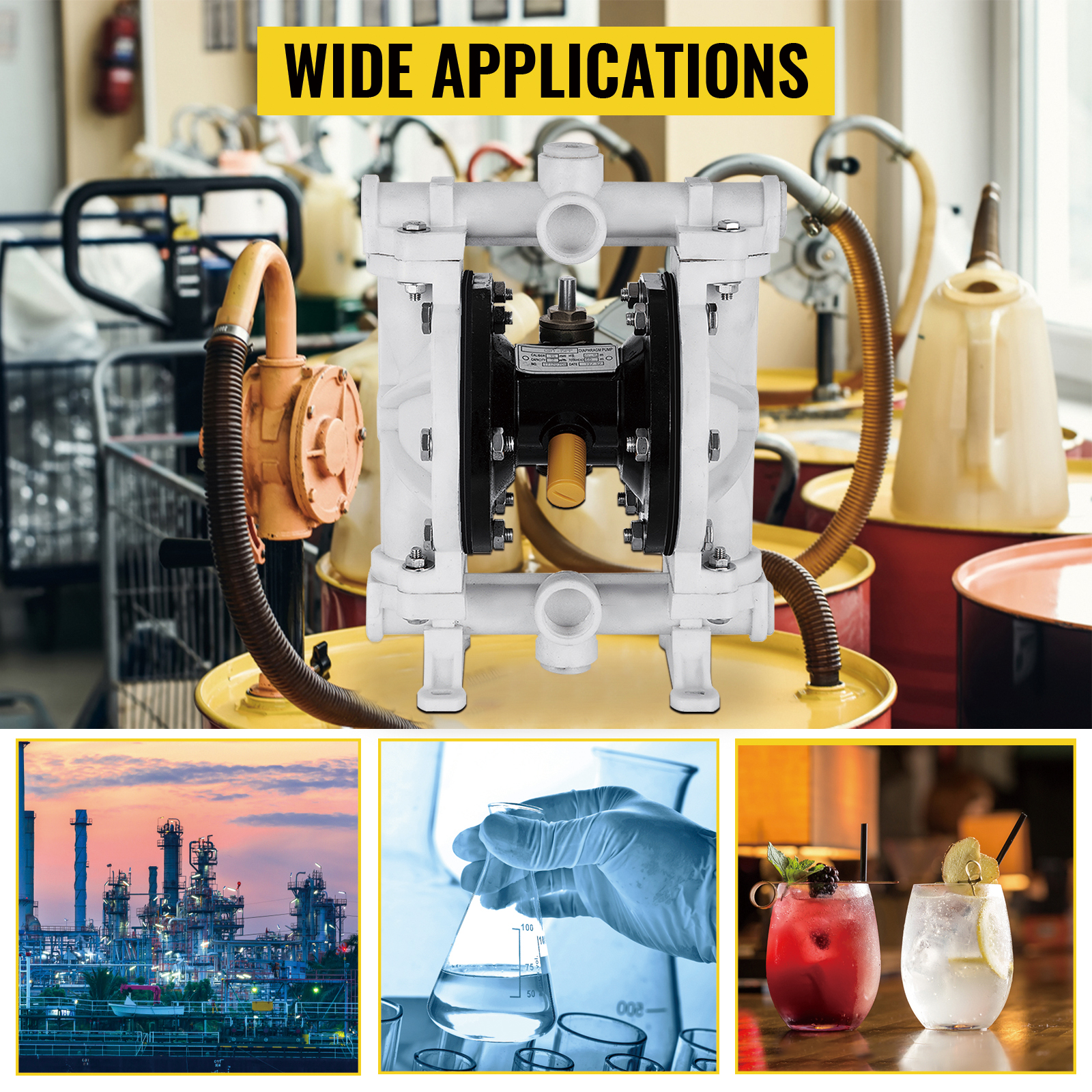

VEVOR air-operated double diaphragm pump used in varied industrial settings.
Versatile Uses
The double diaphragm pump has applications in various industries like petroleum, metallurgy, mining, coating. printing, water treatment, automobile, etc.

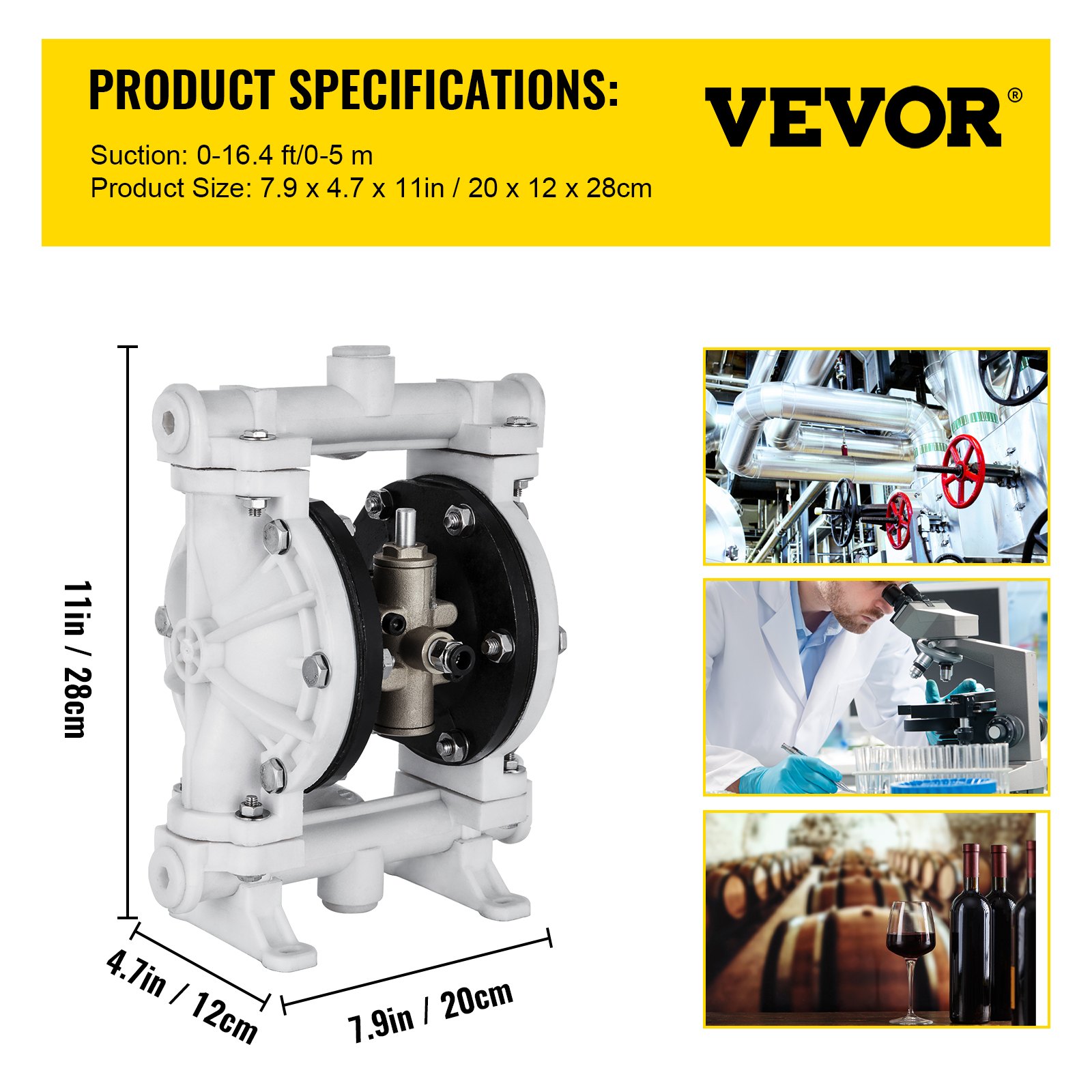

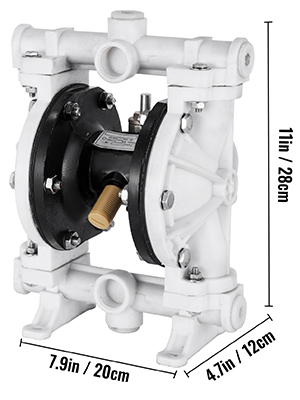

VEVOR air-operated double diaphragm pump dimensions: 11in x 4.7in x 7.9in.
  • Model: QBY-15PP
  • Body Material: Polypropylene
  • Inlet Port: 1/2 inch (12.7 mm)
  • Outlet Port: 1/2 inch (12.7 mm)
  • Air Inlet Size: FNPT 1/4 inch (6.35 mm)
  • Max Flow Rate: 2.5 GPM
  • Suction: 0-5 m (0-16.4 ft)
  • Max Suspended Solids: 2.38 mm (3/32 inch)
  • Max Head: 69 m (226.4 ft)
  • Max PSI: 80 psi
  • Temp. Rating: -20℉ ~ 150 ℉
  • Self-Priming Dry: 3 m (10 ft)
  • Self-Priming Wet: 4.6 m (15 ft)
  • Ball Material: Santoprene(R)

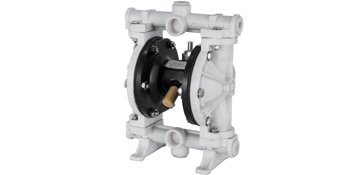

VEVOR air-operated double diaphragm pump in white and black with visible connectors.
  • 1 x Air-Operated Double Diaphragm Pump
  • 1 x Product Manual
VEVOR air-operated double diaphragm pump with industrial background and specs.
VEVOR air-operated double diaphragm pump with dual chambers and stainless steel bolts.
Air-Operated Double Diaphragm Pump Polypropylene Construction & PTFE Diaphragm & 2.5 GPM Flow Rate Our self-priming diaphragm pump features an all-bolted polypropylene body and double PTFE diaphragms, sturdy and corrosion-proof, without leakage. Sealed ball valves and non-stall operation provides outstanding performance. It is perfect for transferring viscous and flammable fluids. Our top of the line self-priming diaphragm pump will ensure your operations are flowing smoothly.
Premium Double PTFE Diaphragms
Excellent Air-operated Performance
  • Unique & Professional Designs
VEVOR air-operated double diaphragm pump with sturdy pp body, solid, rustproof, and leak-proof features.
Sturdy Polypropylene Body
The shell of the air-operated diaphragm pump adopts polypropylene construction, all bolted, solid, and corrosion-proof. Max. Temperature: 150 ℉/66 ℃; Max. Pressure: 80 psi.
VEVOR air-operated double diaphragm pump: durable, corrosion-proof, long-lasting.
PTFE Double Diaphragm
The self-priming pump features double PTFE diaphragms, which have high resistance to corrosion and aging. Max. Flow Rate：2.5 GPM; Max Head Lift：226.4 ft/69 m.
VEVOR air-operated double diaphragm pump with labeled ports and inlets.
Professional Air-Operated Designs
Our diaphragm pump is built to meet the international standard for reliable performance. Inlet/Outlet Port Size: 1/2 inch (12.7 mm); Air Inlet Size: FNPT 1/4 inch (6.35 mm).
VEVOR air-operated double diaphragm pump with sealed ball valve on a workshop table.
Sealed Ball Valve
It is easily accessible to ball checks and fluid caps for maintenance and repairs. In addition, the motor design delivers optimum air efficiency. An “Unbalanced" air valve ensures no-stalling during operation.
VEVOR air-operated double diaphragm pump handling various materials like waste oil and water.
Handle Various Material
This air-operated diaphragm pump can transfer many viscous and flammable fluids, including waste oil, alcohol, hydraulic fluid, gasoline, diesel, detergent, drinking water, and so on.
VEVOR air-operated double diaphragm pump used in varied industrial settings.
Versatile Uses
The double diaphragm pump has applications in various industries like petroleum, metallurgy, mining, coating. printing, water treatment, automobile, etc.
VEVOR air-operated double diaphragm pump in white and black with visible connectors.
  • 1 x Air-Operated Double Diaphragm Pump
  • 1 x Product Manual
VEVOR air-operated double diaphragm pump dimensions: 11in x 4.7in x 7.9in.
  • Model: QBY-15PP
  • Body Material: Polypropylene
  • Inlet Port: 1/2 inch (12.7 mm)
  • Outlet Port: 1/2 inch (12.7 mm)
  • Air Inlet Size: FNPT 1/4 inch (6.35 mm)
  • Max Flow Rate: 2.5 GPM
  • Suction: 0-5 m (0-16.4 ft)
  • Max Suspended Solids: 2.38 mm (3/32 inch)
  • Max Head: 69 m (226.4 ft)
  • Max PSI: 80 psi
  • Temp. Rating: -20℉ ~ 150 ℉
  • Self-Priming Dry: 3 m (10 ft)
  • Self-Priming Wet: 4.6 m (15 ft)
  • Ball Material: Santoprene(R)

Specification

Model
QBY-15PP
Body Material
Polypropylene
Inlet Port
1/2 inch (12.7 mm)
Outlet Port
1/2 inch (12.7 mm)
Air Inlet Size
FNPT 1/4 inch (6.35 mm)
Max Flow Rate
2.5 GPM
Suction
0-5 m (0-16.4 ft)
Max Suspended Solids
2.38 mm (3/32 inch)
Max Head
69 m (226.4 ft)
Max PSI
80 psi
Temp. Rating
-20℉ ~ 150 ℉
Self-Priming Dry
3 m (10 ft)
Self-Priming Wet
4.6 m (15 ft)
Ball Material
Santoprene(R)
