VEVOR Push Bar Door Locks, Carbon Steel Panic Bars for Exit Doors, with Exterior Lever and 3 Keys, Push Bar Panic Exit Device Door Hardware for Metal Wood Door, for Left and Right Handed Doors
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive 5,00€ off on your first three app orders. Only App.
Download Now
Exclusive 5,00€ off on your first three app orders. Only App.
Scan the QR code to download
About this item

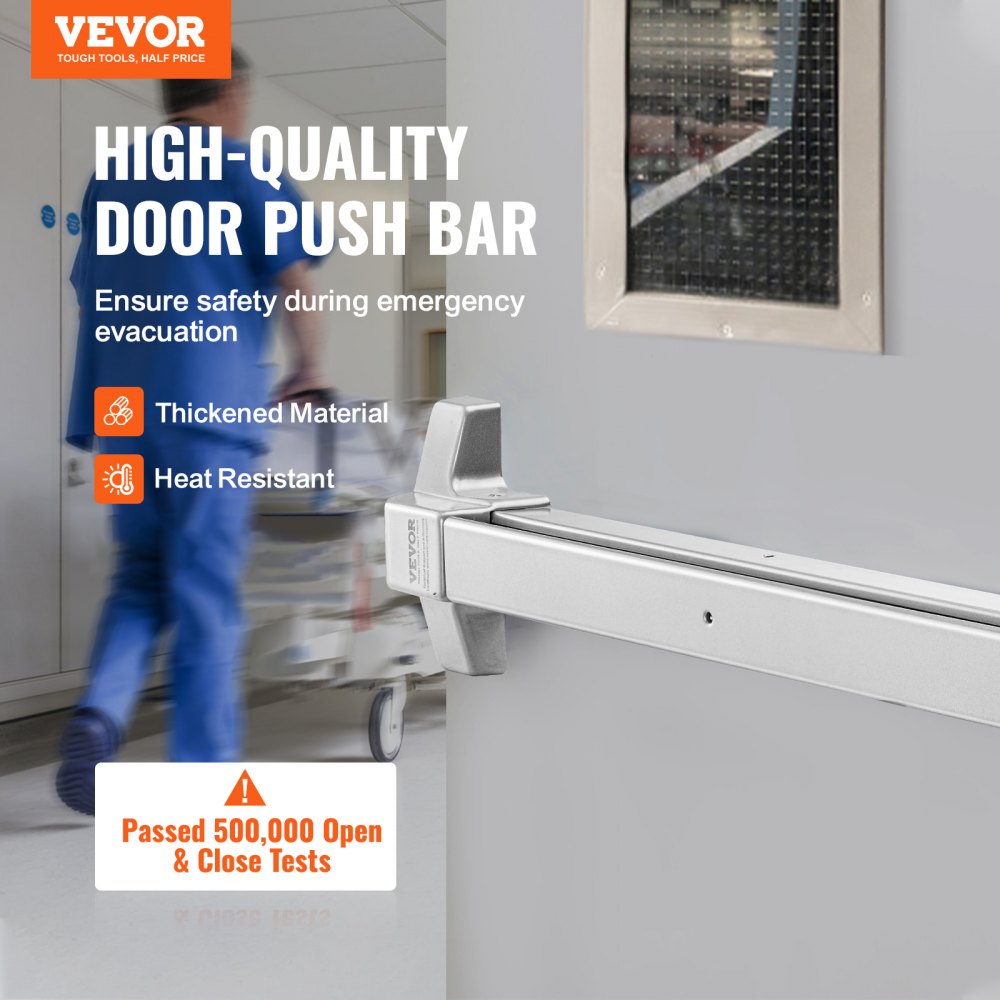

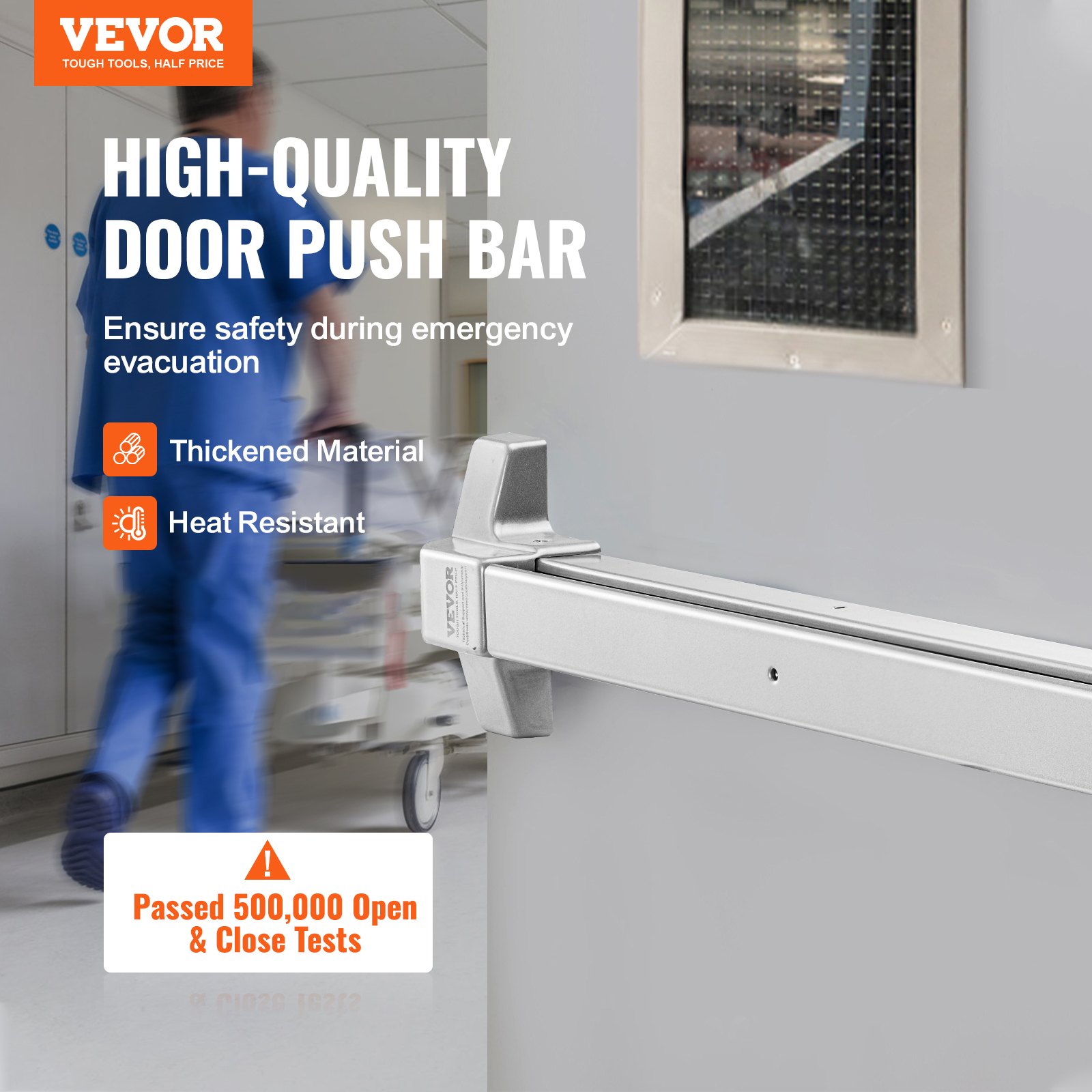

Heavy-Duty Panic Bar for Exit Door: This push bar door lock is constructed from thickened carbon steel with a rust-resistant coating, ensuring high strength and resistance to damage. It complies with UL and ANSI testing standards, enduring over 500,000 cycles of opening/closing tests. It's also fire-resistant and heat-resistant, making it the ideal choice for high-traffic emergency doors. The zinc alloy handle and copper lock core ensure the longevity of the lock, even in extreme conditions.

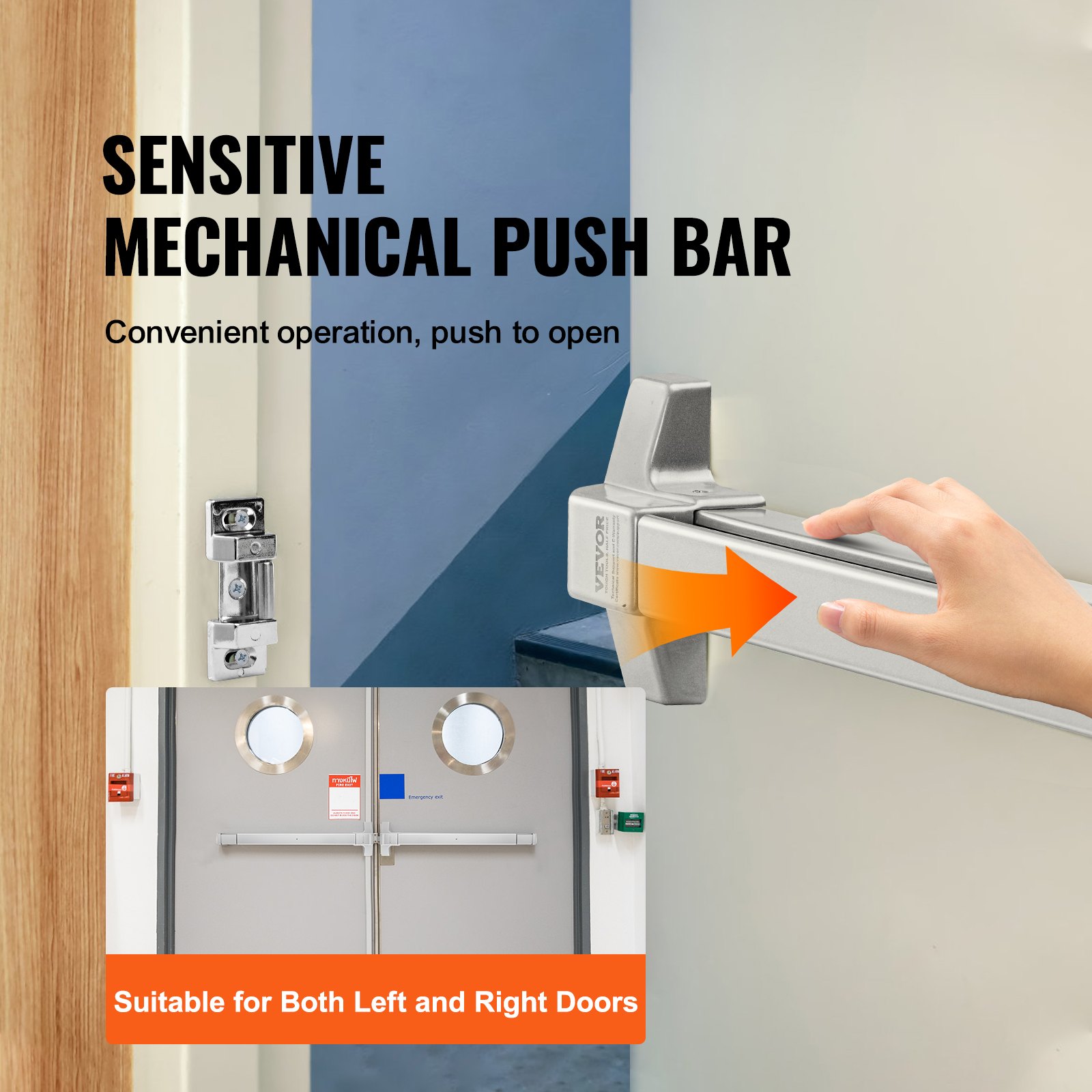

Convenient and Secure: In emergencies, the push bar panic exit device can be easily pushed open from the inside with a hand or another body part. External access requires a key to open the outside door handle. When closing the exit door, it automatically locks, preventing unauthorized entry. It includes a dogging quick-opening design, allowing you to set it to a constant open mode, suitable for large-scale evacuation.

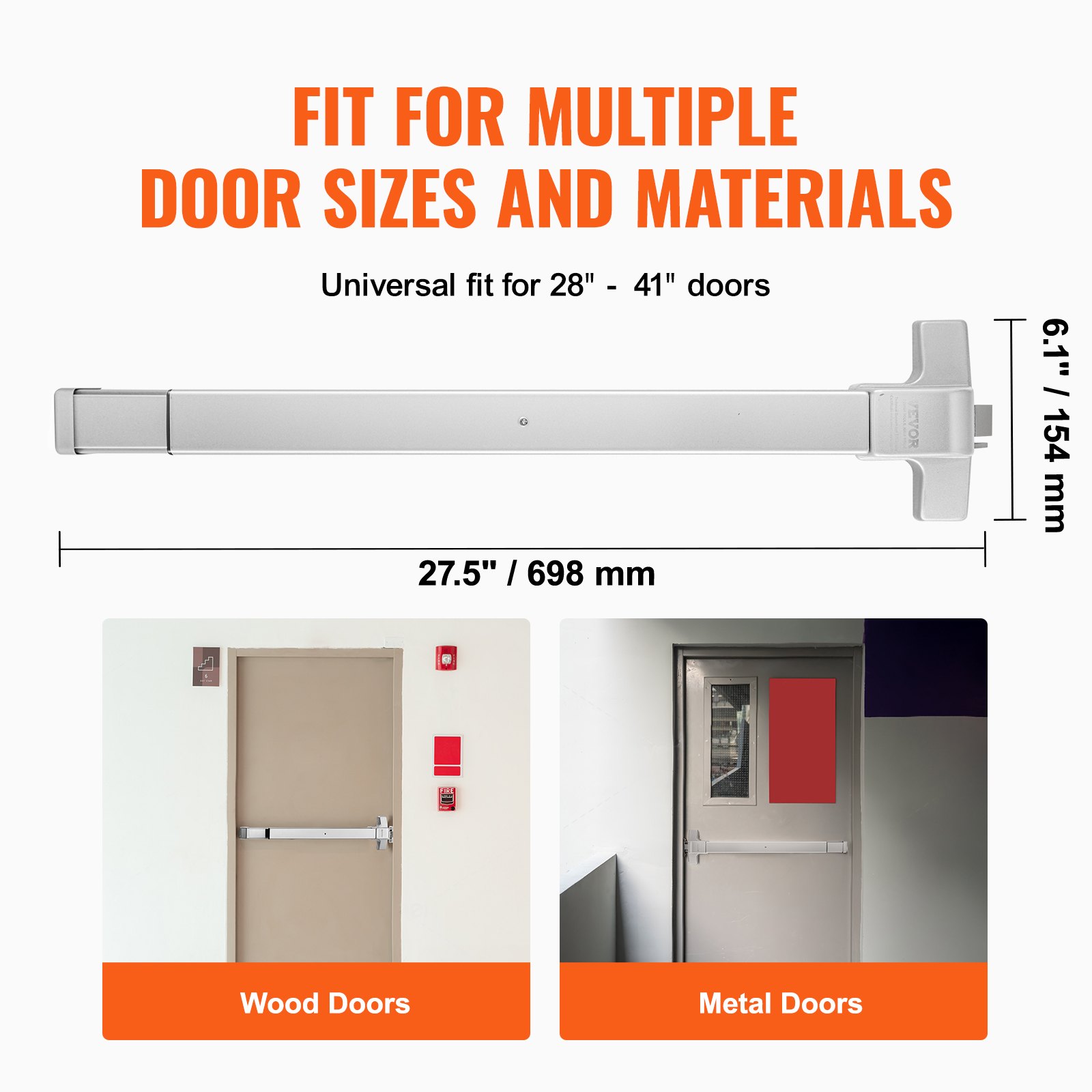

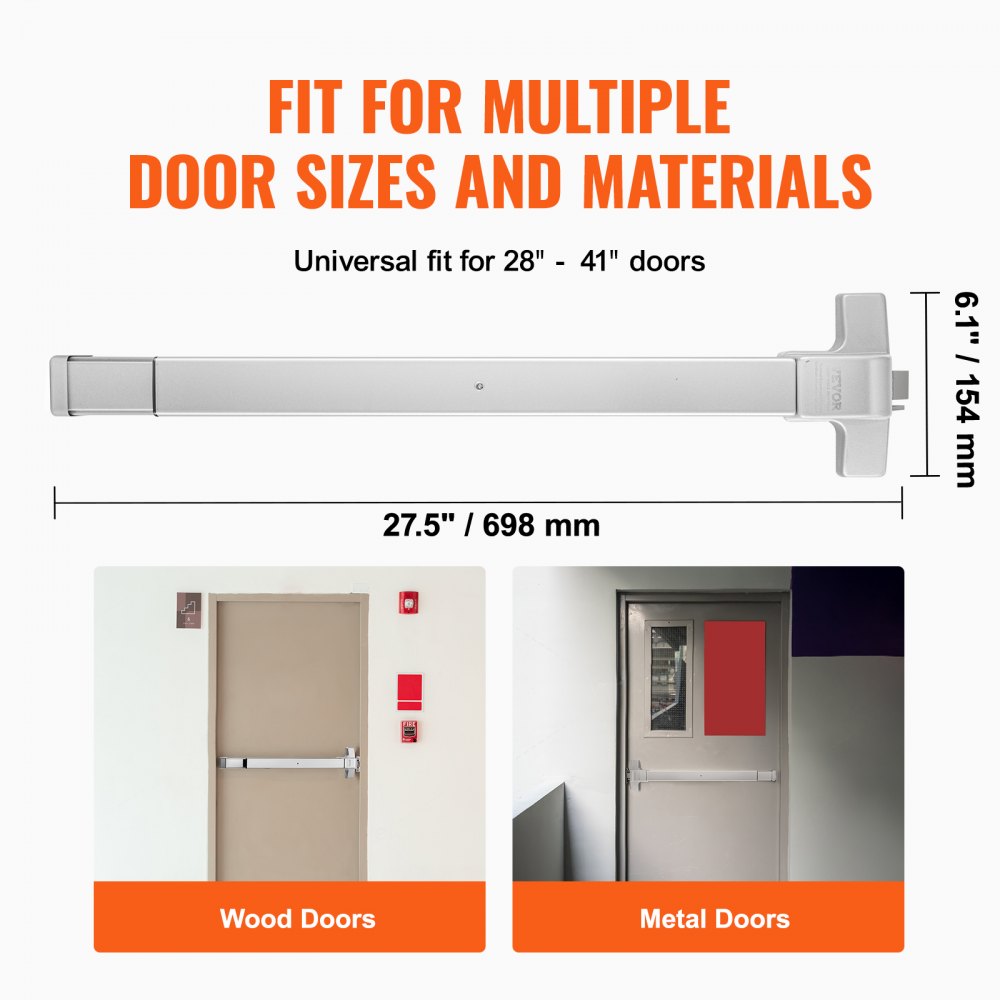

High Compatibility: The overall dimensions of this panic bar are 27.5" x 6.1" x 2.6" (698 x 154 x 65 mm). It is suitable for both 28-inch to 41-inch wide wooden and metal doors and can be used on both left and right doors. Please note that it is not suitable for glass doors.
Easy Installation: We provide detailed installation instructions, and the lock is pre-drilled and comes with all the necessary accessories. Simply align and install quickly. The enlarged head cover design makes installation even more convenient.

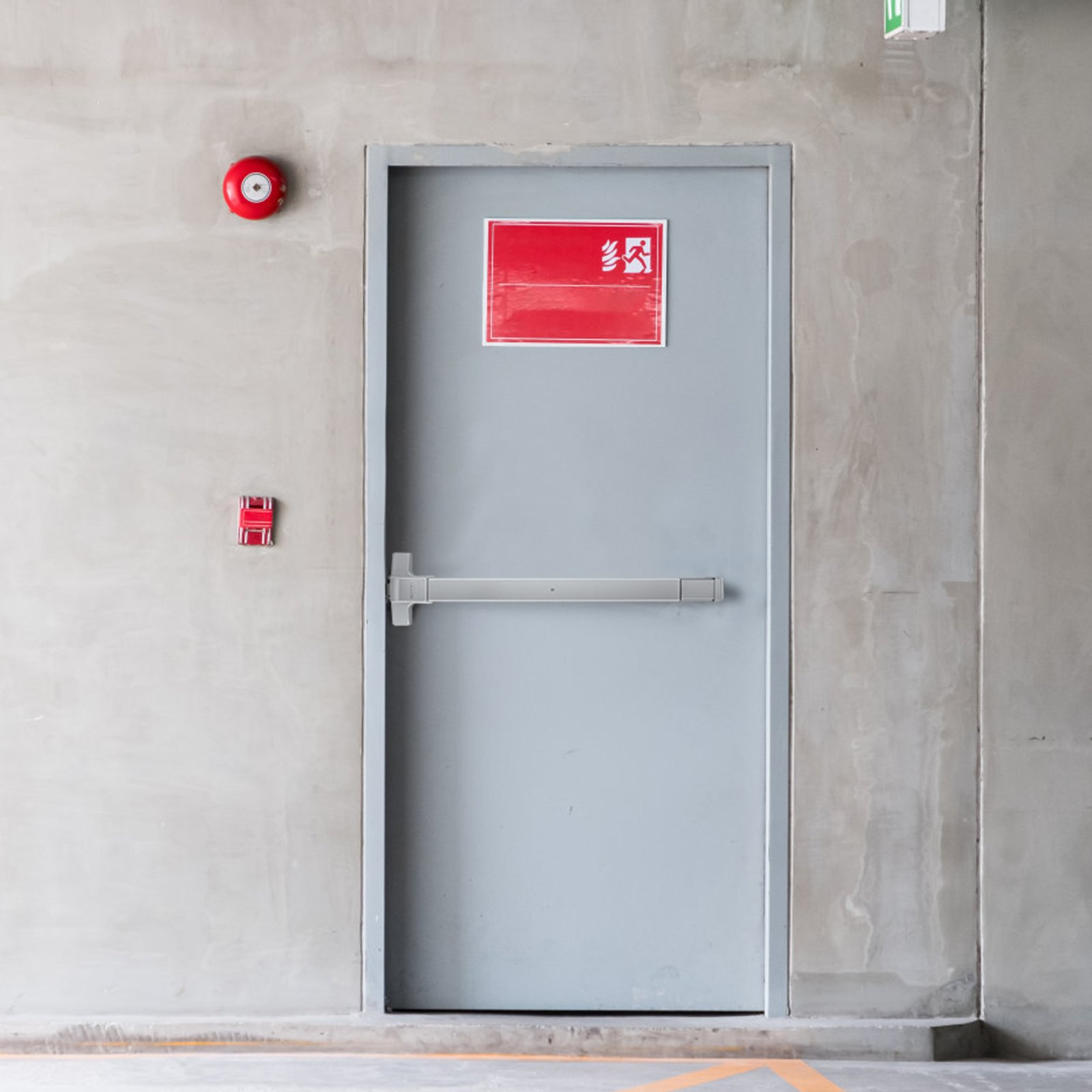

Wide Application: The exit door push bar is widely used in various high-traffic areas, providing one-way access to effectively prevent unauthorized entry into buildings. It provides robust security for emergency locations such as shopping centers, hospitals, hotels, office buildings, airports, apartments, banks, factories, and recreational facilities.
VEVOR Push Bar Door Locks, Carbon Steel Panic Bars for Exit Doors, with Exterior Lever and 3 Keys, Push Bar Panic Exit Device Door Hardware for Metal Wood Door, for Left and Right Handed Doors
Our push bar door locks are compatible with wooden and metal doors, ranging from 28" to 41" wide, suitable for both left and right-hand doors. Easy to operate - a simple push opens the door from the inside. It complies with UL and ANSI testing standards, ensuring safety.

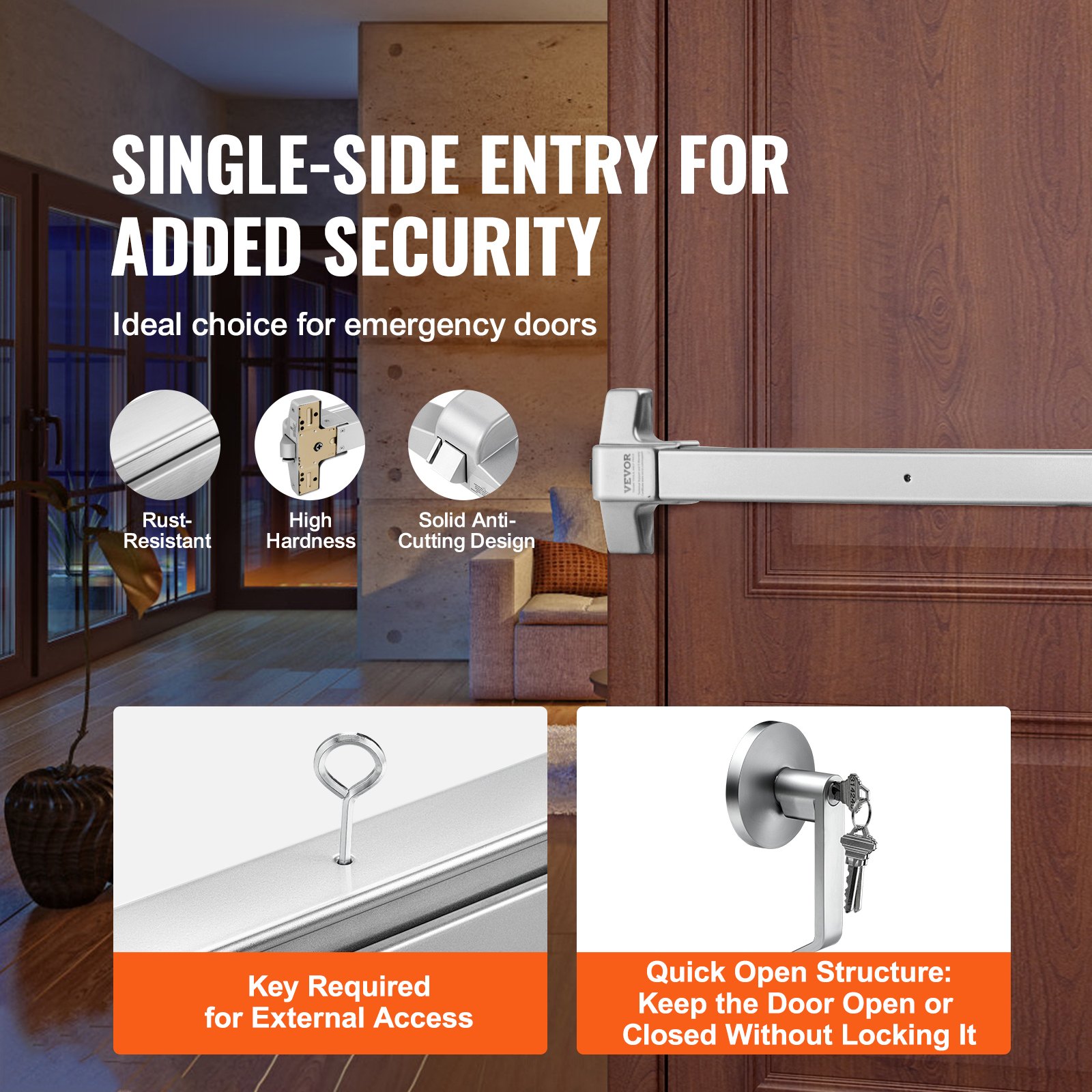

The panic bar is made from rugged carbon steel, ensuring durability and resistance to rust and corrosion. The high-hardness lock tongue prevents unauthorized access. The dogging key feature allows constant access. The zinc alloy exterior handle and copper lock core ensure longevity.

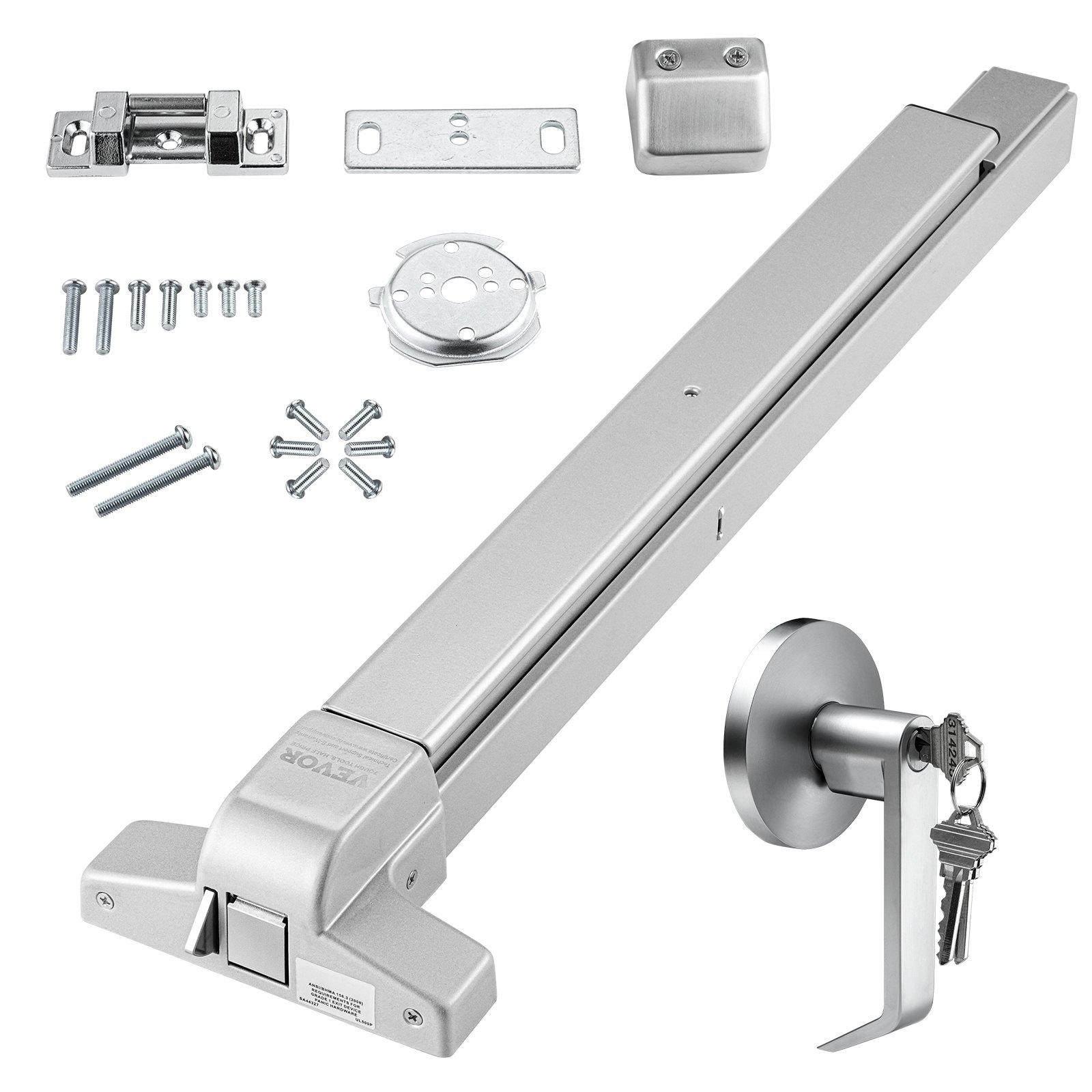

Operating the push bar panic exit device is a breeze - a simple push from the inside opens the door, while outside access requires a key. It offers one-way access for enhanced safety. Enlarged head cover simplifies installation. Three keys are included to prevent loss.

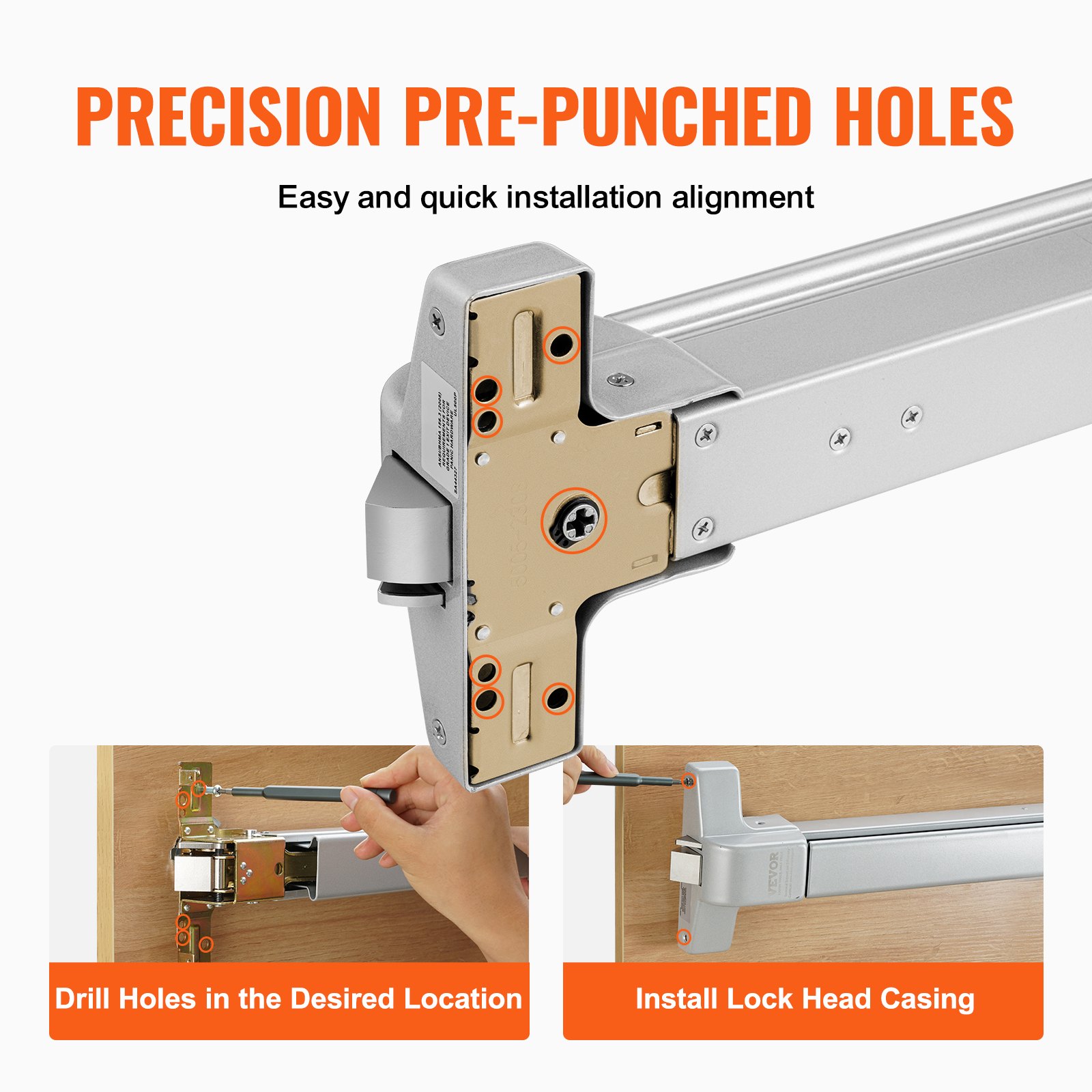

Installing the push-to-exit bar is straightforward. Determine the distance and pre-drill holes. Attach the handle, cover the hole with it, and install the mounting plate on the other side. Align the lock head, cover the hole, and tighten the screws. Secure the lock head casing with four screws.
This exit door push bar provides secure one-way access while keeping high-traffic area doors closed. Widely used in shopping centers, hospitals, hotels, offices, airports, apartments, banks, factories, and recreational facilities, ensuring both people's and building's safety.

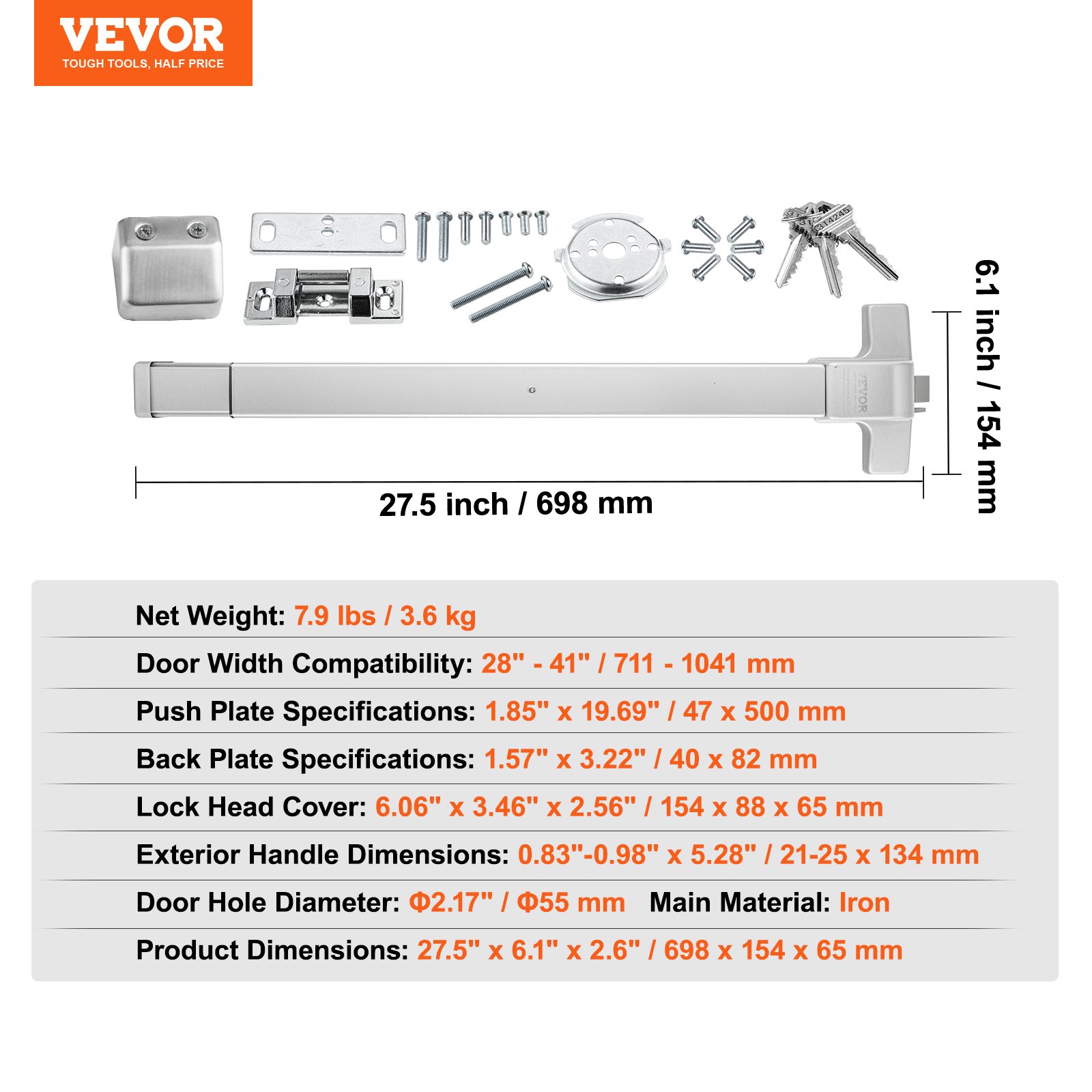

Specification
Item Model Number
UL500P
Door Width Compatibility
28" - 41" / 711 - 1041 mm
Push Plate Specifications
1.85" x 19.69" / 47 x 500 mm
Back Plate Specifications
1.57" x 3.22" / 40 x 82 mm
Lock Head Cover
6.06" x 3.46" x 2.56" / 154 x 88 x 65 mm
Exterior Handle Dimensions
0.83"-0.98" x 5.28" / 21-25 x 134 mm
Door Hole Diameter
Φ2.17" / Φ55 mm
Main Material
Iron
Net Weight
7.9 lbs / 3.6 kg
Product Dimensions
27.5" x 6.1" x 2.6" / 698 x 154 x 65 mm
Questions and Answers
Typical questions asked about products: Is the product durable? ...
it was an easy installation once I ignored instructions
Hard to understand instructions, a bit confusing. However, it was an easy installation once I ignored instructions. Device works great. If you're ahandyman/women you can also figure this out for a fairly easy install.
