Features & Details

【FUNDAMENTAL PARAMETERS】- This brushless electric motor is powerful and efficient. Model: MY1020D, Input Voltage: 48V DC, Output Power: 2000W, Rated Current: ≤ 34A, Rated Speed: 4300 RPM, Maximum Speed: 5400 RPM, Sprocket: T8F-11 Teeth, Horsepower: 2.71 HP, Rated Torque: 566.45 oz.in / 4.0 N.m, Maximum Current: 41A, No-load Current: ≤ 5.0A, Peak Efficiency: ≥ 82%, Working Temperature: < 120 °C / 248 ℉.
【2000W BRUSHLESS MOTOR】- The brushless dc motor adopts a 100% copper core for low noise operation and excellent speed regulating performance. The high-precision rotor is made of high tech, finish for water resistance and high working efficiency.
【STURDY ALUMINUM CONSTRUCTION】- The electric go kart motor features an aluminum alloy shell to resist heat, cold, and corrosion, which is not easy to rust. This dc electric motor is a forward and backward rotation motor so that you can switch the rotation.
【SPEED CONTROLLER INCLUDED】- This brushless go kart motor comes with a controller to provide speed control in the desirable ranger, speed adjustment way: Potentiometer. Model: BY15WF02-A, Current: 34A, Phase Degree: 120°, Conversion Efficiency: ≥ 85%, Under Voltage Protection Voltage: 41V.
【MULTIPLE APPLICATION】- Brushless motor is much better than the brushed motor due to its high efficiency, power frugal, low noise, long lifespan, stable operation. It is suitable for go karts, scooters, e-bike, ATV, motorized bicycle, moped, mini bikes, pocket bikes, etc.

VEVOR electric brushless dc motor, 48v 2000w, max speed 5400rpm, high-speed kart in background.

VEVOR electric brushless dc motor with accessories, wiring, and mounting hardware.

48V 2000W 4300RPM Brushless DC Motor Kit

This brushless electric motor is built with a 100% copper core for low noise operation and high working efficiency. It features an aluminum alloy shell and complete accessories kit to help you fix the motor and making a safe operation. It is ideal for go karts, Electric Scooters, E-bike, ATV, motorized bicycle, etc.

Fundamental Parameters
2000W Brushless Motor
Sturdy Aluminum Construction
Speed Controller Included
Multiple Application

VEVOR electric brushless dc motor, 2000w, pure copper, powerful torque, low noise

Pure Copper Coils

The motor for the pool pump features a 100% pure copper core for high conductivity, high-temperature resistance, low noise, and saves energy for a long time.

4300 RPM High Speed

This brushless electric motor kit runs at 2000W, the rated speed is 4300RPM, and the maximum speed is 5400 RPM. Thus, it is able to provide fast speed and powerful motion for your machines.

Durable Aluminum Alloy Shell

The electric motor brushless is made of aluminum alloy material, which is able to resist oxidation, compression, vibration, and deformation. In addition, it is lightweight enough to carry and process with ease.

Dual-Direction Design

You can switch the rotation in either the clockwise or counterclockwise direction by reversing the go kart electric motor's power wires, which is easy to adjust.

VEVOR electric brushless dc motor wiring diagram with labeled connectors and throttle grip.

Convenient Speed Control

Speed controller allows you to control the speed effortlessly. The complete set of a brushless motor, speed controller, throttle grip, and other necessary components facilitate you to operate the machine.

VEVOR electric brushless dc motor for electric scooter, go-kart, bicycle, motorcycle.

Wide Application

It is ideal for Electric Scooters, Motorcycle, Ebike Bicycles, Motorcycle, E Tricycle, Mid Drive Motor Kit, Complete Sets, DIY Engine Systems, Cycling Parts, Mini Electric Motorcycles, DIY Engine Kit, etc.

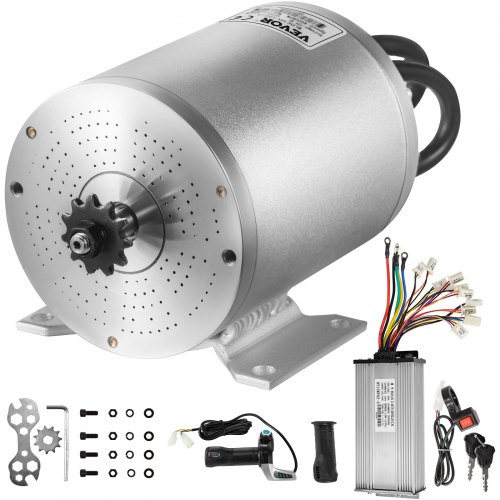

VEVOR electric brushless dc motor with controller, cables, and accessories set.

1 x 48V 2000W Motor
1 x Controller
1 x LCD Twist Throttle Grip
1 x 3-Speed Switch
1 x Set of Mounting Screws

VEVOR electric brushless dc motor, dimensions: 6.7in x 4.2in x 4.3in.

Model: MY1020D
Input Voltage: 48V DC
Output Power: 2000W
Rated Current: ≤ 34A
Rated Speed: 4300 RPM
Maximum Speed: 5400 RPM
Sprocket: T8F-11 Teeth
Horsepower: 2.71 HP
Rated Torque: 566.45 oz.in / 4.0 N.m
Maximum Current: 41A
No-load Current: ≤ 5.0A
Peak Efficiency: ≥ 82%
Working Temperature: < 120 °C / 248 ℉
Motor Net Weight: 9.7 lbs / 4.4 kg
Motor Mount Bracket Size: 2.2 x 4'' / 56 × 102 mm
Motor Dimensions(L x W x H): 6.7 x 4.2 x 4.3'' / 169 × 107 × 110 mm
Controller Model: BY15WF02-A
Controller Current: 34A
Controller Phase Degree: 120°
Controller Conversion Efficiency: ≥ 85%
Controller Under Voltage Protection Voltage: 41V

Reviews 4.5
All reviews are from verified purchases
Average rating based on 2 reviews

joezeitouny

Reviewed on Jan 22,2024

Good engine. Reasonable price. I am in the process of converting my outboard from petrol to electric and used this engine. It works perfect, compares to a 3HP petrol engine. Can be improved by making it more resistant to corrosion and water.

Ben

Reviewed on Nov 22,2022

Haven't tested everything, power efficiency, durability. Good quality/price, and what I have tested works fine, as promised. Shipping varies from a few days to about 10 days. You will receive the status of your order via email.
