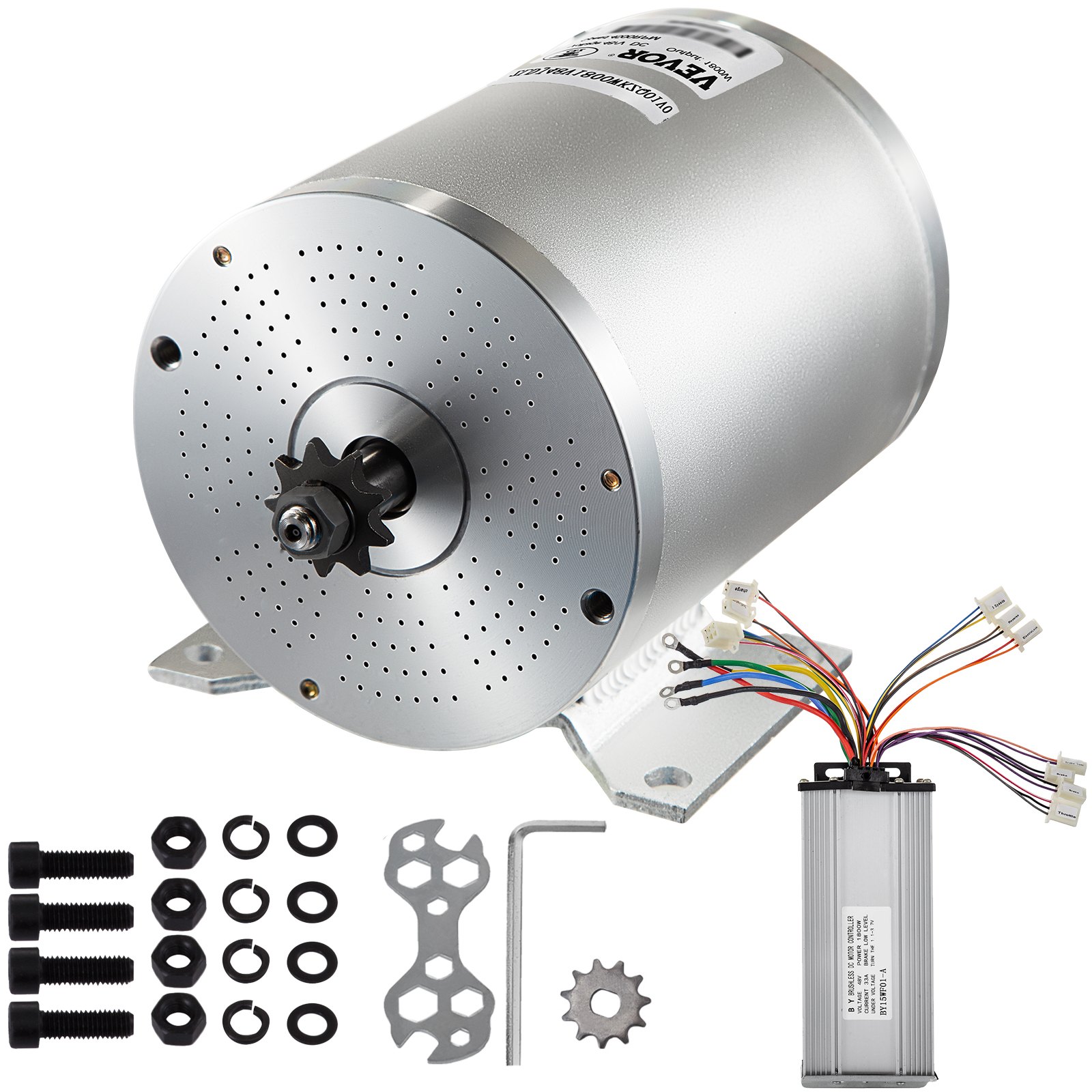

VEVOR brushless electric motor controller with wires, mounting gear, bolts, and tools. VEVOR brushless electric motor controller kit for scooters, go-karts, bicycles, and motorcycles. VEVOR brushless electric motor controller highlighting 2000w power and 4300rpm speed. VEVOR brushless electric motor controller, showing rotation directions and key specs. convenient VEVOR brushless electric motor controller with labeled wire connections. VEVOR brushless electric motor controller with speed controller, screw set, and wrench. VEVOR brushless electric motor controller with dimensions and weight details.
ZLDJWS2KW48VDZDKZV9

VEVOR 2000 Watts 48 Volt Brushless Motor Kit 42 Amp 4300 RPM High Speed Electric Scooter Motor with Mounting Bracket ,for e-scooters, go-karts, e-bikes

See All Customer Reviews
9 Reviews 1 answered questions
Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive 5,00€ off on your first three app orders. Only App.
Download Now
Exclusive 5,00€ off on your first three app orders. Only App.
Scan the QR code to download

About this item

  • Fundamental Parameters: This brushless go kart motor is powerful and efficient. Input Voltage: 48V DC, Output Power: 2000W, Rated Current: 34A, Rated Speed: 4300 RPM, Maximum Speed: 5400 RPM, Sprocket: T8F-11T, Maximum Current: 42A. Package includes: 1 x Brushless DC Motor, 1 x Controller, 1 x Multi-purpose Wrench, 1 x L-Shaped Wrench, 1 x Screw Set.
  • 2000W Brushless Motor: The dc electric go kart brushless motor adopts a 100% copper core for low noise operation and excellent speed regulating performance. The high-precision rotor features high-tech components, a clean finish for water resistance, and high working efficiency. Get ready to leave the competition in the dust.
  • Sturdy Aluminum Construction: The electric brushless dc motor kit features an aluminum alloy shell that resists heat, cold, and deformation, ensuring it will not rust easily. This dc electric motor is a forward and backward rotation motor so that you can switch rotation gears effortlessly.
  • Speed Controller Included: This dc electric motor brushless comes with a controller to provide speed control at a desirable range, speed adjustment method: Potentiometer. Model: BY15WF02-A, Current: 34A, Phase Degree: 120°, Conversion Efficiency: 90%, Under Voltage Protection Voltage: 41±0.5V.
  • Multiple Application: The brushless motor outshines the brushed motor due to its high efficiency, power conservation, low noise, long lifespan, and stable operation. It is suitable for go karts, scooters, e-bikes, ATVs, motorized bicycles, mopeds, mini bikes, pocket bikes, etc. Get up to speed with a brushless motor.
See More See Less

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR 2000 Watts 48 Volt Brushless Motor Kit 42 Amp 4300 RPM High Speed Electric Scooter Motor with Mounting Bracket ,for e-scooters, go-karts, e-bikes
Description Specification Questions and Answers Reviews
VEVOR brushless electric motor controller, 48v 2000w 4300rpm, high-speed pure copper coil.

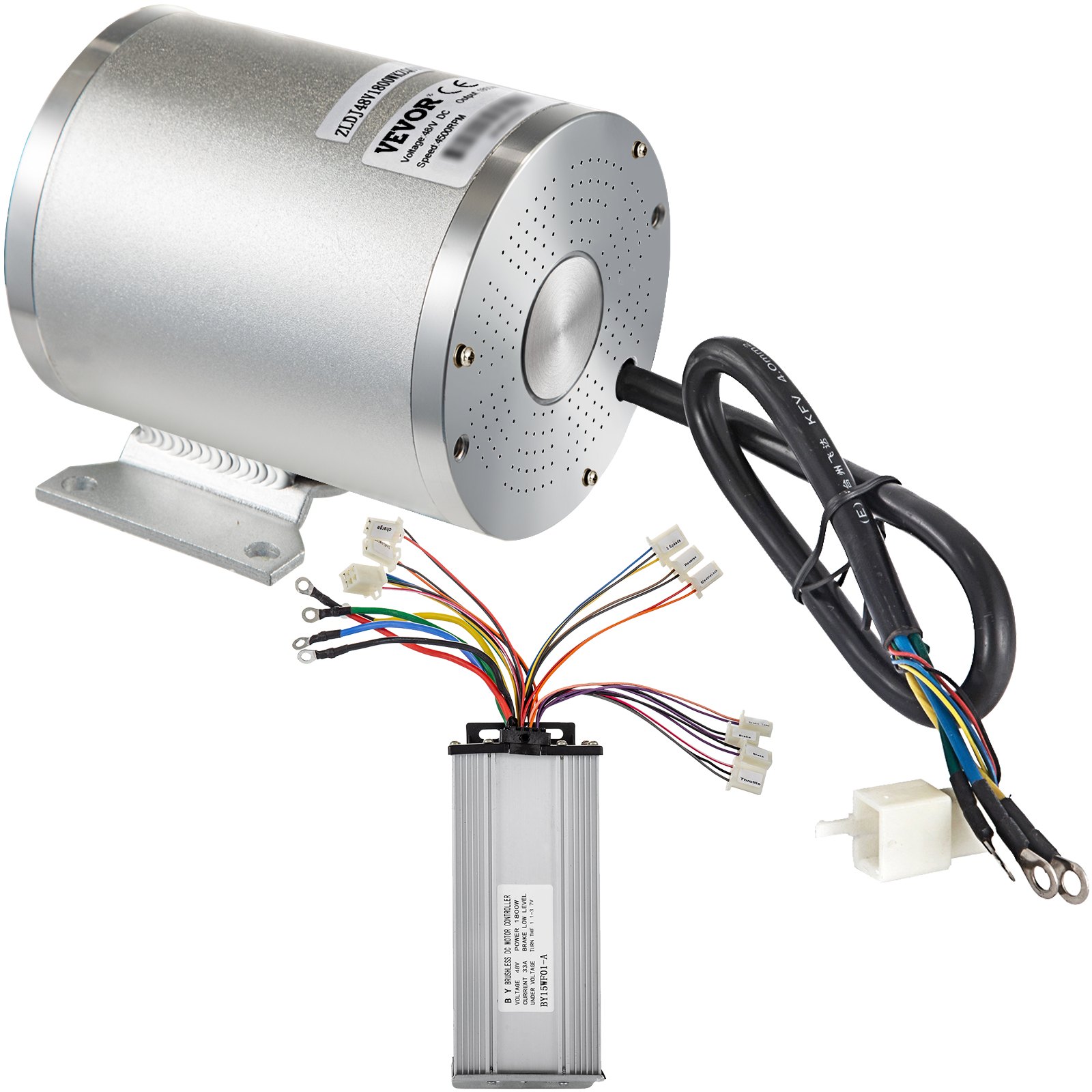

VEVOR brushless electric motor controller with mounting kit and wiring.
Brushless DC Motor Kit w/ Controller
48V DC & 2000W Output & 4300RPM Rated Speed
This brushless electric motor is built with a 100% copper core for low noise operation and high working efficiency. It features an aluminum alloy shell and a complete accessories kit to help you fix the motor safely. It is ideal for go karts, electric scooters, e-bikes, ATVs, motorized bicycles, etc. Hit the ground running faster than ever with our brushless DC motor kit.
  • Fundamental Parameters
  • 2000W Brushless Motor
  • Sturdy Aluminum Construction
  • Speed Controller Included

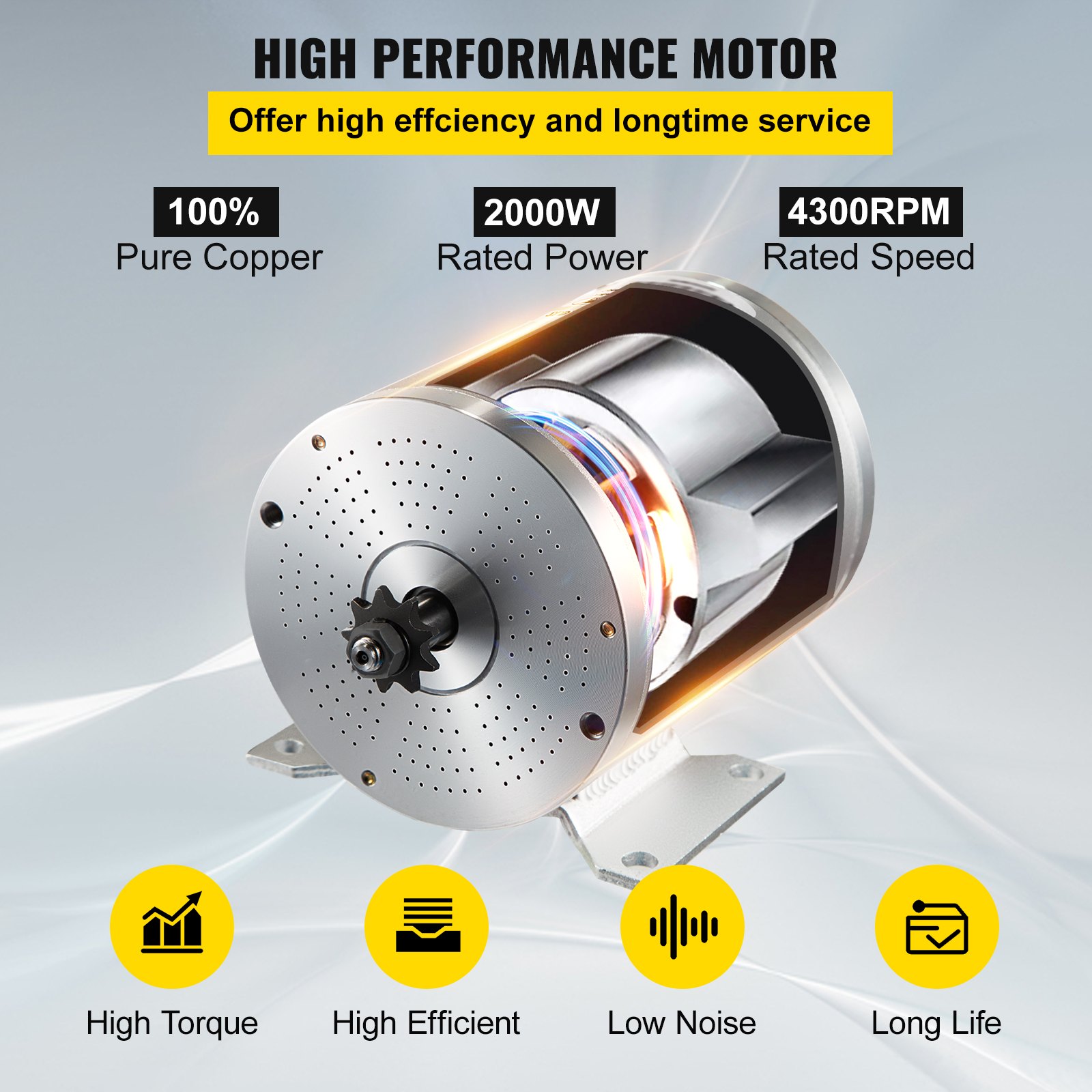

VEVOR brushless electric motor controller with pure copper motor, 2000w, powerful torque, low noise
Pure Copper Motor
The electric brushless dc motor features a 100% pure copper core for high conductivity, high-temperature resistance, low noise, and saves energy during extended use.

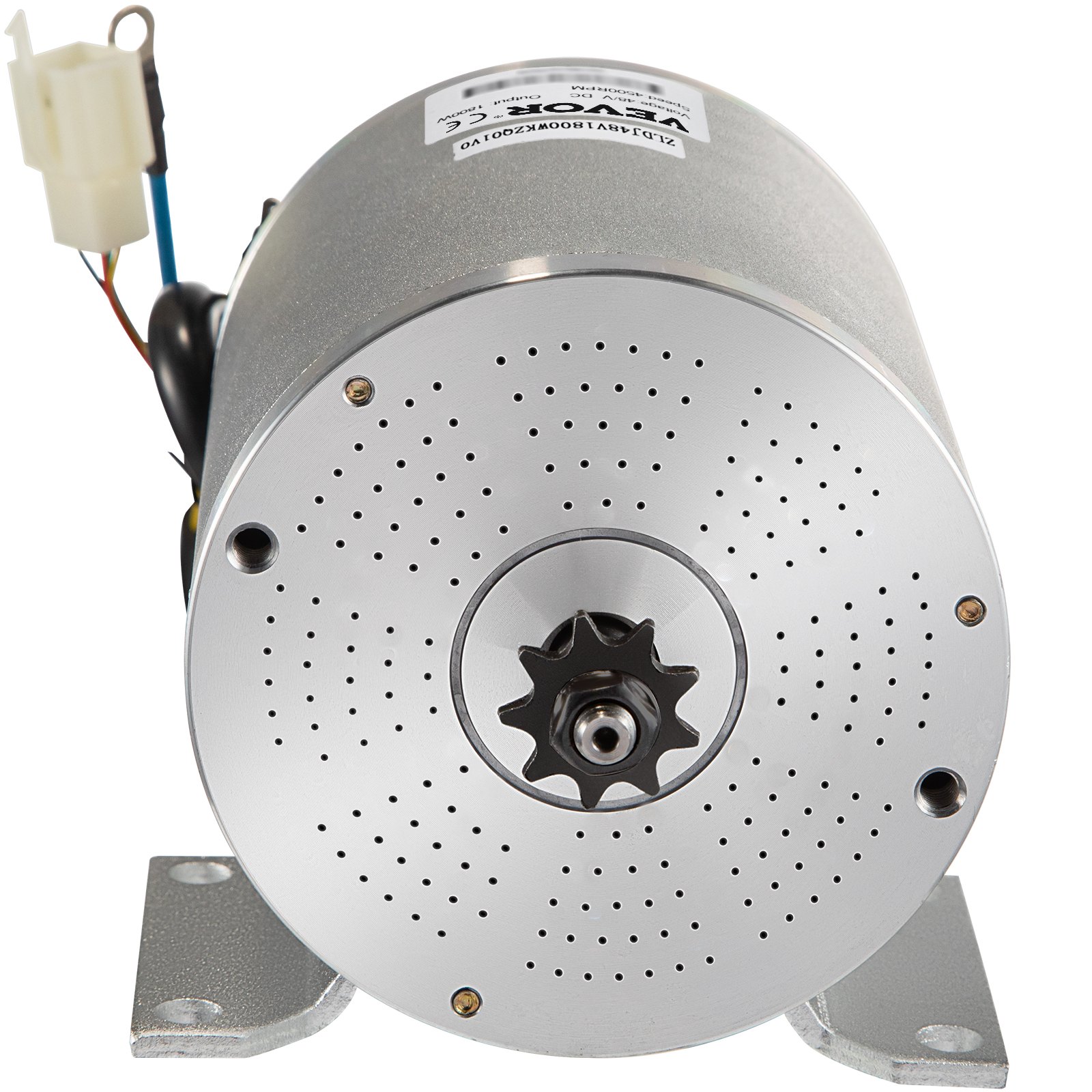

VEVOR brushless electric motor controller, 4300 rpm high speed, sprocket details.
4300 RPM High Speed
This dc brushless motor kit runs at 2000W, the rated speed is 4300RPM, and the maximum speed is 5400 RPM. Thus, it can provide fast acceleration and unmatched power for your machines.

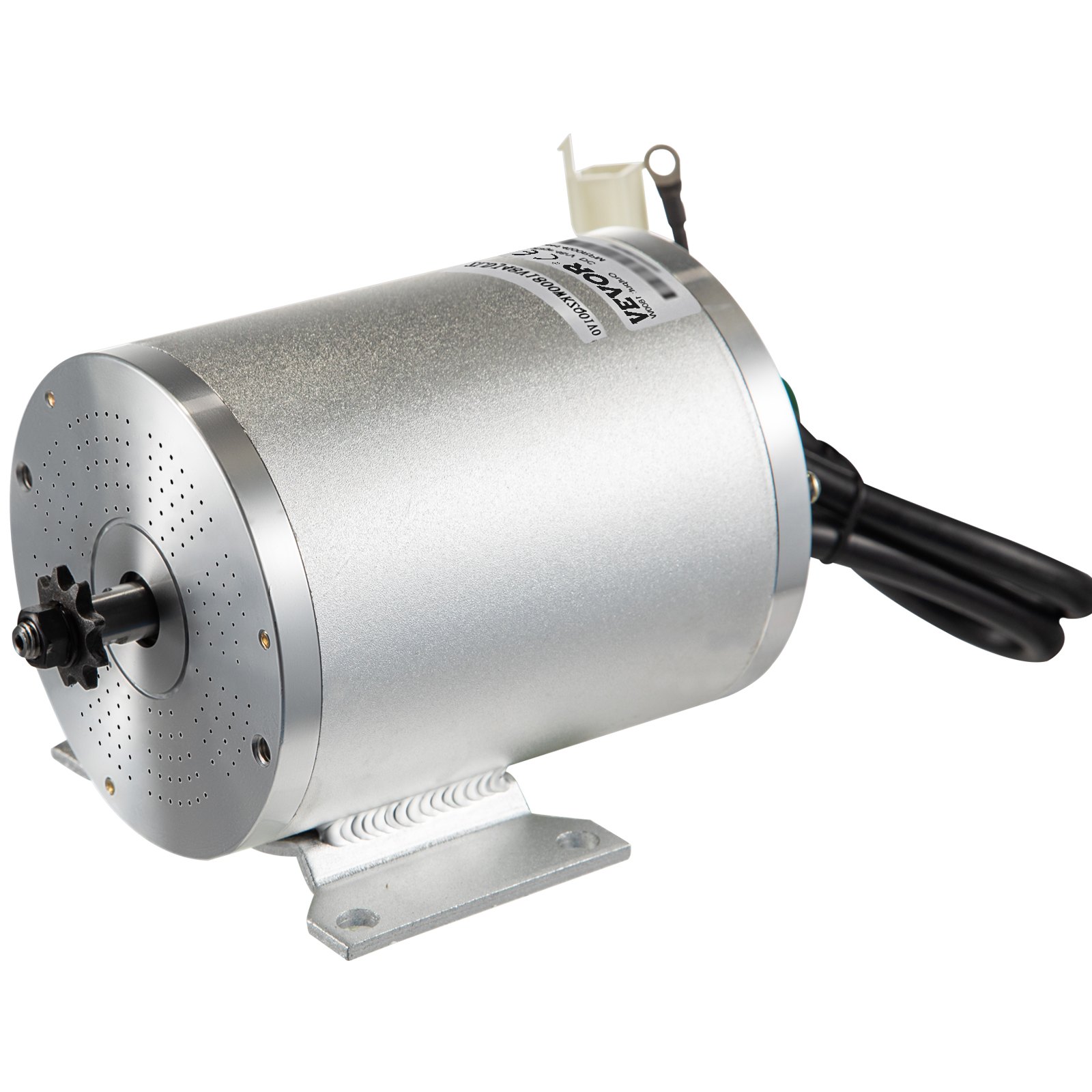

VEVOR brushless electric motor controller with durable aluminum shell and cooling holes.
Durable Aluminum Alloy Shell
The electric go kart motor is constructed from aluminum alloy material, which can resist oxidation, compression, and deformation. Besides, it is lightweight enough to carry and process with ease.

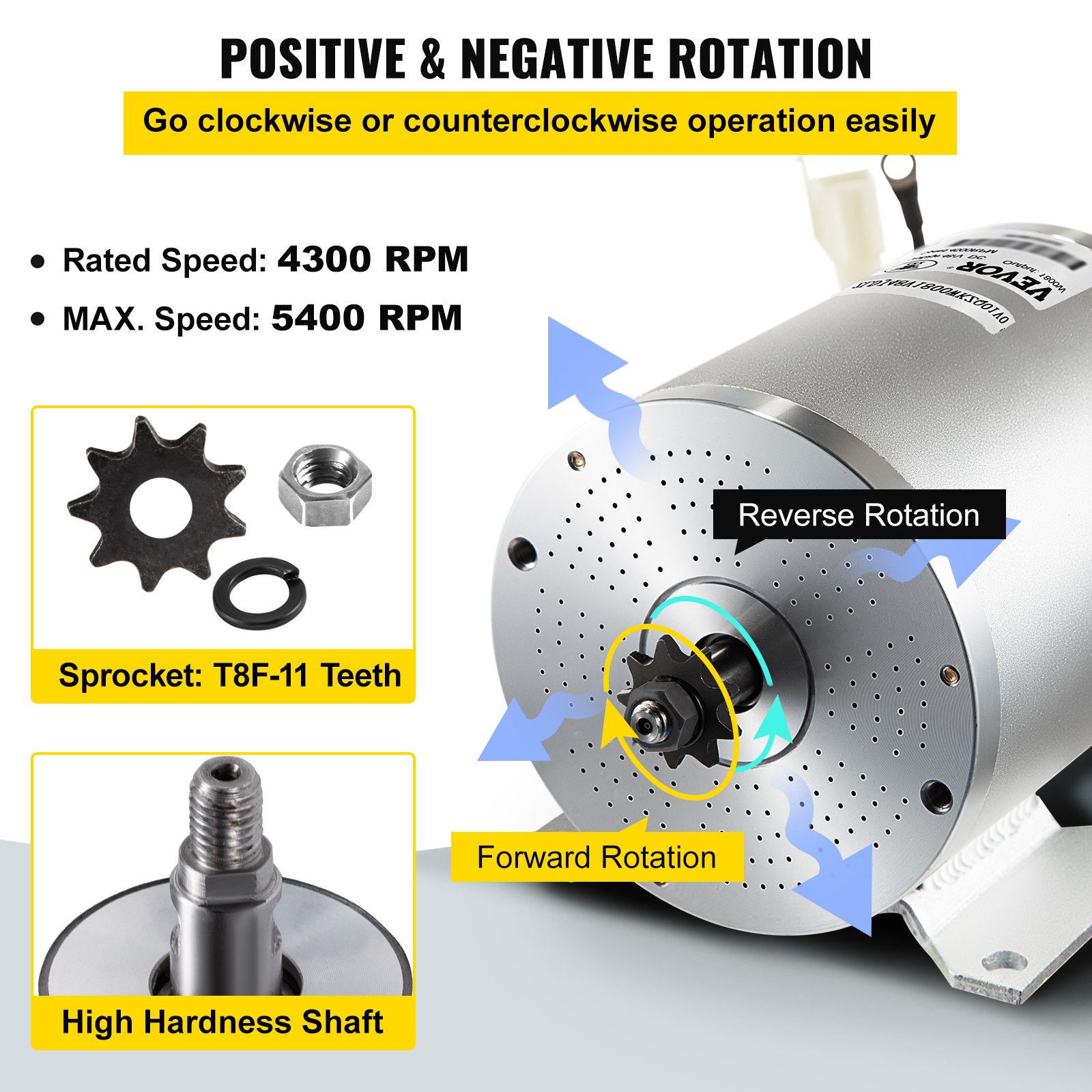

VEVOR brushless electric motor controller with dual-direction design, forward/reverse rotation.
Dual-Direction Design
You can switch the rotation to either a clockwise or counterclockwise direction by reversing the go kart electric motor's power wires, which are easy to adjust.

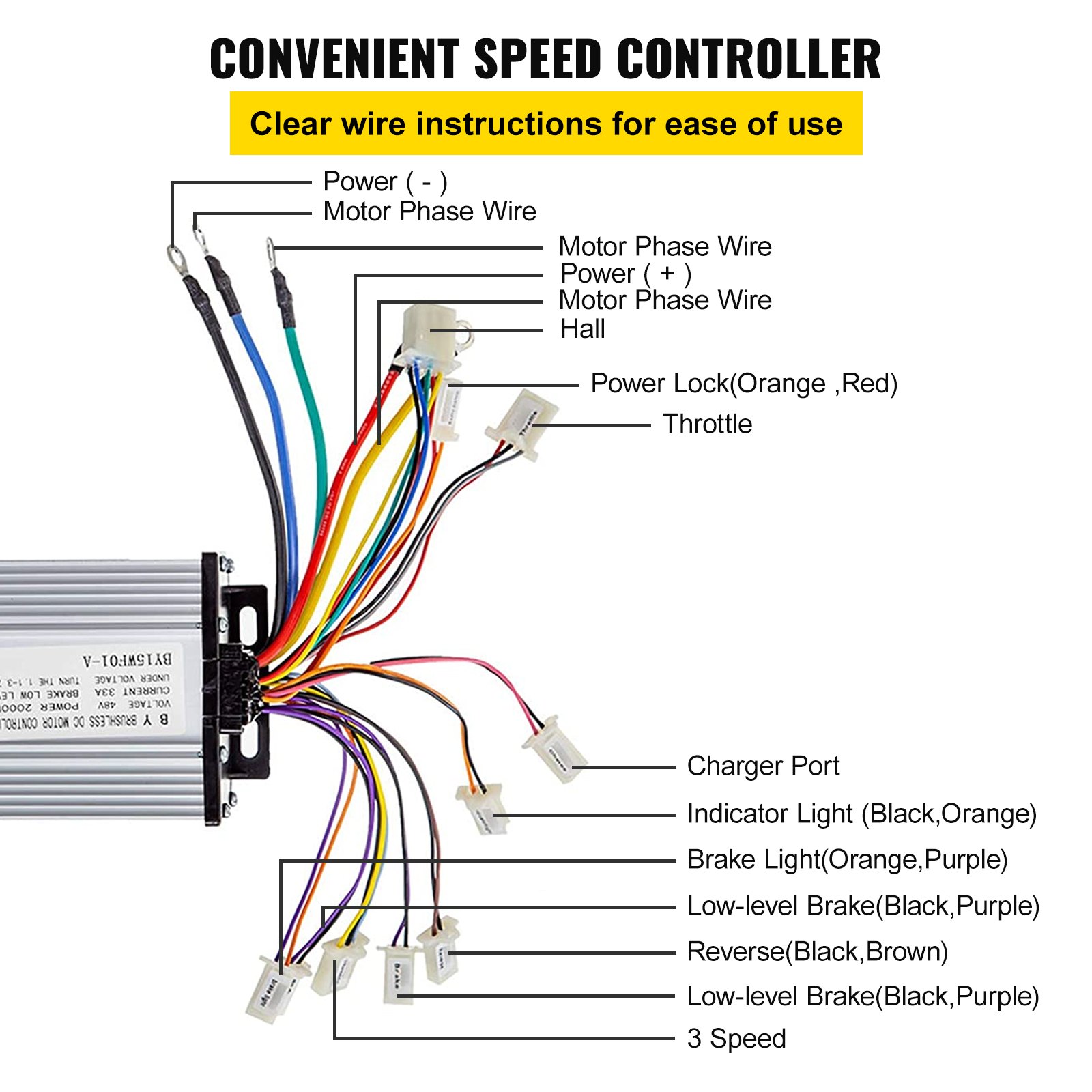

VEVOR brushless electric motor controller with labeled wires and functions.
Simple Speed Control
The speed controller allows you to control the speed effortlessly. The complete brushless motor set, speed controller, and other necessary components assist in operating the machine.

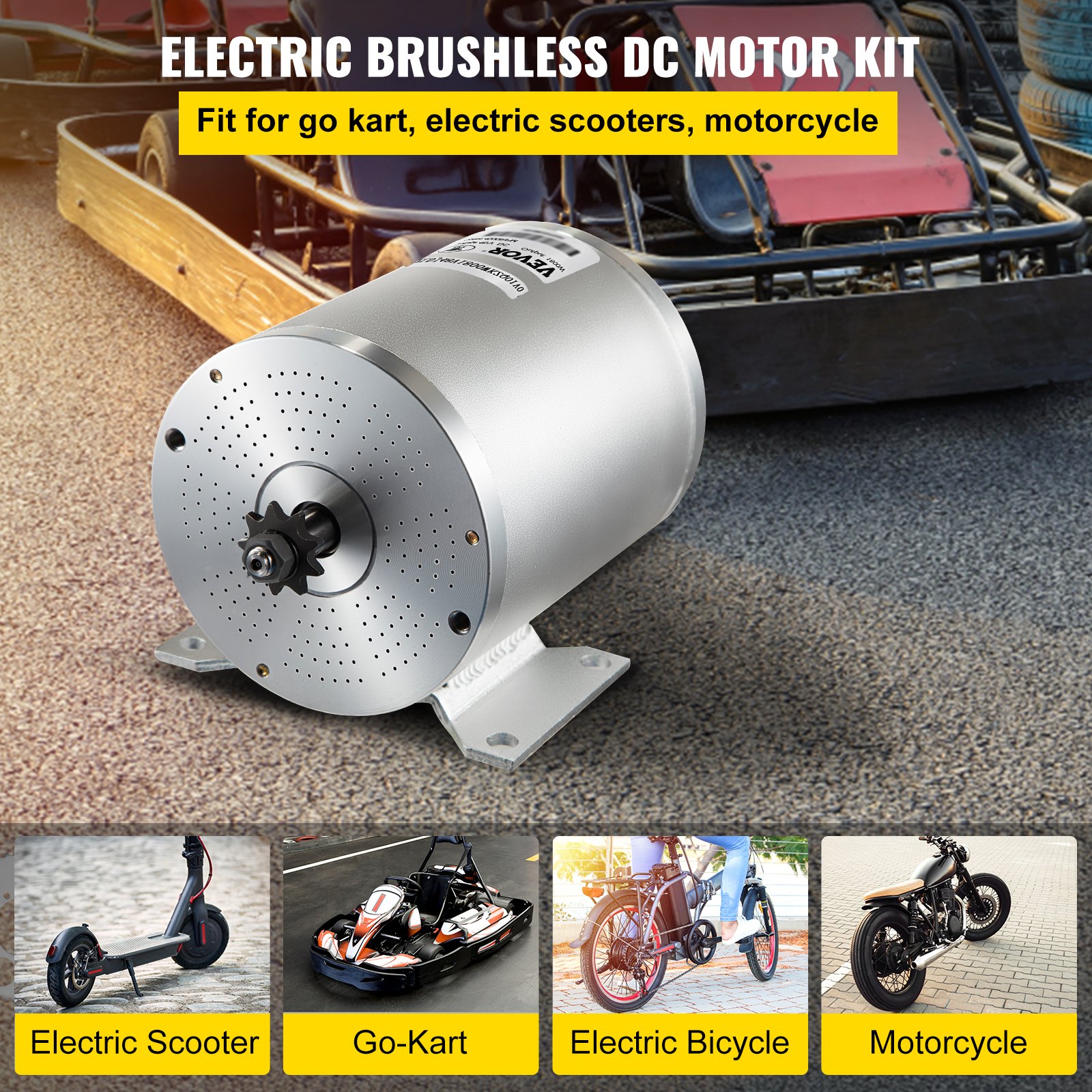

VEVOR brushless electric motor controller for scooter, go-kart, bicycle, and motorcycle.
Wide Application
Electric brushless motor is ideal for Electric Scooters, Motorcycle, Ebike Bicycles, Motorcycle, E Tricycle, Mid Drive Motor Kit, Complete Sets, DIY Engine Systems, Cycling Parts, Mini Electric Motorcycles, DIY Engine Kit, etc.

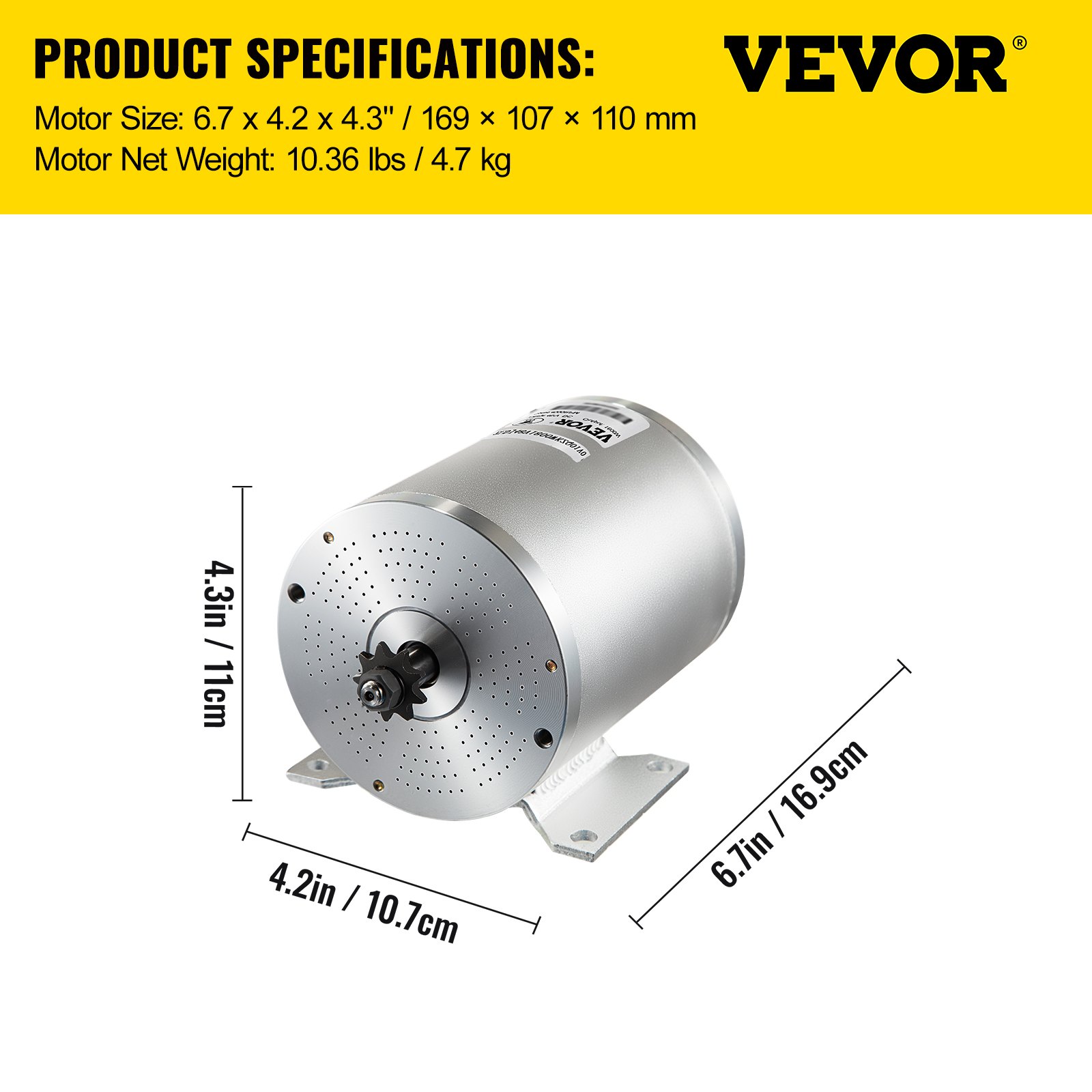

VEVOR brushless electric motor controller with dimensions labeled in cm and inches.
  • Motor
  • Model: MY1020D
  • Input Voltage: 48V DC
  • Output Power: 2000W
  • Rated Current: 34A
  • Rated Speed: 4300 RPM
  • Maximum Speed: 5400 RPM
  • Sprocket: T8F-11T
  • Horsepower: 2.67HP
  • Rated Torque: 4.8 N.m / 679.74 oz.in
  • Maximum Current: 42A
  • No-load Current: ≤ 3.8A
  • Peak Efficiency: ≥ 85%
  • Working Temperature: < 120 °C / 248 ℉
  • Shaft Length: 5.28'' / 134 mm
  • Net Weight: 10.36 lbs / 4.7 kg
  • Mount Bracket Size: 2.2 x 4'' / 56 x 102 mm
  • Dimensions(L x W x H): 6.7 x 4.2 x 4.3'' / 169 x 107 x 110 mm
  • Controller
  • Model: BY15WF02-A
  • Current: 34A
  • Phase Degree: 120°
  • Conversion Efficiency: 90%
  • Under Voltage Protection Voltage: 39±1V

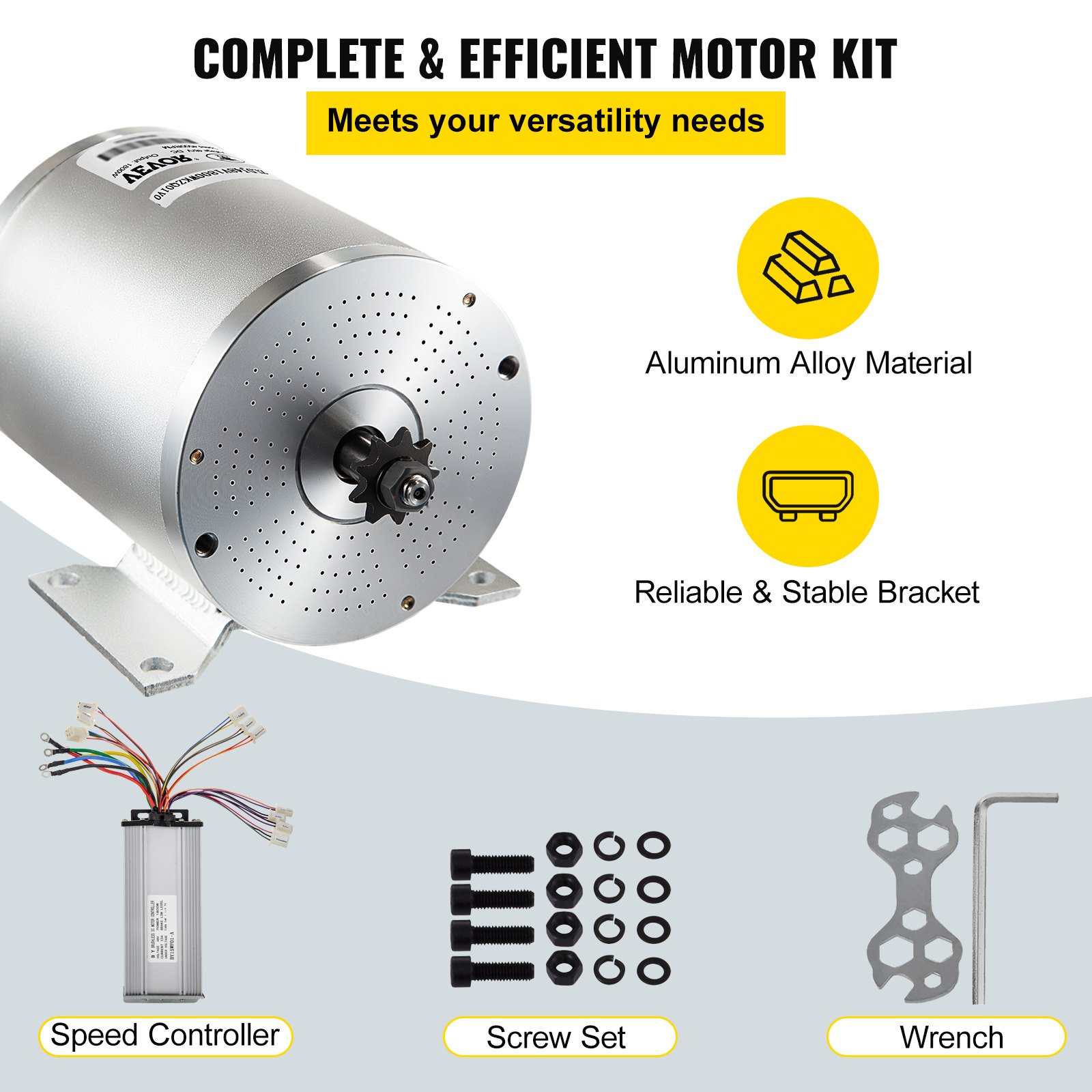

VEVOR brushless electric motor controller with wiring harness and mounting accessories
  • 1 x Brushless DC Motor
  • 1 x Controller
  • 1 x Multi-purpose Wrench
  • 1 x L-Shaped Wrench
  • 1 x Screw Set
VEVOR brushless electric motor controller, 48v 2000w 4300rpm, high-speed pure copper coil.
VEVOR brushless electric motor controller with mounting kit and wiring.
Brushless DC Motor Kit w/ Controller
48V DC & 2000W Output & 4300RPM Rated Speed
This brushless electric motor is built with a 100% copper core for low noise operation and high working efficiency. It features an aluminum alloy shell and a complete accessories kit to help you fix the motor safely. It is ideal for go karts, electric scooters, e-bikes, ATVs, motorized bicycles, etc. Hit the ground running faster than ever with our brushless DC motor kit.
  • Fundamental Parameters
  • 2000W Brushless Motor
  • Sturdy Aluminum Construction
  • Speed Controller Included
VEVOR brushless electric motor controller with pure copper motor, 2000w, powerful torque, low noise
Pure Copper Motor
The electric brushless dc motor features a 100% pure copper core for high conductivity, high-temperature resistance, low noise, and saves energy during extended use.
VEVOR brushless electric motor controller, 4300 rpm high speed, sprocket details.
4300 RPM High Speed
This dc brushless motor kit runs at 2000W, the rated speed is 4300RPM, and the maximum speed is 5400 RPM. Thus, it can provide fast acceleration and unmatched power for your machines.
VEVOR brushless electric motor controller with durable aluminum shell and cooling holes.
Durable Aluminum Alloy Shell
The electric go kart motor is constructed from aluminum alloy material, which can resist oxidation, compression, and deformation. Besides, it is lightweight enough to carry and process with ease.
VEVOR brushless electric motor controller with dual-direction design, forward/reverse rotation.
Dual-Direction Design
You can switch the rotation to either a clockwise or counterclockwise direction by reversing the go kart electric motor's power wires, which are easy to adjust.
VEVOR brushless electric motor controller with labeled wires and functions.
Simple Speed Control
The speed controller allows you to control the speed effortlessly. The complete brushless motor set, speed controller, and other necessary components assist in operating the machine.
VEVOR brushless electric motor controller for scooter, go-kart, bicycle, and motorcycle.
Wide Application
Electric brushless motor is ideal for Electric Scooters, Motorcycle, Ebike Bicycles, Motorcycle, E Tricycle, Mid Drive Motor Kit, Complete Sets, DIY Engine Systems, Cycling Parts, Mini Electric Motorcycles, DIY Engine Kit, etc.
VEVOR brushless electric motor controller with wiring harness and mounting accessories
  • 1 x Brushless DC Motor
  • 1 x Controller
  • 1 x Multi-purpose Wrench
  • 1 x L-Shaped Wrench
  • 1 x Screw Set
VEVOR brushless electric motor controller with dimensions labeled in cm and inches.
  • Motor
  • Model: MY1020D
  • Input Voltage: 48V DC
  • Output Power: 2000W
  • Rated Current: 34A
  • Rated Speed: 4300 RPM
  • Maximum Speed: 5400 RPM
  • Sprocket: T8F-11T
  • Horsepower: 2.67HP
  • Rated Torque: 4.8 N.m / 679.74 oz.in
  • Maximum Current: 42A
  • No-load Current: ≤ 3.8A
  • Peak Efficiency: ≥ 85%
  • Working Temperature: < 120 °C / 248 ℉
  • Shaft Length: 5.28'' / 134 mm
  • Net Weight: 10.36 lbs / 4.7 kg
  • Mount Bracket Size: 2.2 x 4'' / 56 x 102 mm
  • Dimensions(L x W x H): 6.7 x 4.2 x 4.3'' / 169 x 107 x 110 mm
  • Controller
  • Model: BY15WF02-A
  • Current: 34A
  • Phase Degree: 120°
  • Conversion Efficiency: 90%
  • Under Voltage Protection Voltage: 39±1V

Specification

Motor
Model
MY1020D
Input Voltage
48V DC
Output Power
2000W
Rated Current
34A
Rated Speed
4300 RPM
Maximum Speed
5400 RPM
Sprocket
T8F-11T
Horsepower
2.67HP
Rated Torque
4.8 N.m / 679.74 oz.in
Maximum Current
42A
No-load Current
≤ 3.8A
Peak Efficiency
≥ 85%
Working Temperature
< 120 °C / 248 ℉
Shaft Length
5.28'' / 134 mm
Net Weight
10.36 lbs / 4.7 kg
Mount Bracket Size
2.2 x 4'' / 56 x 102 mm
Dimensions(L x W x H)
6.7 x 4.2 x 4.3'' / 169 x 107 x 110 mm
Controller
Model
BY15WF02-A
Current
34A
Phase Degree
120°
Conversion Efficiency
90%
Under Voltage Protection Voltage
39±1V
Questions and Answers
1 Questions
or Ask a Question
is it 42A? the controller says 33a or do you get an other controller than on the picture?
Answer This Question
De motor laat maximaal 42 A toe en de piekwaarde van de controller is ongeveer 34 A.
By vevor
Helpful ( 2 )

Customer Reviews

4.6 Out of 5
Based on 9 reviews

Ratings by Features

  • 4.7
  • 4.5
  • 4.6
  • 4.5
  • See More See Less
9 Review(s)
Clear filters
Carl Carl
Baker
The motor I ordered is of high quality and arrived fast. The only issue I have is mounting options, however after speaking with customer services, who responded very fast and were beyond polite and eager to help and come to a solution. Great product, excellent company. Will definitely use again and recommend to others.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Derlis Caballero Mendoza Derlis Caballero Mendoza
No viene con la base del motor
No viene con la base del motor como muestra en la imagen, pero por sobre todo parece buena calidad.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Smiky16 Smiky16
Fantastic
delivered in good time good quality kit everything working really well very satisfied with my purchase
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Brian Wade Brian Wade
Razor MX500 & MX650
Used this on a Razor MX500/MX650, fit perfectly. Nicely built and has a TON of power. Great seller, great price and great product! Thank you!
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Colleen Frances Clarke Colleen Frances Clarke
Fast
Works in a razor eco smart metro scooter
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Brian Wade Brian Wade
Razor Dirtbike
Used on a Razor MX500 and works perfectly. Runs strong, quiet and doesn't heat up.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
darron l akers darron l akers
Awesome
Works as advertised. Arrived on time and packaged well. I am very pleased.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Otter401 Otter401
Razor build
Haven't installed the motor yet, but overall pleased with build quality and overall feel. Will be going on a 2000w razor build. I will update the review if I encounter any issues. Note to people installing on razors, you must countersink the screws to fit on the frame.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
avandeusen avandeusen
Good Product for the Price
The motor and controller are working for me in a custom application. There is little documentation, so you need to be able to tinker a bit. I had a little trouble getting it going because I had a fixed input to the speed control. When I added a potentiometer, it still did not work until I turned the speed to 0. Then when I went back up, it works. Apparently there is a safety feature that does not enable the controller until is had a 0 speed command input. I can work with that.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 1 people found this helpful
