Features & Details

90 HP Hydraulic Steering Kit: Our 90 HP boat hydraulic steering system includes a hydraulic steering cylinder, a low-friction hydraulic pump, two 20ft high-pressure hoses, and a complete set of accessories. It's the perfect replacement for aging or damaged hydraulic steering systems. Enjoy unmatched control and stability on your maritime journeys！
Two-Way Locking Valve: Our advanced hydraulic pump features a built-in two-way locking valve, replaceable shaft seals, a relief valve, and an air pocket. This not only enhances reliability, security, and durability but also reduces long-term operational and maintenance costs while optimizing overall system efficiency and performance. Upgrade now for peace of mind on your maritime adventures.

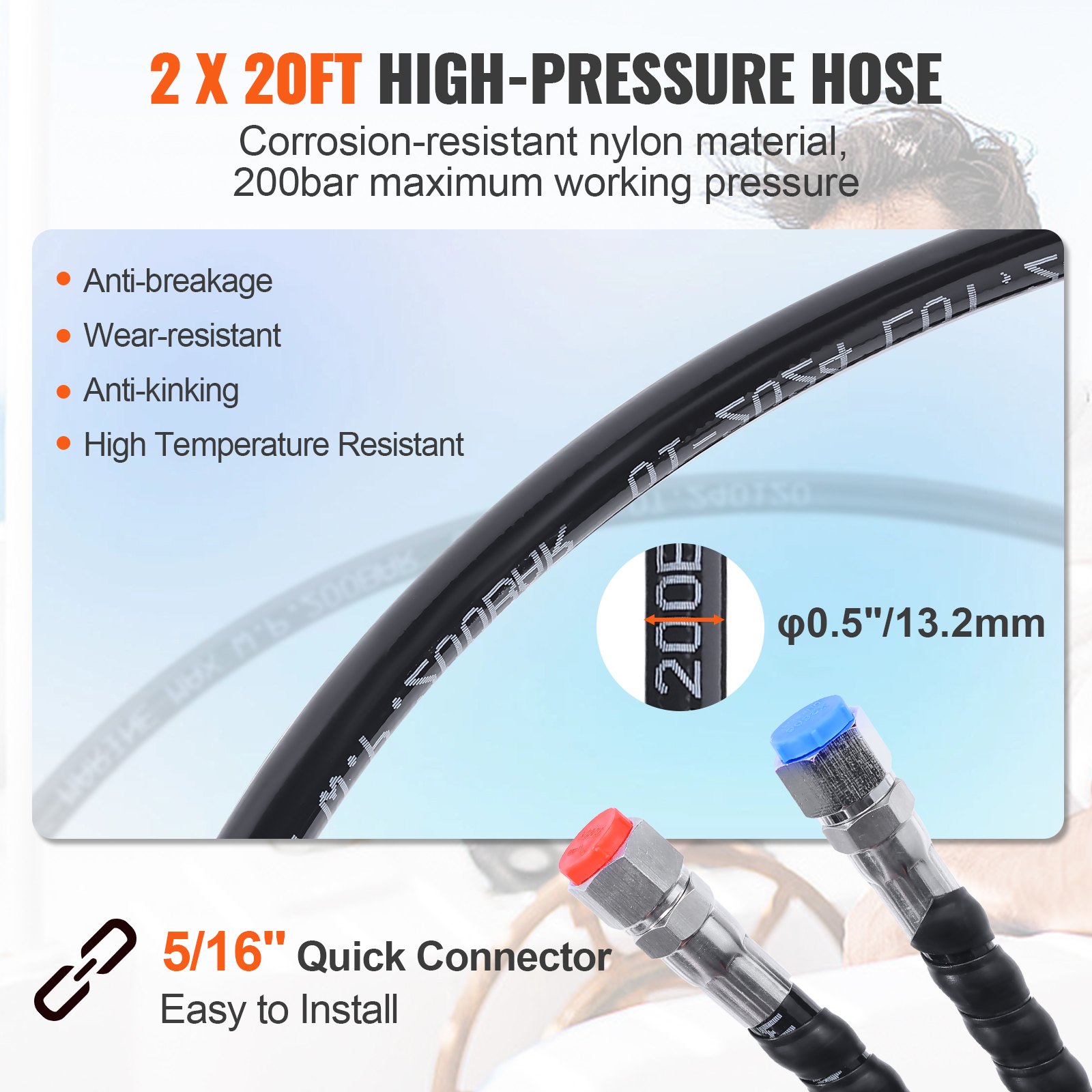

2x20FT Hydraulic Hoses: With a maximum working pressure of 200 bar and reinforced with thick nylon tubing, our hydraulic hoses are built to withstand heavy loads without risking rupture or leakage, ensuring swift and dependable response to every steering maneuver. Equipped with quick-fit 5/16" fittings, these hoses offer effortless installation flexibility across various vessel types. Dominate the waters with precision and ease.
High-Performance Steering Cylinder: Our hydraulic steering cylinder boasts an impressive output force of 232kgf and is perfect for most splash wells, ensuring optimal engine operation without space constraints. Its sturdy structure and efficient seals allow it to withstand harsh environments with ease. Gear up for precise steering control and durability that stands the test of time.

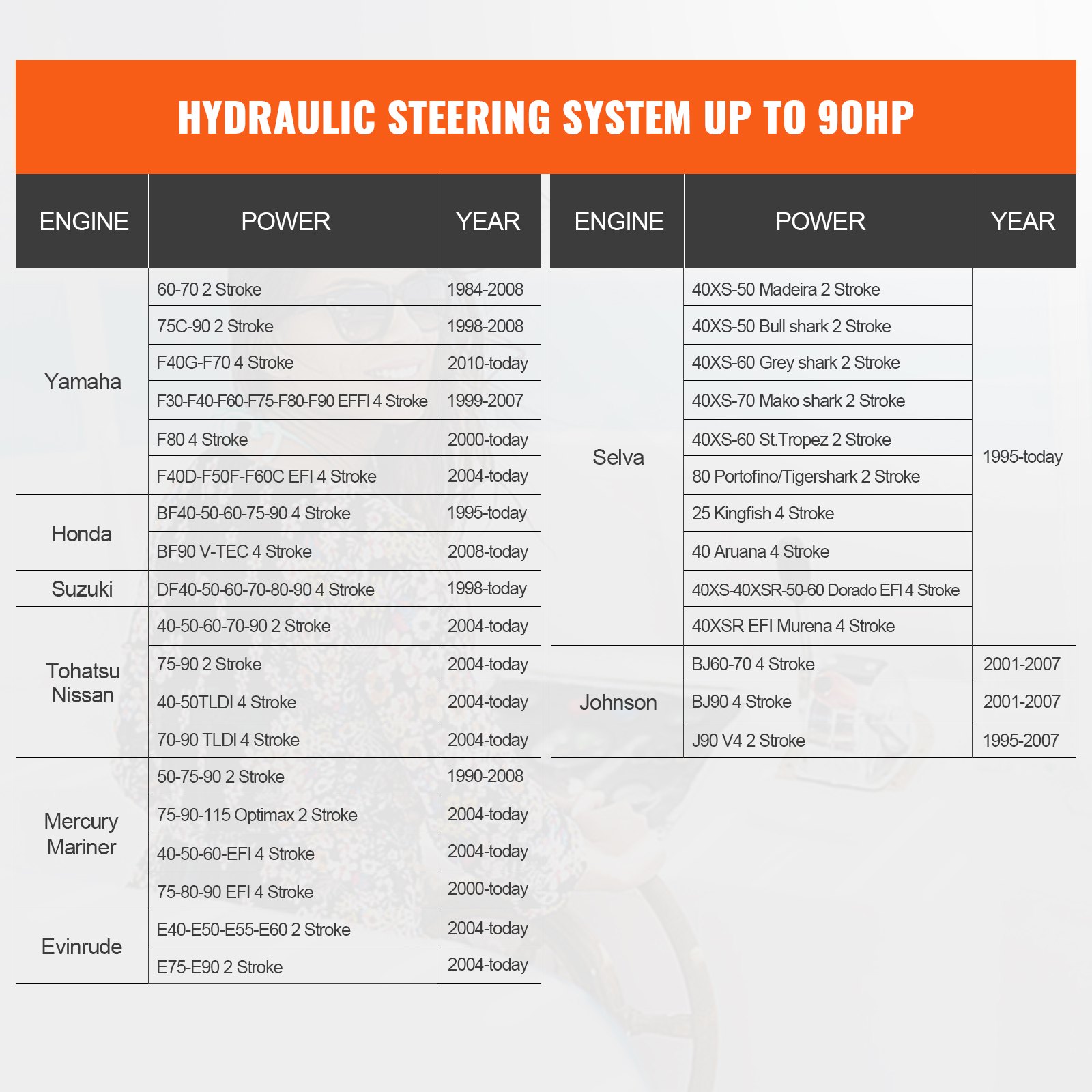

Engineered for Versatility: Our marine hydraulic steering system is compatible with outboard motors up to 90HP and seamlessly integrates with a range of top brands, including Yamaha, Suzuki, Honda, Mercury, Nissan, and Tohatsu. Our outboard hydraulic steering kit ensures smooth and precise steering control for an exceptional boating experience.

VEVOR hydraulic steering kit for a yacht on the water, ideal for outboard boats.

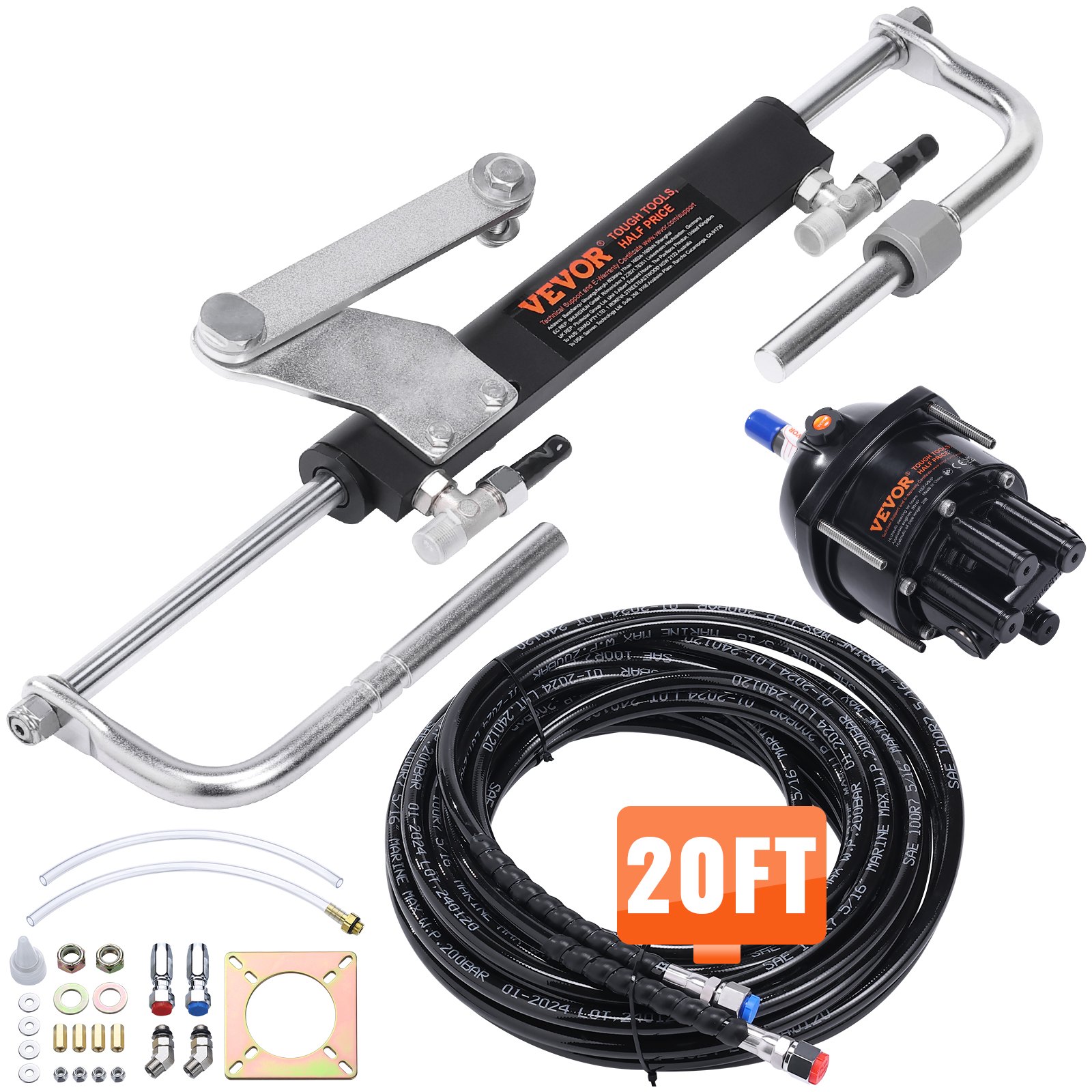

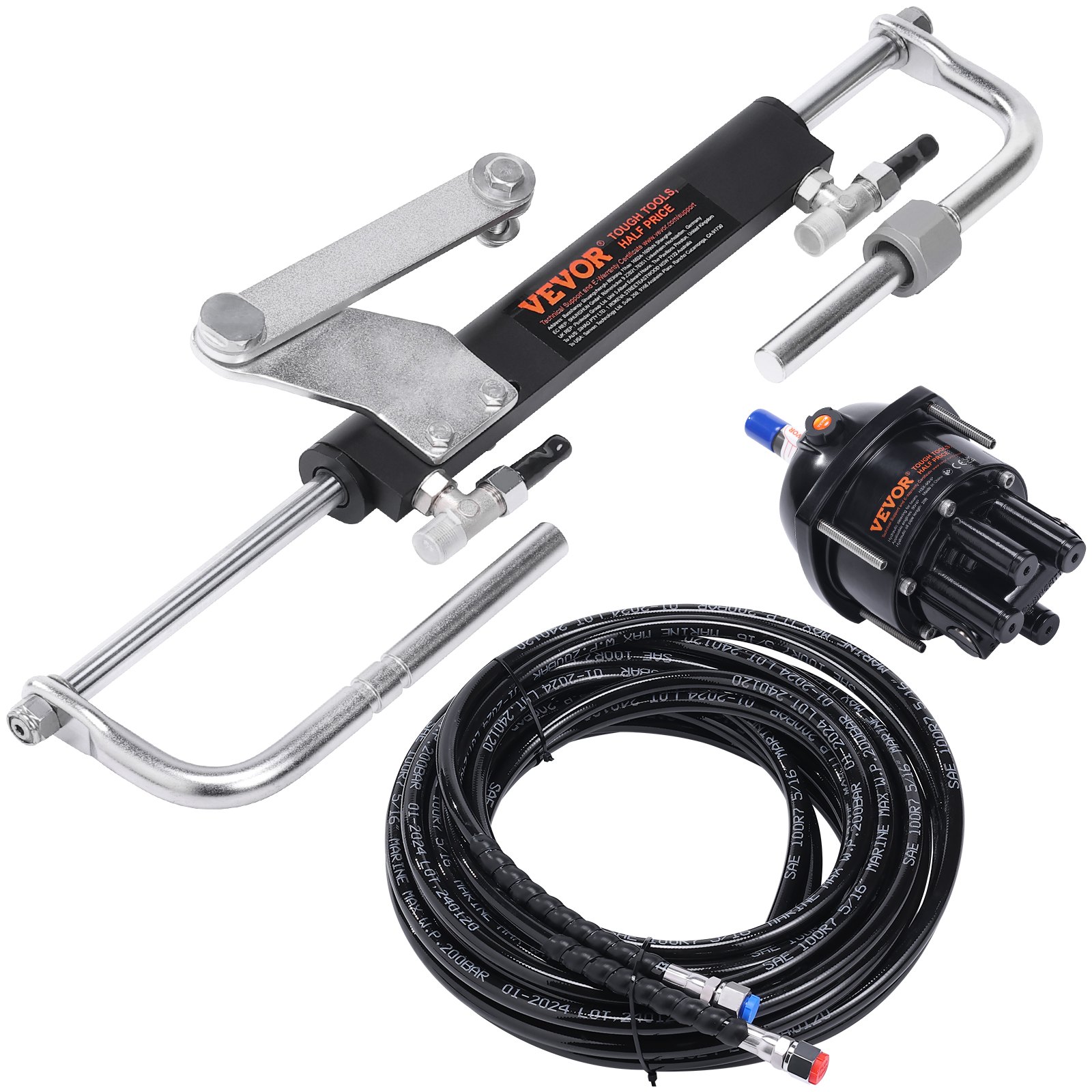

VEVOR hydraulic steering kit, 20ft hose, steering cylinder, and installation hardware.

90HP Hydraulic Outboard Steering System Kit

Complete Kit & Compact Cylinder & Low-friction Helm

Our kit enables the installation of a hydraulic steering system on engines up to 90HP. The rudder shaft features an aluminum alloy shell to withstand harsh marine environments. The hydraulic steering cylinder includes a two-way locking valve, bringing you high-end maritime quality.

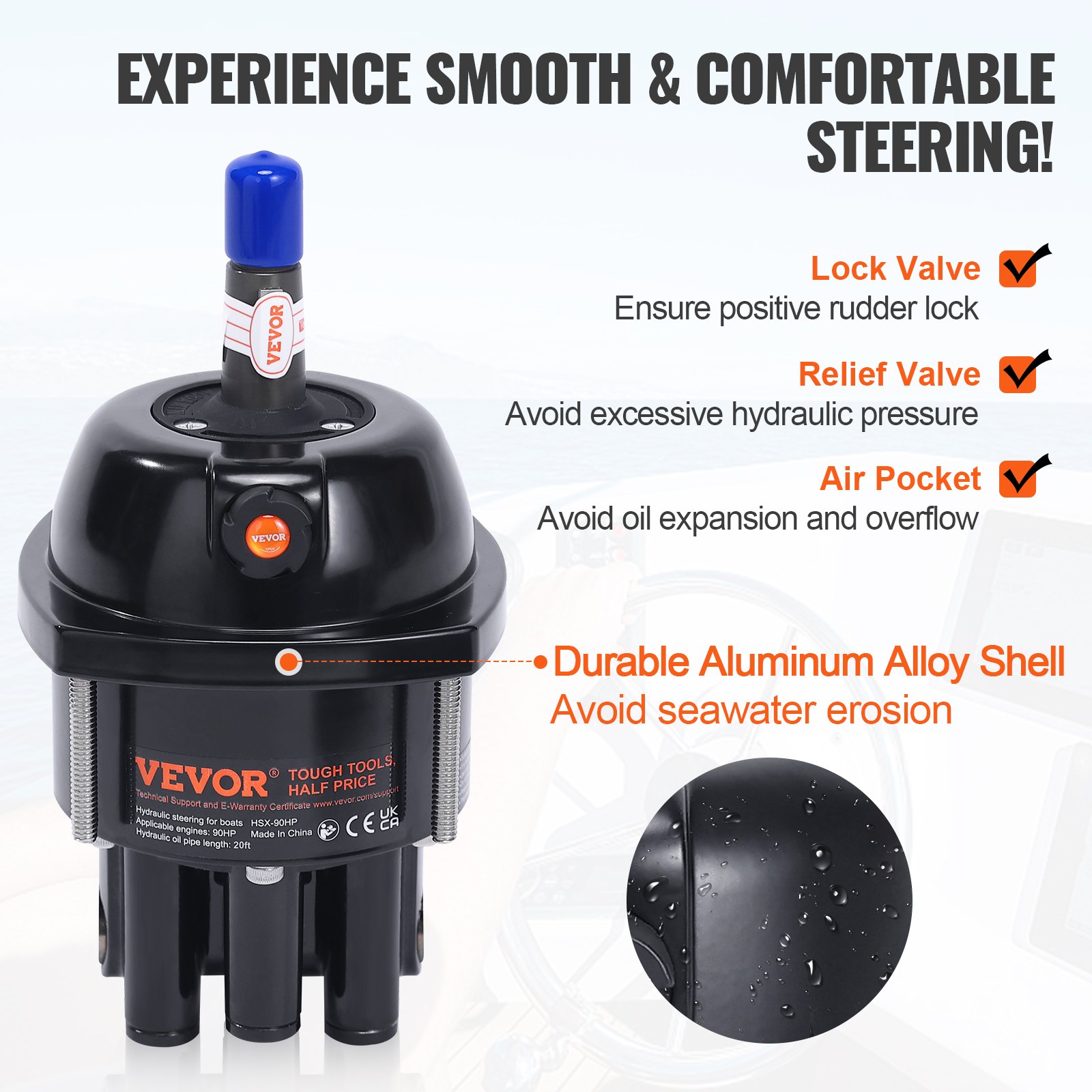

Two-Way Locking Valve
2x20FT Hydraulic Hoses

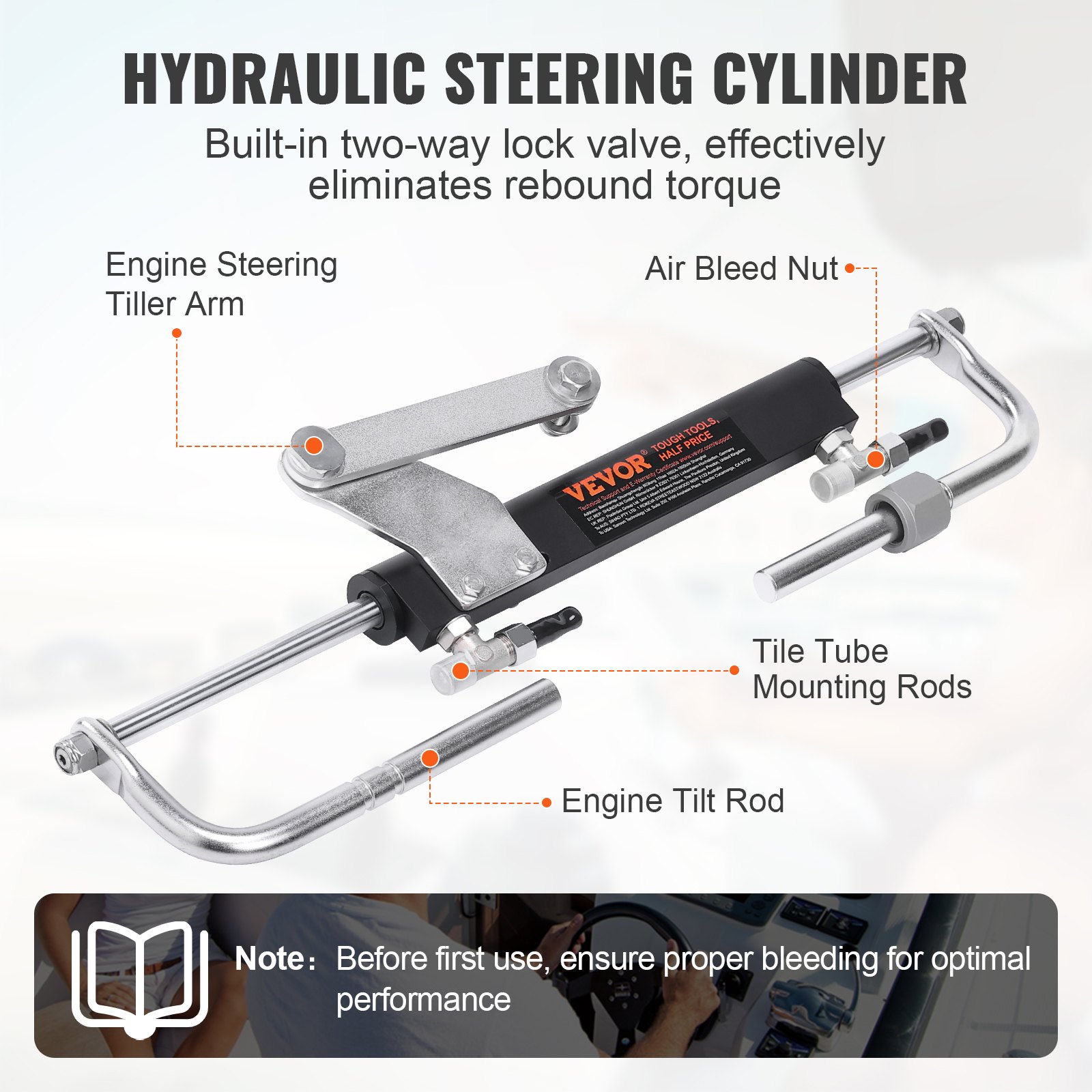

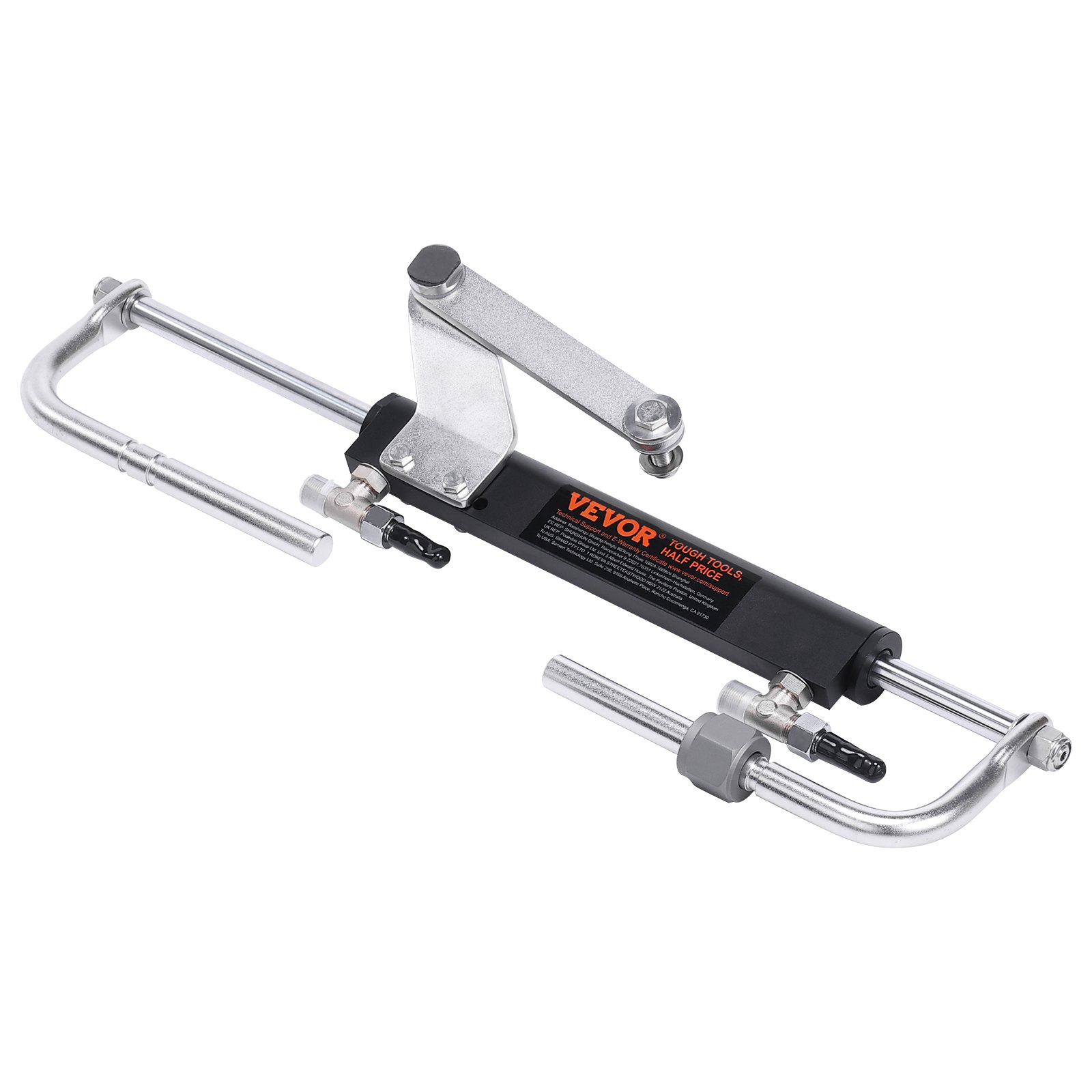

High-Performance Steering Cylinder
Engineered for Versatility

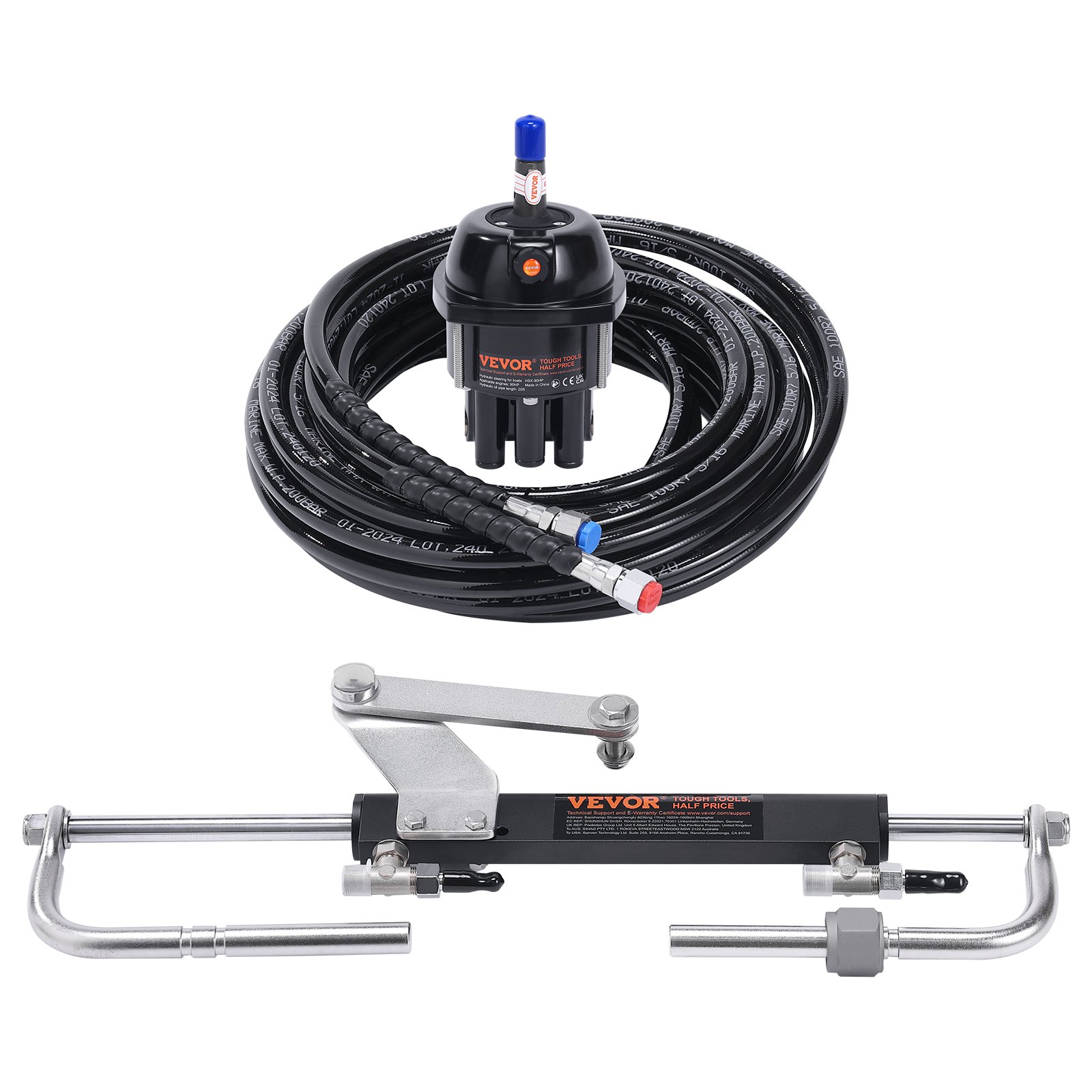

VEVOR hydraulic steering kit with components and coiled hose.

90HP Hydraulic Outboard Steering System Kit

VEVOR hydraulic steering kit with aluminum alloy casing

Easy Maintenance

Our boat hydraulic steering system features a detachable oil seal design, simplifying future inspections and maintenance. It ensures that performance declines due to aging or damaged oil seals can be easily avoided, keeping your system running smoothly and efficiently.

VEVOR hydraulic steering kit - compact and neat, efficient, reliable, professional

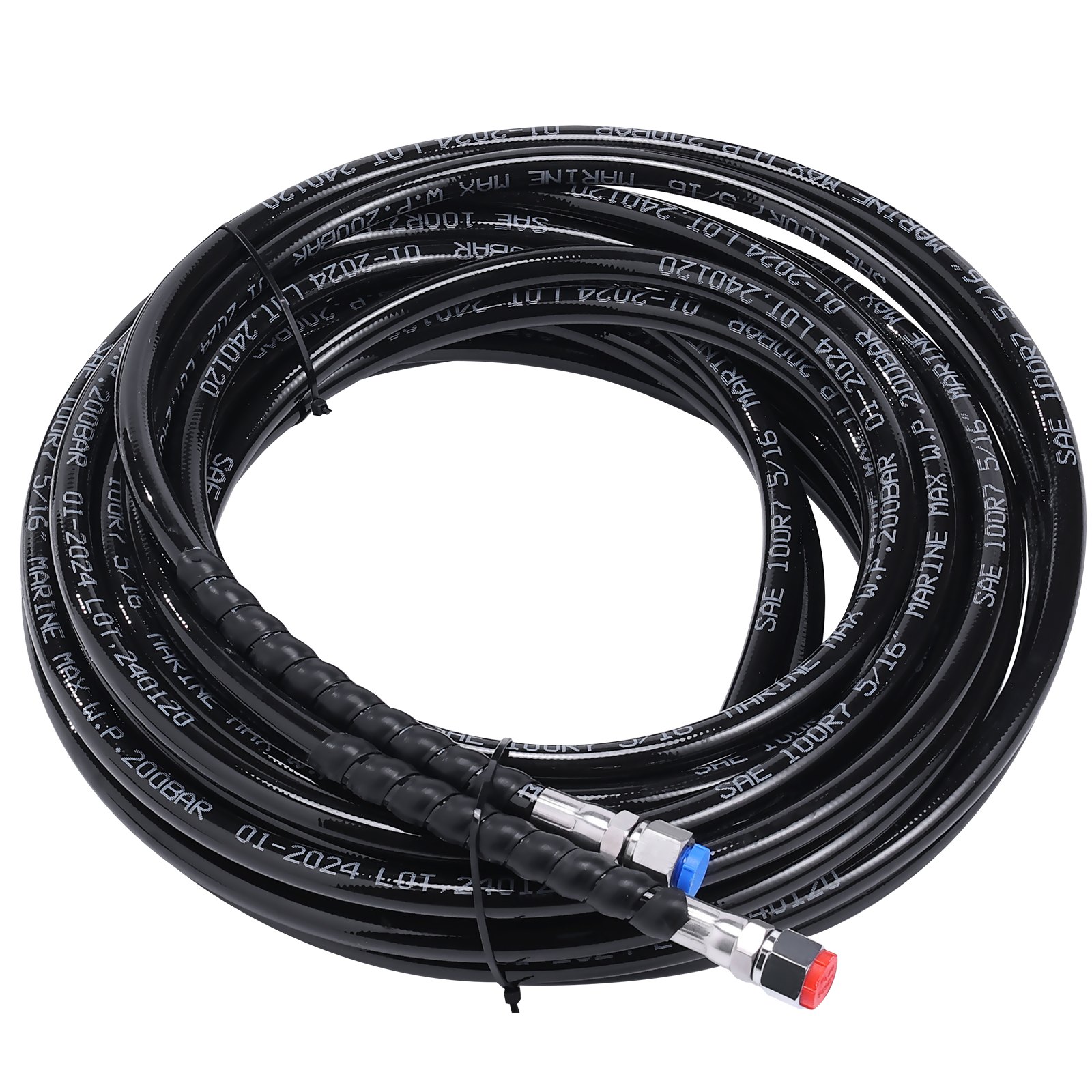

Fixed-Length Hoses

Our hydraulic steering for boats comes with 20 ft hoses, tailoring your system to perfection by cutting the hoses to meet your specific needs. Plus, with quick-fit 5/16" fittings, installation becomes a snap – fast, effortless, and designed for repeated use.

VEVOR hydraulic steering kit high-strength nylon hose with quick-fit 1/4" pipe fitting.

Abundant Accessories

Our marine hydraulic steering kit provides everything you need for a seamless setup and maintenance experience. Inside, you'll find a hydraulic steering cylinder, a hydraulic pump, two 20-foot hydraulic hoses, and a comprehensive accessory kit for all your installation needs.

VEVOR hydraulic steering kit components and hydraulic rubber parts on a white background.

Friendly Reminder

Before using our outboard hydraulic steering kit, it is necessary to fill it with oil and purge any air. If performance decreases or response delays, check the hydraulic fluid and conduct an air purge. We highly recommend consulting and following the user manual.

application scenarios for VEVOR hydraulic steering kit: offshore fishing, ship, flat-bottomed ship, yacht.

Sturdy & Durable

Our hydraulic steering pump body is crafted from premium aluminum alloy to maintain steady performance regardless of damp, rainy, or dusty conditions. We significantly reduce damage caused by environmental factors, ensuring your system operates reliably under any circumstance.

VEVOR hydraulic steering kit components including cylinder, hose, and helm unit.

1 x Hydraulic Steering Pump
1 x Hydraulic Steering Cylinder
2 x High-Pressure Oil Hoses
1 x User Manual

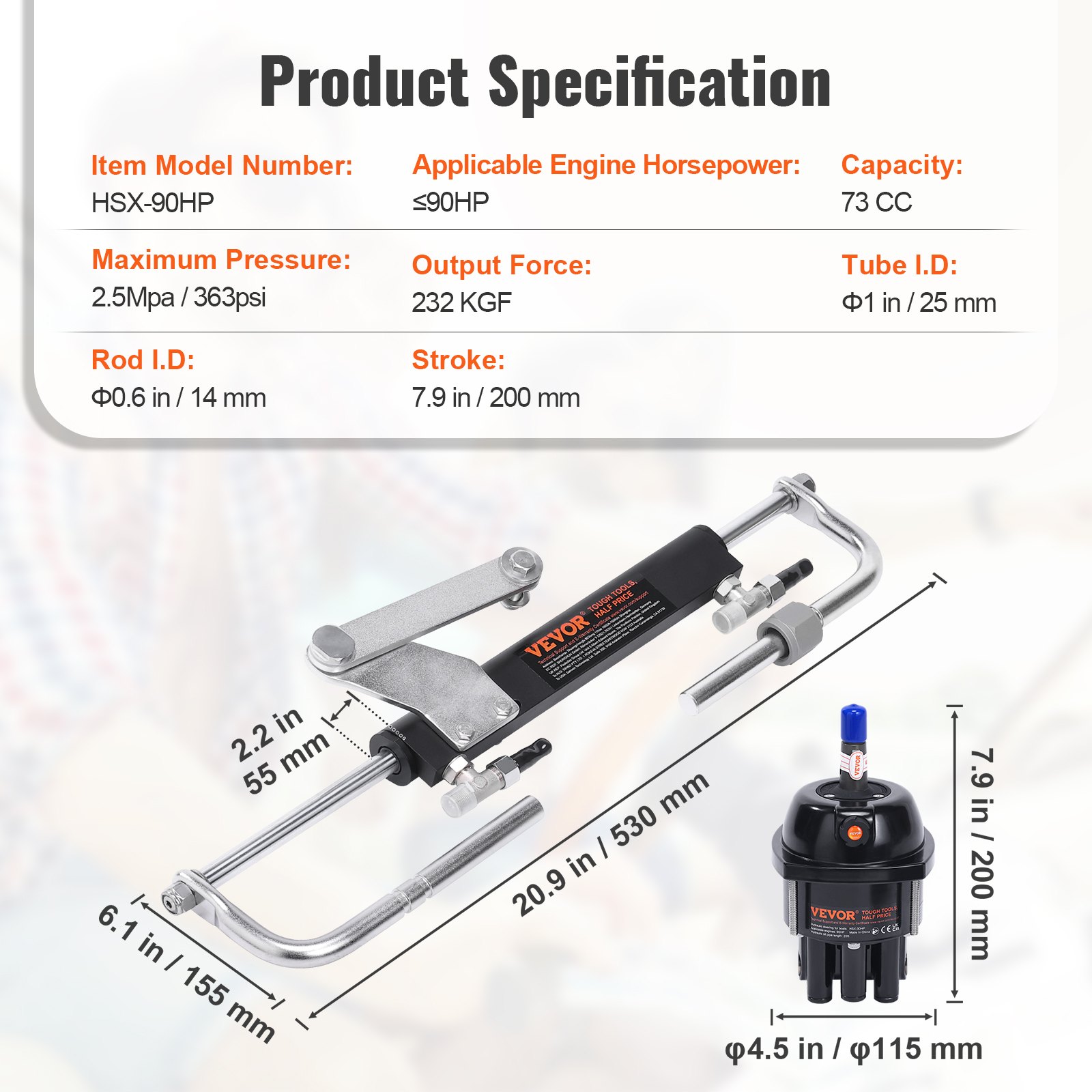

VEVOR hydraulic steering kit with measurements for reference.

Item Model Number: HSX-90HP
Applicable Engine Horsepower: ≤90HP
Maximum Pressure: 2.5Mpa/363psi
Output Force: 232 KGF
Capacity: 73 cc
Tube I.D: Φ1 in/25 mm
Rod I.D: Φ0.6 in/14 mm
Stroke: 7.9 in/200 mm

Reviews 4.0
All reviews are from verified purchases
Average rating based on 1 reviews

Ben Vreeburg

Reviewed on Aug 22,2024

An extra locking nut with a locking sleeve should be included for the confirmation in the bracket tube. When I started using the set, there was a huge vibration in the loose mounting part. After I installed a locking nut, the system was perfect.
