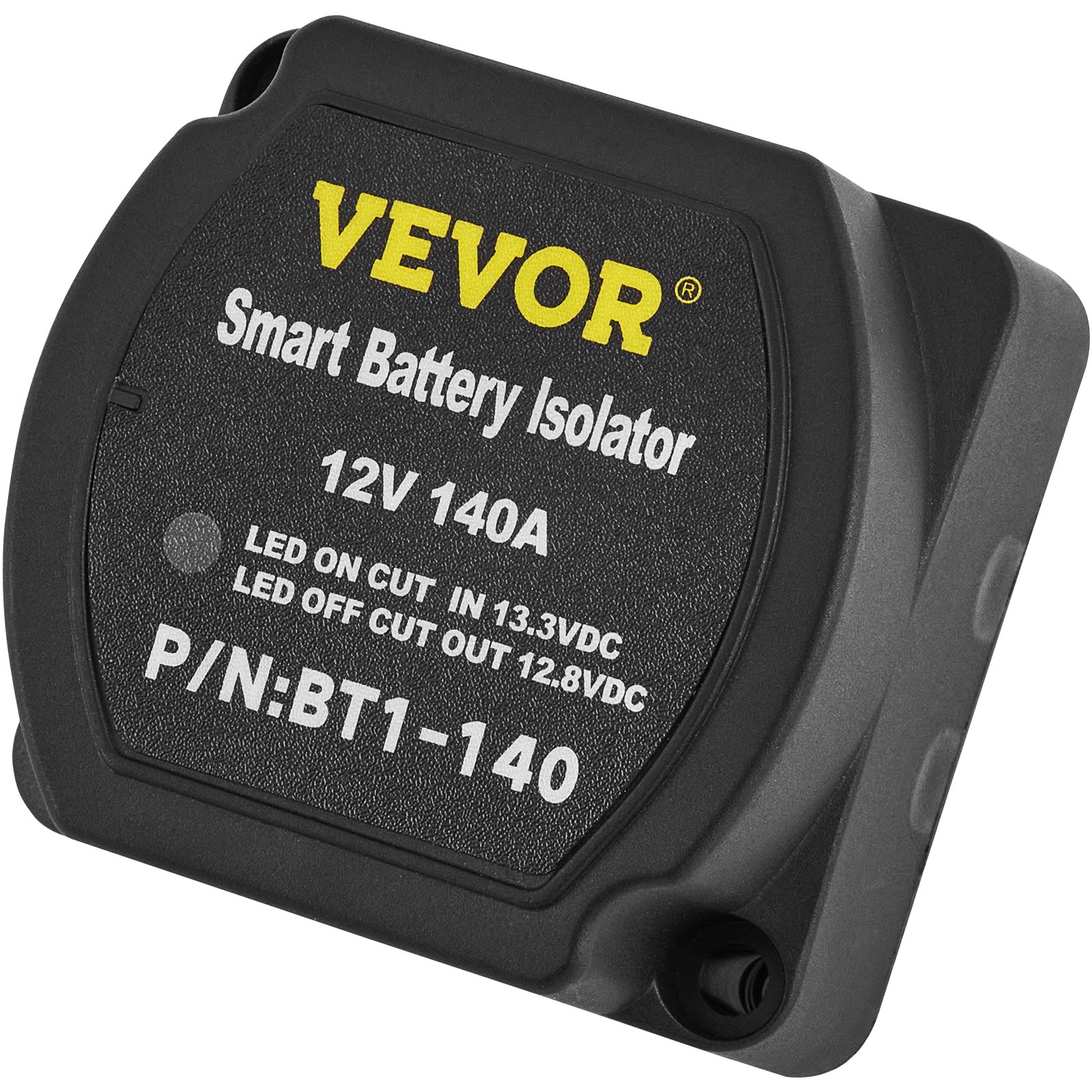

12V 140A Split Charge Relay Kit
Complete Accessories & Weather Resistance & Smart Charging
VEVOR dual battery isolator kit enables your accessories to run from a separate battery while the engine is not running on your vehicle. In the meantime, it keeps your main battery charged and ensures your vehicle is always ready to go. We provide all the accessories needed for a complete installation. The VEVOR split charge relay kit fits perfectly into most cars, RVs, trucks, caravans, ships, boats, yachts, etc. Charge up optimally and stand up to the toughest challenges with VEVOR.
- Dual Battery Isolator
- Easy to Install
- Rugged & Durable
- Superb IP65 Waterproof
- Fit Various Vehicles

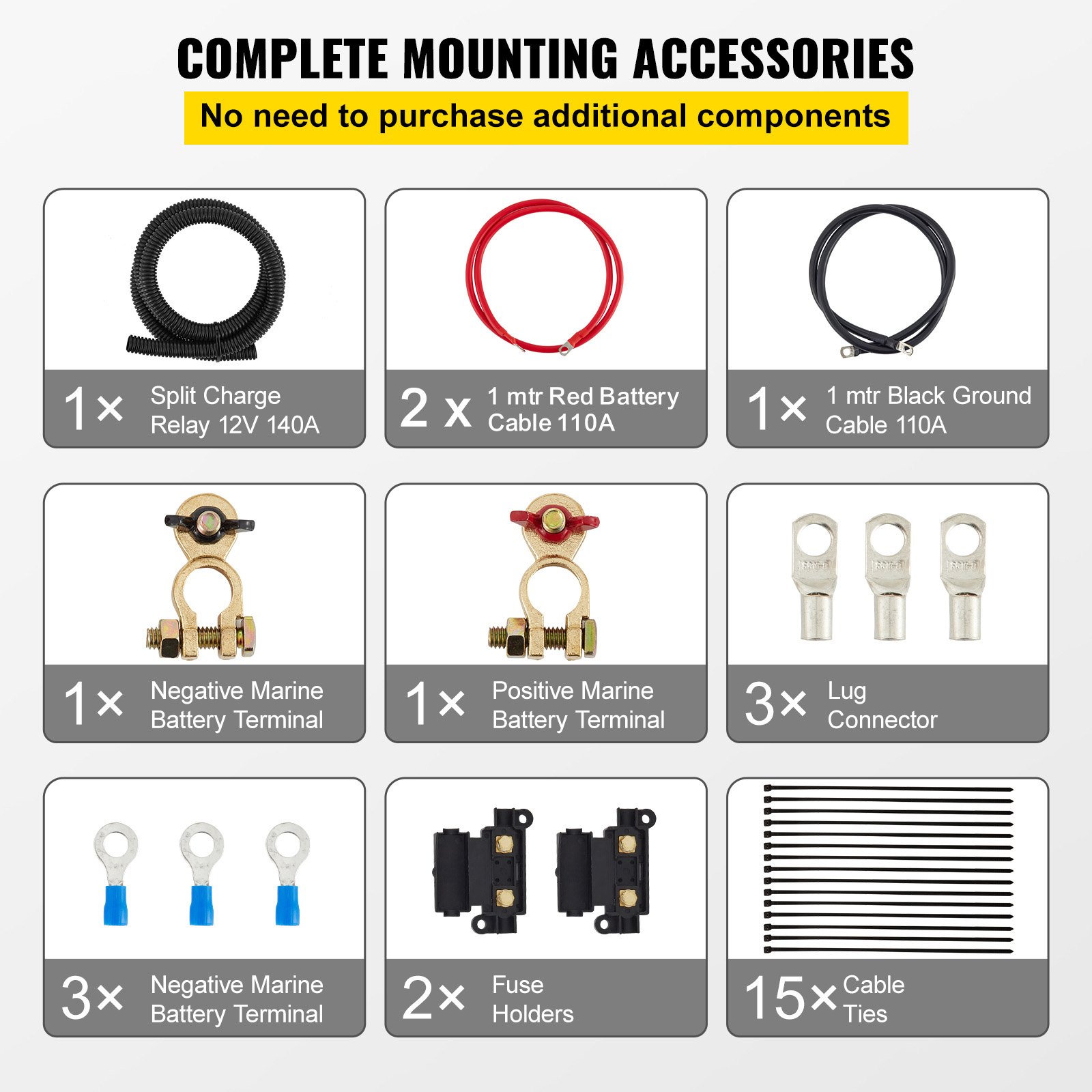

All Accessories Included
The split charger relay kit is equipped with all parts needed for a complete installation, including screws, cable ties, etc.
Simple to Connect

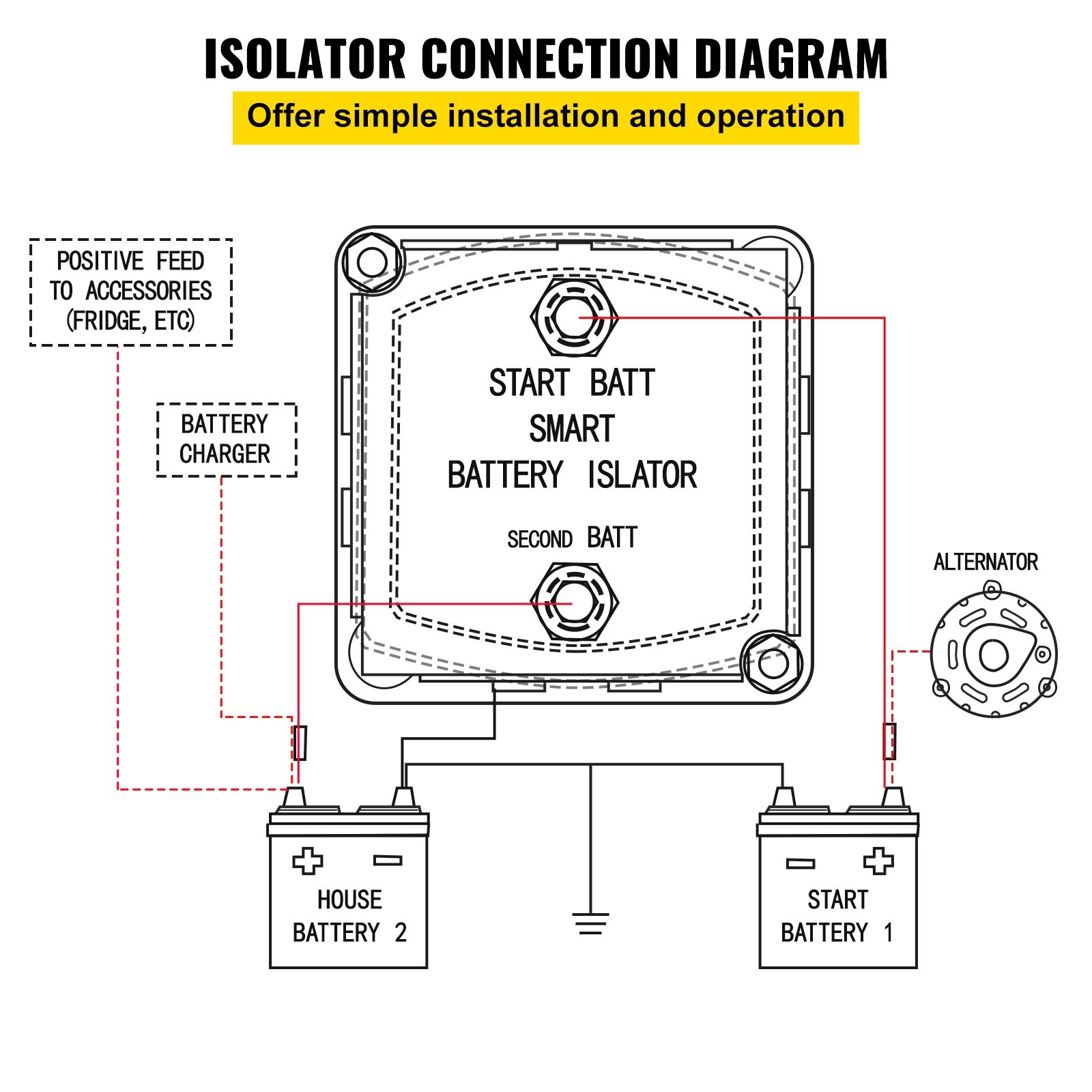

No alternator or ignition connection is needed. An easy 3-wire connection at the battery can be used with the existing wiring in the vehicle.

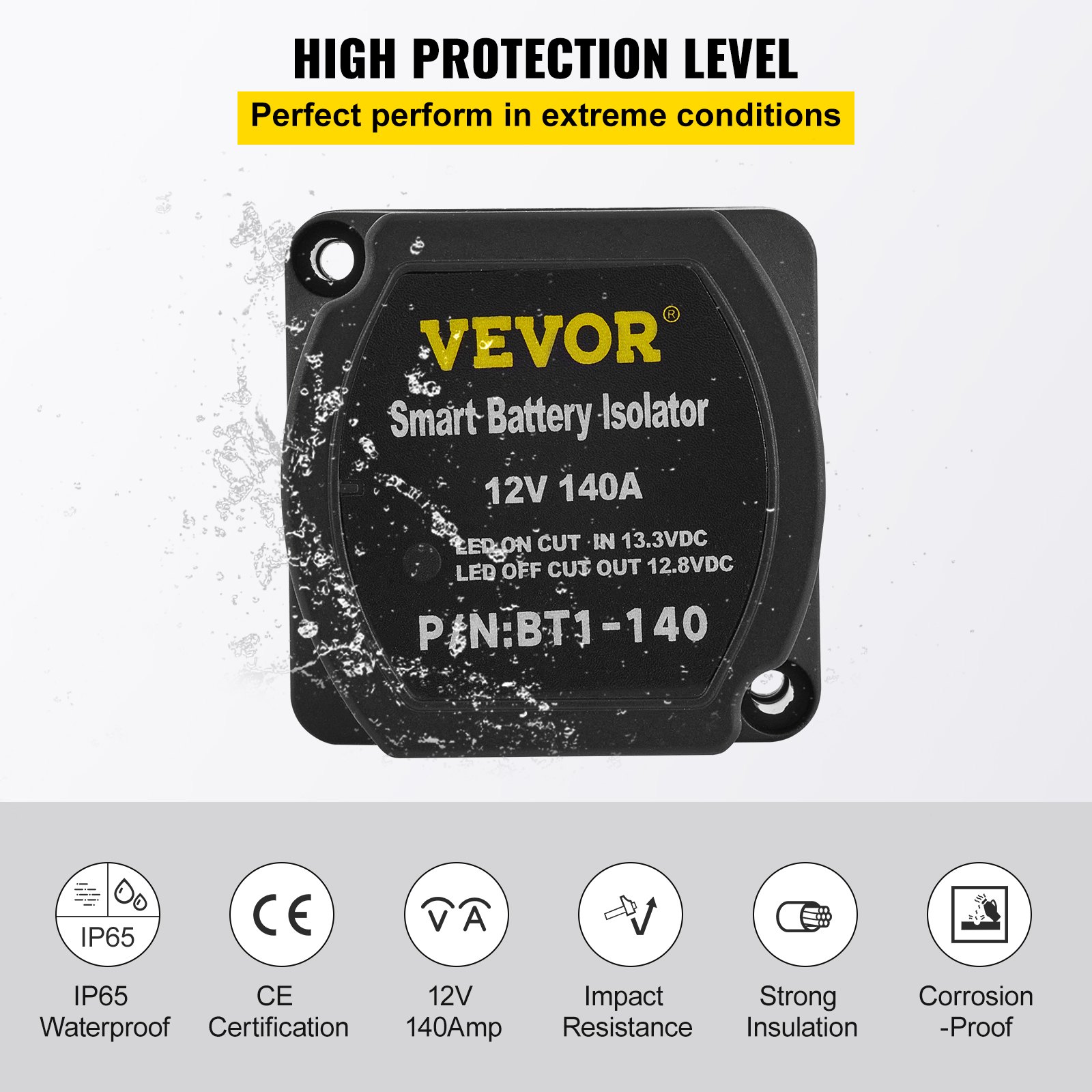

IP65 Waterproof Grade
The IP65 protection level ensures the split charger can be used optimally and remains protected from dust, rain, vibration, etc.

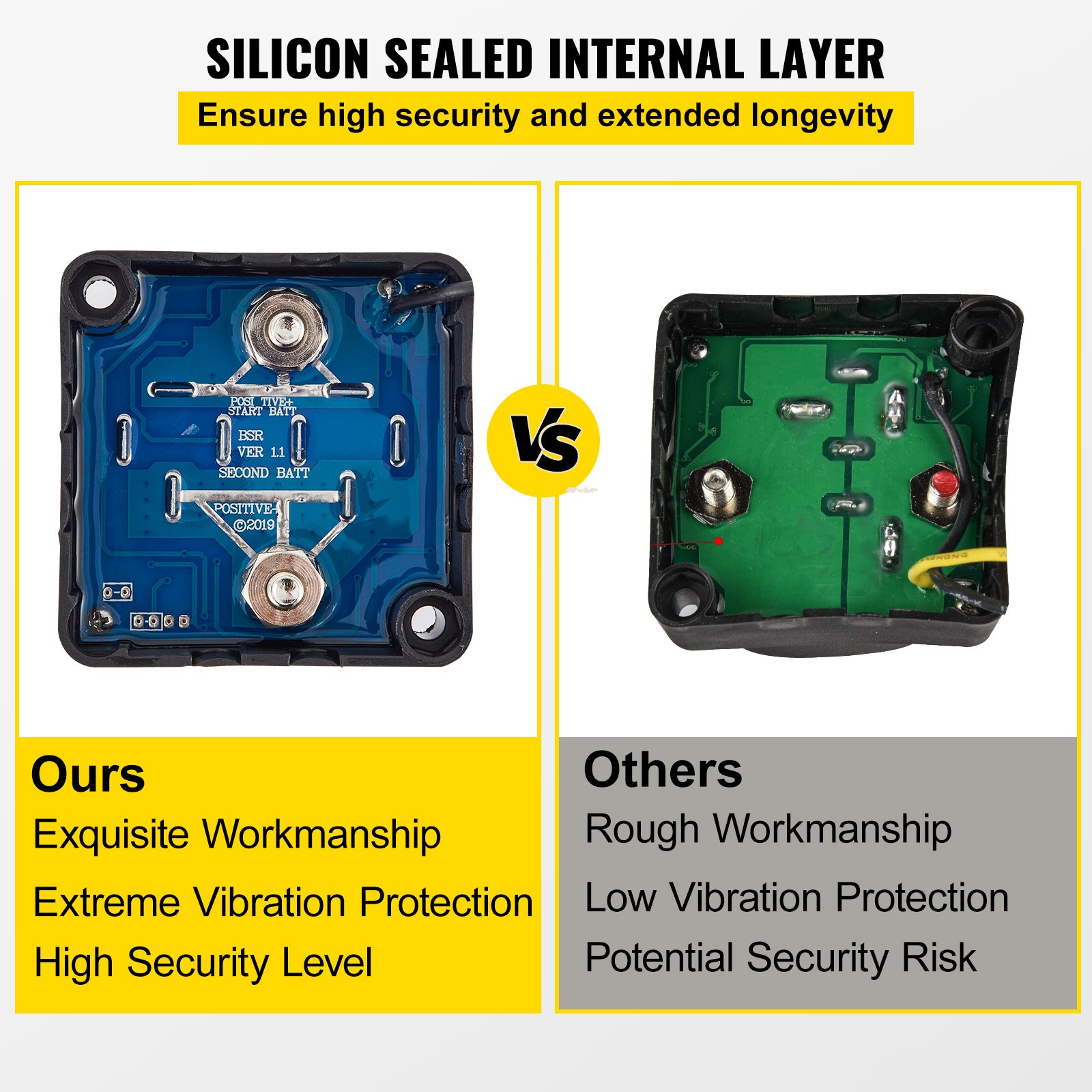

High-Quality Internal Layer
Silicone sealed inner layer is more secure and has anti-vibration capabilities. The plastic shell has high impact strength.
Thickened Battery Cable
The battery cable uses a pure flame retardant copper core and can be used for a long time. Length: 2 Meters.
Wide Compatibility

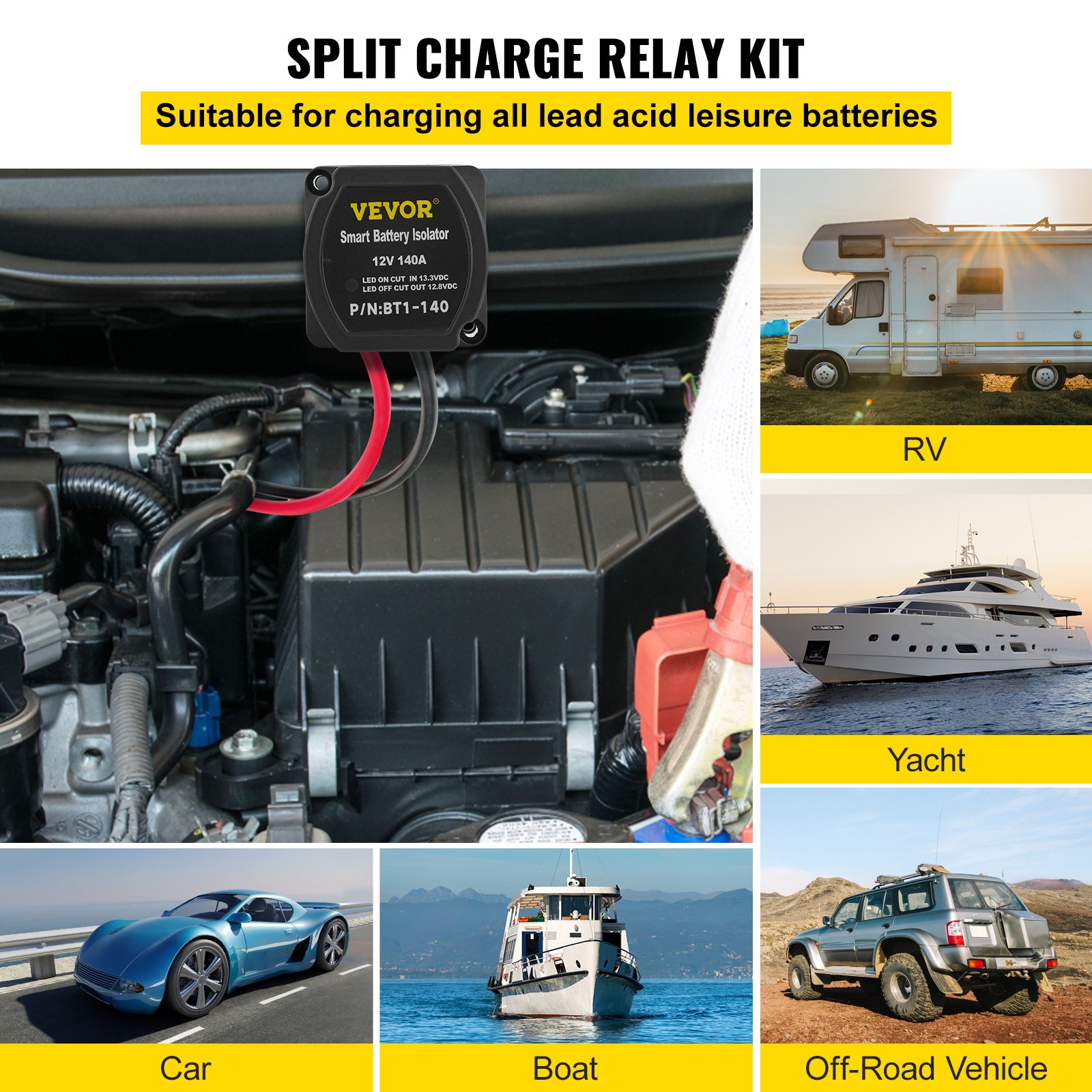

The 12v split charge relay kit is ideal for installation into ATVs, UTVs, trucks, motor homes, and camping applications.

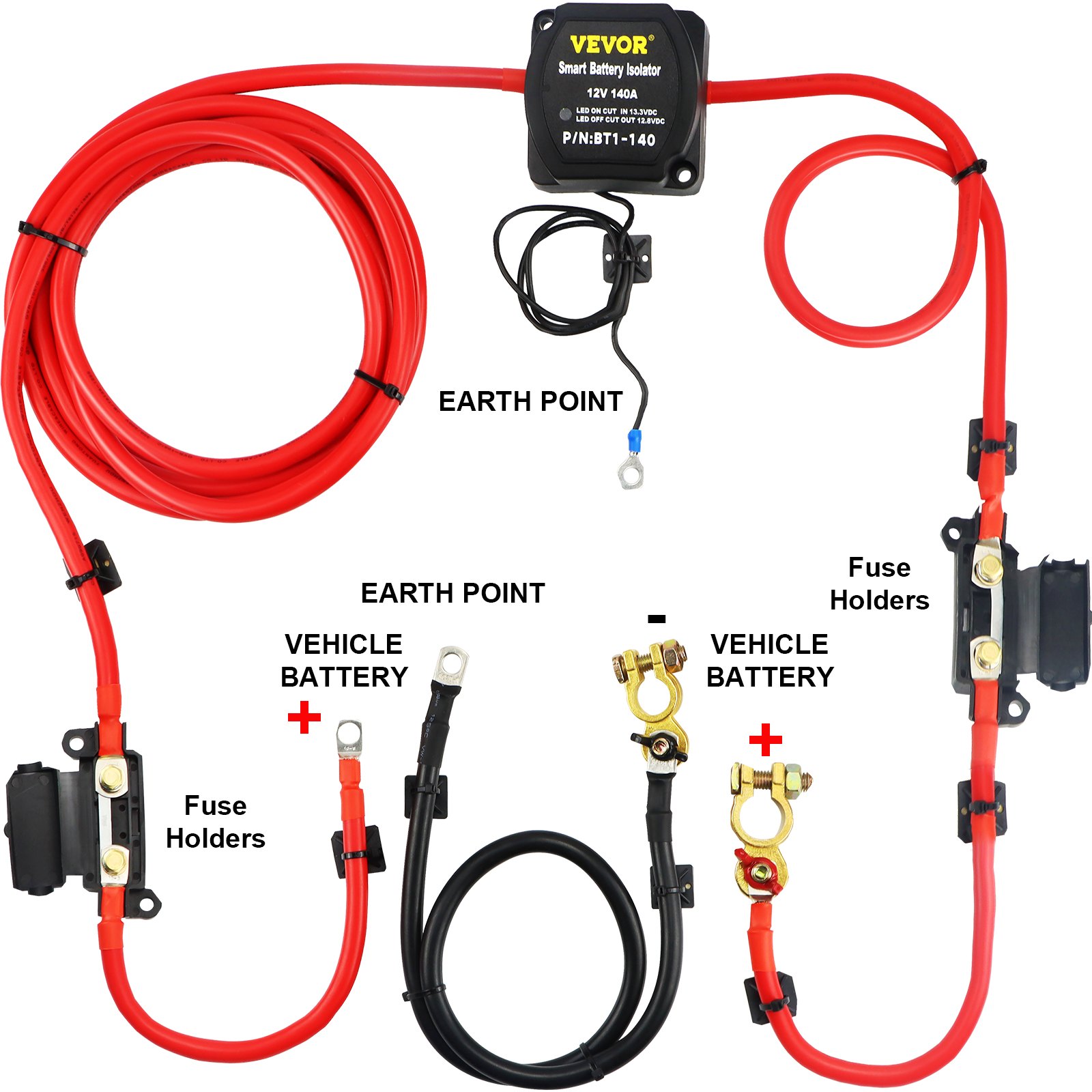

- 1 x Split Charge Relay
- 1 x 2 mtr Red Battery Cable 110A
- 1 x 1 mtr Black Ground Cable 110A
- 1 x Negative Marine Battery Terminal
- 1 x Positive Marine Battery Terminal
- 2 x Fuse Holders
- 3 x Lug Connector
- 3 x Insulated Blue Ring Terminal
- 15 x Cable Ties
- 2 x 250 mm Red 110A Cable
- 2 x Shrink Tube
- 1 x Drill Bit
- 1 x Black Split Conduit
- 1 x Set of Screws

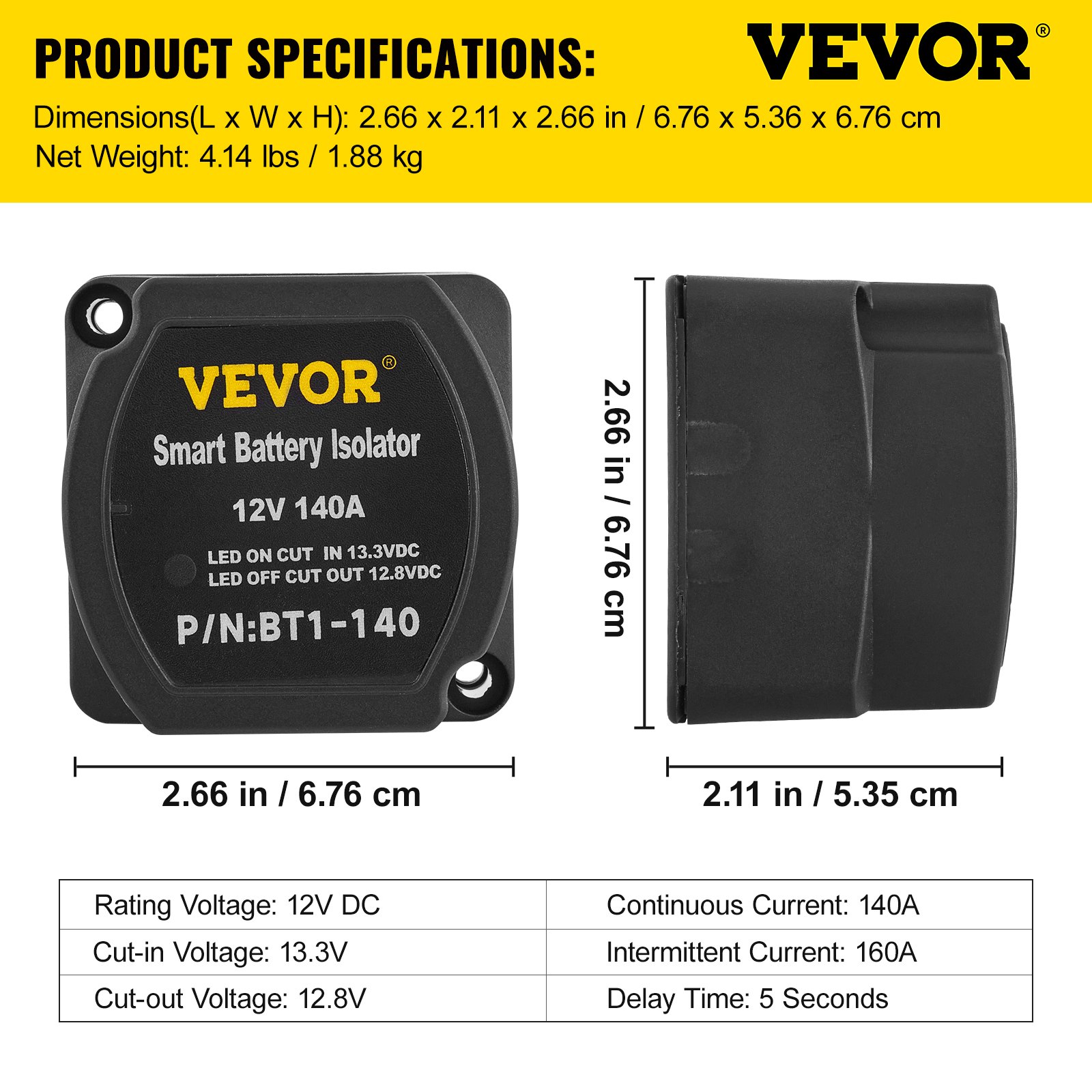

- Model: JDQTJ-2M
- Rating Voltage: 12V DC
- Continuous Current: 140A
- Intermittent Current: 160A
- Cut-in Voltage: 13.3V
- Cut-out Voltage: 12.8V
- IP Rating: IP65
- Material: Nylon Plastic
- Current Draw-Charging: 280mA
- Current Draw-Standby: 8mA
- Power Studs: M6 Stainless Steel
- Delay Time: 5 Seconds
- Disengage Delay: About 5-10 Seconds
- Operation Temperature Range: -30 to 105℃ / -22 to 221℉
- Item Dimensions(L x W x H): 2.66 x 2.11 x 2.66 in / 6.76 x 5.36 x 6.76 cm
- Net Weight: 4.14 lbs / 1.88 kg
