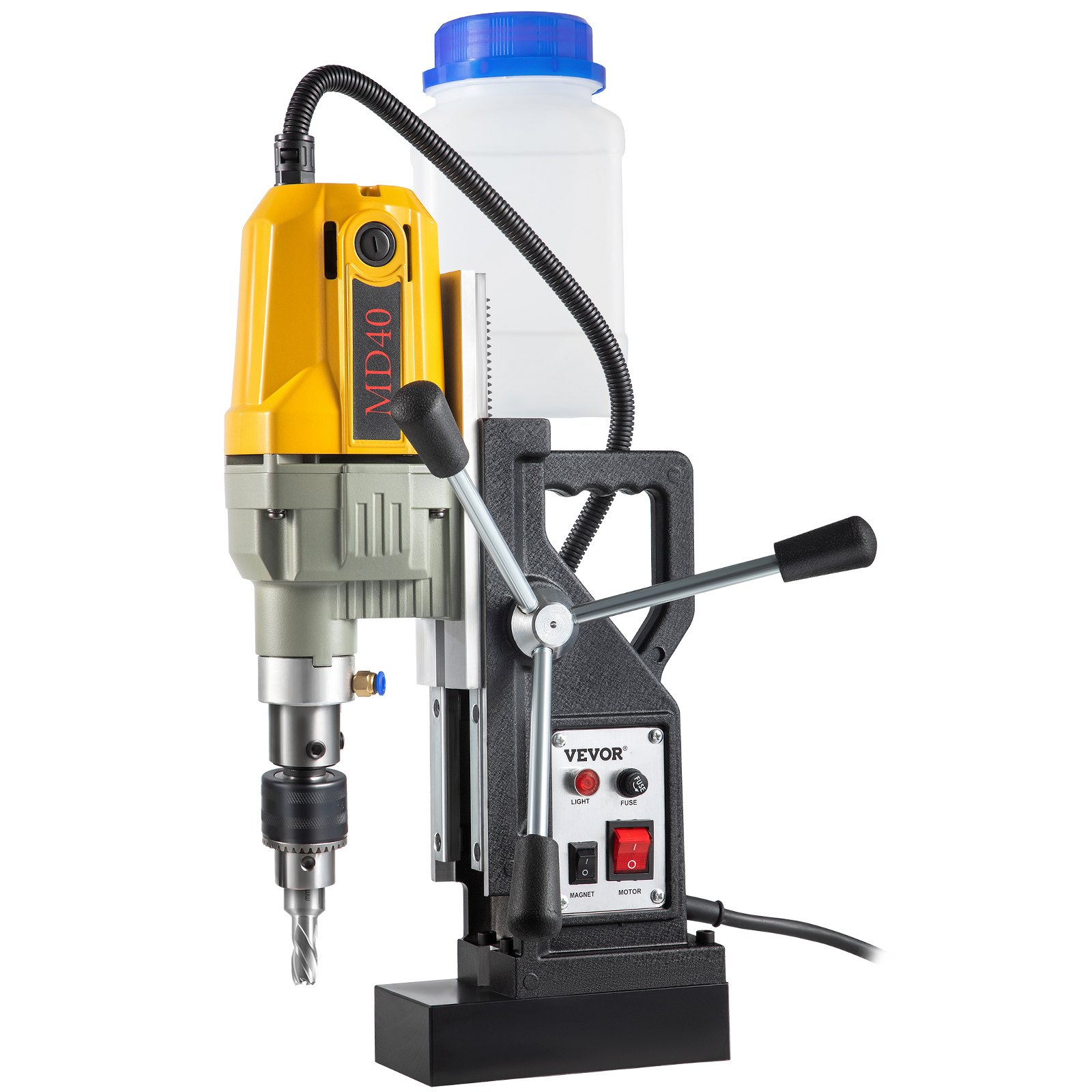

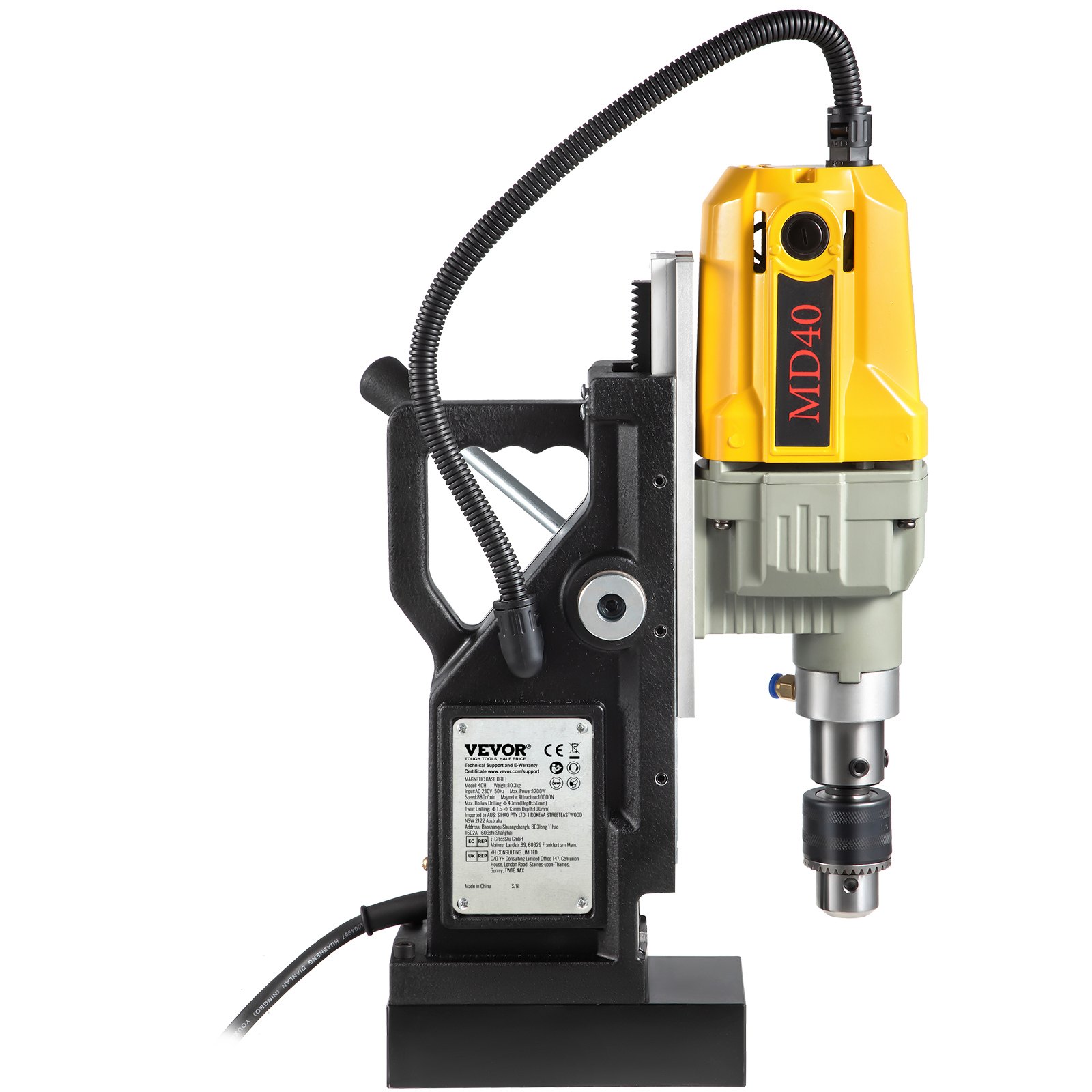

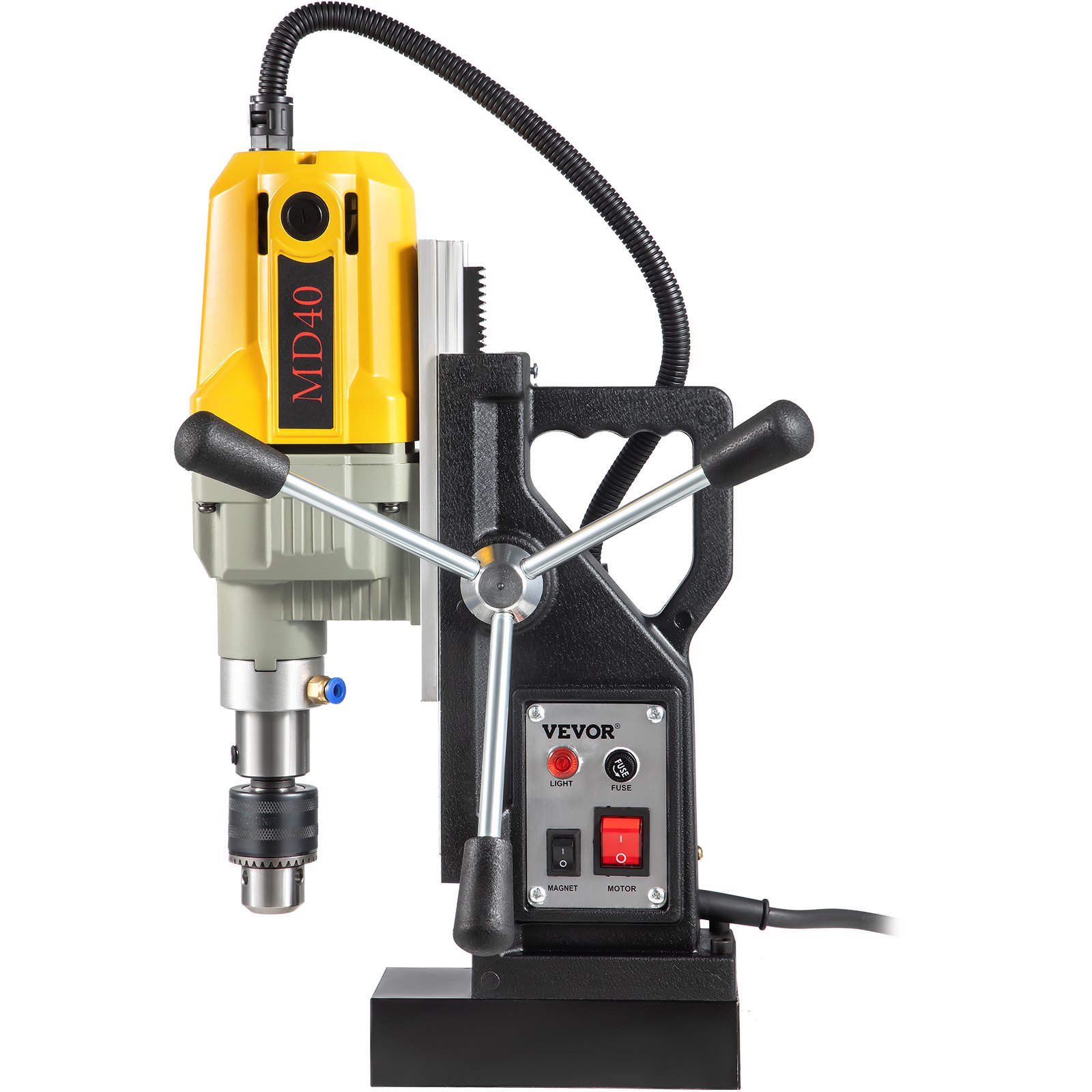

Electric Magnetic Drill Press
580RPM & 1100W & 4.92" Travel Distance
Our portable drill press is best used with the included precision drill bits. It is capable of drilling into your toughest materials, producing a 1.57" diameter bore up to 2.17" deep. Thanks to its 1100W copper motor, this line boring machine generates enormous power without sacrificing long-lasting stable performance. The spacious coolant tank protects your drill press lift from overheating and further extends its service life. Its solid magnetic adhesion is 12000 N, which provides it with the necessary capabilities to perform multidirectional operations. Take power into your own hands, and use our drill to break through any material. Accuracy and precision can all be yours.
- Superior Performance
- Premium Coring & Twist Bits
- 12,000 N Magnetic Force
- Cooling System & User-friendly Designs

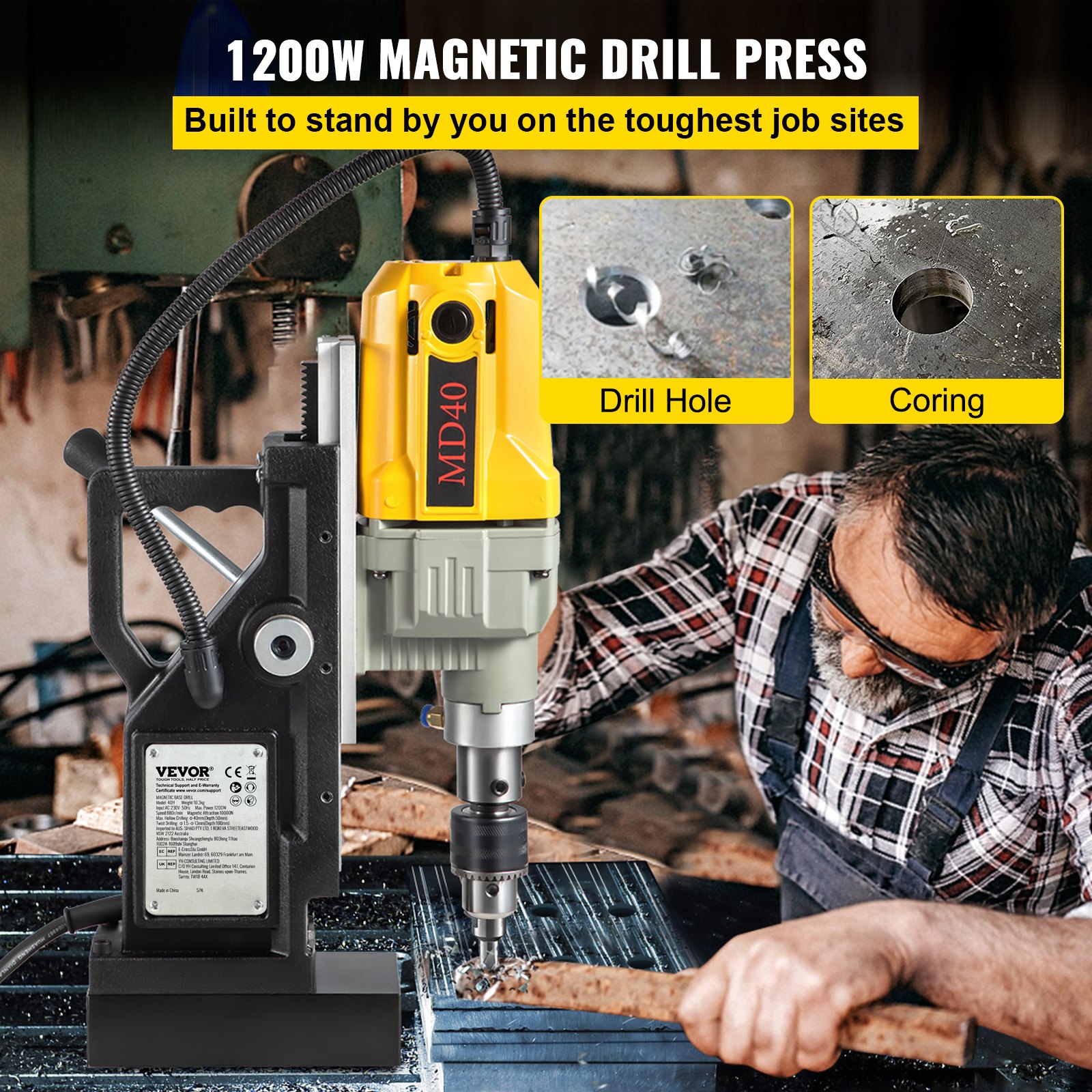

Excellent Performance
Designed for precise and demanding coring, this mag base drill features 1100 watts of motor power. Max. Coring Diameter: 1.57"/40 mm; Max. Travel Distance: 4.92"/125 mm.

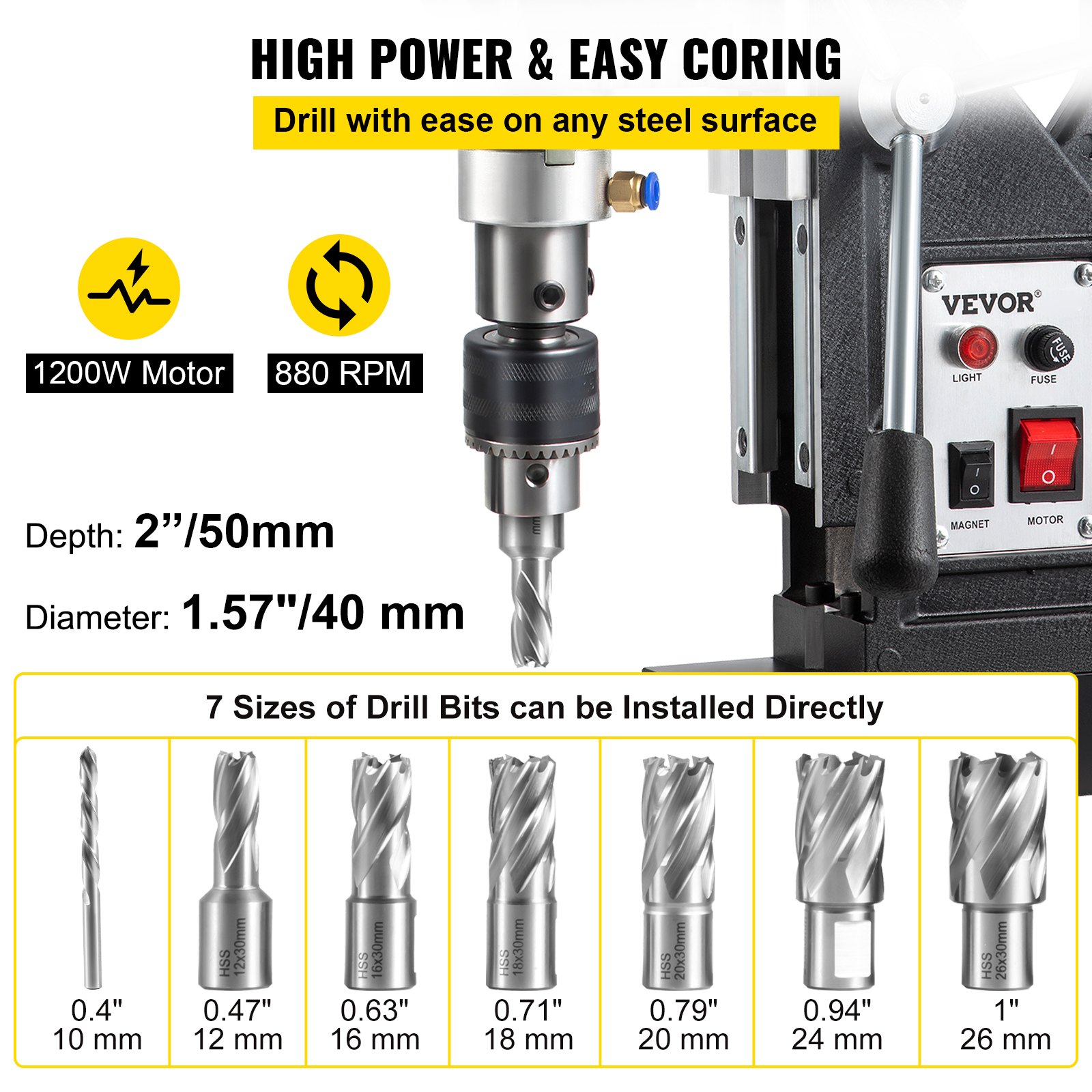

Seven Practical Bits
Ideal for you to handle work-pieces of any size, ensuring your magnetic power drill drills faster with the included core drill bits than with the regular bits.

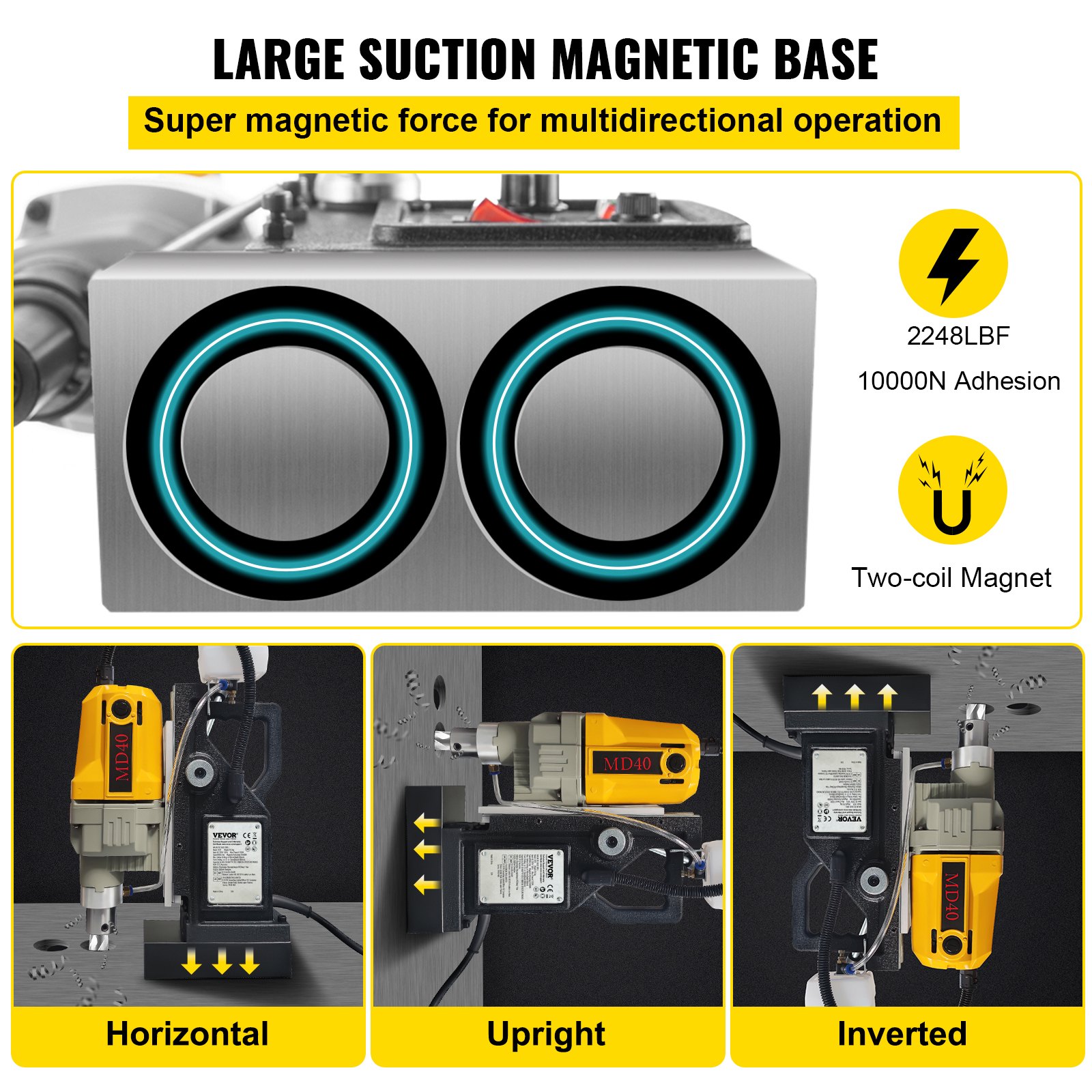

2697lbf/12000N Suction Power
The nearly pure iron base anchors the mag drill press solidly during work as a powerful electromagnet with a 2697 pounds' force (12,000 N), preventing movement during the drilling process.

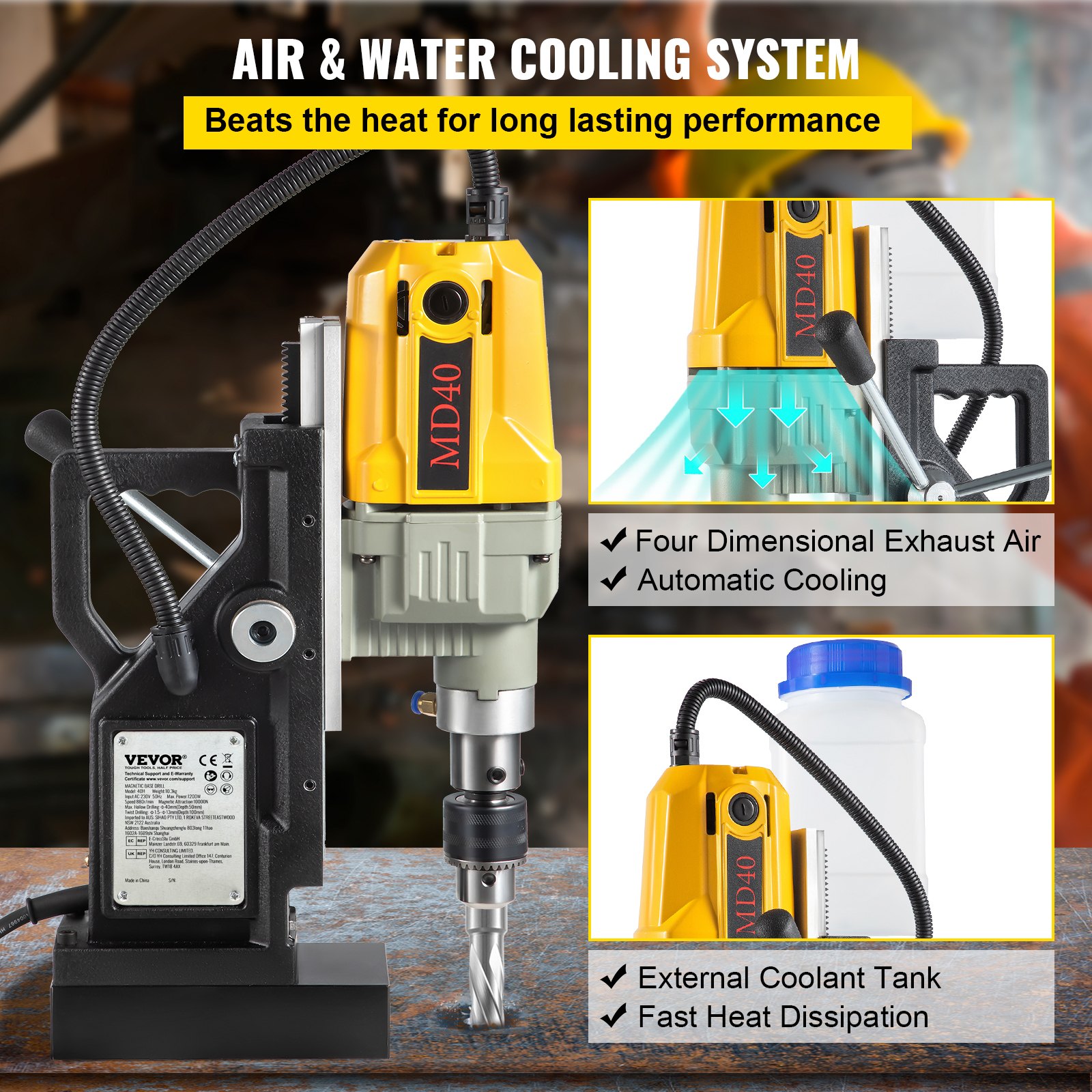

Efficient Cooling System
The portable drill press features a detachable, integrated coolant system that will help significantly increase the life expectancy of your drill bits as well as your cutters. What's more, dustproof air inlets and exhaust air holes for temperature reduction.

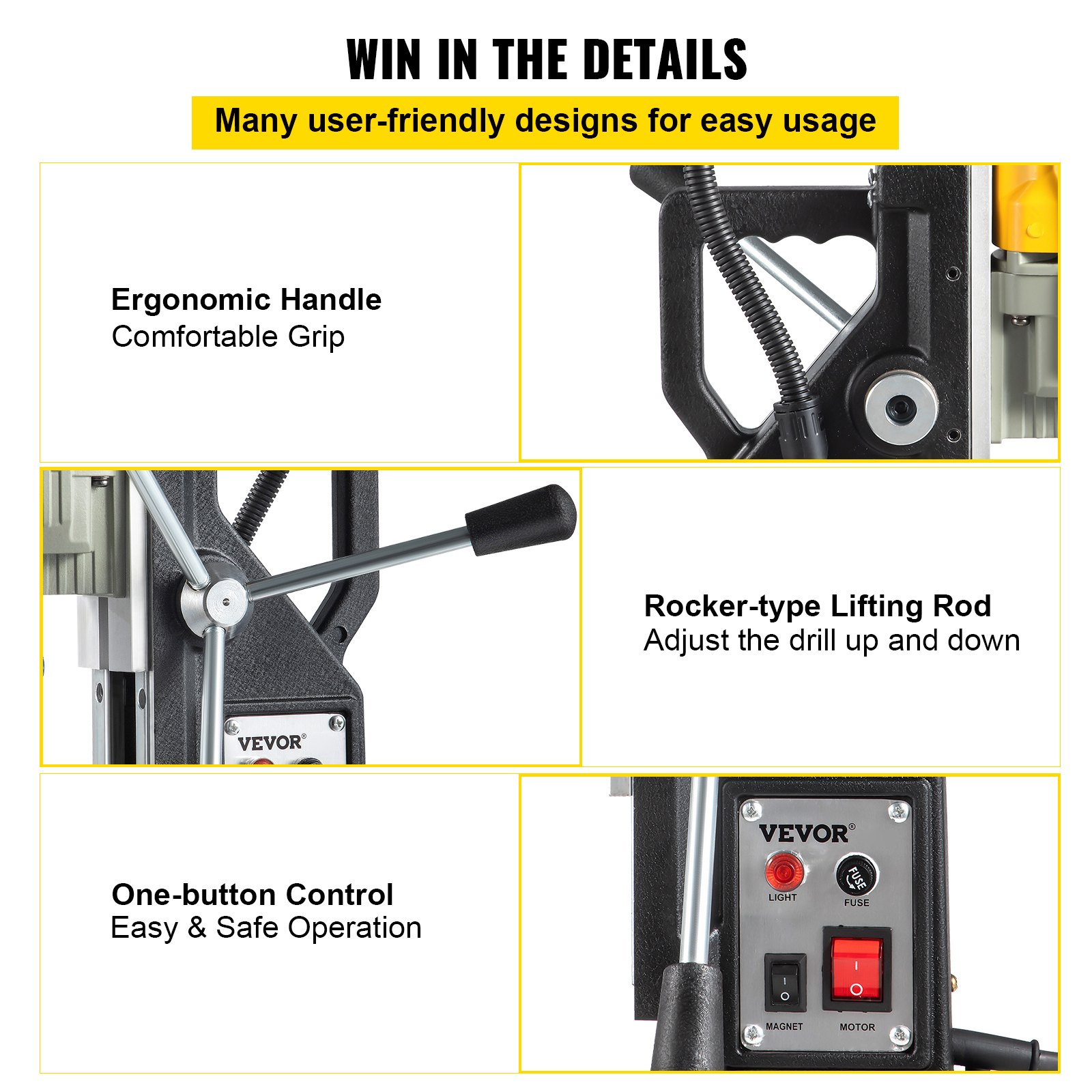

Optimal Design
Three extended crank rods allow you to adjust the drill up and down with minimum effort. Ergonomically handles for easy carrying. Besides, a simple control panel allows easy operation.

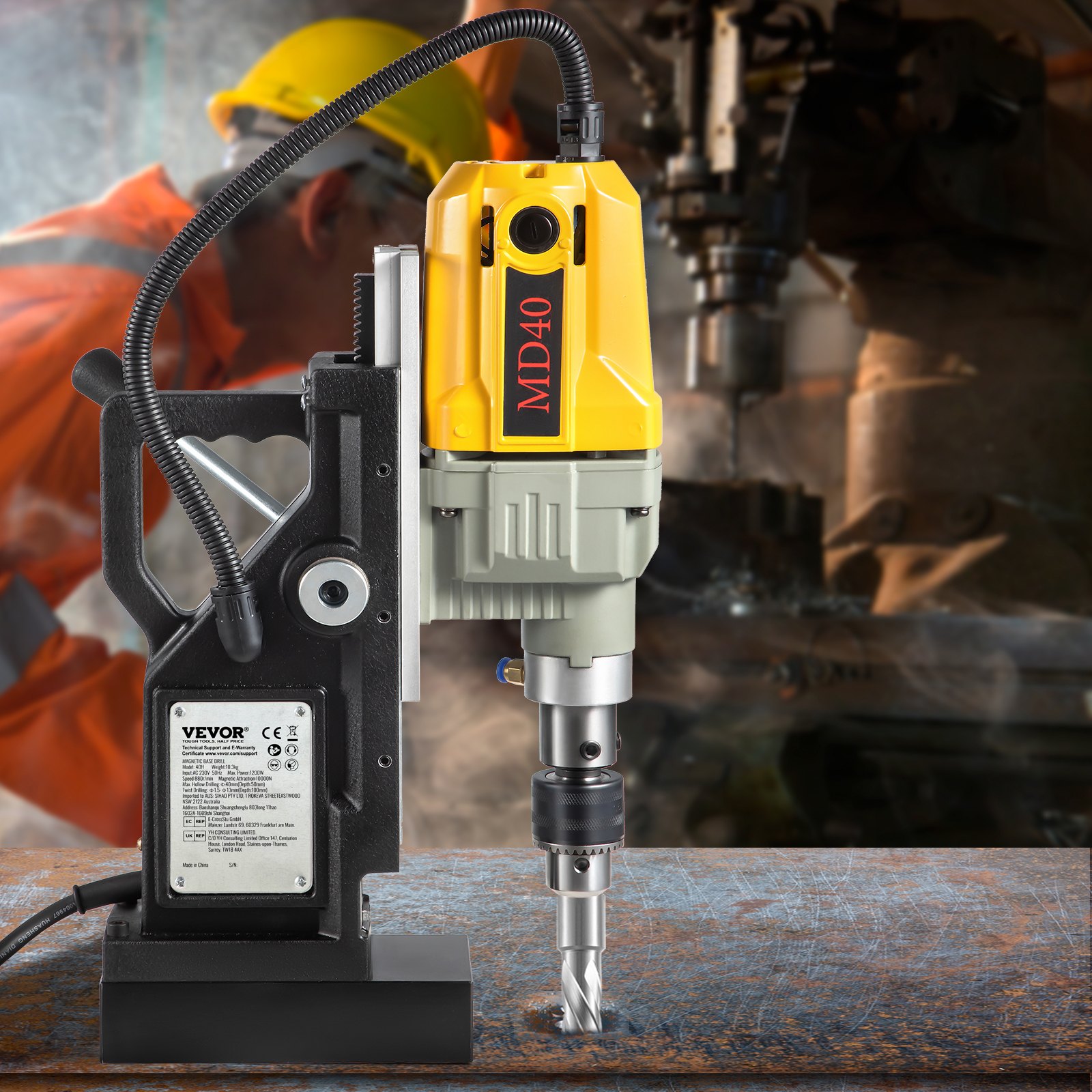

Versatile Usage
Our magnetic base drill is used in steel structures, shipbuilding, bridge construction, wind power generation, drilling, electric power construction, and many other fields.

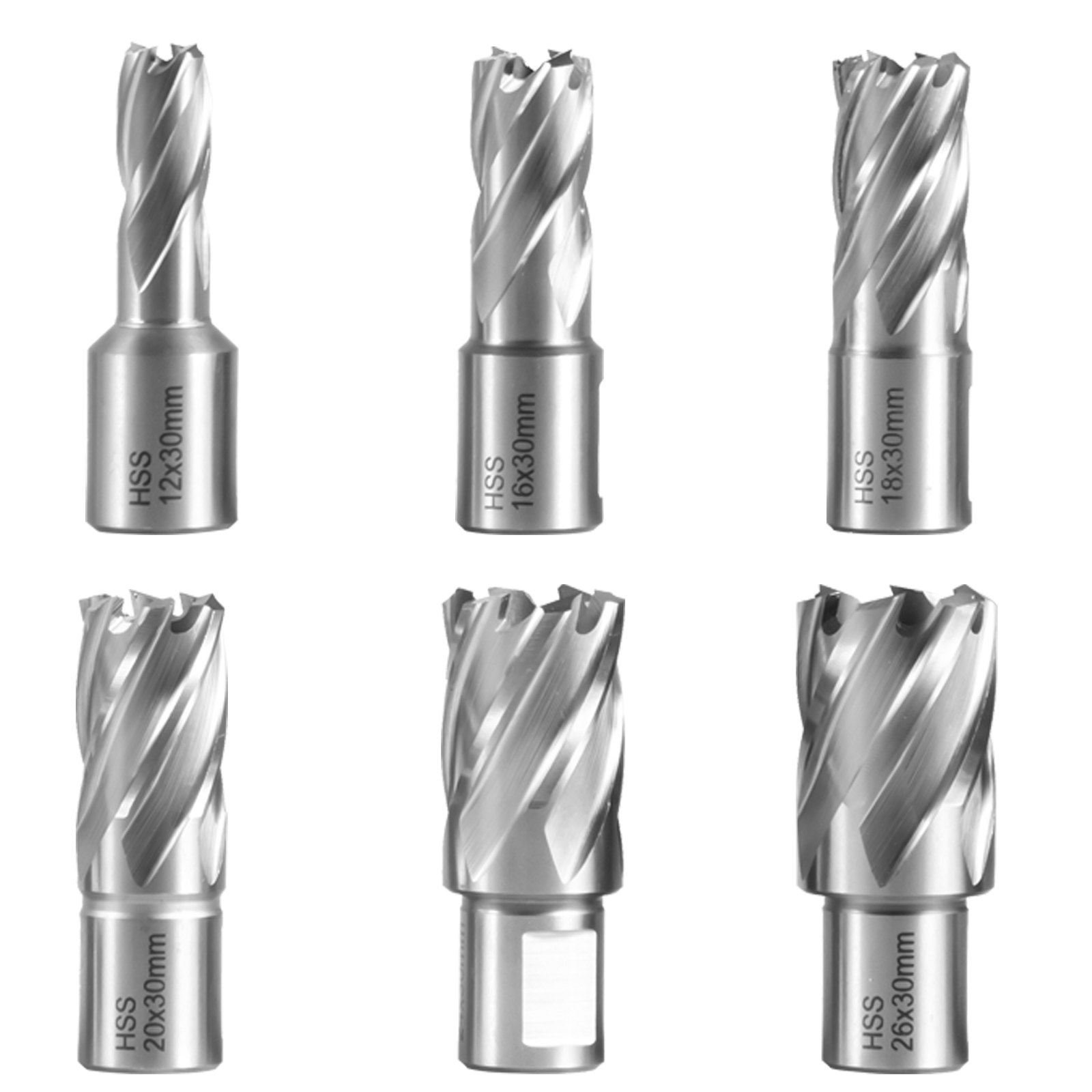

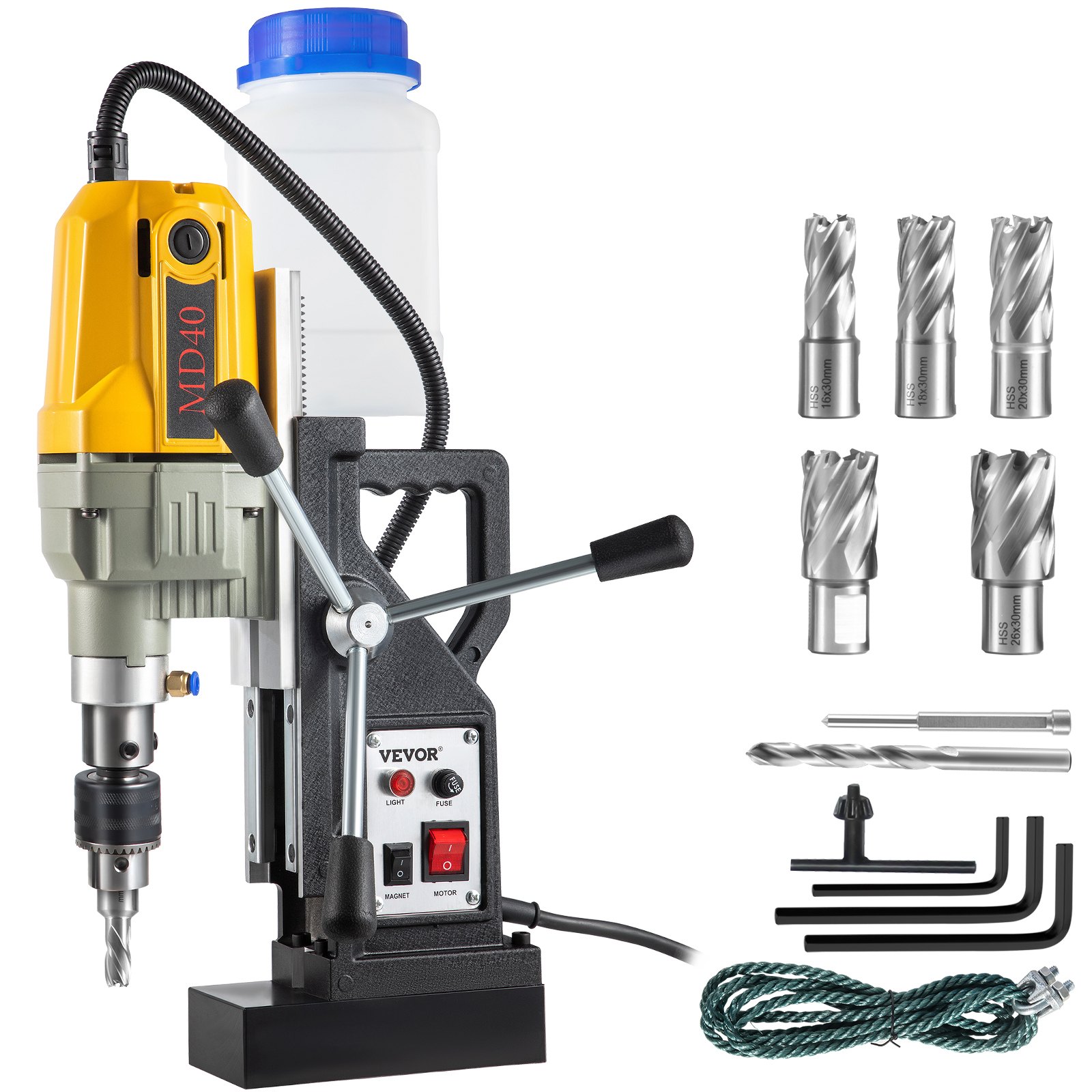

- 6 x Coring Bits (Φ0.47"/12 mm, Φ0.63"/16 mm, Φ0.71"/18 mm, Φ0.79"/20 mm, Φ0.94"/24 mm, Φ1"/26 mm)
- 1 x Twist Drill (Φ0.4"/10 mm)
- 1 x Coolant Tank
- 1 x Drill Chuck
- 1 x Thimble (0.25"x 4"/6.34 x 102 mm)
- 1 x Rope
- 1 x Manual
- Model: VV-MD-UK7
- Power: 1100W, 50/60Hz, 220V, 5A
- Max. Boring Diameter(Coring Drill): 1.57"/40 mm
- Max. Boring Diameter(Twist Drill): 0.63"/16 mm
- Max. Travel Distance: 4.92"/125 mm
- Rotate Speed: 580 rpm
- Magnetic Force: 2697lbf/12000N
- Magnetic Base Size: 6.54" x 3.15" x 1.97"/166 x 80 x 50 mm
- Max. Boring Depth: 2.17"/55 mm
- Product Size: 14.2" x 11" x 4.7"/36 x 28 x 12 cm
- Product Weight: 24.25lb/11kg
